USER MANUAL MD210 BT Auna
Congratulations on purchasing this product. Please read and follow these instructions, in order to avoid damaging the item. We do not cover any damages that may arise from improper use of the item or the disregard of the safety instructions.
Important Safety Advice
- Read all instructions before using.
- To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs or device in water or other liquids.
- Do not expose the appliance to extreme temperatures. The appliance shall be used in moderate climates.
- The use of attachments that are not recommended by the appliance manufacturer may result in fire, electric shock or personal injury.
- Do not open the unit by removing any cover parts. Do not attempt to repair the unit. Any repairs or servicing should be done by qualified personell only.
- Only qualified persons may perform technical work on the product. The product may not be opened or changed. The components cannot be serviced by the user. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications.
The appliance is not a toy. Do not let children play with it. Never let children insert foreign objects into the appliance.
- Never clean the surface of the device with solvents, paint thinners, cleansers or other chemical products. Instead, use a soft, dry cloth or soft brush.
- This appliance is to be used with 12V car power supply.
- Save these instructions.
Small objects
Keep small objects (i.e. screws, mounting material, memory cards etc.) and packaging out of the range of children. Do not let Children play with foil. Choking hazard!
Transporting the device
Please keep the original packaging. To gain sufficient protection of the device while shipment or transportation, make sure to put it back in its original packaging.
Cleaning the surface
Do not use any volatile liquids, detergents or the like. Use a clean dry cloth.
Installation
- Choose the mounting location where the unit will not interfere with the normal driving.
Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.
- Consult your nearest dealer if any other modifications of the vehicle are required.
Install the unit where it does not get in the driver's way and cannot injure any passenger.
- Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

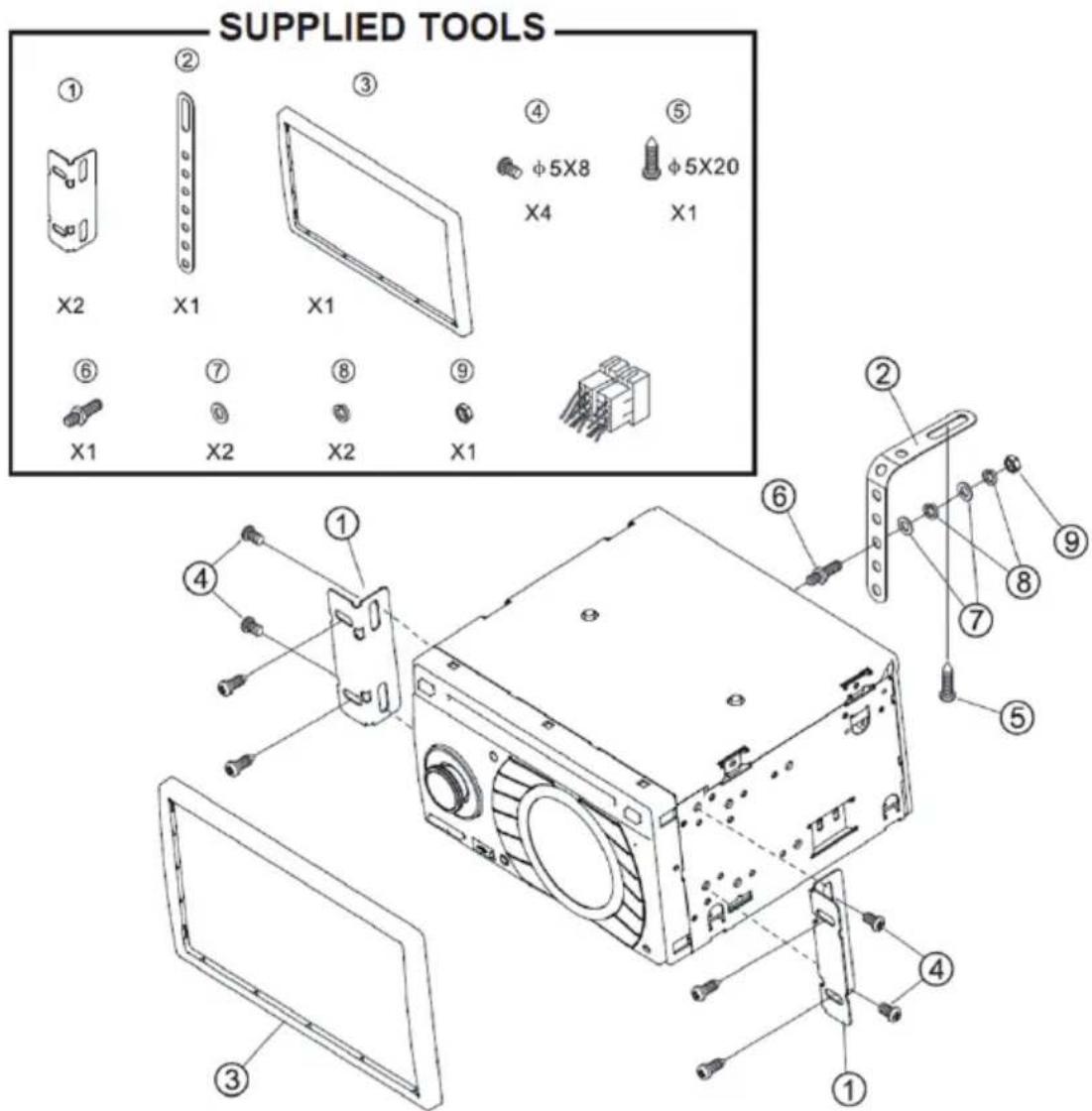

DIN FRONT/REAR-MOUNT
This unit can be properly installed either from „Front“(conventional DIN Front-mount) or „Rear“(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

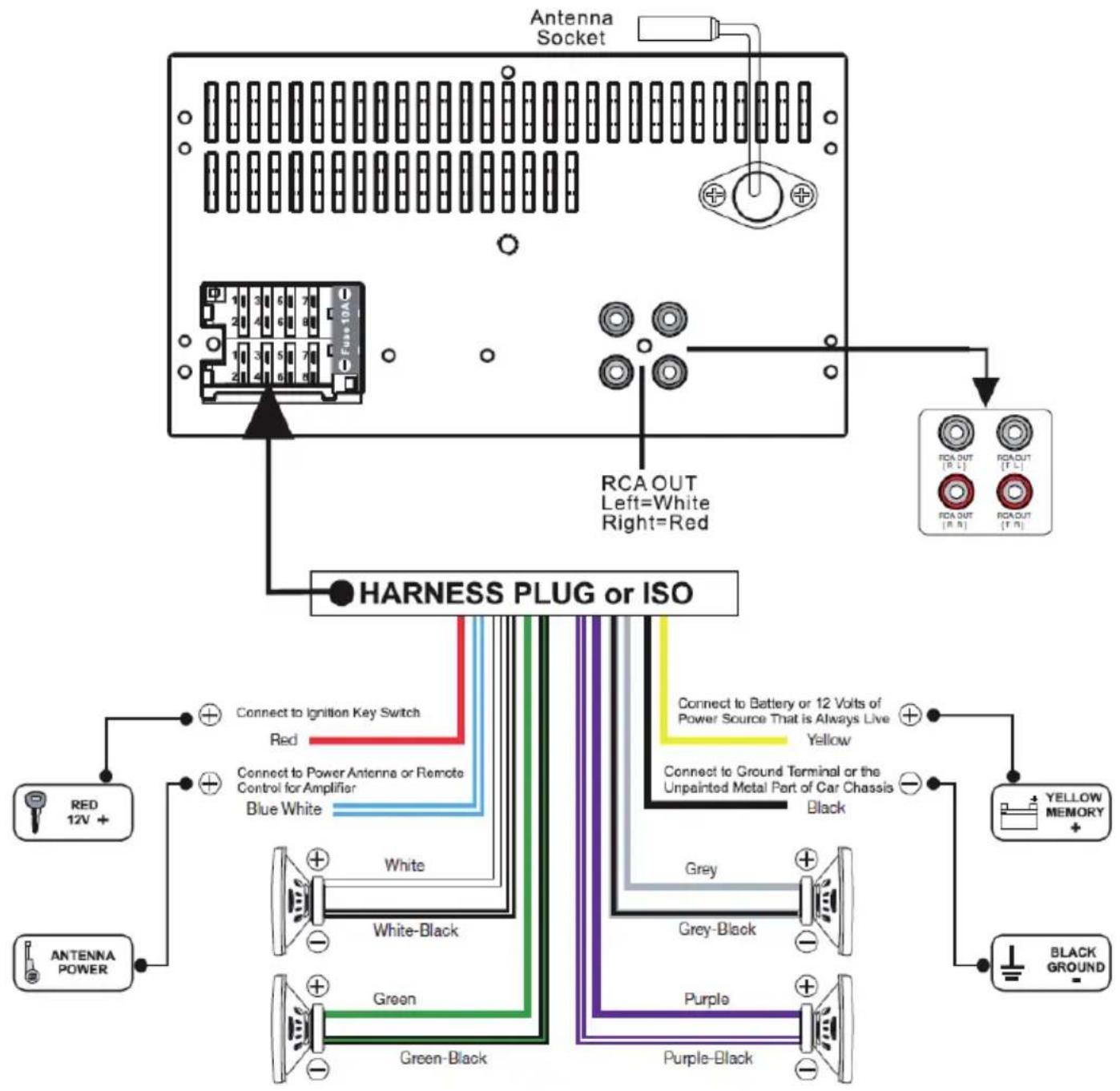

Connections

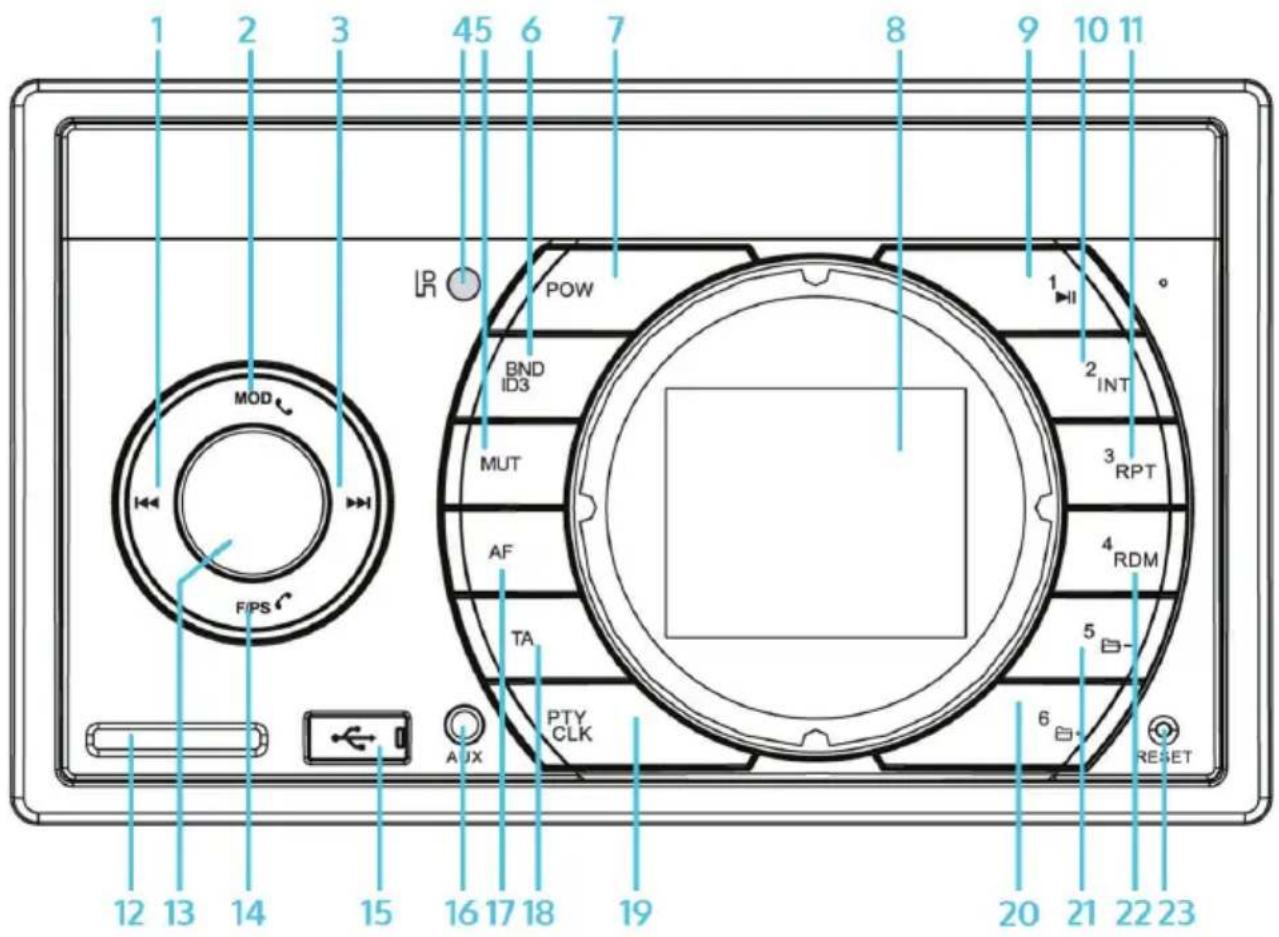

Controls
Back (track/media/radio) 113 SEL/Volume knob
Mode selection (in BT mode: Accept incoming calls)
214 Automatic station scan (in BT mode: decline incoming / end calls)
Next (track/media/radio) 15 USB slot
IR Sensor 4 16 AUX In
Mute / mute off 517 AF(on/off)
Band/ID3 18 TA on/off
On/off 719 PTY / Clock
Display B 20 # / Folder up
1/Play/Pause 21#5/Folder down
2/Introdome1022#4/Randommode
3/Repeat123RESET
SD slot 12

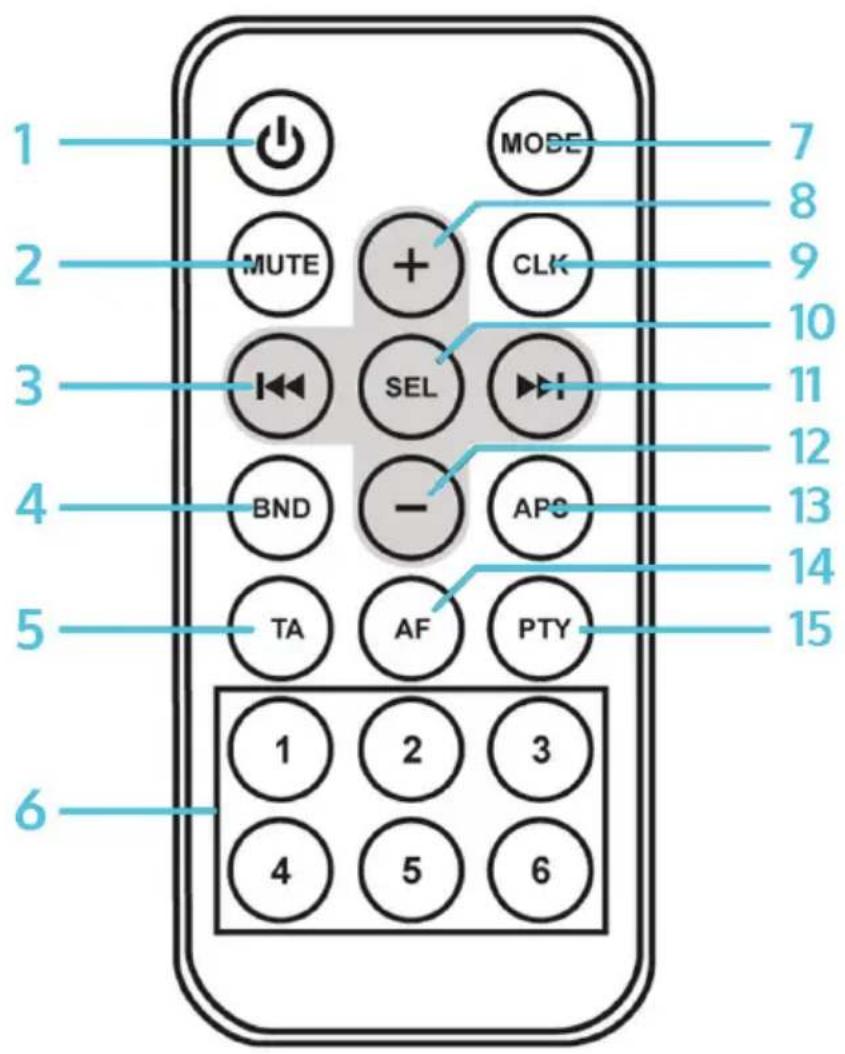

Remote Control
| On/off 19 Show clock |
| Mute / mute off 2 10 SELECT |
| Back (track/media/radio) 3 11 Next (track/media/radio) |
| Band 4 12 VOL- |
| TA (on/off) 5 13 Automatic station scan |
| Num keys 1-6 6 14 AF (on/off) |
| Mode selection 7 15 PTY (on/off) |
| VOL+ 8 |
Operation
Basics
On/off Press POWER to turn the device on or off.
Mode selection Press MODE to select from the different modes.
Loudness Press SEL repeatedly until the display shows LOUD ON or LOUD OFF. Turn the volume knob to select out of these options (press SEL to confirm).
Mute Press MUTE to mute or unmute the audio output.
Volume Turn the volume knob clockwise to increase, anti-clockwise to decrease the volume.
| Bass | Press SEL repeatedly until the display shows BAS. Turn the volume knob to adjust the bass. (Inactive when in DSP mode) |
| Treble | Press SEL repeatedly until the display shows TRE. Turn the volume knob to adjust the treble. (Inactive when in DSP mode) |
| Balance | Press SEL repeatedly until the display shows BAL. Turn the volume knob to adjust the stereo balance. |
| Fader | Press SEL repeatedly until the display shows FAD. Turn the volume knob to adjust the fader. |
| DSP EQ mode | Press SEL repeatedly until the display shows EQ. Turn the volume knob to select from FLAT, ROCK, POP or CLASS. In FLAT mode, DSP is set inactive. |
| Beep | Press SEL repeatedly until the display shows BEEP. Turn the volume knob to adjust the keys „beeps" or deactivate completely. |
| Standard Volume | Press and hold SEL for 2 seconds untin TA ALARM is displayed. Then, press SEL repeatedly until P_VOL is displayed. Adjust by turning the volume knob (standard output volume when turning the device on). |
| Press and hold CLK to display the time. Keep holding, until the time display starts flashing. |
| Clock | By turning the vol knob you can now change the hour. Press SEL to process to changing the minutes. After successfully changing the displayed time, press CLK to save and confirm. |
FM Radio
Band Select Press BND repeatedly to select from band FM1, FM2, FM3, AM1, AM2.
Manual Station Press Back/Next to manually scroll through the frequencies by steps of 0.05Mhz. Scan Press and hold for automatically scanning to the next available/receptable station.
Mono/Stereo Press SEL repeatedly to select mono or stereo receiving mode.
| Station storage | In each band, there are 6 station presets available (adding up to 30 presets). To save the current station to one of the presets, select one band and then press and hold the desired num key until the station is saved. |
| Automatic station scan | Press and hold F/PS for about 3 seconds to start a automatic scan for available/receptable stations. Received stations will automatically be saved to the available presets (max 30). |
| Local / DX | Press LOC repeatedly to activate the LOC menu. Turn the vol knob to select LOC on / LOC off. |
| RESET | Press and hold MOD and BND at the same time for 3 seconds to delete all saved stations and reset all changes. |
RDS Functions
| AF | Press and hold the Vol knob, to receive an optimal radio signal that will continuously be compared to any other available frequencies. If there is another frequency avail-ble sending the same program, the device switches to this frequency automatically to ensure unalloyd radio pleasure. |
| TA | Press and hold TA to activate / deactivate the TA (=traffic announcement) mode.When active, press and hold SEL for 2 seconds and choose between the available modes TA SEEK and TA ALARM by turning VOL. |
| PTY | Press and hold PTY to activate / deactivate PTY. You can choose from different pro-gram types using the num keys. Double press PTY to emphasize language/news oriented programs. Choose with 1-6 again. |
| Retune long/short | Press and hold SEL until TA SEEK is displayed. Choose between long and short search intervals for the TA function by pressing SEL repeatedly. |
BT
| Pairing | The device is in pairing mode automatically. Just look for it in the list of available BT devices on your smartphone / tablet and connect. |
| Making calls | When makink a call, the hands free mode will be activated automatically and CALL OUT will be shown on the display.Incoming calls are marked CALL IN. If answered, the display shows BT TALK. Adjust the talk volume turning the vol knob. |
| Playing music | When the car radio and your BT device are properly paired, music that you play on the BT device will be put out via the car stereo. |
Disconnecting Use your BT device to disconnect BT.
USB and SD slots
Playback from Insert USB drives or SD cards into the appropriate slot on the front. Contained MP3 USB/SD files and WMA files will be played back automatically.
Mode selection Select another mode pressing MOD repeatedly.
Search Either, use NEXT/BACK to navigate through your media library, or Press F/PS. The current title number will display. Navigate turning the vol knob and select with SEL.
ID3 display ID3 tags will be displayed automatically if available.
Play/Pause Press Play/Pause.
Intro function Press INT for the intro function (the first 10 seconds of each song will be played).
Repeat mode Press RPT for repeating the current track. Press again to stop repeating.
Shuffle mode Press RDM for playing all contained files in a random order.
Folders Press 5 and 6 to navigate through folders.
Connect the line out of your external media player (like a cd player or mp3 player) with the 3.5mm audio input. Use your external player to play back music. Don't forget to turn it up. Use the radio's volume knob to change the volume.
