USER MANUAL POA8K3S Avanti

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products LLC

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

TABLE OF CONTENTS

Important Safety Instructions	3
Help Us Help You	4
Parts and Features	5
Installation Instructions	6
Before Using Your Appliance	6
Installation of Your Appliance	6
Electrical Connection	6
Operating Your Appliance	7 – 10
Control Panel	7
Using Your Oven	8 – 10
Care and Maintenance	10
Cleaning Your Appliance	10
Storing Your Appliance	10
Troubleshooting Guide	11
Service for Your Appliance	11
Your Avanti Products Warranty	12
Instrucciones en Español	13 – 20
Instructions en Français	21 – 30
Registration Information	Last

IMPORTANT SAFETY INSTRUCTIONS

~ WARNING~

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

When using electrical appliances, basic safety precautions should always be followed including the following:

READ ALL INSTRUCTIONS, PRODUCT LABELS AND WARNINGS BEFORE USING THE APPLIANCE.

• Do not touch hot surfaces, use handles or knobs. Always use oven mitts when handling hot materials and allow metal parts to cool before cleaning. Allow the unit to cool thoroughly before putting in or taking off parts.
• When the unit is not in use and before cleaning, unplug the appliance from the wall outlet. Make sure the appliance is turned off before unplugging.
  • To protect against risk of electrical shock, do not immerse the appliance in water or any other liquids.
• Don't leave children alone or unattended where the appliance is hot or in operation. This appliance is not designed to be used by children.
• Never use your appliance for heating the room. Your oven is not designed to heat your kitchen.
• Do not operate this or any appliance with a frayed or damaged cord or plug, after the appliance malfunctions, is dropped or has been damaged in any manner.
• Do not use attachments not recommended by the manufacturer; they may cause fire, electric shock or personal injury.
• Do not use outdoors or for commercial purposes.
• Do not use this appliance for other than its intended use.
• Do not let the cord dangle over the edge of a tabletop, countertop or to touch hot surfaces.
• Do not place the appliance near a hot gas, electric burner or in a heated oven.
  • Extreme caution should be used when using containers constructed of other than metal or glass.
• A fire may occur if the appliance is covered or touching flammable materials, including curtains, draperies, walls, etc., when in operation. Do not store any items on top of the appliance when in operation.
• Do not store any materials, other than manufacturer's recommended accessories in this unit when not in use.
• Do not place any flammable materials in the appliance, such as paper, cardboard, plastic or any materials that may catch fire or melt.
• Never clean the appliance with flammable liquids. The fumes can create a fire hazard or explosion.
• Do not cover the appliance with metal foil. This will cause overheating of the appliance.
• Oversized foods or metal utensils must not be inserted in the appliance as they may create a fire or risk of electrical shock.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electrical shock.
• When broiling, use extreme caution when removing tray or disposing of hot grease.
• To turn this appliance off, return all controls to the "0" / "OFF" position, then remove the plug from wall outlet.
  • Cooked food can be very hot, especially pastry filling. Handle with care.
• Never pick up a flaming pan. Turns the controls off. Smother a flaming pan on a surface unit by covering the pan completely with a well-fitting lid.
• Do not use water on grease fires. Flaming grease outside a pan can be put out by covering it with baking soda, multipurpose dry chemical, or fire extinguisher. Flame in the oven can be smothered completely by closing the oven door and turning the oven off or by using baking soda, multipurpose
  dry chemical, or fire extinguisher.

This Unit Is For Household Use Only

SAVE THESE INSTRUCTIONS -

Prop. 65 Warning for California Residents

WARNING

CANCER AND

REPRODUCTIVE HARM

www.P65Warnings.ca.gov

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new appliance properly.

Keep it handy to answer your questions.

If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

Write down the model and serial numbers.

You'll find them on a label located on the back side of the unit.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your appliance.

If you received a damaged appliance, immediately contact the dealer (or builder) that sold you the appliance.

Save time and money. Before you call for service, check the Problem Solver Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your appliance. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172 USA

PARTS AND FEATURES

Labeled diagram of a microwave oven assembly showing interior components and exterior views

a	Digital Display
b	Control Panel
c	Heating Element
d	Glass Door
e	Handle
f	Air Fryer Rack
g	Oven Rack
h	Baking Tray
i	Crumb Tray
j	Pan Removal Tool

INSTALLATION INSTRUCTIONS

ÿ Before Using Your Appliance

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:

1	Bake / Broil / Drip Pan	1	Air Fry Rack
1	Oven Rack	1	Crumb Tray
1	Tray Removal Tool	1	Instruction Manual

• Remove all the items inside your oven and clean the interior surface with lukewarm water using a soft cloth.
• Do not attempt to repair or replace any part of your oven unless it is specially recommended in this manual.
  • This appliance requires 1800W and should be the only appliance operating on the circuit.

NOTICE

BEFORE YOU USE THIS OVEN FOR THE FIRST TIME: THE HEATING ELEMENTS HAVE A PROTECTIVE COATING, WHICH MUST BE BURNED OFF BEFORE USE. TO DO THIS, OPEN THE OVEN DOOR, PRESS THE FUNCTION BUTTON, SELECT THE BAKE SETTING, THEN SET THE TEMPERATURE TO 450°F. LEAVE THE APPLIANCE SWITCHED ON FOR APPROXIMATELY 15 MINUTES. IT IS IMPORTANT TO ENSURE ADEQUATE VENTILATION DURING PERIOD AS A BURNING SMELL IS NORMAL DURING THIS PROCESS.

Installation of Your Appliance

Select a location for the appliance. The location should be in an open area on a flat counter where the plug will reach an outlet.

• When positioning the appliance, it should be set on a flat, steady surface.
• Do not block air vents. If they are blocked during operation, the oven may overheat and eventually cause the appliance failure.
• Keep the appliance away from hot air, steam or splashing liquids when choosing a place to locate it, otherwise, the unit's operation may be adversely affected, causing it to break down.
• Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• Plug the appliance into an exclusive properly installed grounded wall outlet. Any questions concerning power should be directed toward a certified electrician or an authorized Avanti Products service center.
• Do not place anything on the top of the broiler oven and automatic toaster.
• Keep the appliance at least 5 inches away from rear wall to ensure the proper ventilation.

Electrical Connection

• The appliance has a polarized plug (One blade is wider than the other), to reduce the risk of electric shock, this plug is intended to fit into the polarized outlet only one way. If the plug does not fit fully into the outlet, reserve the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• A short power cord is provided to reduce the hazards resulting from entanglement or tripping over a longer cord. An extension cord may be used with care, however, be sure the marked electrical rating is at least as great as the rating of this appliance. The extension cord should be positioned such that it does not drape over the counter or tabletop where it can be pulled on by children or tripped over. The electrical rating of this appliance is listed on the bottom panel of the appliance.

OPERATING YOUR APPLIANCE

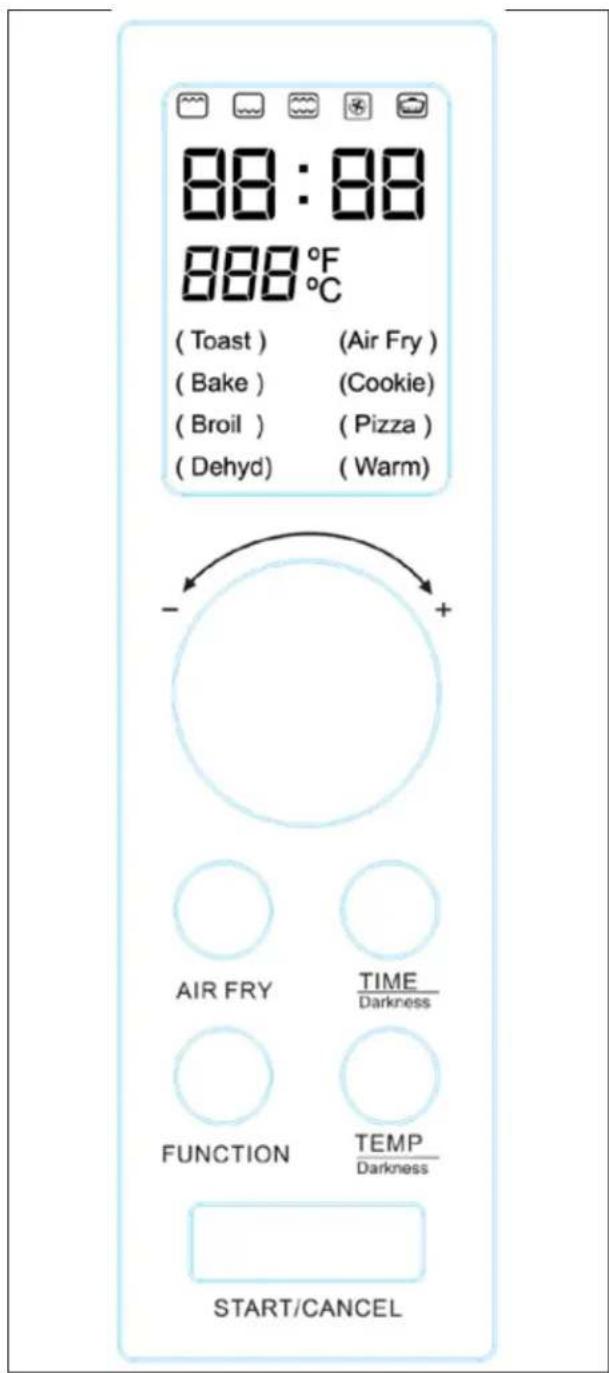

ÿ Control Panel

88:88 888°F (Toast) (Air Fry) (Bake) (Cookie) (Broil) (Pizza) (Dehyd) (Warm) - + AIR FRY TIME Darkness FUNCTION TEMP Darkness START/CANCEL

COOKING FUNCTION SELECTIONS

Select the appropriate function for your use.

There are EIGHT (8) Pre-programmed functions:

Program	Default time (Minutes)	Default temp. °F	Time adjustment	Temp. adjustment	Default function mode
TOAST \	480		6 Shade Settings1 – Lightest6 – Darkest	NO Upper / Lower Elements
Air Fry 20	400°F		Adjustable to 90 Minutes	Adjustable 150° - 400°F	Upper / Lower ElementsConvection Fan
BAKE 30	350°F		Adjustable to 90 Minutes	Adjustable 150° - 450°F	Upper / Lower Elements
COOKIE 18	350°F		Adjustable to 90 Minutes	Adjustable 150° - 450°F	Upper / Lower Elements
BROIL	30	450°F	Adjustable to 90 Minutes	NO Upper / Lower Elements
PIZZA 20	400°F		Adjustable to 90 Minutes	Adjustable 150° - 450°F	Upper / Lower Elements
DEHYD DEHYDRATE	12 Hours	150°F	Adjustable up to 12 hours	NO Upper Element
WARM 30	180°F		Adjustable to 90 minutes	130° - 180°F	Lower Element

NOTE:

Heating elements will cycle on and off during the selected function to maintain the appropriate temperature.

OPERATING YOUR OVEN / AIR FRYERPress the FUNCTION button to activate the control panel to select any of the cooking functions below: (When the cooking cycle is completed, open door fully and remove food carefully.)

TOASTPress the function button.Turn the selector knob until the TOAST function is flashing on the display.Press the Time / Darkness or Temp / Darkness button and turn the knob to select the desired toast shade (1 is the lightest – 6 is the darkest).Press the Start / Cancel button to either start or stop the cooking cycle.Different types of bread require different toasting times. Lighter breads and waffles require a shorter toasting time. Darker breads, muffins, and English muffins require a longer toasting time.

AIR FRYPress the Air Fry ButtonThe Air Fry program will flash on the display.Press the Start / Cancel button to start the pre-heating cycle, “PRE” will be shown in the LED display. After 5 minutes of pre-heating, the unit will beep to advise the oven is pre-heated.Open the door, place the food on the tray / air-fry rack, insert the tray / rack on the middle rack position and close the door.Press the Temp button and turn the knob to select the desired cooking temperature.Press the time button and turn the knob to select the desired cook time.Press the Start / Cancel button to either start or stop the cooking cycle.

BAKEPress the function button.Turn the selector knob until the BAKE function is flashing on the display.Press the Temp button and turn the knob to select the desired cooking temperature.Press the time button and turn the knob to select the desired cook time.Press the Start / Cancel button to either start or stop the cooking cycle.

COOKIEPress the function button.Turn the selector knob until the COOKIE function is flashing on the display.Press the Temp button and turn the knob to select the desired cooking temperature.Press the time button and turn the knob to select the desired cook time.Press the Start / Cancel button to either start or stop the cooking cycle.

BROILPress the function button.Turn the selector knob until the BROIL function is flashing on the display.Press the time button and turn the knob to select the desired cook time.Press the Start / Cancel button to either start or stop the cooking cycle.

PIZZAPress the function button.Turn the selector knob until the PIZZA function is flashing on the display.Press the Temp button and turn the knob to select the desired cooking temperature.

Press the time button and turn the knob to select the desired cook time.Press the Start / Cancel button to either start or stop the cooking cycle.

DEHYD - DEHYDRATEPress the function button.Turn the selector knob until the DEHYD function is flashing on the display.Press the time button and turn the knob to select the desired cook time.Press the Start / Cancel button to either start or stop the cooking cycle.

WARMPress the function button.Turn the selector knob until the WARM function is flashing on the display.Press the time button and turn the knob to select the desired cook time.Press the Start / Cancel button to either start or stop the cooking cycle.

CARE AND MAINTENANCE

ÿ Cleaning Your Appliance

Before cleaning your appliance, unplug it and allow it to cool.

Remove the crumb tray, wire rack and drip/baking pan.

Use a damp cloth to wash the inside with warm water and a mild detergent. Do not Immerse in Water!

Abrasive cleaners, scrubbing brushes and chemical cleaners may damage the continuous clean coating on this unit.

Wash the crumb tray, wire rack, drip/baking pan and metal handling tool with a mild detergent solution.

The glass oven door should be cleaned regularly with a non-abrasive liquid cleaner.

Rinse with a damp cloth and then a dry one.

The outside of the appliance should be cleaned with mild detergent and warm water.

CAUTION

Failure to unplug the appliance could result in electrical shock or personal injury.

ÿ Storing Your Appliance

Allow the appliance to cool completely before storing. If storing the appliance for long periods of time, make certain that the appliance is clean and free of food particles. Store the appliance in a dry location such as on a table or countertop or in a cupboard shelf. Other than the recommended cleaning, no further user maintenance should be necessary.

PROBLEMS WITH YOUR APPLIANCE?

You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEMS	POSSIBLE CAUSES/SOLUTIONS
• Appliance does not operate.	• Unit not plugged in. Plug the unit into a 120V AC electrical outlet.• The circuit breaker tripped or a blown fuse.• Be sure that the temperature, function and timer selectors are set.
• Only one heating element is heating up.	• Function setting selection determines which heating element will operate.• When toasting, make sure the oven is not set to BROIL setting.
• Heating elements are not heating up.	• Heating elements will cycle ON and OFF to maintain proper heat. Make sure function selector is positioned to the desired cooking setting.
• Overcooked/undercooked Foods	• Rack placement. Rack may need to be adjusted to accommodate different foods.
• Burnt Smell	• Food build-up inside appliance, on heating elements or in drip/baking pan. Refer to “Cleaning Your Appliance”

SERVICE FOR YOUR APPLIANCE

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your appliance inside and out.
YOUR AVANTI PRODUCTSWARRANTY	Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.
WHAT IS COVERED - LIMITED ONE-YEAR WARRANTYAvanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. During this period, Avanti Products will provide all parts and labor with the exception as detailed below necessary to correct such defects free of charge, so long as the product has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days.All Avanti appliances of 4.4 cubic feet capacity or less must be brought/sent to the appliance service center for repair.
FULL ONE YEAR WARRANTY FROM DATE OF PURCHASE ON ALL PARTS EXCEPT GLASS PARTS, AND/OR PARTS DAMAGED AS A RESULT OF MISUSE OR LACK OF REASONABLE CARE.REPLACEMENT PARTS AND REPAIR LABOR TO CORRECT DEFECTS IN MATERIALS OR WORKMANSHIP.SERVICE MUST BE PROVIDED BY AN AUTHORIZED SERVICE COMPANY
FULL 30-DAY WARRANTY FROM DATE OF PURCHASE ON GLASS PARTS AND FINISH OF PORCELAIN ENAMEL, PAINTED OR BRIGHT METAL FINISHED PARTS.REPLACEMENT PARTS AND REPAIR LABOR TO CORRECT DEFECTS IN MATERIAL OR WORKMANSHIP.SERVICE MUST BE PROVIDED BY AN AUTHORIZED SERVICE COMPANY.
WARRANTY EXCLUSIONS / WHAT IS NOT COVERED:The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti Products, including without limitation, one or more of the following:
·A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.·Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
·Content losses of food or other content due to spoilage.·Incidental or consequential damages·Parts and labor costs for the following will not be considered as warranty:·Inner door panels, door shelves, door rails, and/or door supports.·Light bulbs and/or plastic housing.·Plastic cabinet liners.·Shipping and handling costs associated with the replacement of the unit.	·Repairs performed by unauthorized servicers.·Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or any other acts of God.·Failure of the product if it is used for other than it intended purpose.·The warranty does not apply outside the Continental USA.·Surcharges including but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas.
In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed; service visits for customer education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely responsible for any structure and setting for the product, including all electrical, plumbing and/or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.
OUT OF WARRANTY PRODUCTAvanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product replacement, once this warranty has expired.Warranty - Portable Ovens
