TWM 1010 - Fan Orbegozo - Free user manual and instructions

Product type	Tower fan
Brand	Orbegozo
Model	TWM 1010
Supply voltage	230 V ~ 50 Hz
Power	45 W
Weight	4.40 kg
Dimensions (W x D x H)	310 x 310 x 890 mm
Oscillation	80 degrees
Number of speeds	3 (low, medium, high)
Operating modes	Normal, Natural, Sleep
Programmable timer	1 to 12 hours
Ionizer	Yes
Remote control	Yes
Digital display	Yes (temperature and timer)
Assembly required	Yes (screw-on base)
Use	Indoor only
Maintenance	Soft dry cloth, store in a cool dry place
Safety	Do not place near water, do not insert objects into the grille
Compliance	Low Voltage Directive 2014/35/EU, EMC 2014/30/EU

Frequently Asked Questions - TWM 1010 Orbegozo

How to assemble the fan base?

Pass the power cord through the middle of the two base pieces, then fit the pieces together and screw the base assembly onto the foot tube with the provided screws. Place the cord in the designated track.

How to use the remote control?

The remote control allows you to control the main functions: on/off, speed, mode, timer and ionizer. Point it towards the remote receiver of the fan.

How to set the timer?

Press the TIMER button to set the operating time from 1 to 12 hours. The digital display shows the setting.

What to do if the fan does not turn on?

Check that the appliance is properly plugged in and that the socket works. Make sure the fan is assembled correctly. If the problem persists, contact an authorized technical service.

How to clean the fan?

Unplug the appliance before cleaning. Use a soft dry cloth. Do not use oil, alcohol or chemicals. Avoid splashing water.

Can I use the fan outdoors?

No, this fan is designed for indoor use only. Do not use it near a window or where it could be exposed to rain.

The fan is noisy, what should I do?

Make sure the fan is on a stable, level surface. Check that no objects obstruct the blades or grille. If the noise persists, stop using it and contact technical service.

How to activate sleep mode?

Press the MODE button until selecting sleep mode. This mode gradually reduces the speed for optimal comfort during the night.

What is the range of the remote control?

The range of the remote control is not specified in the manual, but it generally works within a few meters in a room without major obstacles.

Where to find spare parts?

For spare parts, please contact Orbegozo's after-sales service via the email address indicated in the manual: [e-mail].

USER MANUAL TWM 1010 Orbegozo

Exterior view of a modern office building (no signage)

TWM 1010

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Diagram showing a mechanical component with arrows indicating direction, no text or symbols present

4. FUNCIONAMIENTO

Simple diagram of a cell with nucleus and cytoplasm, no text or labels present

Panel de control

Mando a distancia

5. ESPECIFICACIÓNES

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual,

you can ask for it writing an email to [e-mail] 14. WARNING: In case of misuse, there is a risk of possible injury.

• Never insert fingers, pencils or any other object through the grille when fan is running.
• Disconnect the plug when moving from one location to another.
• Be sure fan is on a stable, even surface when operating to avoid overturning.
• DO NOT use fan in window. Rain may create an electrical hazard. Do not leave the fan operating adjacent to an area where water has been collected to avoid the potential of electrical hazard.
• Do not hang or mount fan on a wall or ceiling.
• While cleaning, be sure to not splash water and do not use oil, alcohol or chemical articles as they may cause distortion of fan body and cause electrical hazards.
  • Make sure to keep the fan far away from humidity, chemical articles and oil.
• Keep away from curtain, clothing or other something may affect the fan's working.
• Turn off all switches and pull out power supply plug when you go out for long time.
• The fan should not be used without a base or on the side.
• Do not use this fan outside.

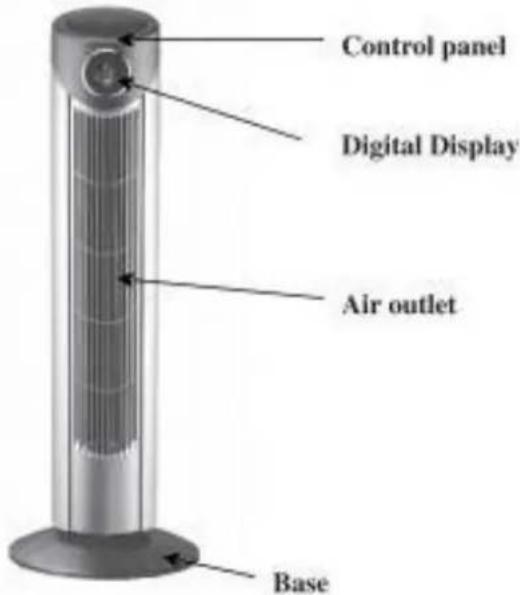

1. DESCRIPTION

2. ASSEMBLY INSTRUCTIONS

1. Remove all items of packaging from the tower fan.
2. Pass the power cord through the middle of the two bases pieces.
3. Position base piece onto the support posts of the other base piece to create the base assembly.
4. Screw the base assembly onto the pedestal tube with the supplied screws.
5. Position the power cord into the provided cord track in the rear base.
6. Turn the tower fan back to an upright position. It is now ready for use.

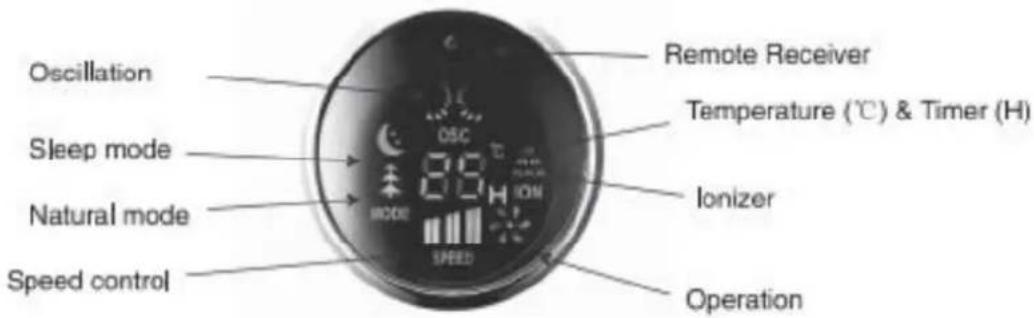

3. DIGITAL DISPLAY

Diagram showing a circular component with radial arrows and a downward arrow, no text or symbols present.

4. HOW TO USE (Caution: Fan must be assembled with the base before use!)

• Connect the machine to the power supply.
• Press the "ON/OFF" button to turn on the fan.
• Press the "ON/OFF" button again, fan will be switch off.
• Select Low, Medium and High speed by pressing "SPEED" utton.
• Select Normal, Natural, Sleep winds mode by pressing "MODE" button.
• Press "OSC" button to turn on the oscillation function. Press again to turn off.
• Press "TIMER" button, to set up to 1 hour to 12 hours timer setting.
• Press "ION" button to start the ionizer function. Press again to turn off.
• Disconnect the power cord after each use.

Simple circular diagram with an internal oval shape and four labeled points (no text or symbols)

Control panel

Remote control

5. SPECIFICATIONS

Model Number: TWM 1010

Voltage: 230V\~50Hz

Power: 45W

Oscillation: 80 degrees

Weight: 4.40 kg

Dimensions: L310xW310xH890mm

6. CLEANING AND MAINTENANCE

Clean with a soft dry cloth and store in a cool, dry place.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

FRANÇAIS

Diagram showing a device with a circular component and directional arrows, no text or symbols present.

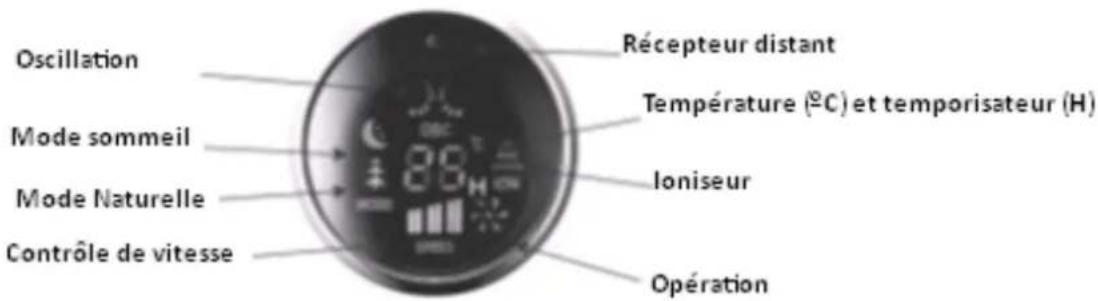

3. AFFICHAGE DIGITAL

Simple circular diagram with an oval shape and internal dots, no text or symbols present.

Panneau de commande

Télécommande

Diagram showing a mechanical component with arrows indicating motion or assembly, no visible text or symbols

Simple diagram of an oval shape with internal lines and circles, no text or symbols present

Panel de control

Mando a distancia

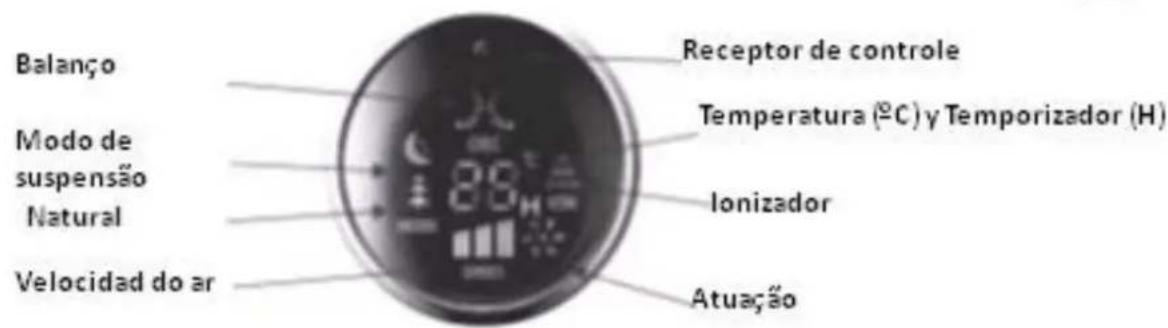

5. ESPECIFICAÇÕES

Número modelo: TWM 1010

Tensão: 230V\~50Hz

Potência: 45W
