Product type	Range hood
Brand	Klarstein
Model	Bolea
Article numbers	10041223, 10041224, 10041225
Power supply	220-240 V ~ 50/60 Hz
Energy efficiency class	A++
Annual energy consumption	22.2 kWh/year
Airflow (max)	581 m³/h (intensive mode)
Airflow (min)	367 m³/h
Noise level (min)	48 dB
Noise level (max)	65 dB (intensive mode)
Dimensions (W x H)	760 mm (width) x 892.5 - 1333 mm (adjustable height)
Air outlet diameter	150 mm minimum
Minimum installation height (ceramic glass)	65 cm
Minimum installation height (gas)	75 cm
Minimum installation height (coal/oil/wood)	85 cm
Lighting	LED (luminous efficacy 37.0 Lux/W, class A)
Evacuation modes	Extraction or recirculation (with carbon filter)
Number of speeds	3 + intensive mode (booster)
Special functions	Delayed shut-off (5 min), booster function
Grease filter	Washable, clean monthly
Carbon filter	Periodic replacement (not included)
Grease capture level	70.1% (class D)
Power consumption in standby	0.49 W
Warranty and support	Complete manual available online

Frequently Asked Questions - Bolea Klarstein

What should be the installation height between the hood and the cooktop?

The recommended height depends on the cooktop type: 65 cm for ceramic glass hobs, 75 cm for gas cooktops and 85 cm for coal/oil/wood stoves. These distances ensure efficient and safe extraction.

How to clean the grease filters of the Klarstein Bolea hood?

The grease filters must be cleaned every month. Wash them with hot water and a little dish soap, then let them air dry. Do not put them in the dishwasher unless otherwise indicated.

When and how to replace the activated carbon filter?

The carbon filter is not included with the hood. It must be purchased separately and replaced every 3 to 6 months depending on usage, especially if the hood is used in recirculation mode. Follow the installation instructions in the manual.

How to activate the booster function on the Bolea hood?

To activate the intensive mode (booster), press and hold the dedicated button (specific icon). The icon flashes. After 5 minutes, the speed automatically returns to level 3.

How to set the delayed shut-off?

Press and hold the two speed adjustment buttons (low and medium) simultaneously to program a delayed shut-off of 5 minutes. To cancel, press and hold the buttons for a long time.

What to do if the hood does not work at all?

First check that the power cord is properly plugged in and that the outlet works. If the lights turn on but the fan does not, the blades may be blocked or the motor damaged. In this case, contact a professional for repair.

Can the hood be used in extraction mode with a gas cooktop?

Yes, but adequate room ventilation is necessary to avoid depressurization. The depressurization must not exceed 4 Pa. Ensure an adequate fresh air supply (window slightly open, etc.). Consult a chimney sweep if necessary.

What are the noise levels of the Bolea hood?

The noise level is 48 dB at minimum speed and 65 dB in intensive mode (boost). These values are measured according to EN 61591.

How to clean the hood without damaging it?

For stainless steel surfaces, use a specific cleaner and wipe in the direction of the grain. The control panel can be cleaned with a damp cloth and a little mild dish soap. Avoid abrasive and acidic products (vinegar, lemon). Always unplug the hood before cleaning.

Is the Klarstein Bolea hood compatible with an existing duct?

Yes, but the duct must have a diameter of at least 150 mm and be made of heat-resistant material (enamel, aluminum, flexible). It should be as short and straight as possible, without reducing the cross-section. Do not connect it to a ventilation system used by another appliance (e.g., chimney).

USER MANUAL Bolea Klarstein

INHALTSVERZEICHNIS

Vorbereitung

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Mindestabstände

Ringe/Heizplatten aus Keramik-Glas 65 cm
Gasherd 75 cm
Kohle-/ Öl-/ Holzofen 85 cm

Simple diagram of two adjacent vertical rectangles with a top rectangular block above (no text or symbols)

Einzelteile

Technical line drawing of a mechanical fan assembly with three views (front, side, and top) showing internal components and motion indicators (no text or symbols)

BEDIENFELD UND TASTENFUNKTIONEN

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

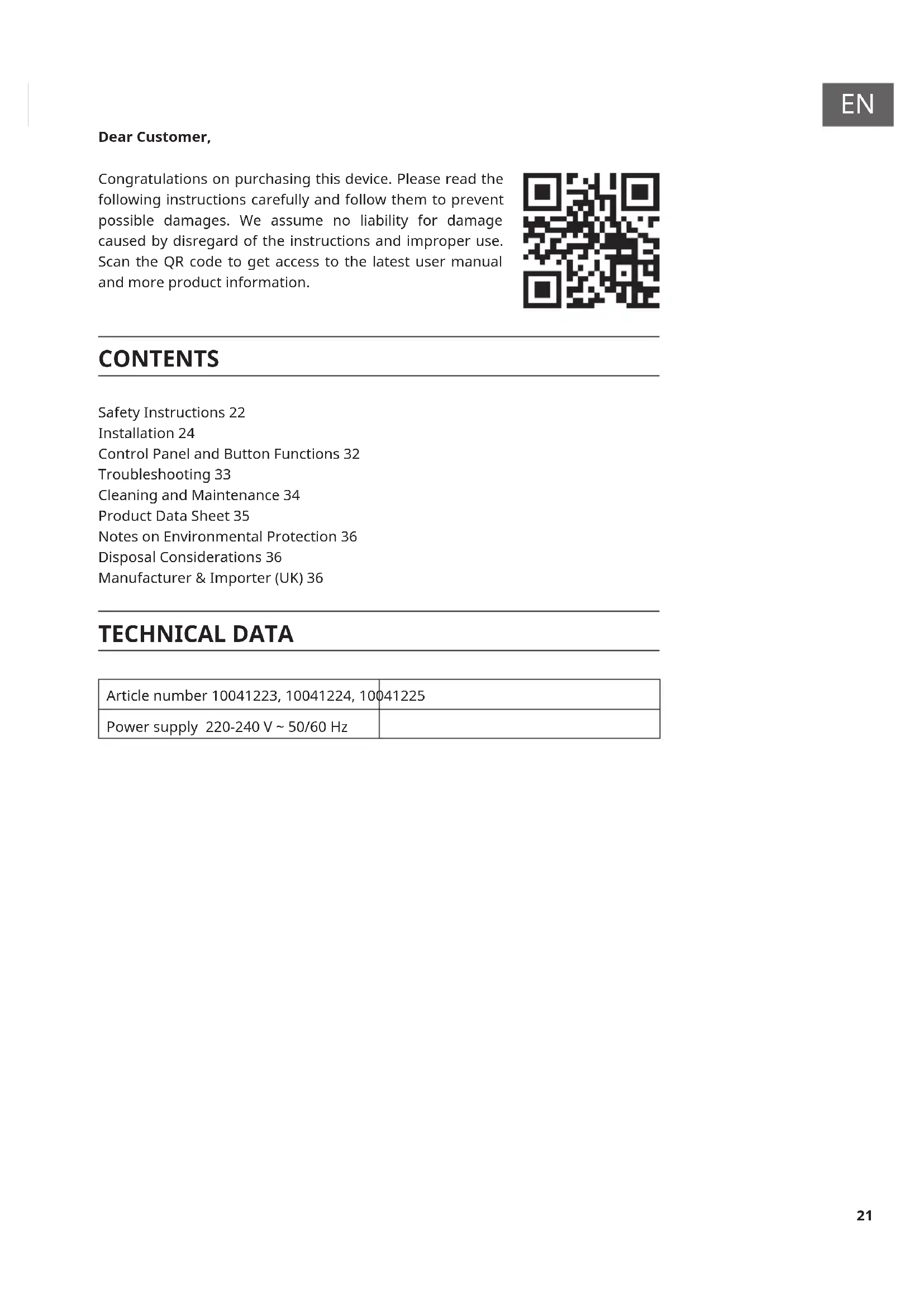

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 22

Installation 24

Control Panel and Button Functions 32

Troubleshooting 33

Cleaning and Maintenance 34

Product Data Sheet 35

Notes on Environmental Protection 36

Disposal Considerations 36

Manufacturer & Importer (UK) 36

TECHNICAL DATA

Article number 10041223, 10041224, 10041225
Power supply 220-240 V ~ 50/60 Hz

SAFETY INSTRUCTIONS

• Read all instructions carefully before use and keep this user manual in a safe place for future reference.
• The installation work may only be carried out by an electrician or a qualified person. Before using the cooker hood, make sure that the voltage (V) and frequency (Hz) indicated on the cooker hood correspond to the voltage and frequency of the power supply in your household.
• We accept no liability for damage caused by improper use or installation.
  • Children under 8 years of age must not use the cooker hood.
• The appliance is intended for use in the home and similar environments only. It is not intended for commercial use.
• Clean the appliance and the filter regularly to keep the appliance working efficiently.
  • Always disconnect the power plug from the socket before cleaning.
• Clean the appliance exactly as indicated in the operating instructions.
• Do not use an open fire under the extractor hood.
• If the unit is not functioning normally, contact the manufacturer or a specialist company.
  • Children from the age of 8 years and mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
• If the power cord is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualified person.
• If the cooker hood is used with cookers that burn gas or other fuels, there must be adequate ventilation in the room.
• Do not flambé under the extractor hood.
• Caution: The surface of the unit may become hot during operation.

Important instructions for installation

• The air must not be discharged into a flue used for extracting flue gases from gas or other fuels (does not apply to appliances that only return the air to the room).
• Observe all regional regulations for the installation of ventilation systems.

Important notes on exhaust air operation

WARNING

Danger of poisoning from recirculated exhaust gases! Do not operate the appliance in extract air mode if it is operated together with a room air-dependent fi replace and sufficient air circulation is not guaranteed.

Room air-dependent fi replaces such as gas, oil, wood or coal heaters, boilers or instantaneous water heaters draw the air from the room and lead it outdoors through an exhaust pipe or chimney. In extract air mode, air is extracted from the kitchen and neighbouring rooms. Without sufficient supply air, negative pressure is created. Toxic gases from the chimney or exhaust pipe can be sucked back into the living rooms.

• Make sure that sufficient fresh air supply is guaranteed and that the air can circulate.
• A supply air/exhaust air wall box is not sufficient to ensure compliance with the limit value.

Safe operation is only possible if the negative pressure at the location of the fi replace does not exceed 4 Pa (0.04 mbar). This can be achieved if the air required for combustion can flow in through non-closable openings in doors and windows in conjunction with a supply air / exhaust air wall box. In any case, have a master chimney sweep advise you and assess the entire ventilation system of the house. If necessary, they can tell you the necessary measure for ventilation.

If the cooker hood is used exclusively in recirculation mode, operation is possible without restriction.

Important note on dismantling the unit

• Disassembly is the same as installation/assembly in reverse order.
• Have a second person help you during disassembly to avoid injury.

INSTALLATION

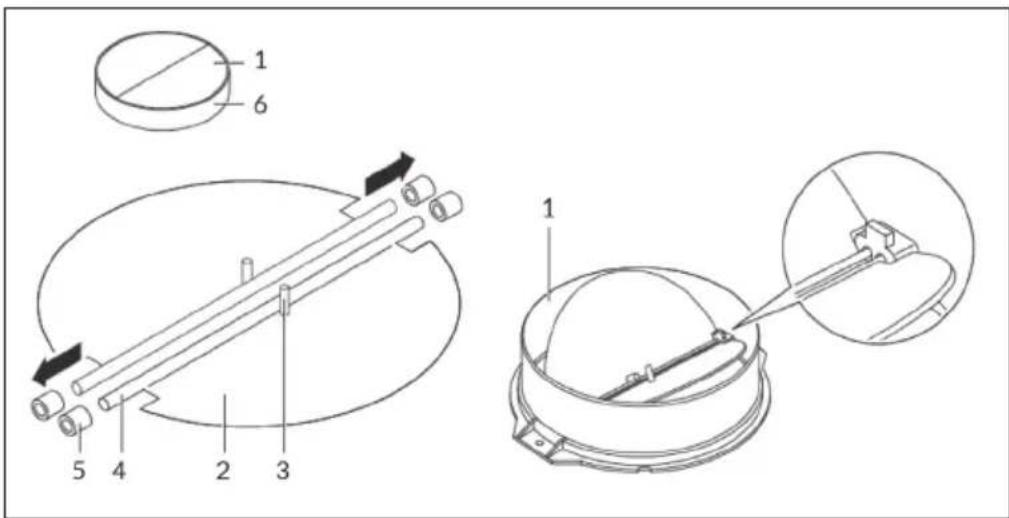

Mounting the backflow flap

If the cooker hood does not have a pre-assembled backflow flap, install the parts as follows:

1 Install the first half (2) into the housing (6).
2 The pin (3) should be facing upwards.
3 The axle (4) is inserted into the holes (5) on the housing.
4 Repeat all the steps for the second half of the flap.

Preparation

If you have an extractor to the outside, you can install the extractor hood as shown in the picture on the right. The flue should have a diameter of at least 150 mm and be made of enamel, aluminium or a flexible, heat-resistant tube.

• Switch off the device before installation and pull the power plug out.
• The extractor hood should be positioned at a height of 65-85 cm above the hob.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Minimum distances

Ceramic glass rings/heating plates 65 cm
Gas cooker 75 cm
Coal/oil/wood stove 85 cm

Installation with exhaust air

Note: Observe the safety instructions for operating the unit when the air is discharged to the outside. If the cooker hood is in operation at the same time as an appliance that draws its energy from a source other than electricity, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).

Installation with convection function

If you do not have an outdoor extractor, you do not need an exhaust air pipe. The installation corresponds to installation with external ventilation.

Important notes for the installation of exhaust air pipes

The following rules must be strictly observed to guarantee optimum air extraction: Failure to follow these instructions will reduce the performance and increase the noise level of the cooker hood.

• Lay the exhaust pipe as short and straight as possible.
• Do not use a smaller exhaust pipe and do not constrict it.
• When using flexible pipes, the pipe must always be installed tightly in order to minimise pressure loss.
• All installation work must only be carried out by a qualified electrician or a qualified person.
• Do not connect the hood's exhaust pipe to an existing ventilation system that is being used for another device, such as a fireplace.
• The angle of the bend of the exhaust air pipe should not be less than 120^ . Align the pipe horizontally. Alternatively, the pipe should go up from the starting point and be led to an outer wall.
• After installation, make sure that the cooker hood is horizontal in order to prevent grease from collecting on one side.
• Make sure that the exhaust duct selected for installation complies with the relevant standards and is fire resistant.

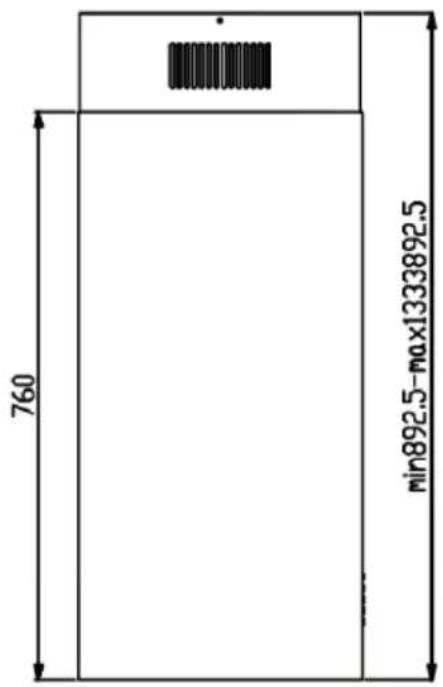

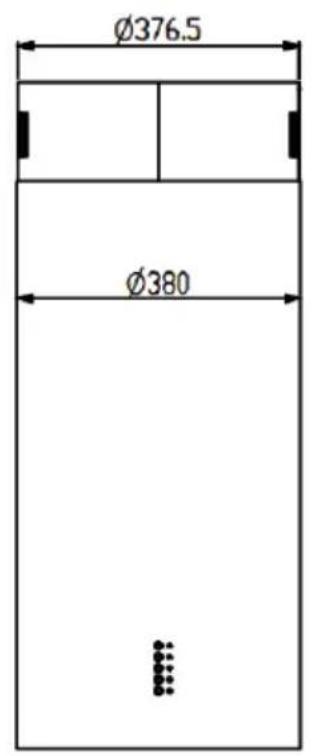

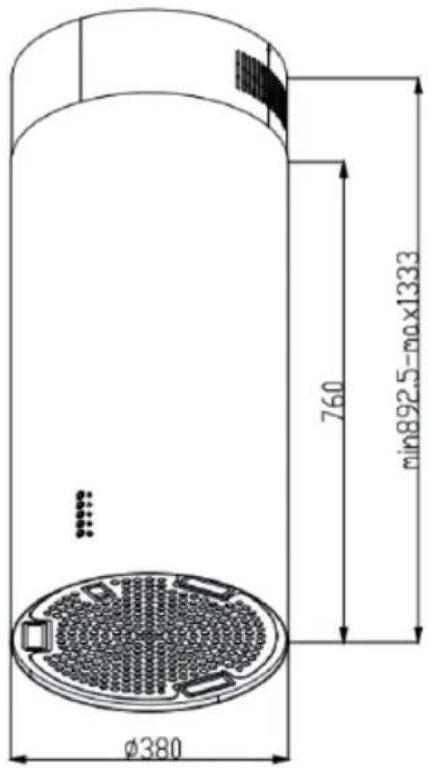

Dimensions:

Simple diagram of two adjacent vertical rectangles with a top rectangular block above (no text or symbols)

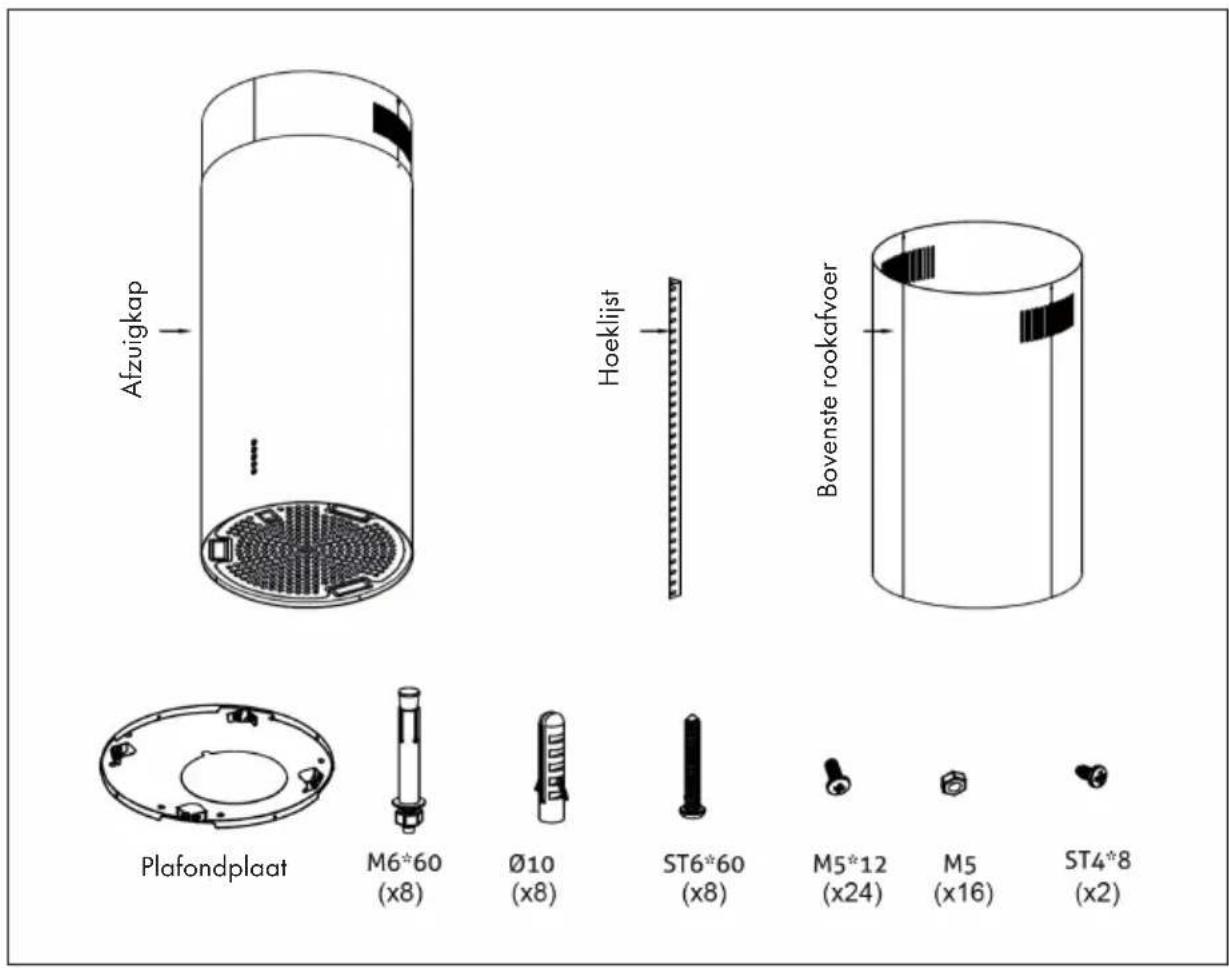

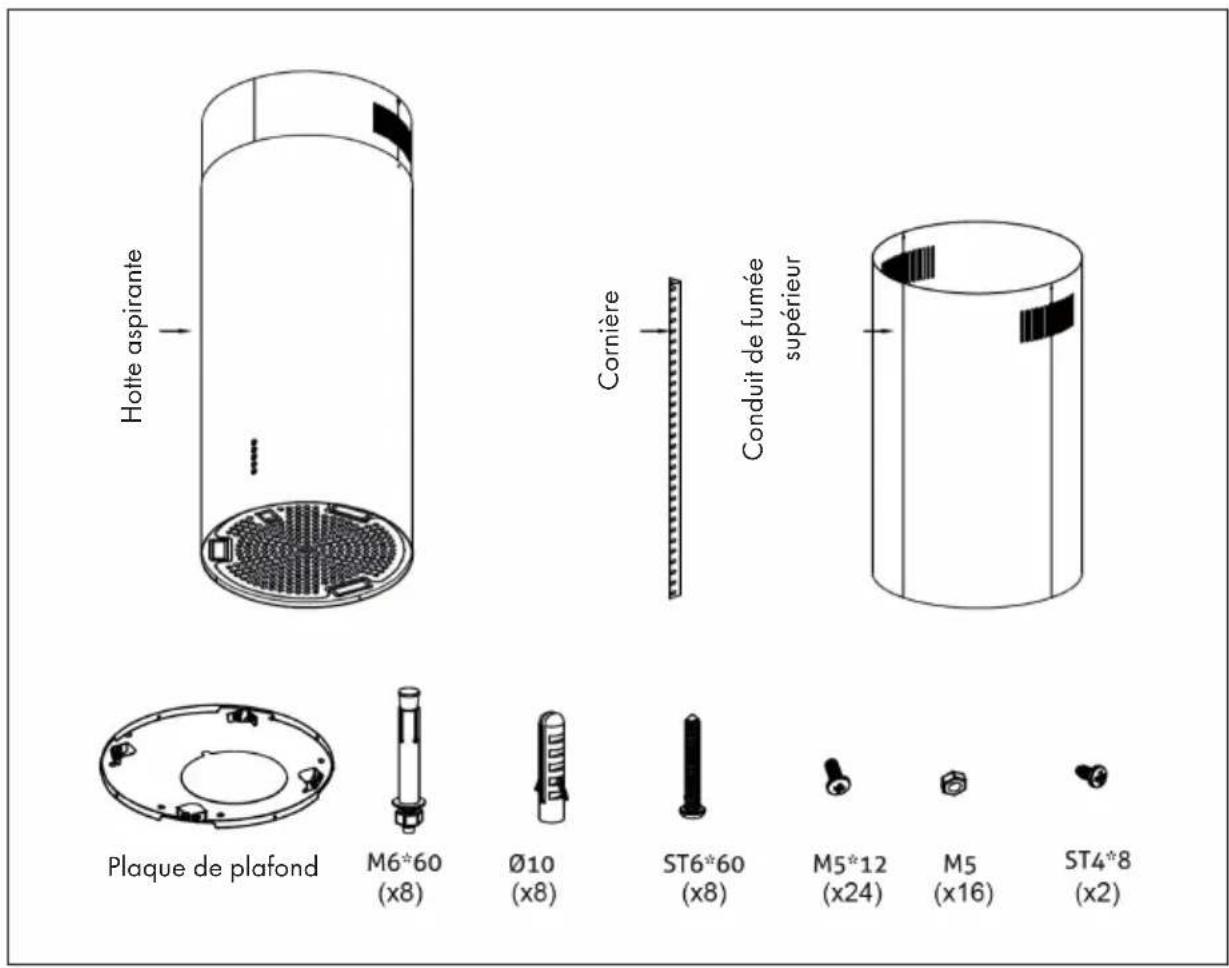

Individual parts

EN

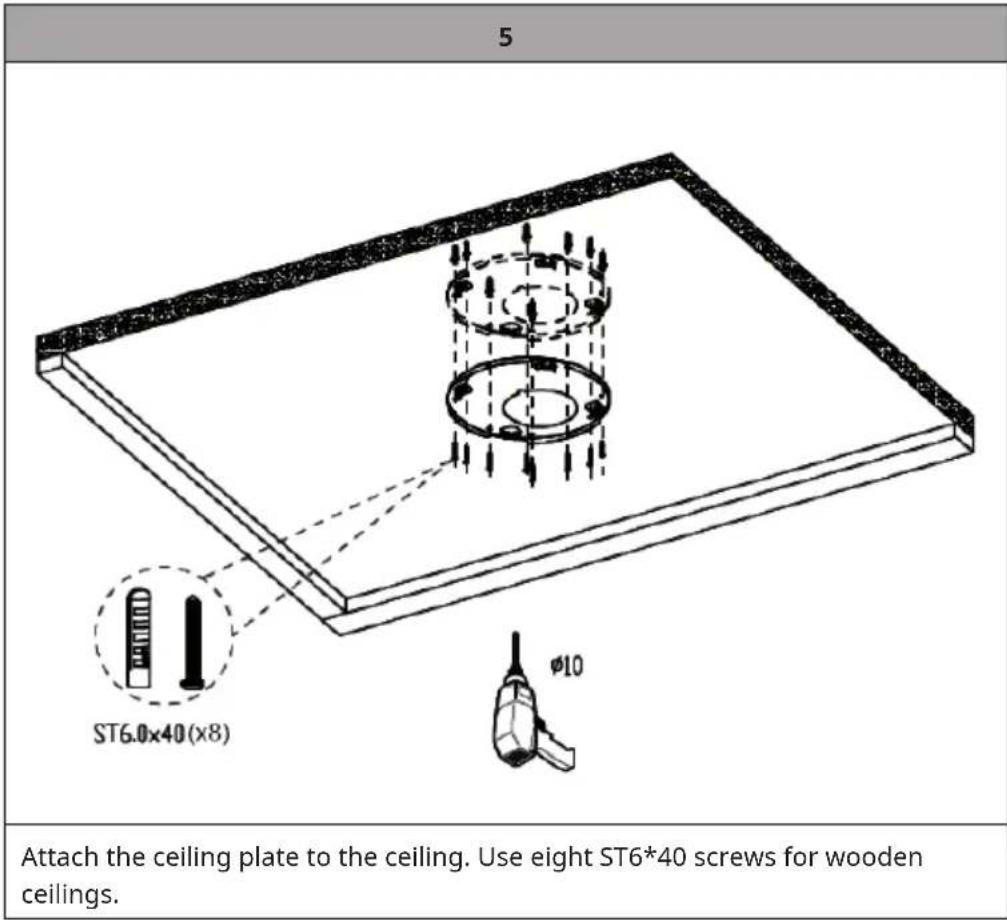

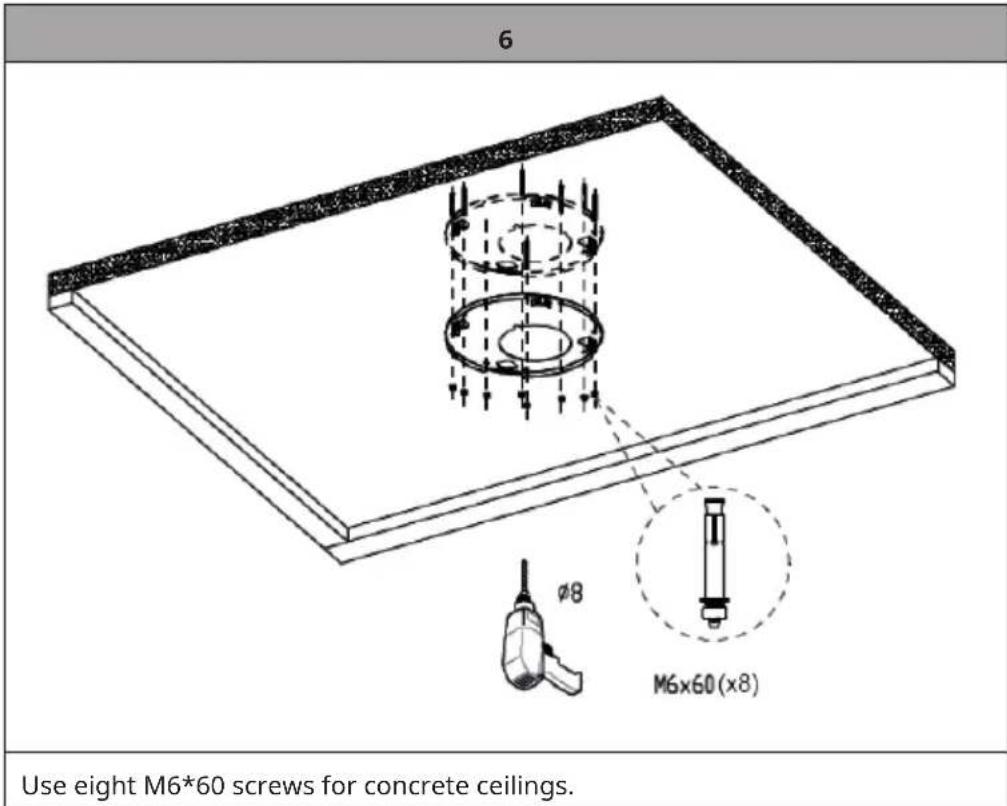

Installation steps

Please note: plug the mains cable of the appliance into the socket once installation is complete. Do not carry out the installation alone, but get help from another person.

1	2
Attach the hose to the discharge duct. Cut through the cable ties on the angle strip and pull the upper flue upwards.
3	4
Adjust the height of the angle bar. Fix the angle strip in the desired position with M5*12 screws (x 16) and M5 nuts (x 16).	Attach the upper flue to the cooker hood.

7

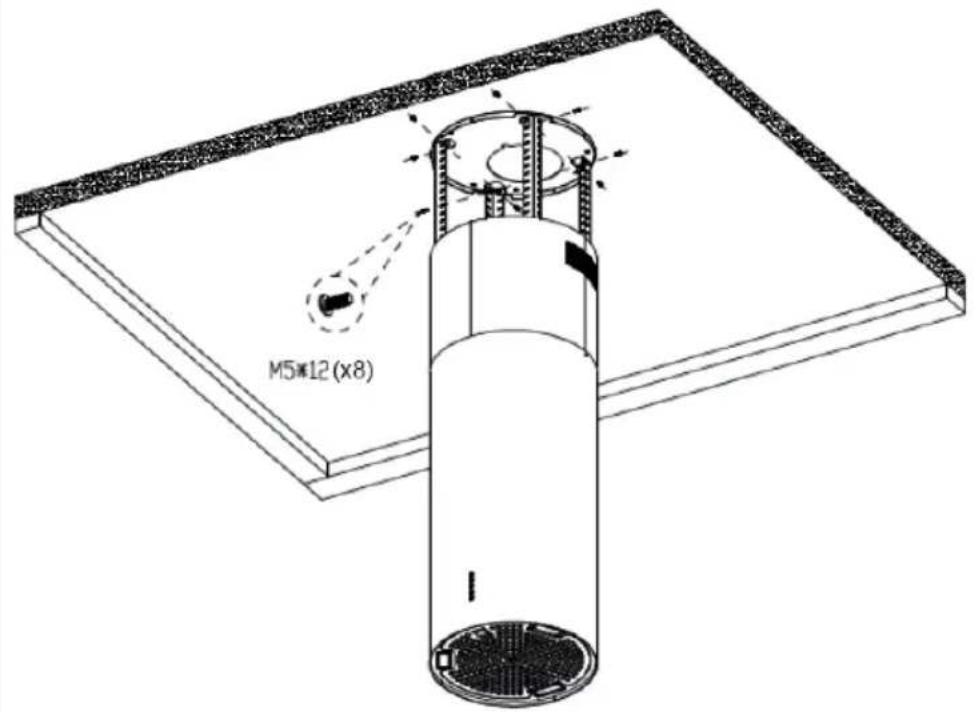

Attach the cooker hood with M5*12 screws (x 8). Make sure that there are no leaks in the connection.

8

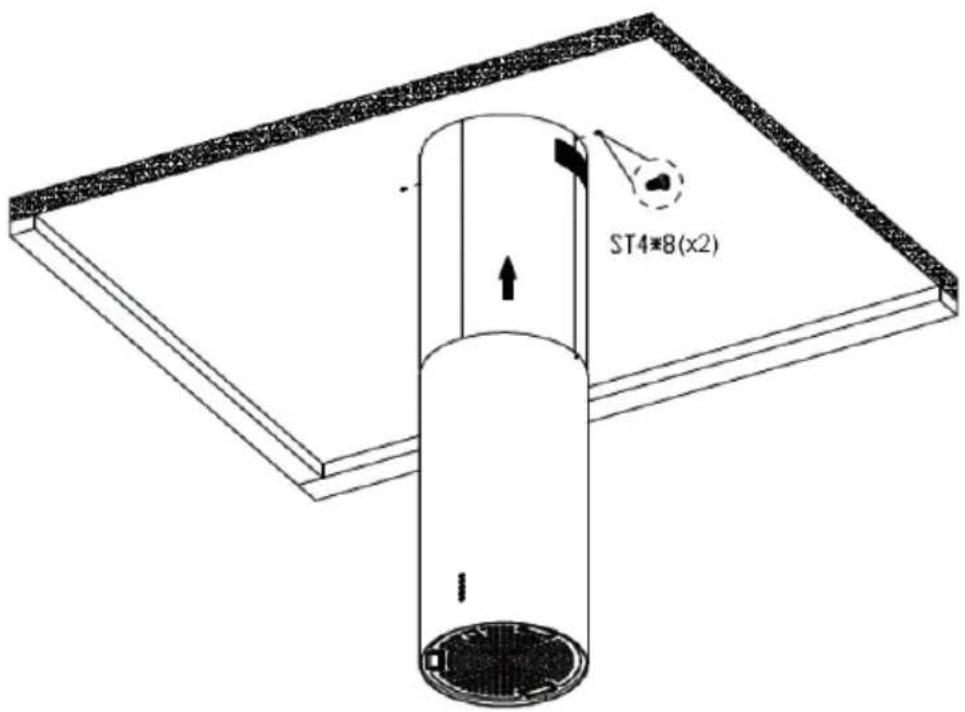

Push the upper flue upwards onto the ceiling and fix the ceiling plate with ST4*8 screws (x 2).

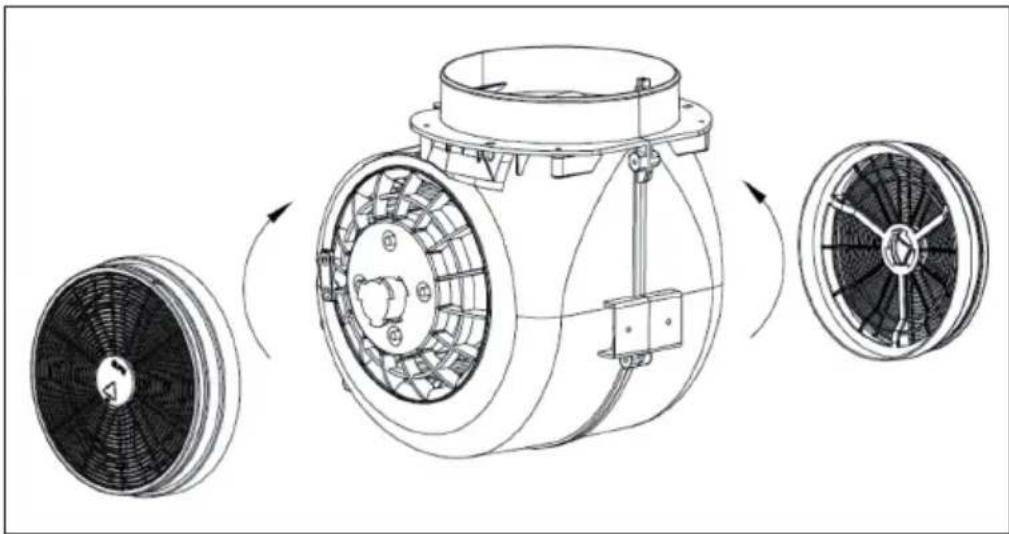

Installation of the activated carbon filter

Technical line drawing of a mechanical fan assembly with three views (front, side, and top) showing internal components and motion indicators (no text or symbols)

CONTROL PANEL AND BUTTON FUNCTIONS

	Press this button to switch the motor on/off.
	Lowest speed setting.
	Medium speed setting.
	High speed setting.
	Light on/off.

Booster function

To activate the booster function, press and hold the button ⚙. The symbol ⚙ flashes. The speed automatically changes to setting 3 after 5 minutes.

Switch-off delay

Press and hold the two buttons & and & to set a 5 minute delay. Press and hold the buttons for longer to cancel the delay.

TROUBLESHOOTING

Problem Possible cause Solution
The light is on but the fan does not work	The fan blades are blocked.	Switch off the appliance and have it repaired by qualified personnel only.
	The motor is damaged.
Neither the light nor the fan work	The light bulb has burnt out.	Replace the bulb with a bulb of the same type.
	The mains cable is loose.	Correctly plug the mains cable into the socket.
The unit vibrates strongly	The fan blade is damaged.	Switch off the appliance and have it repaired by qualified personnel only.
	The fan motor is not firmly secured.
	The appliance is not correctly mounted on the holder.	Take the unit off the holder and attach it properly.
The suction performance is not good	The distance between the appliance and the cooking surface is too great.	Adjust the distance to 65 – 75 cm.

CLEANING AND MAINTENANCE

Switch off the extractor hood and pull the plug out of the socket before cleaning and maintenance. The outer surfaces are susceptible to scratches and stains. Therefore, do not use scouring agents for cleaning and wipe away residues of alkaline or acidic substances (lemon juice, vinegar) immediately after cleaning.

Stainless steel surfaces

The stainless steel must be cleaned regularly to ensure a long service life. Use stainless steel cleaner for this purpose. Always wipe along the grain of the stainless steel to prevent criss-crossing scratch marks.

Control panel interface

The control panel can be cleaned with a damp cloth and mild dishwashing detergent. Before cleaning, make sure the cloth is clean and well wrung out. Use a dry, soft cloth to remove excess moisture after cleaning.

Monthly cleaning of the grease filters

Clean the filter every month to avoid a fire hazard. The filter collects grease, smoke and dust and thus influences the efficiency of the cooker hood. If the filter is not cleaned, grease residues will collect there. Clean the filter with water and a little washing-up liquid and let it air dry afterwards.

PRODUCT DATA SHEET

Information according to Regulation (EU) No 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Article number 10041223, 10041224, 10041225
Designation Symbol Value Unit
Annual energy consumption AEC	hood	22.2 kWh/year
Energy efficiency class A++
Fluid-dynamic efficiency FDE	hood	41.1
Fluid dynamic efficiency class A
Lighting efficiency LE	hood	37.0 Lux/W
Lighting efficiency class A
Grease separation efficiency GFE	hood	70.1 %
Class for grease separation efficiency		D
Air flow at minimum and at maximum speed in normal operation, excluding operation on the intensive or fast speed setting		367 m^3/h
Air flow when operating on the intensive or fast speed setting		581 m^3/h
A-weighted airborne noise emissions at minimum and maximum available speed during normal operation		48 dB
A-weighted airborne acoustical noise emissions during operation at the intensive or high-speed stage		65 dB
Power consumption in off-mode	P_o	0.49 W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

NOTES ON ENVIRONMENTAL PROTECTION

• Make sure there is sufficient air supply during cooking so that the cooker hood can work efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced while cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced when cooking, select a higher fan speed in time. If the cooking steam has already spread throughout the kitchen, the cooker hood must be operated for longer.
• Switch off the cooker hood when it is no longer needed.
• Switch off the lighting when it is no longer needed.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

ÍNDICE

Preparación

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Distancias mínimas

Simple diagram of two adjacent vertical rectangles with a top rectangular block above (no text or symbols)

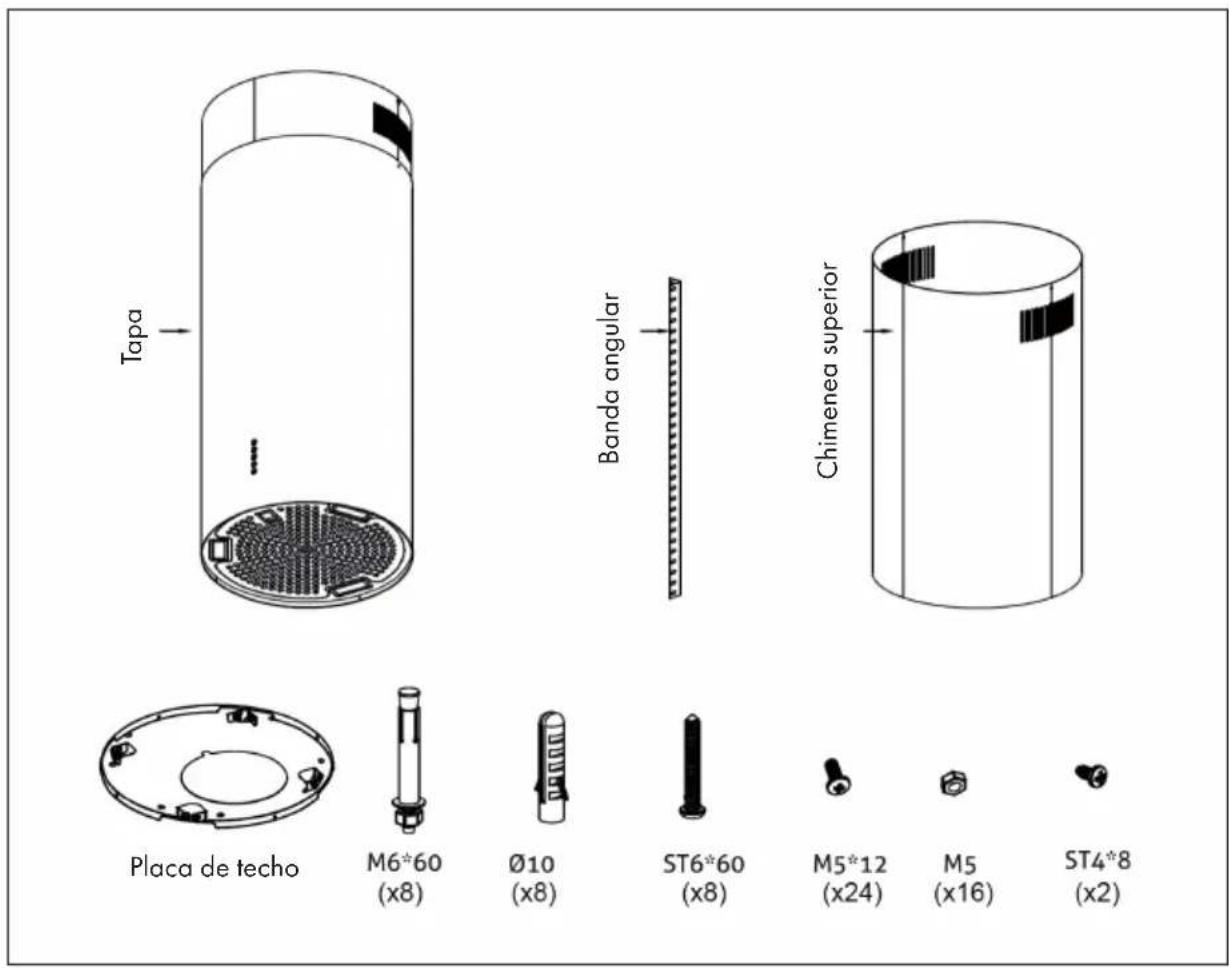

Componentes

Technical line drawing of a mechanical fan assembly with three views (front, side, and top) showing internal components and motion indicators (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Cher client, chère cliente,

SOMMAIRE

Préparatifs

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Distances minimales

Simple diagram of two adjacent vertical rectangles with a top rectangular block above (no text or symbols)

Technical line drawing of a mechanical fan assembly with three views (front, side, and top) showing internal components and motion indicators (no text or symbols)

PANNEAU DE COMMANDE ET FONCTIONS DES TOUCHES

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

INDICE

Preparazione

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Distanze minime

Simple diagram of two adjacent vertical rectangles with a top rectangular block above (no text or symbols)

Technical line drawing of a mechanical fan assembly with three views (front, side, and top) showing internal components and motion indicators (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Geachte klant,

INHOUDSOPGAVE

Voorbereiding

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Minimum afstanden

Ringen/ verwarmingselementen onder keramisch glas	65 cm
Gasfornuis 75 cm
Kolen/ Olie/ Houtkachel 85 cm

Simple diagram of two adjacent vertical rectangles with a top rectangular block above (no text or symbols)

Technical line drawing of a mechanical fan assembly with three views (front, side, and top) showing internal components and motion indicators (no text or symbols)

CONTROLEPANEEL EN TOETSENFUNCTIES

INSTRUCTIES VOOR AFVOER

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
