USER MANUAL PMF60A PROLINE

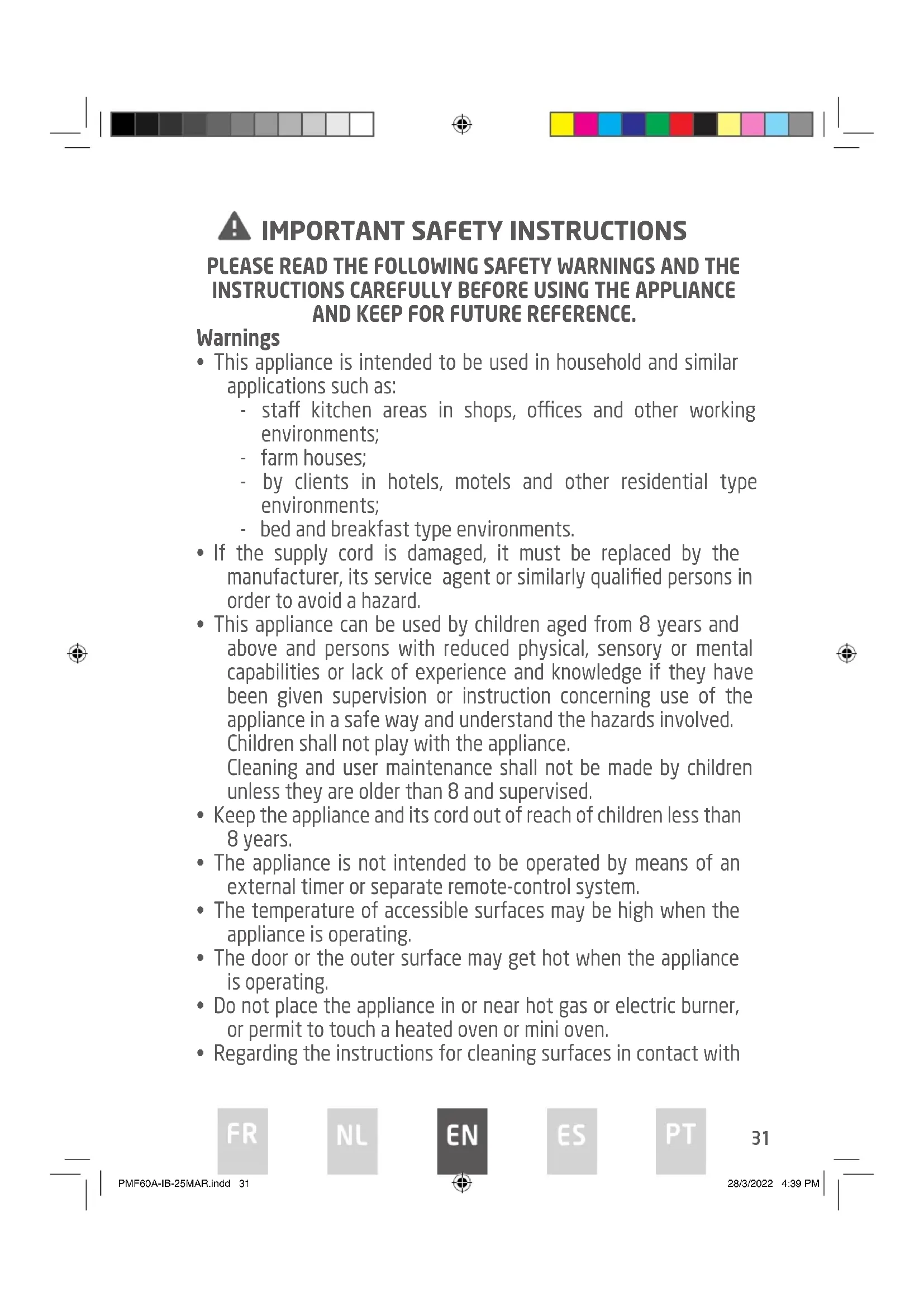

AND KEEP FOR FUTURE REFERENCE. Warnings

• This appliance is intended to be used in household and similar applications such as: - sta kitchen areas in shops, oces and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

• The temperature of accessible surfaces may be high when the appliance is operating.

• The door or the outer surface may get hot when the appliance is operating.

• Do not place the appliance in or near hot gas or electric burner, or permit to touch a heated oven or mini oven.

• Regarding the instructions for cleaning surfaces in contact with PMF60A-IB-25MAR.indd 31PMF60A-IB-25MAR.indd 31 28/3/2022 4:39 PM28/3/2022 4:39 PM32 food, refer to the section “CLEANING AND MAINTENANCE” on page 41 of the manual.

• Caution: Hot Surface. The surfaces are liable to get hot during use. Safety Information

• Do not immerse cord, plug, or any part of the appliance in water or other liquids.

• Do not let cord hang over edge of table or counter, or touch hot surfaces.

• When operating the oven, keep at least 10 cm of space on all sides of the oven to allow for adequate air circulation.

• To disconnect, turn the function control knob to the O position, before removing the plug.

• Unplug from the mains socket when not in use and before cleaning. Always hold the plug, but never pull the cord.

• Allow the appliance to cool before putting on or taking o parts, and before cleaning.

• Extreme caution must be used when moving an appliance containing hot oil or food.

• Do not cover any part of the oven with metal or cloth, it may cause overheating of the oven.

• Do not place any item on the oven or cover the oven.

• Use extreme caution when removing tray or disposing of hot grease or other hot liquids.

• Do not leave the appliance unattended when in operation.

• Oversized foods or metal utensils cannot be put into the appliance as they may create a fire or risk of electric shock.

• Extreme caution should be exercised when using containers constructed of anything other than qualified metal or qualified ceramics.

• Do not place any of the following materials in the oven: plastic, paper, or anything similar. PMF60A-IB-25MAR.indd 32PMF60A-IB-25MAR.indd 32 28/3/2022 4:39 PM28/3/2022 4:39 PM33

• Do not use any accessories other than manufacturer recommended accessories in this oven.

• Always wear protective, insulated oven gloves when inserting or removing items from the hot oven.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not use outdoors.

• The appliance is for household use only. Do not use the appliance for anything other than its intended use.

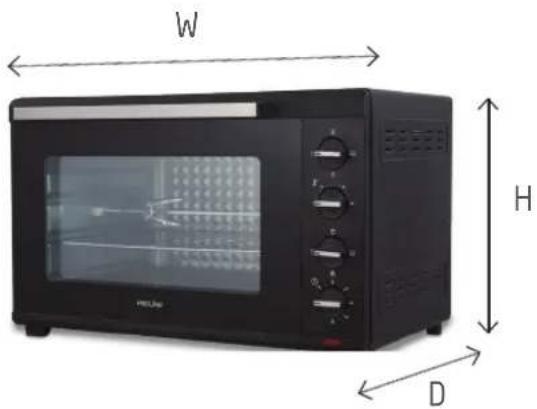

• The glass door is heavy, please hold the handle until the door is completely open, do not let the door fall itself. PMF60A-IB-25MAR.indd 33PMF60A-IB-25MAR.indd 33 28/3/2022 4:39 PM28/3/2022 4:39 PM34 PRODUCT OVERVIEW Door handle Rotisserie & Convection knob Temperature control knob Heat selection knob Timer control knob Power indicator light Glass door Oven Accessories Bake rack For broiling, baking, toasting and general cooking with other containers made of metal or ovenproof glass. Use on the top, middle and bottom oven rails of the appliance.. Bake tray For broiling and roasting meat, poultry, fish and various other foods as well as collection food residues when used as a drip tray. Use on the middle and bottom oven rails of the appliance.. Rotisserie fork For roasting whole chicken or other kinds of meat. Rotisserie handle Use this handle to remove the rotisserie fork out of the oven. Crumb tray This tray is usually placed at the very bottom of the oven to collect any crumbs or pieces that may fall o during a baking or grilling process. PMF60A-IB-25MAR.indd 34PMF60A-IB-25MAR.indd 34 28/3/2022 4:39 PM28/3/2022 4:39 PM35 Heat selection knob

Remove all packaging materials. Wash all the accessories in warm soapy water. Rinse and dry thoroughly. Wipe the inside of the oven with a slightly damp cloth or sponge. Dry with paper towels. Wipe the outside of oven with a slightly damp cloth. Never immerse the appliance in water. PMF60A-IB-25MAR.indd 35PMF60A-IB-25MAR.indd 35 28/3/2022 4:39 PM28/3/2022 4:39 PM36

1. Place the oven on a clean, flat and heat resistant surface.

• Ensure that there is enough ventilation around the oven.

• Ensure that the oven is completely dry before use.

• Ensure that the crumb tray is properly installed before use.

• The oven should not be placed on untreated wooden surface.

2. Plug in the oven.

3. Turn the temperature control knob to the desired temperature from 100°C

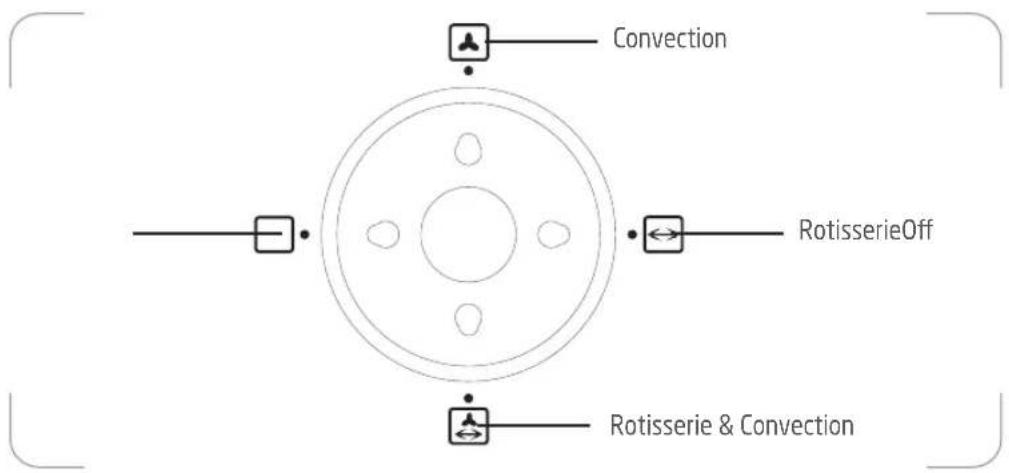

4. Turn the Rotisserie & Convection knob to the desired position.

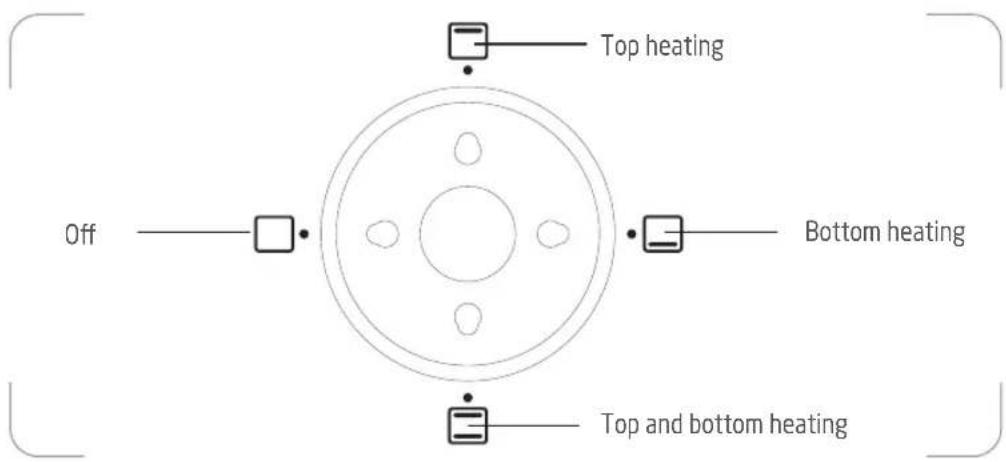

5. Turn the heat selection knob to the desired position.

RotisserieO Convection Top heating Bottom heating Top and bottom heating

Rotisserie & Convection PMF60A-IB-25MAR.indd 36PMF60A-IB-25MAR.indd 36 28/3/2022 4:39 PM28/3/2022 4:39 PM37 When using this function, only the top heating elements are being used. Place the food on the baking rack. Place the baking rack on the top oven rails while the baking tray is placed on the middle oven rails. When using this function, only the bottom heating elements are being used. Place the food on the baking rack or baking tray. When using the baking rack, place the baking rack on the middle oven rails while the baking tray is placed on the bottom oven rails, if necessary. When using this function, the top and bottom heating elements are being used. Place the food on the baking rack or baking tray. When using the baking rack, place the baking rack on the middle oven rails while the baking tray is placed on the bottom oven rails, if necessary.

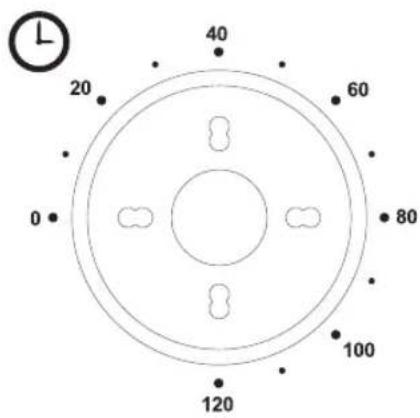

6. Turn the timer control knob to the desired cooking time.

120-minute cooking timer The power indicator light will illuminate. Interior light illumination function A light is provided inside the oven and will be on when the timer is set. This facilitates easy viewing of the cooking process inside the oven. At the end of cooking process, the light will turn o. If you want to check your food without opening the door, turn the timer control knob and the light will turn on again. PMF60A-IB-25MAR.indd 37PMF60A-IB-25MAR.indd 37 28/3/2022 4:39 PM28/3/2022 4:39 PM38

7. When the cooking time has elapsed, a bell will ring to indicate the cooking

• The power indicator light will go out.

• Before the set cooking time has been reached, you can turn the timer control knob to the 0 position to finish cooking. NOTE:

• When using the oven for the first time, the oven may produce an odor and emit smoke. The oven is burning o the excess oils in the heating elements and this is normal. After 5 to 10 minutes the smoke will disappear.

• In order to get better cooking performance, it is recommended to pre-heat the oven for 10 to15 minutes. Cooking tips Grill cooking

• Leave the door at the open point.

• Turn the heat selection knob to GRILL setting and convection setting is recommended.

• Turn the temperature control knob to 230°C.

• Turn the timer control knob to the desired grill time.

• When the grill cooking is done, turn the timer control knob to the 0 position to turn o the oven.

This function is ideal for baking pork slice, chicken legs, chicken wings, potato flakes poultry meat , chops, fish.

This function is ideal for cooking bread, pizza, and fowl in general. ou This function is ideal for cooking cake in general.

This function is ideal for cooking whole chickens, fowl in general.

1. Put one skewer through the pointed end of the spit, making sure the points

of skewer face towards the spit’s pointed end.

2. Insert the spit directly through the center of the food which you want ot

3. Put the other skewer through the pointed end of the spit, making sure the

points of skewer face the spit’s square end.

4. Put the two skewers into the food, then secure both skewers with the

thumbscrews. Make sure the food is centered on the spit.

5. Insert the pointed end of the spit into the drive socket, making sure the

square end of the spit rests on the spit support.

6. Plug in the oven and insert the bake tray at the lower rail.

7. Set the temperature control knob to 230°C. Turn the timer control knob to

the desired cooking time..

• Normally it takes approximately 30 minutes to roast a 2.5kg chicken.

• The power indicator light will illuminate.

9. When roasting is completed, turn back the timer control knob to the 0

10. After the oven is cooled, place the hooks of the rotisserie handle under the

grooves on both sides of the spit. Lift the left side of the spit first, move towards left side a little bit, so that the right side of the spit goes out of the drive socket. Then carefully move out the roasted food from the oven. Pointed end Square end PMF60A-IB-25MAR.indd 39PMF60A-IB-25MAR.indd 39 28/3/2022 4:39 PM28/3/2022 4:39 PM40

11. Take the food o the spit.

After use Turn back the timer control knob to the 0 position. Turn the heat selection knob and Rotisserie & Convection knob to the O positions Unplug the oven from the mains socket. Wait until the oven is completely cool before carrying out any cleaning or maintenance. Remove hot food carefully to avoid any scald. Always remove food with oven mitts. PMF60A-IB-25MAR.indd 40PMF60A-IB-25MAR.indd 40 28/3/2022 4:39 PM28/3/2022 4:39 PM41

CLEANING AND MAINTENANCE

Unplug the appliance and allow it to cool before cleaning. Do not immerse the appliance in water. All surfaces can be cleaned with a clean damp cloth. Use a wet cloth to wipe the inner surface of the oven. To clean the door, use a wet cloth with detergent or soap. Wash all the accessories in warm soapy water. Rinse and dry thoroughly. Never use abrasive or chemical cleaning agents. Surfaces in contact with food should be cleaned regularly to avoid cross contamination from dierent types of food, the use of a damp cloth is advisable when dealing with surfaces that come into contact with food. Correct food hygiene practices should always be followed at all times to avoid possibility of food poisoning /cross contamination. Dry all parts and surfaces thoroughly before use. Make sure that all parts and surfaces are completely dry before plugging in the appliance. PMF60A-IB-25MAR.indd 41PMF60A-IB-25MAR.indd 41 28/3/2022 4:39 PM28/3/2022 4:39 PM42 SPECIFICATIONS Dimensions (outer dimensions) (H) 477 x (W) 672 x (D) 448 mm Dimensions (cavity / inner dimensions) (H) 422 x (W) 635 x (D) 397 mm Weight (approx.) 11,73 kg Ratings: 220-240 V~, 50-60 Hz 2000 W

PMF60A-IB-25MAR.indd 42PMF60A-IB-25MAR.indd 42 28/3/2022 4:39 PM28/3/2022 4:39 PM43 As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge. We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development. Etablissements Darty & fils ©, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France 25/03/2022 DISPOSAL PMF60A-IB-25MAR.indd 43PMF60A-IB-25MAR.indd 43 28/3/2022 4:39 PM28/3/2022 4:39 PM44 INDICE MEDIDAS DE SEGURIDAD IMPORTANTES............................. p. 45 DESCRIPCIÓN DEL PRODUCTO............................................... p. 48 ANTES DE USAR POR PRIMERA VEZ....................…............... p. 49 MODO DE EMPLEO................................................................... p. 50 LIMPIEZA Y MANTENIMIENTO................................................ p. 55 ESPECIFICACIONES ................................................................... p. 56 ELIMINACIÓN.............................................................................. p. 57 PMF60A-IB-25MAR.indd 44PMF60A-IB-25MAR.indd 44 28/3/2022 4:39 PM28/3/2022 4:39 PM45
