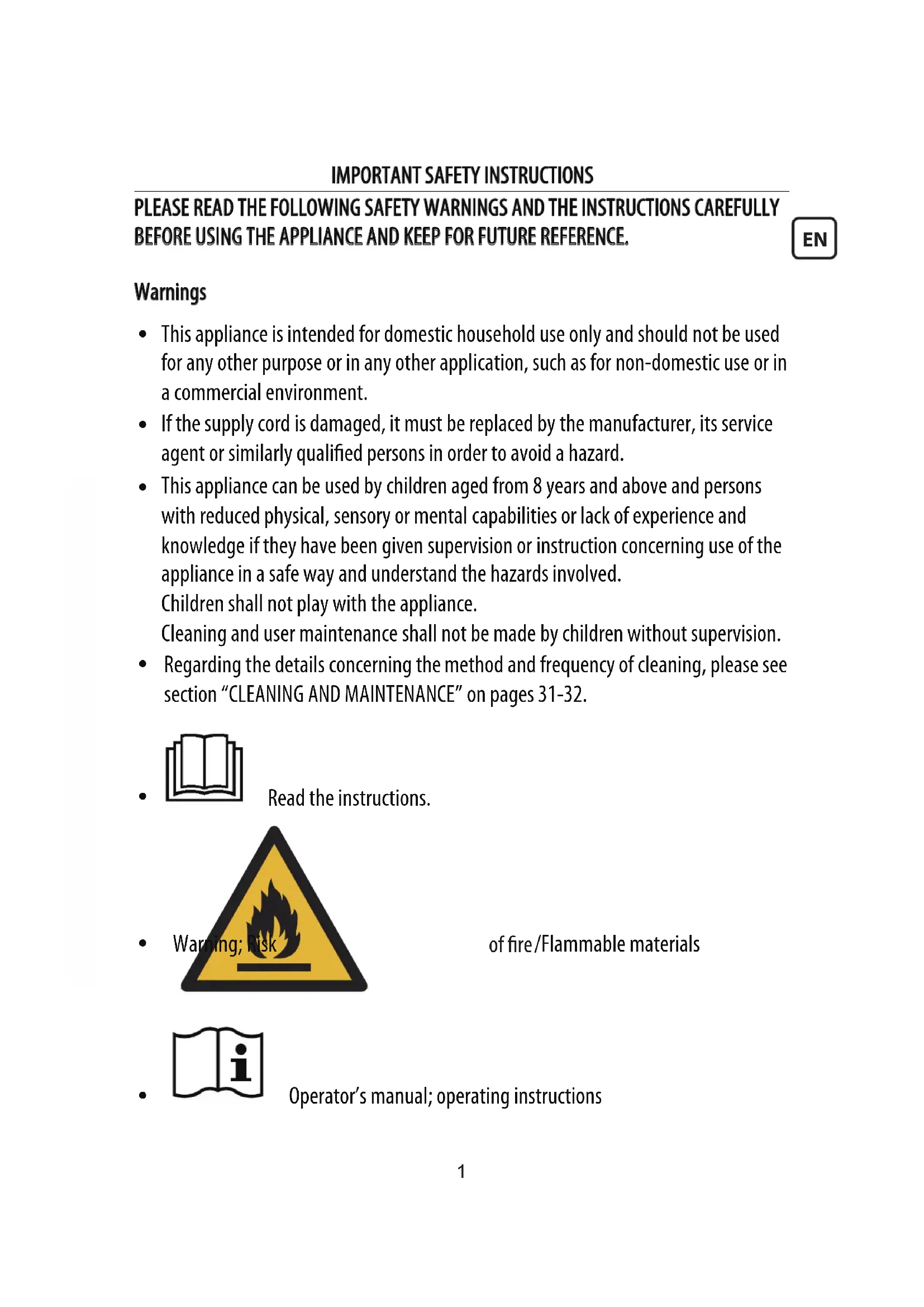

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE. Warnings This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment. If the supply cord is damaged, it must be replaced by the man ufacturer, its service agent or similarly qualiöed persons in order to avoid a hazard. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or inst ruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

y Regarding the details concerning the method and frequency of cleaning, please see section “CLEANING AND MAINTENANCE” on pages 31-32.

of firey This product contains non-øuorinated greenhouse gas (hermetically sealed) which is dangerous for the environment and contributes to global warming if released to y The appliance shall be installed in accordance with national wiring regulations.

Service indicator; read technical manual

2y Attention should be drawn to the environmental aspects of battery disposal. Don’t throw used batteries in dustbin. Please contact your retailer in order to protect the environment. y The batteries (batteries installed) shall not be exposed to excessive heat such as sunshine, öre or the like. y If battery leakage occurs, avoid contact with skin. Isolate the leaking battery in a sealed plastic bag and put it in the scrap following the instructions environmental protection. If contact with the ski n, mucous membranes or e yes , rinse thoroughly with water and contact your doctor or ophthalmologist. y Do not recharge non-rechargeable batteries because of the risk of explosion.

Rechargeable batteries are to be removed from the appliance before being charged.

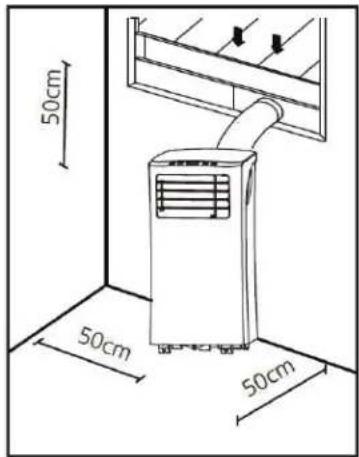

afety Precautions Only use the appliance in the upright position on a øat level surface and at least 50 cm from the wall or any objects. Installation must be performed according to the installation instructions. Improper installation can cause water leakage, electrical shock, or öre.

3EN 4EN 5be replaced.

ERVICE OPERATIONS WARNING Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. The appliance shall be stored in a room without continuously operating ignition sources (for example: open øames, an operating gas appliance or an operating electric heater. Do not pierce or burn. Be aware that refrigerants may not contain an odour. Appliance shall be installed, operated and stored in a room with a øoor area larger than 8 m

Installation (Space) The installation of pipe-work shall be kept to a minimum; Pipe-work shall be protected from physical damage and shall not be installed in an unventilated space; Compliance with national gas regulations shall be observed; Mechanical connections shall be accessible for maintenance purposes; Minimum øoor area of the room: 8 m

Maximum refrigerant charge amount (M): 0,14kg keep ventilation openings clear of obstruction; Servicing shall be performed only as re commended by the manufacturer.

6EN 7EN 8EN 9EN 10EN 11EN 12EN 13EN 14available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer iöndoubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that øammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor bo

shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

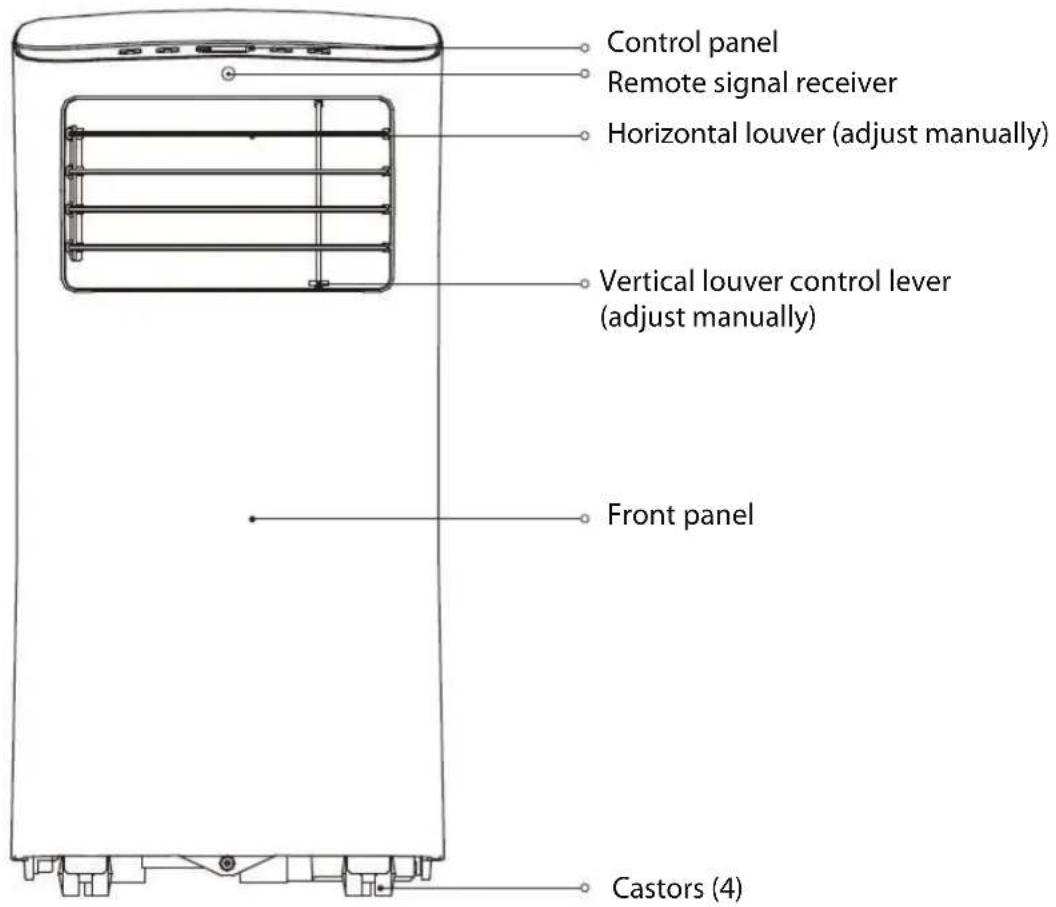

16PRODUCT OVERVIEW Front View Control panel Remote signal receiver Castors (4) Front panel Horizontal louver (adjust manually) Vertical louver control lever (adjust manually)

17Rear View Handle (both sides) Filter Upper air intake Lower air intake Drain outlet Air outlet Bottom tray drain outlet

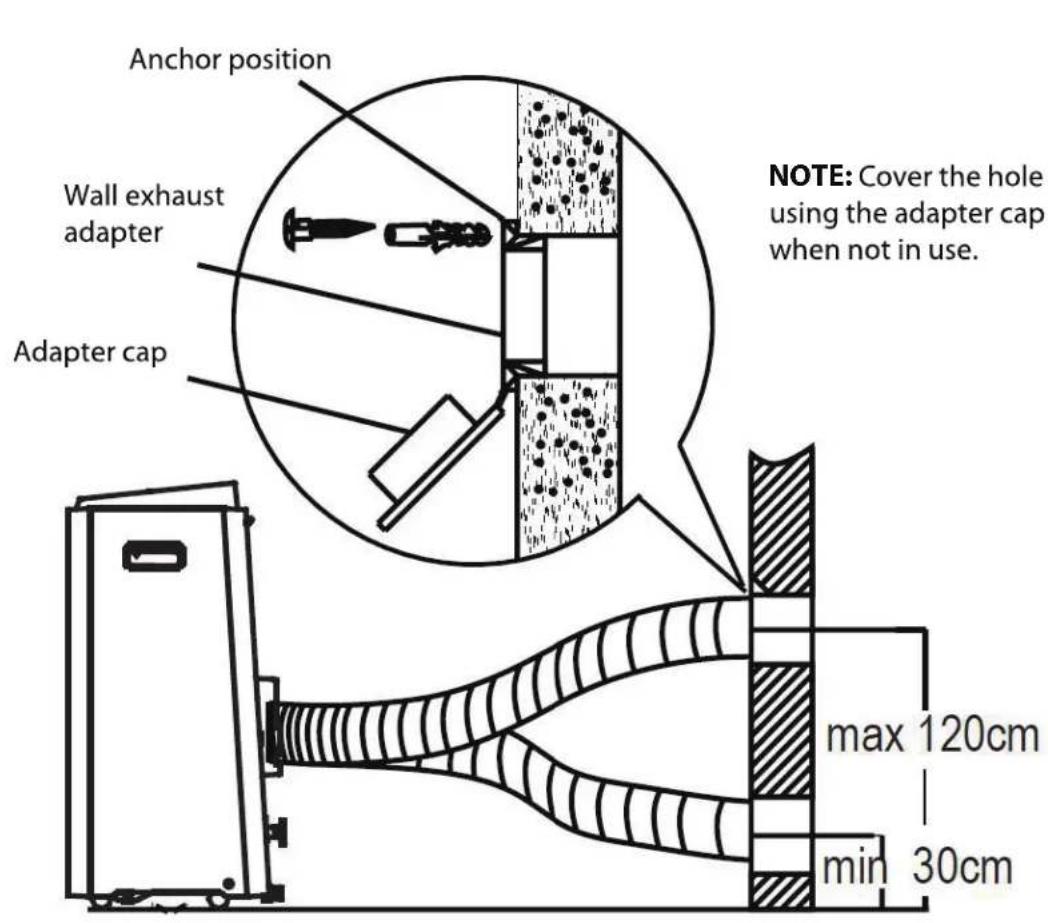

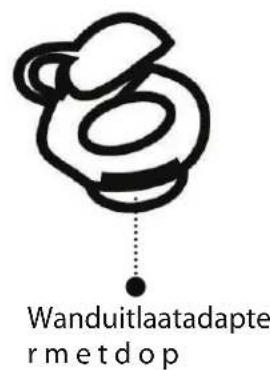

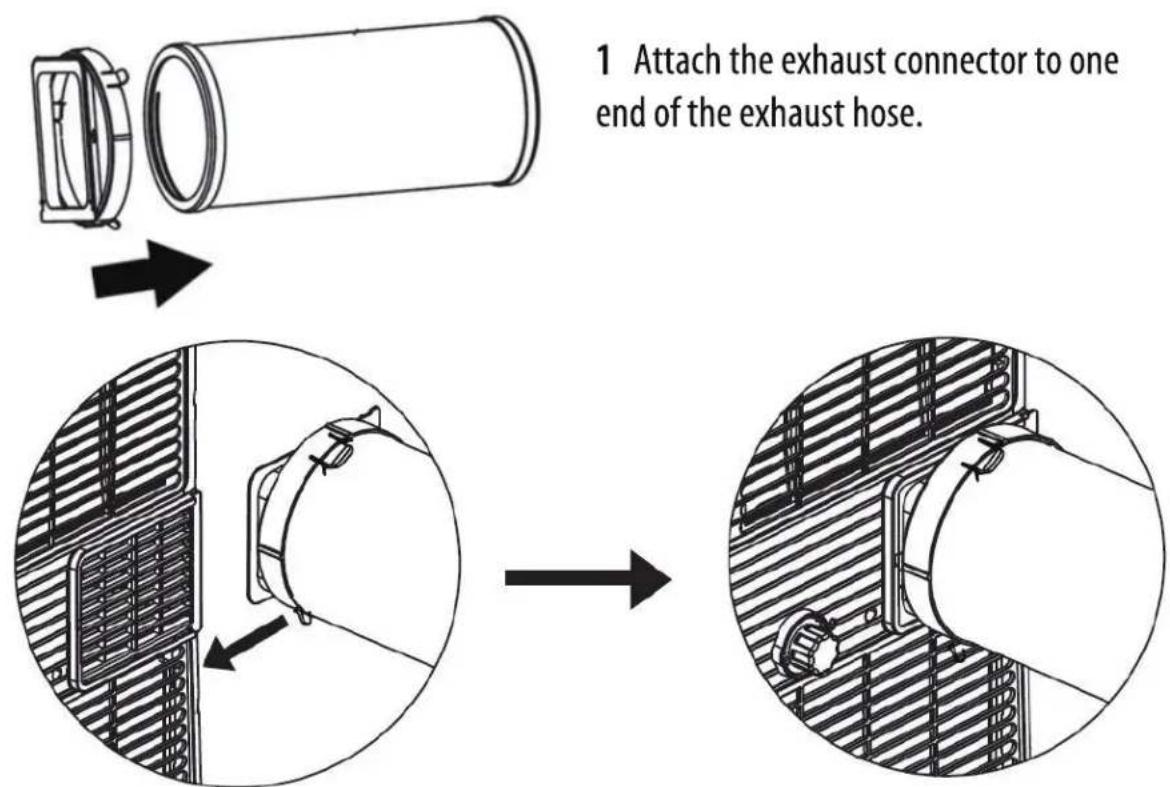

18Accessories INSTALLATION Location Theapplianceshouldbeplacedonaörm øoor to minimize noise and vibration. The appliance must be placed within reach of a properly rated grounded socket and the drain outlet (located on the back of the appliance) must be accessible. Never place any obstacles around the air inlet or outlet of the appliance. Allow at least 30cm of space from the wall with window for eócient air- Exhaust hose Exhaust connector Wall exhaust adapter with cap Screw and anchor (4sets) Drain hose Remote control with batteries

Turning the appliance on or o

Battery installation

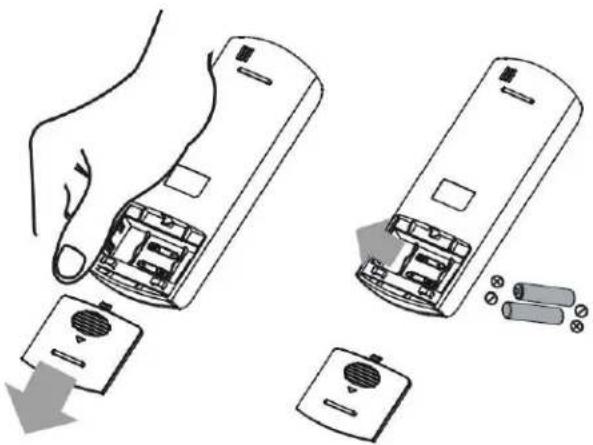

1. Slide the battery cover oò the remote control.

2. Insert the supplied batteries, paying attention to match up the (+) and (-) ends of the batteries with

the symbols inside the battery compartment.

3. Slide the battery cover back into place.

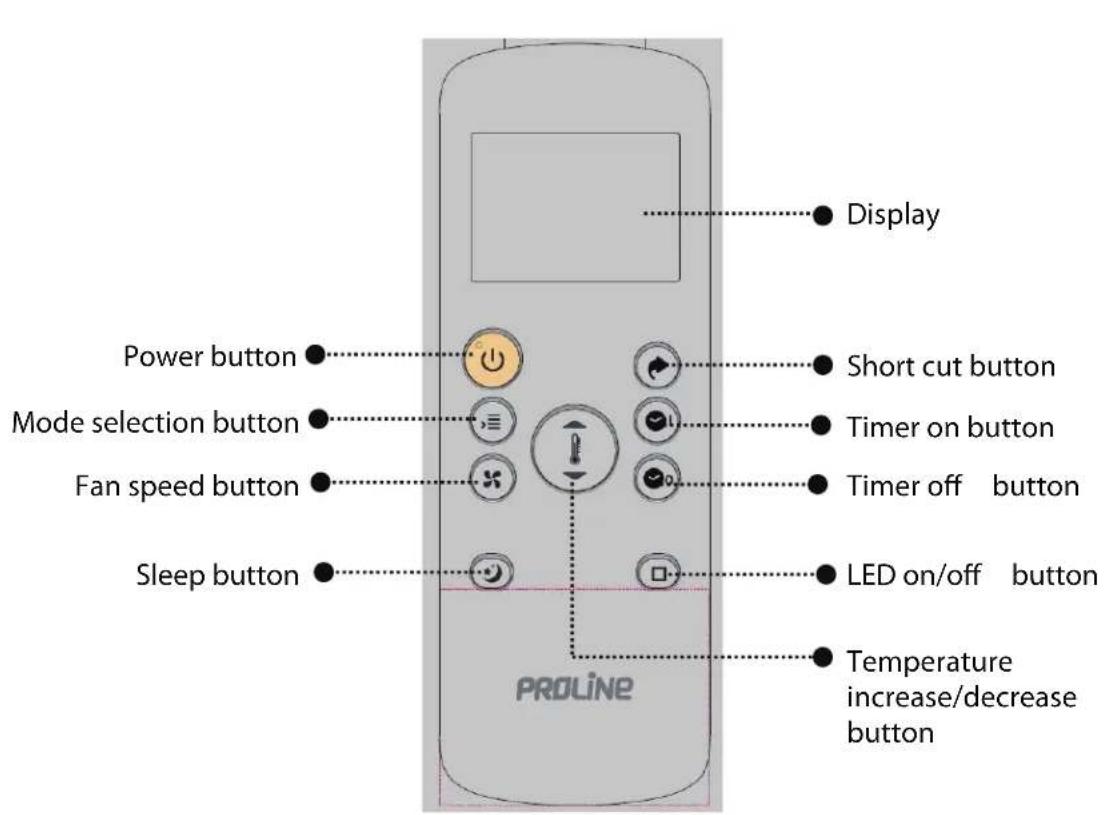

TIPS FOR USING REMOTE CONTROL

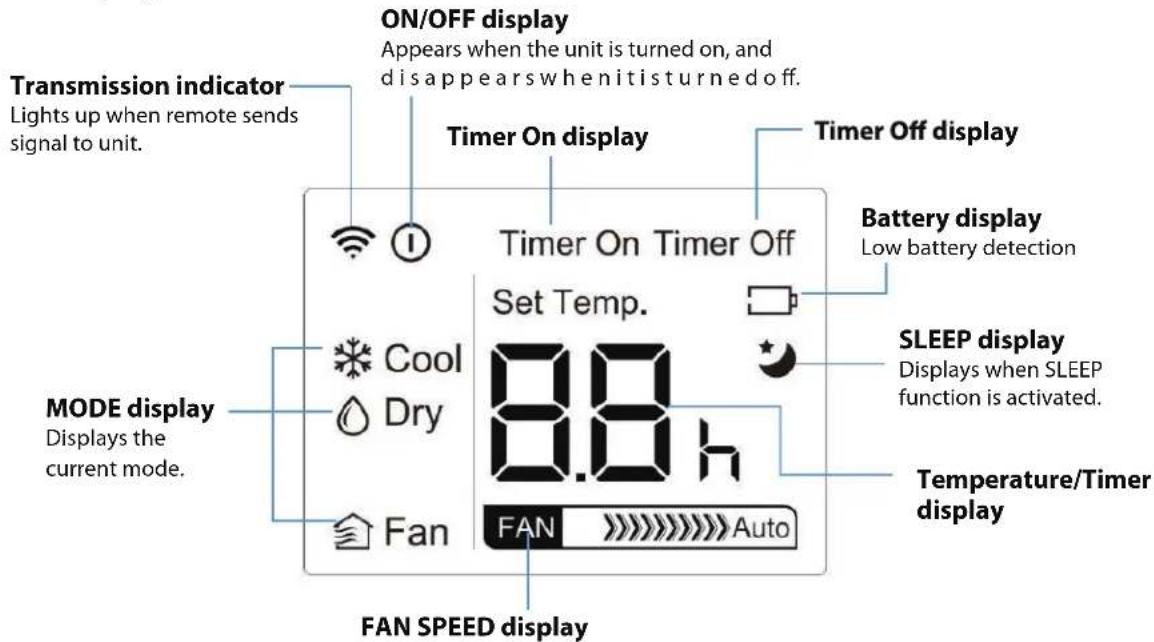

Point the remote control at the receiver on the appliance. The remote control must be no more than 8 meters away from the appliance (without obstacle between the remote and receiver). The appliance will beep when remote signal is received. Curtains, other materials and direct sunlight can interfere with the infrared signal receiver. Remove batteries if the remote will not be used for more than 2 months.

26TIMER ON function The TIMER ON function allows you to set a period of time after which the unit will automatically turn on, such as when you come home from work.

1. When the unit is OFF, press

By default, the last time period that you set and an "h" (indicating hours) will appear on the display. Note: This number indicates the amount of time after the current time that you want the unit to turn on. For example, if you set TIMER ON for 2 hours, the remote display will show “2.0h”, and the unit will turn on after 2 hours.

to set the time when you want the unit to turn on.

3. Wait for 2 seconds, then the TIMER ON function will be activated.

TIMER OFF function The TIMER OFF function allows you to set a period of time after which the unit will automatically turn oò, such as when you wake up.

1. When the unit is ON, press

By default, the last time period that you set and an "h" (indicating hours) will appear on the display. Note: This number indicates the amount of time after the current time that you want the unit to turn oò. For example, if you set TIMER OFF for 2 hours, the remote display will show “2.0h”, and the unit will turn oò after 2 hours.

to set the time when you want the unit to turn oò.

3. Wait for 2 seconds, then the TIMER OFF function will be activated.

NOTE: When setting the TIMER ON or TIMER OFF function, up to 10 hours, the time will increase in 30 minute increments with each press. After 10 hours and up to 24 hours, it will increase in 1 hour increments. To cancel the TIMER ON or TIMER OFF function, set the timer to “0.0h”. Setting both TIMER ON and TIMER OFF at the same time Keep in mind that the time periods you set for both functions refer to hours after the current time. For example, say that the current time is 1:00 PM, and you want the unit to turn on automatically at 7:00 PM. You want it to operate for 2 hours, then automatically turn oò at 9:00 PM.

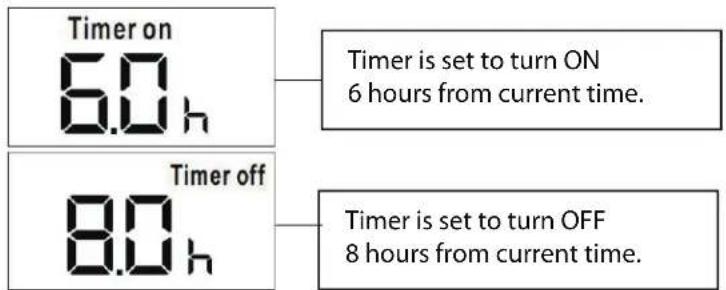

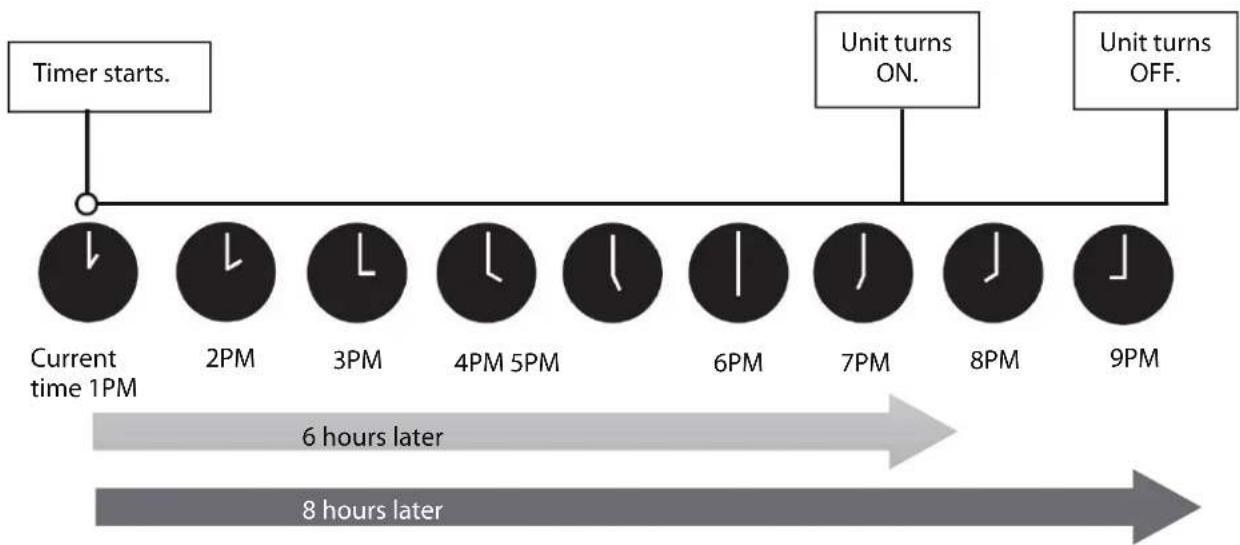

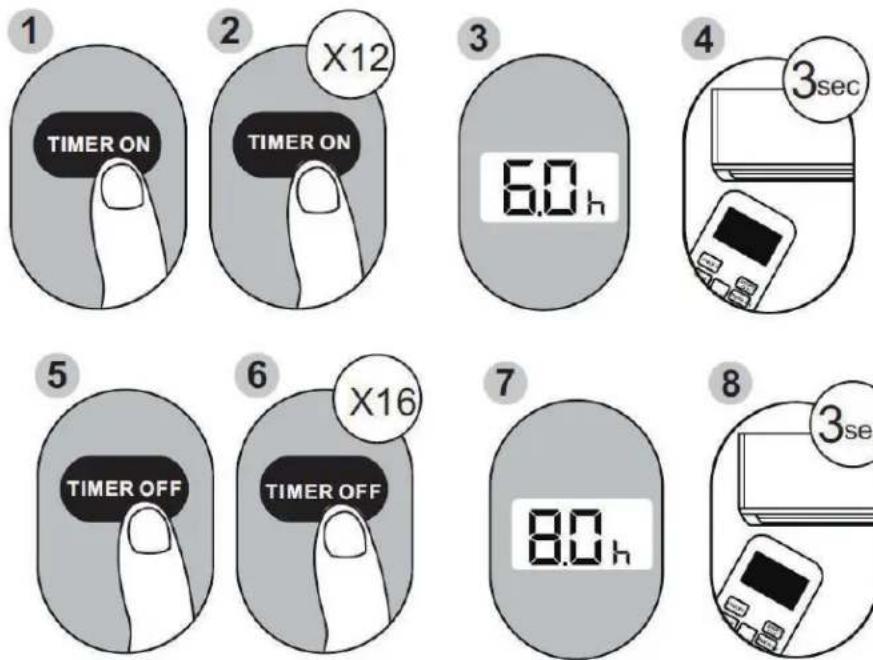

27Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn oò. Your remote display Timer is set to turn ON 6 hours from current time. Timer is set to turn OFF 8 hours from current time. Timer starts. Unit turns ON. Unit turns OFF. Current time 1PM 2PM 3PM 4PM 5PM 6PM 7PM 8PM 9PM 6 hours later 8 hours later Do the following:

AIR FLOW DIRECTION ADJUSTMENT

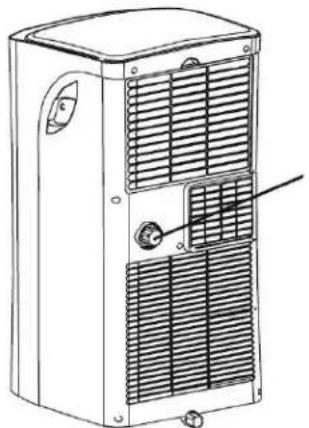

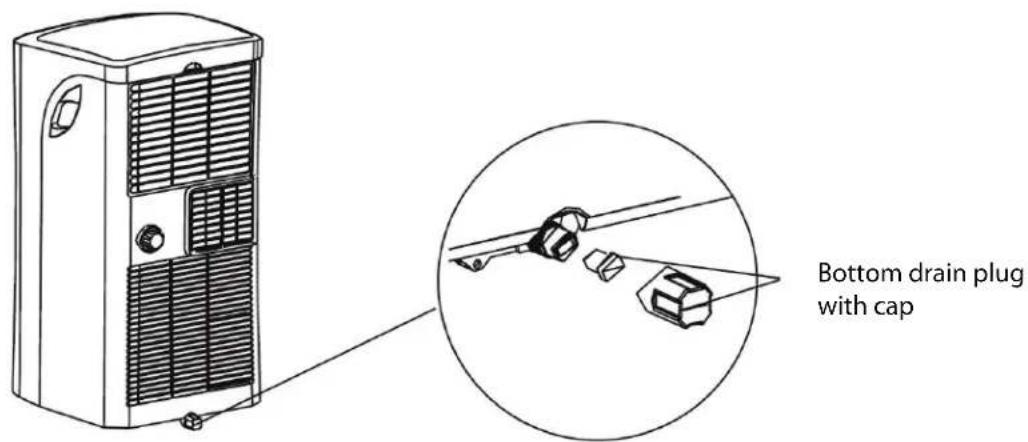

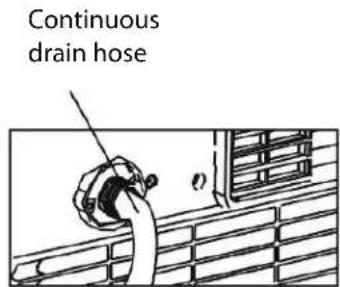

29NOTE: Make sure the hose is secure so there are no leaks. Direct the hose toward the drain, making sure that there are no kinks that will stop the warter øowing. Place the end of the hose into the drain and make sure the end of the hose is down to let the water øow smoothly. When the continuous drain hose is not used, ensure that the drain plug and knob are installed örmly to prevent leakage. When the water level of the bottom tray reaches a predetermined level, the appliance will beeps and the display will show "P1" . At this time the cooling/dehumidiöcation process will immediately stop. However, the fan motor will continue to operate (this is normal). Carefully move the appliance to a drain location, remove the bottom drain plug and let the water drain away. Reinstall the bottom drain plug and restart the machine until the "P1" disappears. If the error repeats, call for service. NOTE: Be sure to reinstall the bottom drain plug örmly to prevent leaka ge before using the appliance. Remove the drain plug. Continuous drain hose Bottom drain plug with cap

30WARNING: Before cleaning or maintenance, turn the appliance oò by pressing on the control panel or on the remote control. Unplug from the mains socket.

leaning the outside cabinet Clean the surface of the appliance with a slightly damp cloth and then dry with a dry cloth. Never use ammable liquids or chemicals to clean the appliance. Never wash the appliance under running water. Doing so causes electrical danger. IMPORTANT The control panel and other parts must not come into contact with water or any other liquid.

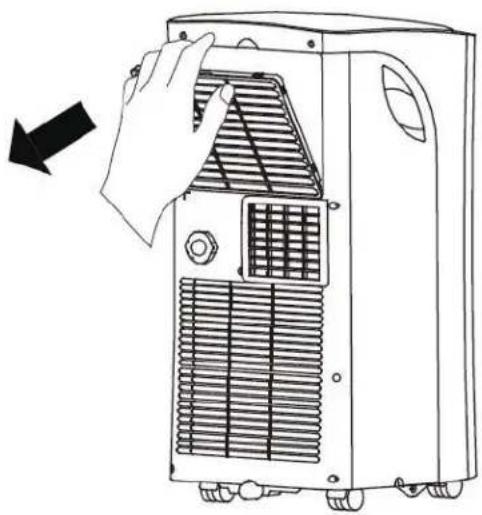

leaning the filter CAUTION: DO NOT operate the appliance without ölter because dirt and lint will clog it and reduce performance. In households with animals, you will have to periodically wipe the grille to prevent blocked air ow due to animal hair. Be sure to clean the air lter every 2 weeks for optimal performance. Use a vacuum cleaner to remove dust accumulations from the ölter. Iötisvery dirty, clean the ölter under running water. Leave the ölter to dry and then re-insert the ölter.

31Storage If you are not using the appliance for an extended period of time. After cleaning please: Turn oò and unplug the appliance. Make sure the water is completely drained. Run the appliance on FAN mode for 12 hours in a warm room to dry it and prevent mould. Clean the ölter as described in the previous section. Remove batteries from the remote control. Cover the appliance and store it upright in a location where it will not receive direct sunlight.

ROUBLESHOOTING Problem Possible Cause Solution Unit does not turn on when pressing ON/OFF button. P1 Protection Code Turn oò the unit, drain the water and restart the unit. In COOL mode: room temperature is lower than the set temperature. Reset the temperature. E0 EEPROM error Contact the service agents or a similar qualiöed person for service. Unit does not cool well. The air ölter is blocked with dust or animal hair. Turn oò the unit and clean the ölter. Exhaust hose is not connected or is blocked. Turn oò the unit, disconnect the hose, check for blockage and reconnect the hose. The unit is low on refrigerant. Call a service technician to inspect the unit and top oò refrigerant. Temperature setting is too high. Decrease the set temperature. The windows and doors in the room are open. Make sure all windows and doors are closed. The room area is too large Check the cooling area. There are heat sources inside the room. Remove the heat sources if possible. The unit is noisy and vibrates too much. The ground is not level. Place the unit on a øat, level surface. The air ölter is blocked with dust or animal hair. Turn oò the unit and clean the ölter. The unit makes a gurgling sound. This sound is caused by the øow of refrigerant inside the unit. This is normal.

32ERROR CODES E0 – EEPROM (Electrical Erasable Read-Only Memory) error E1 – Room temperature sensor error. E2 – Evaporator temperature sensor error. E3 – Condenser temperature sensor error. E4 – Display panel communication error. EC – Refrigerant leakage detection malfunction. Protection code: P1 – Bottom tray is full. Connect the drain hose and drain the collected water. If protection repeats, call for techinical assistance. NOTE: When one of the above malfunctions occurs, turn the unit OFF, and check for any obstructions. Restart the unit, if the malfunction is still present, turn OFF the unit and unplug the power cord. Contact the service agents or a similar qualiöed person for service. SPECIFICATIONS Product fiche Trade mark Proline Model PAC1800 Energy efficiency class A Description Symbol Value Unit Rated capacity for cooling P rated for cooling 2,0 kW Rated power input for cooling P EER 0,8 kW Rated Energy efficiency ratio EER

Power consumption in thermostat-off mode

Power consumption in standby mode P

0,5 W Electricity consumption of single duct appliances

0,8 kWh/h Energy consumption 0,8 kWh per 60 minutes, based on standard test results. Actual energy consumption will depend on how the appliance is used and where it is located.

eq. Refrigerant leakage contributes to climate change. Refrigerant with lower global warming potential (GWP) would contribute less to global warming than a refrigerant with higher GWP, iøeaked to the atmosphere. This appliance contains a refrigerant øuid with a GWP equal to 3. This means that if 1 kg of this refrigerant øuid would be leaked to the atmosphere, the impact on global warming would be 3 times higher than 1 kg of CO

,overa period of 100 years. Never try to interfere with the refrigerant circuit yourself or disassemble the product yourself and always ask a professional. (Refrigerant: R290 / 0,14 kg) Contact detail for obtaining more information Etablissements Darty & öls © 129 Avenue Gallieni, 93140 Bondy, France Website: www.darty.com 01/12/2021
