MKE23 - Cooker MPM - Free user manual and instructions

Brand	MPM
Model	MKE23
Product type	Electric cooker with two cooking zones
Number of cooking zones	2
Left cooking zone	Power 1800 W, diameter 20 cm
Right cooking zone	Power 1000 W, diameter 16 cm
Cooking surface	Ceramic glass
Control type	Rotary (thermostat)
Operation indicators	Yes, for each zone
Adjustable thermostat	Yes, from MIN to MAX
Power supply	230 V ~ 50 Hz (standard estimate)
Total power	2800 W (1800 + 1000)
Power cord length	0.8 m
Grounded plug	Yes (class I)
Intended use	Domestic, cooking and reheating food
Maintenance and cleaning	Clean the ceramic glass surface with a soft cloth and a mild cleaner. Do not immerse.
Safety	Regulation thermostat, automatic shutdown in case of overheating (not specified but likely)
Spare parts and repairability	Contact an authorized MPM service center
General information	Manual available in several languages. Keep for future reference.

Frequently Asked Questions - MKE23 MPM

How to plug in the MPM MKE23 cooker?

Plug the appliance into a grounded power outlet (230 V). Make sure the knobs are on the MIN position before plugging in.

What is the power of the cooking zones?

The left zone has a power of 1800 W (diameter 20 cm) and the right zone 1000 W (diameter 16 cm).

How to clean the ceramic glass surface?

Use a soft damp cloth with a mild ceramic glass cleaner. Never use sharp or abrasive objects. Unplug the appliance and let it cool before cleaning.

What to do if liquid spills on the plate?

Turn off the appliance, unplug it and let it cool. Clean immediately with a soft cloth. Avoid liquid entering the interior.

Can children use this appliance?

Yes, from 8 years under supervision. Children under 8 must stay away from the appliance. Never leave unattended.

What types of pots and pans to use?

Use pots with a flat bottom for good contact. Avoid unstable utensils. For ceramic glass, prefer smooth bottoms.

Does the appliance remain hot after turning off?

Yes, the cooking zones remain very hot after use. Wait for complete cooling before touching or cleaning.

Is there a fire risk?

Do not place flammable materials nearby. Do not let grease overheat. Use the appliance on a heat-resistant surface.

How to adjust the temperature?

Turn the thermostat knob of the desired zone between MIN (off) and MAX (maximum temperature). The indicator lights up during heating.

What to do in case of breakdown or damage?

Unplug the appliance. Do not use if the cord or plug is damaged. Contact an authorized MPM service center for repair.

USER MANUAL MKE23 MPM

EN We wish you satisfaction from using the product and invite you to check a wide range of other MPM/appliances

Two identical electric stoves with red circular tops and black bases, no visible text or symbols.

CZ NAVOD K OBS.UZE 3

Illustration showing three cooking pots with checkmarks and X marks, likely indicating incorrect cooking conditions or errors.

ČIŠTĚNÍ A ÚDRŽBA

Illustration showing three cooking pots with checkmarks and X marks, likely indicating incorrect cooking conditions or errors.

Illustration showing three cooking pots with checkmarks and X marks, likely indicating incorrect cooking conditions or errors.

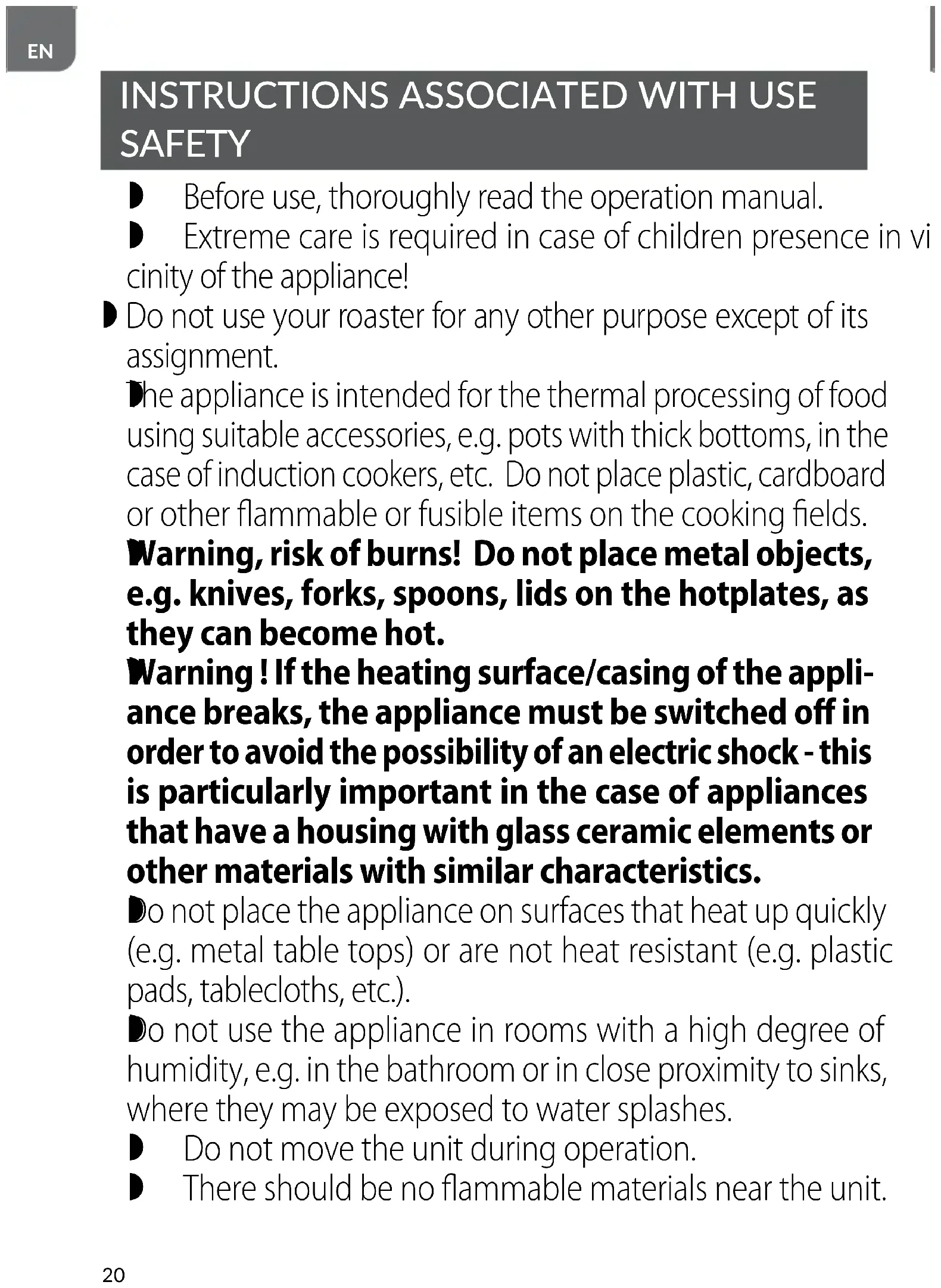

INSTRUCTIONS ASSOCIATED WITH USE SAFETY

Before use, thoroughly read the operation manual.
Extreme care is required in case of children presence in vicinity of the appliance!

- Do not use your roaster for any other purpose except of its assignment.

The appliance is intended for the thermal processing of food using suitable accessories, e.g. pots with thick bottoms, in the case of induction cookers, etc. Do not place plastic, cardboard or other flammable or fusible items on the cooking fields.

Warning, risk of burns! Do not place metal objects, e.g. knives, forks, spoons, lids on the hotplates, as they can become hot.

Warning ! If the heating surface/casing of the appliance breaks, the appliance must be switched off in order to avoid the possibility of an electric shock - this is particularly important in the case of appliances that have a housing with glass ceramic elements or other materials with similar characteristics.

Do not place the appliance on surfaces that heat up quickly (e.g. metal table tops) or are not heat resistant (e.g. plastic pads, tablecloths, etc.).
Do not use the appliance in rooms with a high degree of humidity, e.g. in the bathroom or in close proximity to sinks, where they may be exposed to water splashes.

Do not move the unit during operation.

There should be no flammable materials near the unit.

▶ Prolonged use of the appliance may require increased ventilation levels - set the ventilation to a higher level, tilt the window if necessary.

When heating, accessories and food (especially fats) will become hot - be careful, use oven gloves etc.

Disk of burns, avoid direct contact - beware of hot steam that can be expelled when opening covered containers etc.

- Be careful, working parts get very hot and remain hot for a long time after the appliance is switched off.

Do not use the appliance if the cooking zones/housing are flooded, e.g. by ejected soup, etc. If such a situation occurs, the appliance must be disconnected from the power supply and cleaned immediately after it has cooled down.

Do maintain the efficiency of the appliance and to avoid the proliferation of microorganisms, clean the appliance regularly as indicated in the “CLEANING AND MAINTENANCE” section.

Do not use a steam cleaner to clean the appliance.

Do not immerse the appliance, its cord and plug in water or any other fluids!

Do not leave the roaster without supervision in course of its operation.

Always pull out the plug from the socket unless the appliance is used or before its cleaning.

Do not use the roaster in case of its damage, also if its cord or plug is damaged – in such case the appliance should be handed over to an authorized service shop for repair.

The use of any accessories not recommended by the manufacturer may result in damage of the appliance, fire or injuries.

Do not use the roaster outdoors.

Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.

Do not stand the roaster in vicinity of electric and gas cookers, burners, ovens etc.

Prior to commencing the cleaning, pull out the plug from the plug socket and allow the roaster to cool completely.

The appliance should be connected to a mains socket outlet with an earthing pin - this applies to appliances with a first class protection against electric shock (equipped, among other things, with an earthed plug).

This equipment may be used by children of at least 8 years of age and by persons of diminished physical, mental capacity and lack of experience and knowledge of the equipment if supervision or instruction is provided regarding the safe use of the equipment so that the hazards involved are understood. Cleaning and maintenance must not be performed by children, unless they are over 8 years old and supervised by an adult. Unsupervised children can not perform cleaning and maintenance of the product.

•tore the appliance and its cord out of reach of children under 8 years of age.

Children shall not play with the appliance

Use on a flat, stable surface.

The equipment is not designed to work with external schedulers or a separate control system.

Warning! Hot surface! The symbol on the appliance indicates that its components may become hot during operation.

Do not pull the plug by holding the power cord.
Do not connect the power plug with wet hands.

The temperature of surfaces may be higher when the appliance is in use.

This appliance is intended for household use only.
Do avoid the risk of fire, do not place the appliance near flammable objects, such as curtains, tablecloths, etc.
Keep your children safe: do not leave any parts of the pack aging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).
WARNING! Never let children play with plastic film or bags. Choking/ asphyxiation hazard!

WARNING! Oils and fats may burn when overheated. Please be careful!

COOKTOP DESCRIPTION

1. Cooker housing
2. Cooker handles
3. Heating plate, power: 2000W, diameter 20 cm (MKE-22)

a. Left heating plate, power: 1800W, diameter: 20cm (MKE-23)

b. Right heating plate, power: 1000W, diameter: 16cm (MKE-23)

1. Thermostat control lamp (MKE-22)

a. Left heating plate control lamp (MKE-23)
b. Right heating plate control lamp (MKE-23)

1. Thermostat knob (MKE-22)

a. Left heating plate thermostat knob (MKE-23)
b. Right heating plate thermostat knob (MKE-23)

USING THE COOKTOP

1. The cooktop must be placed on a level, flat, stable and dry surface that is resistant to high temperature.
2. Set the "MIN" position on the thermostat knobs.
3. Place the pots filled with food to be cooked on the preferred cooking plates. Do not place empty pots.
4. Connect the device to the mains (grounded).
5. Turn the selected thermostat knob to the appropriate position, which initiates the heating process. The closer the MAX position is approached by the knob, the higher the heating temperature is. The plate heating process is indicated by the corresponding light. When the specified temperature is reached, the thermostat will disconnect the plate; the latter is indicated by the light switching off. The thermostat will maintain a user-specified temperature by turning the plate on and off in a cyclic manner. All heating elements are very hot during the operation of the product; do not touch them, as there is a risk of burns.
6. After cooking, turn the thermostat knob to the off position "MIN", unplug the cooktop from the mains and wait until it cools down.
7. Do not use any pots that are unstable and may fall over. Use pots with flat bottoms to ensure full contact with the cooking plate and optimal efficiency.
8. Do not use dishes that are unstable and may tilt. Use only cookware with a flat bottom to ensure full contact with the hotplate and achieve optimum efficiency (see the adjacent illustration).
9. To carry the stove, handles (2) should be used; they also provide good heat insulation.

Simple line drawing of a cooking pot with a checkmark inside, placed on a stand (no text or symbols)

Simple line drawing of a cooking pot with an 'X' mark on its side, placed on a stand (no text or symbols)

Simple line drawing of a cooking pot with an 'X' mark on the lid (no text or symbols)

CLEANING AND MAINTENANCE

Before cleaning, the cooktop must be unplugged and left to cool down. The ceramic surface must be cleaned with damp cloth and a gentle cleaning agent for ceramic surfaces, and the housing must be cleaned with a damp cloth. Make sure water does not penetrate into the cooktop, because this may damage the cooktop.

NOTE! The cooktop and the power lead must not be submerged in water or other liquids.

TECHNICAL DATA

Technical parameters are indicated on the product nameplate.

Length of power cord: 0,8 m

NOTE! MPM agd S.A. reserves its right to modify the technical data.

Proper disposal of the product (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components.

Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health. Used equipment should

be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.

Illustration showing three cooking pots with checkmarks and X marks, likely indicating cooking or testing conditions.

LIMPIEZA Y MANTENIMIENTO

Illustration showing three cooking pots with checkmarks and X marks, likely indicating incorrect cooking conditions or errors.

NETTOYAGE ET ENTRETIEN

Illustration showing three cooking pots with checkmarks and X marks, likely indicating cooking or testing conditions.

Diagram showing three cooking pots with checkmarks and X marks indicating cooking status or failure

Simple line drawing of a cooking pot with a checkmark inside, placed on a stand (no text or symbols)

Simple line drawing of a cooking pot with an 'X' mark on its side, placed on a base (no text or symbols)

Simple line drawing of a cooking pot with an 'X' mark on the lid (no text or symbols)

TİRİŞANA UN APKOPE

BESCHRIJVING VAN HET APPARAAT

Illustration showing three cooking pots with checkmarks and X marks, likely indicating incorrect cooking conditions or errors.

REINIGING EN ONDERHOUD

Illustration showing three cooking pots with checkmarks and X marks, likely indicating cooking or testing conditions.

Illustration showing three cooking pots with checkmarks and X marks, likely indicating incorrect cooking conditions or errors.

Illustration showing three cooking pots with checkmarks and X marks, likely indicating incorrect cooking conditions.

ČISTENIE A ÚDRŽBA

Predtým, než začnete zariadenie čistit, vytiahnite zástrčku z el. zásuvky a počkajte, kým úplne vychladne. Keramický povrch čistite mäkkou vlhkou handričkou a jemným prostriedkom na čistenie keramických povrchov, a plást zariadenia čistite vlhkou handričkou. Zabráňte, aby na zariadenie stekala voda (ak voda prenikne do vnútra zariadenia, zariadenie sa môže poškodit).

Illustration showing three cooking pots with checkmarks and X marks, likely indicating cooking or testing conditions.

ОЧИЩЕННЯ I ДОГЛЯД

Legible signature of the buyer
