USER MANUAL Alinea 90 Klarstein

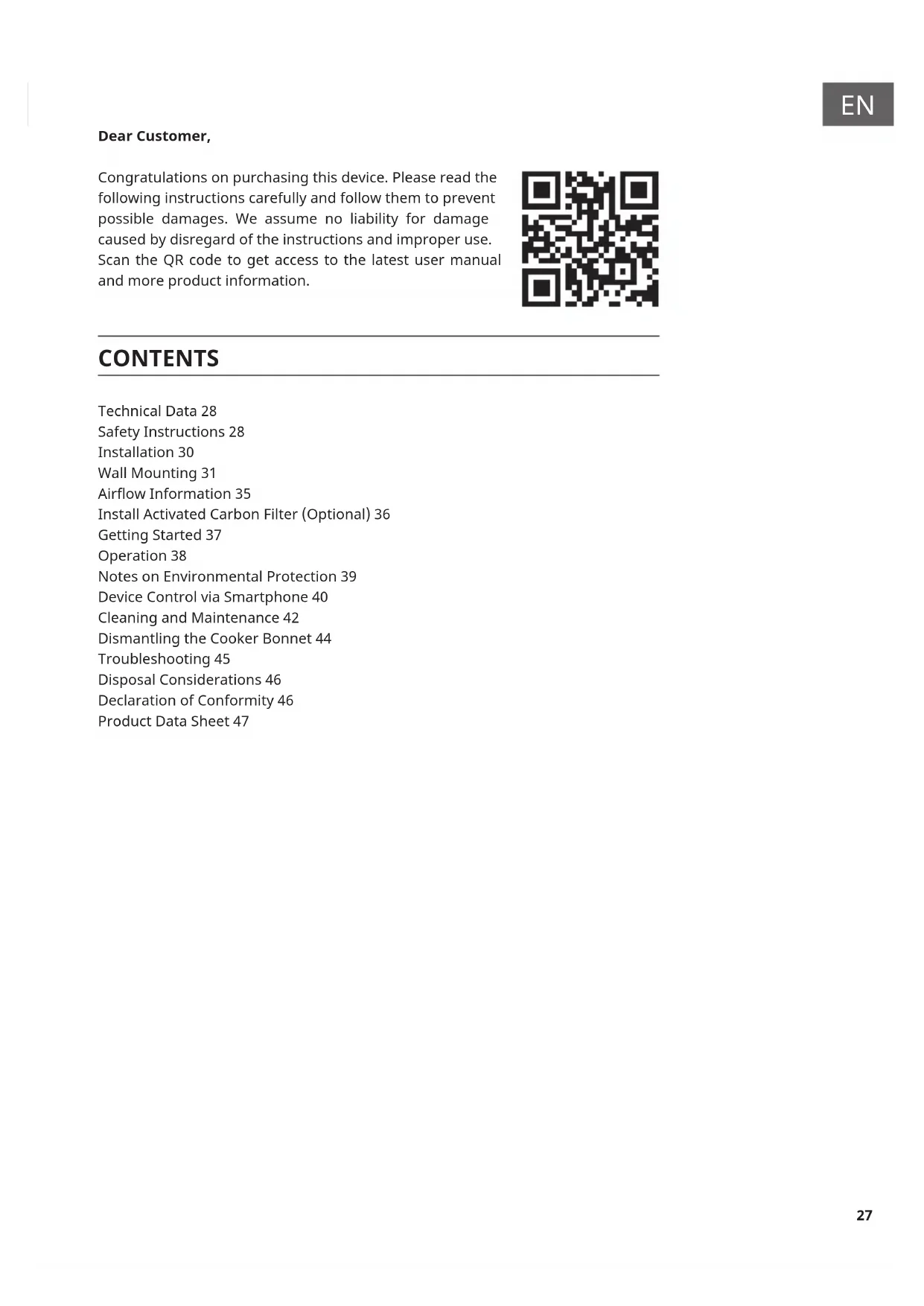

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENTS Technical Data 28 Safety Instructions 28 Installation 30 Wall Mounting 31 Airow Information 35 Install Activated Carbon Filter (Optional) 36 Getting Started 37 Operation 38 Notes on Environmental Protection 39 Device Control via Smartphone 40 Cleaning and Maintenance 42 Dismantling the Cooker Bonnet 44 Troubleshooting 45 Disposal Considerations 46 Declaration of Conformity 46 Product Data Sheet 4728

WiFi transmission power (max.) < 20 dBm Power supply 220-240 V ~ 50/60 Hz Note: You can also purchase an activated carbon lter for this cooker hood under item number 10030727. To do so, visit our website: www.klarstein.co.uk SAFETY INSTRUCTIONS

• Read all instructions carefully before use and keep the user manual in a safe place for future reference.

• The installation work may only be carried out by an electrician or a qualied person. Before using the cooker hood, make sure that the voltage (V) and frequency (Hz) indicated on the cooker hood correspond to the voltage and frequency of the power supply in your household.

• We accept no liability for damage caused by improper use or installation.

• Children under 8 years of age must not use the cooker hood.

• The device is not intended for commercial use, only for household and similar use.

• Clean the appliance and the lter regularly to keep the appliance working eciently.

• Always disconnect the power plug from the socket before cleaning.

• Clean the appliance exactly as indicated in the operating instructions.

• Do not use an open re under the extractor hood.

• If the unit is not functioning normally, contact the manufacturer or a specialist company.

• Children from the age of 8 years and mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.

• If the power cord is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualied person.

• If the cooker hood is used with cookers that burn gas or other fuels, there must be adequate ventilation in the room.

• Do not ambé under the extractor hood.

• Caution: The surface of the unit may become hot during operation.29

Important instructions for installation

• The air must not be discharged into a ue used for extracting ue gases from gas or other fuels (does not apply to appliances that only return the air to the room).

• Observe all regional regulations for the installation of ventilation systems. Important notes on exhaust air operation WARNING Danger of poisoning from recirculated exhaust gases! Do not operate the appliance in extract air mode if it is operated together with a room air-dependent replace and su cient air circulation is not guaranteed. Room air-dependent replaces such as gas, oil, wood or coal heaters, boilers or instantaneous water heaters draw the air from the room and lead it outdoors through an exhaust pipe or chimney. In extract air mode, air is extracted from the kitchen and neighbouring rooms. Without su cient supply air, negative pressure is created. Toxic gases from the chimney or exhaust pipe can be sucked back into the living rooms.

• Make sure that su cient fresh air supply is guaranteed and that the air can circulate.

• A supply air/exhaust air wall box is not su cient to ensure compliance with the limit value. Safe operation is only possible if the negative pressure at the location of the replace does not exceed 4 Pa (0.04 mbar). This can be achieved if the air required for combustion can ow in through non-closable openings in doors and windows in conjunction with a supply air / exhaust air wall box. In any case, have a master chimney sweep advise you and assess the entire ventilation system of the house. If necessary, they can tell you the necessary measure for ventilation. If the cooker hood is used exclusively in recirculation mode, operation is possible without restriction. Important note on dismantling the unit

• Disassembly is the same as installation/assembly in reverse order.

• Have a second person help you during disassembly to avoid injury.30

• Clean the surrounding area thoroughly before and after installation so that no dust or construction debris can be sucked in during commissioning.

• Only place the appliance in a suitable location.

• Check the wall for its load-bearing capacity.

• Check the routing of electrical and other cables on and in the wall or ceiling so that they are not drilled into.

• Check the condition and load-bearing capacity of the electrical cables.

• Installation of the unit by a specialist is recommended.

• The extractor bonnet should be installed at a height of 65-75 cm above the hob. When installing, strictly observe the minimum distance between the hob and the extractor bonnet and follow the description of the work steps in the "Wall mounting" section and all other instructions. Installation with exhaust air opening to the outside

• In the version with exhaust air to the outside, the vapours are extracted via an exhaust air hose attached to the connection ring.

• The diameter of the exhaust air hose must correspond to the diameter of the connection ring.

• The exhaust air hose must not be routed through a shaft together with gas pipes, hot air pipes etc.

• Route the exhaust hose as straight as possible away from the bonnet. The maximum permissible outward bending is 120°.

• If a smoke check damper is used or planned, check that it can open and close freely after the exhaust air hose has been installed.

• The cooker bonnet can be equipped with one (top) or two (top and rear) exhaust openings. As a rule, the cooker bonnet is initially equipped for use of the upper extractor opening as a cooker bonnet.

• The openings that are not needed are covered with a plastic cover. This plastic cover can be easily removed by turning it anticlockwise and optionally attached to another opening that is not needed. Use of the cooker bonnet as an exhaust bonnet (with exhaust air to the outside):

• If the cooker bonnet is equipped with a carbon lter at the factory, this must be removed for exhaust air operation. Use only makes sense if you operate your cooker bonnet in recirculation mode.31

Conversion of the cooker bonnet into a recirculation bonnet:

• If you want to use the cooker bonnet as a recirculation bonnet, you must t the activated charcoal lter(s) to the fan motor before using the bonnet. If not included in the scope of delivery, you must obtain the activated charcoal lter(s) from the supplier of your cooker bonnet. WALL MOUNTING Power connection

• Do not connect the unit to the mains until it has been properly installed.

• Never install the appliance if the information on the rating plate (V) does not match your mains voltage. The rating plate is located inside the appliance, behind the grease lter.

• If the cooker bonnet is equipped with a standard plug, connect it to an easily accessible standard socket.

• If the appliance is not equipped with a connection plug, a two-pole, standard- compliant switch with a contact gap of 3 mm must be installed by an authorised specialist in an easily accessible place.

• When the cooker bonnet is connected to the mains, all indicator lights light up briey and the cooker bonnet switches to standby mode (accompanied by a beep). Installation with exhaust air (fume cupboard outside): Note: Failure to t the screws or xing device in accordance with these instructions may result in electrical hazards. Note: Observe the safety instructions for operating the unit when the air is discharged to the outside. If the cooker hood is in operation at the same time as an appliance that draws its energy from a source other than electricity, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).32

Mounting the cooker bonnet

• Drill 3 x 8 mm holes for the wall bracket.

• Fix the bracket to the wall with dowels and screws and tighten.

• Lift the cooker bonnet and hang it on the wall bracket. Wall holes Screw (4 x 30 mm) Dowel Wall mount33

• Remove the metal grease lter and mark the mounting holes on the back of the cooker bonnet on the wall.

• Remove the cooker bonnet again. Drill four holes with a diameter of 8 mm at the marked points. Insert the dowels into the holes.

• Hang the cooker bonnet on the wall bracket and x it to the dowels with the screws from the inside of the bonnet.

• Attach the exhaust air hose to the outlet.

• Push the upper part of the shaft into the lower part. Pay attention to the position of the ventilation openings depending on whether they are used for exhaust air or recirculation air (see illustration).

• Attach the shaft bracket to the lower/outer part of the shaft. Dowel 2 Screws (4 x 30 mm) Upper/inner part of the shaft Shaft bracketShaft bracket Lower/outer part of the shaft34

• Place the shaft on the housing of the cooker bonnet.

• Mark the mounting holes on the wall and pre-drill the holes at the marks.

• Fix the lower shaft bracket to the wall with 2 dowels and screws (4 mm x 30 mm).

• Pull the upper/inner part of the shaft up to the desired height. Mark the mounting holes for the upper shaft bracket on the wall and pre-drill the holes at the marked locations.

• Fix the upper shaft bracket to the wall with 2 dowels and 2 scews (4 x 30 mm) in the pre-drilled holes.

• Fasten the upper/inner part of the shaft to the bracket with 2 screws (4 x 8 mm). Dowel Shaft bracket Screw (4 mm x 8 mm) Screw (4 mm x 30 mm)35

AIRFLOW INFORMATION Note: The illustrations are for reference only. The product you have purchased and the local conditions may differ from these.

Exhaust air into the open Exhaust air via air shaft/chimney Angle of inclination of the exhaust air duct

• The exhaust duct should be as short and straight as possible.

• To avoid excessive noise or reduced extraction performance, the diameter of the exhaust duct should not be smaller than 150 mm.

• Only use or shape arches with a large radius, small radii reduce the extraction performance of the cooker bonnet.

• Only use smooth piping or exible hoses made of non-combustible material for the exhaust air line.

• If the exhaust air duct is laid horizontally, a minimum gradient of 1 cm per metre or an angle of inclination of 2° must be maintained (Figure 3), otherwise condensation can get into the extractor fan motor.

• If the exhaust air is directed into an exhaust air duct, the end of the connection piece must be aligned in the direction of ow.

• If the extract air duct is routed through cool rooms, attics, etc., there may be a large temperature gradient within the individual duct sections, resulting in condensation or condensation water. Therefore, it is necessary to insulate the exhaust air duct. In some cases, a condensation water barrier must be installed in addition to adequate insulation.

• The manufacturer is not liable for faults resulting from non-compliance with the above instructions and regulations. Use as recirculation bonnet This appliance has been prepared for recirculation operation at the factory. To do this, check inside the cooker bonnet that the activated charcoal lters have been tted to the right and left of the motor appliance.36

INSTALL ACTIVATED CARBON FILTER (OPTIONAL) Note: You can purchase an additional activated charcoal lter for this cooker bonnet under item number 10030727. To do so, visit our website: www.klarstein.co.uk

• Remove the metal grease lter.

• The carbon lter is mounted in two parts to the right and left of the motor. Check that the teeth correspond with the direction of rotation of the respective side.

• Turn the activated carbon lter onto the motor housing (usually clockwise). Note: The illustrations are for reference only. The actual product may differ from these.37

• Make sure that the cooker bonnet has not been damaged during transport.

• Installation and connection to the power supply must be carried out by qualied persons in accordance with the operating instructions and in compliance with local requirements. Instructions for use

• The appliance must only be used with the grease lter in place. Otherwise grease could be deposited in the appliance.

• Do not use naked ames under the cooker bonnet. High ames could damage the cooker bonnet or cause a re of the grease deposits in the cooker bonnet.

• When using a gas cooker, make sure that it is not used without cooking utensils. Open ames could damage parts of the appliance due to the rising heat.

• Due to the risk of re, when deep-frying and cooking with oil, it must be ensured that permanent monitoring of the preparation is guaranteed. Note: The risk of spontaneous combustion increases the more often oils or greases are reused. Exhaust air mode The extracted air is discharged to the outside via the exhaust air pipe. For this purpose, your house must have an exhaust air shaft or an exhaust air duct to the outside. When operating the cooker bonnet in exhaust air mode and simultaneously operating chimney-dependent ring systems (e.g. coal stove), a sucient supply of fresh air must be ensured in the installation room of the cooker bonnet. In any case, contact your responsible chimney sweep. If there is no permanently installed exhaust air pipe or no separate exhaust air shaft, you must switch the cooker bonnet to recirculation mode (see chapter "Installation"). Convection functionality The extracted air is ltered through a carbon lter (also called an activated carbon lter) and circulated in the room. The charcoal lter retains the odours produced during cooking and the ltered air is returned to the kitchen through side or top air vents. If the cooker bonnet is used in recirculation mode, a room air dependent re can be operated at the same time.38

It is recommended to switch on the appliance a few minutes before starting to cook. To improve the performance of the cooker bonnet, you should pull out the steam collector (if present). Set the power level according to the amount of steam and odour to be extracted. Leave the cooker bonnet running for approx. 5 to 10 minutes after cooking. This frees the kitchen air from residual vapours and odours. OPERATION Control panel Button functions On / off button Light button

• Briey press this button to switch the light on or off

• Adjust the colour temperature (Kelvin): Press and hold this button in operating mode/standby mode to adjust the Kelvin value. In Kelvin adjustment mode, the light button ashes. Press "1" briey to adjust the Kelvin value (Kelvin value from 280 K to 6500 K). There are a total of 6 adjustment levels.

• The brightness can be adjusted by briey pressing the WLAN key. There are a total of 3 brightness settings: 100 %, 75 % or 50 %, which are cycled through by pressing the WLAN button several times. Level 1 - low speed Level 2 - medium speed Level 3 - high speed Booster function

• After 5 minutes, the speed automatically changes to level 3. Automatic switch-off

• Press this button briey to switch the appliance off automatically after 5 minutes. Hold the button down for a long time to deactivate the automatic switch-off.39

• In standby mode, press and hold the Wi-Fi button to activate the Wi-Fi function. The WLAN symbol starts ashing. Establish the connection to the WLAN network (see section "Device control via smartphone"). As soon as the connection has been successfully established, the WLAN symbol lights up permanently. If no WLAN connection is established within 3 minutes, the WLAN symbol stops ashing and the appliance automatically switches to standby mode.

NOTES ON ENVIRONMENTAL PROTECTION

• Make sure there is sucient air supply during cooking so that the cooker hood can work eciently and with low operating noise.

• Adjust the fan speed to the amount of steam produced while cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.

• If large amounts of steam are produced when cooking, select a higher fan speed in time. If the cooking steam has already spread throughout the kitchen, the cooker hood must be operated for longer.

• Switch off the cooker hood when it is no longer needed.

• Switch off the lighting when it is no longer needed.

• Clean the lter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent re hazards.

• Always put the lid on when cooking to reduce cooking steam and condensation.40

If you integrate your Klarstein appliance into your home WLAN, you can operate it conveniently via the associated Klarstein app. The app not only allows you to control the appliance remotely via your smartphone, but also gives you access to recipes and further information. Follow these steps to connect your smartphone to your Klarstein appliance:

1. First download the Klarstein app by scanning the QR code with your

smartphone (see below) or download it directly from the App Store or Google Play.

2. Make sure that your smartphone is connected to the same WiFi network that

your Klarstein device is to be connected to.

3. Open the Klarstein app.

4. Log in with your account. If you don't have an account yet, register in the

5. Follow the instructions in the app.

App download Use the scan function of your mobile phone to scan the QR code and save the app on your smartphone. Note: Further instructions on how to use the app and help on how to connect to your device are provided by the app when you open it for the rst time. iOS Android41

Troubleshooting connection problems If your Klarstein device cannot be found in the WLAN, check the following:

1. The device is not plugged in. Make sure that your unit is plugged into a power

2. The unit is not in pairing mode. Make sure that the WiFi indicator (LED) on the

control panel of the smart device is ashing as described in the "Reset WiFi settings" instruction of your smart device (instructions can usually be found under Device connection).

3. The WiFi access point does not operate on 2.4 GHz. Make sure your access

point is operating on the 2.4 GHz band and that you have your own SSID on the 2.4 GHz band. If you are unsure about the operating band of your access point, please contact your internet provider. Important: Please note that if your WiFi router has a dual band - i.e. operates in both the 2.4 GHz and 5 GHz bands - you must separate the SSIDs for each band and use the 2.4 GHz SSID for the connection

4. Check the rewall settings of your WiFi network. The rewall setting of your

WiFi network may not allow the Klarstein App to congure the WiFi settings on your smart device. Please ensure that you do not use a public WiFi network, e.g. airports, dormitories, companies, etc.

5. Different login data in the smartphone and in the app. Make sure that the

WiFi login details entered in the Klarstein app match those to which your smartphone is connected. If you have followed the above points and your smartphone still cannot connect to the app, please contact us by email for assistance: [e-mail]42

CLEANING AND MAINTENANCE

CAUTION Risk of electric shock! Do not use a steam cleaner for the cleaning.

• Make sure that the appliance is switched off.

• Unplug the appliance before cleaning it.

• Always allow the appliance and its components to cool down before cleaning them.

• Do not use cloths, chemicals or alcohol for cleaning as these may damage the surface. Electrical/electronic parts must not be cleaned.

• Do not use harsh or corrosive cleaning agents. Do not use abrasive cleaning agents or alkaline rinsing agents (pH value above 7).

• Maintenance and inspection should be carried out regularly. In case of visible damage, strong odour or excessive overheating of components, stop using the appliance.

• Clean the appliance according to the instructions. There is a re hazard if this is not observed. Stainless steel surfaces Clean the stainless steel surface weekly. For cleaning, use a soft cloth and lukewarm water and use a cleaning agent suitable for stainless steel. Make sure you wipe along the grain of the stainless steel to avoid unsightly scratches. Control panel interface Clean the control panel surface weekly. Use a soft cloth and lukewarm water for cleaning. Make sure that the cloth is clean and not too wet before cleaning. Wipe away excess moisture with a dry, soft cloth. Monthly cleaning of the grease lters Clean the lter every month to avoid a re hazard. The lter collects grease, smoke and dust and thus in uences the e ciency of the cooker hood. If the lter is not cleaned, grease residues will collect there.43

To clean the grease lters:

• Remove the grease lter.

• Perform one of the following steps to clean the lter:

• Manual cleaning (max. 30 °C): Soak the lter in water with a mild, non- caustic grease-dissolving detergent for about 3 minutes

• Cleaning in the dishwasher (max. 30 °C): Place the lter in the dishwasher and run a programme with a mild, non- caustic, grease-dissolving detergent. Note: It is advisable not to use rinse aid. The lter should be cleaned separately from dishes and kitchen utensils. Carefully brush the lter with a soft brush. Do not apply too much pressure to avoid damaging the lter. The lter may fade to grey. This is normal and is not covered by the warranty. Replace activated carbon lter Replace the activated charcoal lter every 3 to 6 months (see section: "Install activated carbon lter (optional)"). Replacing the lamp

• The lamp may only be replaced by a qualied electrician.

• Disconnect all power connections before opening the appliance.

• There is a risk of burns! Always allow the lamp to cool down before replacing it.

• Always use gloves or a cloth to avoid direct contact with your hands. Direct contact can shorten the life of the lamp.

• Replace the lamp with a lamp of the same type and amperage.44

Note: Remember to reattach everything after inserting the new lamp and x all screws in the same position

DISMANTLING THE COOKER BONNET

1. Make sure that the on/off switch is in the "0" position.

2. Unplug the power cord from the wall socket.

3. Remove the cooker bonnet from the wall or cabinet.

4. Remove the lter. Dispose of the lters at a collection point for the recycling of

waste electrical and electronic equipment.

5. Remove the motor. Dispose of the motor at a collection point for the recycling

of waste electrical and electronic equipment.

6. Dispose of the rest of the cooker bonnet at your local recycling centre.45

• Repairs to the electrical system may only be carried out by a qualied electrician, and local regulations must be observed. If in doubt, contact the manufacturer, customer service or an authorised specialist company.

• Disconnect all power connections before opening the appliance. Problem Potential cause Solution The light turns on but the engine does not run. The ventilation is blocked. Switch off the appliance and have it repaired by qualied personnel. The engine is damaged. The light is off and the engine does not run. The lamp is broken. Replace the bulb. The plug is loose. Plug the power plug securely into the wall socket. The housing vibrates. The rotor blade of the fan is damaged. Switch off the appliance and have it repaired by qualied personnel. The motor is not rmly seated. The appliance has not been hung properly on the bracket. Remove the cooker bonnet and make sure that the bracket is in the correct position. The air is not extracted properly. The distance between the cooker and the extractor bonnet is too far. Reduce the distance to 65-75 cm.46

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom Hereby, Chal-Tec GmbH declares that the radio equipment type Alinea Smart is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10041171 For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Alinea Smart is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/1004117147

Grease Filtering Eciency class D air ow at minimum and maximum speed in normal use, intensive or boost excluded 316,0 / 505,9 m³/h air ow at intensive or boost setting 577,8 m³/h airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use 52 / 63 dB airborne acoustical A-weighted sound power emissions at intensive or boost setting 65 dB power consumption in off mode P

0,41 W power consumption in standby mode
