USER MANUAL VFS 048 SDD VESTFROST

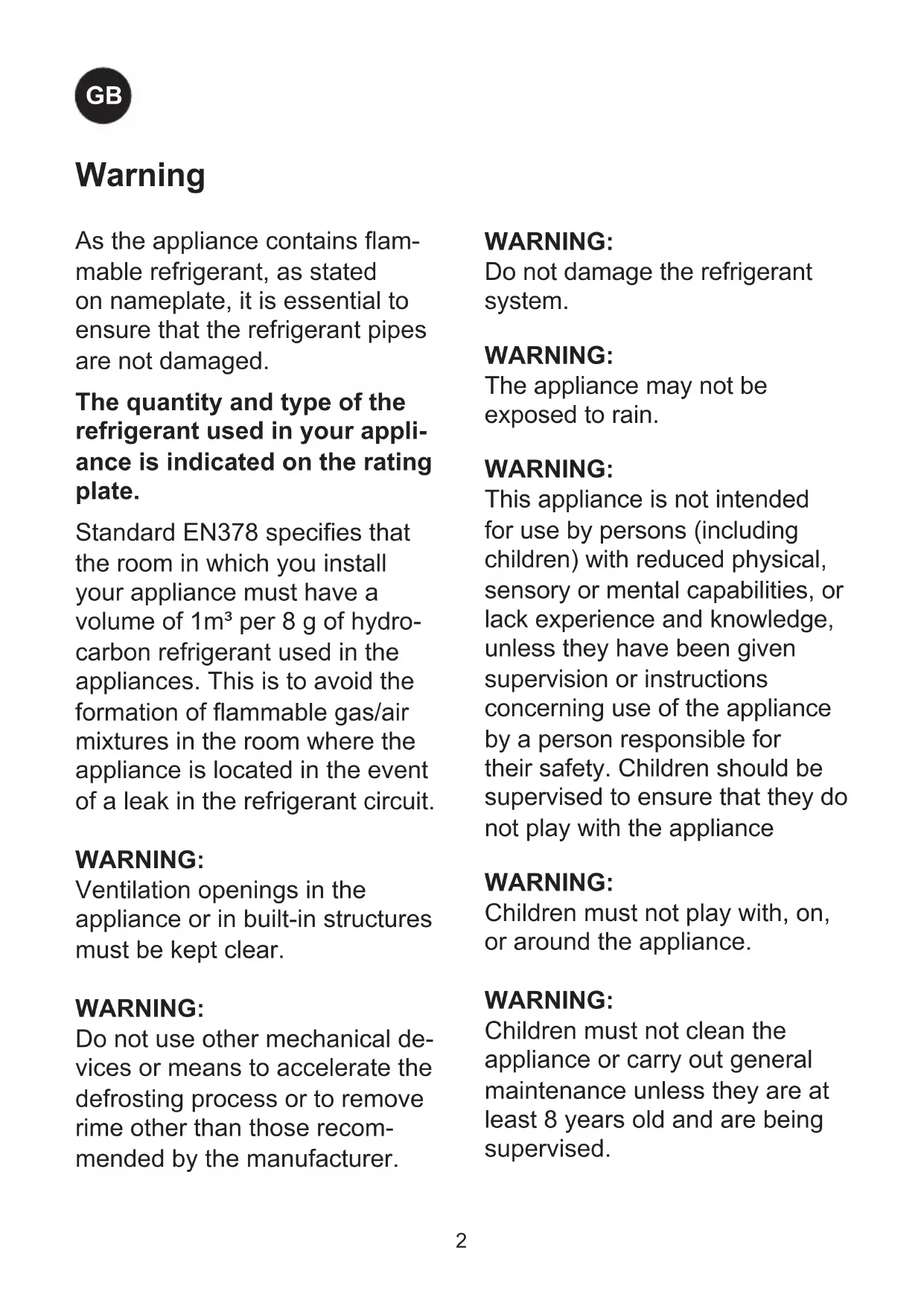

GB Instructions for use FR Consignes d’utilisation ES Instrucciones para el uso RUSИнструкцияпоэксплуатации CHI 使用说明 VFS 048 SDD تعليماتالاستخدامARA Vestfrost Solutions is working towards reaching the UN - Global Sustainable Development Goals by 2030. The Sustainable Development Goals are the blueprint to achieve a better and more sustainable future for all. In order to implement Goal no 12 ”Responsible Consumption and Production”, this manual has been printed on recycled paper.Warning As the appliance contains am- mable refrigerant, as stated on nameplate, it is essential to ensure that the refrigerant pipes are not damaged. The quantity and type of the refrigerant used in your appli- ance is indicated on the rating plate. Standard EN378 species that the room in which you install your appliance must have a volume of 1m³ per 8 g of hydro- carbon refrigerant used in the appliances. This is to avoid the formation of ammable gas/air mixtures in the room where the appliance is located in the event of a leak in the refrigerant circuit.

Ventilation openings in the appliance or in built-in structures must be kept clear.

Do not use other mechanical de- vices or means to accelerate the defrosting process or to remove rime other than those recom- mended by the manufacturer.

Do not damage the refrigerant system.

The appliance may not be exposed to rain.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance

Children must not play with, on, or around the appliance.

Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

GBWARNING: Always, keep the keys in a separate place and out of reach of children.

Before servicing or cleaning the appliance, switch o󰀨 circuit breaker.

Cleaning and user maintenance shall not be made by children without supervision

Danger risk of re or explosion. Flammable refrigerant used, as stated on nameplate. To be repaired only by trained personnel.

Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

When positioning the appliance, ensure the supply cord is not trapped or damaged.

GBOperational guidelines The compressor requires that the solar panels are able to deliver a power above a certain threshold in order to start. When started, the compressor is able to operate at lower power consumption than the starting threshold. The compressor may need a couple of starting attempts to get running. So be patient! During days with changing weather conditions, the compressor may start and stop several times. The noise coming from the VFS 048 SDD appliance is low, and primarily comes from a fan cooling the compressor. The compressor is almost noiseless. The fan starts a moment before the compressor and stops a moment after the compressor. The controller is factory set and should be adjusted only by authorized personnel. The philosophy behind the VFS 048 SDD system is: ● Simplicity ● Safety ● Robustness ● Reliability The VFS 048 SDD system is composed of: ● VFS 048 SDD freezer ● Solar panels ● Installation equipment for the solar panels ● Wires from the solar panels to the VFS 048 SDD The VFS 048 SDD is a waterpack freezer. It has one compartment for freezing and storage of waterpacks. The freezing capasity is 3x 0,6 liter waterpacks pr 24h at 43°C ambient. The storage capacity is 29 waterpacks. With correct installation and by following a few maintenance routines, the system will work trouble-free for many years. Introduction

GBGet to know your VFS 048 SDD g. 1 Handle Gasket Temperature display waterpack storage and freezer Power indicator ON/OFF Switch Freezing waterpacks Fig. 2 Place waterpacks in the slots – after 24h the packs are frozen Frozen waterpacks can be stored in the middle of the freezer

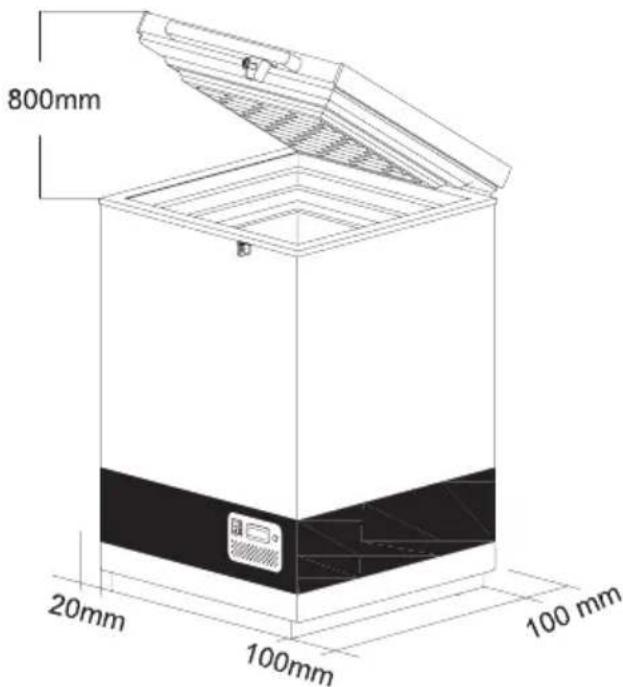

GBPlacing and unpacking g. 4 Unpacking Unpack the appliance and check that it has not been damaged. If you observe any damage, please inform your supervisor. Placing Install the appliance in a dry and well ventilat-ed place. Avoid installation near heat sources or in direct sunlight. Place the appliance on the oor and make sure that it is level. Important:Donotuseopenreorcigarettesintheprox-imity of the appliance. Adjustablefeet Level the appliance by screwing the adjust-able feet up or down.If the appliance is to be placed on a soft sur-face, e.g. oorboards or a carpet, it is best to recheck whether the appliance is still level af-ter a period of time as the underlying surface may give under the weight of the appliance. NOTE:Theremustbefreeaccesstotheventilation grille. (On the backside.) Ventilation It is important that the appliance is placed-well ventilated, so that air can circulate unhindered above, below, and around the appliance. Fig. 2 illustrates how the neces-sary air circulation can be ensured. There must be at least 30 mm clearance between the base of the appliance and the oor.Ventilation openings in the appliance or in built-in structures must be kept clear. g. 3The Climate Class is indicated on the rat-ing plate.Climateclass:0, 1, 2, 3, 4, 6 ,8 = ambient 32°CClimate class5 and 7 = ambient 43°C

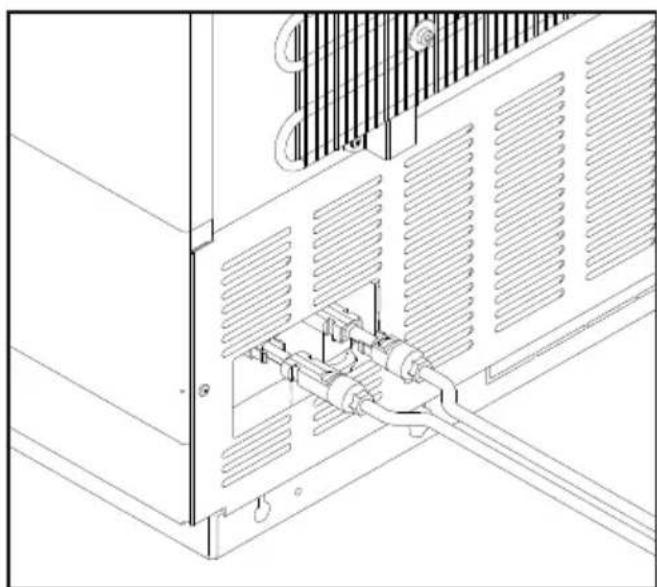

GBConnect the appliance to the solar pan- els according to table 1, which states the lengths and sizes of the wires used for con- necting the appliances. Standard supplied cable size and length will be 6mm² and 20m. The screened cables coming from the PV panels are tted with a male/female MC4 compatible connectors. The connections are then to be mounted to the prexed male/female MC4 compatible connectors placed at the back of the appliance - See g. 4 The connections are of plug and play type and can only be tted correct - male to female/female to male. Clean the appliance thoroughly before start up. Installation and start up Fig. 5 Start up Before the appliance is loaded with water- packs, the ice pack ballast must be frozen (see page 5 g. 2). The cool-down time in an ambient temperature of 43°C will be ap- prox. 5-7 days. Size: Max. length: Cross section AWG [mm2] 2,5

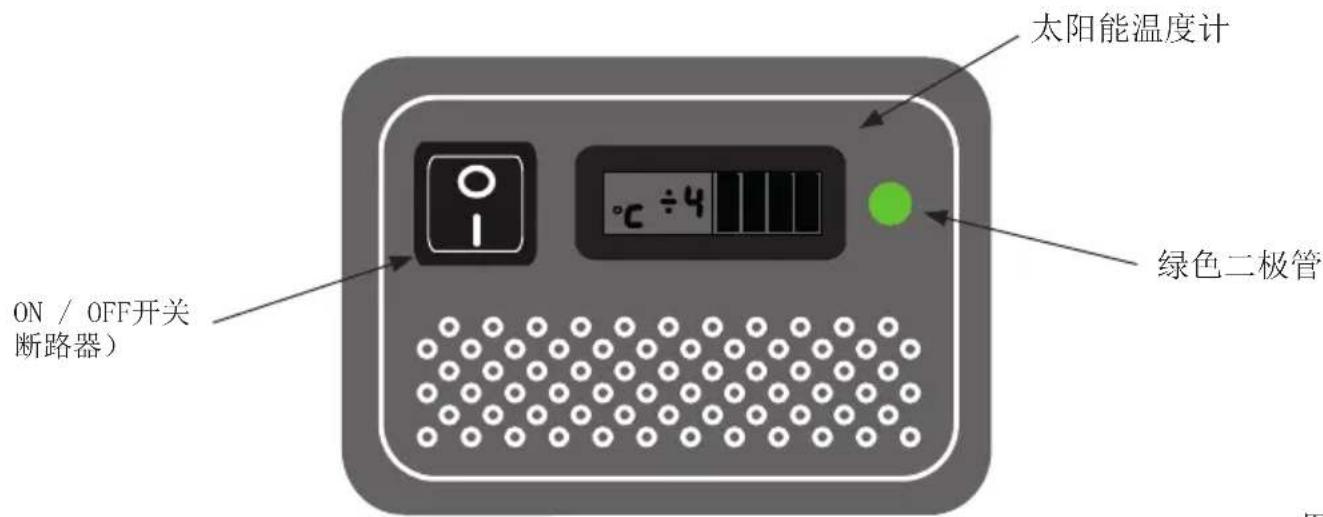

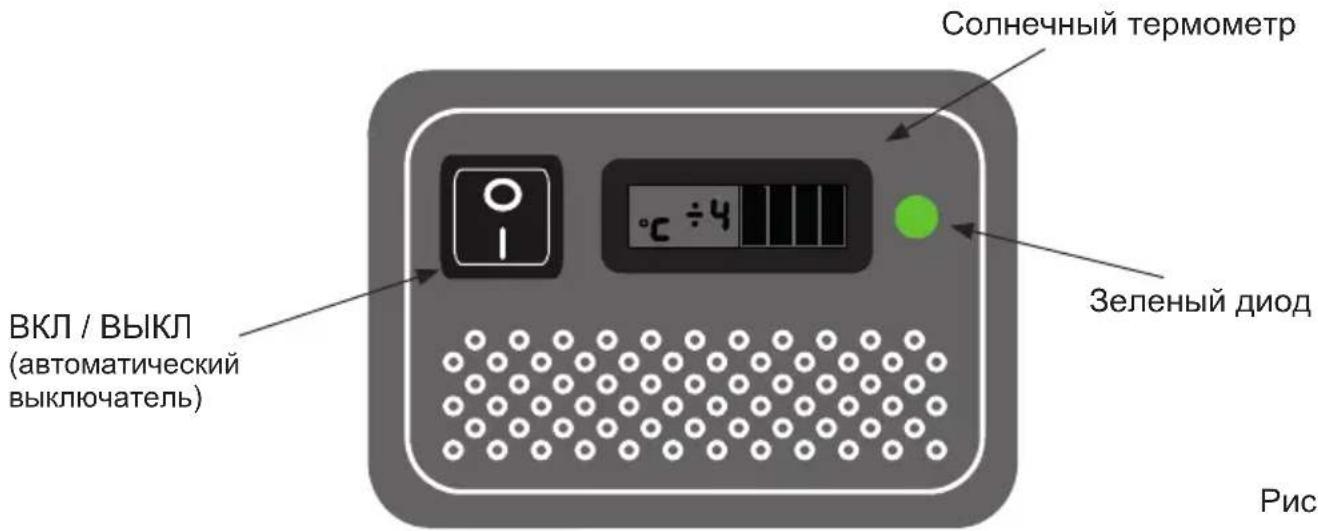

GBPlacing Solar panels are always to be placed on a stable roof or bar, which is safe and easily accessible (not for the public). The solar panels are always to be tted according to the supplier’s instructions and with the screws and ttings included or recommended by the manufacturer. Do not place the solar panels in the shadows of buildings, trees, etc. The surfaces of the solar panels are to be turned directly towards the sun. Specications The specications which the solar panels are to observed are available in table 2. Solar panels g. 6 The green diode indicates that there is power. Green diode Solar-thermometer ON/OFF Switch (circuit breaker) Control panel Type: Type 2 according E003/ PV01 direkt drive Nominalvoltage: 18V Nominalpower: 360W (standard test conditions) Number of parallel connected mod- ulesperarray:

Warranty: Min. 2 years Performance guar- antee: 25 years (to 80% of original value) Certicates: UL, TÜV or compliance with the requirements of IEC 61215 Table 2

GBMaintenance and cleaning Checking of junction boxes to ensure there is no water accumulation and that the integ-rity of lid seals, connections and clamping devices is intact.All bolts and nuts are to be re-tightened 2 weeks after installation, and then once a year. Cleaning Disconnect the power supply before cleaning by using the on/o󰀨 switch placed in the front of the appliance. The best way to clean the appliance is by using luke warm water with a small amount of unscented detergent. Never use cleaning agents that scour. Use a soft cloth. Rinse with clean water and dry thoroughly. It is important to prevent water from running into the control panel. The sealing strip around the lid must be cleaned regularly to prevent discolouration and prolong service life. Use clean water. After cleaning the sealing strip, check that it continues to provide a tight seal. If the appliance is not being used for any period of time, switch the appliance o󰀨, disconnect the power supply, empty the appliance, clean the inside, and leave the lid open to allow air circulation and prevent smells.Dailymaintenance: Check lid is properly closed and ts tightly to the cabinet of the appliance. Monthlymaintenance: Clean the grille on the back side of the refrig-erator once each month. Yearlymaintenance: Electric connections and components are to be checked and cleaned once a year or more if necessary. Maintenance of the solar panels Weeklymaintenance: The solar panels are to be cleaned for dust once each week – or as required. Cleaning must be carried out with water using a soft cloth or wash rag.Monthlymaintenance:Avoid shading It should be regularly monitored that shades do not come up such as new towering trees, as this will decrease the amount of energy produced by the system. Yearlymaintenance: Electric connections and components are to be checked and cleaned at least once a year or more often if required. Because of risk of re, it is necessary to remove dust and dirt.Checking that PV panels are clean, free of fractures, scratches, corrosion, moisture penetration and browning.Cabling should be checked to ensure it is secure.Checking the mounting hardware to ensure it is in good condition and ensuring the earth connection is continuous.

7. To prevent water from damaging the oor

during defrosting, it is advisable to check the defrost water tray from time to time and to cover the oor around the defrost water drain to protect against ice and splashes. When all the frost and ice have melted, clean the inside cabinet, as well lid, lid gasket, and outside of the cabinet using water with a mild, perfume-free de- tergent. Dry the freezer with a soft cloth, and make sure no moisture is remaining after cleaning.

8. Reinsert the internal and external

drainage plugs, and check lid gasket is not faulty.

9. Reconnect the power supply by the ON/

10. Check waterpacks are not leaking before

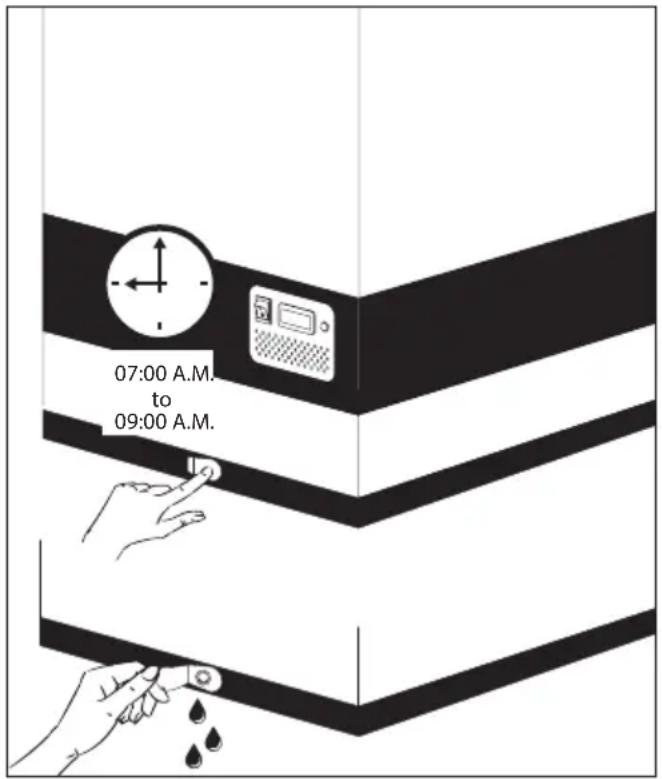

returning them to the freezer compart- ment. Place waterpacks according instructions, approx. 5 minutes after having switched it on. Close the lid. The water-packs stored and the humidity of the air gradually causes frost and ice to form in the freezer compartment. A thin layer of frost or ice does not a󰀨ect freezer perfor- mance, but a thick layer could cause the freezer not to cool water-packs satisfactory. Small amounts of loose frost can be remo- ved using a plastic scraper. Never use electrical apparatus or sharp implements as these may damage the inside of the appliance. When the layer of frost and ice exceeds 4-5 mm the freezer should be completely defrosted. Defrosting should be performed in the morning between 7am to 9am, just before the solar radiation again is powerful enough to start compressor and run refrigeration system. Proceed as follows:

1. Disconnect the power supply by switch-

ing o󰀨 the ON/OFF button. Important! ONLY switch o󰀨 the power supply of the freezer compartment. (See g. 7)

2. Remove all water-packs from freezer

compartment. Place them in an empty coldbox or wrap them up to keep them as cold as possible.

3. Keep the freezer lid open.

4. Open the two drainage plugs. One is

place inside the freezer compartment, and one placed in left side front of ap- pliance.

5. Place a tray under the defrost water

in the freezer, close the lid and wait ap- prox. 30 minutes before removing loose frost with the plastic scraper. 07:00 A.M.

GBTrouble-shooting Fault Possible cause Remedy Compressor is not run- ning, and the ice packs are not cold Be patient, it is most likely that the compressor will start within a few minutes. If this is not the case, check the fol- lowing: - Check that power is connected and that the wire from the solar panel to the appliance is intact. - Check the fuse and replace it if necessary. - If the above is OK, call technical supervisor. Compressor is running, and the temperature is too high The ventilation grill is blocked. The lid is not closed properly. The fan in the compressor compart- ment is blocked or defective. The temperature in the room in which the appliance is installed is too high. Ensure unhindered air circulation. Ensure that the lid is closed properly. Check that the fan is running, if not it should be replaced. See section: Service Shield the appliance against direct sun light and ensure more ventilation to the room. No temperature is displayed There is not enough light for the solar sensor. Turn on the light. No light in green diode during day time Switch is turned OFF Fuse is burned Diode is defect Turn on the switch Replace the fuse. Replace diode. Table 3

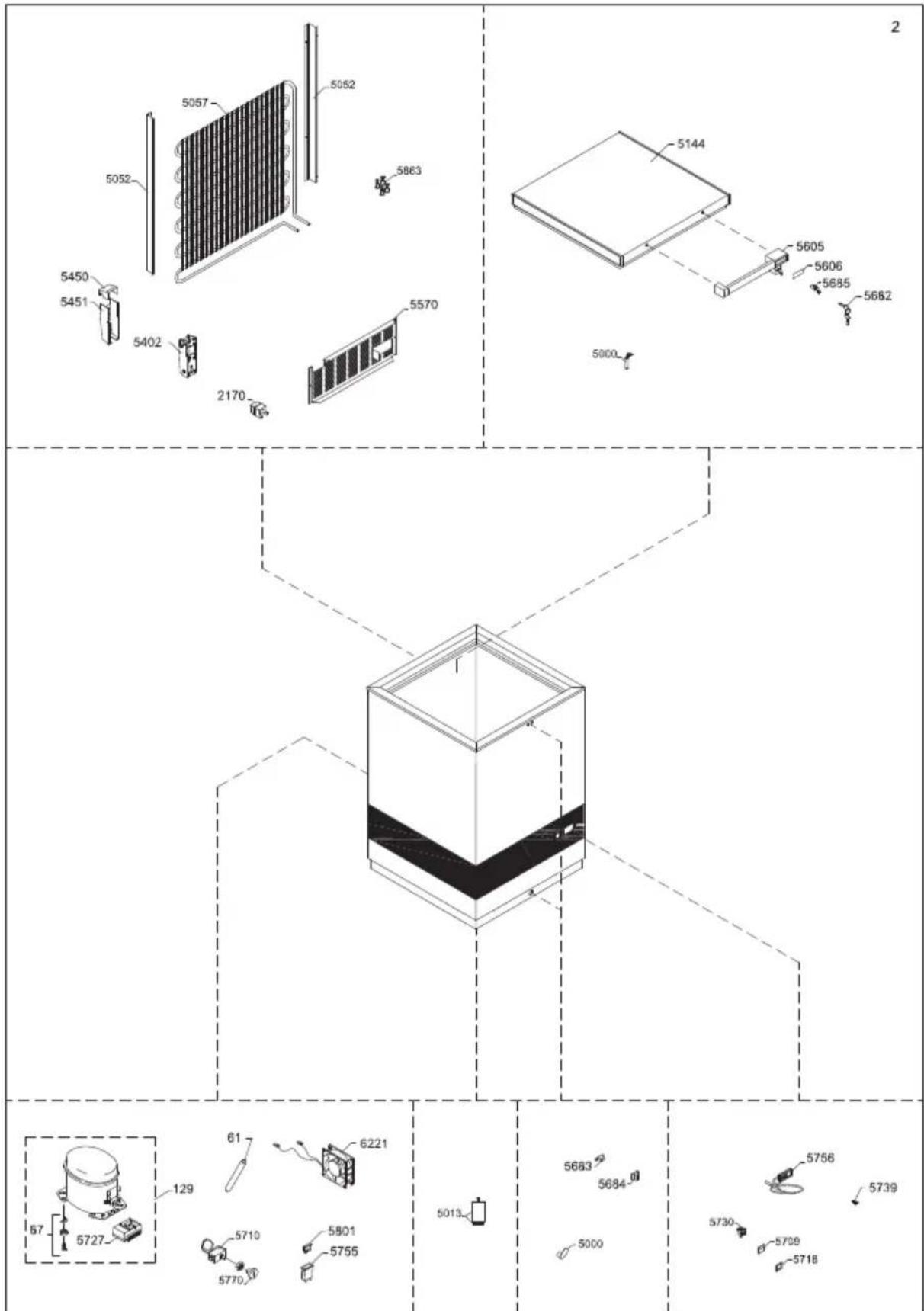

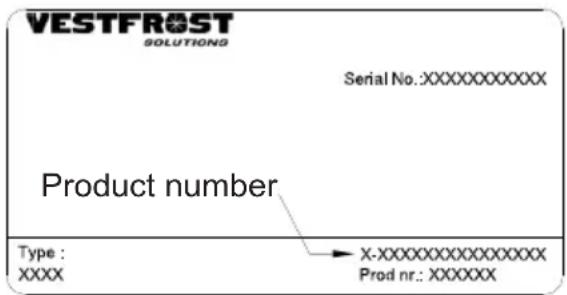

GBWarranty, spare parts and service Warranty disclaimer Faults and damage caused directly or indirectly by incorrect operation, misuse, insu󰀩cient maintenance, incorrect building, installation or mains connection. Fire, ac- cident, lightening, voltage variation or other electrical interference, including defective fuses or faults in mains installations are not covered by the warranty. Repairs performed by others than approved service centres and any other faults and damage that the manufacturer can sub- stantiate are caused by reasons other than manufacturing or material faults are not covered by the warranty. Please note that changes to the construc- tion of the appliance or changes to the component equipment of the appliance will invalidate warranty and product liability, and the appliance cannot be used lawfully. The approval stated on rating plate will also be invalidated. Transport damage discovered by the buyer is primarily a matter to be settled between the buyer and the distributor, i.e. the dis- tributor must ensure that such complaints are resolved to the buyer’s satisfaction. Before calling for technical assistance, please check whether you are able to rectify the fault yourself. If your request for assistance is unwarranted, e.g. if the appli- ance has failed as a result of a blown fuse or incorrect operation, you will be charged the costs incurred by your call for technical assistance. Spare parts When ordering spare parts, please state the type, serial and product numbers of your appliance. This information is given on the rating plate. The rating plate contains various technical information, including type and serial numbers. Product number Fig. 8

GB15 GBDisposal Information for Users on Collection and Disposal of Old Equipment and used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electri- cal and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collec- tion points, in accordance with your national legislation and the Directives 2012/19/EU and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative e󰀨ects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collec- tion and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incor- rect disposal of this waste, in accord- ance with national legislation. For business users in the European Union. If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. Information on Disposal in other Countries outside the European Union These symbols are only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Noteforthebatterysymbol: This symbol might be used in combi- nation with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.
