USER MANUAL VLS 094A SDD VESTFROST

Product display of solar panel units and refrigerant units with temperature and humidity labels (no readable text or symbols)

12

RESPONSIBLE CONSUMPTION AND PRODUCTION

Vestfrost Solutions is working towards reaching the UN - Global Sustainable Development Goals by 2030.

The Sustainable Development Goals are the blueprint to achieve a better and more sustainable future for all. In order to implement Goal no 12 "Responsible Consumption and Production", this manual has been printed on recycled paper.

VLS 054A/ 094A/ 154A SDD

GB Instructions for use

As this appliance contains hydrocarbon refrigerant please refer to guidelines listed below.

The quantity and type of the refrigerant used in your appliance is indicated on the rating plate.

Standard EN378 specifies that the room in which you install your appliance must have a volume of 1 m^3 per 8 g of hydrocarbon refrigerant used in the appliances. This is to avoid the formation of flammable gas/air mixtures in the room where the appliance is located in the event of a leak in the refrigerant circuit.

WARNING:

Keep ventilation openings in the appliance or in built-in structures must be kept clear.

WARNING:

Do not use other mechanical devices or means to accelerate the defrosting process or to remove rime other than those recommended by the manufacturer.

WARNING:

Do not damage the refrigerant system.

WARNING:

The appliance may not be exposed to rain.

WARNING:

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

WARNING:

Children must not play with, on, or around the appliance.

WARNING:

Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

WARNING:

Always, keep the keys in a separate place and out of reach of children.

WARNING:

Danger risk of fire or explosion if flammable refrigerant are used. To be repaired only by trained personnel.

Warning sign depicting a flame symbol in a triangular shape

WARNING:

Before servicing or cleaning the appliance, switch off circuit breaker.

WARNING:

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING:

When positioning the appliance, ensure the power cord is not trapped or damaged.

WARNING:

Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Contents

WARNING 2

Introduction......4

Operational guidelines....4

Get to know your VLS SDD....5

HIGHLY IMPORTANT!......6

Placing and unpacking ....7

Installation and start up ....8

Loading the appliance ....9

Control panel....10

Solar panels....10

Maintenance and cleaning....12

Trouble-shooting....13

Warranty, spare parts and service....14

Disposal....15

Introduction

The philosophy behind the VLS SDD system is:

• Simplicity
• Safety
• Robustness
• Reliability

The VLS SDD system is composed of:

• VLS SDD refrigerator
- Solar panels
• Installation equipment for the solar panels
- Wires from the solar panels to the VLS SDD

The VLS SDD is a vaccine refrigerator. It has one compartment for vaccine storage (+2°C to +8°C) equipped with 1 basket.

With correct installation and by following a few maintenance routines, the system will work trouble-free for many years.

Operational guidelines

The compressor requires that the solar panels are able to deliver a power above a certain threshold in order to start. When started, the compressor is able to operate at lower power consumption than the starting threshold. The compressor may need a couple of starting attempts to get running. So be patient!

During days with changing weather conditions, the compressor may start and stop several times.

The noise coming from the VLS SDD appliance is low, and primarily comes from a fan cooling the compressor.

The compressor is almost noiseless. The fan starts a moment before the compressor and stops a moment after the compressor.

The controller is factory set and should be adjusted only by authorized personnel.

Basket is included when the appliance is supplied and this MUST be used for storing the medicine.

Reserving the right to alter specification without prior notice.

PQS Code	Model PQS Performance specificationsSpecification reference:		PQS Independent type-testing protocolProduct verification protocol:
E003/106 VLS	054A SDD E003	/RF05.5 E003/RF05-VP.4
E003/107 VLS	094A SDD E003	/RF05.5 E003/RF05-VP.4
E003/108 VLS	154A SDD E003	/RF05.5 E003/RF05-VP.4

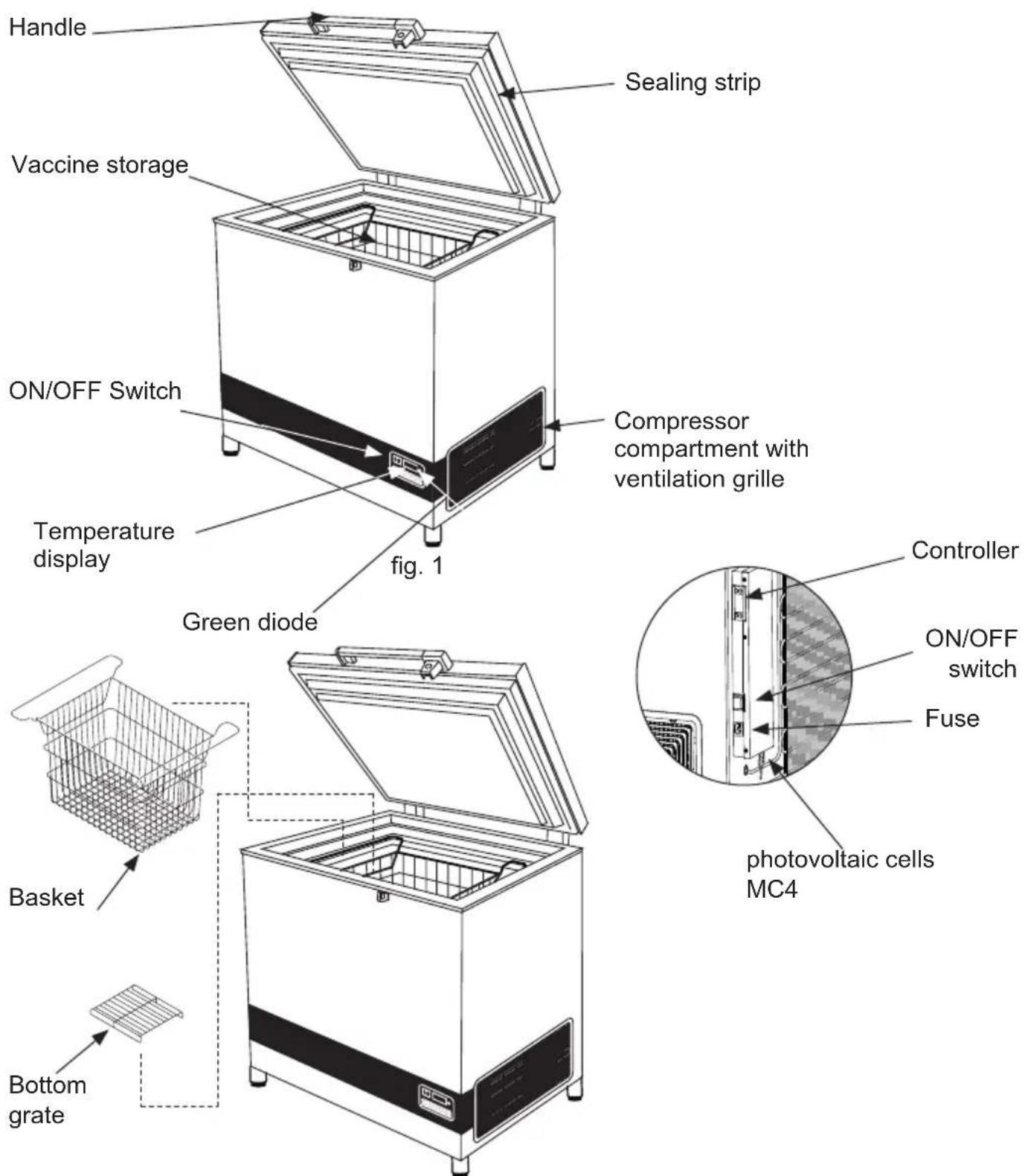

Get to know your VLS SDD

Handle Sealing strip Vaccine storage ON/OFF Switch Temperature display Green diode Controller ON/OFF switch Fuse photovoltaic cells MC4 Bottom grate

fig. 2

WARNING!

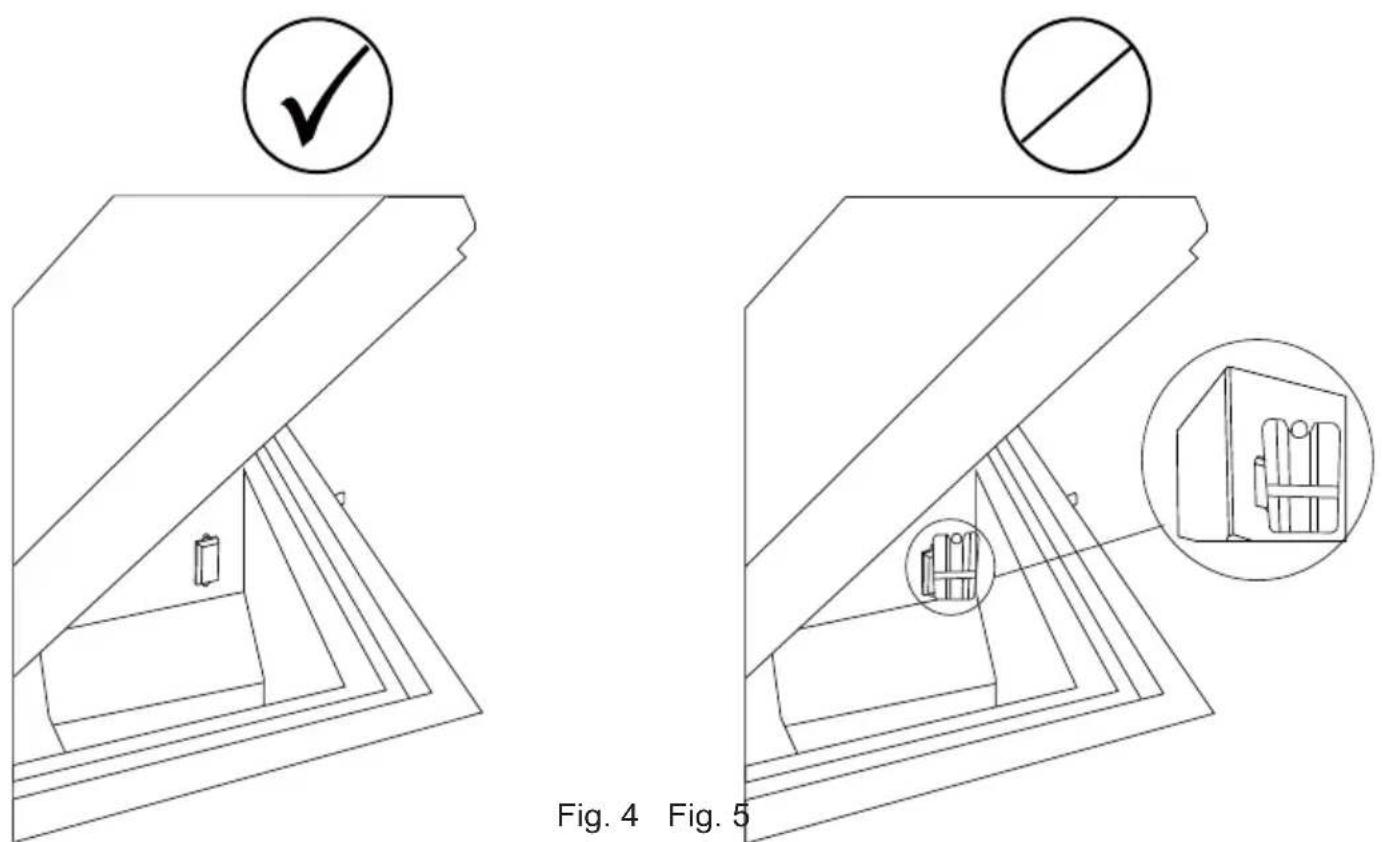

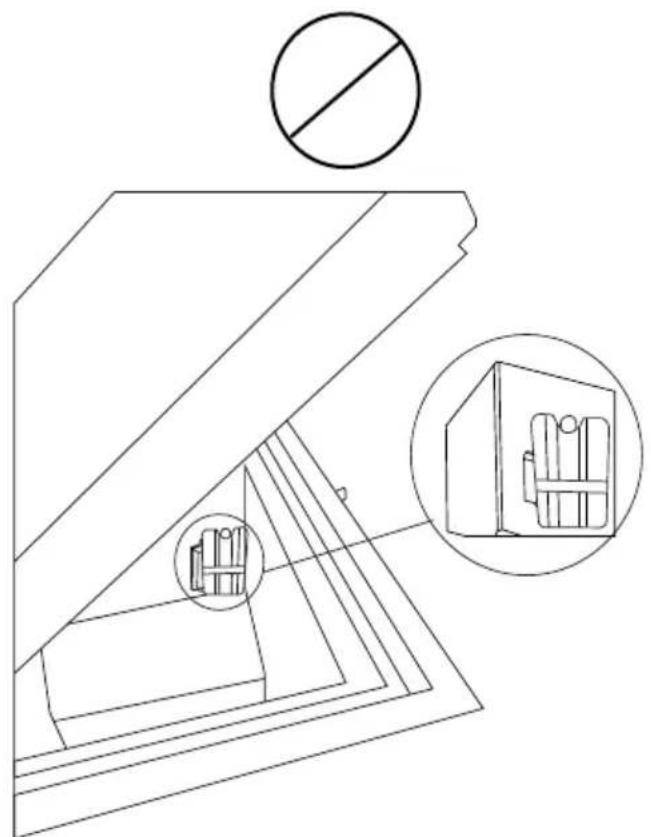

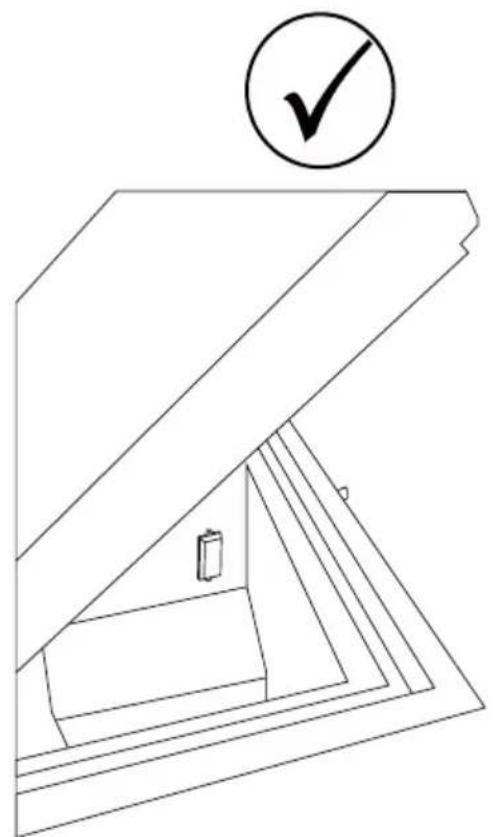

HIGHLY IMPORTANT!

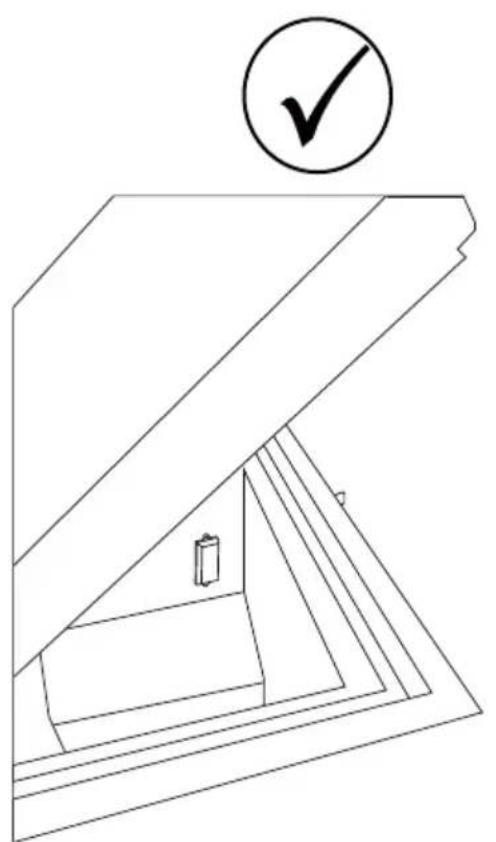

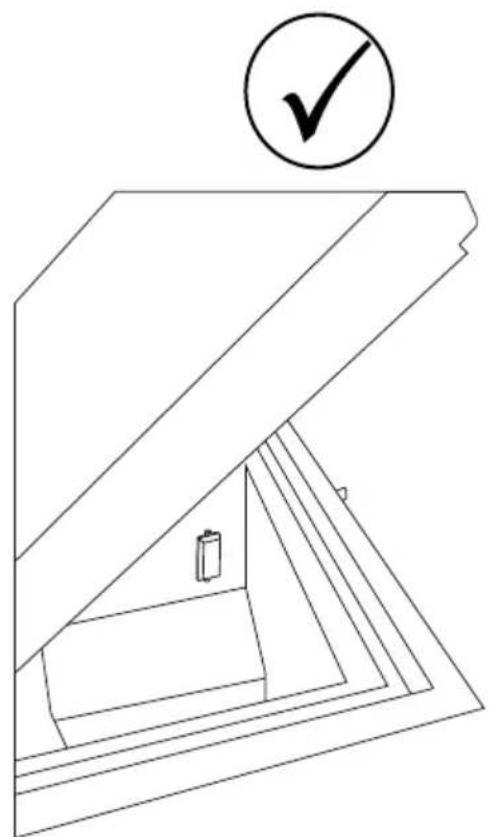

- Make sure NEVER to place any commodites up against the sensor cover.

Eg. Water-pack

3D rendered mechanical part with two circular holes and a central cylindrical feature (no text or symbols)

Fig. 3

Placing and unpacking

Unpacking

Unpack the appliance and check that it has not been damaged. If you observe any damage, please inform your supervisor.

Placing

Install the appliance in a dry and well ventilated place. Avoid installation near heat sources or in direct sunlight.

Place the appliance on the floor and make sure that it is level.

Adjustable feet

Level the appliance by screwing the adjustable feet up or down.

If the appliance is to be placed on a soft surface, e.g. floorboards or a carpet, it is best to recheck whether the appliance is still level after a period of time as the underlying surface may give under the weight of the appliance.

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Fig. 6

Room temperature

The appliance is designed and adjusted to produce an optimum temperature level in the vaccine compartment at a minimum/maximum ambient temperature of +5°C to +43°C.

The Climate Class is indicated on the rating plate.

Climate class:

$$ 0, 1, 2, 3, 4, 6, 8 = \text { ambient } 3 2 ^ {\circ} \mathrm{C} $$

Climate class

$$ 5 \text { and } 7 = \text { ambient } 4 3 ^ {\circ} \mathrm{C} $$

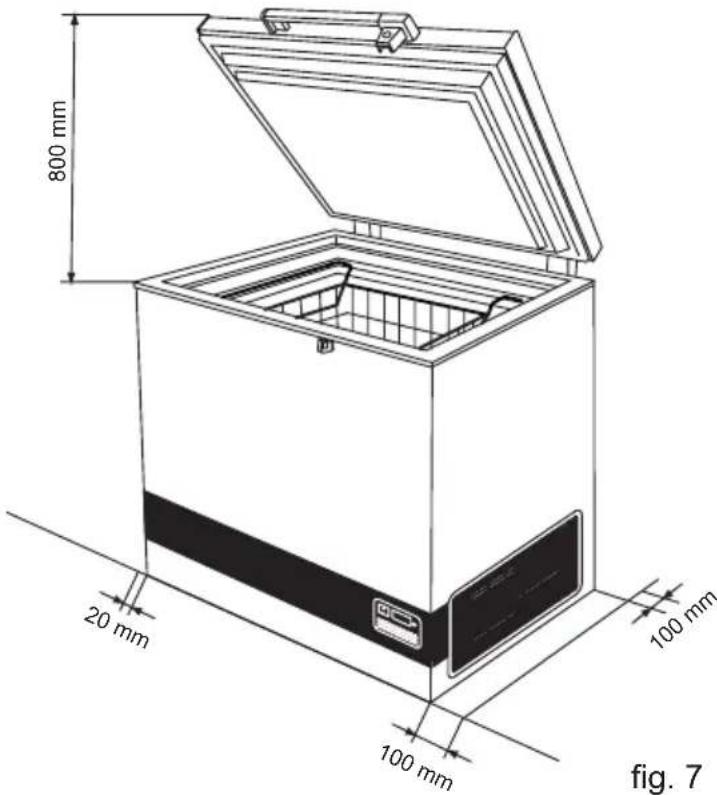

800 mm 20 mm 100 mm 100 mm fig. 7

Ventilation

It is important that the appliance is placed-well ventilated, so that air can circulate unhindered above, below, and around the appliance. Fig. 7 illustrates how the necessary air circulation can be ensured. There must be at least 30 mm clearance between the base of the appliance and the floor.

Ventilation openings in the appliance or in built-in structures must be kept clear.

Important:

Do not use open fire or cigarettes in the proximity of the appliance.

NOTE: There must be free access to the ventilation grille.

Installation and start up

Connect the appliance to the solar pan-els according to table 1, which states the lengths and sizes of the wires used for connecting the appliances.

Standard supplied cable size and length will be 6mm^2 and 20m.

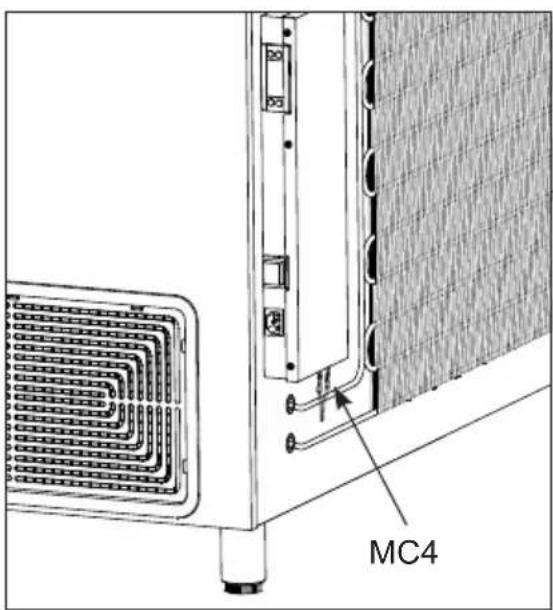

The screened cables coming from the PV panels are fitted with a male/female MC4 compatible connectors. The connections are then to be mounted to the prefixed male/female MC4 compatible connectors placed at the back of the appliance - See fig.8

The connections are of plug and play type and can only be fitted correct - male to female/female to male.

Clean the appliance thoroughly before start up.

Start up

Before the appliance is loaded with vaccine, the ice pack ballast must be frozen. The cool-down time in an ambient temperature of 43^ C will be approx. 5-7 days.

When the temperature on the display of the thermometer is approx. +4°C in the morning, the appliance is ready for loading vaccine. Check the temperature in the basket. The temperature must be between +2°C and +8°C.

The vaccines must be placed and arranged as shown. See page 9, fig. 10.

The temperature in the vaccine compartment must always be monitored on the thermometer and be between +2°C and +8°C. The controller is factory set and should not be adjusted by unauthorized personnel.

Size:		Max. length:
Cross section	AWG
[mm2]	[Gauge]	[m]	[ft]
2,5	12	8	26
4	12	13	42
6	10	20	65
10	8	32	105

Table 1

MC4

fig. 8

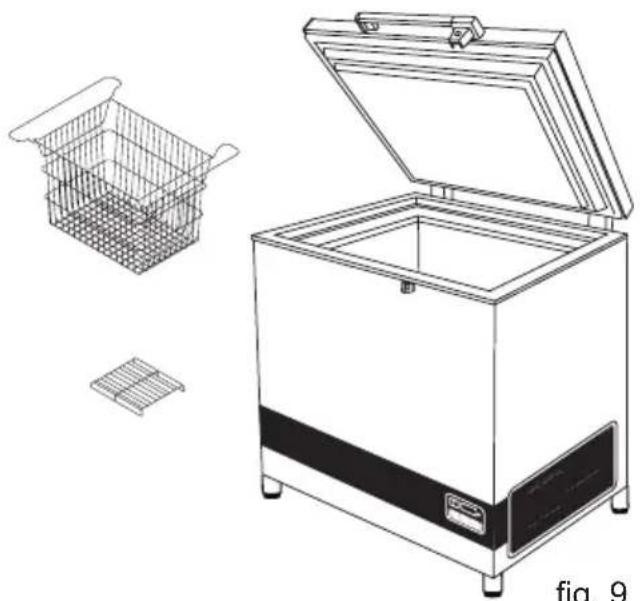

Loading the appliance

To ensure air-circulation and prevent too low vaccine temperature, direct contact to the inside walls must be avoided. The Vaccine load in the basket shall not be above top of the basket.

Loading vaccines

When the temperature in the vaccine compartment has stabilized, i.e. and the temperature is between +2° and +8°C and the compressor stops and starts, vaccines can be loaded. The vaccines should be placed and arranged in the basket.

Line drawing of a closed oven with a wire basket and a separate inset showing its exterior view (no text or symbols)

fig. 9

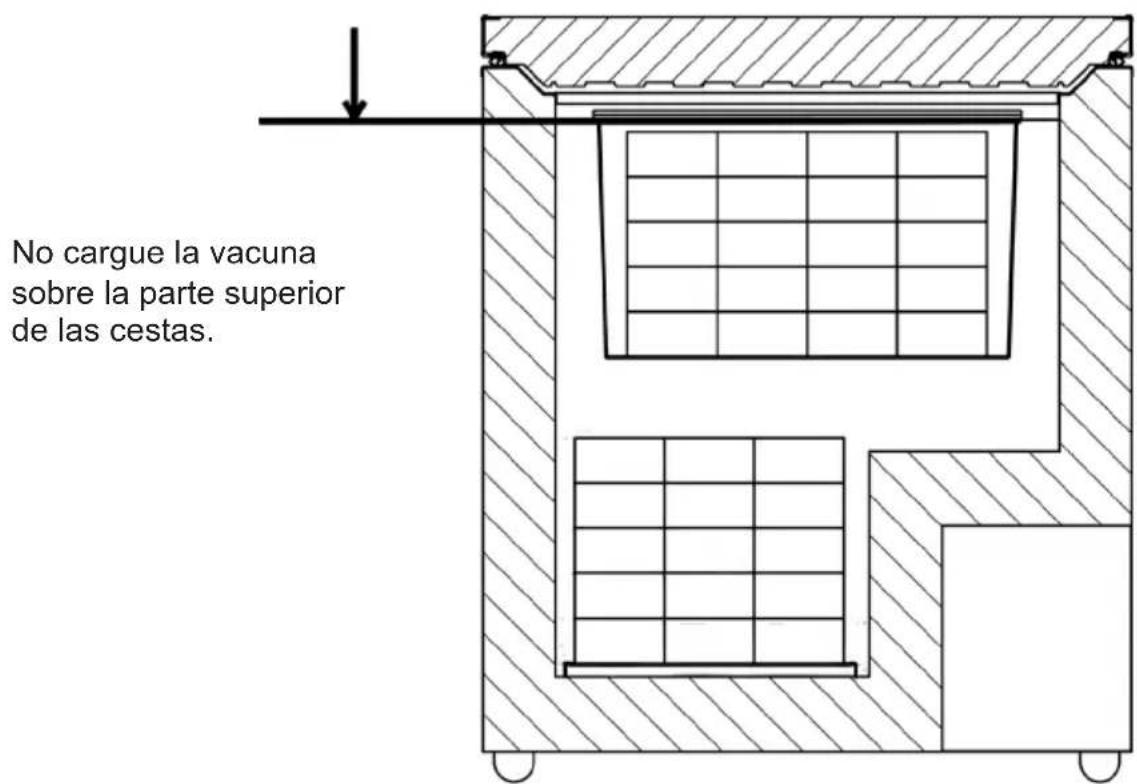

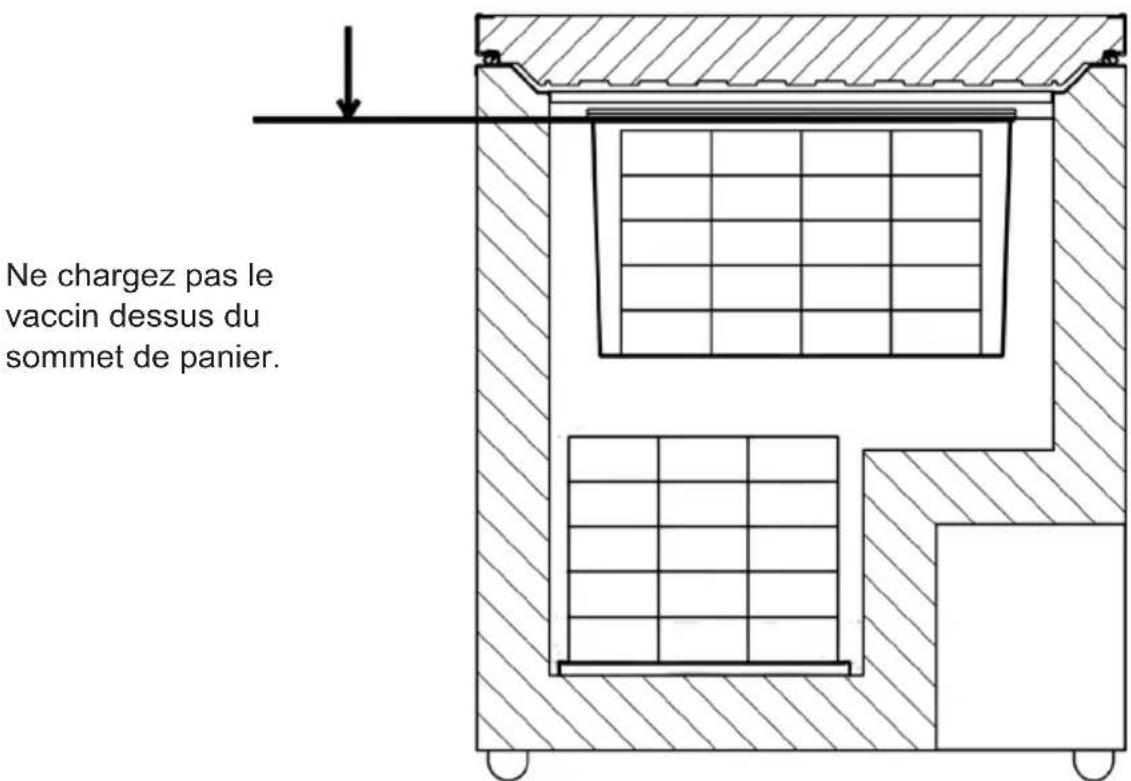

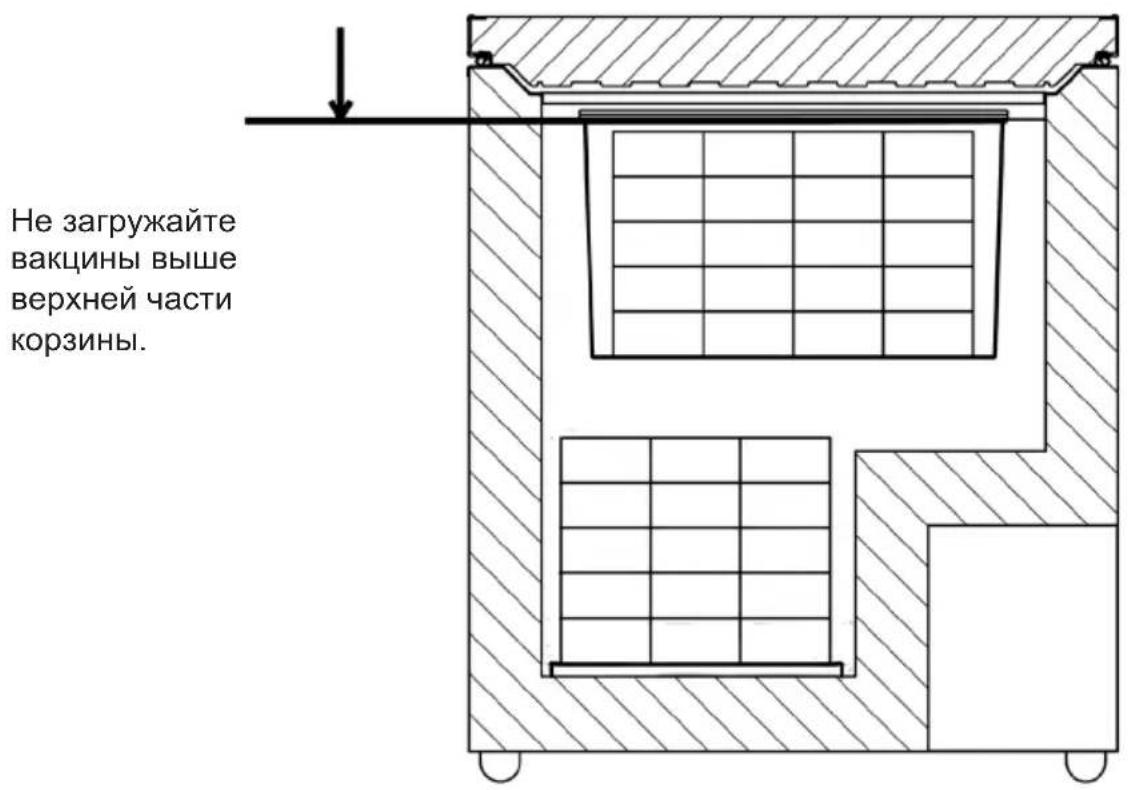

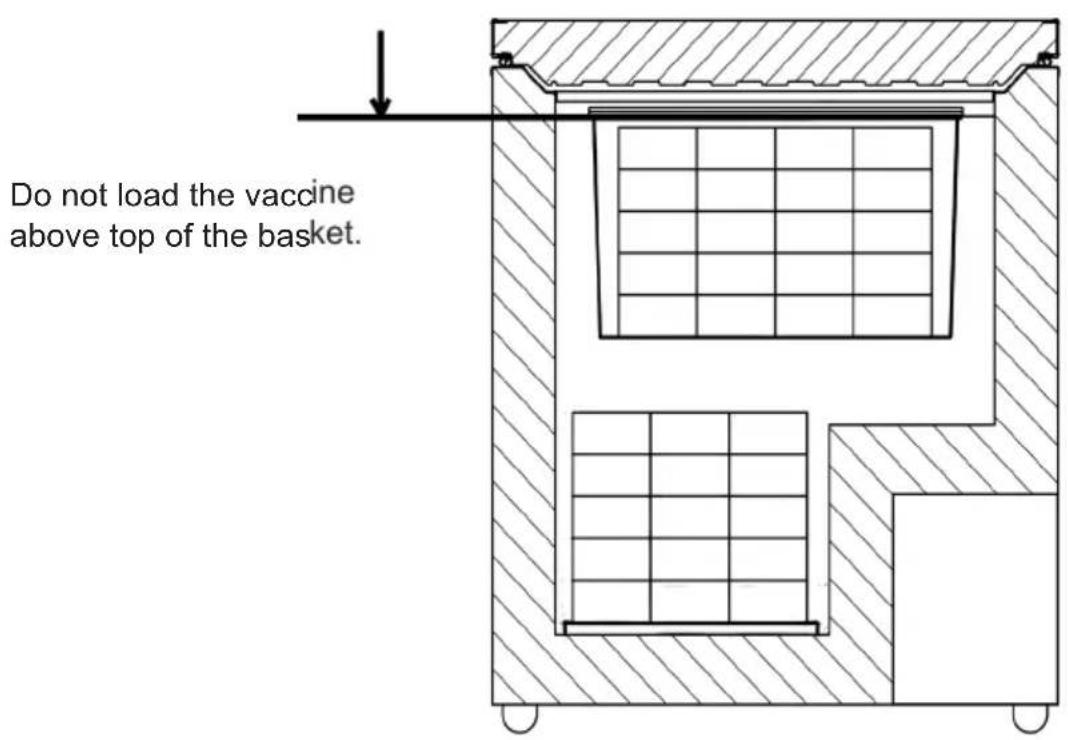

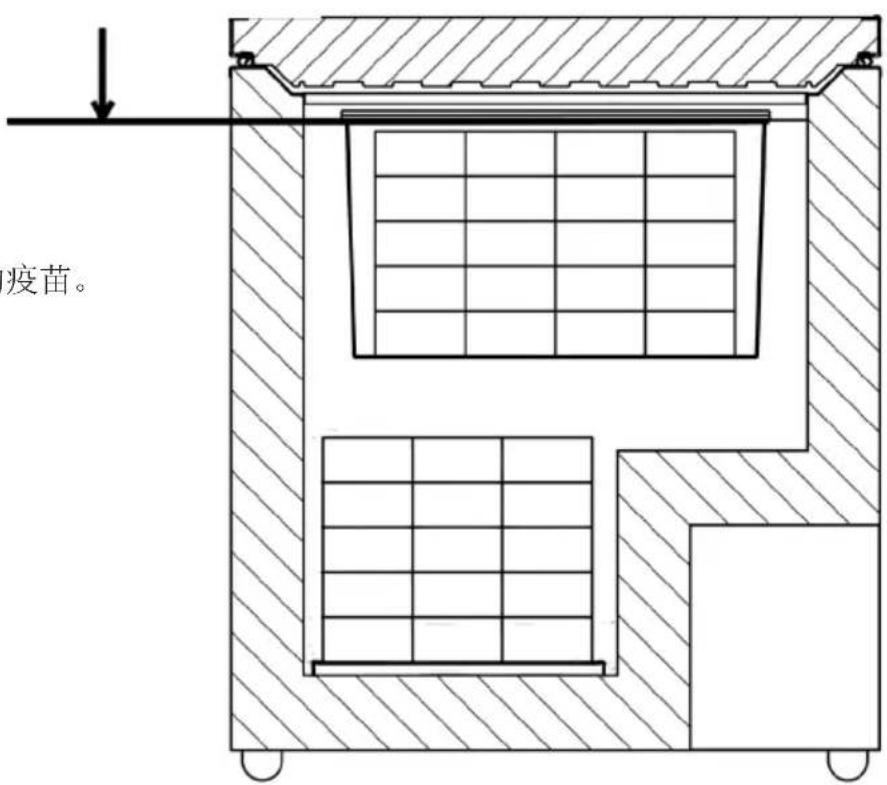

Do not load the vaccine above top of the basket.

fig. 10

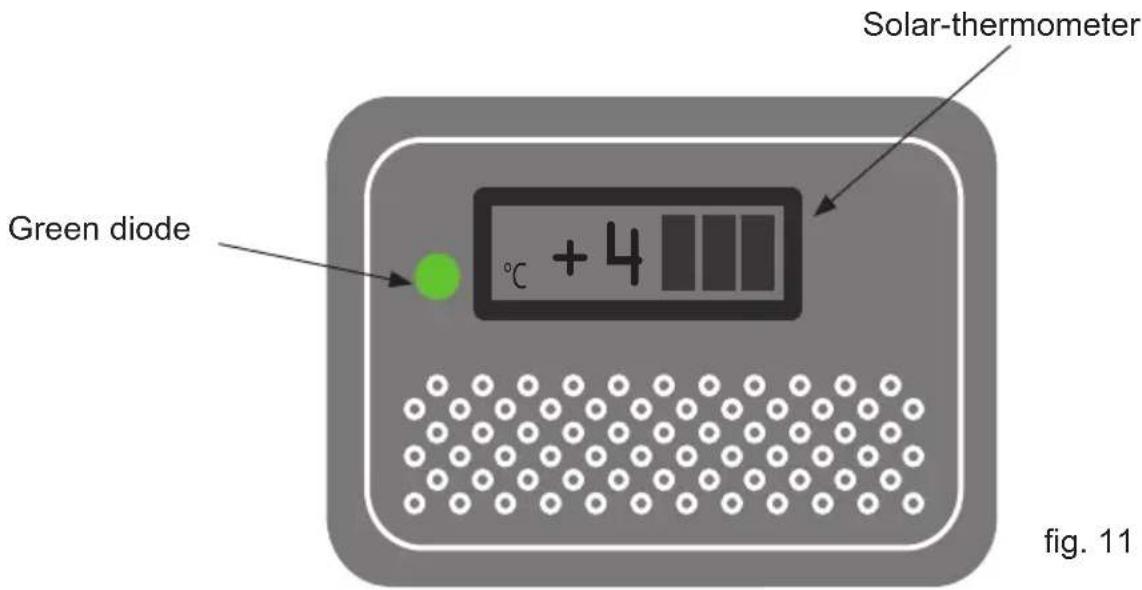

Control panel

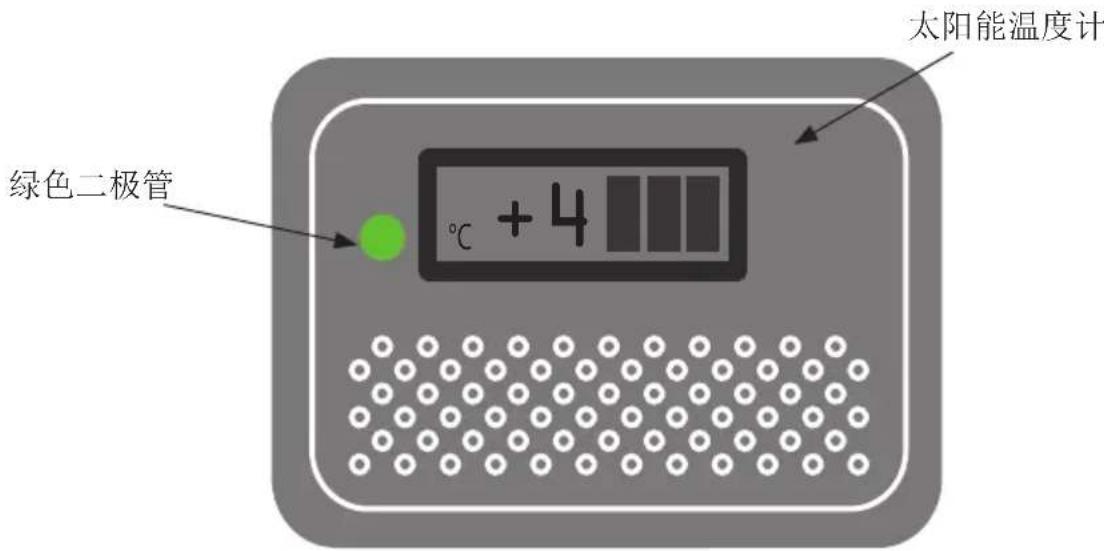

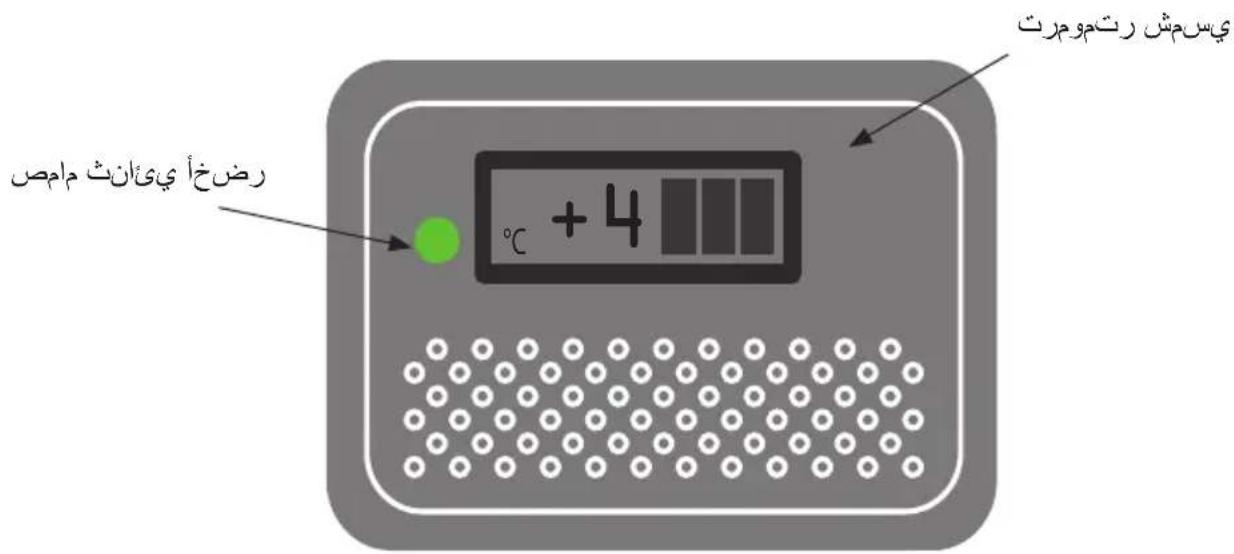

Green diode °C + 4 Solar-thermometer fig. 11

The green diode indicates that the compressor is running

Solar panels

Placing

Solar panels are always to be placed on a stable roof or bar, which is safe and easily accessible (not for the public).

The solar panels are always to be fitted according to the supplier's instructions and with the screws and fittings included or recommended by the manufacturer.

Do not place the solar panels in the shadows of buildings, trees, etc. The surfaces of the solar panels are to be turned directly towards the sun.

Specifications

The specifications which the solar panels are to observed are available in table 2.

Type: Type 2 according E003/PV01 direct drive
Nominal voltage: 18V
Nominal power: 360W (standard test conditions)
Number of parallel connected modules per array:	4
Warranty: Min. 2 years
Performance guarantee:	25 years (to 80% of original value)
Certificates: UL, TÜV	or compliance with the requirements of IEC 61215

Table 2

Controller

The appliance has a controller that controls the temperature in the vaccine compartment. The controller is factory adjusted to a default setpoint, what in most ambient environments will keep the vaccine compartment within desired thresholds of 2^-8^ .

If the cooler is not used for a longer period of time, it is recommended to use the ON/OFF switch to turn the cooler OFF. This disconnects the power from mains

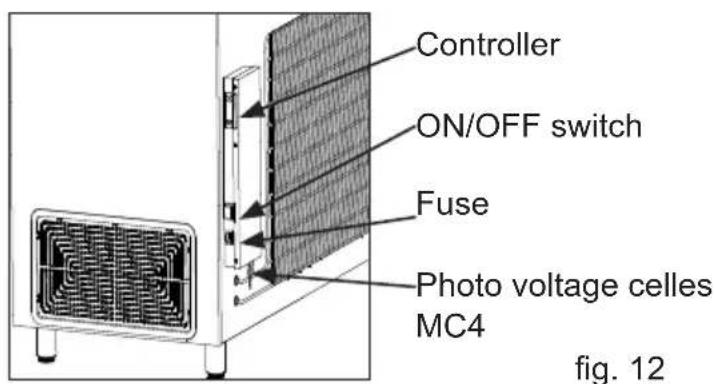

Controller ON/OFF switch Fuse Photo voltage celles MC4 fig. 12

In case cooler is turned OFF, make sure the vaccine compartment is cleaned and dried thoroughly afterword's, this to prevent problems with odors or mold. To prevent odors taking hold it is highly recommended to keep the lid slightly open.

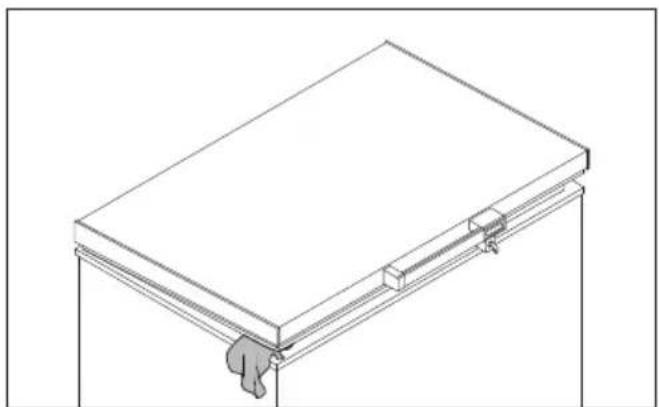

Isometric line drawing of a rectangular frame with a handle and mounting bracket (no text or symbols)

fig. 13

Maintenance and cleaning

Daily maintenance:

The temperature in the vaccine compartment must always be monitored on the thermometer every morning and evening. Please note that the vaccine in the appliance may not freeze. The temperature is factory set, and should not be adjusted by unauthorized personnel.

Please check each day that the internal lid is placed correctly and that the lid fits tightly to the appliance.

Weekly maintenance: Remove any water at the bottom of the refrigerator with a cloth. Wipe of water droplets on the inside wall.

Monthly maintenance::

Clean grille for compressor compartment. Clean the refrigerator with lukewarm water and mild detergent.

6 Month maintenance:

Clean condenser coils.

Maintenance of the solar panels Weekly maintenance:

The solar panels are to be cleaned for dust once each week – or as required. Cleaning must be carried out with water using a soft cloth or wash rag.

Monthly maintenance:

Avoid shading. It should be regularly monitored that shades do not come up such as new towering trees, as this will decrease the amount of energy produced by the system.

Yearly maintenance:

Electric connections and components are to be checked and cleaned at least once a year or more often if required. Because of risk of fire, it is necessary to remove dust and dirt. Checking that PV panels are clean, free of fractures, scratches, corrosion, moisture

penetration and browning.

Cabling should be checked to ensure it is secure.

Checking the mounting hardware to ensure it is in good condition and ensuring the earth connection is continuous

Checking of junction boxes to ensure there is no water accumulation and that the integrity of lid seals, connections and clamping devices is intact.

Checking of junction boxes to ensure there is no water accumulation and that the integrity of lid seals, connections and clamping devices is intact.

All bolts and nuts are to be re-tightened 2 weeks after installation, and then once a year.

Cleaning

WARNING:

Switch off the power supply on the front of the unit.

The best way to clean the appliance is by using luke warm water with a small amount of unscented detergent. Never use cleaning agents that scour. Use a soft cloth. Rinse with clean water and dry thoroughly. It is important to prevent water from running into the control panel.

The sealing strip around the lid must be cleaned regularly to prevent discolouration and prolong service life. Use clean water. After cleaning the sealing strip, check that it continues to provide a tight seal.

If the appliance is not being used for any period of time, switch the appliance off, disconnect the power supply, empty the appliance, clean the inside, and leave the lid open to allow air circulation and prevent smells.

Trouble-shooting

Fault Possible cause Remedy
Compressor is not running, and the ice packs are not cold	Be patient, it is most likely that the compressor will start within a few minutes.	If this is not the case, check the following:- Check that power is connected and that the wire from the solar panel to the appliance is intact.- Check the fuse and replace it if necessary.- If the above is OK, call technical supervisor.
Compressor is running, and the temperature is too high	The ventilation grill is blocked.The lid is not closed properly.The fan in the compressor compartment is blocked or defective.The temperature in the room in which the appliance is installed is too high.	Ensure unhindered air circulation.Ensure that the lid is closed properly.Check that the fan is running, if not it should be replaced. See section: ServiceShield the appliance against direct sun light and ensure more ventilation to the room.
Temperature in VLS 054 SDD is too low	To low set point on digital controller Contact technical supervisor for adjustment.
No temperature is displayed	There is not enough light for the solar sensor.	Turn on the light.
No light in green diode during day time	Switch is turned OFFFuse is burnedDiode is defect	Turn on the switchReplace the fuse.Replace diode.

Table 3

Warranty, spare parts and service

Warranty disclaimer

Faults and damage caused directly or indirectly by incorrect operation, misuse, insufficient maintenance, incorrect building, installation or mains connection. Fire, accident, lightening, voltage variation or other electrical interference, including defective fuses or faults in mains installations are not covered by the warranty.

Repairs performed by others than approved service centres and any other faults and damage that the manufacturer can substantiate are caused by reasons other than manufacturing or material faults are not covered by the warranty.

Please note that changes to the construction of the appliance or changes to the component equipment of the appliance will invalidate warranty and product liability, and the appliance cannot be used lawfully. The approval stated on rating plate will also be invalidated.

Transport damage discovered by the buyer is primarily a matter to be settled between the buyer and the distributor, i.e. the distributor must ensure that such complaints are resolved to the buyer's satisfaction.

Before calling for technical assistance, please check whether you are able to rectify the fault yourself. If your request for assistance is unwarranted, e.g. if the appliance has failed as a result of a blown fuse or incorrect operation, you will be charged the costs incurred by your call for technical assistance.

Spare parts

When ordering spare parts, please state the type, serial and product numbers of your appliance. This information is given on the rating plate. The rating plate contains various technical information, including type and serial numbers.

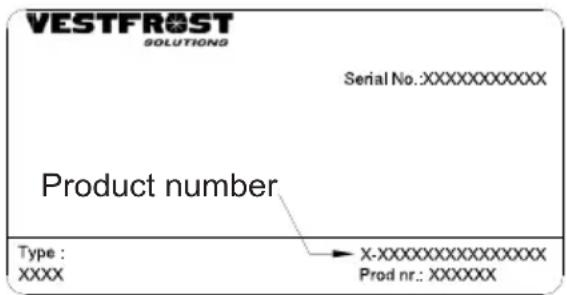

VESTFROST SOLUTIONS Serial No.:XXXXXXXXXX Product number Type : XXXX → X-XXXXXXXXXXXXXX Prod nr.: XXXXXX

fig. 14

Disposal

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2012/19/EU and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union.

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol:

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

AVERTISSEMENT

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or caution.

AVERTISSEMENT:

3D rendered mechanical part with two circular holes and a central cylindrical feature (no text or symbols)

fig. 3

Line drawing of a staircase with a checkmark above it, no text or symbols present

Technical line drawing of a mechanical assembly with cross-sections and detail views (no text or symbols)

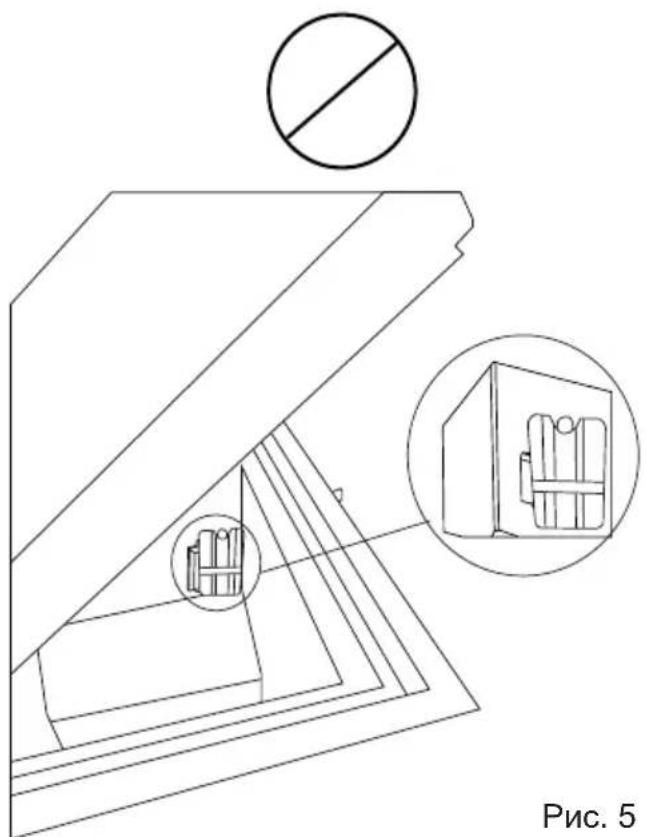

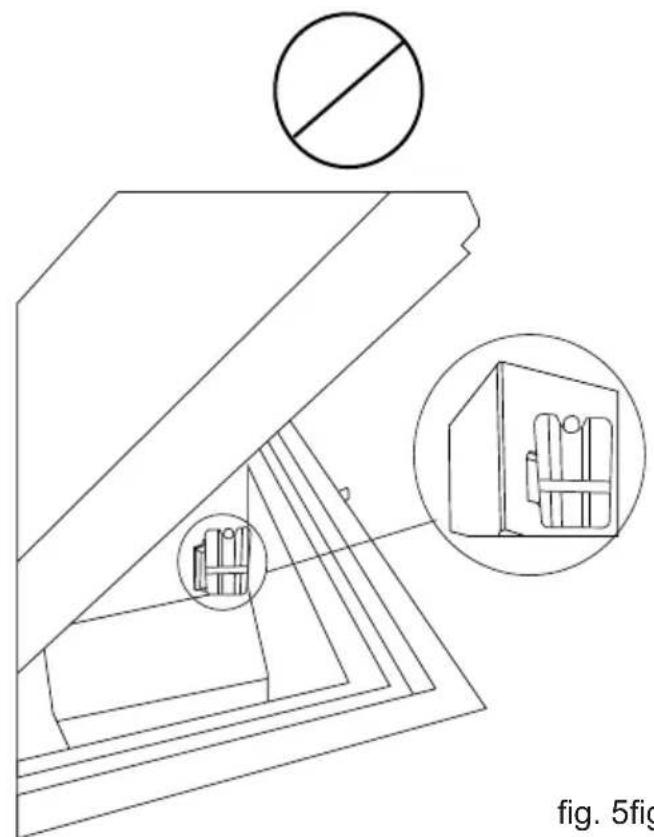

fig. 5fig. 4

Simple line drawing of a mechanical setup with a rotating component and a base, labeled 'fig. 6' (no text or symbols on the diagram itself)

The Climate Class is indicated on the rating plate.

Climate class:

$$ 0, 1, 2, 3, 4, 6, 8 = \text {ambient} 3 2 ^ {\circ} \mathrm{C} $$

Climate class

$$ 5 \text { and } 7 = \text { ambient } 4 3 ^ {\circ} \mathrm{C} $$

800 mm 20 mm 100 mm 100 mm fig. 7

Line drawing of an open refrigerator with a wire basket and a separate empty drawer (no text or symbols)

fig. 9

Isometric line drawing of a rectangular frame with a hand inserted at the base (no text or symbols)

fig. 13

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or caution.

ADVERTENCIA:

3D rendered mechanical part with two circular holes and a central cylindrical feature (no text or symbols)

figura 3

Line drawing of a staircase with a checkmark above it, no text or symbols present

Technical line drawing of a mechanical assembly with cross-section and detail views (no text or symbols)

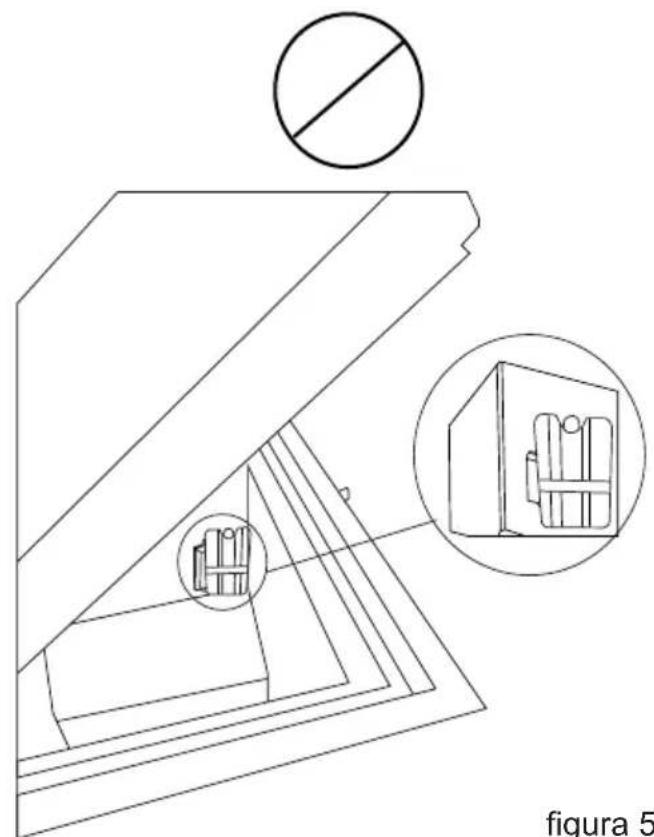

figura 5figura

Simple line drawing of a mechanical or electrical component with a curved arrow indicating rotation (no text or symbols)

figura 6

Temperatura ambiente

Line drawing of a closed oven with a wire basket and a separate empty storage unit (no text or symbols)

figura 9

Isometric line drawing of a rectangular frame with a small protrusion and a handle, no text or symbols present

figura 13

Warning symbol of a flame inside a triangle (no text or numbers)

ОСТОРОЖНО:

3D rendering of a gray mechanical part with two circular holes and a cylindrical top (no text or symbols)

Рис. 3

Line drawing of a cabinet interior with a battery inside, marked by a checkmark (no text or symbols)

Рис. 4

Рис. 5

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Рис. 6

Line drawing of an open refrigerator with a wire basket and a separate empty drawer (no text or symbols)

Рис. 9

Isometric line drawing of a rectangular frame with a hand placed at the base (no text or symbols)

рис. 13

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or caution.

3D rendered mechanical part with two circular holes and a central cylindrical feature (no text or symbols)

图3

Line drawing of a cabinet interior with a checkmark above it (no text or symbols)

图4图5

Technical line drawing of a mechanical assembly with cross-sectional views and no visible text or symbols

包装和打开包装

放置

Simple line drawing of a mechanical setup with a base and rotating component (no text or symbols)

图6

Line drawing of a closed oven with a basket and a separate inset showing its exterior view (no text or symbols)

图 9

不要装入筐顶部以上的疫苗。

疫苗。

图10

控制面板

Isometric line drawing of a rectangular frame with a handle and clamped ends, no text or symbols present

图13

保养和清洁

太阳能制冷机的保养

Isometric line drawing of a rectangular frame with a handle and mounting bracket (no text or symbols)

مکحتلا ة Wol

Line drawing of a closed oven with a wire basket and a separate empty storage unit (no text or symbols)

3D rendering of a gray mechanical component with two circular holes and a central cylindrical top (no text or symbols)

Line drawing of a cabinet interior with a battery and a checkmark symbol (no text or labels)

Technical line drawing of a mechanical assembly with cross-sectional views and no visible text or symbols

Warning sign depicting a flame symbol in a triangular shape

تحذير:

Product display of solar panel arrays and three outdoor air purifiers with labeled A-A indicators (no text or symbols on main objects)

VLS 054A/ 094A/ 154A SDD
