USER MANUAL 10702 Louisiana Grills

WARNING: Please read the entire manual before installation and use. Failure to follow these instructions

could result in property damage, bodily injury or even death. Contact local building or fire officials about restrictions and installation inspection requirements in your area.

Please read and understand this entire manual before attempting to assemble, operate or install the product. This will ensure you receive the most enjoyable and trouble-free operation of your new grill. Retain this manual for future reference.

DANGERS AND WARNINGS

You must contact your local home association, building or fire officials, or authority having jurisdiction, to obtain the necessary permits, mission or information on any installation restrictions, such as any grill being installed on a combustible surface, inspection requirements or even ability to use, in your area.

1. A minimum clearance of 2m (78 inches) from combustible constructions to the sides of the grill must be maintained. Do

not install appliance on non-combustible floors, or floors protected with non-combustible surfaces unless proper permits and permissions are obtained by authorities having jurisdiction. This appliance must not be placed under overhead combustible ceiling, overhang, awnings, parasol or gazebo. Do not use on decking or any other combustible surfaces such as dry grass, wood chips, leaf mulch, or decorative bark. Do not use this product in a tent, caravan, car, cellar, loft or boat. Keep your grill in an area clear and free from combustible materials, gasoline and other flammable vapors and liquids. Should a grease fire occur, close the lid until the fire is out. Do not throw water on the unit. Do not try to smother the fire. Use of an all-class (class ABC) approved fire extinguisher is valuable to keep on site. If an uncontrolled fire does occur, call the Fire Department.

2. Do not use this ceramic unit as a furnace. This product is intended for outdoor use only. Do not use indoors.

: May emit hot embers while in use. Do not transport your grill while in use or while the grill is hot. Ensure the fire is completely out and that the grill is completely cool to the touch before moving. 3. This product will become very hot, and serious injury may occur. Never leave a burning fire unattended. Keep young children and pets away while in use. It is recommended to use heat-resistant barbecue mitts or gloves when operating the grill. Do not use accessories not specified for use with this appliance. This appliance is not recommended for children, persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are under direct supervision or instruction by a person responsible for their safety. 4. After a period of storage, or non-use, inspect the unit prior to use for fatigue and damage, and replace as and when necessary. Clean before use. If the grill is stored outside during the rainy season or seasons of high humidity, unit should be dried out before performing any service or maintenance. Use a grill cover, if available. 5. It is highly recommended that you use lump charcoal in your ceramic barbecue. It burns for longer and produces less ash, which can restrict the airflow. Do not use coal in this product. Charcoal not included. Do not use spirit, petrol, gasoline, lighter-fluid or kerosene for lighting or refreshing a fire in your grill. Keep all such liquids well away from the appliance when in use.ENGLISH

Ashes should be placed in a metal container with a tight-fitting lid. The closed container of ashes should be placed on a non- combustible floor or on the ground, well away from all combustible materials, pending final disposal. When ashes are disposed by burial in soil, or otherwise locally dispersed, they should be retained in a closed container until all cinders have thoroughly cooled. CARBON MONOXIDE (“the silent killer”) Carbon monoxide is a colorless, odorless, tasteless gas produced by burning gas, wood, propane, charcoal or other fuel. Carbon monoxide reduces the blood’s ability to carry oxygen. Low blood oxygen levels can result in headaches, dizziness, weakness, nausea, vomiting, sleepiness, confusion, loss of consciousness or death. Follow these guidelines to prevent this colorless, odorless gas from poisoning you, your family, or others:

• See a doctor if you or others develop cold or flu-like symptoms while cooking or in the vicinity of the appliance. Carbon monoxide poisoning, which can easily be mistaken for a cold or flu, is often detected too late.

• Alcohol consumption and drug use increase the effects of carbon monoxide poisoning. Carbon monoxide is especially toxic to mother and child during pregnancy, infants, the elderly, smokers, and people with blood or circulatory system problems, such as anemia, or heart disease. COPYRIGHT NOTICE Copyright 2021. All rights reserved. No part of this manual may be copied, transmitted, transcribed, stored in a retrieval system, in any form or by any means without expressed written permission of, Dansons 3411 North 5th Avenue, Suite 500, Phoenix, , 85013 [e-mail] | [e-mail] www.louisiana-grills.com Toll-Free: 1-877-303-3134, Fax: [phone]ENGLISH

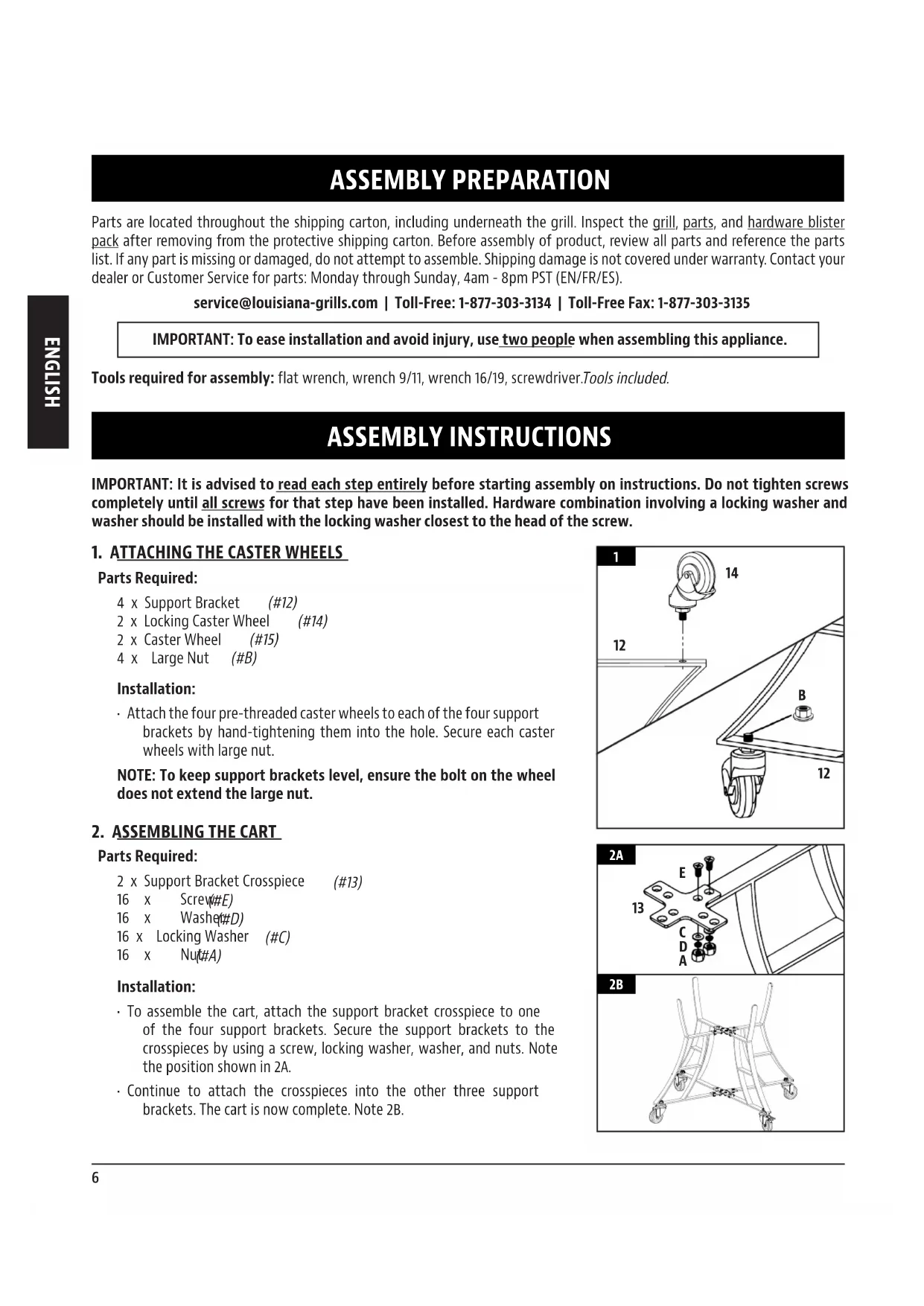

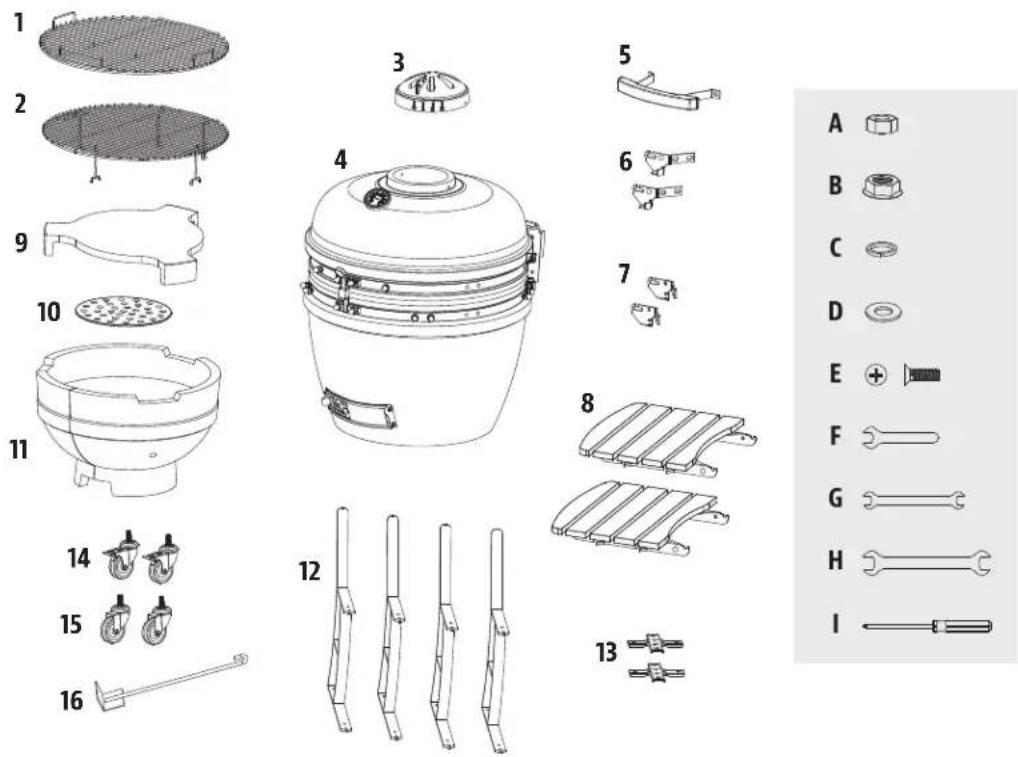

Parts are located throughout the shipping carton, including underneath the grill. Inspect the grill, parts, and hardware blister pack after removing from the protective shipping carton. Before assembly of product, review all parts and reference the parts list. If any part is missing or damaged, do not attempt to assemble. Shipping damage is not covered under warranty. Contact your dealer or Customer Service for parts: Monday through Sunday, 4am - 8pm PST (EN/FR/ES). [e-mail] | Toll-Free: 1-877-303-3134 | Toll-Free Fax: [phone] IMPORTANT: To ease installation and avoid injury, use two people when assembling this appliance. Tools required for assembly: flat wrench, wrench 9/11, wrench 16/19, screwdriver. Tools included.

IMPORTANT: It is advised to read each step entirely before starting assembly on instructions. Do not tighten screws completely until all screws for that step have been installed. Hardware combination involving a locking washer and washer should be installed with the locking washer closest to the head of the screw.

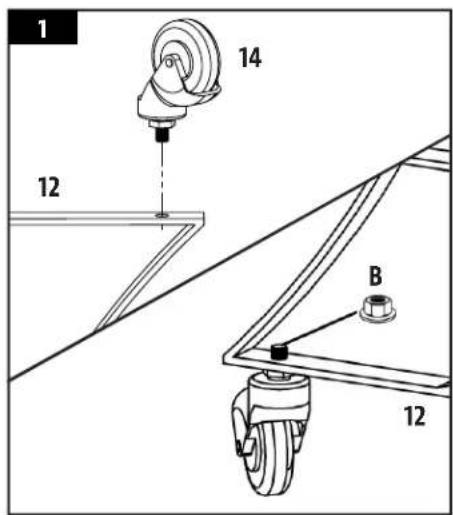

Parts Required: 4 x Support Bracket (#12) 2 x Locking Caster Wheel (#14) 2 x Caster Wheel (#15) 4 x Large Nut (#B) Installation:

• Attach the four pre-threaded caster wheels to each of the four support brackets by hand-tightening them into the hole. Secure each caster wheels with large nut. NOTE: To keep support brackets level, ensure the bolt on the wheel does not extend the large nut.

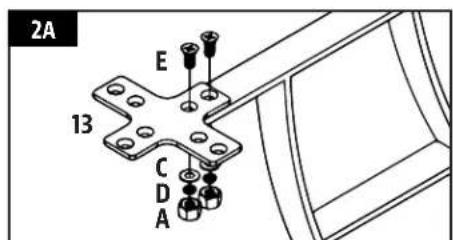

Parts Required: 2 x Support Bracket Crosspiece (#13) 16 x Screw (#E) 16 x Washer (#D) 16 x Locking Washer (#C) 16 x Nut (#A) Installation:

• To assemble the cart, attach the support bracket crosspiece to one of the four support brackets. Secure the support brackets to the crosspieces by using a screw, locking washer, washer, and nuts. Note the position shown in 2.

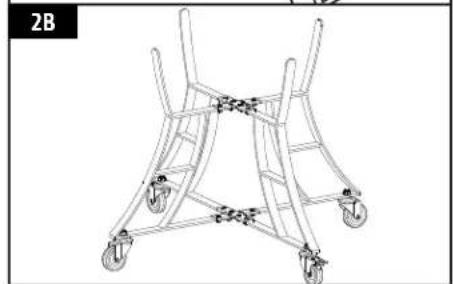

• Continue to attach the crosspieces into the other three support brackets. The cart is now complete. Note 2.

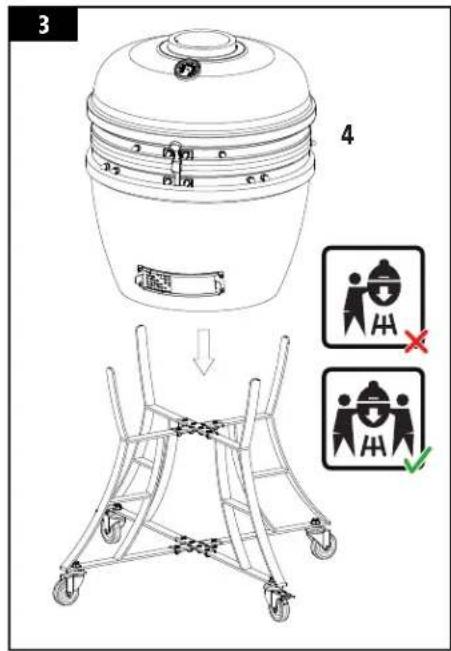

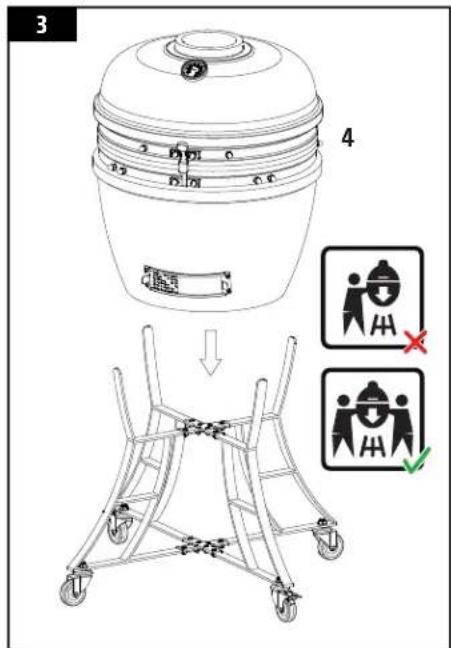

Parts Required: 1 x Ceramic Body (#4) Installation:

• First, remove all of the parts that are inside of the ceramic body to make lifting easier. Make sure the cart is secure, and all of the bolts are tight before placing the ceramic body into it. Press down on the caster levers to lock the castor wheels to ensure the ceramic charcoal barbecue cannot move. CAUTION: Use a minimum of two people when lifting the ceramic body onto the cart. Failure to comply may result in serious injury or damage to the product.

• To place the ceramic body on the cart, place one of your hands in the bottom vent of the ceramic body and the other under the grill. Place the ceramic charcoal barbecue on the cart with the bottom vent facing to the front of the cart, allowing the vent to open and close without any interruption.

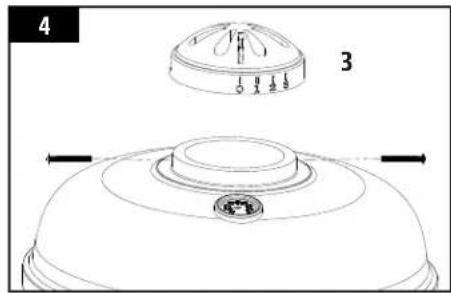

Parts Required: 1 x Top Damper Vent (#3) Installation:

• Align the side notch of the top damper vent with the thermometer on the front of the ceramic body, and set over the top opening. Secure with pre-attached screws, washers, and nuts.

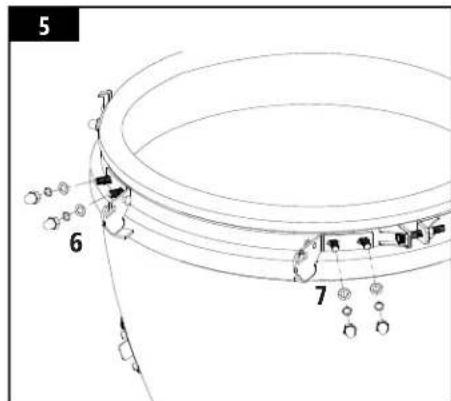

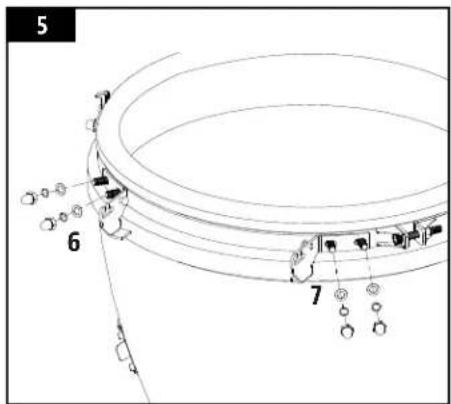

• Attach the left side shelf brackets to the ceramic body using the pre- attached screws with their corresponding washers, locking washers, and nuts on the trim.

• Repeat the same installation for the right side shelf brackets. Tighten all screws securely once all brackets are installed.

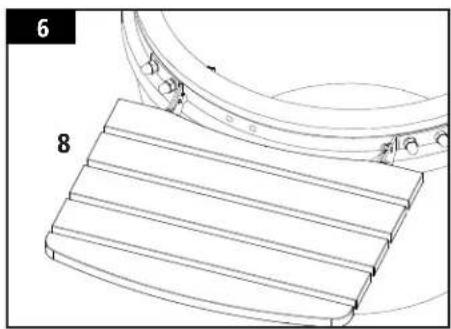

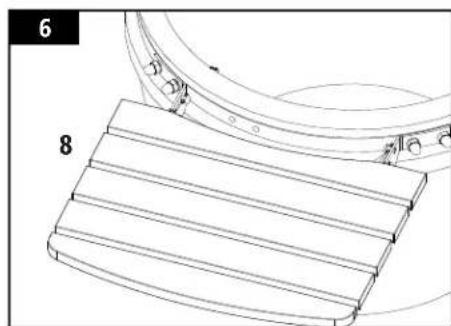

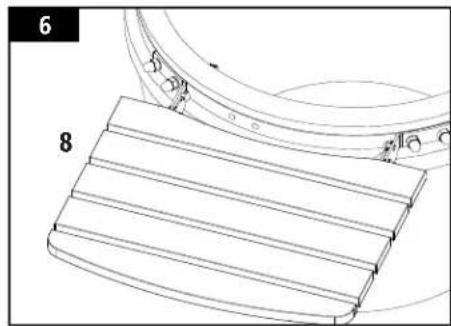

Parts Required: 2 x Side Shelf (#8) Installation:

• Insert the hinges of each side shelf into each of the side shelf brackets on both sides of the ceramic body. 比例 1.000

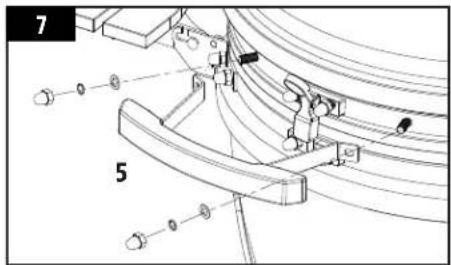

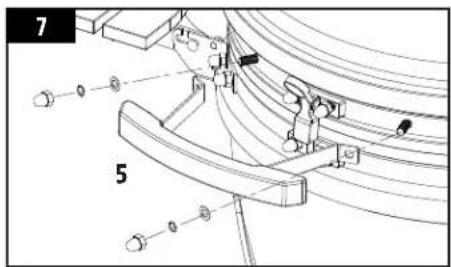

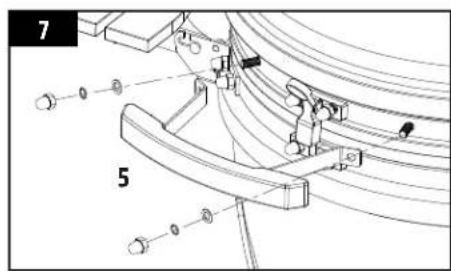

Parts Required: 1 x Lid Handle (#5) Installation:

• Attach the lid handle to the ceramic body use the pre-attached screws washers, locking washers, and nuts on the trim.

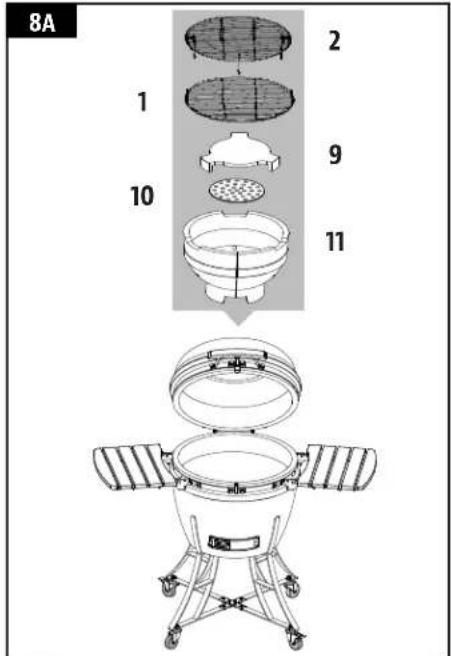

Parts Required: 1 x Upper Cooking Grid (#2) 1 x Main Cooking Grid (#1) 1 x Heat Deflector (#9) 1 x Charcoal Plate (#10) 1 x Firebox (#11) Installation:

• Open the lid of the ceramic body and insert the firebox into the base of the ceramic body. The front of the firebox with the arch of the bottom rim should face the front of the unit, aligning with the bottom damper for ash clean out. Note 8. NOTE: The expansion joint in the firebox is created to account for expansion of the ceramic in extreme heat. This crack is not a fault in the ceramic, but intentional in the structure design.

• Place the charcoal plate to rest on the interior base of the firebox. IMPORTANT: The charcoal plate must be in the firebox while in use. Missing this part could result in lighting failure due to lack of oxygen to the charcoal once lit.

• Place the heat deflector to rest inside the firebox. NOTE: The heat deflector can be used for indirect cooking.

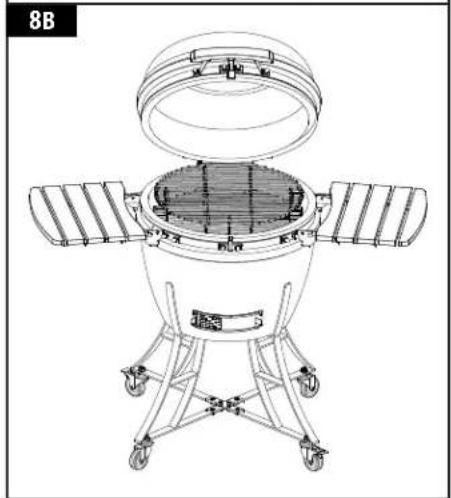

• Place the main cooking grid inside of the ceramic body. Place the upper cooking grid on top of the main cooking grid. NOTE: To maintain the grilling performance of your cooking grids, regular care and maintenance is required.

• The ceramic charcoal barbecue is now ready to use. Note 8. IMPORTANT: Ensure that unit curing instructions are read thoroughly prior to use.

Ceramic charcoal barbecues are extremely versatile. Not only can they be used for grilling or smoking, but also pizzas, bread, pies and cookies can be baked effortlessly inside them. Due to their excellent heat-retention properties, high temperatures can be achieved and maintained by precise control of airflow via the top and bottom vents. High temperatures are ideal for quickly cooking burgers and sausages, while low heats can cook larger cuts over a longer period of time. Try adding some wood chips to the charcoal, or try combining different flavor wood chips to make your meats even more flavorful.

UNDERSTANDING AIRFLOW AND DAMPER CONTROL

The heart of your grill lies in the relationship between the top and bottom ventilation dampers. Opening the dampers, allowing more air to flow through the system, allows the charcoal to burn very hot and create firey embers. To cook at lower temperatures, keep the dampers open only a small distance, allowing for minimal airflow and maximum heat retention in the ceramic chamber. To ensure the grill performs correctly, proper maintenance and clean out of the firebox are essential. If the grill is not achieving the desired temperature, check to ensure that there is proper airflow to the fuel and that none of the dampers are blocked. TIP: The grill can run efficiently over extended periods of time as long as there is dry and sufficient fuel, proper airflow, and the cooking components are clean.

FIRST USE – GRILL BURN-OFF

Curing your ceramic charcoal barbecue is important for its long-term operation and care. Avoiding the curing procedure could lead to damage on the unit. If the first burns are too hot, they could damage the felt gasket seal before it has had the chance to mature with use. To start your first fire:

1. Place one lighter cube, or solid firelighters and one handful of lump charcoal on top of the charcoal plate. Open the

bottom vent and light the lighter cube using a long-nosed lighter or safety matches. Do not use gasoline, white spirit, lighter fluid, alcohol or other similar chemicals for lighting or relighting. 2. Once the lump charcoal has caught, cure the unit by closing the lid, and leaving both vents mostly closed. Burn until all the fuel is used and the fire is extinguished. This should take approximately two hours. Do not overload the unit with fuel. 3. After grill has cooled, inspect all fasteners. The metal band connecting your lid to the base will expand from the heat and could become loose. It is recommended you check and tighten the band, if necessary, with a wrench.

4. The ceramic charcoal barbecue can now be used as normal.ENGLISH

LIGHTING PROCEDURE When using the ceramic charcoal barbecue, push down on both of the locking wheels to stop the unit from moving around during use. Ensure the ceramic barbecue is positioned on a permanent, flat, level, heat-resistant non-flammable surface, away from flammable items. Position the ceramic charcoal barbecue with a minimum of 2 m / 78 in overhead clearance and at least 2 m / 78 in clearance from other surrounding items. 1. To start a fire, place rolled-up newspaper and some lighter cubes or solid firelighters on the charcoal plate, in the base of the ceramic charcoal barbecue. Then, place two or three handfuls of lump charcoal over the top of the newspaper. Do not use gasoline, white spirit, lighter fluid, alcohol or other similar chemicals for lighting or relighting.

2. Open the bottom vent and light the newspaper using a long-nosed lighter or safety matches. Once it has caught, leave

the bottom vent and lid open for about 10 minutes to build a small bed of hot embers. 3. Allow the charcoal to heat up and keep it red hot for at least 30 minutes prior to the first cooking on the ceramic charcoal barbecue. Do not cook before the fuel has a coating of ash. It is recommended that you do not stoke or turn the coals once they are alight. This allows the charcoals to burn more uniformly and efficiently.

4. Once alight, only use heat-resistant gloves when handling hot ceramics or cooking surfaces.

REFUELING PROCEDURE With the top and bottom vent closed, the ceramic charcoal barbecue will stay at a high temperature for several hours. If you require a longer cooking time (e.g. when roasting a whole cut or slow-smoking), it may be necessary to add more charcoal.

1. Open the lid, and remove the cooking grids and heat deflector using heat-resistant gloves or a spatula.

2. Add additional charcoal to the fire box

3. Replace heat deflector and cooking grids and continue to cook as normal.

IMPORTANT: Do not use spirit, petrol, gasoline, lighter-fluid or kerosene for lighting or refreshing a fire in your grill. Also, do not attempt to add more fire starter into a fire that is already burning or into a hot burn grate. This may cause injury.

EXTINGUISHING THE GRILL

1. When finished cooking and extinguish unit, stop adding fuel. Close all the vents and the lid to allow the fire to die

naturally by lack of oxygen. IMPORTANT: Do not use water to extinguish the charcoal as this could damage the ceramic charcoal barbecue.ENGLISH

Any Louisiana Grills® unit will give you many years of flavorful service with minimum cleaning. An important step is allowing the grill and cooking grids to self-clean by running the grill at a high temperature after each use. Follow these cleaning and maintenance tips to service your grill:

• It is recommended to clean the interior of the unit after every few uses. This will ensure proper lighting and avoid any hard build-up of debris or ash on the cooking components. Heat it up to 260ºC / 500ºF for 30 minutes and it will scorch off all food and debris. NOTE: Do not use water or any other types of cleaning product to clean the inside of your ceramic charcoal barbecue. The walls are porous and will absorb any fluids used, which could cause the ceramic charcoal barbecue to crack.
• Use a long-handled grill cleaning brush, remove any food or build-up from the cooking grids. Best practice is to do this while they are still warm from a previous cook. Grease fires are caused by too much fallen debris on the cooking components of the grill. Clean the inside of your grill on a consistent basis. In the event you experience a grease fire, keep the grill lid closed to choke out the fire. If the fire does not go out quickly, carefully remove the food, turn the grill off, and shut the lid until the fire is completely out. Lightly sprinkle baking soda, if available.• The chrome-plated charcoal plate is not dishwasher safe; use a mild detergent with warm water.
• After the unit has completely cooled, use the ash tool to scrape out carbon remnants through the bottom damper vent. Carefully open the slide plate and rake the ash into a small waste container under the vent opening. Dispose of container, or store for future use.

• Upon close inspection, the finish of your ceramic charcoal barbecue may appear to have crack lines. This is not cracking of the ceramic. This is known as crazing and is caused by the different expansion rates between the glaze finish and the clay. The spider-web pattern of cracking is different from a break in the aspect that it cannot be felt on the surface, unless using a fingernail; however, it does become more visually apparent when the surface is dusty or magnified.
• Wipe your grill down after each use. Use warm soapy water to cut the grease. Do not use oven cleaner, abrasive cleansers or abrasive cleaning pads on the outside surfaces.
• Check and tighten the metal rings of the ceramic body and lid, and oil the hinges, twice a year or more if needed. You should not be able to easily turn a hex key while holding the nut in place.
• Use a grill cover to protect your grill for complete protection! A cover is your best protection against weather and outside pollutants. When not in use or for longterm storage, keep the unit under a cover in a garage or shed. CLEANING FREQUENCY TIME TABLE (NORMAL USE) ITEM CLEANING FREQUENCYCLEANING METHODBottom of Firebox Every 5-6 grill sessions Scoop out, shop-vac ash and excess debrisCooking Grids After each grill session Burn off excess, grill cleaning brushLid Hinge Twice a year Oil hinge componentsMetal Rings Twice a year Tighten using hex keyCharcoal Plate Every 5-6 grill sessions Warm water & mild detergentInterior Ceramic Body Every 2-3 grill sessions Heat to 260ºC / 500ºF for 30 minutesExterior Ceramic Body After each grill session Soapy waterENGLISH

Smoking and grilling styles of cooking can give you different results based on time and temperature. For best results, keep a record of what you cooked, at what temperature, how long you cooked for, and the results. Adjust to your taste for the next time. Practice makes perfect. The culinary art of hot smoking refers to longer cooking times, but results in more natural infused flavor (and a sought-after smoke ring ) on your meats. Higher cooking temperatures result in a shorter cooking time, locking in less smoke flavor. TIP: For best results, allow time for meats to rest after cooking. This allows the natural juices to migrate back into the meat fiber, giving a much juicer, flavorful cut. Resting times can be as little as 3 minutes and up to 60 minutes, depending on the size of the protein. Always use heat-resistant gloves when using this unit.

(fresh) 3.62-4.53 kg / 8-10 lbs. 1 hours 1½ hoursENGLISH

Follow these helpful tips and techniques, passed on from Louisiana Grills® owners, our staff, and customers just like you, to become more familiar with your grill:

• Keep everything in the kitchen and cooking area clean. Use different platters and utensils for the cooked meat than the ones you used to prepare or transport the raw meat out to the grill. This will prevent cross contamination of bacteria. Each marinade or basting sauce should have its own utensil.• Keep hot foods hot (above 60ºC / 140ºF), and keep cold foods cold (below 3ºC / 37ºF).
• A marinade should never be saved to use at a later time. If you are going to use it to serve with your meat, be sure to bring it to a boil before serving.
• Cooked foods should not be left out in the heat for more than an hour. Do not leave hot foods out of refrigeration for more than two hours.
• Defrost and marinade meats by refrigeration. Do not thaw meat at room temperature or on a counter top. Bacteria can grow and multiply rapidly in warm, moist foods. Wash hands thoroughly with hot, soapy water before starting any meal preparation and after handling fresh meat, fish and poultry.

• Be prepared, or Mise en Place . This refers to preparing the cooking recipe, fuel, accessories, utensils, and all ingredients you require at grill side before you start cooking. Also, read the entire recipe, start to finish, before lighting the grill.
• A BBQ floor mat is very useful. Due to food handling accidents and cooking spatter, a BBQ floor mat would protect a deck, patio, or stone platform from the possibility of grease stains or accidental spills.

• To infuse more smoke flavor into your meats, cook longer and at lower temperatures (also known as low and slow

Meat will close its fibers after it reaches an internal temperature of 49ºC / 120ºF. Misting, or mopping, are great ways to keep meat from drying out.

• While searing your meats, cook with the lid down. Always use a meat thermometer to determine the internal temperature of the foods you are cooking. Smoking foods can turn meats and poultry pink. The band of pink (after cooking) is referred to as a smoke ring and is highly prized by outdoor chefs.• Sugar-based sauces are best applied near the end of cooking to prevent burning and flare-ups. • Leave open space between the foods for proper heat flow. Food on a crowded grill will require more cooking time.
• Use a set of long-handled tongs for turning meats, and a spatula for turning burgers and fish. Using a piercing utensil, such as a fork, will prick the meat and allow the juices to escape.• Foods in deep casserole dishes will require more time to cook than a shallow baking pan.
• It’s a good idea to put cooked food onto a heated platter, keeping the food warm. Red meats, such as steak and roasts, benefit from resting for several minutes before serving. It allows the juices that were driven to the surface by heat to ease back to the center of the meat, adding more flavor.ENGLISH

Proper cleaning, maintenance and the use of clean, dry, quality fuel will prevent common operational problems. When your Louisiana Grills® grill is operating poorly, or on a less frequent basis, the following troubleshooting tips may be helpful. For FAQ, please visit www.louisiana-grills.com . You may also contact your local Louisiana Grills® authorized dealer or contact Customer Service for assistance.

WARNING: Ensure the grill is completely cooled prior to any inspection, cleaning, maintenance or service

work. Failure to comply may result in serious injury or damage to your unit.

PROBLEM CAUSE SOLUTION

Grill Will Not Light Damper Vents Are Closed, Lack of AirEnsure that both the top and bottom vents are open. The fire needs oxygen to catch. Once it has caught, leave the bottom vent and lid open for about 10 minutes to build a small bed of hot embers.Incorrect Fuel Used This grill requires the use of lump charcoal. Follow Lighting Procedure to continue use of grill; however, call Customer Service for assistance if required.Grill Will Not Achieve Or Maintain Stable Temperature Grill Gets Too Hot Close the lid, mostly close both vents, and allow the barbecue to smother with lack of oxygen. For low temperature cooking, use less fuel.Grill Does Not Get Hot EnoughCheck fuel level. The grill may quickly lose fire if there is not enough charcoal in the ceramic body. The recommended use of lump charcoal is a maximum of 1.81kg / 4lbs per burn. Add more fuel and leave both vents completely open. More oxygen flow will allow the fire to increase, burning more lump charcoal. Insufficient Air Flow Through Ceramic BodyCheck bottom damper vent for ash build-up or obstructions. Follow Care and Maintenance instructions for ash build-up. Check top damper vent, and ensure it is working properly and airflow is not blocked. Follow Care and Maintenance instructions if dirty. Once all the above steps have been done, light the grill and perform a burn-off.Flare-Ups Cooking Temperature Too HighAttempt cooking at a lower temperature. Grease does have a flash point. Keep the temperature under 176°C / 350°F when cooking highly greasy food.Grease Build-Up On Cooking ComponentsFollow Care and Maintenance instructions. Need to Burp The Grill To prevent any back-draft or flare-ups that may cause injury, it is well advised to lift the lid only slightly (also known as burping), which allows air to enter slowly and safely.Bottom Damper Won’t SlideDamper Stuck On Ash Tap the damper lightly with a rubber hammer to loosen. Follow Care and Maintenance instructions. If no improvement, call Customer Service. Finishing on Unit Finish is chipped The finish of your unit may chip on the ceramic, but this does not affect the performance or lifespan of your unit. If chipping is substantial, call Customer Service.Spider-web pattern of crackingThis is not cracking of the ceramic. This is known as crazing and is caused by the different expansion rates between the glaze finish and the clay. The spider-web pattern of cracking is different from a break in the aspect that it cannot be felt on the surface, unless using a fingernail; however, it does become more visually apparent when the surface is dusty or magnified. Follow Care and Maintenance instructions. While these cracks may appear as imperfections, crazing does not affect the performance or life span of your ceramic charcoal barbecue; therefore, it is not a warranty issue. Lid Is Stuck Unit Not Cured Properly Curing your ceramic charcoal barbecue is important for its long-term operation and care. If the first burns are too hot, they could damage the felt gasket seal before it has had the chance to mature with use. If the lid gets stuck, or sealed, together with the base, use a knife to carefully unseal and cut off the felt gasket that trims the lid opening. Once removed, you will be able to open the lid. Before continuing to use the unit, replace the high-heat felt gasket, which can be purchased at your local fireplace store.ENGLISH

WARRANTY CONDITIONS All ceramic grills by Louisiana Grills®, manufactured by Dansons, carry a limited warranty from the date of sale by the original owner. The warranty coverage begins on the original date of purchase and proof of date of purchase, or copy of original bill of sale, is required to validate the warranty. Customers will be subject to parts, shipping, and handling fees if unable to provide proof of purchase or after the warranty has expired. Dansons carries a Limited Lifetime Warranty on all ceramic parts used to manufacture the ceramic charcoal barbecue. Dansons warrants that all part(s) are free of defects in material and workmanship, for the length of use and ownership of the original purchaser. Warranty does not cover damage from wear and tear, such as scratches, dents, dings, chips or minor cosmetic cracks. These aesthetic changes of the grill do not affect its performance. Upon close inspection, the finish of your ceramic charcoal barbecue may appear to have crack lines. This is not cracking of the ceramic. This is known as crazing and is caused by the different expansion rates between the glaze finish and the clay. The spider-web pattern of cracking is different from a break in the aspect that it cannot be felt on the surface, unless using a fingernail; however, it does become more visually apparent when the surface is dusty or magnified. While these may appear as imperfections, crazing does not affect the performance or life span of your ceramic charcoal barbecue; therefore, it is not a warranty issue. Dansons carries a five-year warranty on all metal and cast-iron parts used to manufacture the ceramic charcoal barbecue. Dansons warrants that all part(s) are free of defects in material and workmanship, for the length of use and ownership of the original purchaser. High temperatures, excessive humidity, chlorine, industrial fumes, chemicals, fertilizers, lawn pesticides and salt are some of the substances that can affect metal parts. For these reasons, the warranty does not cover rust or oxidization. Dansons recommends that you cover your grill when not in use. Even with these safeguards, the ceramic charcoal barbecue can be compromised by various substances and conditions beyond Dansons’ control. Dansons carries a one-year warranty on all plastic and composite components, thermometer, and caster wheels used to manufacture the ceramic charcoal barbecue. Warranty does not cover cosmetic or colour changes, weathering or cracks, unless there is a loss of structural integrity. Warranty does not cover damage from wear and tear, such as scratches, dents, dings, chips or minor cosmetic cracks. These aesthetic changes of the grill do not affect its performance. Repair or replacement of any part does not extend past the limited warranty. During the term of the warranty, Dansons’ obligation shall be limited to furnishing a replacement for defective and/or failed components. As long as it is within the warranty period, Dansons’ will not charge for repair or replacement for parts returned, freight prepaid, if the part(s) are found by Dansons’ to be defective upon examination. Dansons’ shall not be liable for transportation charges, labor costs, or export duties. Except as provided in these conditions of warranty, repair or replacement of parts in the manner and for the period of time mentioned heretofore shall constitute the fulfillment of all direct and derivate liabilities and obligations from Dansons to you. This warranty is based on normal domestic use and service of the grill, and neither limited warranty coverage’s apply for a grill which is used in commercial applications.

The use or abuse of this product for purposes other than that for which it is designed will void the warranty. Damage caused by lack of proper use, assembly, maintenance or installation is not covered. The pouring of lighter fluid or other liquids on your grill will void this warranty. This could result in damage or serious injury to the user of the ceramic charcoal barbecue, and result in excessive damage to the grill and its many parts and components. This warranty is only applicable if the ceramic charcoal barbecue is purchased through an authorized dealer. The purchase of any product by a third party, or unauthorized dealer, voids the warranty. Only select dealers and retailers have permission, by Dansons, to sell Ceramic series products. EXCEPTIONS There is no written or implied performance warranty on Louisiana Grills® units, as the manufacturer has no control over the installation, operation, cleaning, maintenance or the type of fuel burned. This warranty will not apply nor will Dansons assume responsibility if your appliance has not been installed, operated, cleaned and maintained in strict accordance with this owner’s manual. Burning other than quality lump charcoal may void the warranty. The warranty does not cover damage or breakage due to misuse, improper handling or modifications.ENGLISH

Neither Dansons, or authorized Louisiana Grills® dealer, accepts responsibility, legal or otherwise, for the incidental or consequential damage to the property or persons resulting from the use of this product. Whether a claim is made against Dansons based on the breach of this warranty or any other type of warranty expressed or implied by law, the manufacturer shall in no event be liable for any special, indirect, consequential or other damages of any nature whatsoever in excess of the original purchase of this product. All warranties by manufacturer are set forth herein and no claim shall be made against manufacturer on any warranty or representation. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations of implied warranties, so the limitations or exclusions set forth in this limited warranty may not apply to you. This limited warranty gives you specific legal rights and you may have other rights, which vary from state to state. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

ORDERING REPLACEMENT PARTS

If you have any questions or problems, contact Customer Service, Monday through Sunday, 4am - 8pm PST (EN/FR/ES). [e-mail] | Toll-Free: 1-877-303-3134 | Toll-Free Fax: [phone] WARRANTY SERVICE Contact your nearest Louisiana Grills® dealer for repair or replacement parts. Dansons requires proof of purchase to establish a warranty claim; therefore, retain your original sales receipt or invoice for future reference. The serial and model number of your grill unit can be found on the back of the lid hinge. Record numbers below as the label may become worn or illegible.

Makes 4–6 servingsIngredients:1 flank steak (450 g / 16 oz.) 30 ml / 2 tbsp Louisiana Grills Sweet Heat Rub & Grill seasoning 45 ml / 3 tbsp olive oil, divided 1 red pepper halved, stems and seeds removed 1 yellow pepper halved, stems and seeds removed 1 green pepper halved, stems and seeds removed 1 sweet onion large, sliced thick along base 8 corn tortillasExtra Fixings:salsa guacamole sour cream cheddar cheese, shredded iceberg lettuce, thinly slicedInstructions:1. Rub flank steak with 1 tbsp olive oil and Louisiana Grills Sweet Heat Rub & Grill seasoning. Cover and marinate in the refrigerator for 1 hour. 2. Lightly brush peppers and onion with olive oil.3. Light your ceramic charcoal barbecue to 205°C / 400°F. Place pepper and onion on grill and cook 5 minutes per side. Watch carefully to ensure the peppers and onion do not burn. 4. Remove peppers and onion from grill and toss lightly with remaining olive oil in a medium sized bowl. Transfer peppers and onions to a cutting board and slice into strips. Set aside. 5. Place flank steak directly on grill. Cook until medium rare, about 4 minutes per side, or until meat reaches an internal temperature of 74°C / 165°F. 6. Remove flank steak from the grill and transfer to cutting board. Let meat rest for 5 minutes then slice against the grain into strips. 7. Place flank steak, peppers, and onions in a platter and serve immediately with warm tortillas, salsa, guacamole, sour cream, shredded cheese, thinly sliced iceberg lettuce, or your favorite fajita toppings. RECIPES

PERFECTLY GRILLED STEAKS

Makes 2–4 servingsIngredients:2 rib-eye steaks (3cm / 1¼ inch thick) Louisiana Grills Chop House Steak Rub seasoning Instructions:1. No more than an hour before grilling, let steaks come to room temperature. 2. Generously sprinkle Louisiana Grills Chop House Steak Rub to both sides of each steak, allowing time for the rub to melt into the meat. 3. Light your ceramic charcoal barbecue to 205°C / 400°F. Place steaks directly on the grill. For a medium-done steak, sear each side for 5–7 minutes, flipping the steaks only once. Adjust time to your desired doneness.4. Remove steaks from the grill, cover with tin foil, and let sit 10 minutes before slicing and serving. NOTE: Use tongs to flip steaks. Do not flip the steaks with a fork or cut into the meat until ready to serve. Any cuts or punctures in the meat will cause juices to escape and dry out your steak.

GRILLED SWEET HEAT CHICKEN WINGS

Makes 2–4 servingsIngredients:16 whole chicken wings (510 g / 18 oz.) 75 ml / 5 tbsp lime juice 45 ml / 3 tbsp Louisiana Grills Sweet Heat Rub & Grill seasoning Instructions:1. Rinse the chicken wings under cold running water and blot dry with paper towels. Arrange the wings lengthwise on a baking dish. Drizzle lime juice evenly over wings.2. Shake Louisiana Grills Sweet Heat Rub & Grill seasoning over the wings, turning the wings to coat evenly.3. Light your ceramic charcoal barbecue to 177°C / 350°F. Place the heat deflector in the barbecue and place grate over top heat deflector.4. Place the wings directly on the grate. Grill over indirect heat until crispy, about 20–25 minutes per side.5. Transfer wings to a platter and serve with your favourite dipping sauce.ENGLISH

1. Rinse mahi-mahi fillets under cold water and blot dry with

paper towel. Rub fillets with olive oil, then sprinkle Louisiana Grills Mandarin Habanero seasoning over both sides of the fillets, rubbing the seasoning in. Set aside.

2. Prepare Mandarin Habanero Mango Salsa by combining all

ingredients in a medium sized bowl, tossing lightly to mix. Set aside.

3. Light your ceramic charcoal barbecue to 205°C / 400°F. Place

mahi-mahi fillets directly on the grill and cook 5–7 minutes on each side.

4. Remove mahi-mahi from grill and let rest 5 minutes before

pulling apart into small pieces.

5. Carefully remove cooking grate from barbecue using oven mitts

or grill grippers. Replace grill grate with heat deflector and place tortillas on heat deflector, heating for 30 seconds–1 minute or until warm, but not hot.

6. Stack the tortillas in twos. Distribute the fish evenly between

each set of tortillas. Top with red cabbage, sour cream, and mango salsa.

7. Serve immediately.

RASPBERRY CHIPOTLE PORK KEBABS

Makes 4–8 servings Ingredients: 450 g / 15.8 oz boneless pork loin cut into cubes (2.5 cm / 1 inch) 30 ml / 2 tbsp Louisiana Grills Raspberry Chipotle seasoning 15 ml / 1 tbsp olive oil 15 ml / 1 tbsp honey 30 ml / 2 tbsp apple cider vinegar 3 bell peppers variety of color, in pieces (2.5 cm / 1 in) 1 red onion cut into chunks 8 wood or metal skewers (30 cm / 12 inch) Instructions:

1. In a medium bowl, whisk together apple cider vinegar, Louisiana

Grills Raspberry Chipotle seasoning, olive oil, and honey. Add the cubed pork loin to marinade and toss to coast. Cover with plastic wrap and let marinate for 30 minutes–1 hour.

2. Once meat is marinated, remove from marinade and thread

cubed pork loin onto the skewers, alternating with pieces of bell pepper and red onion.

3. Light your ceramic charcoal barbecue to 205°C / 400°F. Grill

kebabs directly on the grill, turning often, until all sides of the meat is well browned and vegetables are tender (about 15 minutes).

4. Serve immediately.

If using wood skewers, soak in water for 30–45 minutes prior to use.FRANÇAIS
