ENGLISH

ANALOG INSTRUCTIONS

Time Setting

1. Pull crown out to position 2.
2. Turn crown to set hour and minute hands to desired time.
3. Return crown to position 1.

DATE MODELS

CLOSED 1 2 3 Rapid Correction OF DATE Rotate to set hour & minute hands. Date advances with each 24 hour rotation of hour hand.

Date Setting

1. Pull crown out to position 2.
2. Turn the crown either clockwise or counter-clockwise and set the date for the previous day. The direction that moves the date varies on different watch models.

Time Setting

1. Pull crown out to position 3.
2. Turn counter-clockwise to advance the time and continue until the day changes to the present day.
3. Set to the correct time.

Do not change the date between the hours of 10pm and 2am. This is the time when the movement is in position to carry out the automatic date change, and any interference may cause damage to the movement.

2 EYE DAY/DATE MULTI-FUNCTION VX36

Date Setting

1. Pull crown out to position 2.
2. Turn clockwise to advance date hand.
3. Push crown back to position 1.

Date and Time Setting

1. Pull crown out to position 3.
2. Turn clockwise to advance hour and minute hands.
   The hand showing days of the week will also move with the hour and minute hands. Keep turning until you have reached the desired day.

MULTIFUNCTION 6P23

DATE E 24-HOUR HAND 123

Time Setting

1. Pull crown out to position 3.
2. Turn clockwise to advance hour and minute hands. 24-hour hand will move with hour and minute hands. Keep turning to reach desired time.
3. Return crown to position 1.

Date Setting

1. Pull crown out to position 2.
2. Turn crown counter-clockwise to set date.
3. Return crown to position 1.

THREE EYE MULTI-FUNCTION 6P29/6P79

Date Setting

1. Pull crown out to position 2.
2. Turn clockwise to advance the date hand.
3. Push crown back to position 1.

Day and Time Setting

1. Pull crown out to position 3.
2. Turn clockwise to advance hour and minute hands.
   The hand showing days of the week will also move with the hour and minute hands. Keep turning until you have reached the desired day.

24-Hour Sub-Dial Setting

The 24-hour hand moves correspondingly with the hour and minute hands. When setting the time be sure to check that the 24-hour hand is set properly.

CHRONOGRAPH STOPWATCH VD55 (with date-VD57)

1/10 SECOND COUNTER A MINUTE COUNTER 123 B SECOND COUNTER

Time and Date Setting

1. Before setting the time, make sure the chronograph is stopped and set to zero (12:00) position.
2. Pull crown out to position 2 and turn crown clockwise to set date to the previous day.
3. Pull crown out to position 3 when the second hand is at the 12:00 position, and turn clockwise until the present date is displayed. Continue turning crown to set the correct a.m./p.m. time.
4. Return crown to position 1.
   NOTE: When crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.
   NOTE: To ensure accuracy, do not set the date between 9:00 p.m. and 1:00 a.m.

Chronograph Functions

Basic Function

1. Press A to start/stop the chronograph.
2. Press B to reset to zero.

Interval Timing

1. Press B while the chronograph is running.
2. Press B again to return to the chronograph.
3. Press A to finalize timing.
4. Press B to reset.

Adjusting the Chronograph Hands to Zero Position

If one or more chronograph hands are not in their correct zero (12:00) positions after pressing B (for example, following a battery change):

1. Pull crown out to position 3.
2. Press A to move the chronograph 1/10 second counter one increment; press and hold A for fast advance.
3. Press B to reset the second and minute counters one increment; press and hold B for fast advance.
4. Return crown to position 1.

CHRONOGRAPH STOPWATCH JS25/VD54 (with date-VD53)

MINUTE HAND SECOND HAND A 24-HOUR HAND 125 B

Time and Date Setting

1. Before setting the time, make sure the chronograph is stopped and set to zero (12:00) position.
2. Pull crown out to position 2.
3. Turn crown clockwise until the previous day's date is displayed.
4. Pull crown out to position 3 when the second hand is at the 12:00 position.
5. Turn crown to set time.
   NOTE: 24-hour hand moves correspondingly with the hour and minute hands. When setting the time be sure to check that the 24-hour hand is set properly.
6. Return crown to position 1.
   NOTE: When the crown is in position 2, do not press the pushers. Otherwise the chronograph hands will move.

Chronograph

1. Press A to start/stop the chronograph.

2. Press B to reset to zero.

Split Time (VD53/VD54)

1. Press B while the chronograph is running.
2. Press B again to return to the chronograph.
3. Press A to finalize timing.
4. Press B to reset.

Chronograph Zero Reset

1. If either of the chronograph hands is not at the zero (12:00) position, pull crown out to position 3.
2. Press A to move hands clockwise; press B to move hands counter-clockwise.
3. Return crown to position 1.

AUTOMATIC 82SO/2189

8250

2189

1. Pull crown out to position 2.
2. Turn crown clockwise to advance hour and minute hands.
3. Push crown back to position 1.

NOTE: A timepiece with an automatic winding movement obtains the power to wind itself by the movement of your wrist, there is no battery. Therefore, not wearing the timepiece for several consecutive days could exhaust the power reserve. If your watch stops, it is recommended that you manually wind the movement by rotating the crown clockwise at position 1 to achieve the necessary power reserve.

It is important your timepiece is adjusted to match the size of your wrist. A loose fit may result in a loss in capacity of the timepiece to wind itself. When fully wound, your timepiece has a power reserve of approximately 36 hours.

DIGITAL LED - BJ-3470

Normal Time Display

1. Press B to display time; press B again to change display mode. Mode sequence is time, date and seconds.
2. LED automatically turns off after 5 seconds.

Time / Calendar Setting

1. In time display mode, press and hold A for 2 seconds to enter setting mode. 12/24-hour format will begin flashing.
2. Press B to choose 12 or 24-hour format. For 12-hour setting, "P" will be displayed for afternoon/evening hours. For 24-hour setting, no symbol will be displayed.
3. Press A to advance to hour.
4. Press B to increase digits; press and hold B for fast advance.
5. Press A to advance to next setting value.
6. Setting sequence is: 12/24-hour format, hour, minutes, seconds, year, month, date, and exit setting mode.

NOTE: In setting mode, if no pusher is operated for 5 seconds, all changes will be saved and the watch will automatically turn off.

DIGITAL UPCR-992A

Time Mode

1. Press B to change modes.
2. Press A for EL.
3. Press C to select 12/24 hour format.
4. Press D to enable/disable hourly chime.

Time Setting

1. In time mode, press and hold A for 2 seconds to enter time setting.
2. Press C to increase setting value. Press D to decrease setting value.
3. Press B to enter next setting field
4. Press pusher A to exit setting mode.

Alarm Mode

1. Press B to enter alarm mode.
2. Press A for EL.
3. Press C to select alarm 1 or alarm 2.
4. Press D to enable/disable alarm.

Alarm Setting

1. Press and hold A for 2 seconds to enter alarm setting.
2. Press C to increase setting value. Press D to decrease setting value.
3. Press B to enter next setting field.
4. Repeat steps 2 and 3 until desired time is selected.
5. Press A to exit setting mode.
   NOTE: Alarm turns on automatically when exiting setting mode.

Chrono Mode

1. Press B to enter chrono mode.
2. Press C to start chrono.
3. Press D to stop chrono.
4. Press and hold D for 2 seconds to reset chrono.
   NOTE: Maximum chrono time is 23 hours, 59 minutes and 59 seconds. When chrono
   reaches maximum time, it will stop running. Press and hold D to reset value to
   run chrono. 1/00s resolution for first 59 minutes and 59.99 seconds.

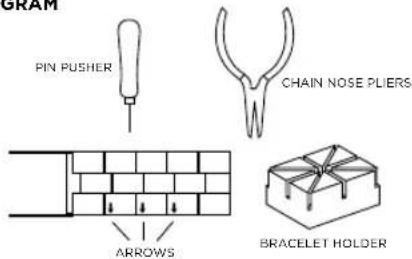

PIN LINK DIAGRAM

GRAM PIN PUSHER CHAIN NOSE PLIERS ARROWS BRACELET HOLDER

Link Removal

To remove a link from a pin link bracelet, you will need the bracelet holder, pin pusher, and chain nose pliers (see pin link diagram).

1. Open the clasp on the bracelet.
2. Look on the inside of the bracelet and locate the arrows near the clasp (see diagram).
3. Place the band into the appropriate size slot of the bracelet holder with the arrows pointing down (see diagram).
4. Center the desired pin to be removed over one of the holes in the bottom of the bracelet holder.
5. With the pin pusher, push the pin, as far as possible, through the link.
6. Remove the watch from the bracelet holder and simply finish pulling out the pin with the chain nose pliers.

NOTE: Two pins hold each link in place and must be taken out before a link can be removed. Please note that the pins are partially split down the center.

USE PRECAUTIONS - RESISTANCE TO WATER

Water Resistance Water-related Use
Caseback Marking	Depth
		Washing Hands	Shower, Bathing	Swimming, Snorkeling	Scuba Diving
-	-	X	X	X	X
WR	-	√	X	X	X
3 ATM	3 Bar, 30 Meters	√	X	X	X
5 ATM	5 Bar, 50 Meters	√	√	X	X
10 ATM	10 Bar, 100 Meters	√	√	√	X
20 ATM	20 Bar, 200 Meters	√	√	√	√
30 ATM	30 Bar, 300 Meters	√	√	√	√
50 ATM	50 Bar, 500 Meters	√	√	√	√
Always set the crown in closed position (the normal position). Tighten screw-lock crown completely.

DEUTSCH

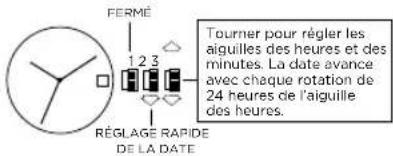

MODÈLES AVEC INDICATION DE LA DATE

Your ARMANI EXCHANGE watch is warranted by Armani Exchange Watches for a period two (2) years from the original date of purchase under the terms and conditions of this warranty. The Armani Exchange warranty covers materials and manufacturing defects. A copy of the receipt or dealer stamp in the warranty booklet is required for proof of purchase.

During the warranty period the watch movement, hands and dial are the only components covered under this warranty. A covered component will be repaired or the watch will be replaced free of repair charges, if it proves to be defective in material or workmanship under normal use.

In case of replacement, Armani Exchange cannot guarantee that you will receive the same model watch. If your model is not available, a watch of equal value and similar style will be provided. The warranty for the replacement watch ends two (2) years from the date the replacement watch is received.

This Warranty Does Not Cover:

• Any defects in materials and workmanship of battery, case, crystal, strap or bracelet.
• Damage resulting from improper handling, lack of care, accidents, or normal wear and tear.
• Water damage unless marked water-resistant.

This warranty is void if the watch has been damaged by accident, negligence of persons other than authorized Armani Exchange sales or services agents, unauthorized service, or other factors not due to defects in materials or workmanship.

The foregoing warranties and remedies are exclusive and in lieu of all other warranties, terms or conditions, express, implied or statutory, as to any matter whatsoever, including, without limitation, warranties of merchantability, fitness for a particular purpose, accuracy, satisfactory quality, title, and non-infringement, all of which are expressly disclaimed by Armani Exchange. Armani Exchange shall not be liable for incidental, consequential, indirect, special or punitive damages or liabilities of any kind arising out of or in connection with the sale or use of this product, whether eased in contract, tort (including negligence), strict product liability or any other theory, even if Armani Exchange has been advised of the possibility of such damages and even if any limited remedy specified herein is deemed to have failed of its essential purpose. Armani Exchange's entire liability shall be limited to 186167

replacement or repair of the purchase price paid, at Armani Exchange's sole option.

Some countries, states, or provinces do not allow the exclusion or limitation of implied warranties or the limitation of incidental or consequential damages so the above limitations and exclusions may be limited in their application to you. When implied warranties may not be excluded in their entirety, they will be limited to the duration of the applicable written warranty. This warranty gives you specific legal rights: you may have other rights that may vary depending on local law. Your statutory rights are not affected.

FOR AUSTRALIAN CUSTOMERS: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonable foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Requesting Warranty and Other Watch Repair

Should you require work under warranty, please send in your watch, a copy of your sales receipt and/or the warranty booklet with dealer stamp and a description of the problem to the authorized international watch service center closest to you (see enclosed list of addresses).

For service work that is not covered under this warranty, the service counter may perform the services you request for a charge dependent on watch style and type of work requested. These charges are subject to change.

Do not send original packaging, as it will not be returned. Armani Exchange highly recommends you insure your parcel and adequately protect the watch during shipment. Armani Exchange is not responsible for product lost or damaged during shipment.

For repairs of your ARMANI EXCHANGE watch we recommend that you contact an authorized Armani Exchange dealer or the authorized international watch service center closest to you (see enclosed list of addresses).

In the U.S., there is a \$8.50 handling charge to cover return shipping, insurance and handling to U.S. addresses. International addresses will have a higher shipping charge.

*901 South Central Expressway, Richardson, Texas 75080 USA

DEUTSCH

INTERNATIONALE ZWEI (2)-JAHRES-GARANTIE

*901 South Central Expressway, Richardson, Texas 75080 USA

FRANÇAIS

GARANTIE INTERNATIONALE DE DEUX (2) ANS

*901 South Central Expressway, Richardson, Texas 75080 USA

ESPAÑOL

GARANTÍA SÓLO PARA ESPAÑA

Col. Pio XII, Santa Catarica NJ.

C.P. 66362 México

Tel: [phone] Fax Ext 102

R.F.C. FME050824153

*901 South Central Expressway, Richardson, Texas 75080 USA

PORTUGUÊS

GARANTIA VÁLIDA APENAS PARA PORTUGAL

*901 South Central Expressway, Richardson, Texas 75080 USA

BAHASA INDONESIA

JAMINAN INTERNASIONAL 2 TAHUN

*901 South Central Expressway, Richardson, Texas 75080 USA

POLSKI

'901 South Central Expressway, Richardson, Texas 75080 USA

РУССКИЙ

*901 South Central Expressway, Richardson, Texas 75080 USA (CWA)

日本語

2年間の国際保証

'901 South Central Expressway, Richardson, Texas 75080 USA

中文

两（2）年国际保证

*901 South Central Expressway, Richardson, Texas 75080 USA

繁體中文

兩(2)年國際保證

*901 South Central Expressway, Richardson, Texas 75060 USA

한국어

2년 국제 보증

*901 South Central Expressway, Richardson, Texas 75080 USA
