Product type	Handheld hydraulic crimping tool
Brand	RIDGID
Model	RP 342-XL
Rated voltage	18 V DC
Current draw	27.2 A
Crimping force	32 kN (7,200 lb)
Stroke (Standard)	40 mm (1.57 in)
Stroke (Extended)	80 mm (3.15 in)
Crimping rate	3 cycles/min (Standard and Extended)
Weight (without battery pack and head)	4.9 kg (10.8 lb)
Dimensions (L × W × H)	531 × 85 × 267 mm (20.9 × 3.35 × 10.5 in)
Ambient temperature range	-10°C to 50°C (15°F to 122°F)
Protection rating	IP32
Compatible heads	Standard Series and Extended Series (RIDGID approved)
Head orientation	270° rotatable
Lighting	Integrated targeted lighting
Automatic cycle	Yes, full cycle even after trigger release
Release button	Emergency stop and head release
Warranty	Full Lifetime Warranty
Maintenance	Clean with dry cloth, lubricate spindle, mandatory service every 20,000 cycles
Power supply	18 V lithium-ion battery pack (RB-1825 2.5 Ah or RB-1850 5 Ah) or 120 V AC adapter
Included accessories	See RIDGID catalog

Frequently Asked Questions - RP 342XL RIDGID

How do I change the configuration between Standard and Extended?

To switch from Standard to Extended, advance the rollers about 3 mm by pressing the trigger, then turn the collar until the Extended arrow aligns with the one on the frame. To switch from Extended to Standard, advance the rollers until their housing protrudes past the collar groove, then turn the collar to align the Standard arrow. Make sure to remove any head before changing the configuration.

What does the red indicator light mean?

The red indicator means the tool or battery pack is outside the temperature limits. Bring the tool and battery pack to an appropriate temperature range (between -10°C and 50°C) to cool or warm up.

How do I clean the crimping tool?

Remove the battery pack, then wipe the exterior of the tool with a clean, dry cloth. Examine the head mounting pin and lubricate it if necessary with a silicone-based lubricant. Regularly inspect the head return springs.

What should I do if the tool does not turn on?

First, check that the battery pack is charged and properly inserted. If the problem persists, try another battery pack or charge the existing one. If the malfunction indicator is on (flashing red or steady yellow), remove and reinstall the battery pack. If the fault persists, contact a RIDGID authorized repair center.

How do I install and remove the crimping head?

Remove the battery pack. Unlock the mounting pin by pressing its knob and turning it left. The pin will self-extract. Mount the appropriate head, then fully push the pin back. Check that the gap between the head and the collar does not exceed 10 mm. To remove the head, reverse the procedure.

What is the crimping force of the RP 342-XL?

The ram force is 32 kN (7,200 lb). This force ensures a leak-tight and permanent crimp of pipe fittings.

What type of battery pack should I use?

Use exclusively RIDGID 18 V lithium-ion battery packs, models RB-1825 (2.5 Ah) or RB-1850 (5 Ah). Do not use other battery packs.

How do I release the head if it becomes stuck on the fitting?

If the crimping is interrupted and the head remains stuck, press the release button to free the jaw. Then examine the fitting and perform a new crimp if necessary.

How long does a crimping cycle take?

The cycle lasts approximately 4 seconds with Standard series heads and approximately 9 seconds with Extended series heads. The cycle is automatic and continues even if the trigger is released.

Where can I find a RIDGID authorized repair center?

Visit RIDGID.com to locate the nearest representative. You can also contact RIDGID technical services by email at [e-mail] or, from the United States or Canada, call 800-519-3456.

USER MANUAL RP 342XL RIDGID

Red and black RIDGID utility tool with attached black strap (no visible text or symbols on body)

Table of Contents

Recording Form For Machine Serial Number ....1

Safety Symbols....2

General Power Tool Safety Warnings

Work Area Safety....2

Electrical Safety 2

Personal Safety ....3

Power Tool Use And Care ....3

Battery Tool Use And Care ....3

Service 4

Specific Safety Information

Press Tool Safety....4

RIDGID® Contact Information ....4

Description

Tool Status Lights 6

Specifications

Standard Equipment 6

Pre-Operation Inspection 7

Set-Up And Operating Instructions ....7

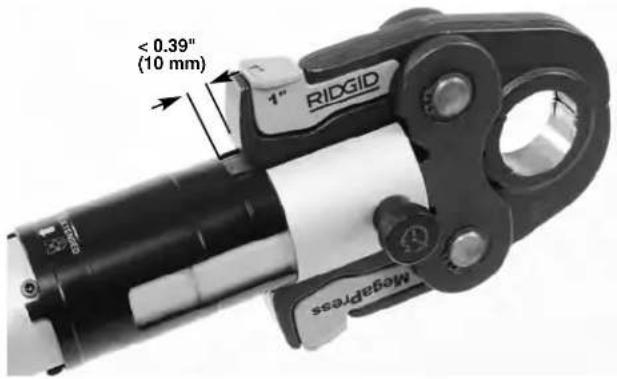

Removing/Installing Attachment ....7

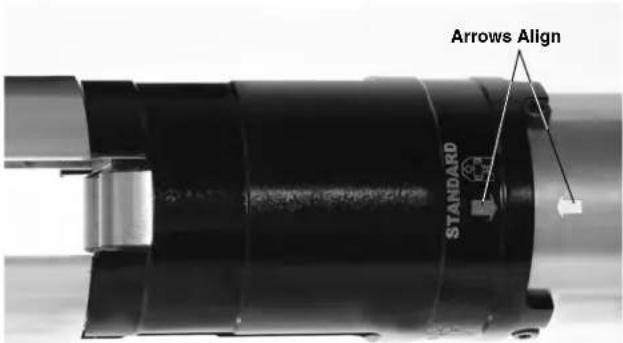

Changing Tool Configuration ("Extended"/"Standard") 8

Preparing Connection ....8

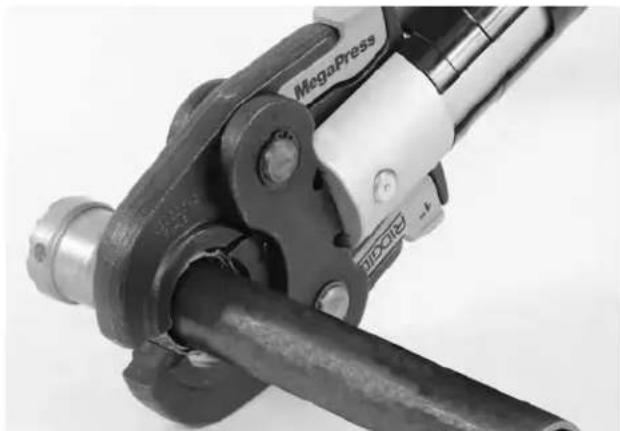

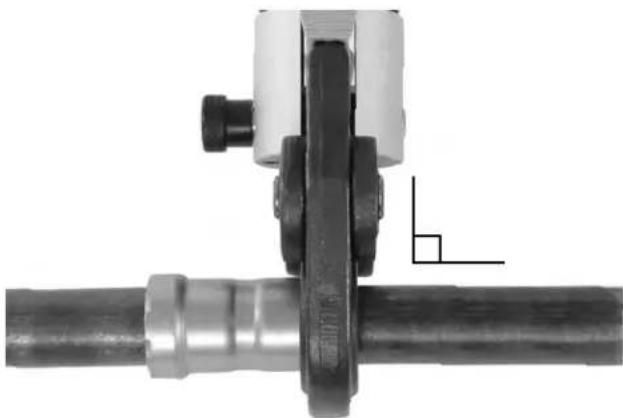

Pressing A Fitting With Typical Scissor Jaws 9

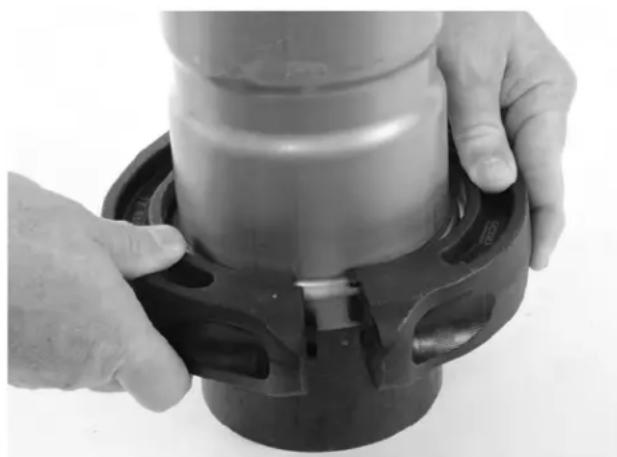

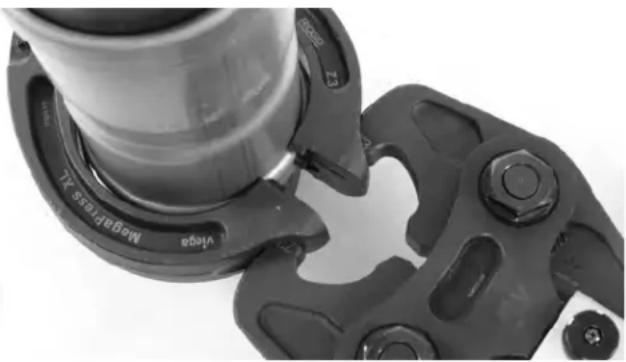

Pressing A Fitting With Typical Actuator And Press Ring Set ....9

Inspecting The Pressed Connection ....10

Storage 10

Maintenance Instructions

Cleaning And Lubrication....10

Troubleshooting 11

Required Maintenance By RIDGID Authorized Independent Service Center ....10

Service And Repair ....10

Optional Equipment 10

Disposal 11

EC Declaration of Conformity 11

Electromagnetic Compatibility (EMC) 11

Lifetime Warranty ....Back Cover

*Original Instructions - English

RP 342-XL

Press Tool

RidGID electric drill pen with attached black strap and base (no visible text or symbols)

WARNING!

Read this Operator's Manual carefully before using this tool. Failure to understand and follow the contents of this manual may result in electrical shock, fire and/or serious personal injury.

RP 342-XL Press Tool
Record Serial Number below and retain product serial number which is located on nameplate.
Serial No.

Safety Symbols

In this operator's manual and on the product, safety symbols and signal words are used to communicate important safety information. This section is provided to improve understanding of these signal words and symbols.

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE indicates information that relates to the protection of property.

This symbol means read the operator's manual carefully before using the equipment. The operator's manual contains important information on the safe and proper operation of the equipment.

This symbol means always wear safety glasses with side shields or goggles when handling or using this equipment to reduce the risk of eye injury.

This symbol indicates the risk of hands, fingers or other body parts being crushed.

This symbol indicates the risk of electrical shock.

General Power Tool Safety Warnings\*

WARNING

Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE!

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work Area Safety

• Keep your work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flam mable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and by-standers away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Un modified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electrical shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electrical shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

Personal Safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch ON invites accidents.
• Remove any adjusting key or wrench before turning the power tool ON. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewel ry. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power Tool Use And Care

• Do not force power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use power tool if the switch does not turn it ON and OFF. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack from the power tool

before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery Tool Use And Care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or tool that is damaged

or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging im - properly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Specific Safety Information

WARNING

This section contains important safety information that is specific to this tool.

Read these precautions carefully before using the press tool to reduce the risk of electrical shock, fire, explosion or serious personal injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE!

A compartment in the tool carrying case is included to keep this manual with the machine for use by the operator.

Press Tool Safety

• Keep your fingers and hands away from pressing attachments during press cycle. Your fingers or hands can be crushed, fractured or amputated if they become caught between the attachment or between these components and any other object.
• Never attempt to repair damaged pressing attachments (jaws, press ring, actuator, etc.). Discard the entire damaged attachment. An attachment that has been welded, ground, drilled or modified in any manner can shatter during pressing resulting in serious injury. Failure to replace the entire pressing attachment may result in component failure and serious injury.
• Large forces are generated during use that can break or throw parts and cause injury. Stand clear

during use and wear appropriate protective equipment, including eye protection.

- Only use RIDGID® Press Tools with appropriate RIDGID or RIDGID approved Pressing attachments (jaws, press rings, actuators, etc.). Other uses or modifying the Press Tools for other applications may damage the press tool, damage the attachments and/or cause personal injury.

- Use proper tool, attachment and fitting combinations. Improper combinations can result in an incomplete joint, which increase the risk of leaks, equipment damage and injury.

- Before operating a RIDGID Press Tool, read and understand:

• This operator's manual
  – The attachment instructions
  – The battery/charger manual
• The fitting manufacturer's installation instructions
• The instructions for any other equipment or material used with this tool

Failure to follow all instructions and warnings may result in property damage and/or serious injury.

RIDGID Contact Information

If you have any question concerning this RIDGID product:

- Contact your local RIDGID distributor.

- Visit RIDGID.com to find your local RIDGID contact point.

- Contact Ridge Tool Technical Service De part ment at rttechservices@emer son.com, or in the U.S. and Canada call [phone].

- Visit RIDGID.com to find your local RIDGID contact point. - Contact Ridge Tool Technical Service Department at rtctechservices@emer son.com, or in the U.S. and Canada call [phone].

Description

The RIDGID® RP 342-XL Press Tool, when used with ap - appropriate attachments, is designed to mechanically press fittings onto tubing to create a water-tight and permanent seal, such as for plumbing and heating applications.

When the run switch on the press tool is depressed, an internal electric motor powers a hydraulic pump which sends fluid into the cylinder of the tool, moving the ram forward and applying force to the attachment, pressing the fitting.

The press tool has two configurations that are changed by rotating the tool sleeve. In "Standard" configuration, the tool can be used with RIDGID Standard Series Press Attachments. The "Extended" configuration allows use with commercially available Extended Series Press attachments

(See Specifications section) approved by RIDGID for use.

The press cycle for Standard Series attachments is approximately 4 seconds, and for Extended Series attachments it is approximately 9 seconds. Once the cycle begins to deform a fitting, it will automatically continue until completion, even if the run switch is released.

The Tool Status Lights indicate things such as out of specification temperature, low battery, or maintenance required. A work light turns on when the run switch is depressed to illuminate the work area.

The head can be rotated 270^ for better access in tight spaces.

The tool comes with two (2) fabric loops that can be used with appropriate attachments such as shoulder straps or tie off lines.

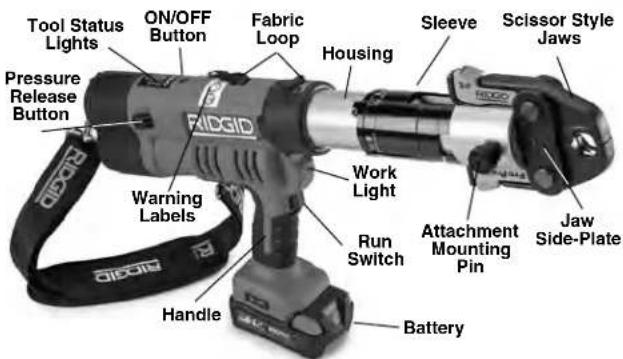

Tool Status Lights ON/OFF Button Fabric Loop Pressure Release Button Housing Sleeve Scissor Style Jaws Warning Labels Work Light Run Switch Attachment Mounting Pin Jaw Side-Plate Handle Battery

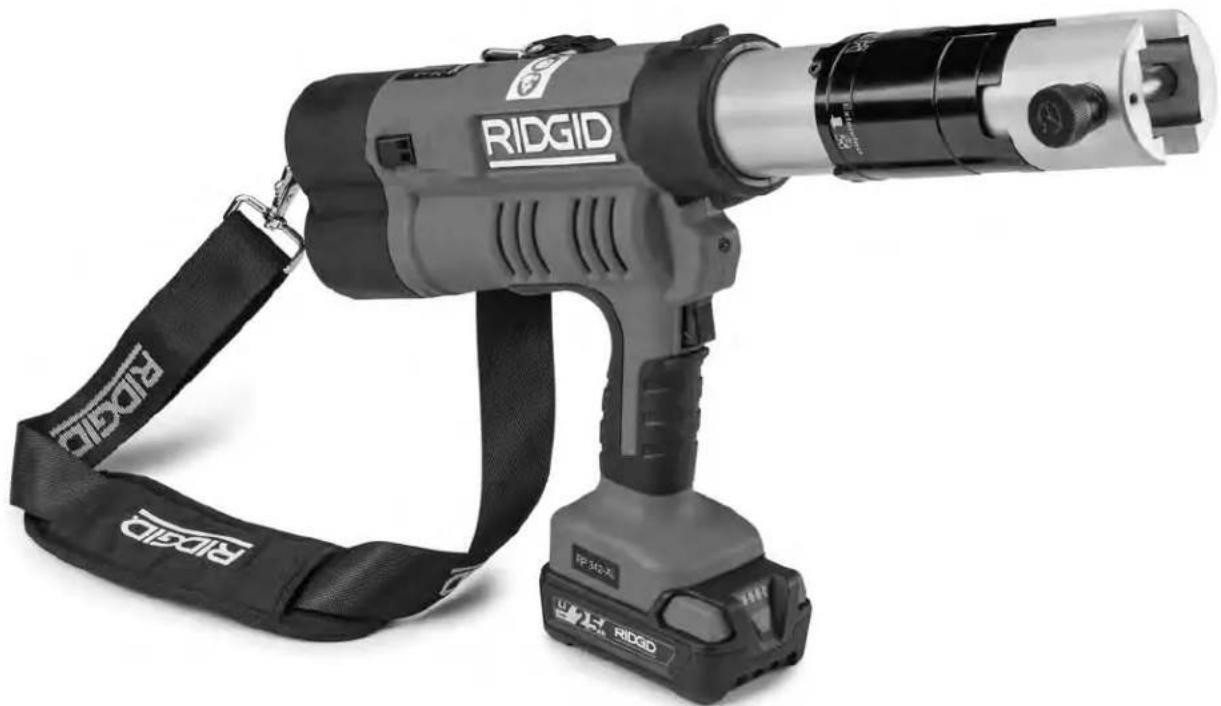

Figure 1 – RIDGID RP 324-XL Press Tool and Standard Series Jaw

Warning Label ON/OFF Button RIDGID Tool Status Lights

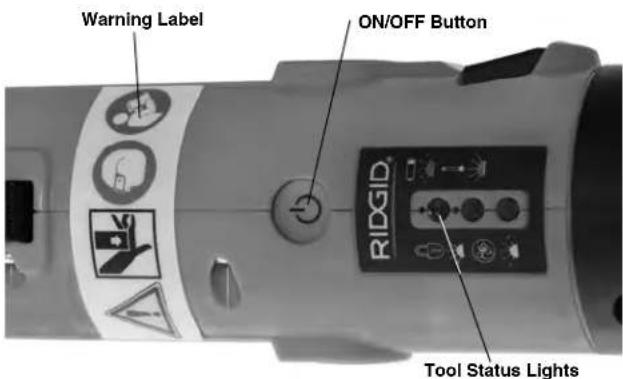

Figure 2 - ON/OFF switch and Tool Status Lights

RIDGID® Ridge Tool Company Elyria, Ohio / USA Model RP 342 XL Press Tool Serial No. XX YY MM XXX 18 V d.c. / 27.2A 49032/ / F = kN 3x /min. Made in China IP32 c US ETI

Figure 3 – Machine Serial Number - The circled digits indicate the year (YY) and month (XX) of manufacture.

Control	Marking	Description
On/Off Button		Main tool power switch. Press to turn ON/OFF.ON: Press button until light turns ON. See Figure 5 – Tool Status Lights.OFF: Press button until light turns OFF. Tool will automatically turn OFF if left unused for ten (10) minutes.
Run Switch —		Depress to press fittings. Release when tool locks on. Releasing the switch will not stop the tool once it has locked on. This assures consistent, repeatable press connection integrity.
Pressure Release Button and multiple repeated.		Allows tool to be released without completing press. If used, press connection is not complete.

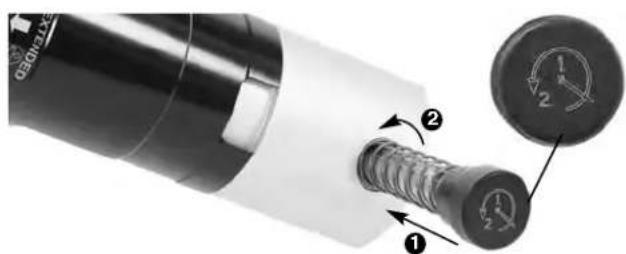

Attachment Mounting Pin	— Holds	attachment to tool. See Figure 6.

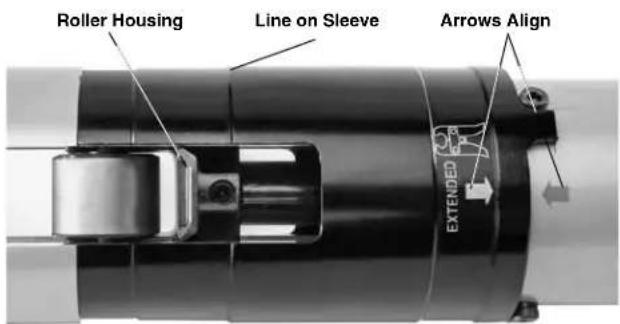

Sleeve - “Extended” Series Configuration		Sleeve rotates 90° between “Extended” and “Standard” configurations for use with appropriate attachments (see Changing Tool Configuration (“Extended”/“Standard”).
Sleeve - “Standard” Series Configuration		Sleeve rotates 90° between “Extended” and “Standard” configurations for use with appropriate attachments (see Changing Tool Configuration (“Extended”/“Standard”).

Figure 4 – Controls Chart

RIDGID®

Icon	Solid Light Blinking Light		Meaning
	Green Tool ON, ready to use.
		Green Low vol	Voltage. Tool will not operate. Battery - Recharge, AC Adapter - Change power source, remove extension cords.
	Red		Tool out of Specification temperature range. Bring tool and battery to correct operating temperature range.
		Yellow	Indicates service interval approaching. Light turns on after 18,000 cycles to show service interval is approaching. Tool is usable, but tool willlock after service interval (20,000 cycles).
	Yellow		Tool locked. Service interval complete (20,000 cycles) and requires service.
			Tool has malfunctioned. Remove and reinsert battery. If still ON, have tool serviced.

Figure 5 – Tool Status Lights

Specifications

Attachments ....RIDGID Standard Series RIDGID Extended Series/RIDGID Approved

Stroke Length......"Standard" Configuration "Extended" Configuration 1.57" (40 mm) 3.15" (80 mm)

Duty Cycle....3 Press /min.

3 Press /min

Ram Force ....32 kN (7,200 lbs.)

Motor

Voltage .....18V DC

Amperage .....27.2 Amp

Power 490 Watts

Power Supply ......RIDGID RB-18XX Series18 V Li-Ion Batter y Pack

Operating Temperature

Range 15^ F to 122^ F ( -10^ C to 50^ C)

Weight (no battery/

attachment)....10.8 lbs. (4.9 Kg)

Height.....10.5" (267 mm)

Width ....3.35" (85 mm)

Length 20.9" (531 mm)

Standard Equipment

Refer to the RIDGID catalog for details on equipment supplied with specific tool catalog numbers.

NOTICE Selection of appropriate materials and joining methods is the responsibility of the system designer and/or

installer. Before any installation is attempted, careful evaluation of the specific service environment, including chemical environment and service temperature, should be completed. Consult Press Fitting System manufacturer for selection information.

Pre-Operation Inspection

WARNING

Daily before use, inspect your press tool and cor rect any problems to reduce the risk of serious in jury from electric shock, crushing injures, attachment failure and other causes, and prevent tool damage.

1. Remove battery from tool.
2. Clean any oil, grease or dirt from the equipment, especially the handles and controls. This aids inspection and helps to prevent the tool or controls from slipping from your grip.

3. Inspect the press tool for:

4. Proper assembly, maintenance and completeness.

5. Any broken, worn, missing, misaligned or binding parts. Confirm fabric loops are in good condition.
6. Confirm attachment mounting pin moves smoothly between the fully open and fully closed position and locks into each. Confirm that the run switch moves freely and does not bind or stick.
7. Presence and readability of warning label (Figure 2).
8. Any other condition which may prevent safe and normal operation.

Do not use the press tool until problems have been repaired.

1. Inspect and maintain tool attachments per their instructions. Remove attachment from the tool. Confirm that attachments are in good condition and clearly marked as to use.

5 Inspect and maintain any other equipment being used per its instructions to make sure it is functioning properly.

Set-Up And Operating Instructions

WARNING

Keep your fingers and hands away from the tool attachment during the press cycle. Your fingers or hands can be crushed, fractured or amputated in the

attachment or tool or between the attachment, work piece and other objects.

Large forces are generated during product use that can break or throw parts and cause injury. Stand clear during use and wear appropriate protective equipment, including eye protection.

Use proper tool, attachment and fitting combinations. Improper combinations can result in an incomplete connection, which increases the risk of leaks, equipment damage and injury.

Follow set up and operating instructions to reduce the risk of injury from crushing and other causes and to prevent tool damage.

1. Confirm appropriate work area (See General Power Tool Safety Warnings). Operate in a clear, level, stable, dry location. Do not use tool while standing in water.
2. Inspect the work to be done and determine the correct RIDGID tool and attachment for the application per their specifications. Using incorrect equipment for an application can cause injury, damage the tool and make incomplete connections.
3. Confirm all equipment has been inspected and set up as directed in their instructions.

Removing/Installing Attachment

1. Remove battery from tool.
2. Unlock and open the attachment mounting pin by slightly depressing the knob (1) and turning slightly counter-clockwise (2). The pin is spring loaded and will retract, control the pin movement. See Figure 6A.
3. If needed, Change Tool Configuration for the attachment (Extended/Standard).
4. Insert appropriate attachment.
5. Fully close attachment mounting pin. Attachment mounting pin must be fully closed to prevent tool damage during use.
6. Inspect the gap between attachment and sleeve (See Figure 6B). Do not use tool if gap is greater than 0.39" (10 mm).

⚠ WARNING Excessive gap between the attachment and sleeve can allow access to the tool rollers during use. This increases the risk of crushing injuries. Do not use Standard attachments with tool in Extended configuration.

Technical diagram of a mechanical device with labeled parts and directional arrows indicating movement or assembly.

Figure 6A – Fully Open Attachment Mounting Pin

< 0.39" (10 mm) RIDGID Megapress

Figure 6B – Fully Closed Attachment Mounting Pin

Changing Tool Configuration ("Extended"/"Standard")

The RIDGID RP 342-XL Press Tool can be configured for use with RIDGID Standard or Extended Series attachments (See Specifications for more information). To convert between configurations:

1. Remove any attachment from tool
2. With dry hands, insert a fully charged battery into tool. Depress ON/OFF button to turn tool ON.
3. From "Standard" to "Extended" Configurations—With hands clear of the rollers, depress the run switch to move the rollers forward approximately 1/8 (3 mm). Rotate the sleeve to align the "Extended" icon arrow with the housing arrow (Figure 7).
4. From "Extended" to "Standard" Configurations – With hands clear of the rollers, depress the run switch to move the rollers forward till the roller housing is past the line on sleeve (see Figure 7B). Rotate the sleeve to align the "Stan dard" icon arrow with the housing arrow (Figure 7).

Standard Arrows Align

Figure 7A – “Standard” Configuration

Roller Housing Line on Sleeve Arrows Align EXTENDED

Figure 7B - "Extended" Configuration

In the “Extended” configuration, the slots of the sleeve will align with the openings in the housing to allow Extended Series attachments to mount to the tool. In the “Standard” configuration, the sleeve will cover part of the housing openings and prevent the rollers from retracting further than necessary. This will reduce the tool cycle time in the “Standard” configuration. Do not use Standard attachments with tool in “Extended” configuration.

Preparing Connection

NOTICE These instructions are generalized practices for several types of press tool attachments. Always follow the specific instructions for the press tool attachment being used and the fitting manufacturers' specific installation instructions to reduce the risk of improper press connections and extensive property damage.

1. Prepare the connection according to the fitting manufacturer's instructions.
2. With dry hands, insert a fully charged battery into tool. Depress ON/OFF button one time to turn tool ON. The green light will turn on. See Figure 5 – Tool Status Lights for any other light. Tool will automatically turn OFF if left unused for ten (10) minutes.

Pressing A Fitting With Typical Scissor Jaws

1. Squeeze jaw arms to open jaws.

2. Place open jaws around fitting (Figure 8). Properly align jaw press profile with contour of the fitting as specified in Fitting Manufacturer's Installation Instructions. Release jaw arms to close jaws around fitting.

Do not hang jaw set from fitting. Tool could unexpectedly drop and cause serious injury or death.

Close-up of a mechanical tool with a MegaPress component, no visible text or symbols on the object itself.

Figure 8 – Placing Jaws Around Fiiting

Close-up of a mechanical joint or clamp assembly with a metallic pipe and cylindrical component (no visible text or symbols)

Figure 9 – Jaws Appropriately Placed

1. Confirm jaw is appropriately placed and square to fitting (Figure 9). Keep fingers and hands away from the jaws to avoid crushing injuries in jaws or between jaws and surroundings.

Depress the run switch (Figure 1). Once the tool cycle begins and the rollers contact the jaw arms, the tool will lock-on and automatically complete the cycle. Releasing the switch will not stop the tool once it has locked on. This assures consistent, repeatable press connection integrity.

If tool must be removed before a connection is completed, depress the pressure release button (Figure 1). Any time release button is depressed, press is NOT complete and the connection must be pressed again to ensure completion. If the tool malfunctions

during operation, use this procedure. In case of emergency, release run switch and depress pressure release button.

1. Release the run switch.
2. Squeeze jaw arms to open jaws.
3. Remove jaw from fitting. Avoid sharp edges that may have formed on fitting during pressing operation.
4. When operation is complete, depress ON/OFF button one time to turn tool OFF. Remove battery from tool.

Pressing A Fitting With Typical Actuator And Press Ring Set

1. Open ring and place around fitting. Properly align ring press profile with contour of the fitting as specified in Fitting Manufacturer's Installation Instructions. Release ring to close around fitting.
2. Confirm appropriate actuator is installed in tool. Squeeze actuator arms to open the actuator tips. Align actuator tips with ring. Release actuator arms and fully engage actuator into ring (Figure 11). Mis - aligning actuator to ring can damage the ring or actuator during pressing. Do not hang tool and actuator from press ring. Tool could unexpectedly drop and cause serious injury or death.
3. Confirm ring is appropriately placed and square to fitting. Keep fingers and hands away from the actuator and ring to avoid crushing injuries in attachment or between attachment and surroundings.

Depress the run switch. Once the tool cycle begins and the rollers contact the jaw arms, the tool will lock-on and automatically complete the cycle. Releasing the switch will not stop the tool once it has locked on. This assures consistent, repeatable press connection integrity.

1. If tool must be removed before a connection is completed, depress the pressure release button (Figure 1). Any time release button is depressed, press is NOT complete and the connection must be pressed again to ensure completion. If the tool malfunctions during operation, use this procedure. In case of emergency, release run switch and depress release button.

Close-up of hands adjusting a black plastic mechanical component with a cylindrical housing (no visible text or symbols)

Figure 10 – Installing Press Ring Onto Fitting

Close-up of a mechanical clamp with visible bolts and a cylindrical component (no text or symbols)

Figure 11 - Attaching Actuator to Press Ring

1. Release the run switch.
2. Squeeze actuator arms to open actuator. Remove actuator from fitting.
3. Remove ring from fitting. Avoid sharp edges that may have formed on fitting during pressing operation.
4. When operation is complete, depress ON/OFF button one time to turn tool OFF. Remove battery from tool.

Inspecting The Pressed Connection

1. Inspect the pressed fitting for:
2. Full insertion of tube into fitting.
3. Excessive misalignment of the tubes. A slight amount of misalignment at a pressed connection is considered normal.
4. Incorrect attachment alignment with the fitting contour. Distorted or deformed fitting.

5. Any other issues per the fitting manufacturer. This could include the removal of a control ring or decal (used to indicate the connection has not yet been pressed).
   If any issues are found, remove fitting and install a new connection.

6. Test connection in accordance with fitting manufacturer instructions, normal practice and applicable codes.

Storage

Remove battery from tool. Store press tool and battery in case. Avoid storing in extreme heat or cold. The tool will not turn ON if the tool is outside the specification range. This will be indicated by the tool status lights. (See Figure 5.)

⚠ WARNING Store tool in a dry, secured, locked area that is out of reach of children and people unfamiliar with the Press Tools. The tool is dangerous in the hands of untrained users.

Maintenance Instructions

WARNING

Make sure battery is removed from tool before performing maintenance or making any adjustment.

Cleaning And Lubrication

1. Wipe the tool clean daily with a clean dry cloth.
2. Inspect the attachment mounting pin and lubricate the pin with silicone lubricant as needed.
3. Check return springs in attachments with each use. Attachments should open and close freely with only moderate finger effort required.

Required Maintenance By RIDGID Authorized Independent Service Center

The RP 342-XL Press Tool must be serviced at set intervals by a RIDGID Authorized Independent Service Center to ensure proper operation. This will be indicated by a tool status light (See Figure 5).

Service And Repair

WARNING

Improper service or repair can make machine unsafe to operate.

Service and repair on the RP 342-XL Press Tool must be performed by a RIDGID Authorized Independent Press Tool Service Center.

For information on your nearest RIDGID Authorized Independent Service Center or any service or repair questions see Contact Information section in this manual.

Troubleshooting

SYMPTOM POS	SIBLE REASONS SOLUTION
Tool will not turn ON when ON/OFF button is pressed.	Battery is completely discharged or battery has failed.	Insert fully charged battery/recharge battery.
	Battery not properly inserted into handle of tool.	Check to assure battery is fully inserted.
Attachment is locked onto fitting.	Press was not successfully completed.	Push pressure release button to remove jaws from fitting. Inspect and repress fitting.
The pressed connections produced are not complete.	Used wrong attachment for the tube size or material.	Install the correct attachment.
	The tool was not square to the tube.	Redo the joint with new fitting and new tube. Make sure that the tool is square to the tube.
	Attachment press profile was not aligned with the fitting contour.	Redo the joint with new tube and new fitting. Make sure the press profile is aligned with the fitting contour.
	Tool is in need of repair.	See Contact Information for nearest RIDGID Authorized Inde pendent Service center.
Oil leaks from tool.	Seal or mechanical problems.
Motor runs but tool will not complete a cycle.	Oil level low.	See Contact Information for nearest RIDGID Authorized Inde pendent Service center.
Tool stops during operation.	Oil level low.

See Figure 5 – Tool Status Lights

Optional Equipment

WARNING

To reduce the risk of serious injury, only use equipment specifically designed and recommended for use with the RIDGID RP 342-XL Press Tool, such as listed below.

Battery and Adapter Packs

CatalogNo.	Description
56513 R	B-1825 18V 2.5 Ah Lithium Ion Battery
56518 R	B-1850 18V 5.0 Ah Lithium Ion Battery
44468 1	20 AC Power Adapter – North America

Chargers and Cords

Catalog No.	Plug	Region	Type
64383	RBC-30 Charger	North America	A
64173	RBC-30 Charger Cord	North America	A

Ridge Tool Company provides Standard series press attachments designed specifically for use with RIDGID Standard Press Tools. Only use attachments that are specifically designed to press the fitting system you are installing.

For a complete listing of RIDGID equipment available for these tools, see the Ridge Tool Catalog online at RIDGID.com or see Contact Information.

Disposal

Parts of these tools contain valuable materials and can be recycled. There are companies that specialize in recycling that may be found locally. Dispose of the components in compliance with all applicable regulations. Contact your local waste management authority for more information.

For EC Countries: Do not dispose of electrical equipment with household waste!

According to the European Guideline 2012/ - 19/ EU for Waste Electrical and Electronic Equipment and its implementation into national legislation, electrical equipment that is no

longer usable must be collected separately and disposed of in an environmentally correct manner.

Electromagnetic Compatibility (EMC)

The term electromagnetic compatibility is taken to mean the capability of the product to function smoothly in an environment where electromagnetic radiation and electrostatic discharges are present and without causing electromagnet interference to other equipment.

NOTICE These tools conform to all applicable EMC standards. However, the possibility of them causing interference in other devices cannot be precluded. All EMC related standards that have been tested are called out in the tool's technical document.

Sertisseuses

RidGID electric drill pen with attached black strap and base (no visible text or symbols)

AVERTISSEMENT

Puissance ....490 Watts

Alimentation......Bloc-piles Li-ion 18 V série RIDGID RB-18XX

Température

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

< 0.39" (10 mm) RIDGID Megapreas

Close-up of a mechanical tool with a MegaPress component, no visible text or symbols on the main subject.

Close-up of a mechanical joint or clamp assembly between two pipes, with no visible text or symbols.

Close-up of hands adjusting a mechanical component with a cylindrical housing (no visible text or symbols)

Close-up of a mechanical clamp with a cylindrical component and bolted base (no visible text or symbols)

Ridg IDR4D handheld electrical tool with attached black strap and base (no visible text or symbols on device body)

ADVERTENCIA!

Technical diagram of a mechanical device with labeled parts and directional arrows indicating movement or assembly.

< 0.39" (10 mm) RIDGID 1" Megapress

Close-up of a mechanical press tool with visible branding (MegaPress and HECO) and no readable text or symbols beyond the label.

Close-up of a mechanical joint or clamp assembly with a metallic pipe and black housing (no visible text or symbols)

Close-up of hands adjusting a mechanical component with a black housing (no visible text or symbols)

Close-up of a mechanical component with a cylindrical housing and a clamping tool (no visible text or symbols)

RIDGE TOOL COMPANY Ridge Tool Europe NV (RIDGID)

400 Clark Street

Elyria, Ohio 44035-6001

U.S.A.

EC DECLARATION OF CONFORMITY

We declare that the machines listed above, when used in accordance with the operator's manual, meet the relevant requirements of the Directives and Standards listed below.

DÉCLARATION DE CONFORMITÉ CE

DEKLARACJA ZGODNOŚCI WE

Conforms to UL 62841-1

Certified to CSA C22.2#62841-1

Signature

Qualification: V.P. Engineering

Date: 5/01/2020

What is covered

RIDGID ^® tools are warranted to be free of defects in workmanship and material.

How long coverage lasts

This warranty lasts for the lifetime of the RIDGID tool. Warranty coverage ends when the product becomes unusable for reasons other than defects in workmanship or material.

How you can get service

To obtain the benefit of this warranty, deliver via prepaid transportation the complete product to RIDGE TOOL COMPANY, Elyria, Ohio, or any authorized RIDG/BUTHORIZED INDEPENDENT SERVICE CENTER. Pipe wrenches and other hand tools should be returned to the place of purchase.

What we will do to correct problems

Warranted products will be repaired or replaced, at RIDGE TOOL'S option, and returned at no charge; or, if after three attempts to repair or replace during the warranty period the product is still defective, you can elect to receive a full refund of your purchase price.

What is not covered

Failures due to misuse, abuse or normal wear and tear are not covered by this warranty. RIDGE TOOL shall not be responsible for any incidental or consequential damages.

How local law relates to the warranty

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary, from state to state, province to province, or country to country.

No other express warranty applies

This FULL LIFETIME WARRANTY is the sole and exclusive warranty for RIDGID ^® products. No employee, agent, dealer, or other person is authorized to alter this warranty or make any other warranty on behalf of the RIDGE TOOL COMPANY.

RIDGID FULL LIFETIME WARRANTY Against Material Defects & Workmanship

Parts are available online at Store.RIDGID.com

Ridge Tool Company

400 Clark Street

Elyria, Ohio 44035-6001

U.S.A.

Ce qui est couvert
