Product Type	Electrohydraulic Press Tool
Brand	RIDGID
Model	RP 350
Weight (without battery pack or head)	3.55 kg (7.83 lb)
Power Supply	18 V Li-ion battery pack (RB-18XX) or 120/220 V AC adapter (RPA)
Cycle Time	3 crimps per minute
Bluetooth Range	10 m (33 ft)
Operating Temperature	-10 °C to 50 °C (15 °F to 122 °F)
Storage Temperature	0 °C to 45 °C (32 °F to 113 °F)
Allowable Humidity	80% maximum
Head Orientation	360° rotatable
Lighting	Built-in LED, activates with trigger
Operating Modes	Normal and Control (via RIDGID Link app)
Status Indicators	Multicolor LED indicators (green, blue, red, yellow, purple)
Connectivity	Bluetooth for data transfer to smartphone/tablet
Compatible Heads	RIDGID Standard Series (shear jaws, actuators, and rings)
Maintenance	Clean with dry cloth; lubricate mounting spindle with silicone lubricant
Repairability	Have it serviced by an authorized RIDGID repair center
Warranty	RIDGID lifetime comprehensive warranty

Frequently Asked Questions - RP 350 RIDGID

What types of fittings can the RP 350 press?

The RP 350 presses piping fittings for plumbing, heating, air conditioning, and refrigeration, as well as other applications with the appropriate heads.

How do I change the operating mode (Normal/Control)?

The mode can be changed via the RIDGID Link app on your smartphone or tablet after Bluetooth connection.

What if the press tool does not turn on?

Check that the battery pack is charged and properly inserted, or that the AC adapter is correctly plugged in. If the problem persists, contact an authorized repair center.

How do I release the head if it gets stuck on the fitting?

Press the release button to loosen the jaw. The crimp will not be complete, repeat the operation with a new fitting.

What is the Bluetooth range of the tool?

The Bluetooth range is approximately 10 meters (33 feet) line of sight, but obstacles can reduce it.

Can I use Compact series heads on the RP 350?

No, Compact series heads are not interchangeable with the Standard series. Only use RIDGID Standard series heads.

How do I maintain the press tool?

Clean the exterior with a dry cloth, lubricate the mounting spindle with silicone lubricant, and check the head springs regularly.

What is the warranty on the RP 350?

It is covered by the RIDGID lifetime comprehensive warranty covering defects in materials and workmanship for the life of the product.

Does the tool work in cold weather?

Hydraulic oil thickens in extreme cold. The tool does not operate outside the range -10 °C to 50 °C and a yellow indicator lights up if the temperature is unsuitable.

How do I recycle the RP 350 at the end of its life?

Do not dispose of the tool with household waste. Follow local regulations for recycling electrical and electronic waste (WEEE).

USER MANUAL RP 350 RIDGID

Red and black RIDGID robotic tool with handle, no visible text or symbols on the device body

Red and black RIDGID robotic tool with handle and port (no visible text or symbols)

Table of Contents

Recording Form For Machine Serial Number ....1

Safety Symbols/Symbols....2

General Power Tool Safety Warnings

Work Area Safety....2

Electrical Safety 2

Personal Safety ....3

Power Tool Use And Care ....3

Battery Tool Use And Care ....3

Service....4

Specific Safety Information

Press Tool Safety....4

RIDGID® Contact Information ....4

Description 4

Specifications

Standard Equipment 7

Pre-Operation Inspection 7

Set-Up And Operation 8

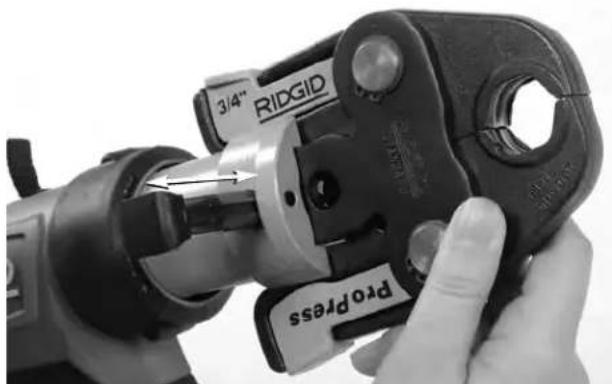

Removing/Installing Attachment ....8

Preparing Connection ....8

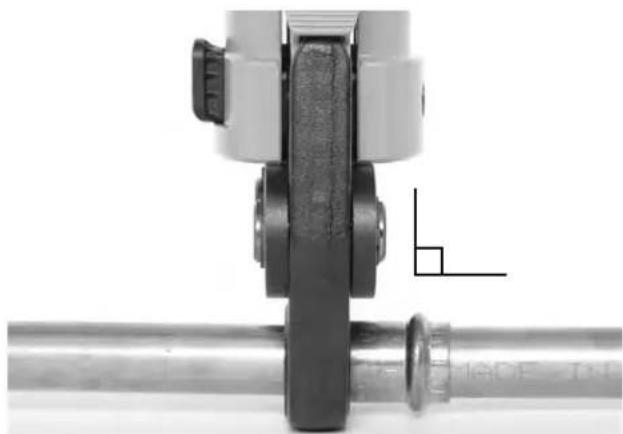

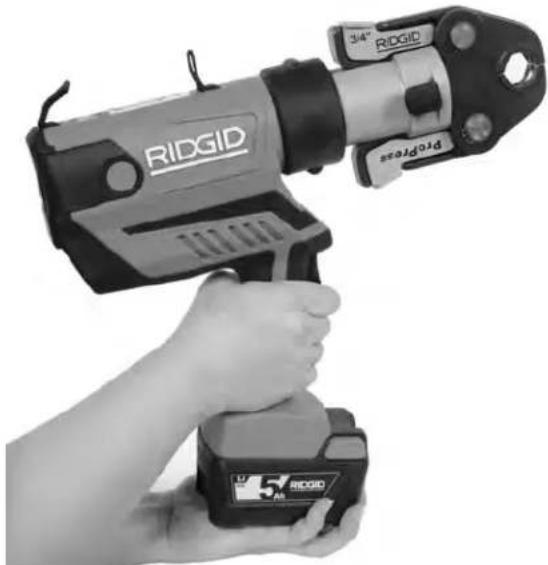

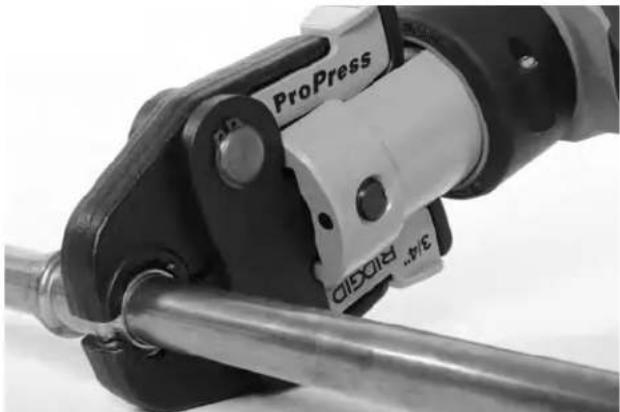

Pressing A Fitting With Typical Scissor Jaws 9

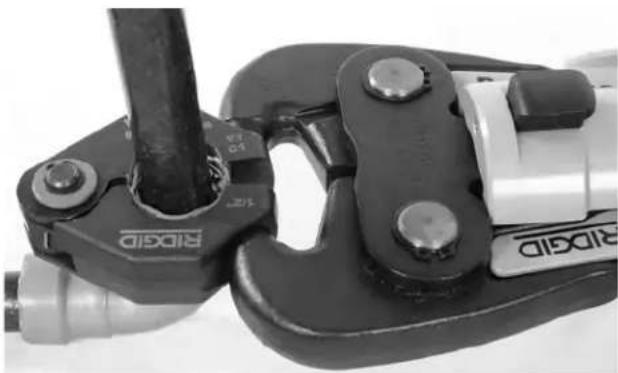

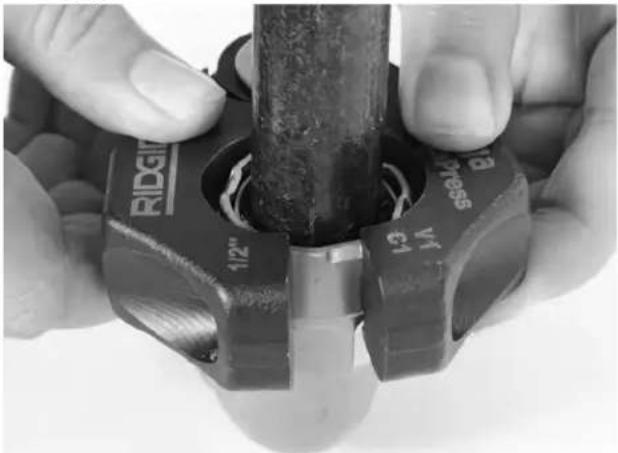

Pressing A Fitting With Typical Actuator And Press Ring Set ....10

Inspecting The Pressed Connection ....10

Bluetooth Functions (Wireless Data Transfer)....10

Cold Weather Operation 10

Storage 11

Maintenance Instructions

Cleaning And Lubrication....11

Service And Repair 11

Troubleshooting....12

Optional Equipment 12

Disposal 13

Electromagnetic Compatibility (EMC) 14

FCC/ISED Statement)....14

EC Declaration of Conformity .......Inside Back Cover

Lifetime Warranty ....Back Cover

*Original Instructions - English

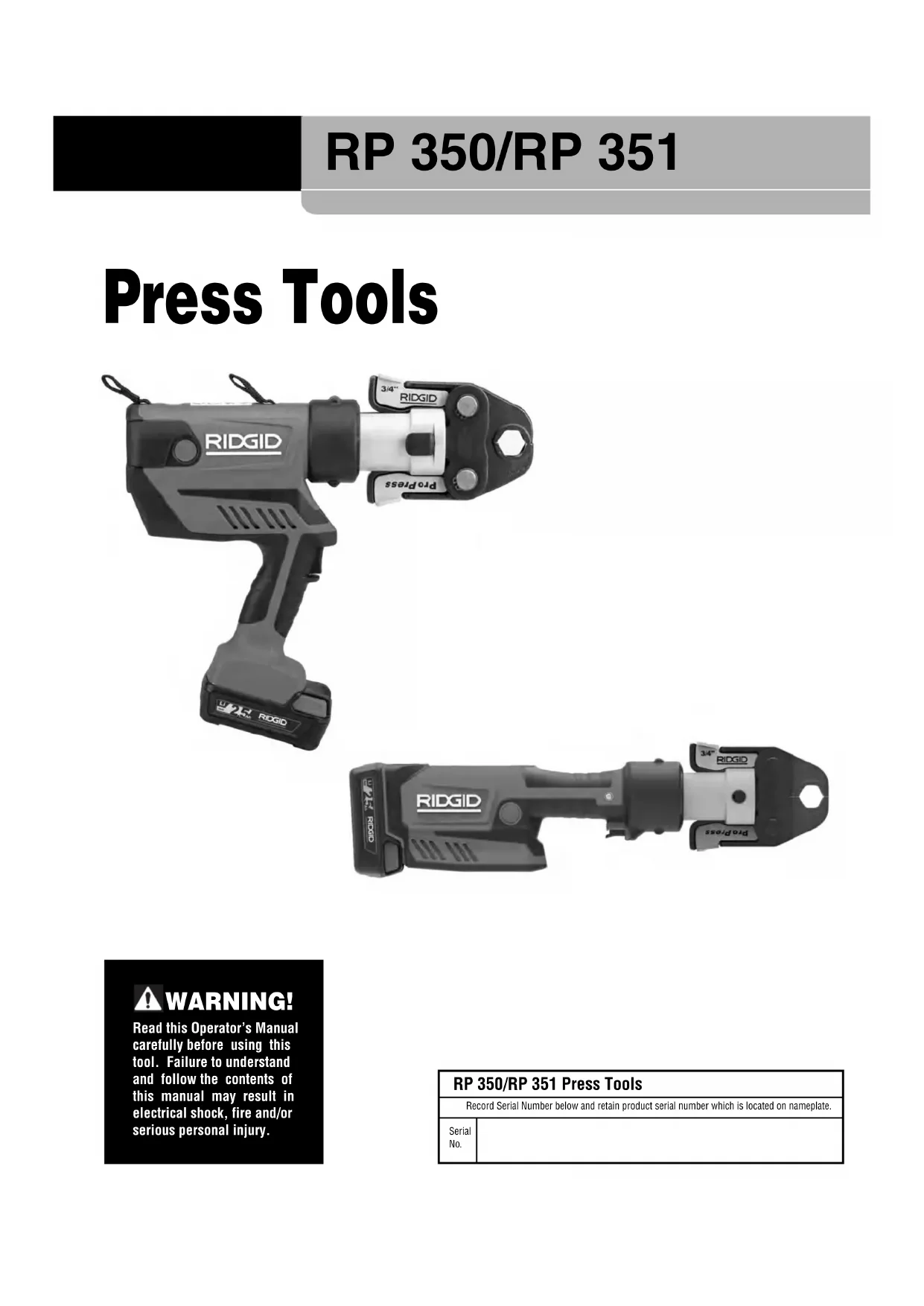

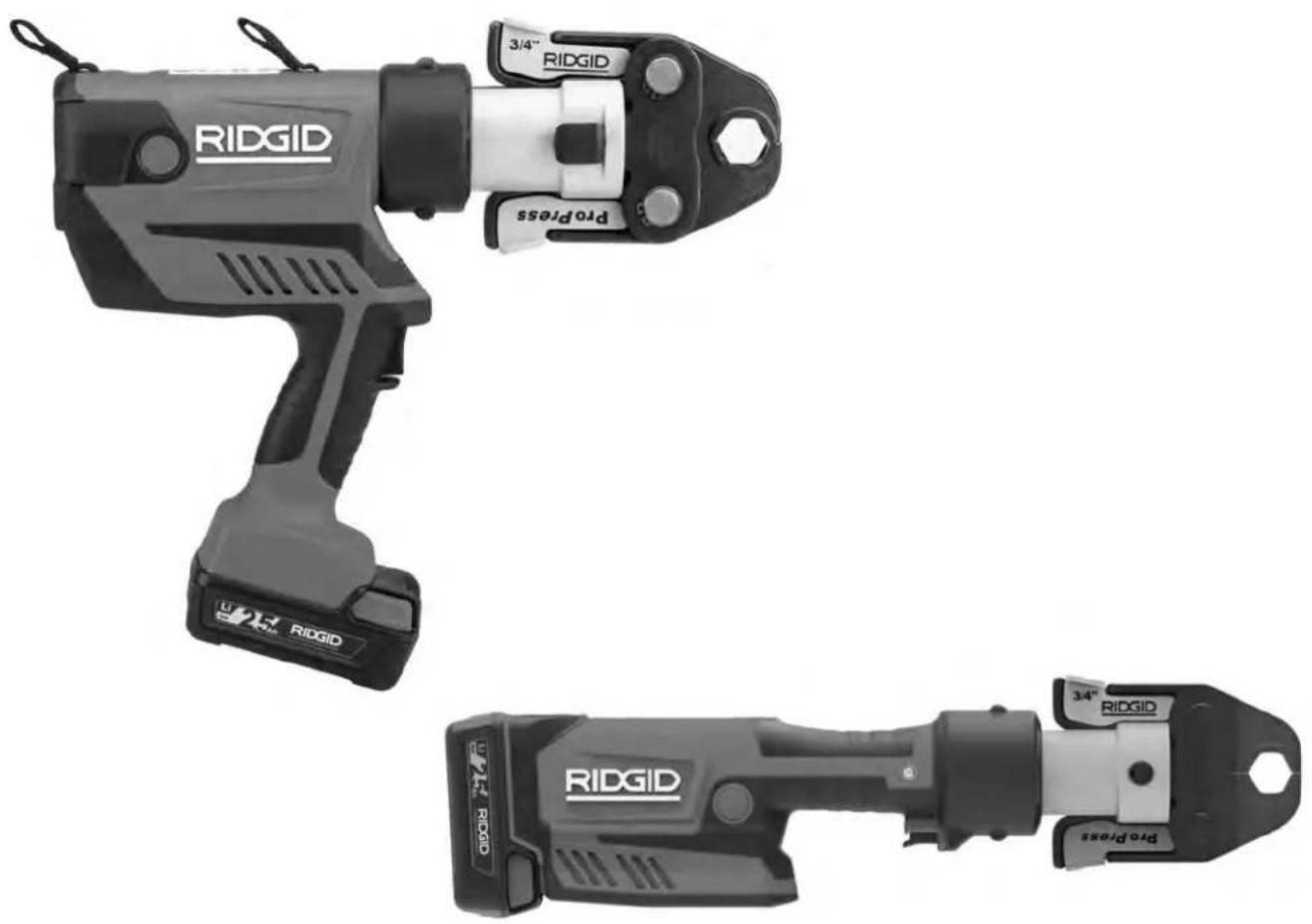

RP 350/RP 351

Press Tools

Ridgid handheld tool with attached 3/4" pipe press component (no text or symbols on device body)

Ridgid mechanical tool with 3.4-inch angle andプロ Pass label (no text-heavy elements)

WARNING!

Read this Operator's Manual carefully before using this tool. Failure to understand and follow the contents of this manual may result in electrical shock, fire and/or serious personal injury.

RP 350/RP 351 Press Tools
Record Serial Number below and retain product serial number which is located on nameplate.
Serial No.

Safety Symbols/Symbols

In this operator's manual and on the product, safety symbols and signal words are used to communicate important safety information. This section is provided to improve understanding of these signal words and symbols.

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

NOTICE indicates information that relates to the protection of property.

This symbol means read the operator's manual carefully before using the equipment. The operator's manual contains important information on the safe and proper operation of the equipment.

This symbol means always wear safety glasses with side shields or goggles when handling or using this equipment to reduce the risk of eye injury.

This symbol indicates the risk of hands, fingers or other body parts being crushed.

This symbol indicates the risk of electrical shock.

This symbol indicates that the product is For Indoor Use Only.

This symbol indicates that the product is Class II equipment.

This symbol indicates this is electrical equipment that should not be disposed of with household waste. See "Disposal" section.

This symbol indicates this is electrical equipment meets the requirements of the applicable EC directives.

This symbol indicates the year of manufacture of the product.

General Power Tool Safety Warnings\*

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE!

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work Area Safety

• Keep your work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flam mable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and by-standers away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Un modified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electrical shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electrical shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

- If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

Personal Safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch ON invites accidents.
• Remove any adjusting key or wrench before turning the power tool ON. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewel ry. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power Tool Use And Care

• Do not force power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use power tool if the switch does not turn it ON and OFF. Any power tool that cannot be con-

trolled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/or remove the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery Tool Use And Care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts

eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265^ (130 °C) may cause explosion.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging im - properly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Specific Safety Information

WARNING

This section contains important safety information that is specific to this tool.

Read these precautions carefully before using the press tools to reduce the risk of electrical shock, or other serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE!

A compartment in the tool carrying case is included to keep this manual with the tool for use by the operator.

Press Tool Safety

• Keep your fingers and hands away from pressing attachments during press cycle. Your fingers or hands can be crushed, fractured or amputated if they become caught between the attachment or between these components and any other object.
• Never attempt to repair damaged pressing attachments (jaws, press ring, actuator, etc.). Discard the entire damaged attachment. An attachment that has been welded, ground, drilled or modified in any manner can shatter during pressing resulting in serious injury. Failure to replace the entire pressing attachment may result in component failure and serious injury.

• Large forces are generated during product use that can break or throw parts and cause injury. Stand clear during use and wear appropriate protective equipment, including eye protection.

• Only use RIDGID® Press Tools with appropriate RIDGID or RIDGID approved Pressing attachments (jaws, press rings, actuators, etc.). Other uses or modifying the Press Tools for other applications may damage the press tool, damage the attachments and/or cause personal injury.

• Use proper tool, attachment and fitting combinations. Improper combinations can result in an incomplete joint, which increase the risk of leaks, equipment damage and injury.
• Before operating a RIDGID® Press Tool, read and understand:
• This operator's manual
  – The attachment instructions
  – The battery/charger manual
• The fitting manufacturer's installation instructions
• The instructions for any other equipment or material used with this tool

Failure to follow all instructions and warnings may result in property damage and/or serious injury.

RIDGID® Contact Information

If you have any question concerning this RIDG Product:

- Contact your local RIDGID distributor.

• Visit RIDGID.com to find your local RIDGID contact point.
• Contact Ridge Tool Technical Service De part ment at rttechservices@emer son.com, or in the U.S. and Canada call [phone].

Description

The RIDGID® RP 350 and RP 351 Press Tools, when used with ap appropriate attachments, are designed to mechanically press fittings onto tubing to create a water-tight and permanent seal, such as for plumbing, heating, air conditioning, and refrigeration applications. Attachments are also available for other uses.

When the run switch on the press tool is depressed, an internal electric motor powers a hydraulic pump which sends fluid into the cylinder of the tool, moving the ram forward and applying force to the attachment, pressing the fitting. The press cycle takes approximately 4 seconds. Once the cycle begins to deform a fitting, it will automatically continue until completion, even if the run switch is released.

The tool includes a second operating mode ("Control Mode") that can be turned on using the RIDGID Link App. Control Mode allows the fitting to be engaged prior to

pressing to allow confirmation of proper alignment of the attachment, fitting and tube.

The Tool Status Lights indicate things such as tool status, battery status, maintenance required, or improper temperature. A work light turns ON when the run switch is depressed to illuminate the work area. The head can be rotated 360° for better access in tight spaces.

The tools are supplied with fabric loops that can be used with appropriate attachments such as shoulder straps or tie off lines.

RIDGID 3/4" PROPOS 1 2 3 4 5 6 7 8 9 10 11 12

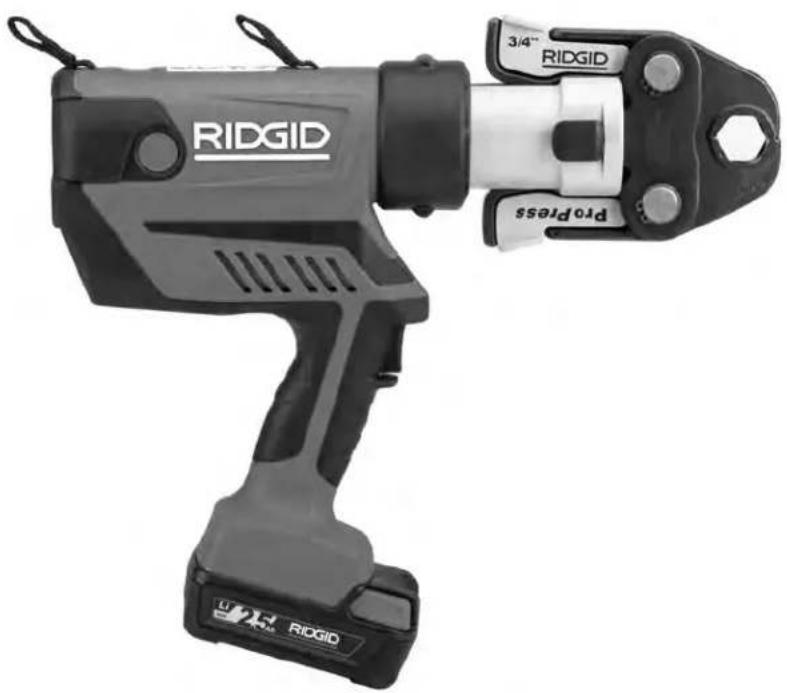

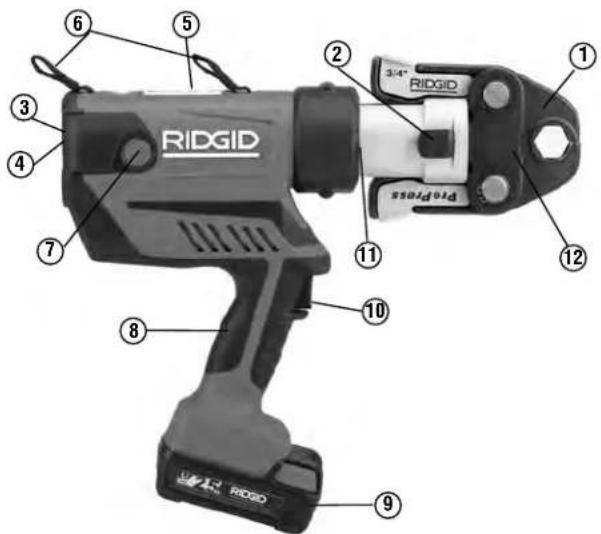

Figure 1 – RIDGID RP 350 Press Tool and Standard Series Jaw

The press tools include Bluetooth wireless technology to allow connection to smartphones and tablets. See "Blue-tooth Functions (Wireless Data Transfer)" section for details.

* The Bluetooth word mark and logos are registered trademarks by Bluetooth SIG, inc and any use of such marks by Emerson Electric Co. is under license. Other trademarks and trade names are those of their respective owners.

RIDGID 3 4 5 6 7 8 9 10 11 12 2 3 RIDGID

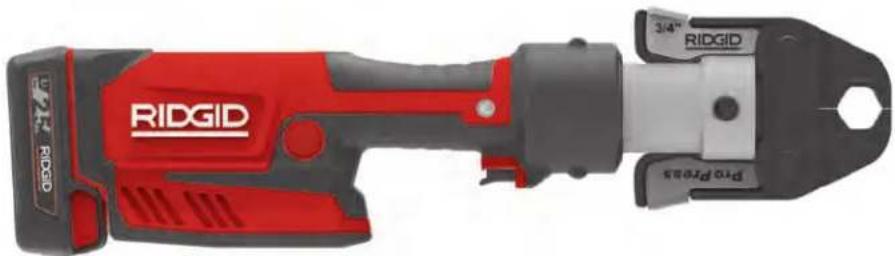

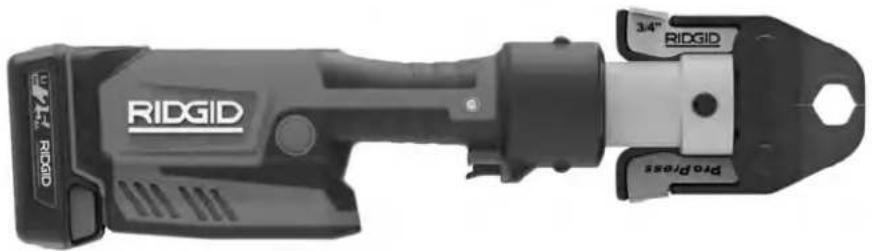

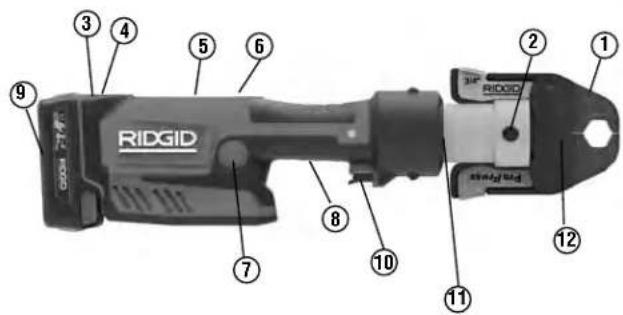

Figure 2 – RIDGID RP 351 Press Tool and Standard Series Jaw

# Description
1 Scissor Style Jaw Set	7 Pressure Release Button(RP 351 Far Side)
2 Attachment Mounting Pin
3 Tool Status Lights	8 Handle
	9 Battery
4 ON/OFF Button
5 Warning Label(RP 351 Underside)	10 Run Switch
	11 LED Work Light
6 Fabric Loop	12 Jaw Sideplate

RIDGID Rigd-Gio Company 2011.03.15 Model Serial No. RP 350 18 V d.c. / 23 A 480 W / F = 32 kN 20XX Manufacturer Ridge Tool Company Elyria, Ohio / USA Press Tool LVTXXXXMMYY 3x C /min. Authorized Representative Ridge Tool Europe NV 3800 Sint-Truiden, Belgium QR-Code

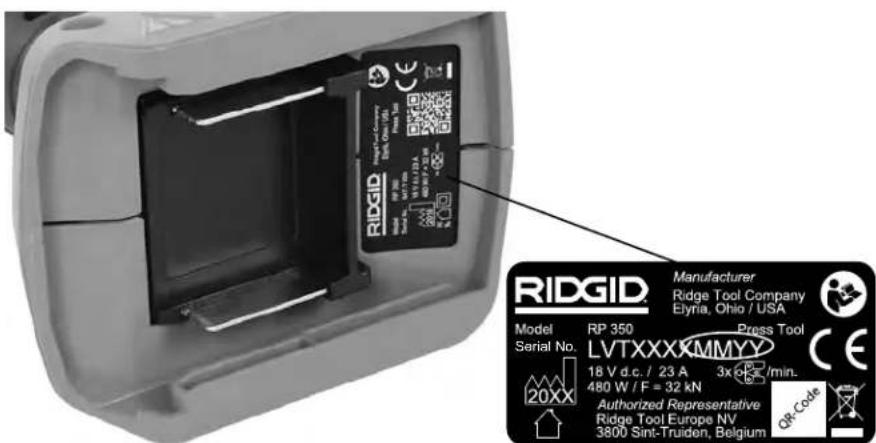

Figure 3 – Machine Serial Number - Circled digits indicate the year and month of the manufacture. (YY = year, MM = month).

Control	Marking Description
On/Off Button		Main tool power switch. (I = ON, O = OFF).ON: Press button until light turns ON. See Figure 5 – Tool Status Lights.OFF: Press button until light turns OFF. Tool will automatically turn OFF if left unused for ten (10) minutes.
Run Switch	—	Turn On Work Light: slightly depress run switch.Normal Mode: Depress run switch to start press cycle, release when tool locks on. Normal mode is factory setting.Control Mode: Depress run switch to engage attachment on workpiece. Make adjustments as necessary. Press the run switch again to start press cycle, release when tool locks on. Releasing the switch will not stop the tool once it has locked on. This assures consistent, repeatable press connection integrity.Mode can be changed with RIDGID Link App, see Bluetooth Functions section.
Pressure Release Button		Allows tool to be released without completing press. If used, press connection is not complete and must be repeated.
Attachment Mounting Pin	—	Holds attachment to tool. Must be fully inserted for tool to operate. See Figure 6.

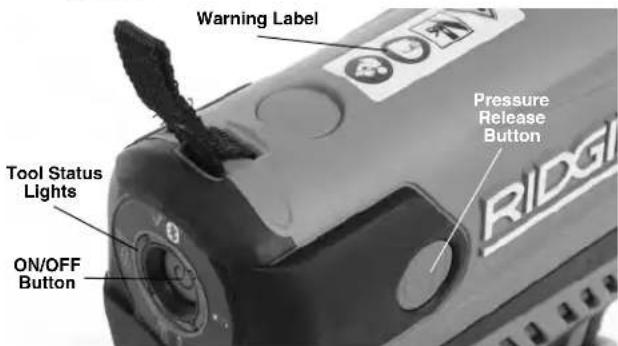

Figure 4 – Controls Chart

Diagram of a circular device control panel with labeled buttons and power indicator

Light Segment Number (Light Continuously On)				Description
1√×	2□	3○→	4▽↓
—	—	—	—	Press tool off (OFF).
Green Green	Green Green	Green ON button pressed, lights on 4 seconds at start up, tool in “Normal Mode”.
Blue Blue	Blue Blue			ON button pressed, lights on 4 seconds at start up, tool in "Control Mode" - seeBluetooth Functionssection to change mode.
Green	—	—	—	Press tool is in Normal Mode, standby, press tool ready to operate.
Red Yellow	Yellow	Yellow		Tool has malfunctioned. Tool will not operate. Remove and reinsert battery or AC Adapter. If light still on, have tool serviced.
Red —	—	—		Tool has malfunctioned. Tool will not operate. Remove and reinsert battery or AC Adapter. If red light still on, have tool serviced.
Yellow —	Red Red			Tool and/or battery out of Specification temperature range. Tool will not operate. Bring the tool and battery to correct operating temperature range.
Yellow —	—	R e		Attachment mounting pin is not fully inserted. Tool will not operate. Fully insert pin. If lights still on, have tool serviced.
Yellow Red —		—		Battery low. Tool will not operate. Recharge battery/Insert fully charged battery.
Green	Blue Blue	Blue		Bluetooth connection established, standby, press tool ready to operate - For further information see section onBluetooth Functions.
		Purple		Firmware update in process, tool cannot be used while updating.

Figure 5 – Tool Status Lights

Specifications

RP 350 Pistol Press Tool RP 351 Inline Press Tool

Attachments......RIDGID Standard Series RIDGID Standard Series

Stroke Length ......1.57" (40 mm) 1.57" (40 mm)

Motor

Voltage.....18 V DC rated 18 V DC rated

Amperage....23 A 23 A

Power......480 Watts 480 Watts

Ram Force....7,200 lbs. (32 kN) 7,200 lbs. (32 kN)

Head Rotation....360° 360°

Duty Cycle ....3 Press /min. 3 Press /min

Power Supply ......RIDGID RB-18XX Series 18 V Li-Ion Battery Pack or RIDGID RPA 120/220 AC Power Adapter (See Optional Equipment Section)

Bluetooth Range .....33 ft. (10 m) 33 ft. (10 m)

Permissible Humidity .....80% maximum 80% maximum

Operating Temperature

Range....15° F to 122° F (-10° C to 50° C) 15° F to 122° F (-10° C to 50° C

Storage Temperature.....32°F to 113°F (0°C to 45°C) 32°F to 113°F (0°C to 45°C)

Weight (no battery/attachment)....7.83 lbs (3.55 kg) 7.83 lbs (3.55 kg)

Dimensions....11.3" x 11.0" x 3.1" 15.7" x 4.65" x 3.1"

287 mm x 279 mm x 77 mm 398 mm x 118 mm x 77 mm

Sound Pressure ( _A )*.....<74.5 dB(A), K=3 dB(A) <74.5 dB(A), K=3 dB(A)

Vibration ^* ....<1.13 m/s ^2 , K=1.5 <1.13 m/s ^2 , K=1.5

* Sound and Vibration measurements are measured in accordance with a standardized test per Standard EN 62481-1.

- Vibration levels may be used for comparison with other tools and for preliminary assessment of exposure.

- Sound and vibration emissions may vary due to your location and specific use of these tools.

- Daily exposure levels for sound and vibration need to be evaluated for each application and appropriate safety measures taken when needed. Evaluation of exposure levels should consider the time a tool is switched OFF and not in use. This may significantly reduce the exposure level over the total working period.

Standard Equipment

Refer to the RIDGID catalog for details on equipment supplied with specific tool catalog numbers.

NOTE! RIDGID press tool attachments are offered in two "series"

• Standard Series
• Compact Series

These attachment series are not interchangeable. Stan dard series attachments will only work with standard series tools (RP 350, RP 351, RP 342-XL, RP 340, RP 330, 320-E, CT-400). Compact series attachments will only work with compact series tools (RP 240, RP 241, RP 200, RP 210, 100B).

NOTICE Selection of appropriate materials and joining methods is the responsibility of the system designer and/or installer. Before any installation is attempted, careful evaluation of the specific service environment, including chemical environment and service temperature, should be completed. Consult Press Fitting System manufacturer for selection information.

Pre-Operation Inspection

WARNING

Daily before use, inspect your press tool and correct any problems to reduce the risk of serious in jury from electric shock, crushing injures, attach-

ment failure and other causes, and prevent tool damage.

1. Switch OFF the tool and remove battery/AC Adapter from tool.
2. Clean any oil, grease or dirt from the equipment, especially the handles and controls. This aids inspec-

tion and helps to prevent the tool or controls from slipping from your grip.

1. Inspect the press tool for:

• Proper assembly, maintenance and completeness.
- Any broken, worn, missing, misaligned or binding parts. Confirm fabric loops are in good condition.
- Smooth movement of attachment mounting pin between the fully open and fully closed position. Pin should lock into each position. Confirm that the run switch moves freely and does not bind or stick.
• Presence and readability of warning label (Figure 6).
- Any other condition which may prevent safe and normal operation.

Do not use the press tool until problems have been repaired.

Warning Label Pressure Release Button RIDG Tool Status Lights ON/OFF Button

Figure 6 – Status Lights/Warning Label

1. Inspect and maintain tool attachments per their instructions. Remove attachment from the tool. Confirm that attachments are in good condition and clearly marked as to use.

5 Inspect and maintain any other equipment being used per its instructions to make sure it is functioning properly.

Set-Up and Operation

WARNING

Keep your fingers and hands away from the tool attachment during the press cycle. Your fingers or

hands can be crushed, fractured or amputated in the attachment, tool, between the tool and attachment, work piece and other objects.

Large forces are generated during product use that can break or throw parts and cause injury. Stand clear during use and wear appropriate protective equipment, including eye protection.

Use proper tool, attachment and fitting combinations. Improper combinations can result in an incomplete press connection, which increases the risk of leaks, equipment damage and injury.

Follow Set-up and Operation to reduce the risk of injury from crushing and other causes and to prevent tool damage.

1. Confirm appropriate work area (See General Power Tool Safety Warnings). Operate in a clear, level, stable, dry location. Do not use tool while standing in water.
2. Inspect the work to be done and determine the correct RIDGID tool and RIDGID attachment for the application per their specifications. Using incorrect equipment for an application can cause injury, damage the tool and make incomplete connections.
3. Confirm all equipment has been inspected and set up as directed in their instructions.

Removing/Installing Attachment

1. Switch OFF the tool and remove battery/AC Adapter from tool.
2. Fully open the attachment mounting pin. Remove/insert the appropriate attachment (Figure 7).
3. Fully close the attachment mounting pin until it locks into the closed position. Attachment mounting pin must be fully closed to prevent tool damage during use. Tool lights will be lit to indicate, see Figure 5 for Tool Status Lights.

NOTE! Do not operate tool without the attachment in place, this can damage the tool.

Close-up of a hand using a red-handled tool to press a mechanical component, labeled 'RIDGID' and 'PRO PRESS', with no visible text beyond labels.

Figure 7 – Attachment Mounting Pin

Preparing Connection

NOTICE These instructions are generalized practices for several types of press tool attachments. Always follow the specific instructions for the press tool attachment being used and the fitting manufacturers' specific installation instructions to reduce the risk of improper press connections and extensive property damage.

1. Prepare the press connection according to the fitting manufacturer's instructions.

2. With dry hands, insert a fully charged battery or AC Adapter into tool. If using the corded power adapter with a GFCI, the GFCI (RCD) should have a rated residual current of 30 mA or less. Depress ON/OFF button one time to turn tool ON. All LEDs will be lit green indicating that the tool is ready to use. See Figure 5 – Tool Status Lights for any other light.

Pressing A Fitting With Typical Scissor Jaws

1. Properly hold the tool with both hands.

Hand holding a 5x R1DGID utility tool with a 3/4-inch pipe fitting (no visible text or symbols on the device body)

Figure 8 – Holding the Tool

1. Squeeze jaw arms to open jaws.
2. Place open jaws around fitting (Figure 9). Properly align jaw press profile with contour of the fitting as specified in Fitting Manufacturer's Installation Instructions. Release jaw arms to close jaws around fitting. Do not hang jaw set from fitting. Tool could unexpectedly drop and cause serious injury or death.

Close-up of a mechanical press tool with ProPress branding and 3/4 friction label (no readable text beyond branding)

Figure 9 – Placing Scissor-Style Jaws Around Fitting

Close-up of a mechanical device with a metallic shaft and attached gear (no visible text or symbols)

Figure 10 – Jaws Square to Fitting

1. Confirm jaw is appropriately placed and square to fitting (Figure 10). Keep fingers and hands away from the jaws to avoid crushing injuries in jaws or between jaws and surroundings.

Normal Mode: Depress the run switch (Figures 1 & 2). Once the tool cycle begins and the rollers contact the jaw arms, the tool will lock-on and automatically complete the cycle. Releasing the switch will not stop the tool once it has locked on. This assures consistent, repeatable press connection integrity.

Control Mode: Depress the run switch (Figures 1 & 2). The jaws will engage the fitting but the press connection is not made. Make adjustments as necessary. Press the run switch again, the tool will lock-on and automatically complete the cycle. Releasing the switch will not stop the tool once it has locked on. This assures consistent, repeatable press connection integrity.

If tool must be removed before a press connection is completed, depress the pressure release button (Figures 1 & 2).

NOTICE Any time release button is depressed, the press connection is NOT complete and the fitting must be pressed again to ensure completion. If the tool malfunctions during operation, use this procedure.

1. Release the run switch.
2. Squeeze jaw arms to open jaws.
3. Remove jaw from fitting. Avoid sharp edges that may have formed on fitting during pressing operation.
4. When operation is complete, depress ON/OFF button one time to turn tool OFF. Remove battery or AC Adapter from tool.

Pressing A Fitting With Typical Actuator And Press Ring Set

1. Open ring and place around fitting. Properly align ring press profile with contour of the fitting as specified in Fitting Manufacturer's Installation Instructions. Release ring to close around fitting (Figure 11).

2. Confirm appropriate actuator is properly installed in tool. Squeeze actuator arms to open the actuator tips. Align actuator tips with ring pockets. Release actuator arms and fully engage actuator tips into ring pockets (Figure 12). Mis aligning actuator tip to ring pocket can damage the ring or actuator during pressing. Do not hang tool and actuator from press ring. Tool could unexpectedly drop and cause serious injury or death.

Close-up of hands adjusting a mechanical knob with a central handle (no visible text or symbols)

Figure 11 – Installing Press Ring Onto Fitting

Close-up of a mechanical tool with a black and white component, no visible text or symbols

Figure 12 - Attaching Actuator to Press Ring

1. Confirm ring is appropriately placed and square to fitting. Keep fingers and hands away from the actuator and ring to avoid crushing injuries in attachment or between attachment and surroundings.

Normal Mode: Depress the run switch (Figures 1 & 2). Once the tool cycle begins and the rollers contact the jaw arms, the tool will lock-on and automatically com-

plete the cycle. Releasing the switch will not stop the tool once it has locked on. This assures consistent, repeatable press connection integrity.

Control Mode: Depress the run switch (Figures 1 & 2). The jaws will engage the fitting but the press connection is not made. Make adjustments as necessary. Press the run switch again, the tool will lock-on and automatically complete the cycle. Releasing the switch will not stop the tool once it has locked on. This assures consistent, repeatable press connection integrity.

1. If tool must be removed before a press connection is completed, depress the pressure release button (Figures 1 & 2).

NOTICE Any time release button is depressed, the press is NOT complete and the press connection must be pressed again to ensure completion. If the tool malfunctions during operation, use this procedure.

1. Release the run switch.

2. Squeeze actuator arms to open actuator. Remove actuator from fitting.

3. Remove ring from fitting. Avoid sharp edges that may have formed on fitting during pressing operation.

4. When operation is complete, depress ON/OFF button one time to turn tool OFF. Remove battery or AC Adapter from tool.

Inspecting The Pressed Connection

1. Inspect the pressed fitting for:

• Full insertion of tube into fitting.
- Excessive misalignment of the tubes. A slight amount of misalignment at a press connection is considered normal.
- Incorrect attachment alignment with the fitting contour. Distorted or deformed fitting.
- Any other issues per the fitting manufacturer. This could include the removal of a control ring or decal (used to indicate the connection has not yet been pressed).

If any issues are found, remove fitting and install a new press connection.

1. Test the press connection in accordance with connector manufacturer instructions, normal practice and applicable codes.

Bluetooth Functions (Wireless Data Transfer)

The RIDGID® RP 350 and RP 351 Press Tools include Bluetooth® wireless technology allowing wireless data

transfer to properly equipped smartphones or tablets ("devices") running iOS or Android operating systems.

1. Download the appropriate RIDGIDLink app to your device by going to RIDGID.com/apps, the Google Play Store or the Apple App Store.
2. When the tool is ON, a Bluetooth wireless technology equipped device can find and pair with the press tool. In the Bluetooth settings of your device, select desired RIDGID tool. Refer to your device instructions for specific information on how to connect via Bluetooth wireless technology. Once connected, the green-blue-blue blue tool status lights will be lit.

After the initial pairing, most devices will automatically connect to the Tools when the Bluetooth wireless technology is active and in range and if device settings are configured to do so. Press tools should be less than 33 ft. (10 m) from the device to be detected. Any obstacle between the tool and device can reduce the operational range.

1. Follow the app instructions for proper use. The mode of operation can be changed via app. The app also allows monitoring of tool cycles.

2. The wireless data transfer turns OFF when the press tool is switched OFF. Turn Bluetooth wireless device OFF to reduce device battery drain.

Cold Weather Operation

As temperature drops, hydraulic fluid thickens and battery performance degrades. To reduce the risk of improper operation, the RP 350 and RP 351 will not operate outside of the specification temperature range as indicated by the tool status lights (Figure 5).

When ambient conditions are outside the specification temperature range, keep the tool and batteries in a conditioned space until ready to use.

Storage

Remove battery or AC Adapter from the press tool. Store press tool and battery in case. Avoid storing in extreme heat or cold. The tool will not turn ON if the tool is outside the specification range. This will be indicated by the tool status lights. (See Figure 5)

⚠ WARNING Store tool in a dry, secured, locked area that is out of reach of children and people unfamiliar with the press tool. The tool is dangerous in the hands of untrained users.

Maintenance Instructions

WARNING

Make sure tool is switched OFF and battery or AC Adapter is removed from tool before performing maintenance or making any adjustment.

Cleaning And Lubrication

1. Wipe the tool clean daily with a clean dry cloth.
2. Inspect the attachment mounting pin and lubricate the pin with silicone lubricant as needed.
3. Check return springs in attachments with each use. Attachments should open and close freely with only moderate finger effort required.

Service And Repair

WARNING

Improper service or repair can make tool unsafe to operate.

Service and repair on the RP 350 and RP 351 Press Tools must be performed by a RIDGID Independent Press Tool Service Center.

For information on your nearest RIDGID Authorized Independent Service Center or any service or repair questions see Contact Information section in this manual.

Troubleshooting

SYMPTOM POS	SIBLE REASONS SOLUTION
Tool will not turn ON when ON/OFF button is pressed.	Battery is completely discharged or battery has failed.	Insert fully charged battery/recharge battery.
	Battery not properly inserted into handle of tool	Check to assure battery is fully inserted.
	AC adapter not correctly inserted into the tool.	Correctly insert AC adapter into tool.
Attachment is locked onto fitting.	Press connection was not successfully completed.	Push pressure release button to remove jaws from fitting. Inspect and repress fitting.
The pressed connections produced are not complete.	Used wrong jaw for the tube size or material.	Install the correct attachment.
	The tool was not square to the tube.	Redo the press connection with new fitting and new tube. Make sure that the tool is square to the tube.
	Attachment press contour was not aligned with the fitting contour.	Redo the joint with new tube and new fitting. Make sure the attachment press contour is aligned with the fitting contour.
	Tool is in need of repair.	Take for service.
Oil leaks from tool.	Seal or mechanical problems.
Motor runs but tool will not complete a cycle.	Oil level low.	Take for service.
Tool stops during operation.	Oil level low.
See Figure 5 – Tool Status Lights

Optional Equipment

WARNING

To reduce the risk of serious injury, only use equipment specifically designed and recommended for use with the RP 350 and RP 351 Press Tools, such as listed below.

Battery and Adapter Packs

CatalogNo.	Description
56513	RB-1825 18V 2.5 Ah Lithium Ion Battery
56518	RB-1850 18V 5.0 Ah Lithium Ion Battery
44468	120 AC Power Adapter – North America
43338	220 AC Power Adapter– Europe
44823	120 AC Power Adapter – China

Chargers and Cords

Catalog No.	Region Type	Plug
64383	RBC-30 Charger North	America A
56523	RBC-30 Charger	Europe	C
64388	RBC-30 Charger	China	A
64393	RBC-30 Charger	Australia	I
64378	RBC-30 Charger	Japan	A
64398	RBC-30 Charger	United Kingdom	G
64173	RBC-30 Charger Cord	North America A
64183	RBC-30 Charger Cord	Europe	C

For a complete listing of RIDGID equipment available for these tools, see the Ridge Tool Catalog online at RIDGID.com or see Contact Information.

Disposal

Parts of these tools contain valuable materials and can be recycled. There are companies that specialize in recycling that may be found locally. Dispose of the components in compliance with all applicable regulations. Contact your local waste management authority for more information.

For EC Countries: Do not dispose of electrical equipment with household waste!

According to the European Guideline 2012/ - 19/ EU for Waste Electrical and Electronic Equipment and its implementation into national legislation, electrical equipment that is no

longer usable must be collected separately and disposed of in an environmentally correct manner.

Electromagnetic Compatibility (EMC)

The term electromagnetic compatibility is taken to mean the capability of the product to function smoothly in an environment where electromagnetic radiation and electrostatic discharges are present and without causing electromagnet interference to other equipment.

NOTICE These tools conform to all applicable EMC standards. However, the possibility of them causing interference in other devices cannot be precluded. All EMC related standards that have been tested are called out in the tool's technical document.

FCC/ICES Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

Modifications not expressly approved by this company could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This product complies with the Canadian ICES-003 Class A specifications. See Declaration label on tool.

RP 350 et RP 351

Sertisseuses

AVERTISSEMENT !

RIDGID Ridge Tool Company Elyria, Ohio / USA Manufacturer Ridge Tool Company Elyria, Ohio / USA Model RP 350 Press Tool Serial No. LVTXXXXMMYY 18 V d.c. / 23 A 3x 480 W / F = 32 kN Authorized Representative Ridge Tool Europe NV 3800 Sint-Truiden, Belgium QR-Code

Course ....1,57" (40 mm) 1,57" (40 mm)

Moteur

Volts 18 V 18 V

Ampères....23 A 23 A

Puissance......480 Watts 480 Watts

Force du vérin....7200 lbs. (32 kN) 7200 lbs. (32 kN)

Rotation de tête .....360° 360°

Dimensions....11,3" x 11,0" x 3,1" 15,7" x 4,65" x 3,1"

287 mm x 279 mm x 77 mm 398 mm x 118 mm x 77 mm

Pression sonore (L_BA)^* < 74,5 dB(A), K = 3 dB(A) < 74,5 dB(A), K = 3 dB(A)

Vibrations ^* ....../<1,13 m/s ^2 , K=1,5 <1,13 m/s ^2 , K=1,5

Close-up of a hand holding a red 3/4" RIDGID crimping tool, with no visible text or symbols on the tool itself.

Hand holding a 5X RIDGID power tool with a black-and-white photo of its grip (no visible text or symbols on the device body)

Close-up of a mechanical tool with ProPress branding and a metallic rod (no readable text or symbols)

Close-up of a mechanical device with a coiled pipe and handle, showing no visible text or symbols.

Close-up of hands adjusting a mechanical knob with visible labels (RIDGE, 1/2", Dress, V1) and no readable text beyond component markings.

Close-up of a mechanical tool with visible components and no readable text or symbols

Ridgid electrical tool with attached 3/4" pipe wrench (no text or symbols on device body)

Ridgid electrical shaver tool with 3.4-inch pipe fitting (no visible text or symbols on body)

ADVERTENCIA!

RIDGID Ridge Tool Company Elyria, Ohio / USA Manufacturer Ridge Tool Company Elyria, Ohio / USA Model RP 350 Press Tool Serial No. LVTXXXXMMYY 18 V d.c. / 23 A 3x/min. 480 W / F = 32 kN Authorized Representative Ridge Tool Europe NV 3800 Sint-Truiden, Belgium QR-Code

Diagram of a circular device control panel with labeled buttons and icons for power, battery, switch, and battery.

Close-up of a hand using a 3/4" RIDGID crimping tool to adjust a pipe fitting (no text or symbols visible on the tool itself)

Hand holding a 31⁄4" RIDGID RIGDIG power tool, no visible text or symbols on the device itself.

Close-up of a mechanical clamp or tool component with no visible text or symbols

Close-up of a mechanical device with visible gears and shaft, no text or symbols present

Close-up of hands holding a mechanical knob with visible branding and numbers (no readable text or symbols beyond labels)

Close-up of a mechanical tool with a black and white component, no visible text or symbols

RIDGE TOOL COMPANY Ridge Tool Europe NV (RIDGID)

400 Clark Street

Elyria, Ohio 44035-6001

U.S.A.

EC DECLARATION OF CONFORMITY

We declare that the machines listed above, when used in accordance with the operator's manual, meet the relevant requirements of the Directives and Standards listed below.

DÉCLARATION DE CONFORMITÉ CE

DEKLARACJA ZGODNOŚCI WE

Complies with UL 62841-1

csa c22.2 No. 62841-1

E114309

Signature: Vindorke

Qualification: V.P. Engineering

Date: 09/01/2020

What is covered

RIDGID ^® tools are warranted to be free of defects in workmanship and material.

How long coverage lasts

This warranty lasts for the lifetime of the RIDGID® tool. Warranty coverage ends when the product becomes unusable for reasons other than defects in workmanship or material.

How you can get service

To obtain the benefit of this warranty, deliver via prepaid transportation the complete product to RIDGE TOOL COMPANY, Elyria, Ohio, or any RIDGIDAAUTHORIZED INDEPENDENT SERVICE CENTER. Pipe wrenches and other hand tools should be returned to the place of purchase.

What we will do to correct problems

Warranted products will be repaired or replaced, at RIDGE TOOL'S option, and returned at no charge; or, if after three attempts to repair or replace during the warranty period the product is still defective, you can elect to receive a full refund of your purchase price.

What is not covered

Failures due to misuse, abuse or normal wear and tear are not covered by this warranty. RIDGE TOOL shall not be responsible for any incidental or consequential damages.

How local law relates to the warranty

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary, from state to state, province to province, or country to country.

No other express warranty applies

This FULL LIFETIME WARRANTY is the sole and exclusive warranty for RIDGID ^* products. No employee, agent, dealer, or other person is authorized to alter this warranty or make any other warranty on behalf of the RIDGE TOOL COMPANY.

RIDGID FULL LIFETIME WARRANTY Against Material Defects & Workmanship

Parts are available online at Store.RIDGID.com

Ridge Tool Company

400 Clark Street

Elyria, Ohio 44035-6001

U.S.A.

Ce qui est couvert
