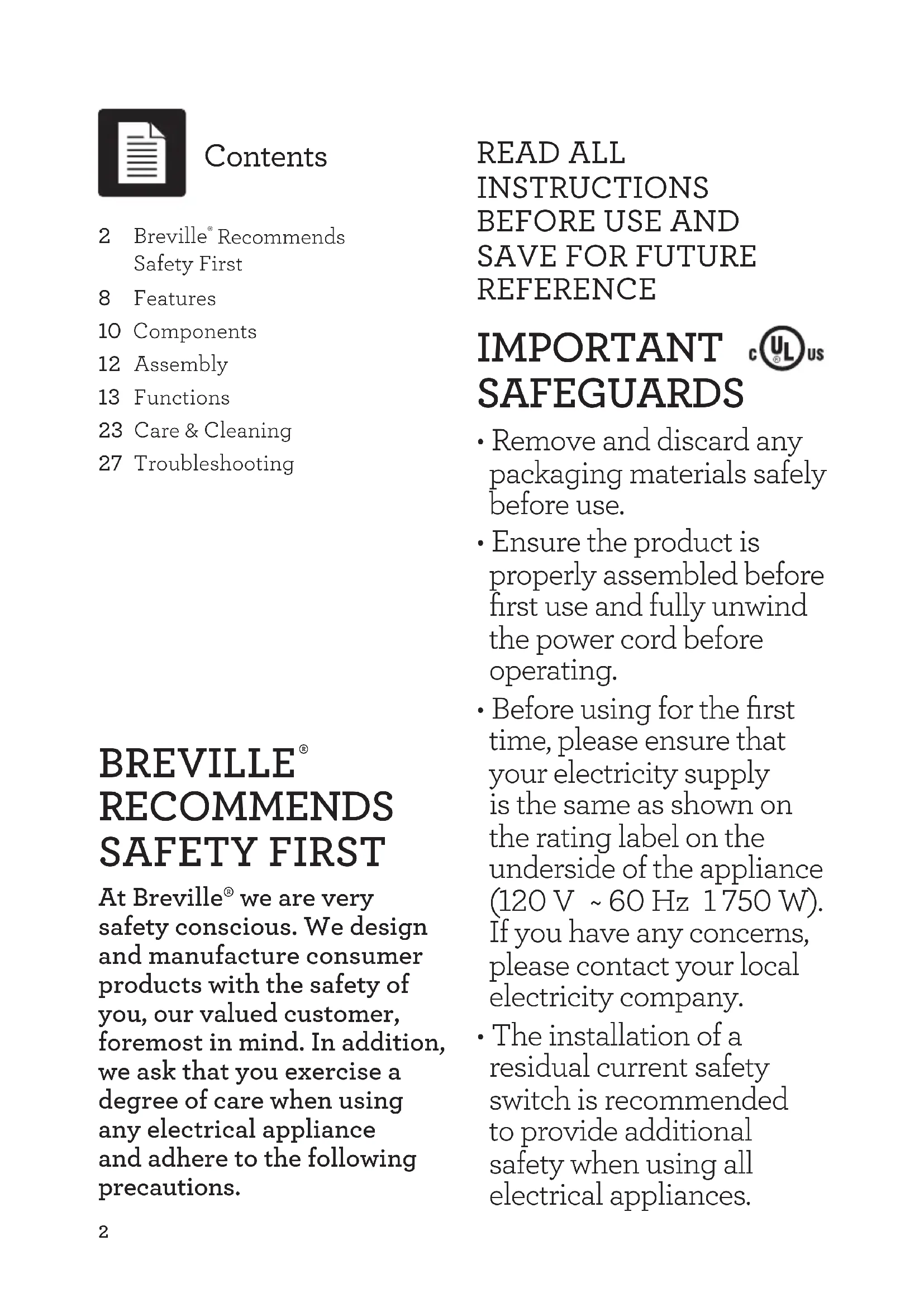

USER MANUAL the Barista Touch Impress BES881 BREVILLE

RECOMMENDS SAFETY FIRST At Breville® we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition, we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions. READ ALL INSTRUCTIONS

• Remove and discard any packaging materials safely before use.

• Ensure the product is properly assembled before first use and fully unwind the power cord before operating.

• Before using for the first time, please ensure that your electricity supply is the same as shown on the rating label on the underside of the appliance (120V ~60Hz 1 750W). If you have any concerns, please contact your local electricity company.

• The installation of a residual current safety switch is recommended to provide additional safety when using all electrical appliances. 2 Breville Recommends SafetyFirst8 Features10 Components12 Assembly13 Functions23 Care & Cleaning27 Troubleshooting3

Safety switches with a rated operating current not more than 30mA are recommended. Consult an electrician for professional advice.

• For your maximum electrical safety, always use this espresso machine on a properly grounded circuit. It is recommended to use this machine on a dedicated circuit separate from other electrical appliances.

• Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return the entire appliance to the nearest authorized Breville

Service Center for examination, replacement, or repair.

• Do not let the power cord hang over the edge of a counter or table. Do not let the power cord touch hot surfaces or become knotted.

• Do not touch hot surfaces. Always ensure the appliance has been allowed to cool; if the appliance is to be: left unattended, cleaned, moved, assembled or stored, or when changing accessories; always switch o the espresso machine by pressing the POWER button to OFF, and unplug from the power outlet.

• To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

• This appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children must be supervised to ensure that4 they do not play with the appliance.

• Do not leave the appliance unattended when in use. Do not move the appliance whilst in operation.

• Close supervision is necessary when any appliance is used by or near children. Keep the appliance and its cord out of reach of children.

• To eliminate a choking hazard for young children, discard the protective cover fitted to the power plug safely.

• Position the appliance on a stable, heat resistant, level, dry surface away from the counter edge, and do not operate on or near a heat source such as a heated oven, a hot gas or electric burner.

• Do not operate the appliance in an enclosed space, or inside a cupboard.

• Ensure the surface is level, clean and free of water and other substances.

• Do not use attachments other than those provided with the appliances. The use of attachments not sold or recommended by Breville

may cause fire, electric shock, or injury.

• This appliance is for household use only. Do not use the appliance for anything other than its intended purpose. Do not use in moving vehicles or boats. Do not use outdoors. Misuse may cause injury.

• Do not attempt to open or service the espresso machine. Servicing should only be performed by an authorized service representative.

• Improper use of the appliance incorrectly operated or unprofessionally repaired. In such a case, any warranty claim is void. No warranty claim for any damages can be accepted.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.5

• Use caution when operating machine as metal surfaces are liable to get hot during use. Heating element is subject to residual heat after use.

• Do not put fingers into the tamping chute when pushing down the tamping lever.

• Do not open the programming port, this is exclusively for authorised service personnel only.

• Do not operate the grinder without the hopper lid in position. Keep fingers, hands, hair, clothing, and utensils away from the hopper during operation. Always check the grinder hopper for presence of foreign objects before using. Do not touch moving parts.

• Ensure the portafilter is firmly inserted and secured into the group head before starting an extraction. Never remove the portafilter during the extraction process. Fail to follow this instruction may lead to scalding by hot steam or hot coee.

• Do not fill water tank with hot water.

• Never use the appliance without water in the water tank.

• Wipe the outer surface with a soft, damp cloth and then polish with a soft, dry cloth. Keep the appliance and accessories clean. Follow the cleaning instructions provided. CAUTION To prevent damage to the appliance, do not use alkaline cleaning agents when cleaning, use a soft cloth and a mild detergent. WARNING To avoid the risk of injury, do not open the brew chamber during the brew process.6 To protect against fire or electric shock, do not immerse the power cord, power plug or appliance in water or any other liquid. SPECIFIC INSTRUCTIONS FOR WATER FILTER

• Filter cartridge should be kept out of reach ofchildren.

• Store filter cartridges in adry place in the original packaging.

• Protect cartridges from heat and direct sunlight.

• Do not use damaged filter cartridges.

• Do not open filter cartridges.

• If you are absent for a prolonged period of time, empty the water tank and replace the cartridge. NOTICE TO CUSTOMERS REGARDING MEMORY STORAGE Please note that in order to better serve our customers, internal memory storage has been imbedded into your appliance. This memory storage consists of a small chip to collect certain information about your appliance including the frequency of use of the appliance and the manner in which your appliance is being used. In the event your appliance is returned for service, the information collected from the chip enables us to quickly and eciently service your appliance.7

The information collected also serves as a valuable resource in developing future appliances to better serve the needs of our consumers. The chip does not collect any information regarding the individuals who use the product or the household where the product is used. If you have any questions regarding the memory storage chip please contact us at [e-mail] SHORT CORD INSTRUCTIONS Your Breville appliance is fitted with a short power cord to reduce personal injury or property damage resulting from pulling, tripping or becoming entangled with a longer cord. Longer detachable power cords or extension cords are available and may be used if care is exercised. If an extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, (2) the cord should be arranged so that it will not drape over the counter-top or table where it can be pulled on by children or tripped over unintentionally and (3) the extension cord must include a 3-prong grounding plug.

Innovative heating system achieves ideal extraction temperature in 3 seconds.

PRECISION CONICAL BURR GRINDER

Precision conical burrs maximize ground coee surface area for a full espresso flavor.

STEP-BY-STEP BARISTA GUIDANCE

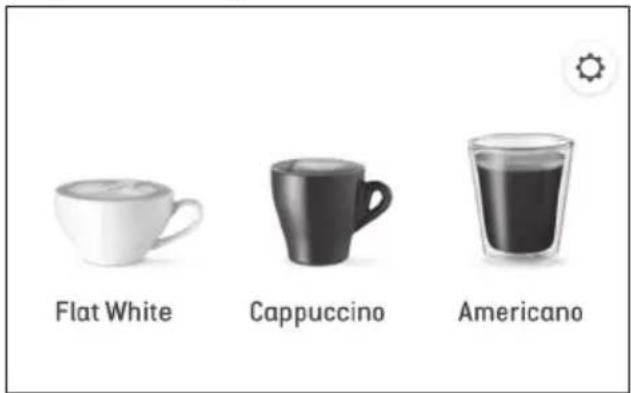

Swipe and select from the drink’s menu. Receive guidance throughout the whole coee making process so you can enjoy a perfect cup of coee. Adjust your shot volume, milk texture or milk temperature, then save it as your personal favorite.

ADJUSTABLE GRIND SIZE

Espresso grind settings from fine to coarse foroptimal extraction.

ADJUSTABLE GRIND AMOUNT

Adjust the amount of fresh ground coee dosed into the filter basket to suit the fineness or coarseness of the grind.

PID TEMPERATURE CONTROL

Electronic PID temperature control for increased temperature stability.

DEDICATED HOT WATER SPOUT

Dedicated hot water outlet for making a cup ofAmericano, teas, and pre-heating cups. LESS MESS The portafilter remains secure in the same position as you grind, dose and tamp, reducing any potential grinds mess on your drip tray and bench top.

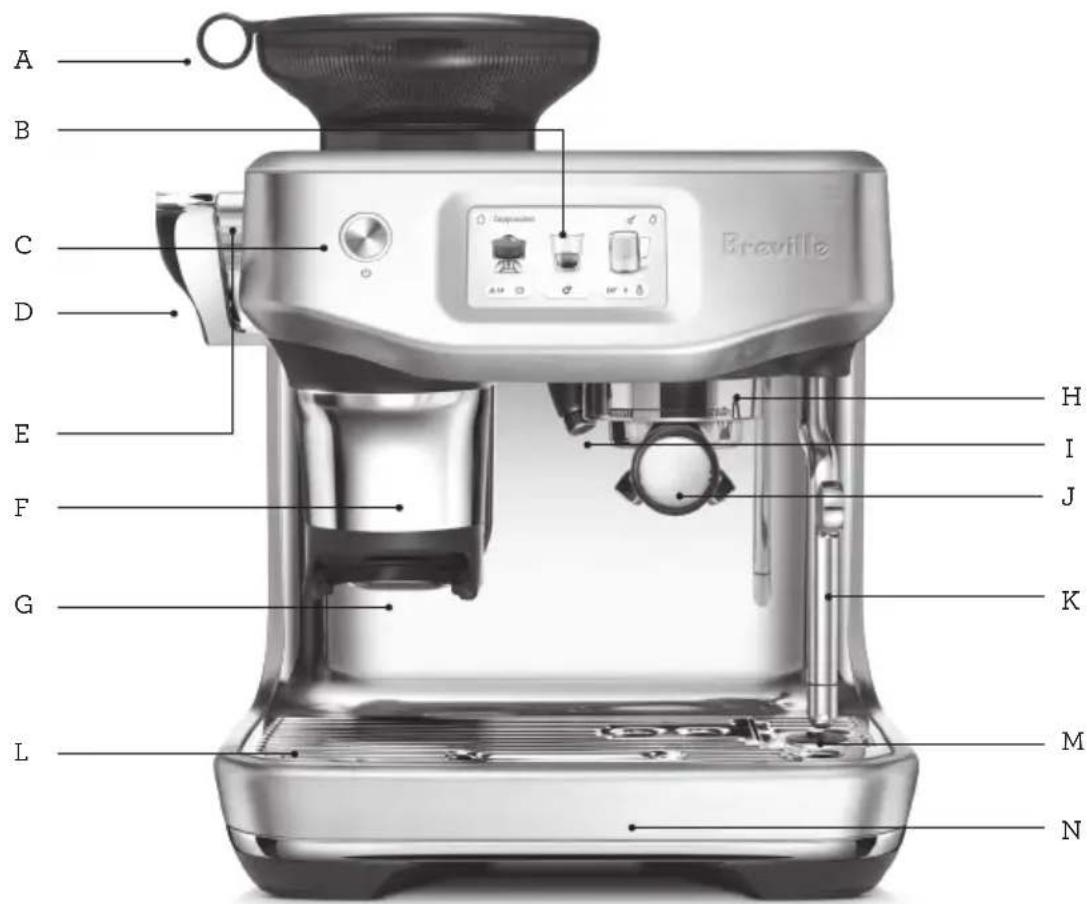

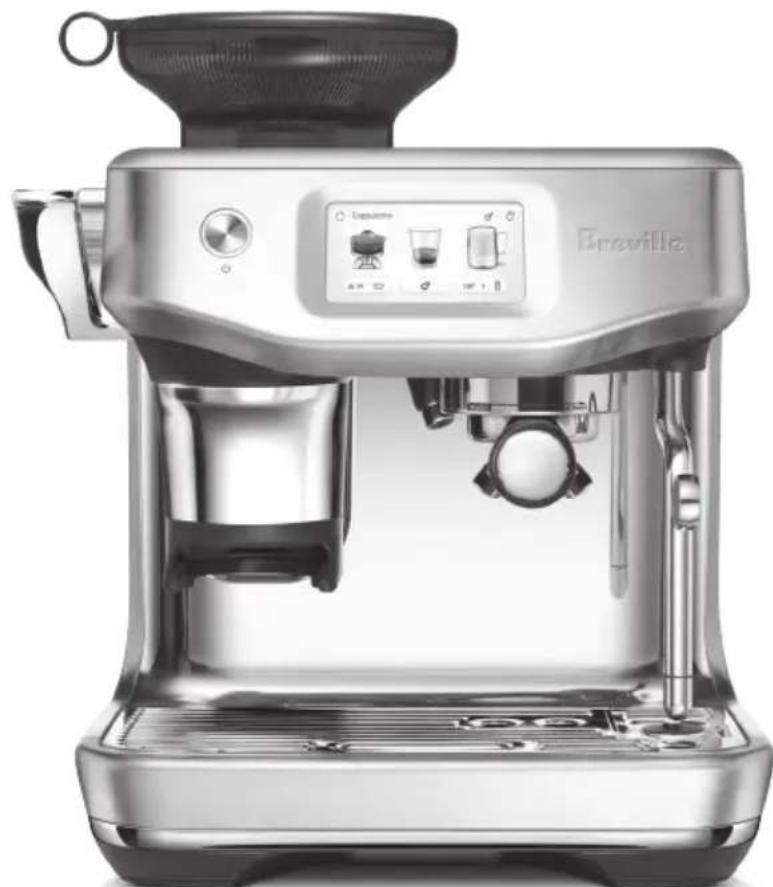

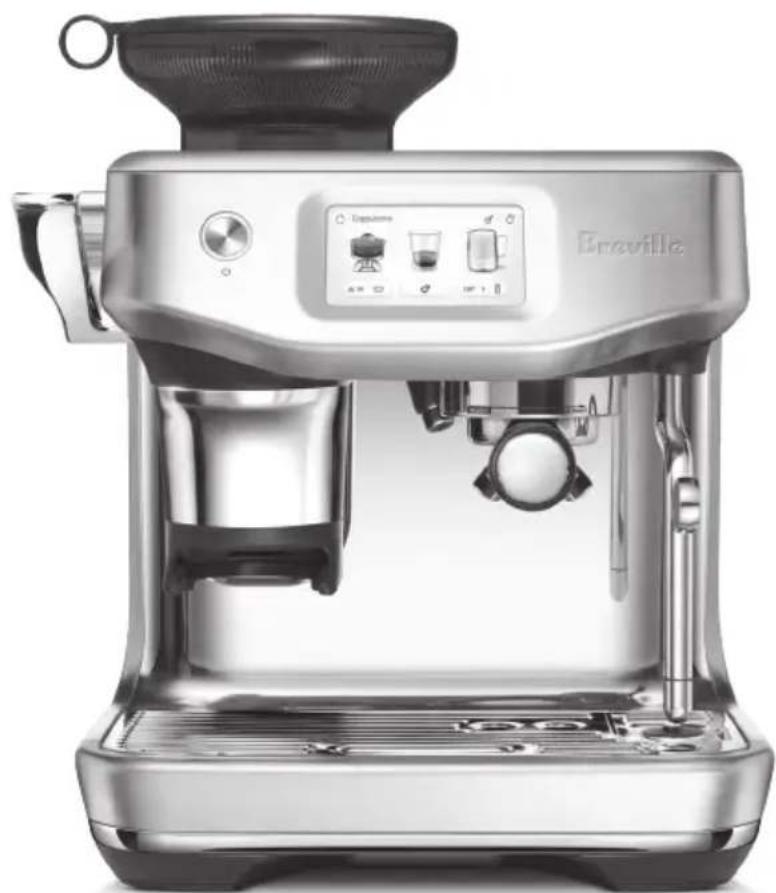

THE BARISTA TOUCH™ IMPRESS

PUCK SYSTEM Simplifies the steps needed to grind, dose, and tamp to create an impressive puck. Less mess. Less fuss.

• Precision Measurement Auto Corrects theNext Dose Grind measurement displayed on screen indicates when correct level is achieved, and the system automatically remembers the adjustment for the next dose. Correct dose level is calculated based onmeasured grind amount.

• Assisted Tamping with a 7° Barista Twist Finish Precise 22lbs (10 kg) impression with aprofessional 7 degree barista twist for apolished puck.

AUTOMATIC HANDS-FREE MILK

TEXTURING Automatically textures milk to the selected temperature and style from silky smooth latté to creamy cappuccino. Choose your preferred milk type to optimize your milk results for dairy, almond, soy and oat milk. Automatic purge removes residual milk from the steam wand once texturing is complete. Features• INGESTION HAZARD: This product contains a button cell or coin battery.

• DEATH or serious injury can occur if ingested.

• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.

• KEEP new and used batteries OUT OF REACH of CHILDREN.

• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body. The battery included in this product is not user replaceable. Consumer shall never attempt to replace the battery. Compatible battery type is: CR2450. Nominal battery voltage is: +3.0V.

• For service centers: If you ever need to service the coin battery in the product, remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children. DO NOT dispose of batteries in household trash or incinerate.

• DO NOT force discharge, recharge, disassemble, heat above 158 °F (70 °C) or incinerate. Doing so may result in injury due to venting, leakage or explosion resulting in chemical burns.

• The logo on the product marking warns that this product contains a coin battery.

• Non-rechargeable batteries are not to be recharged.

• If you suspect someone or a child has ingested a coin battery, immediately call a local poison control center for treatment information.

• Even used batteries may cause severe injury or death. BES880 | BES881 | BES980 | BES990 | BMC800 | CMC850 | CMC845 - Av310 A. 12 oz (340 g) Bean Hopper B. Touch Screen C. Power Button D. Tamp Lever E. Grind Size Adjustment Dial F. Removable Tamp Cover G. Grinding Cradle H. Group Head

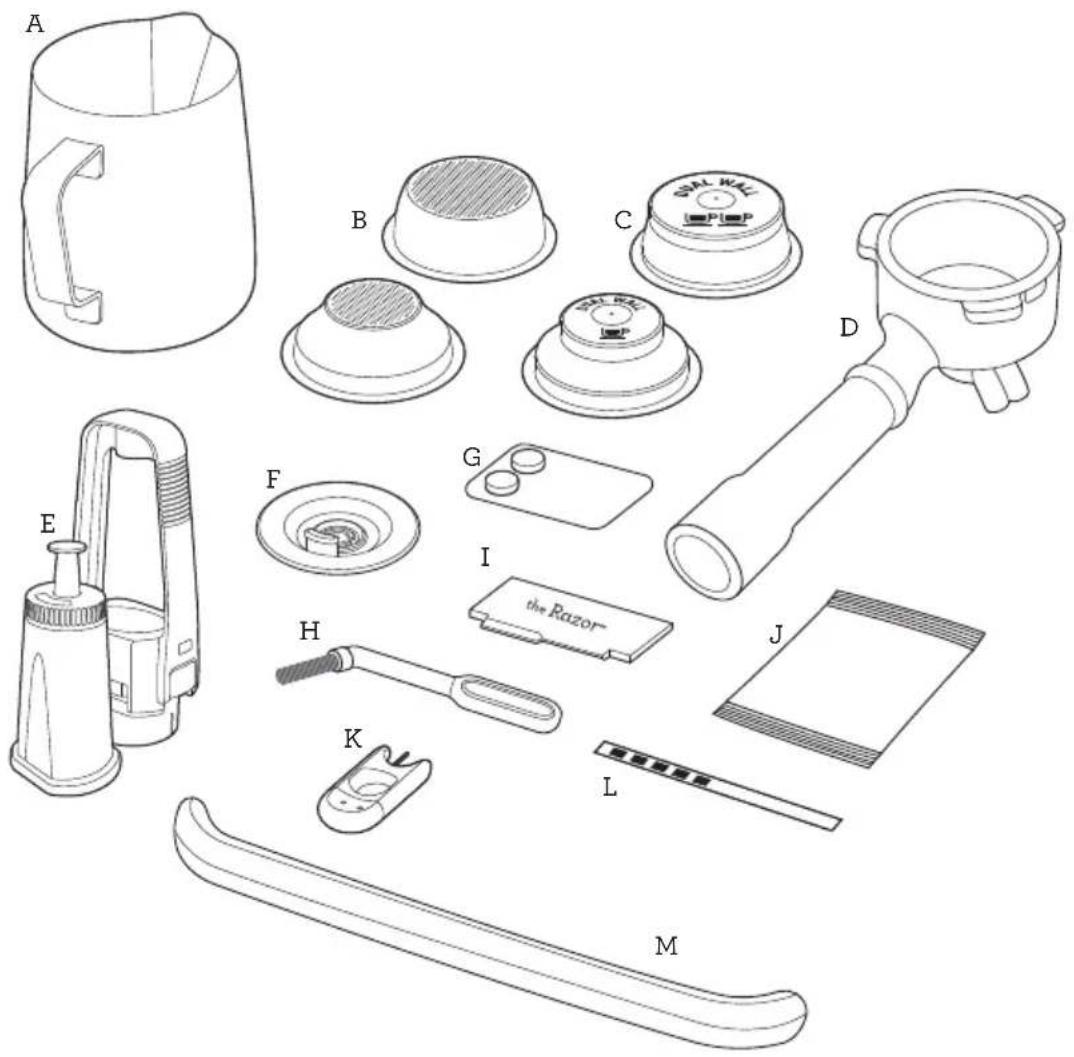

J. Descale Powder K. Cleaning Tool For Steam Wand Tip L. Water Hardness Strip M. Drip Tray Guard (included with machines in color only)

• 2 cup dual wall filter basket comes installed in the portafilter

Machine Preparation Remove and discard all labels and packaging materials attached to your espresso machine. Ensure you have removed all parts and accessories from the box before discarding thepackaging. Remove the water tank located at the back of the machine by pulling the water tank handle. Clean parts and accessories (water tank, portafilter, filter baskets, jug) using warm water and a gentle dish washing liquid. Rinse well then dry thoroughly. NOTE Machines with color, drip tray protection guard is included. DO NOT DISCARD.

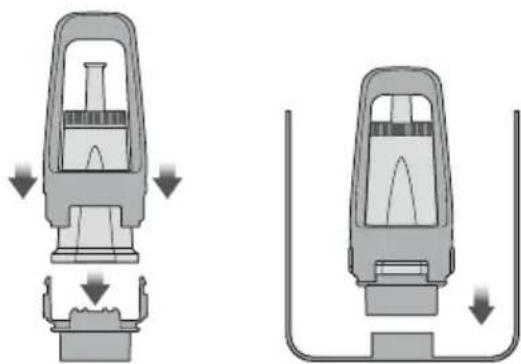

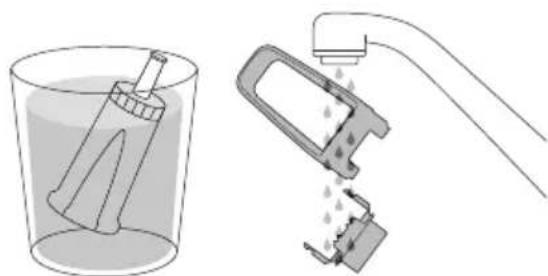

INSTALLING THE WATER FILTER

• Remove the water filter and water filter holder from the plastic bag.

• Soak the filter in cold water for 5 minutes.

• Rinse the filter holder with cold water.

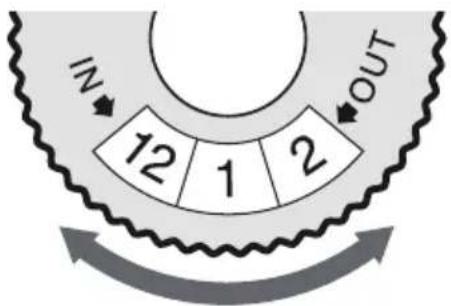

• Set the reminder for next month of replacement. We recommend to replace thefilter after 3 months.

• Insert the filter into the two parts of the filter holder.

• To install the assembled filter holder into the water tank, align the base of the filter holder with the adapter inside the water tank. Push down to lock into place. NOTE Replacing the water filter every three months will reduce the need to descale the machine. Filters can be purchased at www.breville.com NOTE If your water hardness is either 4 or 5 when tested, we strongly recommend you to change to an alternate water source. Filtered water will extend both the life of your built-in filter and descale intervals as well as superior taste. Please ensure to test the water hardness of the alternative water source you’ve chosen and input into the machine accordingly. Avoid using overly filtered water, like RO water unless some mineral content is being added back to the final water. Never use distilled water, or water with no or low mineral content as this will aect the taste of coee. Assembly13

Attaching the Hopper

• Insert the bean hopper into position on top ofthe machine.

• Turn the dial to lock the hopper into place.

• Fill the hopper with fresh beans. TIP We recommend quality 100% Arabica beans with a ‘Roasted On’ date stamped on the bag, not a ‘Best Before’ or ‘Use By’ date. Coee beans are best consumed between 5 to 20 days after the ‘Roasted On’ date. Stale coee may pour too quickly from the portafilter spouts and taste bitter and watery. NOTE This machine is designed only for whole roasted coee beans. Avoid grinding unroasted green and under-roasted coee beans. These are dense and not brittle enough to run through a burr grinder. This will damage or break burr grinders and even pose a safety risk. Filling the Water Tank

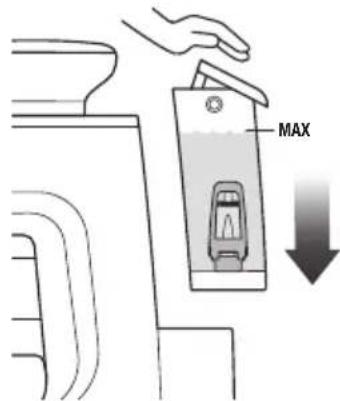

• Ensure the water filter is securely fitted inside the water tank.

• Use the handle at the top of the water tank to assist in lifting the water tank and away from the machine. MAX

• Fill the water tank with cold potable tap water up to the MAX marking indicated on the side of the water tank.

• Replace the water tank back on the machine, pressing down to ensure that it is properly positioned and attached to the machine. MAX NOTE If the water level in the water tank is below the minimum (MIN) marking, the espresso machine will not operate. Functions14 Attaching the Drip Tray

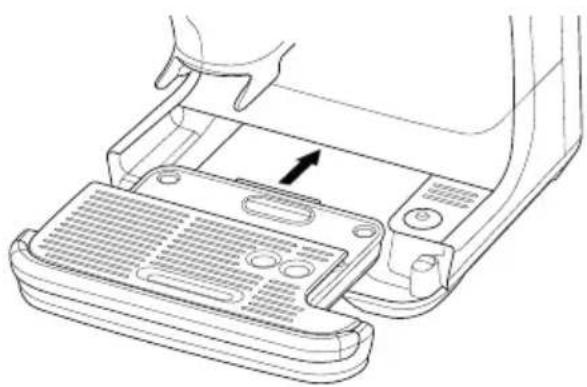

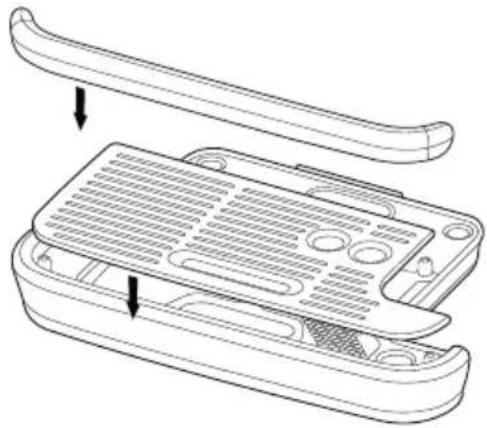

• Place the drip tray grill on top of the drip tray.

• Machines with color, attach the drip tray protection guard cover on the drip tray.

• Slide the drip tray into the machine. NOTE Using the drip tray protection guard cover is optional. But note that using the drip tray protection guard can protect your drip tray from dents and scratches. GENERAL OPERATION

• Check the water tank is filled with cold tap water up to the maximum mark.

• Plug the power cord into the power outlet.

• Press the ‘Power’ button.

• Follow the instructions on screen to guide you through first use setup. DRINK SELECTION Swipe and select your choice of drink. NOTE Please keep the touch screen dry and clean toensure that the machine functions properly DRINK SCREEN In this screen, you can customize your drink bytouching the choice of drink on screen. A. Home icon B. Chosen drink C. Hot water D. Grind / Dose = tap the icon below the portafilter to adjust grinder settings. E. Brew = tap the icon below the coee glass toadjust brewing settings. F. Milk texture = tap the icon below the milk jug to adjust milk settings. A B

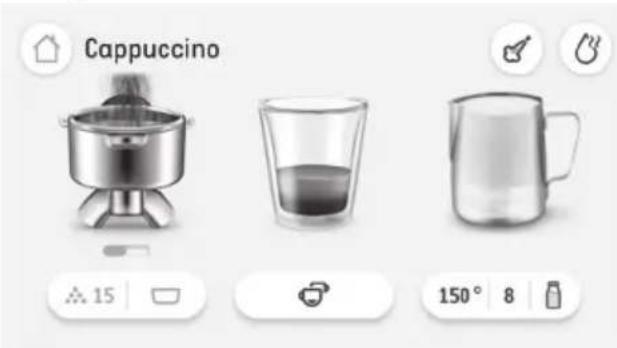

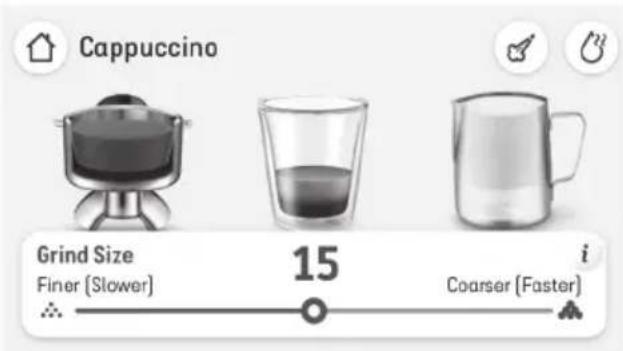

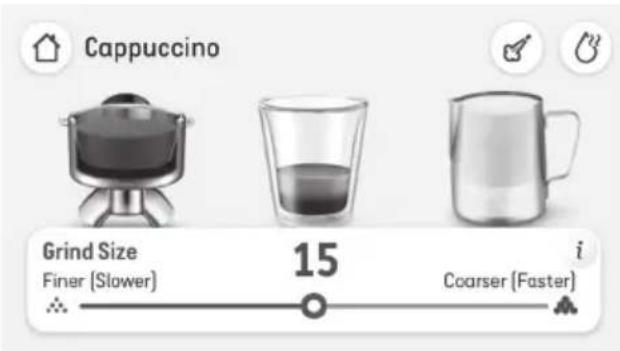

• Adjust the grind size by using the dial on the side of the machine.

• Follow the screen prompts to select the preferred ‘Basket Size’.

• Tap on the portafilter image to start the grinding and allow fresh ground coee to fill the portafilter.

Intelligent Brew Setup is a feature that helps achieve a good coee extraction range by assisting the dial-in process of the grinder. When successfully completed, you can enjoy a balanced coee shot. From this point, further adjust grind size and experiment to suit your style. It is recommended using this feature whenever you change beans, or the too fast or too slow notifications are shown on screen. Find the Intelligent Brew Setup in the Settings menu under Drinks Settings.

For best coee results, if the machine has not been used for a while it is recommended to purge any stale beans that have been ground and left in the grinder chute. To purge; tap and hold the grind button for 2 seconds, and run for around 5 seconds. To stop; press the stop button. Grind purge will stop automatically after 30 seconds if stop button is not pressed. ASSISTED TAMPING

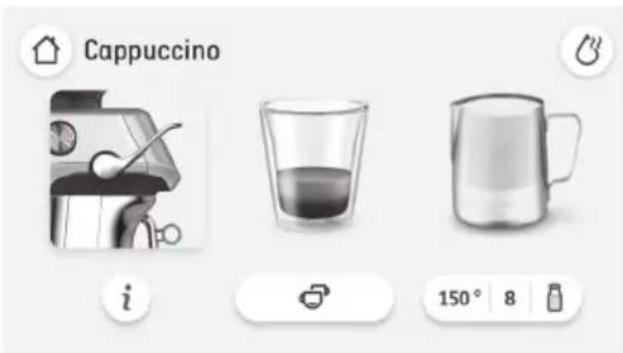

• When grind cycle is completed, the machine is ready to tamp. Push the lever downwards to the end position. This will tamp the coee grinds in the portafilter using a consistent amount of tamp force. Pushing the lever slowly and consistently will help to improve the puck appearance.

• Release the lever slowly upwards to the home position after tamping.

• Repeat the tamping action as above twice.16 NOTE Screen will indicate if tamp or dose is low, ideal or high.

HOW TO CORRECT AN UNDER OR

OVER DOSE? An under or over dose can occur when fresh beans are added to the hopper; when coee beans age; a dierent type of coee bean is used or if a change is made to the grind size. What to do when dose level is below the ideal middle bar?

• When dose is below the ideal middle bar, the machine will indicate and calculate ‘A Bit More’. Tap the portafilter image on screen to add a bit more and follow screen prompts and complete a tamp for an updated dose level reading.

• When ideal dose level is reached, the machine will automatically update the auto dose time for the next cycle. What to do when dose level is above the ideal middle bar?

• When dose is above the ideal middle bar, remove the portafilter from the cradle.

• Use the Razor Trimming Tool. (refer to Trimming the Dose section).

• The machine will calculate how much to reduce the auto grind time and apply this forthe next cycle. OVER DOSE (TRIMMING THE DOSE) Precision dose trimming tool The Razor™ precision dose trimming tool allows you to trim the puck to the right level for a consistent extraction. Insert the Razor™ into the coee basket until the shoulders of the tool rest on the rim of the filter basket. The blade of the dosing tool should penetrate the surface of the tamped coee. Rotate the Razor™ dosing tool back and forth while holding the portafilter on an angle over the knock box to trim o excess coee.17

Inserting the Portafilter Place the portafilter underneath the group head so that the handle is aligned with the INSERT position. Insert the portafilter into the group head and rotate the handle towards the center until resistance is felt. ESPRESSO EXTRACTION

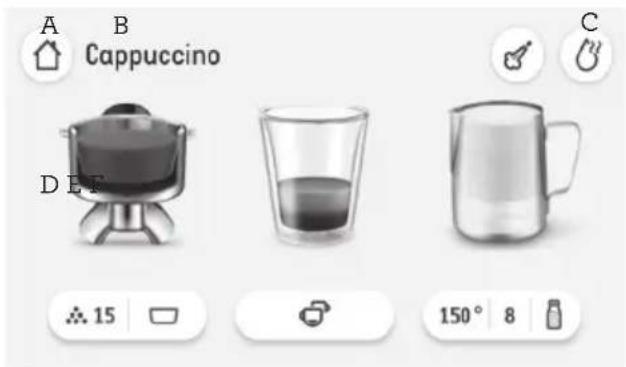

• Select a display of brew options on the screen.

• Select the café size options from: Single (approx. 1.0 fl oz / 30 mL), Double (approx.2.0 fl oz / 60 mL) Double+ (approx. 3.0 fl oz / 90 mL).

• Select Custom and slide and drag the dot toincrease or decrease the coee volume.

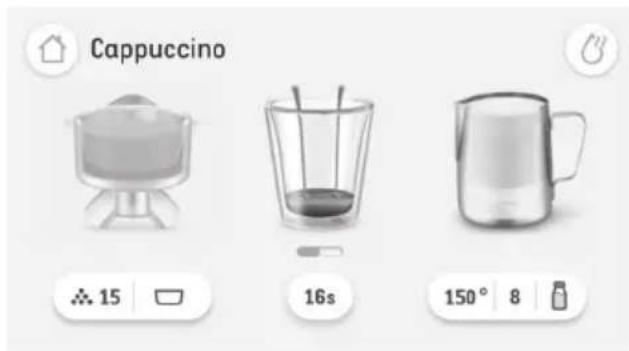

• Tap the coee cup image on the screen tostart extraction.

• The duration times are preset but can becustomized. MANUAL OVERRIDE Press and hold the coee image (approx. 2seconds) to enter manual extraction mode. Touch the coee image to start the extraction, touch the coee image again to stop the extraction. NOTE

• The amount of espresso extracted in the cup will vary depending on your grind size and grind amount settings.

• Touching the coee image during a preset shot volume will immediately stop the extraction.

• For optimal flavor when using a 1 cup filter basket, you should extract approx. 1.0 fl oz/ 30 mL. When using a 2 cup filter basket, youshould extract approx. 2.0 fl oz / 60 mL. TEXTURING MILK Dierent brands and milk alternatives will texture dierently. For best texturing results it is recommended to use whole milk when using dairy milk and use barista type milks when using plant-based milks. Adjust the froth level accordingly. Start with cold milk. Fill milk jug to below the spout position. Lift the steam wand and insert into milk jug. Lower steam wand, ensuring it is fully down. The milk jug should rest on the milk temperature sensor located on the drip tray and tip of the steam wand should be submerged and ensure that milk covers the ring around the steam wand tip. MAX MIN MILK MUST COVER THIS RING NOTE Check the image on the screen for the correct milk jug position. Under the milk jug image, tap the icon to adjust the milk temperature, the level of milk froth orchange your milk option: Dairy, Almond, Oat or Soy. To start, touch the ‘Milk jug’ image. The screen will display the temperature of the milk as itheats.18 TIP All milk-based drinks

• Brew coee first and queue milk texturing.

• Texture milk first and queue coee brewing Milk texturing will stop automatically when the selected milk temperature is reached. Lift steam wand to remove milk jug. Wipe the wand and tip with a clean damp cloth. Lower steam wand to the down position and the wand will automatically purge.

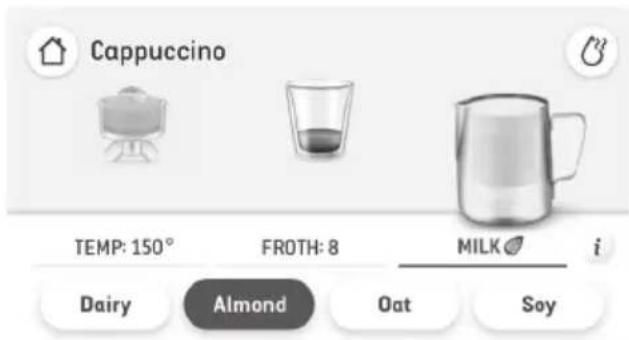

MANUAL MILK TEXTURING

Auto milk texturing and auto shut-o are disabled during manual milk texturing mode. Start with a cold milk. Fill milk jug to below the spout position. Lift the steam wand and slide the milk jug under the steam wand. Hold the milk jug at an angle. Start frothing by tapping the milk jug image on screen. When frothing is done and the jug is hot to comfortably touch; tap the milk jug image on screen to stop. Wipe the wand & tip with a clean damp cloth. Lower steam wand to the down position and the wand will automatically purge.

CAUTION: BURN HAZARD

Pressurized steam can still be released, even after machine has been switched o. Children must always be supervised. NOTE

• When the machine creates steam, a pumping noise can be heard. This is the normal operation of the pump.

• Use exclusively the stainless steel milk jug included in the pack to froth milk. The use ofcontainer made of glass or plastic material to froth milk may lead to overheating milk ordangerous conditions.

The machine has a dedicated hot water spout. The HOT WATER function can be used to pre- heat cups or add hot water manually. Tostart and stop hot water, touch ‘Hot Water’ icon on the screen. NOTE Using the hot water spout and the steam wand is not possible when extracting espresso. Run hot water before or after extracting espresso. WARNING Filled cup temperature is approximately 167°F- 194°F (75 °C - 90 °C). Be careful in handling hot beverages.19

TIP Heating your cup or glass A warm cup will help maintain the coee’s optimal temperature. Pre-heat your cup by rinsing with hot water from the hot water spout and place on the cup warming tray. Heating the portafilter and filter basket A cold portafilter and filter basket can reduce the extraction temperature enough to significantly aect the quality of your espresso. Always ensure the portafilter and filter basket are pre-heated with hot water from the hot water spout before initial use. NOTE Always wipe the portafilter and filter basket dry before dosing with ground coee as moisture can encourage ‘channeling’ where water by- passes the ground coee during extraction. FILTER BASKETS This machine includes both single and dual wall, 1 cup and 2 cup filter baskets. Use the 1 cup filter basket when brewing a single cup and the 2 cup filter baskets when brewing 2 cups or a stronger single cup or mug. The provided filter baskets are designed for ground coee: 1 cup filter basket = 8-11g 2 cup filter basket = 16-19g Single Wall Filter Baskets 1 CUP 2 CUP Single Wall filter baskets should be used when grinding fresh whole coee beans. These allows you to experiment with grind and dose to create a more balanced espresso. Dual Wall Filter Baskets 1 CUP 2 CUP Dual Wall filter baskets should be used when using pre-ground coee and older beans that are past the 30 day roast date. These regulate the pressure and help to optimize the extraction regardless of the grind, dose, or freshness. THE GRIND Adjusting the Grind Size The grind size will aect the rate of water flow through the coee in the filter basket and the flavor of the espresso. When setting the grind size, it should be fine but not too fine and powdery.20 To adjust the grind, rotate the grind dial to the back of the machine to go coarser, or rotate the dial towards the front of the machine to go finer or slide the dot on the screen to the left for a finer grind or to the right for a coarser grind. The smaller the value shown on screen, the finer the grind size. The larger the value shown on screen, the coarser the grind size. NOTE

• When making changes to the grind size, the new auto dosing time will be calculated after your next tamp and updated for the dose cycle following that. The dose amount is calculated and stored automatically. Two to three extractions may be required to calibrate the extraction. Extracting Espresso

• As a guide, the espresso will start to flow after 8-12 seconds (infusion time) and should bethe consistency of dripping honey.

• If the espresso starts to flow before 7 seconds you have either under dosed the filter basket and/or the grind is too coarse. This is an UNDER-EXTRACTED shot.

• If the espresso starts to drip but doesn’t flow after 12 seconds, then you have either over dosed the filter basket and/or the grind is too fine. This is an OVER-EXTRACTED shot. A great espresso is about achieving the perfect balance between sweetness, acidity, and bitterness. The flavor of your coee will depend on many factors, such as the type of coee beans, degree of roast, freshness, coarseness or fineness of the grind, and the dose of ground coee. Experiment by adjusting these factors just one at a time to achieve the taste of your preference.

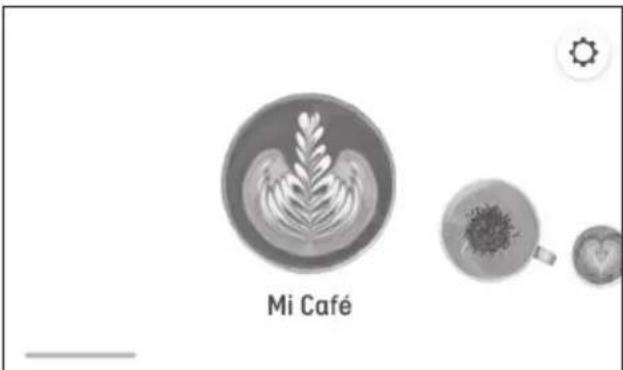

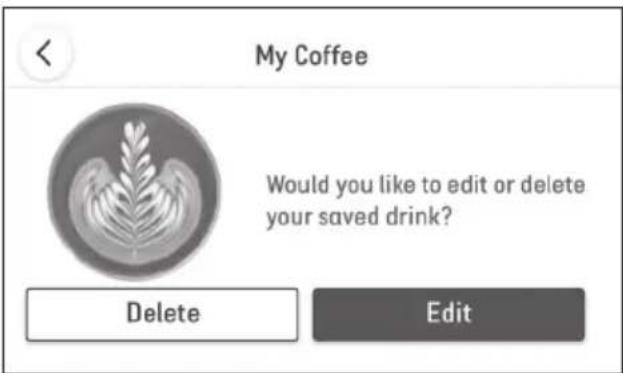

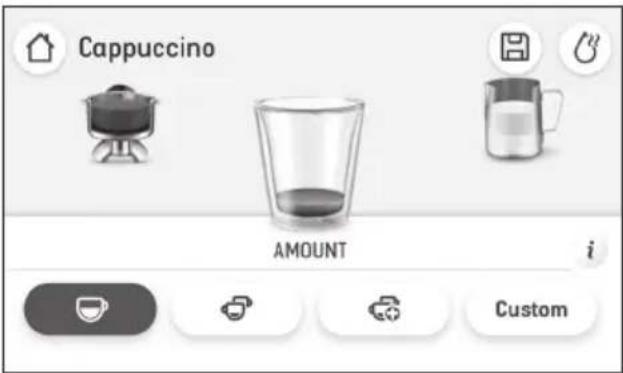

CUSTOMIZED DRINKS Adding A New Drink When customizing a default drink, tap the disk icon on the upper right of the screen to rename and save newly created coee settings. Name the new drink with a maximum of 15 characters. Every created drink is saved to the start of the drink carousel. Editing Or Deleting A Saved Drink Select the name of the saved drink and tap and hold the coee image for three seconds and select either ‘Edit’ or ‘Delete’ from the screen. Press ‘Yes’ to confirm or ‘No, cancel’ to return tothe drink carousel screen.21

SETTINGS To enter settings menu, touch the icon on the upper right of the screen. Maintenance Clean Steam Wand – This will show how to clean the steam wand to remove any blockage for better steaming performance. Group Head Cleaning – This will need Espresso cleaning tablet or powder and will take 10 minutes to complete. Grinder Cleaning – Follow step-by-step process to clean the grinder to help the grinder running in its optimal capacity and avoid possible blockages. Descale – Descaling prevents excess mineral and scale build-up. A pop-up message will let you know when it is time for descaling. Water Filter Change – To ensure machine has clean water to use. Drink Settings Intelligent Dose – To turn on or o ‘Intelligent Dosing’ that measures the dose and enables the intelligent brewing calibration feature. Default Milk – List of dierent kinds of milk and select the desired milk default. Coee Tutorial – Machine will guide you on screen, step by step to make an actual coee. Other Notifications – List of the machine notification alerts. Guidance Tips – To turn on and o the guidance tip animations on the drink screen. Date & Time – To help set the date and time on the machine. Units – To switch between imperial and metric units. Help – Online help information screen with QRCode. Language – To set the machine’s language. Demo mode – For on-screen Barista Touch™ Impress demonstration sequence. About Appliance –To show model number andfirmware version of the machine. Factory Reset – Use this function to reset all programmable values back to the factory settings and delete all custom drinks.22

ADJUSTING CONICAL BURRS

Some types of coee may require a wider grind range to achieve an ideal extraction or brew. Afeature of your Barista Touch™ Impress is the ability to extend this range with an adjustable upper burr. We recommend making only one adjustment at a time.

Unlock hopper Align hopper into position

Remove wire handle from both sides of the burr

Align the number with the handle opening

Insert wire handle into both sides of the burr

Push upper burr firmly into position

Lock the hopper and fill the hopper with beans.

Check your extraction

Hold hopper over container & turn dial to release beans into container

Align hopper into position

Please keep the touch screen dry and clean toensure that the machine functions properly.

REPLACING THE WATER FILTER

Place filter into filter holder Install filter in water tank Fill water tank to MAX mark

Insert & lock water tank

MAX The provided water filter helps reduce the risk of scale build-up in and on many of the inner functioning components. Replacing the water filter every three months will reduce the need to descale the machine. If you live in a hard water area, it is recommended to change thewater filter more frequently.

• Remove the filter from the plastic bag, and soak in a cup of water for 5 minutes.

• Rinse the filter under cold running water for5 seconds.

• Insert the filter into the filter holder.

• Set the date dial 3 months ahead.

• To install, push down the filter to lock into place. NOTE For replacement of water filters contact Breville Customer Service Center or visit our website atwww.breville.com CLEANING CYCLE There will be a message prompt when acleaning cycle is required. This is a back- flushing cycle and is separate from descaling. Follow the instruction on the screen. WARNING After regular use, hard water can cause mineral build up in and on many of the inner functioning components, reducing the brewing flow, brewing temperature, power of the machine, and taste of the espresso. DESCALING Even with the provided water filter, it is recommended to descale if there is scale build- up in the water tank. Go to ‘Settings’ and select ‘Descale cycle’. Follow the instructions on the screen. NOTE

• Ensure that the water filter is removed from the water tank before adding the descaling powder when descaling the machine.

• While the cleaning cycle is important for keeping the brew head clean from coee oils; the descaling cycle is essential to ensure that the machine is kept clean on the inside and free from mineral build-up.

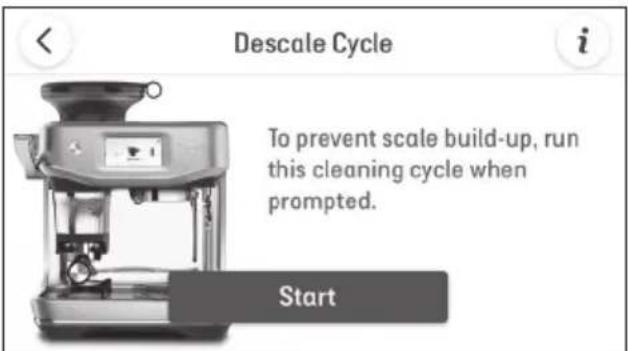

• Do not use bottled water when descaling. Most bottled water may contain dissolved solids that can leave deposits inside the machine. Care & Cleaning24

CLEANING CONICAL BURRS

Regular cleaning helps the burrs achieve consistent grinding results. SLOWEREXTRACTIONFASTEREXTRACTION

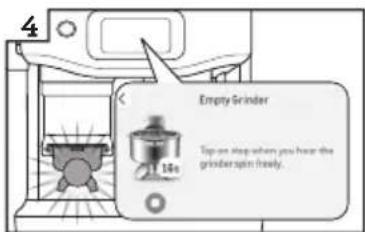

Run grinder until empty

Clean top burr with brush

Clean lower burr with brush

Clean the chute with brush

Replace tamp cover ADVANCED CLEANING FOR THE CONICAL BURR GRINDER This step is only required if there is a blockage between the grinding burrs and the grinder outlet.

Set GRIND SIZE to 1 (finest) LOOSEN NUT

Set GRIND SIZE to 25 (coarsest)

Remove nut, spring & flat washer. Carefully remove lower burr.

Unblock the grinds exit chute using the brush or a pipe cleaner Remove tamp cover

Clean the chute with brush

Insert lower burr (drive pin & cavity to align). Insert flat washer & spring washer. TIGHTEN NUT

Rotate counter-clockwise to tighten nut

Set GRIND SIZE to 16

WARNING Care should be taken as the grinder burrs are extremely sharp.25

Remove tamp cover Clean the chute with brush

Push down lever and clean

• Remove the tamp cover.

• Brush clean the tamp face and cradle from any dust or grinds.

• Push down and hold the lever down, using the tamp cleaning brush, dust o grind residues in and around the tamp.

• Slowly release the lever back up making sure the cleaning brush is clear and out of the tamp system area.

CLEANING THE STEAM WAND

• The steam wand should always be cleaned after texturing milk. Wipe the steam wand with a damp cloth.

• If any of the holes in the tip of the steam wand become blocked, it may reduce frothing performance.

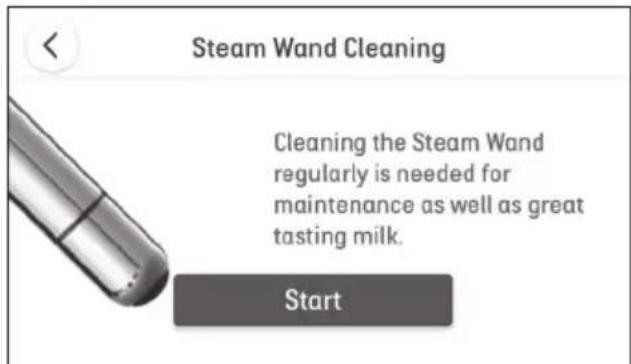

• Go to ‘Settings’ > ‘Steam wand cleaning’ andfollow the guide on the screen.

• The filter baskets and portafilter should be rinsed under hot water immediately after use to remove all residual coee oils.

• If any of the holes in the filter basket become blocked, use the pin on the end of the provided cleaning tool to unblock the hole(s).

• If the hole(s) remain blocked, dissolve a cleaning tablet in hot water and soak filter basket and portafilter in solution for approx. 20 minutes.

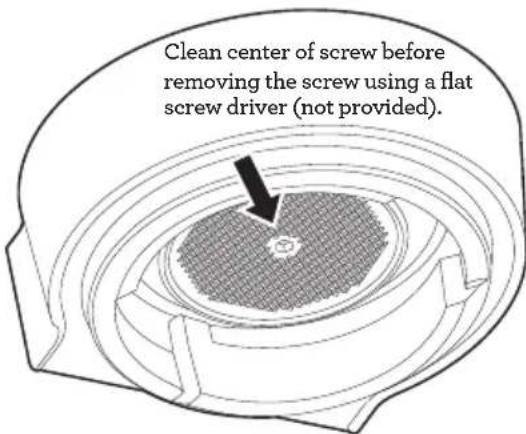

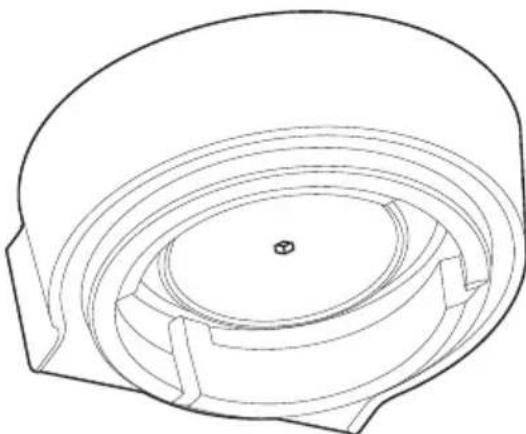

• The group head interior and shower screen should be wiped with a damp cloth to remove any ground coee particles.

• Periodically purge the machine. Place an empty filter basket and portafilter into the group head. Tap the brewing icon on the screen and run a short flow of water to rinse out any residual coee.

• The drip tray should be removed, emptied and cleaned at regular intervals, particularly when the drip tray is full.

• Remove the grill from the drip tray. Lift the coee grind separator and dispose of any coee grounds. The float indicator can also be removed from the drip tray by pulling upwards to release the side latches. Wash all parts in warm soapy water with a soft cloth. Rinse and dry thoroughly.

• The storage tray (located behind the drip tray) can be removed and cleaned with a soft, damp cloth. Do not use abrasive cleansers, pads or cloths which can scratch the surface. NOTE All parts should be cleaned by hand using warm water and a gentle dish washing liquid. Do not use abrasive cleansers, pads or cloths which can scratch the surface. Do not clean any of the parts or accessories in the dishwasher.26

CLEANING THE OUTER HOUSING

AND CUP WARMING TRAY

• The outer housing and cup warming tray can be cleaned with a soft, damp cloth. Polish with a soft, dry cloth. Do not use abrasive cleansers, pads or cloths which can scratch the surface.

STORING YOUR MACHINE

• Before storing, press the POWER button to OFF, and unplug. Remove unused beans from the hopper, clean the grinder, empty the water tank and the drip tray.

• Ensure the machine is cool, clean and dry. Insert all accessories into position or into the storage tray. Store upright. Do not place anything on top. WARNING To prevent damage, do not use alkaline cleaning agents when cleaning. Use a soft cloth and a mild detergent. WARNING Do not immerse power cord, power plug or appliance in water or any other liquid. The water tank should never be removed or completely emptied during decalcifying.

CLEANING THE SHOWER SCREEN

Over time, the silicone seal surrounding the shower screen will need to be replaced to ensure optimum brewing performance.

1. Press the POWER button to switch the

machine o and unplug the cord from the power outlet.

2. Carefully remove the water tank and drip

tray, taking particular care if they are full.

3. Using a skewer or similar, clean the center

of the screw of any residual coee.

4. Use a flat screw driver (not provided) to

unscrew. Turn counterclockwise to loosen the screw.

5. Once loosened, carefully remove and retain

the screw and stainless-steel shower screen. Make note of the side of the shower screen that is facing downwards. This will make re-assembly easier. Wash the shower screen inwarm soapy water, then dry thoroughly.

6. Remove the silicone seal with your fingers

or a pair of long-nose pliers. Insert the new seal, flat side first, so the ribbed side is facing you.

7. Re-insert the dispersion plate, then the

shower screen, then the screw. With your fingers, turn the screw clockwise for 2-3revolutions and use a flat screw driver to tighten until the screw is flush with the shower screen.

8. Re-insert the drip tray and water tank.

NOTE Contact Breville Customer Service or visit www.breville.com for replacement silicone seals or for advice. Clean center of screw before removing the screw using a flat screw driver (not provided).27

PROBLEM POSSIBLE CAUSES WHAT TO DO

Water does not flow from the group head

• Water tank is empty. Fill tank.

• Water tank is not fully inserted and locked into position. Push water tank in fully and lock latch closed. No hot water

• Water tank is empty. Fill water tank. No steam

• Steam wand is blocked. Use the pin on the end of the provided cleaning tool. If steam wand remains blocked, remove the tip using the integrated spanner in the cleaning tool and soak in hot water. Screw tip back onto the steam wand using the integrated spanner in the cleaning tool. The machine is ON but ceases to operate Turn machine o. Wait for 60 minutes and turn machine back on. If problem persists, call Breville Consumer Support. Coee runs out too quickly

• The coee grind is set too coarse. Adjust the grind size to a lower setting.

• Not enough ground coee in the filter Refer to ‘Setting The Grind Size And Dosing’ under Functions. Coee runs out slowly

• The coee grind is set too fine. Adjust the grind size to a higher setting.

• Excessive dose in the filter. Refer to ‘Setting The Grind Size And Dosing’ under Functions. Coee is too cold

• Cups not preheated Pre-heat cups

• Milk not heated enough (when making a milk based drink) Check selected milk temperature setting. No crema

• Coee beans are stale Use freshly roasted coee beans with a ‘Roasted On’ date and consume between 5-20days after that date.FR-CA MANUEL D'INSTRUCTIONS the Barista Touch

MOUSSAGE MANUEL DU LAIT

• Due to continued product improvement, the products illustrated/photographed in this brochure may vary slightly from the actual product.
