Brand	Beko
Model	HMM 62404 W
Product type	Mixer/Hand beater (domestic use)
Power supply	220-240 V~, 50/60 Hz
Power	425 W
Speeds	5 speeds + Turbo function
Included accessories	2 whisks, 2 spiral dough hooks
Turbo function	Yes, press and hold (max 1 minute)
Accessory coating	Teflon (careful with scratches)
Usage	Domestic only, not professional
Maximum continuous use time	5 minutes for whisks/hooks, then cool 20 min
Maximum quantity (example)	Up to 600 g of honey at -4°C, 100 g flour, 100 g maltose
Cleaning - Motor unit	Soft damp cloth, do not immerse
Cleaning - Accessories	Dishwasher or warm soapy water
Weight (approx)	1.2 kg (estimate)
Safety - Automatic shut-off	Manual shut-off via speed button at position 0
Safety - Child protection	Store out of reach, do not use by children
Compliance	WEEE (2012/19/EU), RoHS (2011/65/EU)
Storage	Cool and dry place, cord coiled
Compatible accessories	Original parts or manufacturer-recommended

Frequently Asked Questions - HMM 62404 W BEKO

How to use the Beko HMM 62404 W hand mixer?

Insert the whisks or dough hooks into the sockets until they lock. Plug in, place the accessories into the mixture, then set the speed from 1 to 5. Always start on a low speed to avoid splashing. Use the Turbo function by pressing and holding the button for extra power (max 1 min). After use, return the speed to 0 and unplug.

What is the power and power supply of the mixer?

The Beko HMM 62404 W mixer has a power of 425 W and operates on a power supply of 220-240 V~, 50/60 Hz.

How long can I use the mixer continuously?

For the whisks and spiral dough hooks, do not exceed 5 minutes of continuous use. After each cycle, let the appliance cool down for 20 minutes to avoid overheating.

How to clean the Beko HMM 62404 W mixer?

Unplug and let it cool down. The motor unit can be cleaned with a soft damp cloth (never immerse). The whisks and dough hooks can be washed in the dishwasher or with warm soapy water. Dry all parts before reassembling.

Does the mixer have a Turbo function?

Yes, the Turbo button provides temporary maximum speed. Press and hold it as long as needed, without exceeding 60 seconds.

Can I use non-Beko accessories?

It is recommended to use only original parts or those recommended by the manufacturer to ensure safety and performance. Using non-conforming accessories may void the warranty.

What types of preparations can I make?

The whisks are ideal for beating liquids (cake batter, sauce, soup). The spiral dough hooks are designed for kneading thicker doughs (bread dough, pizza dough). Do not use for hot, dry, or very hard foods.

How to store the mixer?

Unplug it. Wind the power cord as indicated on the appliance. Store it in a cool and dry place, out of reach of children. Avoid placing heavy objects on it.

What should I do if the mixer does not start?

Check that the appliance is plugged in and that the outlet works. Make sure the speed button is set to a position other than 0. If the problem persists, contact an authorized service center. Do not disassemble the appliance yourself.

Is this mixer suitable for professional use?

No, this appliance is designed for domestic use only. Professional or intensive use could damage it and void the warranty.

USER MANUAL HMM 62404 W BEKO

Stylized black-and-white icon of a flame inside a bowl (no text or symbols)

HMM 62404 W

EN / DE / FR / ES / IT / PL / SL / CS / SR / SQ / MK / RO / RU / AR

CONTENTS

ENGLISH	03-14
DEUTSCH 15-30
FRANÇAIS	31-42
ESPAÑOL 43-57
ITALIANO	58-71
POLSKI	72-85
SLOVENŠČINA	86-97
CZECH	98-109
СРБИН	110-121
SHQIPTARE	122-133
МАКЕДОНСКИ	134-146
ROMÂNĂ	147-162
RUSSIAN	163-181

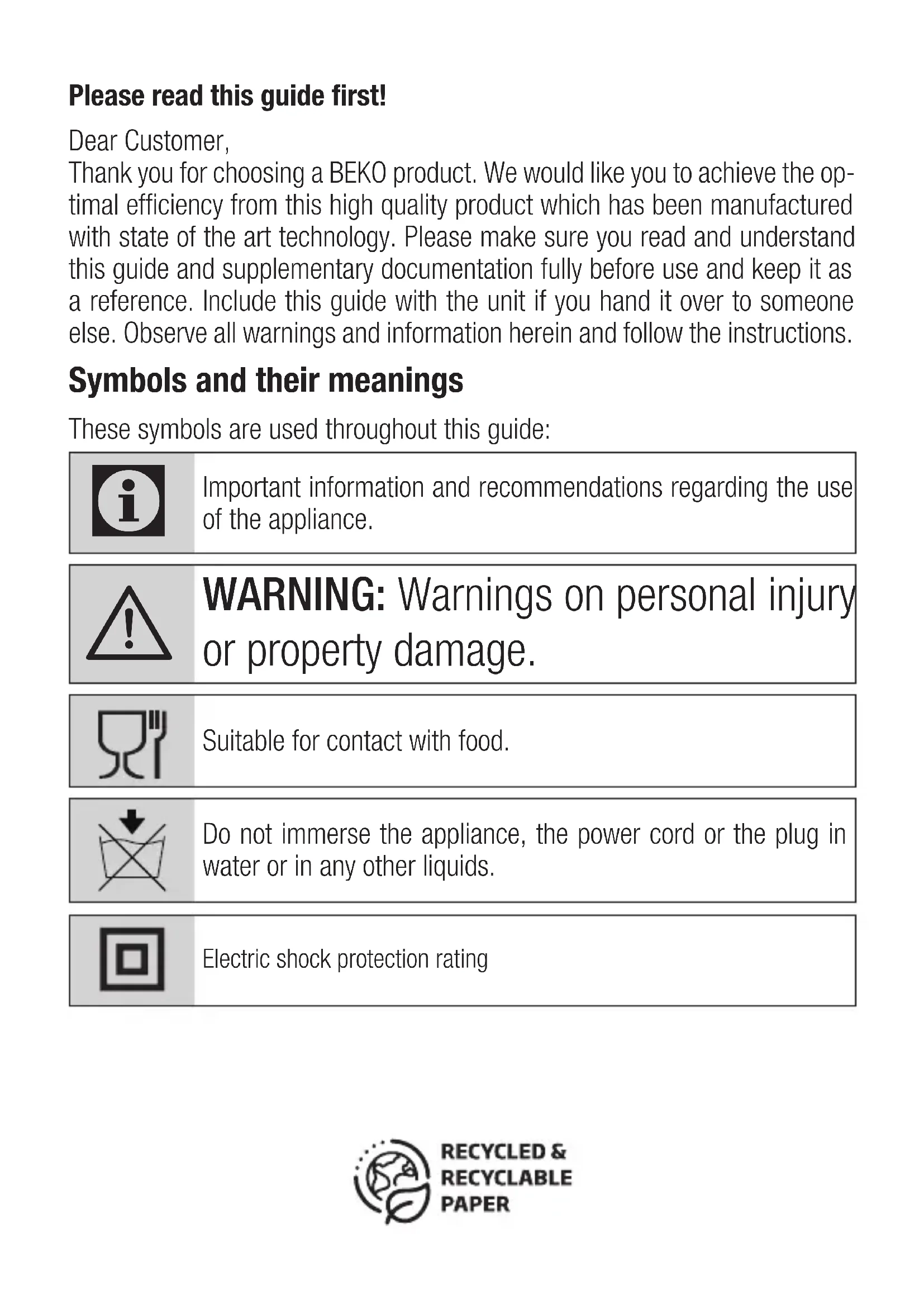

Please read this guide first!

Dear Customer,

Thank you for choosing a BEKO product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. Include this guide with the unit if you hand it over to someone else. Observe all warnings and information herein and follow the instructions.

Symbols and their meanings

These symbols are used throughout this guide:

Important information and recommendations regarding the use of the appliance.

WARNING: Warnings on personal injury or property damage.

Suitable for contact with food.

Do not immerse the appliance, the power cord or the plug in water or in any other liquids.

Electric shock protection rating

1 Important safety and environmental instructions

This section contains safety instructions to prevent hazards that can result in injury or property damage.

Any warranty is void if these instructions are not followed.

1.1 General safety

- This appliance complies with international safety standards.

- For the appliance to be used by persons with limited physical, emotional, or mental capacity or lacking knowledge and experience, such person must be supervised and have understood the instructions about the safe usage of the appliance and potential risks. Children should not tamper with the device. Cleaning and user maintenance operations should not be carried out by children.

•This appliance cannot be used by children.

- Store the appliance and its power cord out of the reach of children.

- Do not use the appliance if the power cord or the appliance is damaged. Contact authorized service.

1 Important safety and environmental instructions

• Unplug the appliance when it is left unattended, during attaching/removing accessories, and cleaning.
• Use only original parts or parts recommended by the manufacturer.
• Do not disassemble the appliance.
  -Your mains power supply shall be in align with the specified information on the type tag.
• Do not use the appliance with an extension cord.
• Do not unplug the appliance by pulling on the cord.
• Unplug the appliance before cleaning, disassembly, accessory fitting and wait until it is completely stopped.
• Do not touch the plug of the appliance while your hands are damp or wet.
• Do not use the appliance for hot foods.
  •To avoid damage on the appliance, remove bones and seeds from foods.
  •The appliance is not suitable for dry and hard foods.
  •To prevent overheating, do not use the beater

1 Important safety and environmental instructions

function continuously for more than 5 minutes. Between each 5 minutes of use, leave the appliance to cooling for 20 minutes.

• Follow each instruction to prevent injuries caused by misuse.
  •After cleaning, dry the appliance and every part before plugging in and attaching the parts.
• Do not immerse the appliance, the power cord or the plug in water or in any other liquids.
• Do not use the appliance or its parts on or near hot surfaces or put them on such surfaces.

• If you keep the packaging materials, keep them out of the reach of children.
  •Always use the appliance on a stable, flat, clean and dry surface.
  •This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments,

• farm houses, by clients in hotels, motels and other residential type environments,

1 Important safety and environmental instructions

- bed and breakfast type environments

- Do not squeeze or bend the power cord and do not rub in on sharp edges in order to prevent any damage. Keep the cord away from hot surfaces and open flames.

- Before using the appliance for the first time, clean all parts carefully which come into contact with food. Please see full details in the “Cleaning” section.

- Do not touch any moving parts of the appliance. Do not attach or remove the parts until the device comes to a complete stop.

1.2 Compliance with the WEEE Regulations and Waste Disposal

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer

1 Important safety and environmental instructions

where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Packaging information

The product's packaging is made of recyclable materials, in accordance with the National Legislation. Do not dispose the packaging waste with the household waste or other wastes, dispose it to the packaging collection areas specified by local authorities.

1.5 What to do for energy saving

Follow the times recommended in the manual during use. Unplug the cord of appliance after use.

2 Your blender

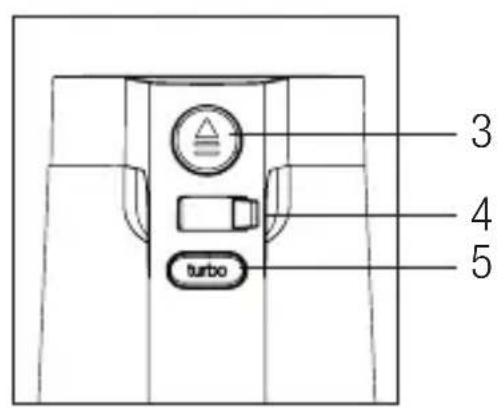

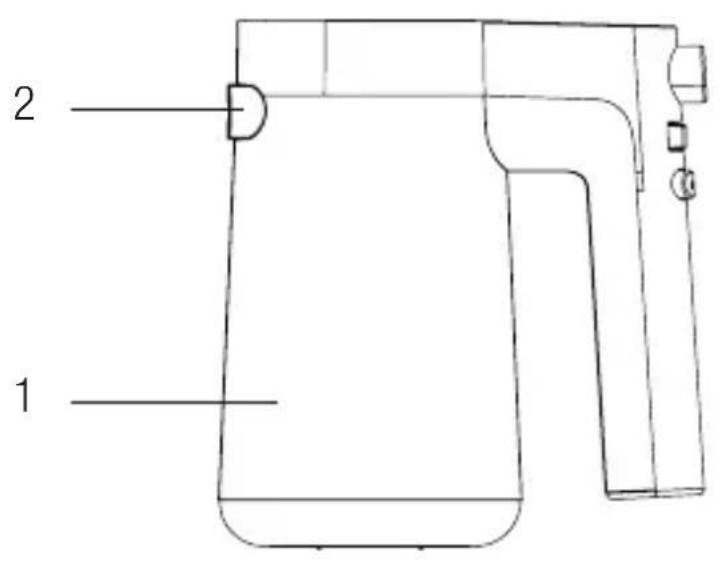

2.1 Overview

1 2

3 4 5 turbo

7a 7b 6a 6b

1. Motor unit
2. Accessory inlets
3. Accessory release button
4. Speed setting button
5. TURBO button
6. Beaters (6a/6b)
7. Dough hooks (7a/7b)

2.2 Technical Data

Voltage: 220-240 V\~, 50-60 Hz Power: 425 W

The rights to make technical and design changes are reserved.

2 Operation

2.1 Intended use

The appliance is intended for home use only, it is not suitable for professional use.

2.2 First operation

Clean the parts of the appliance before the first use.

2.3 Beater / Mixer

Illustration of a hand holding a handgun with a spring and a string, showing a tool and motion arrows (no text or symbols)

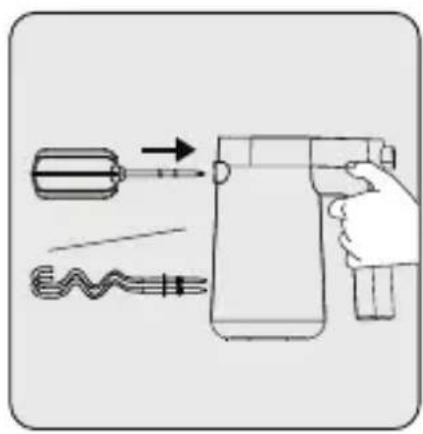

Insert beaters (6) or kneading hooks (7) into the inlets for beater (5) or kneading hook until they settle.

Diagram showing a hand pouring liquid into a container with an arrow pointing to a wall-mounted socket, indicating a process or measurement.

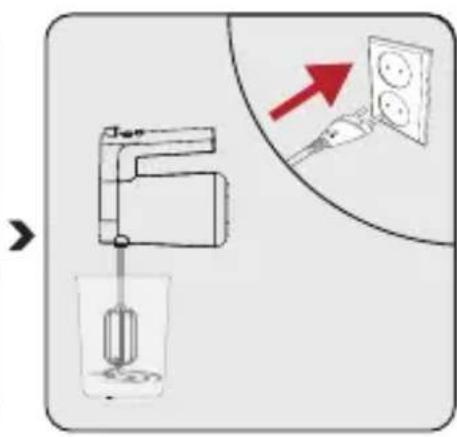

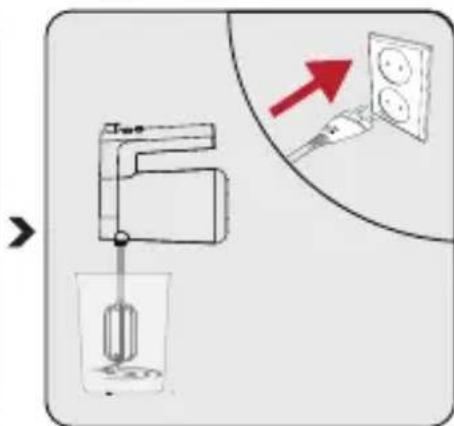

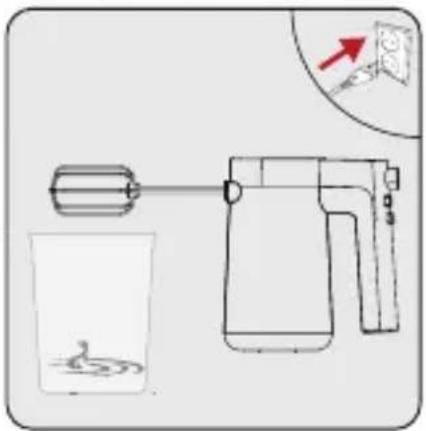

Plug in the power cord. Put the beaters (6) and the kneading hooks (7) into the batter before turning on the stick blender.

012345 1 2

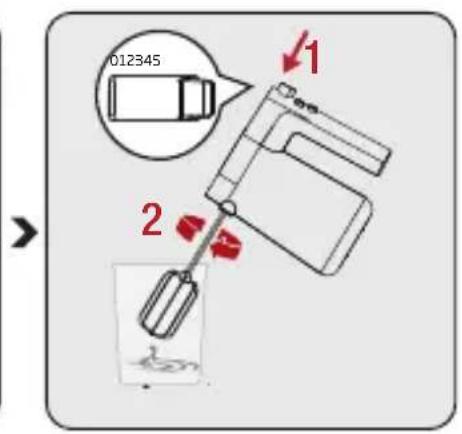

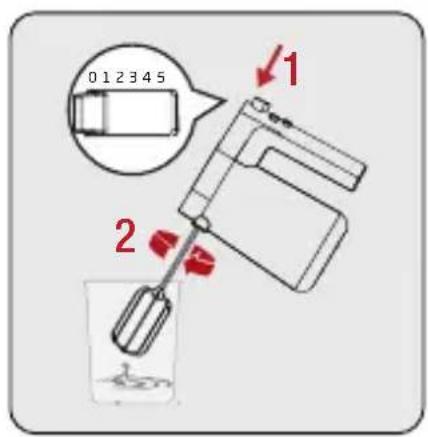

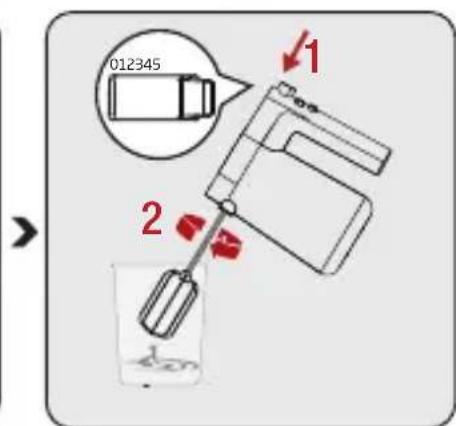

Speed setting is between 1 and 5. Increase the speed starting from level 1.

Do not use the beater and dough hooks together.

When mixing ingredients, start with a lower speed. Foods may spatter around if you start with high speed.

2 Operation

0 1 2 3 4 5 1 2

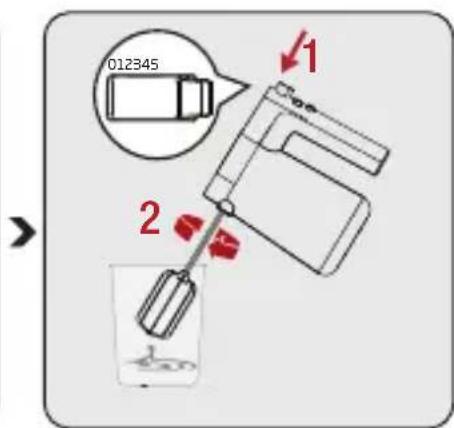

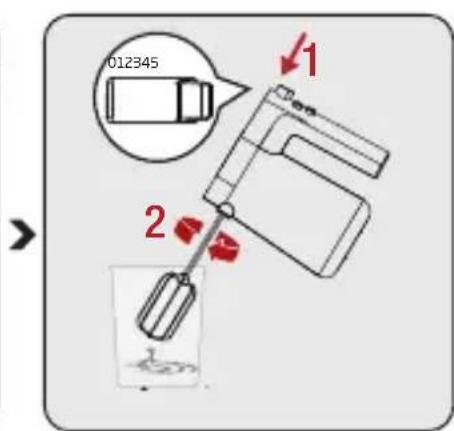

When the process is completed, leave the speed setting button at "0" position.

Diagram showing a water spray gun with a beaker and water droplet, accompanied by an instructional arrow.

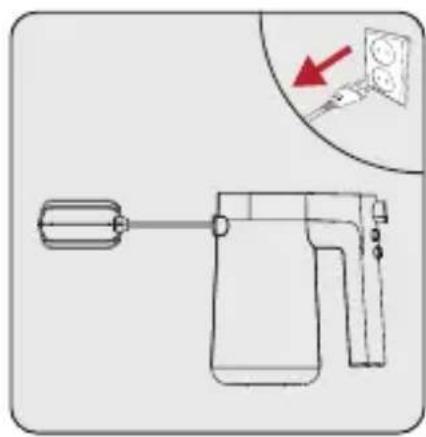

Wait until your appliance is completely stopped. Unplug and remove the beater/mixer accessories from the batter.

012345

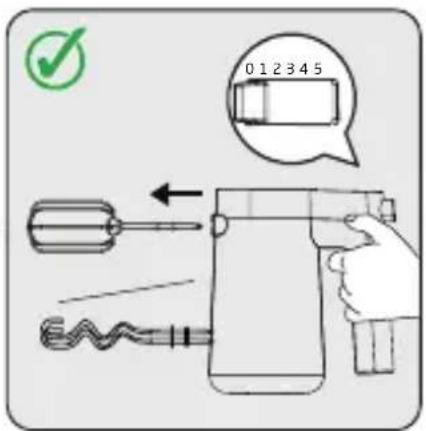

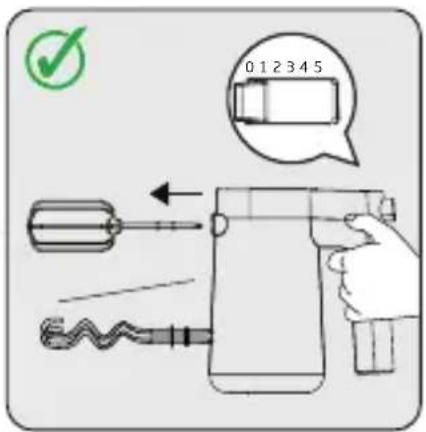

You can remove the beater and mixer accessories by pushing the accessory release button (3) when the power button is on "0" position.

2.3.1 Beaters

• Always use both beaters.
- Teflon coated containers may be scratched.

Use it to beat liquid ingredients like cake batter, sauce, soup.

2.3.2 Dough Hooks

• Always use both dough hooks.
- Teflon coated containers may be scratched.
- Use it for dough kneading.

2 Operation

2.4 TURBO button

Push and hold the TURBO button when you need sudden high speed, and unhold when you no longer need.

Do not use the TURBO feature for longer than 1 minute.

2.5 Maximum quantities and processing time

Food Type Weight		Operation time	Speed adjustment
Maltose 100g
Honey 600g (-4°C)		15 s Turbo
Wheat flour 100 g

3 Cleaning and maintenance

3.1 Cleaning

Do not use benzene, solvents, abrasive cleaners, metal objects or hard brushes to clean the appliance.

Line drawing of a hand washing machine with a magnified inset showing a close-up of the device (no text or symbols)

Turn the appliance off and unplug it. Wait for the appliance to completely cool down.

Line drawing of a hand cleaning a small electronic device (no text or symbols)

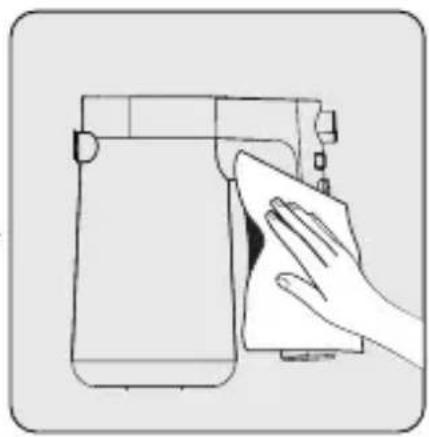

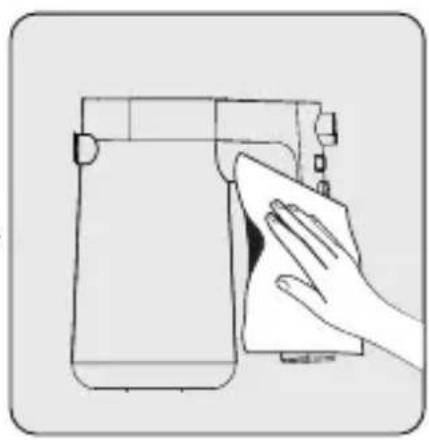

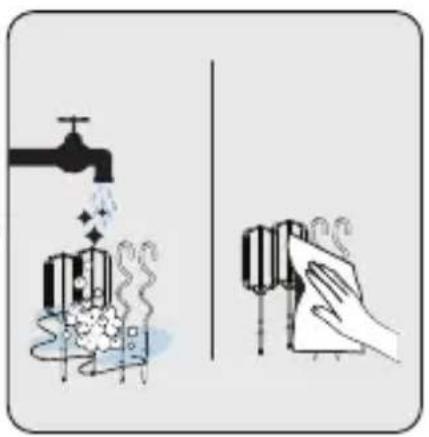

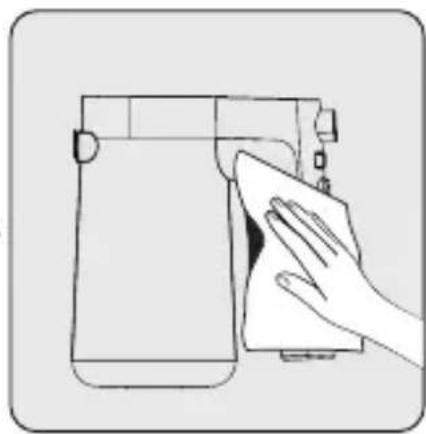

- Use a soft, damp cloth to clean the engine unit.

Illustration showing a faucet spraying water onto a showerhead and cleaning a surface with a hand cleaning the surface (no text or symbols)

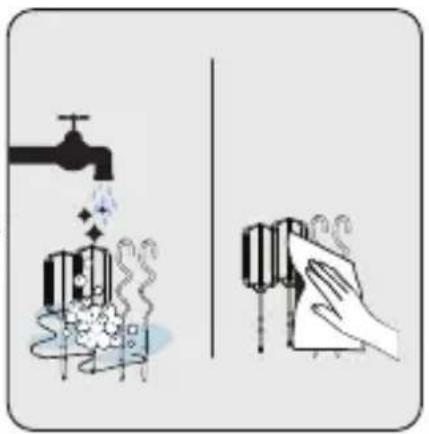

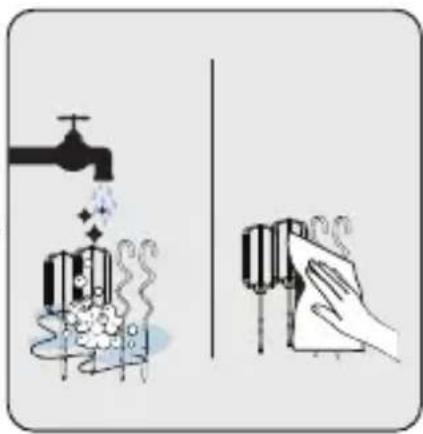

You may clean the beaters (6) and dough hooks using some dish washing soap and hot water or in dishwasher. Afterwards, completely dry each part.

Beaters and dough hooks are dishwasher-safe.

3 Cleaning and maintenance

3.2 Storage

- If you do not intend to use the appliance for a long time, store it carefully.

• Unplug the appliance before putting away.
• Store the appliance in a cool dry place.
• Store the appliance and its cord out of the reach of children.
• Store the power cord should be same as below picture.

Line drawing of a portable electric shaver with power outlet and cable (no text or symbols)

3.3 Transport and shipping

• During transport and shipping, carry the appliance with its original packaging. The packaging of the appliance will protect the appliance against physical damage.
• Do not put heavy objects on the appliance or its packaging. Otherwise the appliance may be damaged.
• If the appliance is dropped, the appliance may not operate or permanent damage may occur.

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Recycling symbol with four chasing arrows forming a triangle (no text or labels)

7a 7b 6a 6b

Diagram showing a water spray gun with liquid, including an inset image of a device with a red arrow and label.

Line drawing of a hand washing machine with a magnified inset showing a close-up of the device (no text or symbols)

Line drawing of a hand cleaning a small machine (no text or symbols)

Illustration showing a faucet spraying water onto a showerhead and cleaning a surface with a hand cleaning the surface (no text or symbols)

Line drawing of a portable electric shaver with power outlet and cable (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

7a 7b 6a 6b

Illustration of a hand holding a handgun with a tool and a spring, showing motion direction (no text or symbols)

Diagram showing a hand mixer with a magnified view of the socket, indicating electrical power or appliance connection.

Diagram illustrating a spray gun with water spray and a beaker, showing a water droplet and an inset image of a spray bottle.

Line drawing of a hand washing machine with a magnified inset showing a close-up of the handle (no text or symbols)

Line drawing of a hand cleaning a small electronic device (no text or symbols)

Diagram illustrating a water filtration or cleaning process with a faucet, filter, and cloth swabbing steps.

Line drawing of a portable electric shaver with power outlet and cable (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

7a 7b 6a 6b

Illustration of a hand holding a handgun with a spring and a string, showing motion direction (no text or symbols)

Diagram showing a hand pouring liquid into a beaker with a magnified inset showing a plug inserted into a wall socket, with a red arrow indicating direction.

Diagram showing a spray gun with water droplets and a beaker, accompanied by an instructional arrow.

Line drawing of a hand washing machine with a pull rod and handle, showing a close-up of the handle (no text or symbols)

Line drawing of a hand cleaning a small electronic device (no text or symbols)

Illustration showing a faucet spraying water into a container with bubbles, and a hand cleaning a surface with a cloth (no text or symbols)

Line drawing of a handheld electric shaver with power outlet and cable (no text or symbols)

Warning symbol with crossed-out trash bin and no text or numbers

Illustration of a hand holding a handheld device with a tool and cable, no text or symbols present

Diagram showing a hand washing a water pump with an arrow indicating direction, alongside an electrical outlet diagram.

Diagram showing a hand tool spraying water into a beaker with a swivel, accompanied by an instructional arrow and a small inset image of a device.

Line drawing of a hand tool with a magnified inset showing a close-up of the handle (no text or symbols)

Line drawing of a hand cleaning a small electronic device with a cloth (no text or symbols)

Diagram illustrating a water treatment procedure with faucet, condenser, and cleaning tool

Line drawing of a portable electric shaver with power outlet and cable (no text or symbols)

Prohibition sign with crossed-out trash bin and no text or symbols

Illustration of a hand holding a handheld device with a tool and cable, no text or symbols present

Diagram showing a hand washing a water pump with an arrow pointing to a wall-mounted electrical outlet, alongside a beaker with liquid and a magnified view.

Diagram showing a spray gun with liquid being poured into a beaker, accompanied by an instructional arrow and a magnified view of the device.

Line drawing of a hand washing machine with an inset showing a close-up of its handle (no text or symbols)

Line drawing of a hand cleaning a small electronic device with a cloth (no text or symbols)

Diagram illustrating a water treatment procedure with faucet, condenser, and cleaning tool

Line drawing of a portable electric shaver with power outlet and cable (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

7a 7b 6a 6b

Illustration of a hand holding a handgun with a tool and a spring, showing motion direction (no text or symbols)

Metlice za stepanje (6) ali metlice za gnetenje (7) vsta-vite v vhode (5) za stepalnik ali za metlice za gnetenje, dokler se ne usedejo.

Diagram showing a hand mixer with a magnified view of the socket, indicating electrical circuit setup.

Diagram showing a spray gun with liquid being poured into a beaker, accompanied by an instructional arrow and a small inset image of a device.

Počakajte, da se naprava popolnoma ustavi. Izključite iz napajanja in odstranite metlice za stepanje/metlice iz testa.

0 1 2 3 4 5

Line drawing of a hand tool with a magnified inset showing a close-up of the handle (no text or symbols)

Line drawing of a hand cleaning a sewing machine with a cloth (no text or symbols)

Diagram illustrating a water treatment process with faucet, condenser, and cleaning tool, showing environmental change and cleaning steps.

Line drawing of a portable electric shaver with power outlet and cable (no text or symbols)

3.3 Prevoz in dostava

Symbol of a waste bin crossed out by a diagonal line, with no text or numbers present.

7a 7b 6a 6b

Illustration of a hand holding a handheld device with a tool and cable, no text or symbols present

Diagram showing a hand washing a water pump with an arrow indicating the process, alongside an inset image of a wall socket.

Diagram of a handwashing machine with a beaker and water drop, showing no text or symbols

Line drawing of a hand tool with a magnified inset showing a close-up of the handle (no text or symbols)

Line drawing of a hand cleaning a small electronic device with a cloth (no text or symbols)

Diagram illustrating a water filtration or cleaning procedure with a faucet, filter, and hand cleaning a surface.

Line drawing of a portable electric shaver with power outlet and cable (no text or symbols)

Prohibition sign with crossed-out trash bin and no text or symbols

Ovaj simbol označava da se ovaj proizvod ne sme odlagati zajedno s ostalim kućnim otpadom na kraju njegovog radnog veka. Korišćeni uređaj mora se vratiti na službeno mesto za sakupljanje za recikliranje električnih i elektronskih uređaja. Da biste pronašli ove sisteme za sakupljanje, obratite se lokalnim vlastima ili prodavcu gde je proizvod kupljen. Svako domaćinstvo ima

Illustration of a hand holding a handgun with a tool and a spring, showing motion direction (no text or symbols)

Ubacite mutilice (6) ili spirale za mešenje (7) u ulaze (5) za mutilice ili spirale za mešenje dok ih ne umetnete u odgovarajući položaj.

Diagram showing a hand mixer with a magnified view of the socket, indicating electrical connection or power supply.

Priključite kabl za napajanje. Stavite mutilice (6) ili spirale za mešenje (7) u testo pre nego što uključite štapni blender.

012345 1 2

Brzina se može podesiti između 1 i 5. Povećavajte brzinu počev od nivoa 1.

Diagram of a spray gun with a beaker and water droplet, showing no text or symbols

Line drawing of a handwashing device with an inset showing a close-up of its electrical outlet (no text or symbols)

Line drawing of a hand cleaning a washing machine (no text or symbols)

- Za čišćenje jedinice motora koristite samo mekanu, vlažnu krpu.

Illustration showing a faucet spraying water with bubbles and a hand cleaning a surface (no text or symbols)

Mutilice (6) i spirale za mešenje testa možete očistiti deterdžentom za pranje posuđa i vrućom vodom ili ih možete prati u mašini za pranje posuđa. Posle toga svaki deo potpuno osušite.

Mutilice i spirale za mešenje testa mogu se prati u mašini za pranje posuđa.

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

7a 7b 6a 6b

Illustration of a hand holding a handheld device with a tool and a spring-like object nearby (no text or symbols)

Diagram showing a hand mixer with a magnified view of the socket, indicating electrical circuit setup.

Simple line drawing of a spray gun with a beaker and water droplet, no text or symbols present

Line drawing of a hand tool with a magnified inset showing a close-up of the handle (no text or symbols)

Line drawing of a hand cleaning a small electronic device (no text or symbols)

Illustration showing a faucet spraying water onto a sink with bubbles rising, and a hand cleaning a surface with a cloth (no text or symbols)

Line drawing of a portable electric shaver with power outlet and cable (no text or symbols)

Prohibition sign with crossed-out trash bin and no text or symbols

7a 7b 6a 6b

Illustration of a hand holding a spray gun with a spring and a tool, showing motion direction (no text or symbols)

Diagram illustrating a mechanical device being inverted over a wall-mounted electrical socket, with an arrow indicating the process.

012345 1 2

Diagram showing a hand tool pressing liquid into a beaker with water, accompanied by an instructional arrow and a small inset image of a device.

Line drawing of a hand washing machine with an inset showing a close-up of its handle (no text or symbols)

Line drawing of a hand cleaning a device with a cloth (no text or symbols)

Illustration showing a faucet spraying water with bubbles and a hand cleaning a surface (no text or symbols)

Prohibition sign with crossed-out trash bin and no text or symbols

7a 7b 6a 6b

Illustration of a hand holding a handgun with a tool and a spring, showing motion direction (no text or symbols)

Diagram showing a hand mixer with a magnified view of the socket, indicating electrical connection or power supply.

Diagram of a hand tool and beaker with a water droplet, showing a water droplet inside (no text or symbols)

Line drawing of a hand tool with a magnified inset showing a switch and electrical socket (no text or symbols)

Line drawing of a hand cleaning a small electronic device with a cloth (no text or symbols)

Illustration showing a faucet spraying water onto a tank with steam rising, and a hand cleaning a surface with a cloth (no text or symbols)

Line drawing of a portable electric shaver with power outlet and cable (no text or symbols)

Simple black-and-white icon of a flame or water droplet above a crown (no text or symbols)

HMM 62404 W

RU

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

7a 7b 6a 6b

Illustration of a hand holding a spray gun with a spring and a tool, showing motion direction (no text or symbols)

Diagram showing a hand pouring liquid into a beaker with a magnified inset showing a plug inserted into a wall socket, with a red arrow indicating direction.

012345 1 2

Line drawing of a hand pump device with a beaker and water drop, showing no text or symbols

Line drawing of a hand washing machine with a pull rod and a magnified inset showing a switch (no text or symbols)

Line drawing of a hand cleaning a small electronic device with a cloth (no text or symbols)

Illustration showing a faucet spraying water into a container with bubbles, and a hand cleaning a surface with a cloth (no text or symbols)

Line drawing of a handheld device with a power outlet and cable (no text or symbols)

(Guangdong XINBAO Electrical Appliances Holdings Co., Ltd. South Zhenghe Road, Leliu Town, Shunde District, Foshan City, Guangdong, China Tel: [phone]) Китай

Stylized black-and-white icon of a flame or droplet above a crown (no text or symbols)

HMM 62404 W

AR

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

1-3 معلومات التغليف

7a 7b 6a 6b

Illustration of a hand holding a spray gun with a tool, showing motion and assembly (no text or symbols)

Diagram illustrating a hand tool interacting with a wall-mounted power socket, with an arrow indicating direction of movement.

Diagram of a handwashing machine with a beaker and water bottle, showing a magnified view of the device (no text or symbols present)

Line drawing of a hand washing machine with a pull rod and a magnified inset showing a close-up of the device (no text or symbols)

Line drawing of a hand cleaning a washing machine (no text or symbols)

Illustration showing a faucet spraying water with bubbles and a hand cleaning a surface (no text or symbols)

Line drawing of a portable electronic device with a power outlet and cable (no text or symbols)

3.3 النقل والشحن
