Brand	Westinghouse
Model	WGen20000c
Product Type	Generator
Rated Output (Running Watts)	20,000 Watts
Peak Output	28,000 Watts
Rated Voltage	120/240 V
Rated Frequency	60 Hz @ 3600 rpm
Phase	Single Phase
Engine Displacement	999 cc
Fuel Type	Unleaded gasoline 87-93 octane (up to 10% ethanol)
Fuel Tank Capacity	17 gallons (64 liters)
Oil Capacity	2.4 US quarts (2.3 liters)

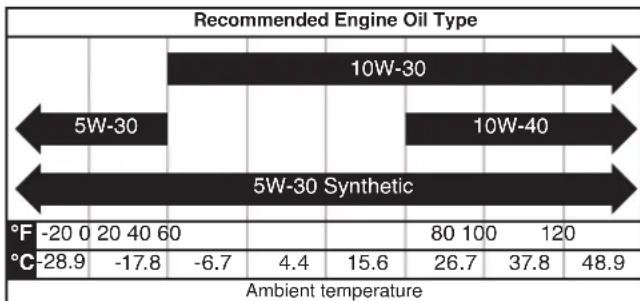

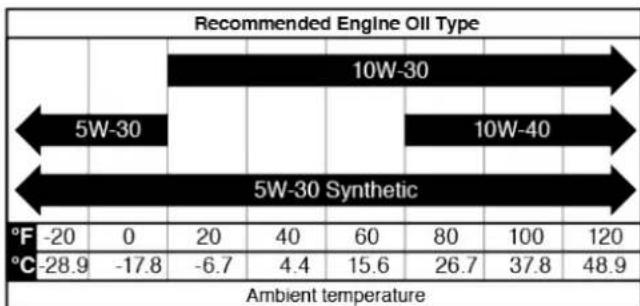

Recommended Oil Type	SAE 10W-30
Starting Method	Remote start and push-button start
Certifications	EPA
Voltage Regulator	AVR (Automatic Voltage Regulation)
CO Sensor	Yes, with auto shutdown and indicator lights
Idle Control	Yes, to save fuel and reduce noise
Main Circuit Breaker	83 amps
Available Outlets	GFCI NEMA 5-20R (2×), NEMA L14-30R, NEMA L5-30R, NEMA 14-50R

Frequently Asked Questions - WGen20000c WESTINGHOUSE

What is the rated and peak power of the Westinghouse WGen20000c generator?

The rated output (running watts) is 20,000 Watts and the peak output is 28,000 Watts.

How do I start the generator?

Make sure the generator is outdoors on a flat surface, with oil and fuel. Turn the battery switch to ON, then use the START/STOP button (press for 2 seconds) or the remote control (hold START for 1 second).

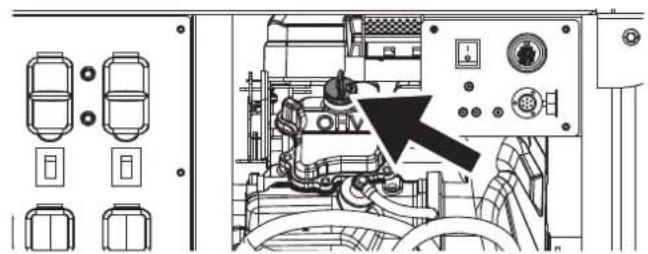

What type of engine oil should I use and how do I check the level?

Use SAE 10W-30 oil for typical use. Check the level before each use with the dipstick. The level should be between the marks on the dipstick. The total capacity is 2.4 US quarts (2.3 liters).

How often should I clean the air filter?

Clean the air filter every 50 hours of use or every six months. In dusty environments, clean more often. Use compressed air; do not immerse in liquids.

What should I do if the red CO light comes on and the generator shuts off?

This indicates a buildup of carbon monoxide. Immediately move the generator to an open outdoor area away from doors, windows, and vents. Once moved to a safe area, you can restart the generator.

Can I use this generator indoors?

No, never. Indoor use (home, garage, basement) can kill in minutes due to carbon monoxide. Use only outdoors, at least 6 meters from openings.

What is the fuel tank capacity and what fuel should I use?

The tank has a capacity of 17 gallons (64 liters). Use clean, fresh unleaded gasoline with 87 to 93 octane, containing up to 10% ethanol. Do not use E15 or E85.

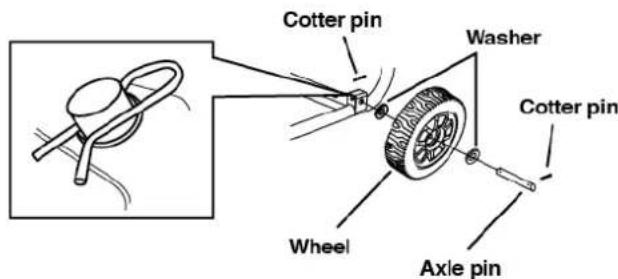

How do I install the wheels on the generator?

Use the supplied lifting hook to lift one side of the generator. Attach the wheels with the axles and pins. The wheels are for manual transport only, not for towing.

What should I do if the engine doesn't start?

Check the oil level, fuel, and air filter. If the engine is flooded, wait 5 minutes, turn off the battery, and pull the recoil starter several times. If the problem persists, contact customer service at 1-855-944-3571.

How do I store the generator for a long period?

Let it cool for 30 minutes, drain the fuel or add a stabilizer, clean debris, disconnect the battery, and cover the generator in a dry, ventilated place. Avoid plastic covers that trap moisture.

USER MANUAL WGen20000c WESTINGHOUSE

Gasoline: 20,000 Running Watts | 28,000 Peak Watts

DO NOT RETURN THIS PRODUCT TO THE STORE

If you have questions or need assistance, please call customer service at 855-944-3571.

INTRODUCTION

TABLE OF CONTENTS

INTRODUCTION

DISCLAIMERS 2

ALL RIGHTS RESERVED. 2

SPECIFICATIONS. 3

SAFETY

SAFETY DEFINITIONS. 4

SAFETY SYMBOLS 4

SAFETYINSTRUCTIONS 5

CO SENSOR. 7

ACTION LABEL. 7

CONTROL PANEL CO AUTO-SHUTOFF

SAFETY LABELS AND DECALS. 8

COMPONENTS

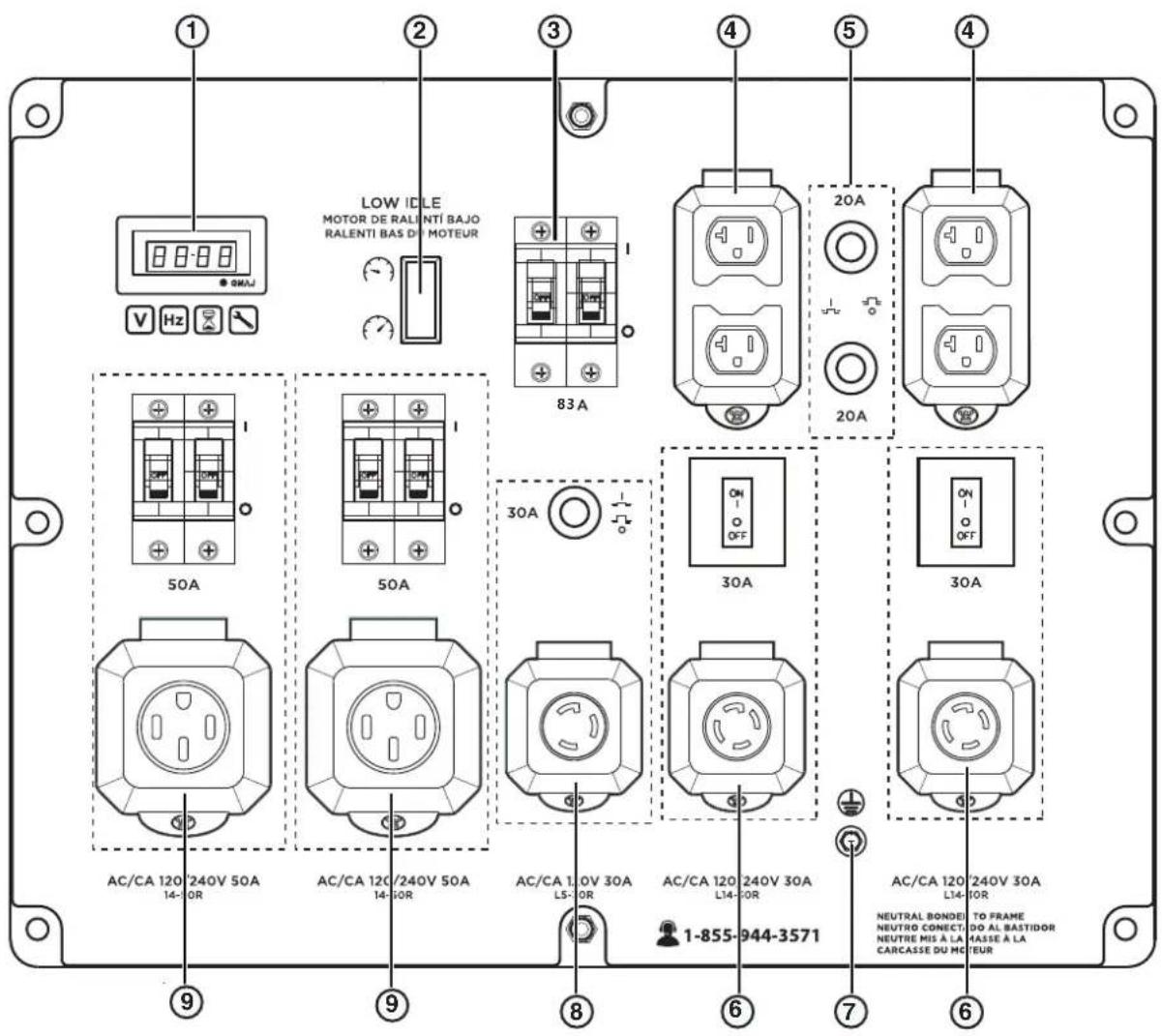

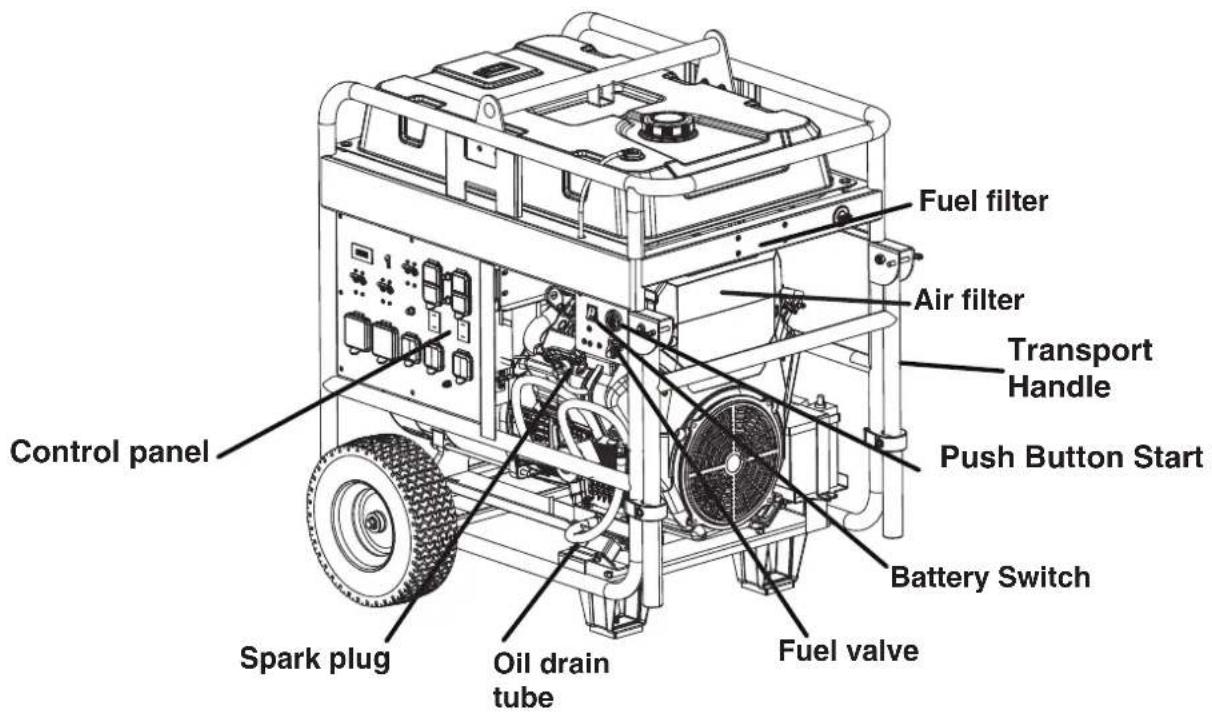

GENERATOR COMPONENTS 9

CONTROL PANEL COMPONENTS. 10

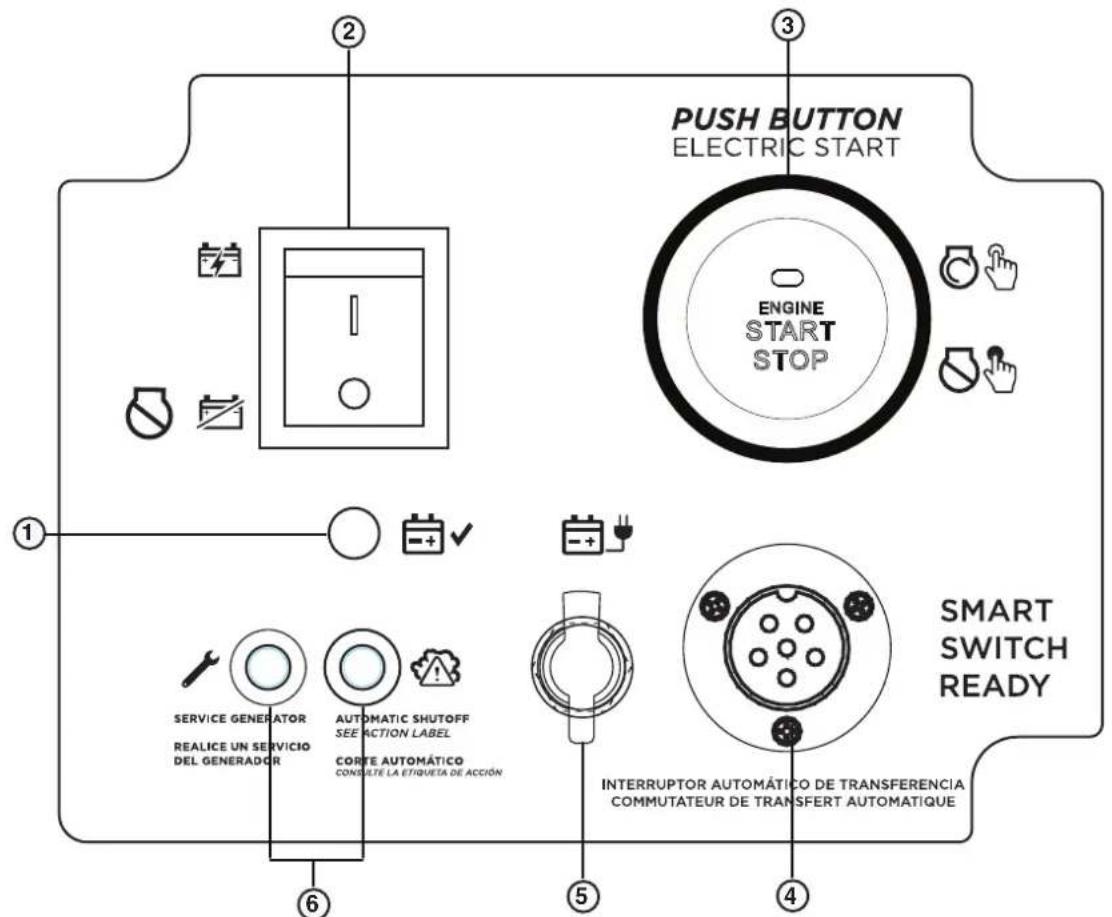

ELECTRIC START COMPONENTS 11

DATA CENTER. 12

WARNING: Operating, servicing, and maintaining this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, and wear gloves or wash your hands frequently when servicing this equipment. For more information go to www.P65 warnings.ca.gov.

DISCLAIMERS

All information, illustrations, and specifications in this manual were in effect at the time of publishing. The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specification or design change without notice.

STOPPING THE ENGINE 18

FREQUENCY OF USE 18

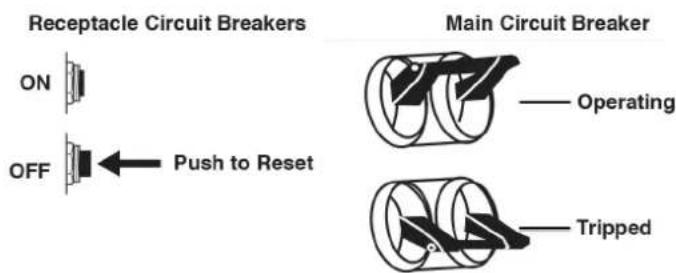

AC CIRCUIT BREAKERS 18

POWER MANAGEMENT. 19

EXTENSION CORDS 19

TRANSPORTING 20

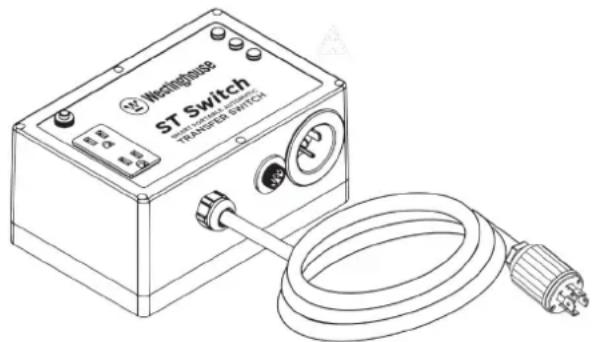

ST SWITCH. 20

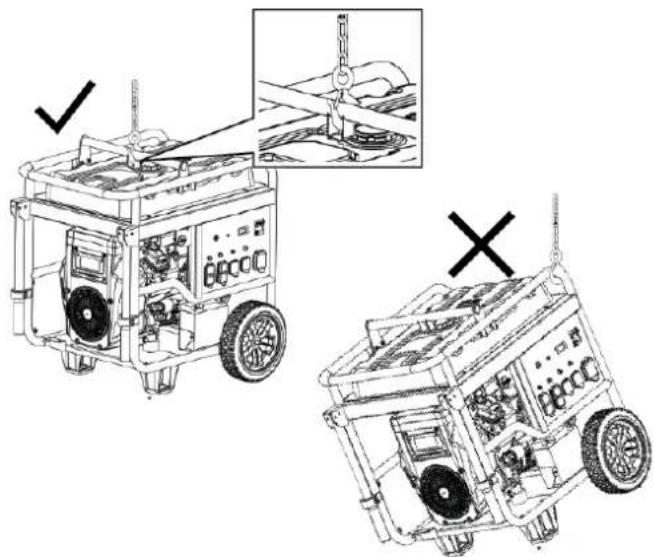

LIFTING HOOK 21

MAINTENANCE

MAINTENANCE SCHEDULE 22

MAINTENANCE REPLACEMENT PARTS 22

AIR FILTER MAINTENANCE 22

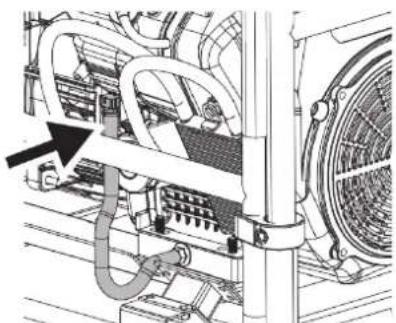

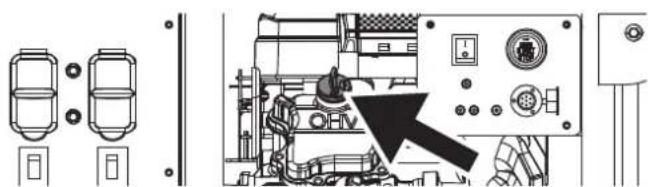

ENGINE OIL CHANGE 23

SPARK PLUG MAINTENANCE 23

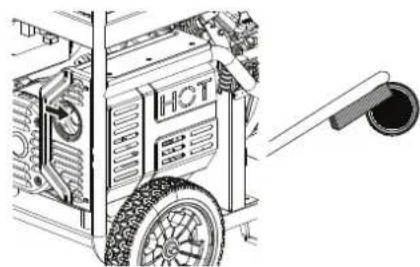

SPARK ARRESTOR SERVICE 24

FUEL FILTER 24

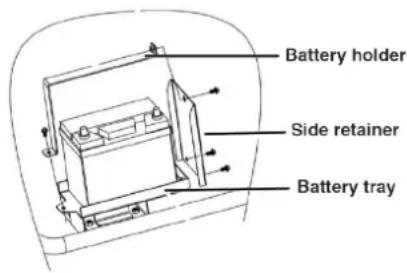

BATTERY MAINTENANCE 24

BATTERY REPLACEMENT 25

STORAGE 25

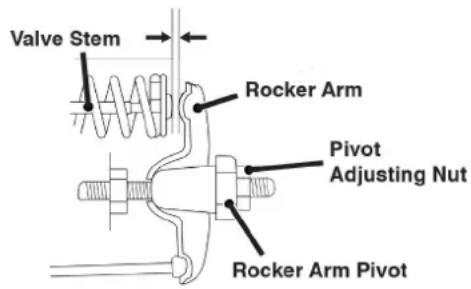

VALVE CLEARANCE 26

TROUBLESHOOTING

TROUBLESHOOTING 27

EXPLODED VIEWS AND PARTS Lists

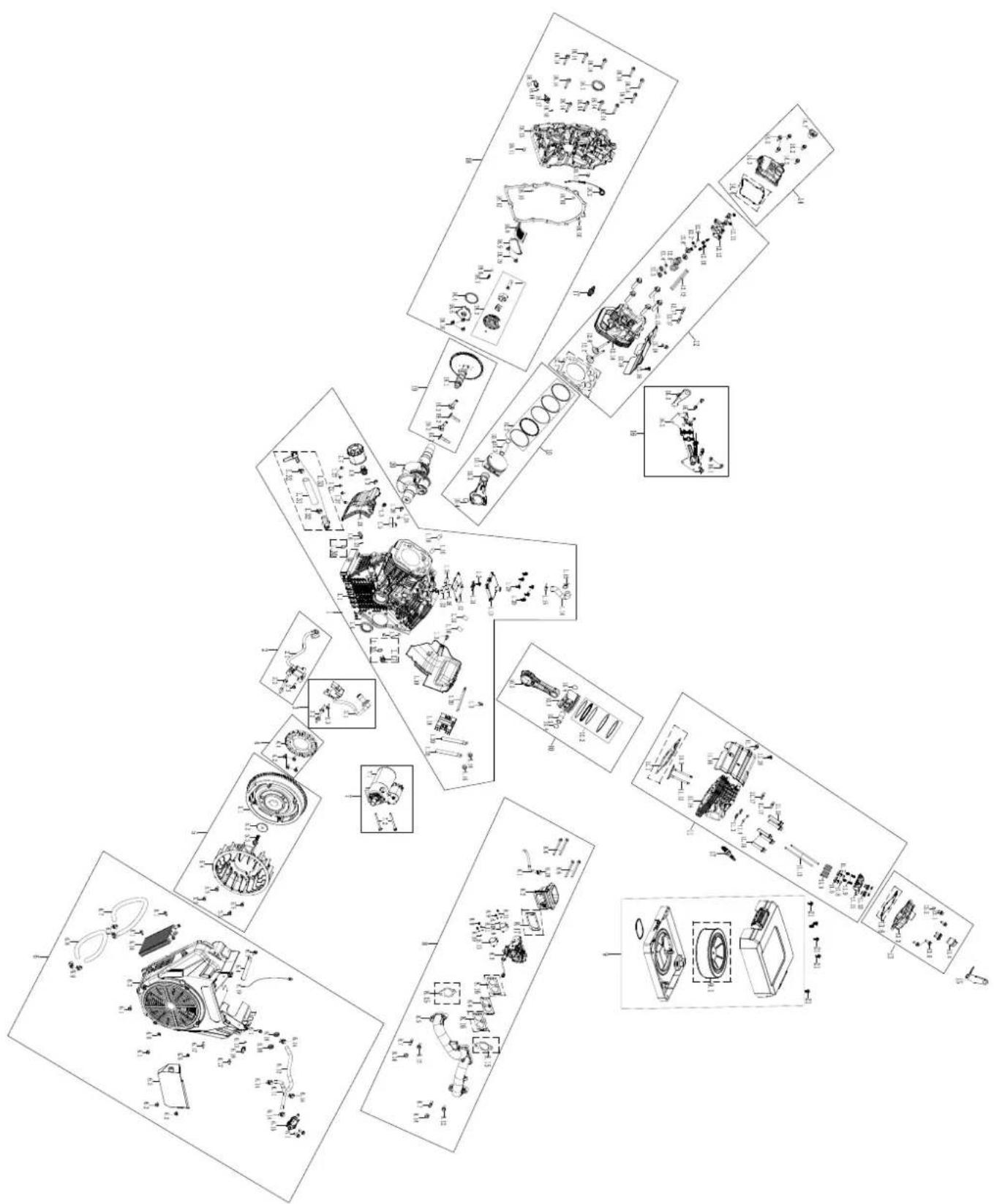

ENGINE EXPLODED VIEW 28

ENGINE PARTS LIST 29

ENGINE PARTS LIST CONTINUED. 30

GENERATOR EXPLODED VIEW 32

GENERATOR PARTS LIST 33

GENERATOR PARTS LIST CONTINUED 34

SCHEMATICS

SCHEMATICS 36

ESPANOL 37

FRANCAIS 64

ALL RIGHTS RESERVED

All rights reserved. No reproduction allowed in any form without written permission from Westinghouse Outdoor Power Equipment, LLC.

DANGER

Read this manual before using or performing maintenance on this product. Failure to follow the instructions and safety precautions in this manual can result in serious injury or death.

SAVE THESE INSTRUCTIONS

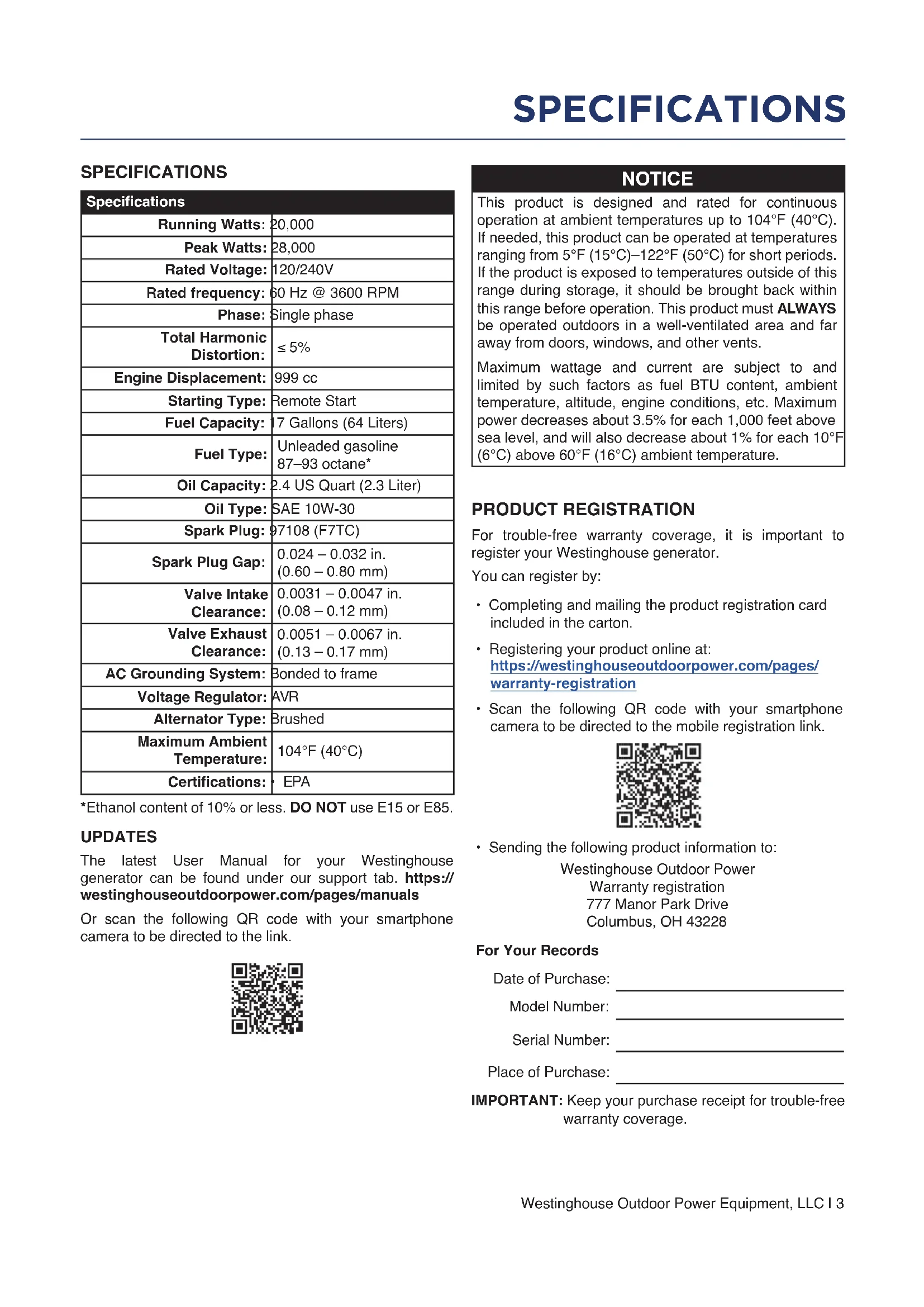

SPECIFICATIONS

Specifications
Running Watts:	20,000
Peak Watts:	28,000
Rated Voltage:	120/240V
Rated frequency:	60 Hz @ 3600 RPM
Phase:	Single phase
Total Harmonic Distortion:	≤ 5%
Engine Displacement:	999 cc
Starting Type:	Remote Start
Fuel Capacity:	17 Gallons (64 Liters)
Fuel Type:	Unleaded gasoline 87-93 octane*
Oil Capacity:	2.4 US Quart (2.3 Liter)
Oil Type:	SAE 10W-30
Spark Plug:	97108 (F7TC)
Spark Plug Gap:	0.024 - 0.032 in. (0.60 - 0.80 mm)
Valve Intake Clearance:	0.0031 - 0.0047 in. (0.08 - 0.12 mm)
Valve Exhaust Clearance:	0.0051 - 0.0067 in. (0.13 - 0.17 mm)
AC Grounding System:	Bonded to frame
Voltage Regulator:	AVR
Alternator Type:	Brushed
Maximum Ambient Temperature:	104°F (40°C)
Certifications:	EPA

*Ethanol content of 10% or less. DO NOT use E15 or E85.

UPDATES

The latest User Manual for your Westinghouse generator can be found under our support tab. https://westinghouseoutdoorpower.com/pages/manuals

Or scan the following QR code with your smartphone camera to be directed to the link.

NOTICE

This product is designed and rated for continuous operation at ambient temperatures up to 104^ (40^) . If needed, this product can be operated at temperatures ranging from 5^ (15^) - 122^ (50^) for short periods. If the product is exposed to temperatures outside of this range during storage, it should be brought back within this range before operation. This product must ALWAYS be operated outdoors in a well-ventilated area and far away from doors, windows, and other vents.

Maximum wattage and current are subject to and limited by such factors as fuel BTU content, ambient temperature, altitude, engine conditions, etc. Maximum power decreases about 3.5% for each 1,000 feet above sea level, and will also decrease about 1% for each 10^ (6^) above 60^ (16^) ambient temperature.

PRODUCT REGISTRATION

For trouble-free warranty coverage, it is important to register your Westinghouse generator.

You can register by:

• Completing and mailing the product registration card included in the carton.
• Registering your product online at: https://westinghouseoutdoorpower.com/pages/warranty-registration
• Scan the following QR code with your smartphone camera to be directed to the mobile registration link.

• Sending the following product information to:

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

For Your Records

Date of Purchase:

Model Number:

Serial Number:

Place of Purchase:

IMPORTANT: Keep your purchase receipt for trouble-free warranty coverage.

SAFETY

SAFETY DEFINITIONS

The words DANGER, WARNING, CAUTION, and NOTICE are used throughout this manual to highlight important information. Make sure that the meanings of this safety information is known to all who operate, perform maintenance on, or are near the generator.

This safety alert symbol appears with most safety statements. It means attention, become alert, your safety is involved! Please read and abide by the message that follows the safety alerts symbol.

DANGER

Indicates a hazardous situation which, if not avoided will result in death or serious injury.

WARNING

Indicates a hazardous situation which, if not avoided could result in death or serious injury.

CAUTION

Indicates a hazardous situation which, if not avoided could result in minor or moderate injury.

NOTICE

Indicates a situation which can cause damage to the generator, personal property, and/or the environment, or cause the equipment to operate improperly.

Note: Indicates a procedure, practice or condition that should be followed for the generator to function in the manner intended.

SAFETY SYMBOLS

Follow all safety information contained in this manual and on the generator.

Symbol Description
!	Safety Alert Symbol
	Electrocution Hazard
	Asphyxiation Hazard
	Burn Hazard. DO NOT touch hot surfaces.
	Electrical Shock Hazard
	Fire Hazard
	Maintain Safe Distance
	Lifting Hazard
	Read Manufacturer's Instructions
	DO NOT Operate in Wet Conditions

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

SAFETY INSTRUCTIONS

CORRECT USE

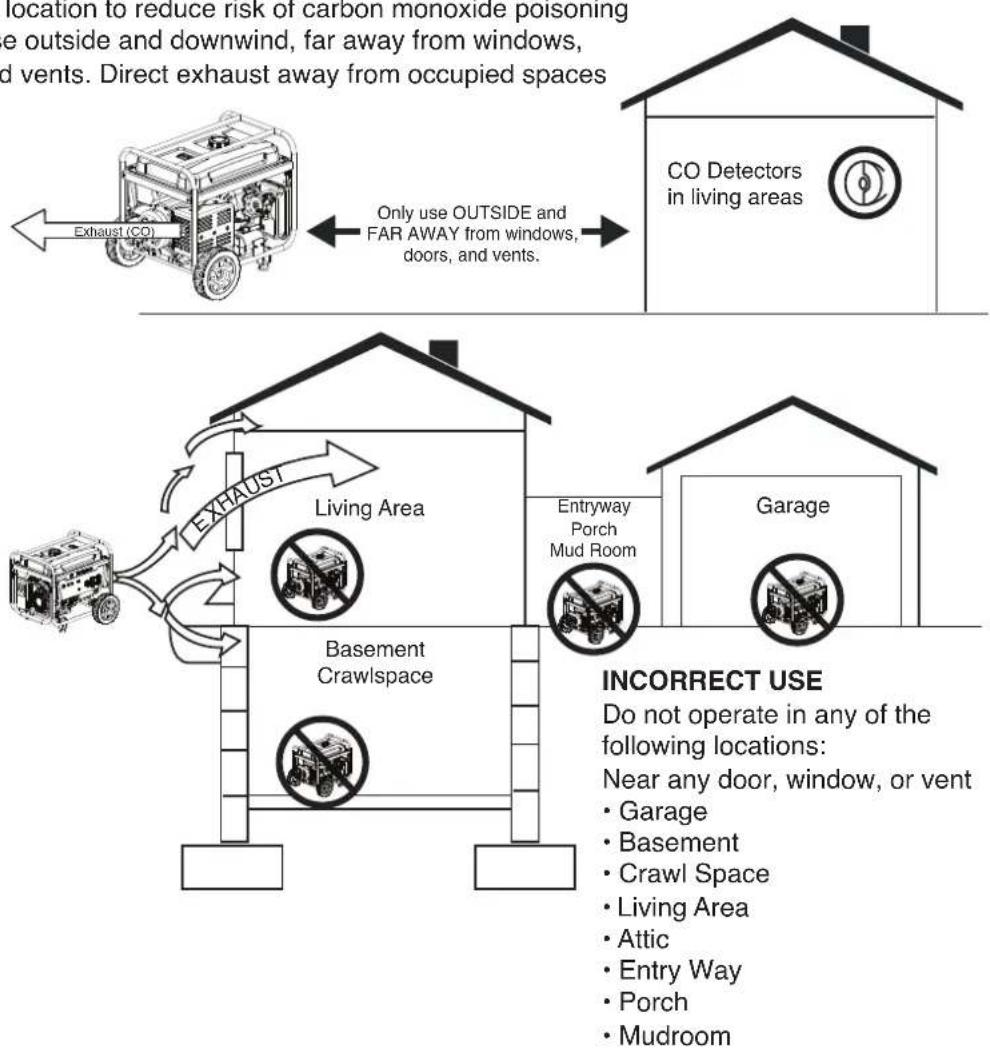

Example location to reduce risk of carbon monoxide poisoning ONLY use outside and downwind, far away from windows, doors and vents. Direct exhaust away from occupied spaces

NOTICE

Install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas.

DANGER

Fire and electrocution hazard. DO NOT connect to a building's electrical system unless the generator and transfer switch have been properly installed and the electrical output has been verified by a qualified electrician. The connection must isolate the generator power from utility power and must comply with all applicable laws and electrical codes.

DANGER

Electrocution hazard. Never use the generator in a location that is wet or damp. Never expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit.

GENERAL SAFETY PRECAUTIONS

• NEVER use the generator to power medical support equipment.
  DO NOT operate the generator when you are tired or under the influence of drugs, alcohol, or medication.
• DO NOT use generator with electrical cords which are worn, frayed, bare, or otherwise damaged.
• All electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or be double-insulated.
• When this generator is used to supply a building wiring system the generator must be installed by a qualified electrician and connected to a transfer switch as a separately derived system in accordance with NFPA 70, National Electrical Code.
• If you begin to feel sick, dizzy, or weak while using the generator, move to fresh air IMMEDIATELY. See a doctor, as you can have carbon monoxide poisoning.
• Only use OUTSIDE and far away from windows, doors, and vents as recommended by the US Department of Health and Human Services Centers for Disease Control and Prevention. Your specific home and/or wind conditions may require additional distance.
• While operating and storing, keep at least five feet of clearance on all sides of the generator, including overhead. Allow the generator to cool a minimum of 30 minutes before storage. Heat created by the muffler and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects.
• DO NOT touch the muffler or engine. They are very HOT and will cause severe burns. DO NOT put body parts or any flammable or combustible materials in the direct path of the exhaust.
• ALWAYS remove any tools or other service equipment used during maintenance away from the generator before operating.
• Avoid skin contact with engine oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin with soap and water.

FUEL SAFETY

• Store fuel in a container approved for gasoline.
• DO NOT smoke when filling the generator with gasoline.
  DO NOT allow the generator's gas tank to overflow when filling.
• Shut down the engine and allow it to cool for two minutes before adding gasoline or oil to the generator.
• NEVER remove the fuel cap when the generator is running. Shut off the engine and allow the unit to cool at least two minutes. Remove the fuel cap slowly to release pressure, keep fuel from escaping around the cap, and to avoid the heat from the muffler igniting fuel vapors. Tighten the fuel cap securely after refueling.
• Wipe spilled fuel from the unit.
• NEVER attempt to burn off spilled fuel.
• NEVER overfill the fuel tank. Leave room for fuel to expand. Overfilling the fuel tank can result in a sudden overflow of gasoline and result in spilled gasoline coming in contact with HOT surfaces.
• Spilled fuel can ignite. If fuel is spilled on the generator, wipe up any spills immediately. Dispose of rag properly. Allow area of spilled fuel to dry before operating the generator.
• Wear eye protection while refueling.
• NEVER use gasoline as a cleaning agent.
• Store any containers containing gasoline or LPG/ propane in a well-ventilated area, away from any combustibles or source of ignition.

Fire and explosion hazard. Gasoline and LPG/propane are highly explosive and flammable and can cause severe burns or death.

• In case of a gas fire, DO NOT attempt to extinguish the flame if the fuel tank valve is in the ON position. Introducing an extinguisher to a generator with an open fuel valve could create an explosion hazard.
  Gas has a distinctive odor, this will help detect potential leaks quickly.
  Gas vapors can cause a fire if ignited.
  Gasoline is a skin irritant and needs to be cleaned up immediately if it comes in contact with the skin.

CO SENSOR

The CO Sensor monitors for the accumulation of poisonous carbon monoxide gas around the generator when the engine is running. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine.

The CO Sensor will also detect the accumulation of carbon monoxide from other fuel burning sources used in the area of operation. For example, if the exhaust of fuel burning tools is pointed at a CO Sensor-equipped generator, a shut-off may be initiated due to rising CO levels. This is not an error. Hazardous carbon monoxide has been detected. Move and redirect any additional fuel burning sources to dissipate carbon monoxide away from personnel and occupied buildings.

Note: Remote start-equipped generators must be restarted with the START/STOP button on the control panel after an automatic shut-down occurs.

Generators are intended to be used outdoors, far from occupied buildings and the exhaust pointed away from personnel and buildings. If misused and operated in a location that results in the accumulation of CO, like in a partially enclosed area, the CO Sensor shuts off the engine, notifies the user with a RED indicator light, and directs the user to read the Action Label for steps to take. The CO Sensor DOES NOT replace carbon monoxide alarms. Install battery-powered carbon monoxide alarm(s) in your home.

WARNING

Automatic shutoff accompanied with a flashing RED light in the CO Sensor portion of the control panel is an indication that the generator was improperly located. If you start to feel sick, dizzy, weak, or carbon monoxide detectors in your home indicate an alarm, get to fresh air immediately. Call emergency services. You may have carbon monoxide poisoning.

ACTION LABEL

CONTROL PANEL CO AUTO-SHUTOFF

CARBON MONOXIDE AUTO-SHUTOFF

SERVICE GENERATOR

REALICE UN SERVICIO

DEL GENERADOR

AUTOMATIC SHUTOFF

SEE MANUAL

CORTE AUTOMÁTICO

LEER EL MANUAL

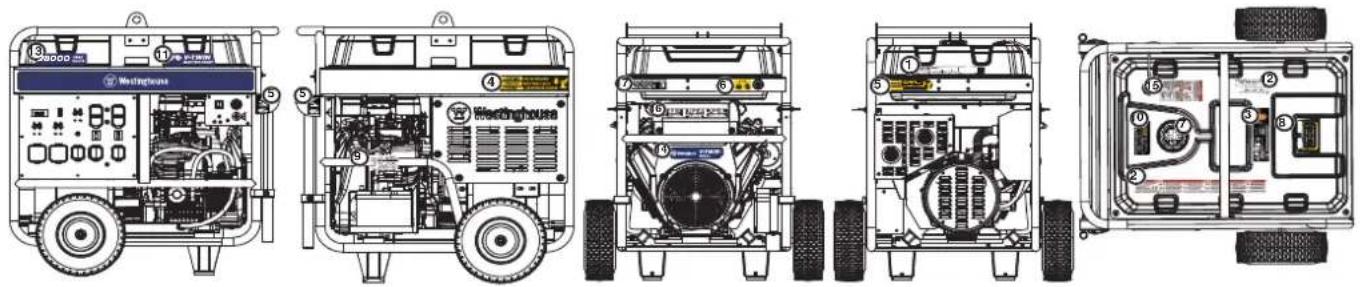

CO SENSOR INDICATOR LIGHTS

Color Description

RED

Carbon monoxide accumulated around the generator. After shut-off, the RED indicator light in the CO Sensor area of the control panel will flash to provide notification that the generator was shut-off due to an accumulating CO hazard. The RED light will flash for at least five minutes after a CO shut-off. Move the generator to an open, outdoor area far away from occupied spaces with exhaust pointed away. Once relocated to a safe area, the generator can be restarted. Introduce fresh air and ventilate the area where the generator had shut down.

YELLOW

A CO sensor system fault occurred. When a system fault occurs, the generator is automatically shut down and the YELLOW indicator light in the CO auto-shutoff area of the control panel will flash to provide notification that the a fault has occurred. The YELLOW light will flash for at least five minutes after a fault. The generator can be re-started, but may continue to shutoff. A CO sensor fault can only be diagnosed and repaired by an authorized Westinghouse service center.

ACTION

LABEL

SAFETY LABELS AND DECALS

W

Weatinghouse Outdoor Power Equipment, LLC

C

Columbnes Ohio 43221 Eans-Unit

Mode
8-1
M
ACV
T
AC
13/14
m = 311

图1
1
3. 1
13/14

x^2 + y^2 = 1

图
3

m = 311
0
1
210

1
图1
1
13/14
Day

1

12 =

m = 311

m = 311 ;

1

。
1
1
1
1 + 2( 1 + u) 1 - 11 t =
1

m = 311 ;

m = 311

1
1

m = 311 ;
C
Se
Nui
Nui

sha
me
me

No. No
■N
IF NUL
ro de
ro de

1

m = 311 ;

m = 311 ;

m = 311 ;

1

(1)

m = 311

□

nber

1

续表

serl

e

13/14

答：

解

冬

m = 311 ;

(2)

DANGER

A

A

and so

1

can matrices from.

华

A

(1)

图10-2

(1)

图

C

图1-2

(2)

(1)

A

A

的

华

1

C

2017年

（）

non item any
does not exist

图1-2

1. 实验原理

2. Introduction

图1

E

□本报记者

1

1

(1)

图

（20

1

A

中

（2）

图

1

A

Tabl 1

国家电网公司

= ( x1,y1) , = ( x2,y2)

2018年9月26日

A

日

P

rana 20

1

10

A

1. 实验原理

图10-2

2

1

一

（1）

4

（二）

（二）交易

（二）交易

中

A

1

中

m or D

A

+

电

1

特此公告。

4

3

1

特此公告。

1. 2016年3月24日

m = 311

1

1

图

1

1

1

图10-2

图1

中

STM

行

甲时

A

图

1. 实验原理

一

A

19/19

：

1

13/14

13/14

13/14

m = 311 ;

13/14

13/14

m = 311 ;

m = 311 ;

m = 311 ;

(1)

U

A

m = 311

A

M

CO

CO

CO

NEI

TOC

1

AVA

0

A

13/14

AIR FILTER

Clean filter every

50 hours of use!

(see manual for instructions)

Limpoe el filtr

m = 311

m = 311

m = 311

m = 311 ;

m = 311

m = 311

m = 311

m = 311

1 + u7 = 70%

12 =

1 + u7 = 70%

m = 311

12 =

1 + u7 = 70%

-

1 + u7 = 70%

1 + u7 = 7019

12 =

1 + u7 = 70%

1 + u7 = 70%

m = 311

A

4

C

A

刀

0

V

HC

DT

CI

IP

EA

C

C

13/14

19/19

m = 311

13/14

13/14

12/12

A

12 =

50

13/14

CH

DEL

AEC

IFC

G

115

MTI

12/12

2

m = 311

(2)

12 =

与

1 + u7 = 70%

m = 311

m = 311

m = 311

m = 311

12/12

12/12

13/14

m = 311

12/12

18/19

12/12

13/14

13/14

m = 311

m = 311

m = 311

图1

m = 311

m = 311

13/14

---

1 + u1 - 1 = ( 1 + u) u1 < 1 = u

12 =

-

1 + u1 - 1 = ( 1 + u) u1 < 1 = u

1 + u1 - 1 = ( 1 + u) u1 < 1 = u

1 + u1 - 1 = ( 1 + u) u1 < 1 = u

1

图1

1

m = 311

13/14

C

m = 311

12 =

m = 311

D

1

a_4^3 = 7^3 · 2^4

019

101

x2

31

m = 311

m = 311 ;

13/14

13/14

m = 311

1

1

（一）

m = 311

m = 311

m = 311

1,2,3 1,3,4 2,3,4 1,4,5 2,3,4 3,4 4,5 1,2,3 1,3,4 2,3,4 3,4 4,5 1,2,3 1,3,4 .

1

（）

TA

6日

104

无

A

E

13/14

1

告

一

开：

孔

m = 311

m = 311

m = 311

1

CAPA CAI

ACD

D

230 51

CON5

1

WAN

F

1. 实验原理

m = 311

开

m = 311

m = 311

1

DO

19/19

D.

12 =

土

12 =

一

12 =

12 + 38 = 3 + 38 = 3 + 38

12 =

m = 311

m = 311 ;

D

2

）

RING

C:Ca

1

08 PA1

13/14

m = 311

m = 311

13/14

一

1

AVI

RT151

记

F:Ca

C

prob

电学之

m = 311

m = 311

14

1

4

1

COMPONENTS GENERATOR COMPONENTS

CONTROL PANEL COMPONENTS

1. Data Center: Displays voltage, frequency, total hour meter, and run/maintenance timer.
2. Low Idle: Low Idle minimizes fuel consumption, noise, and engine wear by lowering the engine RPM during intermittent use. See LOW IDLE section for important use considerations.
3. Main Circuit Breaker: The 83 amp main circuit breaker controls total output of all outlets to protect the generator from overload or short circuit.
4. 120-Volt AC, 20-Amp NEMA 5-20R GFCI Receptacles: Each receptacle is capable of carrying a maximum of 20 amps on a single receptacle or a combination of both receptacles.

5.20 Amp AC Circuit Breakers: Circuit breakers limits the current that can be delivered through each NEMA 5-20R receptacle to 20 amps.
6. 120/240-Volt AC, 30-Amp NEMA L14-30R Receptacles: Receptacles can supply either 120V or 240V up to 30 amps.
7. Ground Terminal: The ground terminal is used to externally ground the generator.
8. 120-Volt AC, 30-Amp NEMA L5-30R Receptacle: Receptacle can supply a maximum of 30 amps.
9. 120/240-Volt AC, 50-Amp NEMA 14-50R Receptacle: Receptacle can supply either 120V or 240V up to 50 amps.

ELECTRIC START COMPONENTS

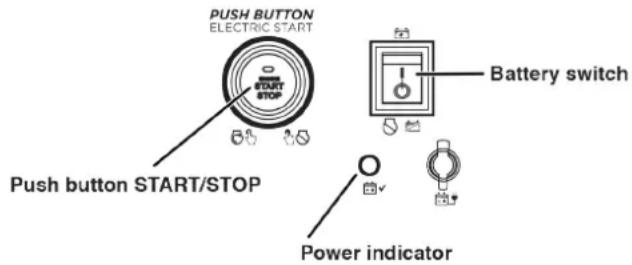

1. Battery Indicator: Indicates that power is ON. Light will remain illuminated while the unit is ON.
2. Battery Switch: Turns battery ON and OFF. Must be ON before electric or remote start.

3. Push-Button START/STOP: Push once to automatically start the engine. Push again to stop the engine.

4. Smart Switch Outlet: Connects the Westinghouse ST Switch (sold separately) to the control panel.

5. Battery Charging Port: Used to charge the battery with the included battery charger.
6. CO Sensor indicator lights: The CO Sensor monitors for the accumulation of poisonous carbon monoxide gas. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine.

DATA CENTER

Use the Mode button on the Data Center to switch between displays.

DATA CENTER
Voltage: Displays current voltage output.

Frequency (Hz): Displays power output frequency in Hertz.

Lifetime Hours: Displays the lifetime run hours.

Run Time/Maintenance: Displays current run time. Resets to zero when shut down. Maintenance reminder displayed when required.

Push the Mode button to cycle through the data display modes.

Mode Button

Maintenance reminder codes will be shown on the Data Display based on unit lifetime hours. The maintenance codes will be displayed until the unit is turned off. Refer to the Maintenance section for specific procedures.

Maintenance Code Required Maintenance
P25 Change	engine oil
P50 Change	engine oil, clean air filter
P100	Change engine oil, clean air filter, replace fuel filter

ASSEMBLY

CAUTION

Weight hazard. ALWAYS have assistance when lifting the generator.

1. Carefully open the carton.
2. Remove and save the carton contents.
3. Remove and discard the packing tray.
4. Unfold the top of the plastic bag enclosing the generator.
5. Carefully cut the vertical corners of the carton to access the generator.
6. Recycle or dispose of the packaging materials properly.

CARTON CONTENTS

• User Manual
  Quick Start Guide
• Bottle of SAE 10W-30 Oil
• Spark plug socket wrench
  Oil Funnel
  Assembly wrench
• Wheel and lifting hook components

Item Quantity

• Lifting hook 1
  Flange bolt, M8 4
  Wheel 2
• Axle pin 2
• Washer 4
  Cotter pin 4

If any parts are missing, contact our service team at [e-mail] or call 1-855-944-3571.

INSTALL WHEELS AND LIFTING BRACKET

NOTICE

Assembling the generator will require lifting the unit on one side. Install the wheels before adding fuel or oil.

CAUTION

Lifting hazard. Use two people when installing the wheels. Refer to LIFTING HOOK in the OPERATION section.

1. Place generator on a flat surface.

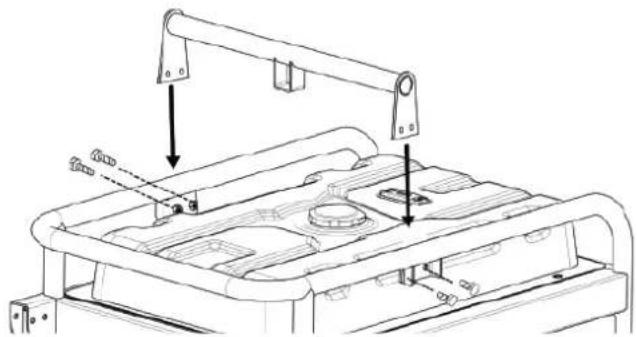

2. Align the lifting hook bracket with the mounting brackets

on the top of the fuel tank. Secure with four M8 flange bolts.

1. Use the Lifting Hook to raise the unit enough to install the wheels as shown.

Note: The wheels are only intended for hand transport. The wheels are not suitable for towing the generator either on or off-road.

INITIAL OIL FILL

NOTICE

THIS GENERATOR HAS BEEN SHIPPED WITHOUT OIL. DO NOT attempt to crank or start engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage.

NOTICE

Use of 2-stroke/cycle oil or other unapproved oil types can cause severe engine damage that is not covered under warranty.

The included, recommended oil type for typical use is 10W-30 engine oil. If running the generator in extreme temperatures, refer to the following chart.

1. On a level surface, remove the oil fill cap.

1. Using the supplied funnel and oil, add the oil into the engine.
2. Replace the oil fill cap and tighten securely.

BATTERY INSTALLATION

CAUTION

Battery posts, terminals contain lead and lead compounds. Wash hands after handling.

WARNING

The battery gives off explosive hydrogen gas during normal operation. A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you. Wear protective clothing and a face shield, or have a skilled technician perform battery maintenance.

WARNING

Burn hazard. The battery contains sulfuric acid (electrolyte) which is highly corrosive and poisonous. Wear protective clothing and eye protection when working near the battery. Keep children away from the battery.

WARNING

NEVER smoke or work near sparks or other sources of ignition. NEVER touch both battery terminals at the same time with your hand or any non-insulated tools. If battery acid contacts skin or clothing, flush immediately with water and neutralize with baking soda.

The battery shipped with the generator has been fully charged. A battery may lose some charge when not in use for prolonged periods of time. Once started, the generator will charge the battery after 30-60 minutes of use.

NOTICE

ALWAYS connect the cables in the following sequence to avoid possible shock.

1. Connect the positive (+) battery cable (red boot) to the positive (+) battery post. Tighten the bolt securely. Secure the boot over the battery post.

1. Connect the negative (-) cable (black boot) to the negative (-) battery post. Tighten the bolt securely. Secure the boot over the battery post.

FUEL

WARNING

Fire and explosion hazard. NEVER use a gasoline container, gasoline tank, propane connector hose, propane tanks, or any other fuel item that is broken, cut, torn or damaged.

DANGER

Fire and explosion hazard. DO NOT overfill fuel tank. Fill only to the red fill ring located in the in-tank fuel screen filter. Overfilling may cause fuel to spill onto engine causing a fire or explosion hazard.

DANGER

Fire and explosion hazard. NEVER refuel the generator while the engine is running. ALWAYS turn the engine off and allow the generator to cool for two minutes before refueling.

NOTICE

E85 E15 DO NOT use E15 or E85 fuel in this product. Engine or equipment damage caused by stale fuel or the use of unapproved fuels (such as E15 or E85 ethanol blends) is not covered by warranty. Only use unleaded gasoline containing up to 10% ethanol.

FUEL REQUIREMENTS

• CLEAN, FRESH, unleaded gasoline, 87-93 octane.
• Up to 10% ethanol (gasohol) is acceptable (where available; non-ethanol fuel is recommended).
  DO NOT use E85 or E15.
  DO NOT use a gas oil mix.
• DO NOT modify the engine to run on alternate fuels.
• DO NOT fuel indoors.
  DO NOT create a spark or flame while fueling.

USING FUEL STABILIZER

Adding a fuel stabilizer (not included) extends the usable life of fuel and helps prevent deposits from forming that can clog the fuel system. Follow the manufacturer's instructions for use.

ALWAYS mix the correct amount of fuel stabilizer to gasoline in an approved gasoline container before fueling the generator. Run the generator for five minutes to allow the stabilizer to treat the entire fuel system.

FILLING THE FUEL TANK

1. Turn the generator OFF and allow to cool for a minimum of two minutes before fueling.
2. Place the generator on level ground in a well ventilated area.
3. Clean area around fuel cap and remove the cap slowly.

NOTICE

Only fill the tank from an approved gasoline container. Make sure the gasoline container is internally clean and in good condition to prevent fuel system contamination.

1. Slowly add the recommended fuel. DO NOT overfill. Fill only to the red maximum fill ring on the fuel screen filter visible in the filler neck.

1. Install the fuel cap.

NOTICE

Fuel can damage paint and plastic. Use caution when filling the fuel tank. Damage caused by spilled fuel is not covered under warranty.

NOTICE

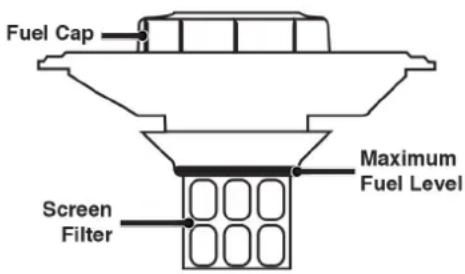

Clean the fuel screen filter of debris before and after each fueling. Remove the fuel screen filter by slightly compressing it while removing it from the fuel tank.

OPERATION

GENERATOR LOCATION

Read and understand all safety information before starting the generator.

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

NEVER operate the generator inside any building, including garages, basements, crawlspaces, sheds, enclosure, or compartment, including the generator compartment of a recreational vehicle.

DANGER

Electrocution hazard. NEVER use the generator in a location that is wet or damp. NEVER expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution

WARNING

Fire hazard. Only operate the generator on a solid, level surface. Operating the generator on a surface with loose material such as sand or grass clippings can cause debris to be ingested by the generator that could block cooling vents or the air intake system. Allow the generator to cool for 30 minutes before transport or storage.

The generator should be on a flat, level surface at all times (Even while not in operation). The generator must have at least 5 ft. (1.5m) of clearance from all combustible material.

DO NOT operate the generator in the back of a SUV, camper, trailer, truck bed (regular, flat, or otherwise), under stairs, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the muffler. DO NOT contain generators during operation.

DANGER

Asphyxiation hazard. Place the generator in a well-ventilated area. DO NOT place the generator near vents or intakes where exhaust fumes could be drawn into occupied or confined spaces. Carefully consider wind and air currents when positioning the generator.

GROUNDING

WARNING

Shock hazard. Failure to properly ground the generator can result in electric shock.

NOTICE

Only use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances.

The generator neutral is bonded to the frame. There is a permanent conductor between the generator (stator wire) and the frame. If this generator will be used only with cord and plug equipment connected to the receptacles mounted on the generator, National Electric Code does not require that the unit be grounded. However, other methods of using the generator may require grounding to reduce the risk of shock or electrocution.

Before using the ground terminal, consult a qualified electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.

DISCONNECTING THE BONDED NEUTRAL

The bonded neutral should only be removed under specific circumstances. Consult a qualified electrician to determine if circumstances require disconnecting the bonded neutral.

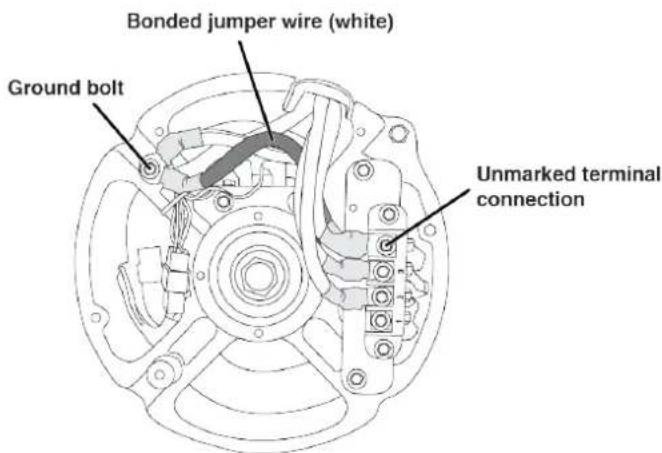

1. Remove the alternator cover.
2. Remove the white bonded jumper wire from the ground bolt and unmarked terminal connection. Reinstall the bolts and tighten securely.

1. Keep the bonded jumper wire in a secure location so that the generator can be returned to the original configuration.

IMPORTANT: Apply a new "NEUTRAL UNBONDED" Label over the "NEUTRAL BONDED TO FRAME" label on the front of the control panel.

Engine power is reduced the higher you operate above sea level. Output will be reduced approximately 3.5% for every 1000 feet of increased altitude from sea level.

High altitude adjustment is required for operation at altitudes over 2000 ft. (762 m). Operation without this adjustment will cause decreased performance, increased fuel consumption, and increased emissions.

NOTICE

DO NOT operate the generator at altitudes below 2,000 ft. (762 m) with the high altitude kit installed. Engine damage may occur.

High Altitude Carburetor Kit Part# 518962-02

BREAK-IN PERIOD

For proper break-in, DO NOT exceed 50% of the rated running watts (10,000 watts) during the first five hours of operation.

Vary the load occasionally to allow stator windings to heat and cool and help seat the piston rings.

LOW IDLE

NOTICE

ALWAYS start the generator with Low Idle OFF. Allow the engine speed to stabilize before switching Low Idle ON.

NOTICE

Frequency output of the generator is dependent on engine speed. DO NOT use Low Idle when powering sensitive electronics or large surge loads, such as an air conditioner, electric pump, refrigerator, or when connected to a home transfer switch.

Low Idle minimizes fuel consumption, noise, and engine wear by lowering the engine RPM to idle (2400 RPM) when electrical loads have been turned off and automatically returns to rated speed when loads are turned back on.

Turn Low Idle ON when powering intermittent, non-electronic loads, such as power tools at a construction site.

BEFORE STARTING THE GENERATOR

Verify that:

• The generator is placed in an safe, appropriate location.
• The generator is on a dry, flat, and level surface.
• The engine is filled with oil.
• All loads are disconnected.

DANGER

Fire and explosion hazard. DO NOT move or tip the generator during operation.

REMOTE START

WARNING

Verify that the area around the generator is clear before remote starting the generator.

The remote start key fob included with the generator should be attached to the recoil handle or control panel. If your unit was shipped without a key fob, contact Westinghouse customer service.

The generator can be started remotely from up to 99 feet (30 meter) using the remote start key fob.

Note: As the batteries in the remote start key fob drain, operational distance will decrease.

PAIRING THE REMOTE START

Remote replacement batteries: (2) CR2016

Remote replacement: Part# 100714A

If the remote start key fob is replaced or needs re-paired to the generator, follow this procedure.

1. Turn the generator battery switch to the ON position. The power indicator light will illuminate.

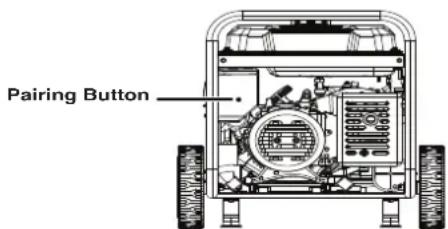

1. Push and hold the red Pairing button on the side of the control panel until the START/STOP button illuminates.

1. Push and hold the STOP button on the key fob until the START/STOP button illumination turns OFF. Release the button. The START/STOP button will illuminate after the button is released.

1. Push and hold the START button on the key fob until the START/STOP button illumination turns OFF. Release the button. The START/STOP button will illuminate after the button is released.
2. Push the Pairing button on the side of the control panel until the START/STOP button illumination turns OFF. Release the button.
3. Turn the generator battery switch to the OFF position. The remote is now paired.

STARTING THE ENGINE

DANGER

Fire and explosion hazard. DO NOT add gasoline to the fuel tank while the generator is in operation.

During Push-Button or Remote Start the engine will automatically set the choke and begin the start sequence. If the engine fails to start, the generator will attempt to start the engine two more times. The battery switch can be turned off at any time during the automatic start sequence to abort the engine start attempt.

If the cranking speed drops after each unsuccessful attempt, then the battery may not be adequately charged. See BATTERY MAINTENANCE section.

1. Verify that fuel is in the gas tank.
2. Turn the fuel selector switch to gasoline operation.
3. Turn the fuel valve to the ON position.

1. Push the battery switch to the ON position.
2. Choose the starting method:

a. Remote Start: Push and hold the START button on

18 | Westinghouse Outdoor Power Equipment, LLC

the remote start key fib for one second.

Note: Remote start-equipped generators must be restarted with the START/STOP switch on the control panel after an automatic shut-down occurs.
b. Push-Button Start: Push and hold the engine START/STOP button for two seconds.

STOPPING THE ENGINE

1. Turn off and unplug all connected electrical loads.
   IMPORTANT: NEVER start or stop the generator with electrical devices connected.
2. Let the generator run with no load for several minutes to stabilize internal temperatures of the engine.
3. Turn the engine start switch to the OFF position.
   Note: Alternately, if the generator is used infrequently, turn the fuel valve to the OFF position to limit the residual fuel remaining in the system. The engine will stop when fuel in the carburetor and fuel line is exhausted.

FREQUENCY OF USE

If the generator will be used on an infrequent or intermittent basis (more than one month before next use), refer to the Battery Maintenance and Storage sections of this manual for information regarding battery charging and fuel deterioration.

AC CIRCUIT BREAKERS

The circuit breakers will automatically switch OFF if there is a short circuit or a significant overload of the generator at each receptacle.

If an AC circuit breaker switches OFF automatically, check that the appliance is working correctly and it does not exceed the rated load capacity of the circuit before resetting the AC circuit breaker ON.

The main circuit breaker controls total output of all outlets to protect the generator from overload or short circuit.

GENERATOR CAPACITY

NOTICE

DO NOT overload the generator's capacity. Exceeding the generator's wattage/amperage capacity can damage the generator and/or electrical devices connected to it.

Make sure the generator can supply enough continuous (running) and surge (starting) watts for the items you will power at the same time.

The total power requirements (Volts x Amps = Watts) of all appliances connected must be considered. Appliance and power tool manufacturers usually list rating information near the model or serial number.

To determine power requirements:

1. Select the items you will power at the same time.
2. Total the continuous (running) watts of these items. This is the amount of power the generator must produce to keep the items running. See the wattage reference chart on the next page.
3. Estimate how many surge (starting) watts you will need. Surge wattage is the short burst of power needed to start electric motor-driven tools or appliances such as a circular saw or refrigerator. Because not all motors start at the same time, total surge watts can be estimated by adding only the item(s) with the highest additional surge watts to the total rated watts from step 2.

Example:

Tool or Appliance	Running Watts*	Starting Watts*
RV Air Conditioner (11,000 BTU)	1010 1600
TV (Tube Type)	300 0
RV Refrigerator	180 600
Radio	200 0
Light (75 Watts)	300 0
Coffee Maker	600 0
	2590 Total Running Watts*	1600 Highest Starting Watts*
Total Running Watts	2590
Highest Starting Watts +	1600

Total Starting Watts Needed 4190
*Wattages listed are approximate. Verify actual wattage.

POWER MANAGEMENT

To prolong the life of the generator and attached devices, use care when adding electrical loads to the generator. There should be nothing connected to the generator

outlets before starting the engine. The correct and safe way to manage generator power is to sequentially add loads as follows:

1. With nothing connected to the generator, start the engine as described in this manual.
2. Plug in and turn on the first load, preferably the largest load you have.
3. Permit the generator output to stabilize (engine runs smoothly and attached device operates properly).
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.

Wattage Reference

Tool or Appliance	Estimated Running Watts*	Estimated Starting Watts*
Incandescent Lights (4 Quantity x 75 Watts)	300 0
TV (Tube Type) 300 0
Sump Pump (1/3 hp) 800	1300
Refrigerator or Freezer	700	2200
Well Pump (1/3 hp)	1000	2000
Furnace (1/2 hp)	800	2350
Radio	200 0
Drill (3/8", 4 amps)	440	600
Circular Saw (Heavy Duty, 7-1/4")	1400	2300
Miter Saw (10")	1800	1800
Table Saw (10")	2000	2000

*Wattages listed are approximate. Verify actual wattage.

EXTENSION CORDS

WARNING

Asphyxiation hazard. Extension cords running directly into the home increase the risk of carbon monoxide poisoning through any openings. If an extension cord running directly into your home is used to power indoor items, there is a risk of carbon monoxide poisoning to people inside the home. ALWAYS use battery-powered carbon monoxide detector (s) that meet current UL 2034 safety standards when running the generator. Regularly check the detector (s) battery.

WARNING

Asphyxiation hazard. When operating the generator with extension cords, make sure the generator is located in an open, outdoor area, far away from occupied spaces with exhaust pointed away.

WARNING

Fire and electrocution hazard. NEVER use worn or damaged extension cords. Damaged or overloaded extension cords could overheat, arc, and burn resulting in death or serious injury.

Before connecting an AC appliance or power cord to the generator:

• Use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances.
• Make sure the tool or appliance is in good working order. Faulty appliances or power cords can create a potential for electric shock.
• Make sure the electrical rating of the tool or appliance does not exceed the rated power of the generator or the receptacle being used.

EXTENSION CORD SIZING

Only use grounded 3-prong extension cords marked for outdoor use that are rated for the electrical load.

Total Amperage	Minimum Gauge, Outdoor Rated
	Up to 50 FT (15 M)	Up to 100 FT (30 M)
Up to 10A	12	8
Up to 15A	10	8
Up to 20A	10	6
Up to 30A	8	6
Up to 35A	6	6

TRANSPORTING

CAUTION

Weight hazard. ALWAYS have assistance when lifting the generator.

• Allow the generator to cool a minimum of 30 minutes before transporting.
• If operating on propane, turn the propane tank valve to the fully closed position.
• Replace all protective covers on the generator control panel.
• Keep the unit level during transport to minimize the possibility of fuel leakage or, if possible, drain the fuel

or run the engine until the fuel tank is empty before transport.

• The generator wheels are only intended for hand transport. The wheels are not suitable for towing the generator either on or off-road.
• Use the extendable handle for hand transport. Only use the handle while the generator is OFF, stationary, and resting on a horizontal surface. DO NOT use the handle to lift the generator entirely off the ground, tow it, or up-end it.

CAUTION

Fire hazard. DO NOT up-end the generator or place it on its side. Fuel or oil can leak and damage to the generator may occur.

ST SWITCH

The WGen20000c is compatible with the ST Switch, purchased separately. When utility power is on it will provide power (up to 120V @ 20A) to the appliances plugged into the 5-20R receptacle on the ST Switch. When utility power is lost the ST Switch automatically transfers input power from utility to generator power. When utility power is restored, the ST Switch transfers input power back to utility. Visit www.westinghouseoutdoorpower.com for more information.

LIFTING HOOK

Only use the lifting hook to lift the unit or attach any load restraints such as ropes or tie-down straps. DO NOT attempt to lift or secure the generator by holding onto any of its other components.

Before lifting the generator, inspect the bracket and make sure it is securely fastened to the generator. DO NOT lift the generator unless the lifting bracket is securely fastened.

1. Hook a chain or strap through the eye on the lifting hook and make sure it is securely fastened.
2. Connect a suitable lifting device to the chain or strap. Inspect chain and hook for any damaged links or any defects that could cause failure. It is recommended to use hooks with safety latches installed.
3. Lift the generator slightly to ensure it is lifting straight and level.

MAINTENANCE

WARNING

Accidental start-up. Disconnect the spark plug boot from the spark plugs when performing maintenance on the generator.

MAINTENANCE SCHEDULE

Regular maintenance will improve performance and extend the service life of the generator. Follow the hourly or calendar intervals, whichever occurs first. More frequent service is required when operating in adverse conditions as noted below.

Before Each Use

Check engine oil

Check air filter

After First 20 Hours or First Month

Change engine oil

After 50 Hours or Every 3 Months

Clean air filter2

After 100 Hours or Every 6 Months

Change engine oil

Inspect/clean spark arrestor

Inspect/clean spark plug

Replace fuel filter

Clean float bow

After 300 Hours or Every Year

Replace spark plug

Replace air filter

Replace fine oil filter

Inspect/adjust valve clearance

Every 2 years

Replace fuel pipe

1 Change oil every month when operating under heavy load or in high temperatures.
2 Clean more often under dirty or dusty conditions. Replace air filter if it cannot be adequately cleaned.
3 Recommend service to be performed by authorized Westinghouse service dealer.

MAINTENANCE REPLACEMENT PARTS

Description Part Number

Air filter 2017
Battery, 36 AH 511093
Fuel filter 516602
Spark plug 97108 (F7TC)

AIR FILTER MAINTENANCE

The air filter must be cleaned after every 50 hours of use or six months (frequency should be increased if the generator is operated in a dusty environment).

1. Place the generator on a level surface and allow the engine to cool for several minutes.

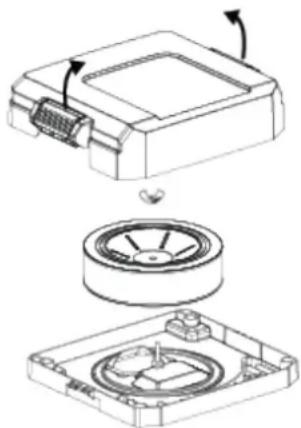

2. Release the cover clips then remove the air filter cover.

1. Remove the wing nut and air filter. Carefully remove the foam pre-filter. Clean using compressed air. DO NOT submerge the filter in liquids or add oil.
2. Install the air filter in the housing and secure with the wing nut. Reinstall the air filter cover and secure with the clips.

ENGINE OIL LEVEL CHECK

CAUTION

Avoid skin contact with engine oil. Wear protective clothing and equipment. Wash all exposed skin with soap and water.

NOTICE

ALWAYS use the specified engine oil. Failure to use the specified engine oil can cause accelerated wear and/or shorten the life of the engine.

When using the generator in dusty conditions or in extremely hot weather, change the oil more frequently.

Ambient air temperature will affect engine oil performance. Change the type of engine oil used based on weather conditions.

Check the engine oil level before each use or every 8 hours of operation.

1. Place the generator on a level surface and allow the engine to cool for several minutes.
2. Remove the oil dipstick and wipe the dipstick clean.
3. Insert, the remove the oil dipstick.

Acceptable Oil Level - On the flat side of the dipstick, oil is visible up to the first notch.

Low Oil - Oil is below the first notch on the dipstick

1. If low, remove the oil fill cap and add the recommended engine oil incrementally and recheck until the level is at the top notch on the dipstick. DO NOT overfill. If over the top notch on the dipstick, drain the oil to reduce the oil level to the full mark.
2. Replace the oil dipstick and oil fill cap.

ENGINE OIL CHANGE

When using the generator in dusty conditions or extremely hot weather, change the oil more frequently. Change the oil while the engine is still warm from operation.

1. Place the generator on a level surface and allow the engine to cool for several minutes.
2. With a damp rag, clean around the oil fill cap. Remove the oil fill cap.

1. Place an oil pan (or suitable container) under the oil drain hose.

1. Remove the oil drain hose from the retaining clip. Open the hose valve and allow the oil the to drain into the oil pan.
2. Close the oil drain hose valve and secure the hose in the retaining clip.

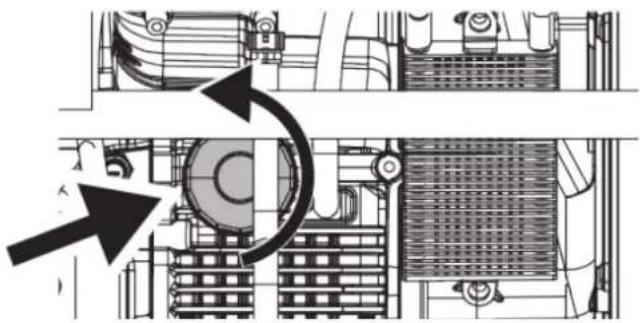

3. Place the oil pan under the oil filter. Remove the oil filter by rotating it counterclockwise. Allow the oil to drain completely. Clean the area where the oil filter contacts the engine.

1. Apply clean oil to the rubber seal on the new oil filter. Install by hand, turning clockwise until the seal contacts the engine then turn another 3/4 turn. DO NOT overtighten.
2. Fill with the recommended oil. Stop frequently to check the oil level. DO NOT overfill. If the engine is overfilled, the excess oil may get transferred to the air cleaner housing and air filter. An indication of overfilling is white or blue smoke coming from the muffler when the engine is running.

Maximum oil capacity: 2.43 Quart (2.3 Liter)
9. Install the oil dipstick. Screw in the oil fill cap securely.

NOTICE

DO NOT pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

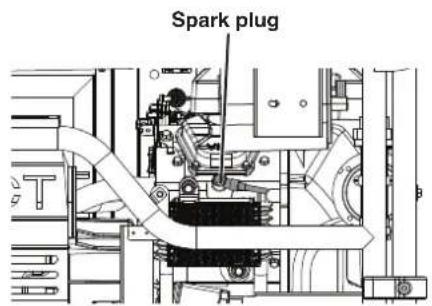

SPARK PLUG MAINTENANCE

NOTICE

ALWAYS use the Westinghouse OEM or compatible non-resistor-type spark plug. Use of resistor-type spark plug can result in rough idling, misfire, or may prevent the engine from starting.

Inspect and clean the spark plugs after every 100 hours of use or six months. Replace the spark plugs after 300 hours of use or every year.

1. Place the generator on a level surface and allow the engine to cool.
2. Remove the spark plug boots by firmly pulling the boot directly away from the engine.

1. Clean the area around the spark plugs.
2. Remove the spark plugs with the included spark plug socket wrench.

NOTICE

NEVER apply any side load or move the spark plug laterally when removing the spark plug.

1. Inspect the spark plugs. Replace if electrodes are pitted, burned, or the insulator is cracked. Only use a recommended replacement plug.
2. Measure the spark plug electrode gap with a wire-type feeler gauge. If necessary, correct the gap by carefully bending the side electrode.

Spark plug gap: 0.024 - 0.032 in. (0.60 - 0.80 mm)

1. Carefully install each spark plug finger tight, then tighten as additional 3/8 to 1/2 turn with the spark plug wrench.
2. Attach the spark plug boots.

SPARK ARRESTOR SERVICE

Allow the muffler to cool completely before servicing the spark arrester. Check and clean the spark arrester after every 100 hours of use or six months. Failure to clean the spark arrester will result in degraded engine performance.

1. Place the generator on a level surface.
2. Carefully remove the carbon deposits from the spark arrester screen with a wire brush. The spark arrester must be free of breaks and tears. Use compressed air to clear removed deposits.

FUEL FILTER

Replace the fuel filter after 100 hours of use.

Note: Have an appropriate gasoline container and rags ready to catch residual fuel in the filter and fuel line.

1. Allow the generator to cool completely.
2. Turn the fuel valve to the OFF position.

1. Note the orientation of the fuel filter. Using pliers, remove the fuel line clamps and remove the fuel filter.
2. Install the new fuel filter in the reverse order of removal.

BATTERY MAINTENANCE

WARNING

The battery gives off explosive hydrogen gas during normal operation. A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you. Wear protective clothing and a face shield, or have a skilled technician perform battery maintenance.

WARNING

Burn hazard. The battery contains sulfuric acid (electrolyte) which is highly corrosive and poisonous. Wear protective clothing and eye protection when working near the battery. Keep children away from the battery.

WARNING

NEVER smoke or work near sparks or other sources of ignition. NEVER touch both battery terminals at the same time with your hand or any non-insulated tools. If battery acid contacts skin or clothing, flush immediately with water and neutralize with baking soda.

The battery shipped with the generator has been fully charged. A battery may lose some charge when not in use for prolonged periods of time.

Note: Once started, the generator will charge the battery after 30-60 minutes of use.

BATTERY REPLACEMENT

CAUTION

Battery posts, terminals contain lead and lead compounds. Wash hands after handling.

1. Disconnect the negative (-) cable (black boot) from the negative (-) battery post.
2. Disconnect the positive (+) battery cable (red boot) from the positive (+) battery post.
3. Remove the battery.

NOTICE

ALWAYS connect the cables in the following sequence to avoid possible shock.

1. On the replacement battery, connect the positive (+) battery cable (red boot) to the battery positive (+) terminal. Secure the boot over the battery post.
2. Connect the negative (-) battery cable (black boot) to the negative (-) positive terminal. Secure the boot over the battery post.
3. Install the battery in the battery tray. Install the battery holder and side retainer, if removed.

NOTICE

Dispose of the used battery properly according to the guidelines established by your local or state government.

STORAGE

Proper storage preparation is required for trouble-free operation and generator longevity.

NOTICE

Gasoline stored for as little as 30 days can deteriorate, causing gum, varnish, and corrosive buildup in fuel lines, fuel passages, and the engine. This corrosive buildup restricts the flow of fuel, which can prevent the engine from starting after a prolonged storage period. The use of fuel stabilizer significantly increases the storage life of gasoline. Full-time use of fuel stabilizer is recommended. Follow the manufacturer's instructions for use.

STORAGE TIME RECOMMENDED PROCEDURE

Less than 1 month No	service required.
2 to 6 months	Fill with fresh gasoline and add gasoline stabilizer. Drain the carburetor float bowl.
6 months or longer	Drain the fuel tank and carburetor float bowl.

SHORT TERM STORAGE

• Allow the generator to cool a minimum of 30 minutes before storage.
• If operating on propane, turn the propane tank valve to the fully closed position and disconnect the LPG/ propane hose from the generator and propane tank.
• Replace all protective covers on the generator control panel.
• Wipe the generator with a moist cloth. Clean any debris from the muffler cooling vents.
• Store the generator in a well-ventilated, dry location away from sparks, open flames, pilot lights, heat, and other sources of ignition such as areas with a spark-producing electric motor or where power tools are operated.
• DO NOT store the generator, gasoline, or propane tanks near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.
• With the engine and exhaust system cool and all surfaces dry, cover the generator to keep out dust. DO NOT use a plastic sheet as a dust cover. Non-porous materials trap moisture and promote rust and corrosion.

LONG TERM STORAGE

Even properly stabilized fuel can leave residue and cause corrosion if left long term. If storing the generator for over six months, drain the fuel tank.

DRAINING THE FUEL TANK

If storing the generator for longer than six months, drain the fuel tank to prevent fuel separation, deterioration, and deposits in the fuel system.

1. Unscrew the fuel tank cap. Remove the fuel screen filter by slightly compressing it while removing it from the tank.
2. Using a commercially available gasoline hand pump (not included), siphon the gasoline from the fuel tank into an approved gasoline container. DO NOT use an electric pump.

OR

Disconnect the fuel line from the bottom of the fuel tank and allow the fuel to drain into an approved gasoline container. Reinstall the fuel line.

1. Reinstall the fuel screen filter and the fuel tank cap.
2. Start the generator and allow it to run until the generator engine stops.
3. Push the battery switch to the OFF position.
4. Disconnect the battery.

VALVE CLEARANCE

NOTICE

Checking and adjusting valve clearance must be done when the engine is cold.

Perform this procedure on both cylinders.

1. Remove the rocker arm cover and carefully remove the gasket. If the gasket is torn or damaged, it must be replaced.
2. Remove the spark plug so the engine can be rotated more easily.
3. Rotate the engine to Top Dead Center (TDC) by momentarily pushing the Start button. Looking through the spark plug hole, the piston should be at the top (both valves are closed).
4. Both the rocker arms should be loose at TDC on the compression stroke. If they are not, rotate the engine 360^ .
5. Insert a feeler gauge between the rocker arm and the valve stem to measure valve clearance.

Intake Valve Exhaust Valve

Valve Clearance	0.0031 – 0.0047 in (0.08 – 0.12 mm)	0.0051 – 0.0067 in (0.13 – 0.17 mm)
Torque 8-12 N·m 8-12 N·m

1. If an adjustment is necessary, hold the rocker arm pivot and loosen the pivot adjusting nut.
2. Turn the rocker arm pivot to obtain the specified clearance. Hold the rocker arm pivot and re-tighten the pivot adjusting nut to the specified torque.

Torque: 106 inch-pound (12 N·m)

1. Perform this procedure for the other valve.
2. Install the gasket, rocker arm cover, and spark plug.
   26 | Westinghouse Outdoor Power Equipment, LLC

TROUBLESHOOTING

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTION
Engine will not start	Battery switch in the OFF position. Turn battery switch to the ON position.
	Out of fuel. Refuel.
	Bad fuel, generator stored without treating or draining gasoline, or refueled with bad gasoline.	Drain the fuel tank. Refuel with fresh gasoline.
	Dirty air filter. Clean the air filter.
	Low engine oil level stopped generator.	If low oil LED illuminated, turn battery switch to the OFF position. Add engine oil.
	Spark plug wet with fuel (flooded engine).	Wait five minutes. Turn battery switch to the OFF position. Pull recoil handle rapidly several times. If the generator does not start, remove spark plug and dry.
	Spark plug faulty, fouled, or improperly gapped.	Gap or replace the spark plug. Reinstall.
	Fuel filter restricted, fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc.	Contact Westinghouse customer service toll-free at 1 [phone].
	Battery drained.	Use the recoil handle to start the generator.
		Charge the battery.
	Choke partially open or closed due to weak or disconnected battery.	Manually set the choke. See Maintenance section.
Engine starts, then shuts down	Out of fuel. Refuel.
	Incorrect engine oil level. Check engine oil level.
	Dirty air filter. Clean the air filter.
	Contaminated fuel. Drain the fuel tank. Refuel with fresh gasoline.
	Defective low oil level switch.	Contact Westinghouse customer service toll-free at 1 [phone].
Engine lacks power	Air filter restricted. Clean or replace air filter.
	Bad fuel, generator stored without treating or draining gasoline, or refueled with bad gasoline.	Drain the fuel tank. Refuel with fresh gasoline.
	Fuel filter restricted, fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc.	Contact Westinghouse customer service toll-free at 1 [phone].
Engine runs rough or bogs when load applied	Dirty air filter. Clean the air filter.
	Generator overloaded. Unplug some devices.
	Faulty power tool or appliance.	Replace or repair tool or appliance. Stop and restart the engine.
	Fuel filter restricted, fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc.	Contact Westinghouse customer service toll-free at 1 [phone].
No power at AC receptacles	OUTPUT READY LED is OFF and OVERLOAD LED is ON.	Check AC load. Stop and restart engine.
		Check the air inlet. Stop and restart the engine.
	AC circuit breaker/s tripped. Check AC loads and reset circuit breaker/s.
	Faulty power tool or appliance.	Replace or repair tool or appliance. Stop and restart the engine.
	Faulty generator.	Contact Westinghouse customer service toll-free at 1 [phone].

EXPLODED VIEWS AND PARTS LIST

ENGINE EXPLODED VIEW

ENGINE PARTS LIST

NO. PART # DESCRIPTION

1 50120065 CRANKCASE KIT ASSEMBLY

1.1 380202 CRANKCASE

1.2 91325 BOLT M6X12

1.3 91366 BOLT M6X118

1.4 93534 OIL SEAL

1.5 385104 OIL PROTECTOR

1.6 91833 OIL FILTER CONNECTINGSOLENOID

1.7 389904 OIL FILTER

1.8 91834 OIL FILTER SEAT CONNECTION

1.9 240905 CYLINDERHEAD LOCATING PIN

1.10 380901 CYLINDERHEAD LOCATING PIN

1.11 380602 BREATH PIECE COMBINATION

1.12 96202 GASKET

1.13 380601 OIL RETURN CHAMBER COVER

1.14 95643 BREATHER TUBE

1.15 94462 FUEL LINE CLAMP

1.16 90016 NUT M6

1.17 91832 OIL DRAIN BOLT

1.18 388302 CHARGING MODULE

1.19 380503 LOWERGUARD

1.20 599601 METALCLIP

1.21 380505 LOWERGUARD

1.22 380603 POLYURETHANE SCREEN

1.23 94241 FLAT WASHER

1.24 97602 IGNITERBUSHING

1.25 380605 POLYURETHANE SCREEN

1.26 380604 POLYURETHANE SCREEN

1.27 210801 CABLECLIP

1.28 91369 BOLT M6X25

1.29 91370 BOLT M6X16

1.30 94242 FLAT WASHER

1.31 95740 OIL DRAIN SOLENOID

1.32 94421 FUEL LINECLAMP

1.33 99123 OIL DRAIN SOLENOID

2 50100026 LEFT IGNITER KIT ASSEMBLY

2.1 97576 LEFT IGNITER

2.2 91055 BOLT M6X118

2.3 91384 BOLT M6X30

3 50100027 RIGHT IGNITER KIT ASSEMBLY

3.1 97575 RIGHT IGNITER

NO. PART # DESCRIPTION

3.2 91055 BOLT M6×118

3.3 91384 BOLT M6×30

4 50680001 CHARGING COIL ASSEMBLY

4.1 97216 CHARGING COIL

4.2 91333 BOLT M6*28

5 50180017 FLYWHEEL KIT ASSEMBLY

5.1 380401 FLYWHEEL ASSEMBLY

5.2 96827 FLYWHEEL GASKET

5.3 91955 BOLT M12×1.25×35

5.4 384601 IMPELLER

5.5 91370 BOLT M6×16

6 50590016 WIND DEFLECTOR KIT ASSEMBLY

6.1 91374 BOLT M6*22

6.2 91370 BOLT M6×16

6.3 384701 AIR DUCT PANEL

6.4 599601 METAL GLIP

6.5 388402 WIND DEFLECTOR

6.6 90030 NUT M6

6.7 95568 OIL INLET PIPE

6.8 95569 OIL OUTLET PIPE

6.9 94421 FUEL LINE CLAMP

6.10 388501 OIL CONDenser

6.11 95588 NEGATIVE PRESSURE TUBE

6.12 95589L TUBING

6.13 94257 FLAT WASHER 8×16×1.5

6.14 94405 FUEL LINE CLAMP

6.15 329914 PETROL PUMP

6.16 94475 FUEL HOSE RUBBER SLEEVE

6.17 90027 NUT M6

6.18 389101 NEGATIVE PRESSURE NOZZLE

6.19 325801 TEMPERATURE SENSOR

7 50260010 STARTER MOTOR KIT ASSEMBLY

7.1 97439 STARTING MOTOR ASSEMBLY

7.2 91453 BOLT M8*85

8 50040120 CARBURETOR KIT ASSEMBLY

8.1 95127 CARBON CANISTER AND FUEL TANK CONNECTING PIPE

8.2 95966 AIR FILTER CONNECTING PIPE

8.3 382803 CARBURETOR ASSEMBLY

8.4 382301 CARBURETOR CONNECTION BLOCK

ENGINE PARTS LIST CONTINUED

NO. PART # DESCRIPTION

8.5 95 934 INTAKE PIPE

8.6 91 377 BOLT M6*95

8.7 91 049 DOUBLE END BOLT M6*95

8.8 32 9929 STEPPER MOTOR

8.9 91 805 SCREW M3*8

8.10 94 217 FLAT WASHER Φ3.2

8.11 94 203 SPRING WASHER

8.12 91 349 BOLT M8*40

8.13 3 29924 STEPPER MOTOR

8.14 90018 NUT M8

8.15 96 209 GASKET

8.16 96 208 GASKET

8.17 96 207 GASKET

8.18 94 405 FUEL LINE E CLAMP

9 382901 AIR FILTER ASSEMBLY

9.1 2017 AIR FILTER

10 500 50022 PISTON & PISTON RING KIT ASSEMBLY

10.1 381201 PISTON

10.2 381601 PISTON RING ASSEMBLY

10.3 385501 PISTON PIN

10.4 261301 PISTON PIN RING

10.5 381501 CONNECTING ROD ASSEMBLY

11 500 20084 CYLINDER HEAD KIT ASSEMBLY

11.1 96 203 GASKET

11.2 381701 INTAKE VALVE

11.3 261807 INTAKE VALVE SPRING LOWER SEAT

11.4 93513 VALVE SEAL

11.5 386001 VALVE SPRING

11.6 261805 EXHAUST VALVE SPRING SEAT

11.7 260802 VALVE LOCK CLIP

11.8 261806 TOP CAP

11.9 91 920 BOLT M6×43

11.10 382102 ROCKER ARM FIXED COLUMN

11.11 382101 ROCKER ARM ASSEMBLY

11.12 385901 EXHAUST VALVE

11.13 381901 PUSH ROD

11.14 381001 CYLINDER HEAD

11.15 91448 BOLT M12×1.5×65

11.16 380501 WIND-LEAD-COVER

NO. PART # DESCRIPTION

11.17 91007 BOLT M8*38

11.18 91366 BOLT M6×118

12 500 20085 CYLINDER HEAD KIT ASSEMBLY

12.1 96203 GASKET

12.2 381701 INTAKE VALVE

12.3 261807 INTAKE VALVE SPRING LOWER SEAT

12.4 93513 VALVE SEAL

12.5 386001 VALVE SPRING

12.6 261805 EXHAUST VALVE SPRING SEAT

12.7 260802 VALVE LOCK CLIP

12.8 385901 EXHAUST VALVE

12.9 261806 TOP CAP

12.10 91920 BOLT M6×43

12.11 382102 ROCKER ARM FIXED COLUMN

12.12 382101 ROCKER ARM ASSEMBLY

12.13 381901 PUSH ROD

12.14 381002 CYLINDER HEAD

12.15 91448 BOLT M12×1.5×65

12.16 380502 WIND-LEAD-COVER

12.17 91007 BOLT M8*38

12.18 91366 BOLT M6×118

13 500 10031 CYLINDER HEAD COVER KIT ASSEMBLY

13.1 92257 BOLT M10*1.0*10

13.2 94241 FLAT WASHER

13.3 381101 CYLINDER HEAD COVER

13.4 381401 OIL PLUG

13.5 91374 BOLT M6*22

13.6 96205 CYLINDER HEAD SEAL RING

14 500 10032 CYLINDER HEAD COVER KIT ASSEMBLY

14.1 381401 OIL PLUG

14.2 91374 BOLT M6*22

14.3 381102 CYLINDER HEAD COVER

14.4 96206 CYLINDER HEAD SEAL RING

15 388601 INSTALLING RINGS

16 500 60029 SPEED GOVERNOR KIT ASSEMBLY

16.1 91370 BOLT M6X16

16.2 384405 SPEED CONTROLLER

16.3 388602 INSTALLING RINGS

ENGINE PARTS LIST CONTINUED

NO. PART # DESCRIPTION

17 971 08 SPARK PLUG

18 502 00053 CRANKCASE COVER KIT ASSEMBLY

18.1 9 3533 OIL SEAL

18.2 3 85602 DIPSTICK

18.3 3 87701 OIL PUMP ASSEMBLY

18.4 9 4079 OIL PUMP SEAL RING

18.5 3 87901 OIL PUMP COVER

18.6 3 29905 STEEL BALL

18.7 3 89903 PRESSURE RELIEF VALVE SPRING

18.8 3 88201 OIL FILTER

18.9 3 88202 OIL FILTER COVER

18.10 9 4080 OIL CHANNEL SEALING RING

18.11 240905 CYLIN DER HEAD LOCATING PIN

18.12 9 6201 CRANKCASE GASKET

18.13 3 80102 CRANKCASE COVER

18.14 9 1379 BOLT M18*50

18.15 9 1833 OIL FILTER CONNECTING SOLENOID

18.16 9 1370 BOLT M6X16

18.17 3 85102 OIL PRESSURE SENSOR

18.18 9 4241 FLAT WASHER

18.19 9 1365 BOLT M6X12

19 501 50011 CAMSHAFT KIT ASSEMBLY

19.1 3 82001 CAMSHAFT

19.2 2 66101 VALVE LIFTER

20 380 301 CRANKSHAFT

21 913 74 BOLT M6*22

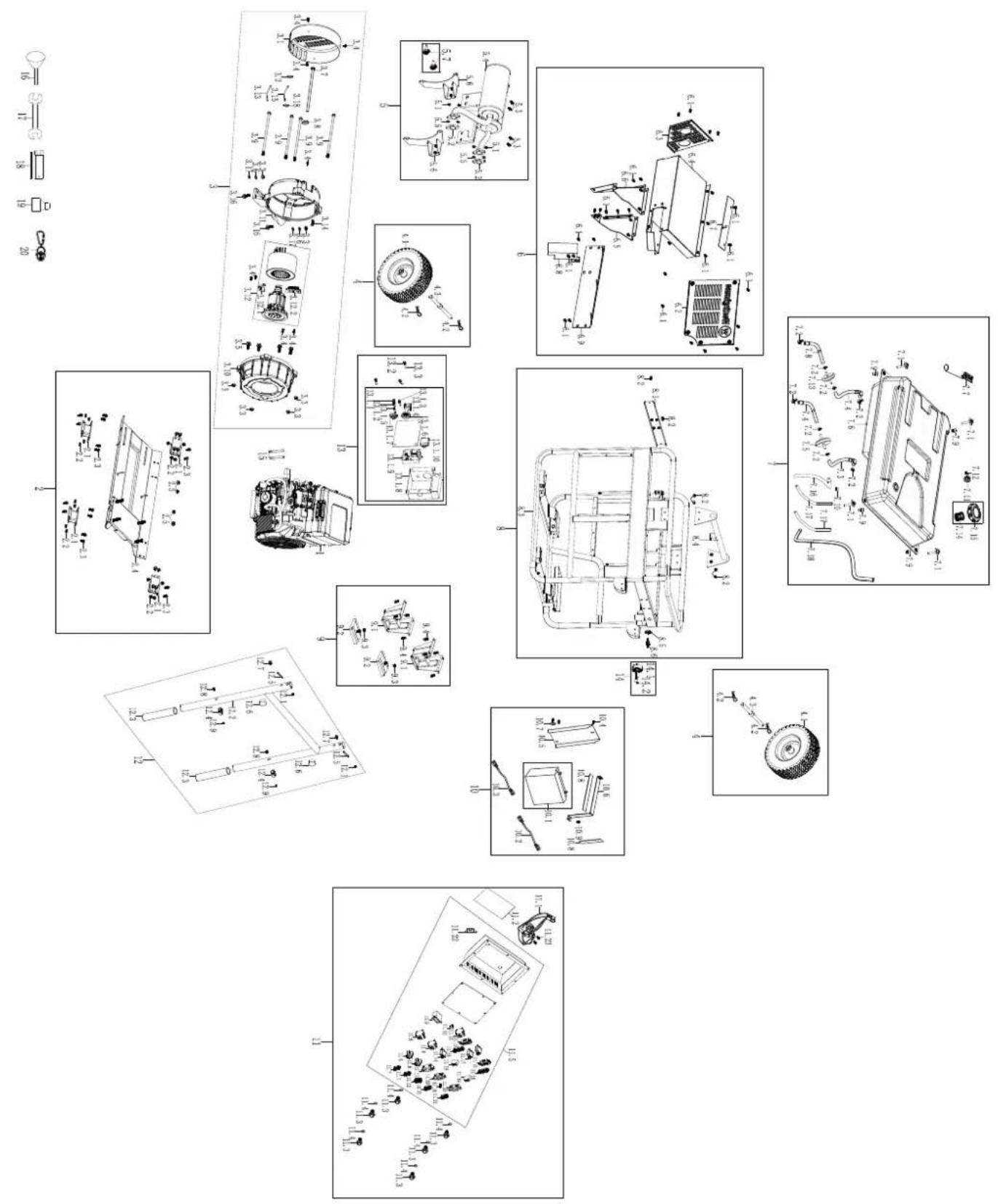

GENERATOR EXPLODED VIEW

GENERATOR PARTS LIST

NO. PART # DESCRIPTION
1 1148100	031068 ENGINE D	HT1000E
2 6019002	5 ISOLATOR ASSEMBLY	MBLY
2.1 50101	0 SHOCK ABSORBER
2.2 90019	NUT M8
2.3 91344	BOLT M8*16
2.4 50119	6-116 BOARD
2.5 90094	NUT M10*1.25
3 6058002	8 ALTERNATOR KIT	ASSEMBLY
3.1 50101	2-221 ALTERNATOR TAIL COVER
3.2 94083	TOOTH WASHER	Φ8
3.3 90094	NUT M10*1.25
3.4 91327	BOLT M6X12
3.5 91347	BOLT M8*30
3.6 94201	SPRING WASHER	Φ10
3.7 91736	ROTOR FIXING BOLT
3.8 96830	ROTOR BOLT GASKET	16*32*3
3.9 91713	ROTOR FIXING BOLT	T M10*1.25*265
3.10 5011	55 ALTERNATOR END COVER
3.11 5011	66 ALTERNATOR BRACKET
3.12 7500	25 ALTERNATOR ASSEMBLY
3.12.1 501	183 CARBON BRUSH	ASSEMBLY
3.12.2 667	0 TERMINAL ASSEMBLY
3.13 5446	16 SHORT WIRE
3.14 9227	8 BOLT M6*15
3.15 5446	17 SHORT WIRE
3.16 9145	5 BOLT M10*1.25*	45
3.17 9421	4 FLAT WASHER
3.18 9400	3 TOOTH WASHER	Φ6
4 6006004	1 WHEEL KIT ASSEMBLY	MBLY
4.1 52367	0 WHEEL
4.2 54830	1 STOP REFUND
4.3 50118	0 AXLE
5 6003003	5 EXHAUST MUFFLER KIT ASSEMBLY
5.1 90011	NUT M8
5.2 96213	EXHAUST SEAL WASHER
5.3 91344	BOLT M8*16

NO. PART # DESCRIPTION
5.4 705009 MUFFLER
5.5 94206 SPRING WASHER O8
5.6 520315-116 MUFFLER MOUNTINGBRACKET
5.7 6859 SPARK ARRESTER
6 60600002 MUFFLER COVER		ASSEMBLY
6.1 91327 BOLT M6X12
6.2 515906-116 MUFFLER COVER
6.3 515907-116 MUFFLER REAR COVER
6.4 501200-116 WIND-LEAD SLOTWELDING PART
6.5 501202-116 WIND-LEAD SLOTCONNECTING PLATE
6.6 501201-116 COVER PLATE
6.7 501177-116 WHEEL HEAT-INSULATINGPLATE
6.8 501179-116 WIND-LEAD-COVER
6.9 501178-116 AIR FILTER HEAT-INSULATING PLATE
7 60010077 FUEL TANK KIT ASSEMBLY
7.1 91460 BOLT M6*25
7.2 94412 FUEL HOSE CLIP Φ12
7.3 95710L FUEL HOSE
7.4 95716L FUEL HOSE
7.5 516602 FILTER
7.6 700909-116 FUEL TANK
7.7 6706 FUEL GAUGE
7.8 95661 FUEL PUMP OUTLET PIPE
7.9 516201 FUEL TANK SHOCKCUSHION
7.10 94418 FUEL PIPE PROTECTIVERUBBER SLEEVE
7.11 546608 ROLL OVER VALVASSEMBLY
7.12 94403 FUEL HOSE CLIP
7.13 516401 FILTER
7.14 518801 FUEL TANK FILTER
7.15 519429 FUEL CAP
7.16 94445 GLASS FIBER TUBE
7.17 94469 GLASS FIBER TUBE
7.18 94474 GLASS FIBER TUBE

GENERATOR PARTS LIST CONTINUED

NO. PART # DESCRIPTION

8 6007006 4 FRAME KIT ASSEMBLY

8.1 53033 1 MOVABLE BEAM

8.2 91344 BOLT M8*16

8.3 77005 5-116 FRAME

8.4 53361 0-116 LIFTING BRACKET

8.5 51840 1 FUEL SWITCH

8.6 51840 2 FUEL SWITCH SEAT

9 6015005 0 FOOT BRACKET KIT ASSEMBLY

9.1 52590 9-010 FOOT BRACKET

9.2 53190 5 FOOT BRACKET SHOCK ABSORBER

9.3 90026 NUT M8

9.4 91344 BOLT M8*16

10 602000 30 BATTERY BRACKET KIT ASSEMBLY

10.1 5110 93 BATTERY

10.2 5120 05 BATTERY POSIT VE WIRE

10.3 5120 57 BATTERY NEGATIVE WIRE

10.4 9132 7 BOLT M6X12

10.5 5011 62-116 BATTERY HEAT- INSULATING PLATE

10.6 5011 72-116 BATTERY H OLDER

10.7 9400 3 TOOTH WASHER Φ6

10.8 5997 02 BLOCK GLUE

10.9 9139 7 BOLT M6*20

11 600400 95 CONTROL PANEL KIT ASSEMBLY

11.1 5349 09 AVR

11.2 5011 91 CONTROL PANEL L HEAT- INSULATING PLATE

11.3 9132 7 BOLT M6X12

11.4 9612 0 PAPER WASHER Φ6

11.5 7144 02 CONTROL PANEL ASSEMBLY

11.6 6254 14-50R

11.7 6414 WATERPROOF CAP

11.8 6513 50 CIRCUIT BREAKER 2P50A

11.9 6041 DIGITAL DISPLAY

11.10 6685 ON/OFF SWITCH

11.11 6383 L5-30R

NO. PART # DESCRIPTION
11.12	6413 WATERPROOF CAP
11.13	6513-83 CIRCUIT BREAKER 2P83A
11.14	9227-30 30A-THERMAL PROTECTOR
11.15	6275 GFCI SOKET 5-20R
11.16	6412 WATERPROOF CAP
11.17	9227-20 20A-THERMAL PROTECTOR
11.18	6386 GROUND BOLT ASSEMBLY
11.19	6436-30 CIRCUIT BREAKER 30A
11.20	6385 L14-30R
11.21	6413 WATERPROOF CAP
11.22	549406 CONTROLLER
11.23	91397 BOLT M6*20
11.24	6656 CONTROL PANEL REAR COVER
12 601800 35 HANDLE WELDING KIT ASSEMBLY
12.1 90026 NUT M8
12.2 52664 2-116 HANDLE
12.3 528501 HANDLE RUBBER SLEEVE
12.4 528606 HANDLE RUBBER CLIP
12.5 503402 PLUG
12.6 527401 HANDLE SHOCK CUSHION
12.7 91363 BOLT M8*50
12.8 91339 BOLT M6*50
12.9 90016 NUT M6
13 606100 04 ELECTRIC & REMOTE START CONTROLLER ASSEMBLY
13.1 326509 ELECTRIC & REMOTE START CONTROLLER
13.1.1	1042 CO INDICATOR LIGHT
13.1.2	1041 CO INDICATOR LIGHT
13.1.3	6393 POWER IND CATOR LIGHT
13.1.4	6502 SWITCH
13.1.5	6387 CHARGING PORT 2.0mm
13.1.6	536002 ONE PUSH BOTTOM SWITCH
13.1.7	6488 ATS GXP20-7P
13.1.8	6988 CONTROL PANEL REAR COVER

GENERATOR PARTS LIST CONTINUED

NO. PART # DESCRIPTION
13.1.9 913	9 WR0715_C MODULE
13.1.10 59	9078 CO FLAMEOUTACTUATOR
13.2 9132	7 BOLT M6X12
13.3 9612	0 PAPER WASHER Φ6
14 604500	10 CO MODULE KITASSEMBLY
14.1 5990	79 CO MODULE
14.2 9234	5 SCREW
15 599601	METAL CLIP
16 99509	FUNNEL
17 99025	WRENCH
18 99013	SPARK PLUG WRENCH
19 99655	OIL BOTTLE ASSEMBLY
20 6629	R EMOTE FOB

SCHEMATICS

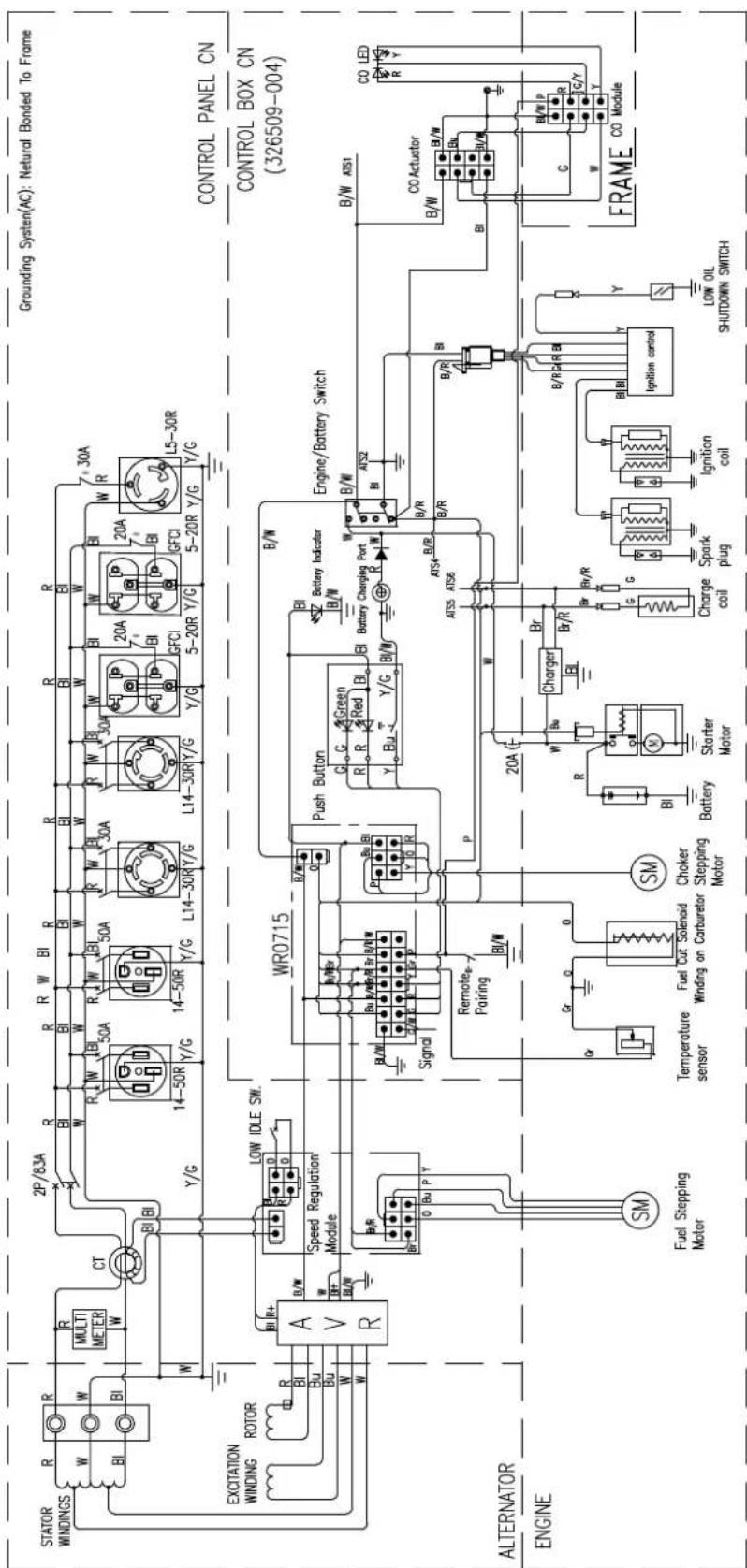

SCHEMATICS

ATS Connector

WIRING DIAGRAM OF 120/240V GENERATOR SET

BI	Black	Br	Brown	Y/G	Yellow/Green	B/W	Blue/White
O	Orange	B/B	Black/Red	B/B	Black/White	B/R	Brown/Red
Bu	Blue	LB	Light Blue	G	Green	C/W	Green/White
Gr	Gray	Bl	Black	Y	Yellow
R	Red	W	White	P	Pink

ESPAÑOL

WGen20000c

Generador Portátil

20,000 Vatios en Funcionamento | 28,000 Vatios de arranque

MANUAL DE USUARIO

NO DEVUELVA Este PRODUCTO A LA TIENDA

Tos h s t e t Westinghouse Outdoor Power Equipment, LLC.

ADVERTENCIA

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

Para su archivo

Fecha de compra:

Número de modelos:

Numero de série:

Lugar de compra:

House Outdoor Power Equipment, LLC, 1000 Lakeview Blvd., A-1238 East, Lake

Model Model

Mode No.

AC Votahe

Tension CA

AC Current

Power (Bases) (Balance Term)

m : x = 1 或 3x + 4y + 1 = 0

Source:Source

Insul Class Clause Died

Max Arc Time:

Temp.Amb.Max

Date

Service

Designed in Columbus, Ohio USA

C

Serial No.NO.D

Serial Number

Numero de series

Numero de seles

% S/

mber

series

e sere

3.1.1.2

Register your product

Failure to follow warnings, instructions and operator's
mert a
Goranae aae aeaeaaee
DO NOT update me at wate another.
A. a letter written by a person named A. B. C. D. E. F. G
A

and
A
A
C
e

No ochoer bns adnndn a nnnnnn y mual

A
A

A

A
C
Lok gues de esques confiernm inmobilede catofo mertorue.
y
1 + u1 - 1 = ( 1 + u) u1 < 1 = u
A

4

CAUTION

HOT SURFACES

APRECAUCION

SUPPERCIES CALIENTES

4 ATTENTION

AUX SURFACES CHADES

警告

ADVERTENCIA

A AVEBTISSEMENT

m - 1 0 ;

(see manual for instructions)

FILTRO DE AIRE

Vary the load occasionally to allow stator windings to heat and cool and help seat the piston rings.

INACTIVO BAJO

NOTA

Turn Low Idle ON when powering intermittent, non-electronic loads, such as power tools at a construction site.

NE PAS RETOURNER CE PRODUIT AU MAGASIN

CENTRE DE DONNÉES 75

RAPPELS D'ENTRETIEN 75

ASSEMBLE

CONTENU DU CARTON 76

INSTALLER LES ROUES ET LE SUPPORT DE LEVAGE....76

INSTALLATION DE LA BATTERIE 77

CARBURANT 78

REEMPLER LE RÉSERVOIR DE CARBURANT 78

OPERATION

EMPLACEMENT DU GENÉRATEUR 79

MISE A LA TERRE 79

DECONNEXION DU NEUTRE LIÉ 80

FONCTIONNEMENT A HAUTE ALTITUDE 80

RALENTI FAIBLE 80

AVANT DE DEMARRER LE GENÉRATEUR 80

DÉMARRAGE DU MOTEUR 81

ARRÉT DU MOTEUR 81

FREQUENCE D'UTILISATION 82

DISJONCTEURS AC 82

GENERATOR CAPACITY 82

GESTION DE L'ALIMENTATION 83

RALLONGES 83

DIMENSIONS DU CORDON D'EXTENSION 84

TRANSPORT 84

ENTRETIEN

CALENDRIER DE MAINTENANCE 85

PIECES DE RECHANGE DE MAINTENANCE 85

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

Pour vos dossiers

Date d'achat:

Numero de modulo:

Numéro de série:

Lieud'achat:

CHARACTERISTIQUES

• Disconnect the spark plug wire to prevent accidental starting.

Westinghouse Outdoor Power Equipment, LLC AC Voltage Tension CA Frequent Frodeur Westinghouse Outdoor Power Equipment, LLC AC Current Intensitie CA RPM TRVN Columbus Ohio 43228 State-Units

CAUTION HOT SURFACES

WARNING ADVERTENCA AVESTMENTMENT

NEVER FUEL UNIT WITH ENGINE RUNNING, ALWAYS FUEL UNIT IN WELL VENTILATED AREA. ALWAYS CLEAN FUEL SPILLS. ALWAYS ALLOW UNIT TO COOL BEFORE FULING.

NUNCA COMBUSTE LA UNIDAD CON L EMOR EN MARCHA. SIEMPE UNIDAD DE COMBUSTIBLE EN ZONA BEN CON VENTILADA. SIEMPE LIMPIE LOS DERHAMES DE COMBUSTIBLE. SIEMPE PERMITA QUE LA UNIDAD ESTE EN FIO ANTES DE COMBUSTIBLE.
NE FAITES JAMAS LE PLEN LORSQUE LE MOTEUR EST EN MARCHE. FAITES TOUJOURS LE PLEN DEL LILLINTE DANS UN ENDROIT BIEN VENTILET, NETTOYEV TOUJOURS LE CARHURANT REPANDU, LAISSEZ TOUTOURS REPRODIR L'APPEARI EL AVANT DE FAIRE LE PLEN.

WARNING: Cancer and reproductive harm. www.P5WWarnings.ca.gov/president
AVERISCENTMENT: Cancer et problèmes de reproduction - www.P5WWarnings.ca.gov/president
ADVANTIERCA: Cancer y dosas alsysteme réducteur. www.P5WWarnings.ca.gov/president

AIR FILTER

Clean filter every 50 hours of use!

(see manual for instructions)

FILTRO DE AIRE

Fire and explosion hazard. Never refuel the generator while the engine is running. Always turn the engine off and allow the generator to cool for two minutes before refueling.

AVIS

DIMENSIONS DU CORDON D'EXTENSION

Note: Have an appropriate gasoline container and rags ready to catch residual fuel in the filter and fuel line.

Couple: 106 inch-pound (12 N·m)

WestinghousePortablePower.com

Service Hotline: [phone]

777 Manor Park Drive

Columbus, OH 43228

TM & © 2022 Westinghouse Electric Corporation

© 2022 Westinghouse Outdoor Power Equipment, LLC All Rights Reserved.

WGen2000c Rev01

122423 Rev01 03/22
