Classic C 22 Twin - Slicer GRAEF - Free user manual and instructions

Product type	Electric slicer
Brand	Graef
Model	Classic C 22 Twin
Cutting functions	Instant (push button) and continuous (rotary knob)
Thickness adjustment	Yes, via wheel
Tilt	Yes, 30° with lock
Food pusher	Included, for small foods
Carriage	Removable for cleaning
Blade	Stainless steel, removable
Motor	5-year guarantee (60 months)
Safety	Safety lock, blade guard, release stop
Food types	Bread, ham, salami, cheese, fruits, vegetables (frozen foods excluded)
Cleaning	Damp cloth, do not immerse, do not wash in dishwasher
Carriage maintenance	Oil the guide once a month with non-resinous oil
Blade disassembly	A coin to unscrew the screw
Instructions	Do not use without carriage or pusher
Material	Plastic housing (estimated)
Manual	68 pages, available in French

Frequently Asked Questions - Classic C 22 Twin GRAEF

How to start instant cutting?

Place the food on the carriage, adjust the thickness, then press the instant operation button with your thumb to start the motor. Release to stop.

How to use continuous cutting?

Turn the continuous operation knob clockwise to the stop (1/4 turn). To stop, return it to the initial position. After about 9.5 minutes of continuous use, let the motor cool down.

How to adjust the cutting thickness?

Use the thickness adjustment wheel on the appliance. Turn it to get the desired thickness.

How to tilt the appliance 30°?

Press the locking button, then raise the appliance via the pivot lever until you hear a 'click'. Make sure it is locked before slicing.

How to clean the blade?

Clean the blade with a damp cloth and a little cleaning product. Never wash it in the dishwasher, as this would reduce sharpness and corrosion resistance.

How to disassemble the blade?

Remove the carriage, then unscrew the blade screw clockwise using a coin. Clean the inside of the blade and the black ring with a damp cloth. Reassemble in reverse order.

What to do if the appliance does not start?

Check that the safety lock is released: push the device under the carriage towards the adjustment button without pressing the safety switch. If the problem persists, contact Graef after-sales service.

Can the parts be washed in the dishwasher?

No, do not wash any parts in the dishwasher. Clean the carriage and other removable parts by hand with a damp cloth or under running water. The blade and carriage are not dishwasher safe.

How to use the food pusher?

Place the leftovers or small foods on the carriage. Put the food pusher against the food and proceed as for normal cutting. It allows safe slicing of foods like mushrooms or tomatoes.

What is the motor warranty?

Graef offers a 60-month (5-year) warranty on the motor from the date of purchase. Damage due to improper use or unauthorized repairs is excluded from the warranty.

USER MANUAL Classic C 22 Twin GRAEF

Close-up of a vintage camera with black lens and silver casing (no visible text or symbols)

Messerschärfer

Close-up of a smooth, curved metallic surface with a bright diagonal light streak (no text or symbols visible)

Glattes Messer aus

Edelstahl ∅ 170 mm

Artikel-Nr. 1781108

A Stop plate
B Quick-action switch
© Adjustment knob
D Continuos operation switch
E Food holder
F Stainless steel blade
⑥ Tilting lever (only Classic C 90 / C 99)
H Cable compartment
① Lock button (only Classic C 90 / C 99)
J Carriage lock
K Base plate or Foot
L Plastic carriage with stainless steel support
M Child lock

Inhaltsverzeichnis

Safety instructions....14

Unpacking....16

Requirements on the installation location ....16

Safety hazards....16

Securing the machine ....16

Cutting material 16

Cutting with the quick-action switch .....17

Cutting with the continuous operation switch ....17

Holder for remainders....17

Tilting by 30 deg. ....18

Cleaning....18

Preservation of value - blade .....18

Removing the blade .....19

Slide 19

After-sales service....19

Disposal....19

5 year motor guarantee....20

Troubleshooting 21

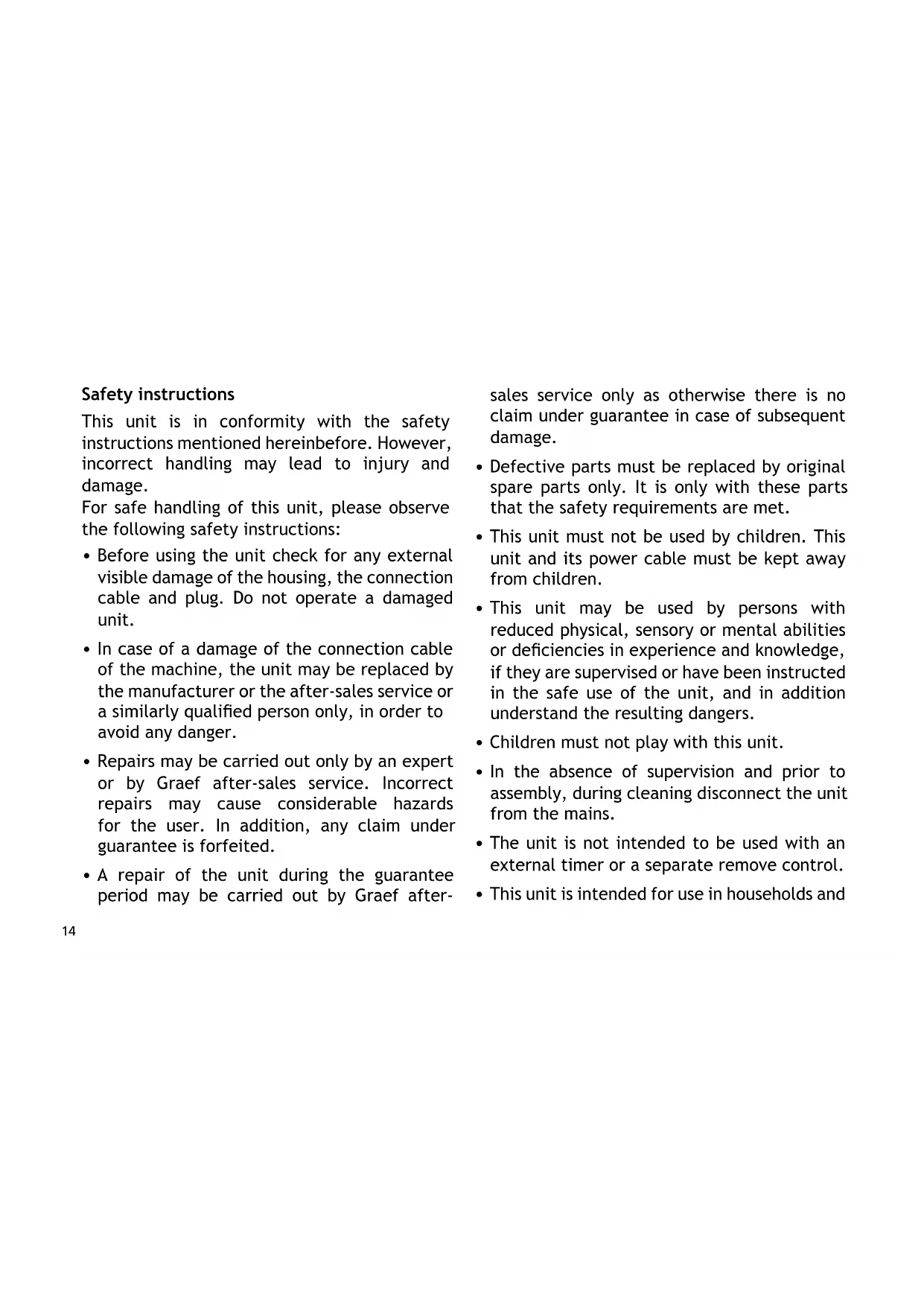

Safety instructions

This unit is in conformity with the safety instructions mentioned hereinbefore. However, incorrect handling may lead to injury and damage.

For safe handling of this unit, please observe the following safety instructions:

• Before using the unit check for any external visible damage of the housing, the connection cable and plug. Do not operate a damaged unit.
• In case of a damage of the connection cable of the machine, the unit may be replaced by the manufacturer or the after-sales service or a similarly qualified person only, in order to avoid any danger.
• Repairs may be carried out only by an expert or by Graef after-sales service. Incorrect repairs may cause considerable hazards for the user. In addition, any claim under guarantee is forfeited.
• A repair of the unit during the guarantee period may be carried out by Graef after-

sales service only as otherwise there is no claim under guarantee in case of subsequent damage.

• Defective parts must be replaced by original spare parts only. It is only with these parts that the safety requirements are met.
• This unit must not be used by children. This unit and its power cable must be kept away from children.
• This unit may be used by persons with reduced physical, sensory or mental abilities or deficiencies in experience and knowledge, if they are supervised or have been instructed in the safe use of the unit, and in addition understand the resulting dangers.
  • Children must not play with this unit.
• In the absence of supervision and prior to assembly, during cleaning disconnect the unit from the mains.
• The unit is not intended to be used with an external timer or a separate remove control.
• This unit is intended for use in households and

similar use, such as: Staff kitchens in shops and office; in agricultural estates; by guests in hotels, motels and other living quarters; in bed and breakfast boarding houses.

• Always disconnect the connection cable by using plug; do not pull the connecting cable.
• Before connecting the unit compare the connection data (voltage and frequency) on the typeplate and your mains. These data have to be in conformity so that no damage can occur.
• Do not use the unit when the connection cable or the plug is damaged.
• Before reusing, have the unit fitted with a new connection cable by the Graef after-sales service or an authorised specialist.
• By no means open the housing of the unit. An electric shock may be caused by touching life connection and electrical mechanical structures.

• Never touch live parts. They can cause an electric shock or may result in death.

• Never carry the unit by its power cable.

• Never transport the unit during operation.
• Never operate the unit with wet hands.
• In idle state, turn the adjustment know clockwise to zero setting so that the stop plate covers the knife blade.
• Packaging materials must not be used for playing. There is a danger of suffocation.
• Do not touch the blade of the knife with your fingers. This is very sharp and may cause serious injury.
• Make sure that the unit has been switched off before cleaning or non-use and is not connected up to the mains.
• Check whether the stop has been closed (blade covered).
• Do not use any aggressive or scouring detergent and no solvents.
• Do not scape off any persistent dirt with a hard object.
• Do not rinse the unit in water or immerge in

water.

- The unit must not be used without the food holder for remainders unless the size and shape of the food permits use without.

Unpacking

Proceed as follows to unpack the unit:

• Remove the unit from the box.
• Remove the packaging parts.
• Remove any stickers on the unit (do not remove the typeplate).

Requirements on the installation location

For safe and faultfree operation of the unit, the following requirements of the installation location have to be met:

• The unit has to be placed on a solid, flat, horizontal and non-slipping surface mit a sufficient weight-carrying capacity.
• Choose the location in such a way that children cannot reach the sharp blade of the unit.

Safety hazards

The very sharp blade can cut off parts of the body. Your fingers are especially endangered. For this reason, do not reach into the space between the stop plate and the blade as long as the stop plate is not closed completely, i.e. set to "0".

Securing the machine

The machine has a safetey catch to protect it against unauthorized use. The catch prevents the machine from being switched on. It is located under the carriage. Exerting no pressure on the safety button slide the switch in the direction of the setting button. The machine can only be switched on when the catch has been released.

Cutting material

• The unit can be used to cut bread, ham, sausage, cheese, fruit, vegetables, et cetera.
• By no means cut hard objects, such as frozen food, bones, wood, sheet metal or similar.

Cutting with the quick-action switch

• Place a tray, a plate or something similar below the unit.
• Choose the requested slicing thickness.
• Press the material gently to the stop plate and the slide to the blade evenly.
• Use your thumb to press the quick-action switch - that switches on the motor.
• Press your thumb against the quick-action switch while slicing.
• As soon as you remove your thumb from the quick-action switch the motor switches off.

Note: Soft food (such as cheese or ham) can be sliced best when cooled. Soft food can be cut better when pushed slowly. When slicing cucumbers or carrots, it is advantageous if they are cut to equal lengths first which are then fed using the holder for remainders.

Cutting with the continuous operation switch

- Place a tray, a plate or something similar below the unit.

• Choose the requested slicing thickness.
• Press the material gently to the stop plate and the slide to the blade evenly.
• Turn the continuous operation switch clockwise up the limit stop (1/4 turn).
• Turn the continuous operation switch back to turn off the unit.
• Let the motor cool off after using continuously for approx. 9.5 minutes.

Holder for remainders

The unit must not be used without the food holder for remainders unless the size and shape of the food permits use without.

As soon as the size or shape of the food permits the use of the holder for remainers, this has to be used.

• Place the remainders or smaller food on the slide.
• Place the holder for remainders at the rear wall of the slide and move the holder for remainders up to the food to be cut.

- Proceed as described above in chapter "Cutting".

The holder for remainders permit slicing of smaller food, such as mushrooms or tomatoes.

Tilting by 30 deg.

The tilting function is especially useful for cutting bread, hard-cured sausage and vegetables. By means of the tilting function, the natural gravity force of the product to be cut is used for feeding.

Proceed as follows to tilt the unit:

• Press the lock knob. The unit is unlocked.
• Use the swivelling lever to pull the unit up forcefully until it locks in audibly.
• When the unit has been locked in audibly, it is secured.
• Now continue as described in the chapter titled “Cutting operation”.
• After finishing the cutting process, swivel the unit back.
• Turn the swivelling lever down.

Press the rear part of the profile to lock the locking bolt.

Cleaning

Use a soft and moist cloth to clean the outer surfaces of the unit. Use a mild detergent in case of heavy soiling.

Preservation of value - blade

For a long-lasting sharpness and for a preservation of the value of your Graef blade we recommend that the blade be cleaned in regular intervals, especially after cutting cured meat or ham. They contain salts which when on the blade surface for a longer period of time could produce so-called “rust film” (on “stainless steel” as well). When cutting products which contain a lot of water, such as tomatoes or cucumbers, a lack or wrong (too “wet”) cleaning may produce rust on the blade surface.

For this reason we recommend that you use a moist cloth and a bit of detergent, if and when necessary, to clean the blade directly after use. Never put the blade in a dishwasher, firstly

due to decrease in sharpness and corrosion resistance (salts attack the blade), and secondly due to safety in handling the blade whilst loading and unloading the dishwasher.

Removing the blade

Unscrew the blade from time to time and clean the unit on the inside. Do this, especially “juicy” cutting material (tomatoes, fruit, roasts, et cetera) are cut. Handle the blade with great care.

• Remove the slide.
• Undo the blade by using a coin to turn the blade screw clockwise.
• Use a moist cloth to clean the inside of the blade and the black ring.
• Place the blade in reverse order.

Slide

In order to clean the slide better, remove it from the unit.

- Press the carriage lock on the bottom right side of the carriage upwards and keep pressed

while pulling the carriage towards you.

• Use a moist cloth or running water to clean all parts.
  Important: Do not clean the slide in a dishwasher!
• Once a month, add some drops of resin-free oil or petroleum jelly to the slideway. Use a soft cottonwool cloth to remove excessive oil / petroleum jelly.

After-sales service

If you Graef unit should be damaged, please get in touch with your specialist dealer or with a Graef after-sales service.

Disposal

At the end of its service life, this product cannot be disposed of in normal domestic waste but has to be disposed of at a collection point for recycling electronic household waste. The symbol on the product and in the operating instructions point out to this fact. Reuse the materials according to their marking. By reusing, recycling or other applying other forms of use of old units, you render an

important contribution to the protection of our environment. Please ask your municipal administration for the disposal point.

5 year motor guarantee

For this product we assume an additional guarantee on the motor of 60 months beginning with the date of sale. Your legal warranty claim in conformity with Section 439 ff. of The German Civil Code E shall be unaffected by this regulation. The guarantee does not cover any damage which is caused by incorrect handling or use as well as defects which only slightly influence the function or the value of the unit. Moreover, transport damage provided we are not responsible shall be excluded from the claims under guarantee. Guarantee shall be ruled out for damage, the repair of which has not been carried out by us or one of our represenations. In case of justified complaints, we shall repair the defective product or replace it by a product without defects at our discretion.

Troubleshooting

Problem Cause Solution
Slide moves sluggishly. Slide	slide is dirty. Clean and grease the slide
Blade moves sluggishly. Cogwheels of the blade are not greased or are dirty.	Undo and clean the blade; use petroleum jelly to grease the inside of the blade (cogwheel of blade) and the black ring.
Grinding noise caused by blade.	Food residues on the blade potentially	Remove, clean and grease the blade.
Operating noises increase with increasing use.	Gear is not greased sufficiently.	Undo and clean the blade; use petroleum jelly to grease the inside of the blade (cogwheel of blade) and the black ring.
