Product type	Food processor (grinder/blender)
Brand	Graef
Model	CH 502
Category	Food processor
Bowl capacity	500 ml
Bowl material	Glass (illustration)
Blade material	Stainless steel
Power supply	Electric, mains plug
Rated voltage	220-240 V (estimated)
Frequency	50-60 Hz (estimated)
Power	300 W (estimated)
Main functions	Chop, mix, grind (meat, nuts, fruits/vegetables, cheese)
Maximum usage time	30 seconds per cycle, with pauses
Operation	Pulses (hold start button)
Safety	Protective lid, very sharp blade, automatic stop when button is released
Cleaning	Bowl and blade are dishwasher safe; motor unit wipe with a damp cloth
Warranty	24 months (manufacturer's warranty)
Customer service	[phone], [e-mail]
Included accessories	Bowl, lid, blade, motor unit
Foods not recommended	Coffee beans, cereals, ice, nutmeg, bones

Frequently Asked Questions - CH 502 GRAEF

How to use the Graef CH 502 food processor?

Place the food in the bowl, put on the lid, then position the motor unit on the bowl. Plug in the appliance and hold down the start button in pulses. Release the button once processing is complete. Always unplug before removing the blade.

What types of food can I grind with the CH 502?

You can chop meat (without bones or tendons), nuts, chopped fruits/vegetables, and diced cheese. Follow the recommended quantities (e.g., 120 g of meat, 100 g of nuts).

What are the essential safety precautions?

The blade is very sharp: handle with care. Never insert fingers into the bowl. Hold the motor unit during use. Unplug the appliance before cleaning or disassembly. Keep children away.

How to clean the Graef CH 502?

Unplug the appliance and let it cool down. The bowl and blade are dishwasher safe. The motor unit should be wiped with a damp cloth, do not immerse. Be careful with the sharp blade.

What is the warranty period?

The manufacturer's warranty is 24 months from the date of purchase, covering manufacturing and material defects. Damages from improper use are excluded.

Can I grind coffee beans or ice?

No, the appliance is not designed to grind extremely hard foods such as coffee beans, cereals, ice, nutmeg, or bones. This could damage the motor or blade.

How to avoid injuries with the blade?

Never touch the blade directly. Use an utensil or wear gloves when cleaning. Only remove the blade after unplugging the appliance and ensuring it is stationary.

What to do if the power cord is damaged?

Do not use the appliance anymore. Contact Graef customer service or a qualified professional for replacement. Do not attempt to repair the cord yourself.

Can children use the CH 502?

No, this appliance is not intended for children. Children should not play with the appliance. Persons with reduced capabilities may only use it under supervision after instruction.

How to dispose of the appliance at the end of its life?

Do not dispose of the appliance with household waste. Take it to a collection point for electronic waste (crossed-out wheelie bin symbol). Contribute to recycling by following local regulations.

USER MANUAL CH 502 GRAEF

EN Operating Instructions

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Product description....15

General aspects....16

Information on these operating instructions....16

Intended use....16

Limitation of liability 17

Warning messages and symbols....17

Safety....18

Danger caused by electric current 18

Safety instructions for the electrical connections ....18

General safety instructions....19

Requirements on the installation location....20

Unpacking the unit 20

Prior to first use ....20

Basic cleaning....21

Initial operation and use ....21

Processing volumes 22

Cleaning and maintenance....22

Cleaning the unit....22

After-sales service....23

Disposal 23

Disposal of the packaging....23

Disposal of the unit....23

Warranty....24

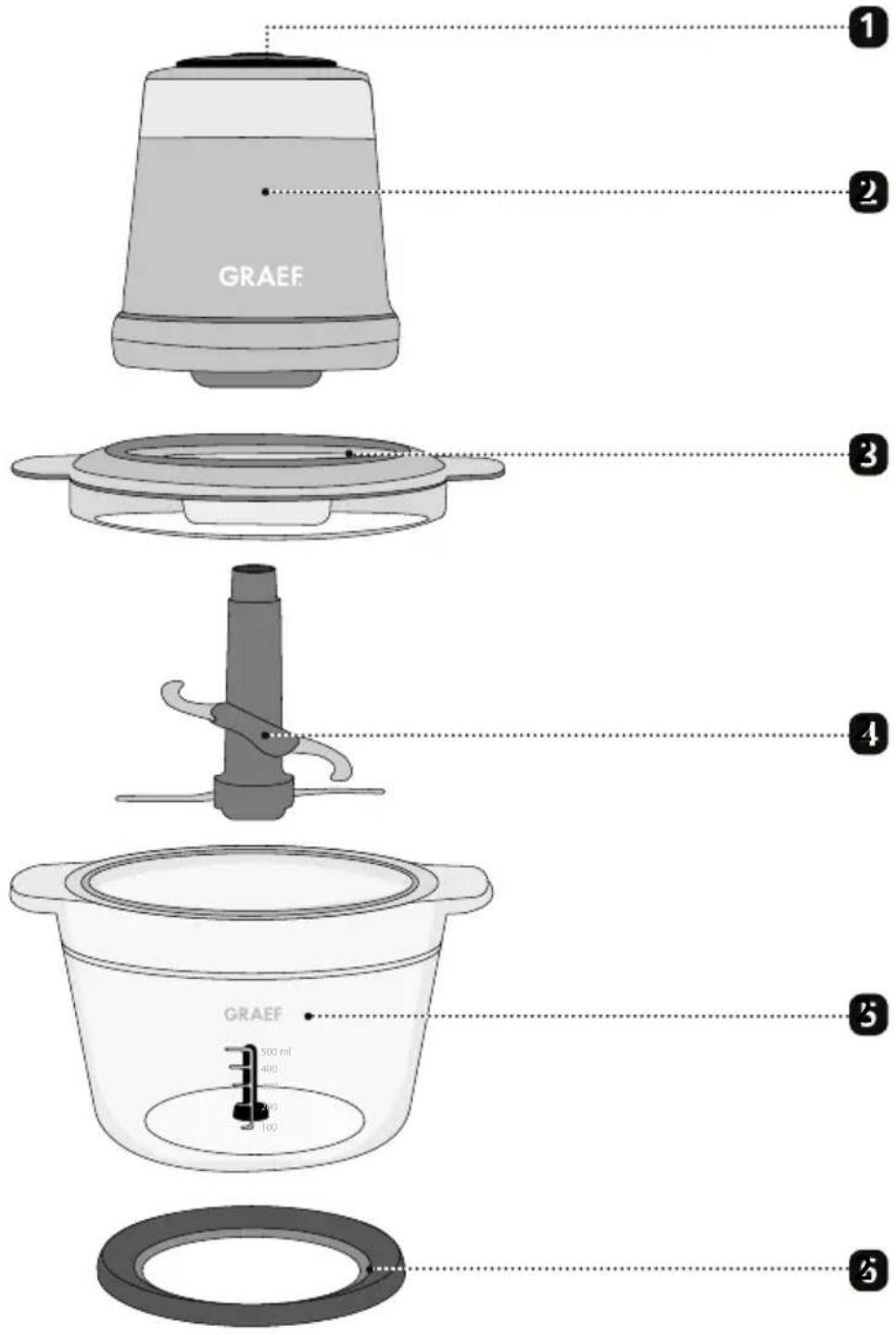

Product overview

GRAEF 1 2 3 4 5 GRAEF 500 ml 400 300 200 100 250 100

Product description

1 Start button
2 Motor unit
3 Key cover
4 Blade
5 Key
5 Mat

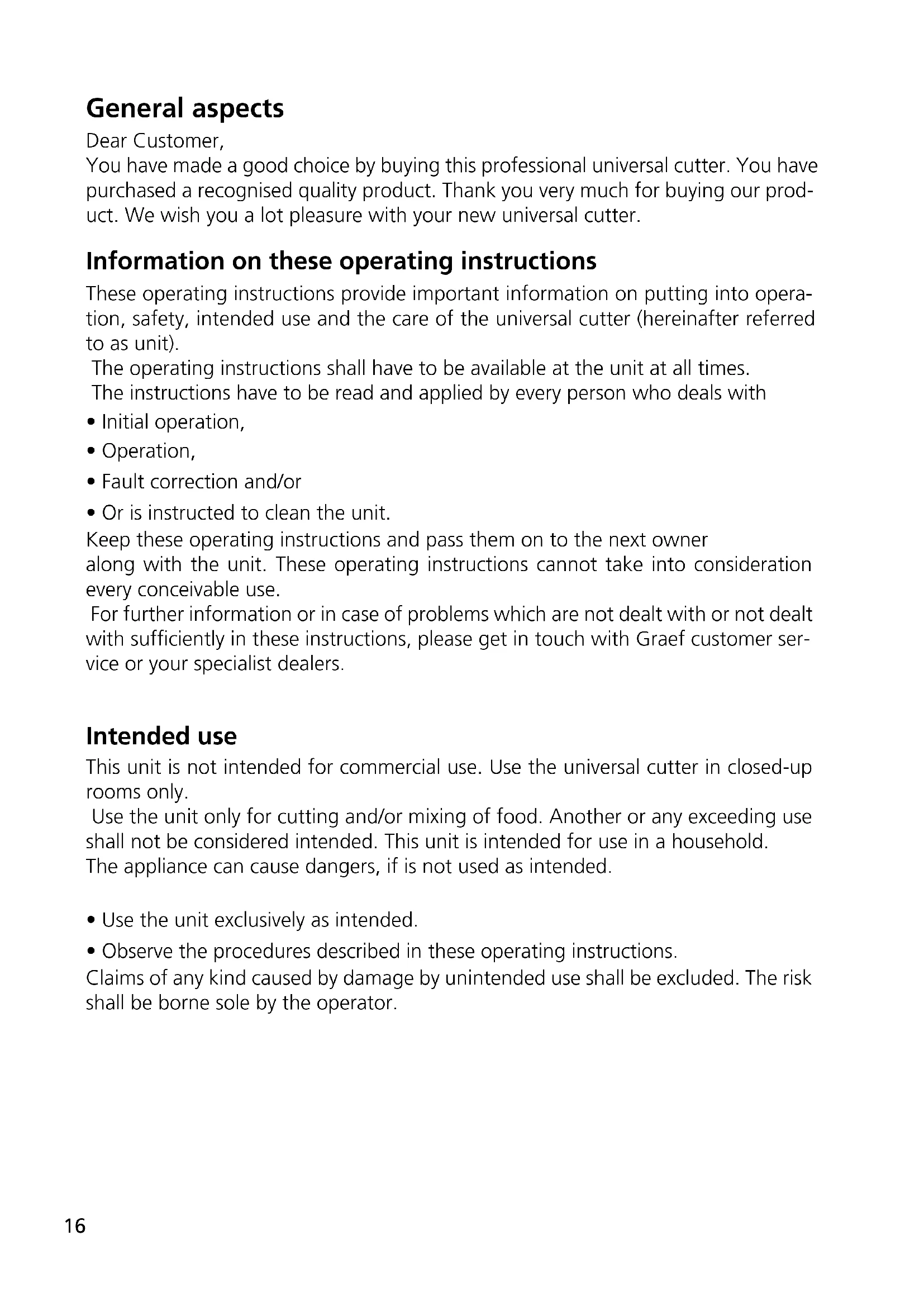

General aspects

Dear Customer,

You have made a good choice by buying this professional universal cutter. You have purchased a recognised quality product. Thank you very much for buying our product. We wish you a lot pleasure with your new universal cutter.

Information on these operating instructions

These operating instructions provide important information on putting into operation, safety, intended use and the care of the universal cutter (hereinafter referred to as unit).

The operating instructions shall have to be available at the unit at all times.

The instructions have to be read and applied by every person who deals with

• Initial operation,
• Operation,
• Fault correction and/or
• Or is instructed to clean the unit.

Keep these operating instructions and pass them on to the next owner along with the unit. These operating instructions cannot take into consideration every conceivable use.

For further information or in case of problems which are not dealt with or not dealt with sufficiently in these instructions, please get in touch with Graef customer service or your specialist dealers.

Intended use

This unit is not intended for commercial use. Use the universal cutter in closed-up rooms only.

Use the unit only for cutting and/or mixing of food. Another or any exceeding use shall not be considered intended. This unit is intended for use in a household.

The appliance can cause dangers, if is not used as intended.

• Use the unit exclusively as intended.
• Observe the procedures described in these operating instructions.
  Claims of any kind caused by damage by unintended use shall be excluded. The risk shall be borne sole by the operator.

Limitation of liability

All technical information, data and notes on the installation, the operation and the care contained in these operating instructions correspond to the last status before printing, and are rendered under consideration of our previous experience and to the best of knowledge. No claims may be derived from the particulars, illustrations and descriptions in these instructions.

The manufacturer shall not assume any liability for damage caused by:

• Non-observation of the instructions
- unintended use
- incorrect repairs
- technical modifications

Use of unapproved spare parts.

Translations shall be carried out to the best of knowledge. We shall not assume any liability for translation mistakes. The original German text only shall be binding.

Warning messages and symbols

In these operating instructions, the following warning messages, signal words and symbols are used:

WARNUNG

This signal symbol / word indicates a hazard with average risk level which, if not prevented, may result in death or a severe injury.

VORSICHT

This signal symbol / word indicates a hazard with low risk level which, if not prevented, may results in slight to moderate injury.

HINWEIS

This signal word warns against potential material damage.

This symbol provides additional information on operation.

Safety

Danger caused by electric current

Mortal danger is caused by contact with energised cables or components!

Please observe the following safety instructions in order to prevent an exposure to electric current:

• Do not use the unit if the mains cable or plug are damaged.
• In this case, you should let the Graef Customer Service install a new connection cable before using the appliance again. This may be done also by an authorised specialist.
• Do not open the housing under any circumstances. If live connections are touched or the electrical and mechanical construction are modified, there is the danger of electric shock.
• Never touch live parts. This can cause an electric shock and may cause even death.

Safety instructions for the electrical connections

For safe and fault-free operation of the unit, the following requirements have to be met during the electrical connection:

• Before connecting the unit, compare the connecting data (voltage and frequency) on the type plate with those of your energy network.
• These details must correspond so that no damage occurs to the unit. In case of doubt ask your trained electrician.
• The socket has to be protected at least by a 10 amps circuit breaker.
• Make sure that the power cable is not damaged and is not laid across hot surfaces or sharp edges.
• The connecting cable must not be stretched tightly.
• The electric safety of the unit is ensured only when it is connected to a socket with protective conductor installed correctly. Operation on a socket without protective conductor is forbidden. If in doubt, let the house installation checked by a trained electrician. The manufacturer shall not assume responsibility for damage which has been caused by absent or interrupted protective conductor.

General safety instructions

This device conforms to the relevant safety regulations. For safe handling of this unit, please observe the following safety instructions:

• However, incorrect handling may lead to injury and damage.
• Before using this device for the first time, check it for visible outer damages on the housing, connection cable and plug. Do not operate a damaged unit.
• If the connection cable is damaged, it must be replaced by the manufacturer, the after-sales service or a similarly qualified person in order to prevent danger.
• Repairs may be carried out only by an expert or by Graef after-sales service. Incorrect repairs may cause considerable hazards for the user. In addition, any claim under guarantee is forfeited.
• Defective parts must be replaced by original spare parts only. It is only with these parts that the safety requirements are met.
• This unit must not be used by children.
• Keep the unit and its connection cable away from children.
• This unit may be used by persons with reduced physical, sensory or mental abilities or deficiencies in experience and knowledge, if they are supervised or have been instructed in the safe use of the unit, and in addition understand the resulting dangers.
• Children must not play with this unit.
• The unit is not intended to be used with an external timer or a separate remove control.
• Always disconnect the connection cable by using plug; do not pull the connecting cable.
• Make sure that the power cable is safely laid; getting caught in the cable can cause the unit to drop from the working surface.
• Packaging materials must not be used for playing. There is a danger of suffocation.

- In the absence of supervision and prior to assembly, disassembly or during cleaning, always disconnect the unit from the mains.

Requirements on the installation location

For safe and fault free operation of the unit, the following requirements of the installation location have to be met:

• The unit has to be placed on a solid, flat, horizontal, and non-slipping surface with a sufficient weight-carrying capacity.
• Make sure that the unit cannot topple over.
• Choose the location in such a way that children cannot reach the blade of the unit or the supply lines.
• Never use the appliance outdoors, and always keep it in a dry place.
• The unit is not designed for installation in a wall or a built-in cupboard.
• Do not set up the unit in a hot, wet or moist environment.
• The socket has to be easily accessible so that the power cable can be removed easily in case of emergency.

Unpacking the unit

When unpacking the unit, proceed as follows:

1. Remove the unit from the box.
2. Remove the packaging parts.
3. Remove any stickers on the unit (do not remove the type plate).

Prior to first use

VORSICHT

Danger of injury!

The very sharp blade can cause injuries.

- Proceed with utmost care when cleaning the blade.

Basic cleaning

Before using the unit for the first time, wash / rinse the bowls and blades in soapy water and dry thoroughly. All parts of the unit are dishwasher-safe - with the exception of the motor unit. Wipe the motor unit with a moist cloth only; do not dip in water.

Initial operation and use

WARNUNG

Danger of injury!

The very sharp blade can cut off body parts. Your fingers are especially at risk.

1. Treat the blade with the upmost of care.
2. Place the food to be processed into the bowl.
3. Put the cap on the keys.
4. Now place the motor unit ② on the bowl. Make sure that the motor unit is placed in the intended recess, and does not wobble.
5. Insert the plug into the socket.
6. Hold with motor unit with one hand, and use the other hand to switch on the start button 1.
7. After completing the processing work, release the start button again.

WARNUNG

Before removing the motor unit, make sure that the blade is no longer turning.

In order to obtain perfect results, use individual pulses, if possible.

1. Disconnect the unit from the power supply.
2. Remove the motor unit and the blade.
3. Empty the bowl. Do not use it to store food.

Processing volumes

All data are reference values depending on the fill volume and degree of fineness.

Food Quantity Time
Meat (without bones and sin-ew)	approx. 120 ml 5 -	10 pulses
Nuts approx. 100 ml 10 pulses
Fruit / vegetables(cut in pieces)	approx. 250 ml 5 -	15 pulses
Cheese(cut in cubes)	approx. 100 ml 5 -	10 pulses

Avoid running the motor for more than 30 seconds. The longer the pulse, the finer the texture.

HINWEIS

Do not crush any extremely hard food, such as coffee beans, grain, ice, nutmeg or bones. The unit is not suitable for the purpose, and can be damaged.

Cleaning and maintenance

WARNUNG

Danger of injury!

Inexpert cleaning may lead to injuries.

• Switch the unit off before cleaning and pull the power cord from the electric socket.
• Let the unit cool down before cleaning.
• Proceed with caution when wiping the blade.

Cleaning the unit

1. Use a soft and moist cloth to clean the outer surfaces of the unit. Use a mild detergent in case of heavy soiling.
2. Clean the unit and blade directly after use.
3. All parts of the unit are dishwasher-safe - with the exception of the motor unit.

After-sales service

If your unit is defective, please contact your specialist dealer or the Graef customer service on [phone] or write an e-mail to [e-mail]

Disposal

Disposal of the packaging

The packaging protects the unit against transport damage. The packaging materials are selected according to the environmental compatibility and disposal-related aspects and can therefore be recycled. The return of packaging into the material cycle saves raw material and reduces the waste volume. Dispose of the packaging material no longer needed at collection points for the “Green Dot” recycling system (in Germany).

If possible, keep the original packaging during the guarantee period of the unit in order to be able to pack the unit correctly in case of guarantee.

Disposal of the unit

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

At the end of its service life, this product cannot be disposed of in normal domestic waste. The symbol on the product and in the operating instructions point out to this fact. Reuse the materials according to their marking. With the reuse, recycling or other forms of recycling of old equipment, you make an important contribution to the protection of our environment. Please ask your municipal administration for the dis-

posal point.

In case of justified complaints, we shall repair the defective product or replace it by a product without defects at our discretion.

Warranty

For this product, we assume 24 months manufacturer warranty for defects, which are due to production or material defects. Your legal warranty claim in conformity with Section 439 et seq. of the German Civil Code (BGB) shall remain unaffected by this regulation. The guarantee does not cover any damage which is caused by incorrect handling or use as well as defects which only slightly influence the function or the value of the unit. We do not assume any liability for damage caused by lack of or insufficient maintenance. In this case, the warranty will become null and void as well. Moreover, transport damage provided we are not responsible shall be excluded from the claims under guarantee. Guarantee shall be ruled out for damage, the repair of which has not been carried out by us or one of our representations.

Table des matières

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Technical illustration of a mechanical component with concentric rings and flanges (no text or symbols)

3

Diagram of a mechanical component with curved and straight lines, no text or symbols present

4

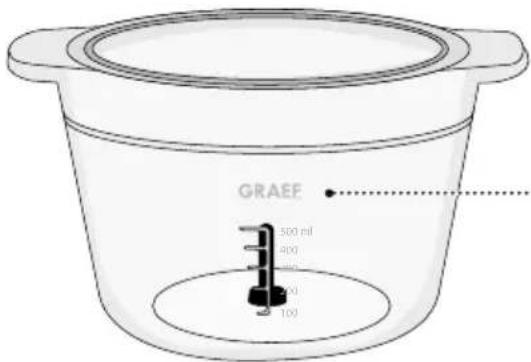

GRAEF 500 ml 400 300 200 100
