• To ensure safety and reduce the risk of injury or electric shock, follow all precautions listed below.

• This appliance is intended for household use in- doors and similar applications such as: – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – sta kitchen areas in shops, oces and other working environments; – catering and similar non-retail applications.

• The appliance must be handled by at least 2 peo- ple.

• Make sure the plug is easily accessible to allow disconnection from the mains supply.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• The manufacturer reserves the right to introduce changes which do not aect the operation of the appliance.

• The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual.

• Keep this manual for future reference, or to pass it over to the next user.

• This appliance is not intended for use by persons (including children) with limited physical or men- tal capabilities and persons who lack experience or familiarity with the appliance.

• Do not allow children to use the appliance. Do not allow them to play with the appliance. They must not climb inside the drawers and swing on the doors.

• The appliance operates properly at the ambient temperature (see product che). Do not use it in the cellar, unheated summer cottage during au-- 31 - tumn and winter.

• When placing, moving, lifting the appliance, do not hold the door handles, do not pull the con- denser at the rear part of the refrigerator and do not touch the compressor unit.

• Pull the plug out from the mains socket before each maintenance activity. Do not pull on the cord, but hold the body of the plug instead.

• The “cracking” sound, which the appliance may emit is caused by the expansion and contraction of parts as a result of temperature variations.

• For safety reasons do not repair the appliance yourself. Repairs carried out by persons who do not have the required qualications may result in serious danger for the user of the appliance.

• Make sure you do not damage the cooling sys- tem, by puncturing the refrigerant pipes in the evaporator or breaking the pipes. The refrigerant is ammable. If the refrigerant makes contact with the eyes, rinse them with clean water and call for medical assistance immediately.

• Important! If the power cord is damaged, it should be replaced by the manufacturer or specialist re- pair centre or a qualied person in order to avoid danger.

• When performing activities, such as cleaning, maintenance or moving, the appliance must be completely disconnected from power supply (by pulling the plug out from the socket)

• This appliance can be used by children aged 8 years and older or by persons with physical, men- tal or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been in- structed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are super-- 32 - vised by a competent person.

• Do not clean the appliance with steam

• Keep the appliance and its power cord away from children under 8 years old.

• Do not immerse the power cord or plug in water.

• Keep cord away from heated surfaces.

• Do not allow the connection cord hanging over the edge of a table or counter.

• Do not use any electrical appliances inside the chamber

• Do not use any tools to speed up the defrosting process

• Regularly clean the ventilation openings (in case of built-in appliances or those installed under the worktop)

• This appliance is not designed to be controlled by electronic timers or other devices that cut o power directly or remotely.

• In case of accidental spillage of liquids on electri- cal components, immediately unplug your appli- ance from the power supply.

• Make sure that the power cord is not crushed or damaged during installation.

• Disable the appliance before disposing of it. Un- plug the appliance from the power supply and cut o the power cord. To prevent children or animals from being trapped in the appliance, remove the doors, hinges and locks.

• Note: If the appliance does not have a freezer compartment (

), it is not suitable for freez- ing foodstus.

• Pursuant to Commission Regulation (EU) 2019/2019, the minimum availability period for spare parts necessary to repair the appliance is 7 or 10 years depending on the type and purpose of the spare part.

• The list of spare parts and the ordering procedure are available on the websites of the manufactur- er, importer or an authorized representative.- 33 -

INSTALLATION AND OPER-

ATING CONDITIONS OF THE

• Connect the appliance to the power supply 24 hours after unpacking and setting in the nal location.

• Take the product out of the package, remove the scotch tape protect- ing the door and the equipment. Any remaining adhesive stains may be removed with a mild washing agent.

• Clean the interior surface of the cooler and the elements of the equip- ment with a washing agent dissolved in lukewarm water, then wipe it dry.

• Place the cooler on an even, at and stable surface, in dry, aired and shaded room, far from the heat sources such as: oven, hob, central heating radiators, central heating pipes, hot water installation, etc.

• On the exterior surface of the product may be a protective foil, this foils should be removed.

• Make sure the appliance is placed in a horizontal position by screwing in the 2 adjustable front legs (g. 1)

• Keep free space on the sides and rear of the appliance (see installa- tion drawing)

• When you install your wine cooler inside a furniture cabinet, make sure that the ventilation grille located in the bottom of the appliance is not blocked.

• Odours may be released when you rst start your appliance. It will dissipate when the interior of the appliance cools down

• When you rst start your wine cooler, the compressor will run contin- uously until the desired temperature is reached inside the chamber

• When you unplug your appliance from the power supply, it is recom- mended to wait 5 minutes before you plug it back in. This will reduce the risk of damage to the compressor.

• On selected models, the correct temperature will be shown on the display only a few hours after the wine cooler has been put into op- eration

• This appliance should be connected to AC 220-240V 50Hz supply socket. The socket must be tted properly, and must be supplied with an earthing conduit and a 10A fuse.

• It is a legal requirement that the appliance is properly earthed. The manufacturer will not be held liable for any damage or injury which may result from the failure to full this requirement.

• Do not use adapters, multiple sockets and two-wire extension leads. If it is necessary to use the extension lead, it must be equipped with a protection ring and a single socket and must have a VDE/GS safety certicate.

• If an extension lead is used (with a protection ring and safety certif- icate), its socket must be located at a safe distance, away from the sinks, and must not be in a place where it could be ooded by water or waste water.

• Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch o.- 34 - Climate range The information about the climate range of the appliance is provided on the rated plate. It indicates at which ambient temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal (proper). Climate class Allowable ambient temperature

Extended Temperate This refrigeration appliance is intended for use at an ambient temperature ranging between 10°C and 32°C N Temperate This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 32°C ST Subtropical This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 38 °C T Tropical This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 43 °C

PRACTICAL EVERYDAY TIPS

• If the light inside the appliance remains turned on, keep in mind that the temperature inside the appliance will be higher

• Temperature inside the appliance depends on the amount and type of stored wine bottles

• To ensure user safety and high quality of stored wine, do not install the appliance in damp rooms

• Store wine bottles in designated spaces

• Your wine cooler has a limited capacity. Do not place more bottles in your wine cooler than recommended in specication

• Do not open the wine cooler door if it is not necessary

• Do not cover the shelves with aluminium foil or other material. This blocks the air circulation inside the appliance

• To avoid damage to the door seal, make sure that the door is com- pletely open before pulling out the shelf. The shelves should be in- serted as far as possible, otherwise the shelf may deform and dam- age the door seal.

• Do not extend the loaded shelves beyond the extension limit (about 1/3 of the shelf length)

• This appliance is designed for storing bottles of wine. Do not use it for any other purpose.

• Temperature stability is very important when storing wine.

• Exposing your wine cooler to sunlight, signicant temperature uctu- ations, high humidity and vibrations may cause the wine to go bad.

• In periods of high humidity, condensed water vapour may appear on the outer surfaces of the glass door. To prevent this, install the appli- ance in a dry, adequately ventilated room.

• Selected models have an external handle. You need to install it on your own. Do not use electric tools for this purpose (g. 3*). To do this, pull the door seal slightly to the side and place the screws on the inside of the door. Align the handle with the holes on the outside- 35 - of the door and tighten the screws with a screwdriver. Reinstall the door seal.

• The maximum capacity of the appliance is given in the product sheet enclosed with the wine cooler. This capacity applies to standard 0.75 litre bottles of Bordeaux.

• Selected models have an Anti-tip kit. Install it according to the en- closed diagram (g. 6*).

• This refrigeration appliance is intended for use as a built-in appliance.

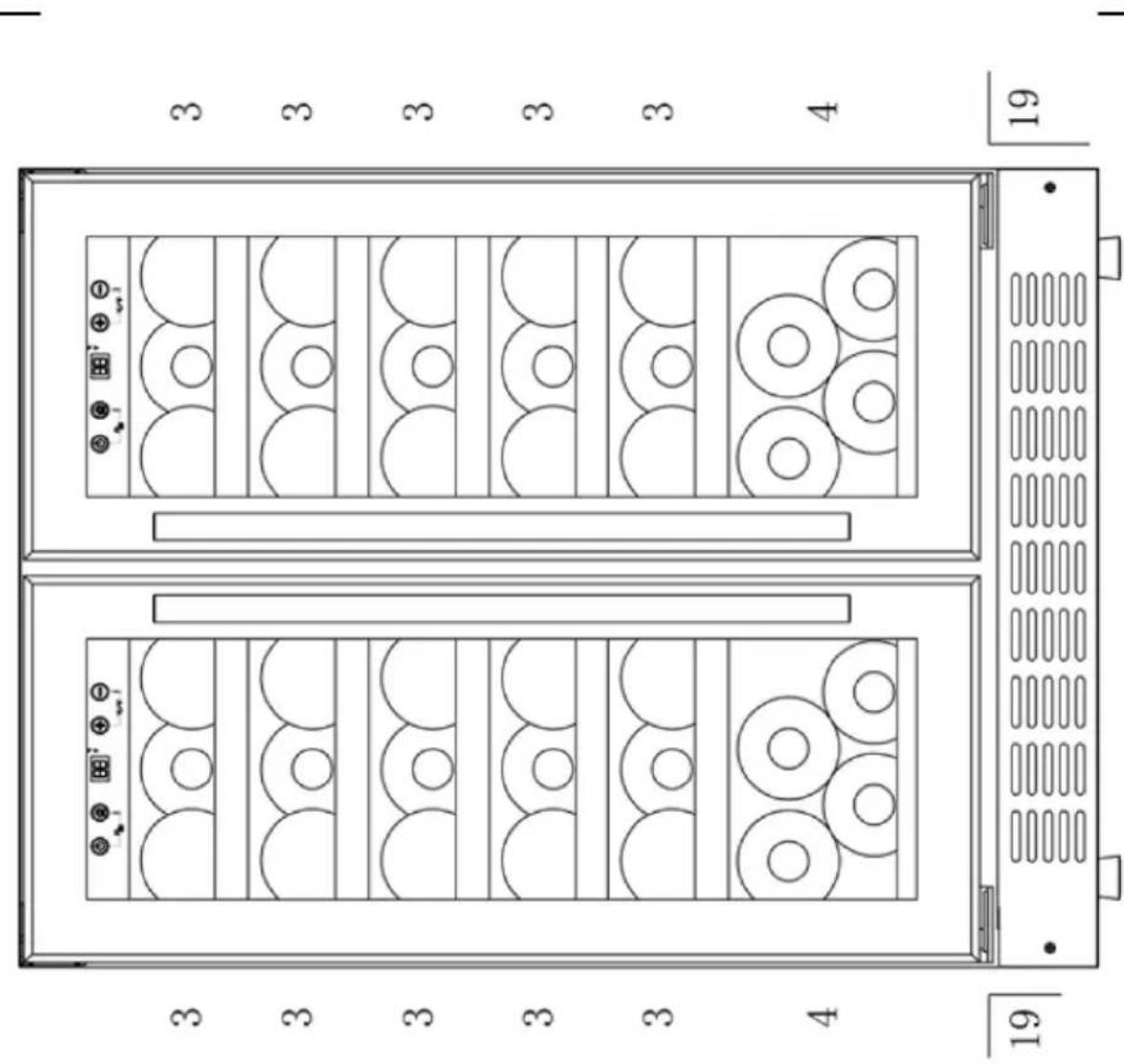

• To achieve the most eective food preservation for the longest pos- sible time and to avoid wasting any food, position the products as shown in Figure 12. In addition, this gure illustrates the layout of drawers, baskets and shelves, which allows the most ecient use of energy.

• Optimal temperature and storage conditions will extend product shelf life and optimize electricity consumption. Optimal storage tempera- ture range should be stated on the food product packaging. *According to the model- 36 - UNPACKING During transportation, pro- tective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the envi- ronment. All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpack- ing.

DISPOSAL OF OLD APPLIANCE

In accordance with European Direc- tive 2012/19/EU and local legislation regarding used electrical and elec- tronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indi- cates that the appliance must not be disposed of together with other household waste after it has been used. The user is obliged to hand it over to waste collection centre collecting used elec- trical and electronic goods. The collectors, includ- ing local collection points, shops and local authori- ty departments provide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health hazards re- sulting from the presence of dangerous compo- nents and the inappropriate storage and process- ing of such goods.- 37 - CONTROLS Controls - one and two zones The control panel is shown in Figure 4. It is also shown below: Single zone Dual zone – Power on/o – Lighting

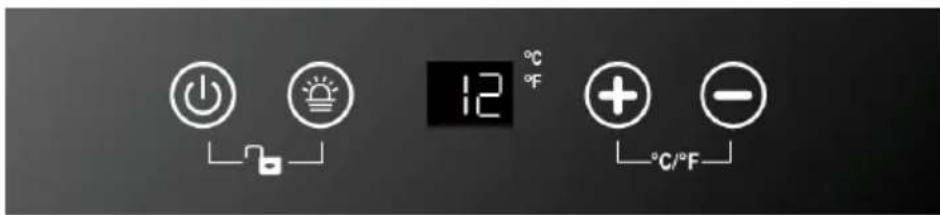

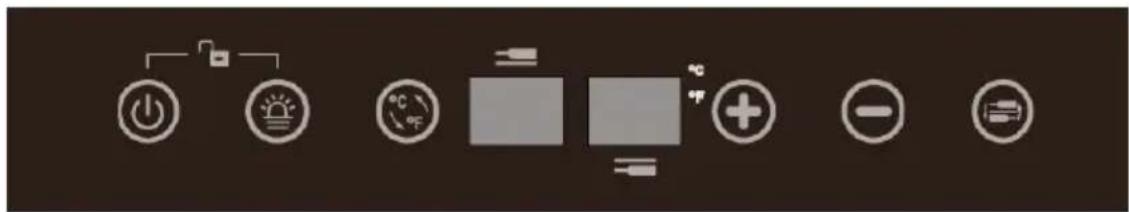

- Temperature unit changing - Zone changing Power on/o After connecting the appliance to the power supply, touch and hold for 10 seconds for one of the zones to turn appliance on. Each zone has a separate control panel. Regardless of the lock control panels, touch and hold for 10 seconds. When you turn o any zone, wait at least 5 minutes before turning it back on. Turning it on early may damage the compressor. Child Lock To enable or disable the Child Lock, touch and hold two sensors for 3 seconds. You will hear a beep. Child lock automatically switch on after 5 seconds after touching the panel. Interior lighting If active, disable the Child Lock and then touch to turn the light on / o. The eect will be visible after closing the door. The light is always on when you open the door.- 38 - Display While adjusting the temperature, the display shows the set temperature. The display will show the current temperature measured inside the appli- ance after about 10 seconds. Note: If the temperature sensor malfunctions, the display may show “HH” or “LL” and you will hear a beep. Even if the temperature sensor malfunctions, the appliance will continue to operate periodically in order to maintain the correct temperature. Contact the manufacturer's service department to repair the appliance as soon as possible. Adjust temperature

• You can set the temperature individually for each zone in the range from 5-12°C (Upper zone) and 12-20°C (lower zone) and 5-20°C (single zone).

• If active, disable the Child Lock, then touch to select zone (upper or lower).

• Touch or to set the desired temperature. Note: When you connect the appliance to power for the rst time, or after it was not used for an extended period, it may take longer to reach the set temperature. Change the temperature unit Touch and hold two sensors for 5 seconds to switch between °C and °F. Note: Blinking of the temperature unit means the compressor is operat- ing. This is normal device operation.- 39 -

Always disconnect the appliance from the mains electrical supply before any cleaning or maintenance. Removing the shelves

• To remove a shelf from the wine cooler, rst remove all bottles from the shelf, then pull the shelf forwards until the groove on either side of the shelf is level with the plastic peg on either side of the cabinet (as shown in g 2). Then lift the shelf up and pull forwards.

• To replace the shelves, follow the steps above in reverse order. Cleaning

• Do not use abrasive products or detergents. After washing, rinse and dry thoroughly.

• The exterior of the appliance and the door seal should be cleaned using mild soapy water and dried thoroughly.

• The interior cabinet should be cleaned using a solution of bicarbonate of soda and lukewarm water.

• Clean the shelves separately by hand using soap and water. Do not put them in the dishwasher.

• Ensure that the cloth is only moist when cleaning the control panel and electrical parts, and that all water is thoroughly dried o before reconnecting the power.

• Once cleaning is complete, reconnect the mains electrical supply.

• If the appliance is not to be used for prolonged periods of time, unplug and clean the appliance thoroughly. The door should be left slightly ajar to prevent the formation of odours or condensation TROUBLESHOOTING If you have any problems with your appliance, you should check the troubleshooting guide prior to calling Call Center to prevent unnecessary service calls and potential cost. If the appliance is not working, check

• There is power to the appliance

• The house fuses or circuit breakers are intact and the fuse in the plug has not blown.

• The plug socket is functioning correctly. To check this, plug another electrical appliance in to see if the socket is working.

• The ambient temperature is between 16°C to 32°C.- 40 - The appliance is working, but not very well, check

• The appliance is not overloaded.

• The thermostat is set to an appropriate temperature.

• The door is closing properly.

• The door gasket is sealing properly

• There is enough ventilation at the side and rear walls.

• The ambient temperature is between 16°C to 32°C. The appliance is noisy, check

• The appliance is level and stable.

• The cooling gas will make some noise, even when the compressor is not running.

• During operation, it is normal for the fan to run, even when the com- pressor is not running. The light does not work, check

• There is power to the appliance.

• The house fuses or circuit breakers are intact and the fuse in the plug has not blown.

• The light button is not set to o. Please note: The LED lighting cannot be replaced without a service call The door will not close properly, check

• The appliance is level and stable.

• If the door has been removed, it may not have been correctly ret- ted.

• The door seal is dirty.

• The shelves are not positioned correctly. EPREL For more information about the product, please refer to the EU EPREL Product Database at https://eprel.ec.europa.eu. For more information, please use your mobile device to scan the QR code on the energy label or enter the product model listed on the energy label in the EPREL search engine https://eprel.ec.europa.eu/- 41 -

SALES SERVICE Warranty The manufacturer shall not be held liable for any damage caused by im- proper use of the product. Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer’s Authorized Service Point. For safety reasons, repairs should be re- ferred to professionals.

• Repairs carried out by unqualied persons may seriously endanger the appliance user.

• The minimum warranty period for the appliance oered by the man- ufacturer, importer or authorized representative is given in the war- ranty card.

• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating in- structions. In the event of appliance malfunction, request assistance or repair. If your appliance needs repair, please contact the service centre. Please see website for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identication sticker: For your convenience, please write it down below: Certifi cate of compliance CE and UKCA The Manufacturer hereby declares that this product complies with the general require- ments pursuant to the following European Directives and analogous UK requirements:

• The Low Voltage Directive 2014/35/EC / Electrical Equipment (Safety) Regulations

C (bovenste zone) of 12-20

C (onderste zone) of 5-20

EN Adjust masking frame (depending on the model) Selected device models have a tted masking frame. Initially, the masking frame is aligned with air vent directly behind it. Adjusting the masking frame is easy, follow the steps below:

1. Remove the upper bolts on both sides of the masking frame.

2. Undo or remove the lower bolts on both sides of the masking frame. Make sure

screws are undone suciently to avoid damaging the masking frame.

3. Carefully lower the masking frame to the correct height

4. Replace and tighten the top bolts. Tighten the lower bolts.

1. Remove the upper bolts on both sides of the masking frame.

2. Undo or remove the lower bolts on both sides of the masking frame. Make sure

screws are undone suciently to avoid damaging the masking frame.

3. Carefully lower the masking frame to the correct height

4. Replace and tighten the top bolts. Tighten the lower bolts.- 182 -
