| Product Type | Jack stand (safety stand) |
| Brand | Perel |
| Model | AJS2T2 |
| Load capacity (per pair) | 2000 kg per stand |
| Minimum height | 282 mm |
| Maximum height | 430 mm |
| Dimensions (W x D x H) | 193 x 180 x 282 mm |
| Weight (per piece) | 2590 g |
| Material | Steel |
| Use | Support a lifted vehicle (always in pairs) |
| Initial setup | Slide the column into the base, bend the tab to secure |
| Maintenance | Visual inspection before each use; sand and repaint if rusted |
| Cleaning | Do not immerse; protect from water and splashes |
| Repairability | No user-serviceable parts |
| Warranty | 24 months for manufacturing defects (Velleman conditions) |
| Safety | Do not exceed capacity; use on hard, level ground; chock wheels; never work under load not supported by stands |
| Included accessories | Pin, tab, saddle |
| Storage | Fully lower the saddle before storage |
Frequently Asked Questions - AJS2T2 Perel
User questions about AJS2T2 Perel
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Car jack in PDF format for free! Find your manual AJS2T2 - Perel and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AJS2T2 by Perel.

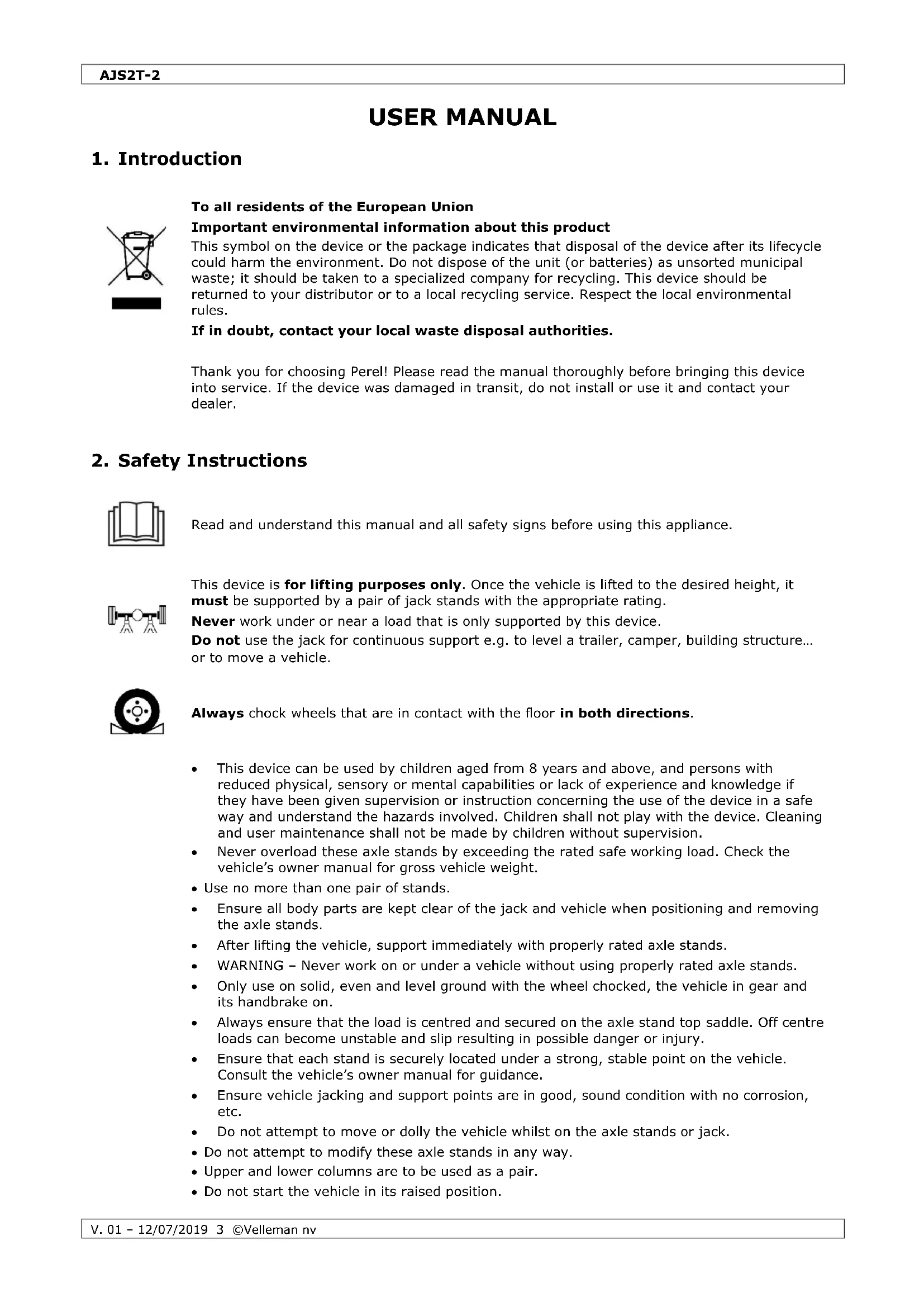

USER MANUAL AJS2T2 Perel
HANDLEIDING 6
MODE D'EMPLOI 9
MANUAL DEL USUARIO 12
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
2. Safety Instructions
Read and understand this manual and all safety signs before using this appliance.
This device is for lifting purposes only. Once the vehicle is lifted to the desired height, it must be supported by a pair of jack stands with the appropriate rating.
Never work under or near a load that is only supported by this device.
Do not use the jack for continuous support e.g. to level a trailer, camper, building structure... or to move a vehicle.
Always chock wheels that are in contact with the floor in both directions.
- This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
- Never overload these axle stands by exceeding the rated safe working load. Check the vehicle's owner manual for gross vehicle weight.
- Use no more than one pair of stands.
- Ensure all body parts are kept clear of the jack and vehicle when positioning and removing the axle stands.
• After lifting the vehicle, support immediately with properly rated axle stands.
- WARNING – Never work on or under a vehicle without using properly rated axle stands.
- Only use on solid, even and level ground with the wheel chocked, the vehicle in gear and its handbrake on.
- Always ensure that the load is centred and secured on the axle stand top saddle. Off centre loads can become unstable and slip resulting in possible danger or injury.
- Ensure that each stand is securely located under a strong, stable point on the vehicle. Consult the vehicle's owner manual for guidance.
- Ensure vehicle jacking and support points are in good, sound condition with no corrosion, etc.
- Do not attempt to move or dolly the vehicle whilst on the axle stands or jack.
- Do not attempt to modify these axle stands in any way.
• Upper and lower columns are to be used as a pair.
- Do not start the vehicle in its raised position.
- Do not attempt to enter the vehicle and ensure all passengers are out of the vehicle when loading it on these stands.
• Take care when using on a three-wheeled vehicle or trailer.
3. General Guidelines
- Refer to the Velleman ® Service and Quality Warranty on the last pages of this manual.
- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
- Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
- Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
- Keep this manual for future reference.
4. Overview
Refer to the illustrations on page 2 of this manual.
| 1 | ratchet bar |
| 2 | lower support frame |
| 3 | locking tab |
| 4 | ratchet release handle |
| 5 | safety pin |
| 6 | top saddle |
5. Operation
Before First Use
Place the ratchet bar into the lower support frame. Bend the locking bar tab inwards using a blunt-ended tool and hammer. When lifted by the ratchet bar, they should not separate.
Inspection Before Each Use
Visual inspection should be made before each use of the axle stands. Check for cracked welds and damaged, loose or missing parts. Any axle stand, which appears to be damaged in any way, found to be badly worn, operates abnormally, or has been subjected to an abnormal load or shock, must not be used.
Use - To Support the Vehicle
- Adjust the height by pulling up on the ratchet bar ensuring the ratchet stop is fully engaged.
- Insert the locating pin through the holes in the lower column.
- Raise the vehicle and carefully position the ratchet axle stands so that the load is centred on the stand's saddle.
- Slowly lower the vehicle onto the stands - securely chock wheels remaining on the ground.
- Before starting work ensure the vehicle is fully secure.
- The stands must be positioned on a hard level surface e.g. concrete.
• The safe working load must not be exceeded under any circumstances. - Centre the load on the saddle.
- Use as a pair to support one end of a vehicle only.
Use - To Lower the Vehicle
- Raise the vehicle clear of stands.
- Remove the locating pin.
- Carefully release the ratchet stop and lower the ratchet to the lowest position. Do not allow to drop.
- Remove the stands. Then, carefully lower the vehicle to the ground.
- Ensure that all tools, equipment and personnel are clear before lowering the load.
6. Care and Maintenance
- Periodically inspect each stand. Ensure all parts move freely. Do not apply oil or grease to any part of this product. If rust appears, sand the affected area and cover with suitable paint.
- When the jack is not in use or for storage, lower the saddle completely to prevent corrosion.
- Never immerse the appliance in water or any other liquid. Protect it from splashes and spraying liquid.
• This product has no replacement parts.
7. Technical Specifications
capacity....2000 kg/pc min. height....282 mm max. height....430 mm dimensions....193 x 180 x 282 mm weight....2590 g/pc
Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
HANDLEIDING
1. Inleiding
Velleman® Service and Quality Warranty
Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.
All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).
General Warranty Conditions Concerning Consumer Products (for EU):
- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.
- Not covered by warranty:
- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;
- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
- damage resulting from an inappropriate packing and shipping of the article;
- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
- The above conditions are without prejudice to all commercial warranties.
