Brand	KitchenAid
Model	KMMF330PWH
Product Type	Under-cabinet built-in microwave
Total Width	76 cm (30 in)
Total Height	45.4 cm (17 7/8 in)
Depth with closed door	32.4 cm (12 3/4 in)
Depth with door open 90°	105.3 cm (41.4 in)
Cavity Dimensions (H x W x D)	23 x 46 x 27.9 cm (9.1 x 18.1 x 11 in)
Power Supply	120 V, 60 Hz, 15 A or 20 A (dedicated circuit recommended)
Certifications	UL, CUL, CSA
Ventilation	Recirculation by default; venting to outdoors possible
Installation Type	Under cabinet, with mounting plate provided
Minimum Cabinet Depth	30.5 cm (12 in) with trim kit; 32.4 cm (12 3/4 in) flush
Support Load Capacity	68 kg (150 lb) including appliance and cabinet
Trim Mounting Kit (optional)	Ref. W11630300 (not included)
Care and Cleaning	Clean with a damp cloth and mild detergent; avoid abrasives
Safety	Do not use extension cord; do not block ventilation openings
Electrical Installation	Electrical outlet recommended in adjacent cabinet; refer to installation guide
Warranty	Refer to the manual for warranty details
User Manual	Available for free download in PDF format

Frequently Asked Questions - KMMF330PWH KITCHENAID

What are the exact dimensions of the KMMF330PWH microwave oven?

The oven measures 76 cm wide, 45.4 cm high, and 32.4 cm deep (door closed). The interior cavity is 23 x 46 x 27.9 cm.

What electrical supply is required?

A 120 V, 60 Hz outlet on a 15 A or 20 A fused circuit. A dedicated circuit is recommended. Do not use an extension cord.

Can I install this microwave flush with the cabinet?

Yes, depending on cabinet depth. With the standard mounting plate, it can be installed flush if the cabinet is between 32.4 and 33 cm deep. For other depths, an optional trim mounting kit (W11630300) may be needed.

How to vent air to the outside?

The microwave is factory-set for internal recirculation. For external venting through the top or wall, follow the instructions in the provided installation guide.

What containers can be used in this microwave?

Use microwave-safe containers: glass, ceramic, microwave-safe plastic. Avoid metal and containers with metal rims.

How to clean the inside of the microwave?

Clean with a damp cloth and mild detergent. Do not use abrasive cleaners or steel wool. For stubborn stains, a water and vinegar solution can be used.

Can I use an extension cord?

No, using an extension cord is not recommended. Plug directly into a suitable wall outlet.

Where can I find the full manual?

The user and installation manual is available for free download in PDF format on notice-facile.com or on the KitchenAid website.

What accessories are included with the appliance?

The oven comes with a mounting plate and necessary screws. The trim mounting kit (for deeper cabinets) is sold separately (ref. W11630300).

What maximum weight can the installation support?

The structure must support at least 68 kg (150 lb) including the microwave, upper cabinet, and its contents.

USER MANUAL KMMF330PWH KITCHENAID

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030P/KMMF330P/YKMMF330P/WMMF7330R/YWMMF7330R/WMMF7530R/MMMF8030P/YMMMF8030P/KMMF530P/YKMMF530P/KMMF730P/YKMMF730P/JMHF730R/YJMHF730R/JMHF930R/YJMHF930R
Unit of Measurement in cm
Overall Width (A) 30 76
Overall Height (B) 17	78	45.4
Height of the door (C) 15 38.2
Depth with door (D) 12 34 32.4
Depth with door open 90° (E) 41.4 105.3
Depth with door with Bump Out Kit (L hook) (F1) 13.8 35.0
Depth with door with Bump Out Kit (M hook) (F2) 14.3 36.3
Depth with door with Bump Out Kit (N hook) (F3) 14.8 37.6
Depth with door with Bump Out Kit (P hook) (F4) 15.3 38.9
Depth with door with Bump Out Kit (R hook) (F5) 15.8 40.2
Depth with door open 90° with Bump Out Kit (L hook) (G1)	42.5 107.8
Depth with door open 90° with Bump Out Kit (M hook) (G2)	43.0 109.1
Depth with door open 90° with Bump Out Kit (N hook) (G3)	43.5 110.4
Depth with door open 90° with Bump Out Kit (P hook) (G4)	44.0 111.7
Depth with door open 90° with Bump Out Kit (R hook) (G5)	44.5 113.0

A C B

FRONT VIEW

E D Back of Cabinet

SIDE VIEW

Mounting Plate A D E

TOP VIEW

Bump Out Kf A F1~5 G1~5

TOP VIEW WITH BUMP OUT KIT
IMPORTANT: Dimensional specifications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

MICROWAVE INTERIOR CAVITY DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030PKMMF330P/YKMMF330P/WMMF7330R/YWMMF7330RWMMF7530R/MMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730P/JMHF730RYJMHF730R/JMHF930R/YJMHF930R
Unit of Measurement in cm
Cavity Height (A) 9.1 23
Cavity Width (B) 18.1 46
Cavity Depth (C) 11 27.9

B A

C Back of Cabinet

CAVITY INTERIOR FRONT VIEW CAVITY INTERIOR SIDE VIEW

MICROWAVE OVEN

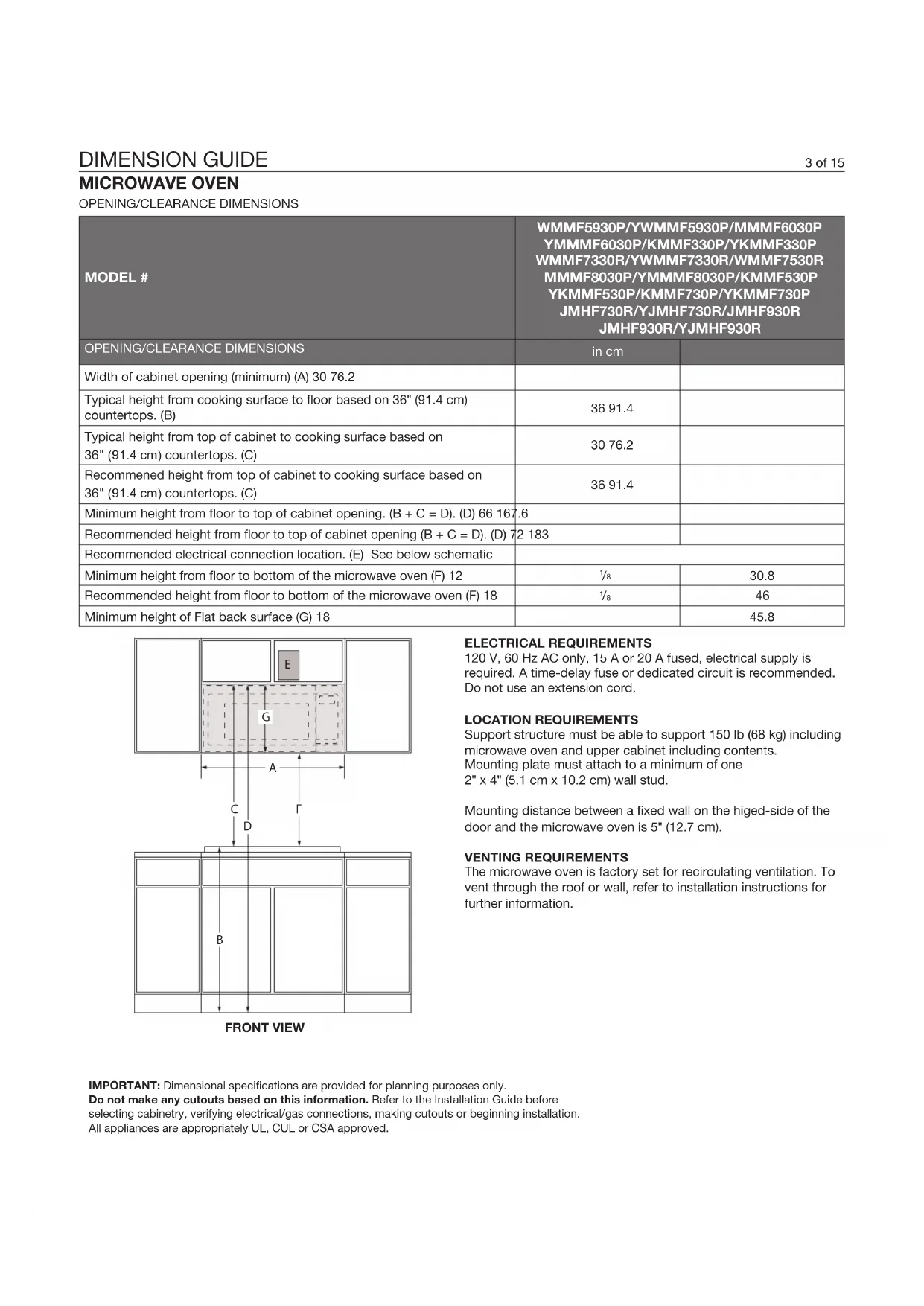

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030PYMMMF6030P/KMMF330P/YKMMF330PWMMF7330R/YWMMF7330R/WMMF7530RMMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730PJMHF730R/YJMHF730R/JMHF930RJMHF930R/YJMHF930R
OPENING/CLEARANCE DIMENSIONS	in cm
Width of cabinet opening (minimum) (A) 30 76.2
Typical height from cooking surface to floor based on 36" (91.4 cm) countertops. (B)	36 91.4
Typical height from top of cabinet to cooking surface based on 36" (91.4 cm) countertops. (C)	30 76.2
Recommended height from top of cabinet to cooking surface based on 36" (91.4 cm) countertops. (C)	36 91.4
Minimum height from floor to top of cabinet opening. (B + C = D). (D) 66 167.6
Recommended height from floor to top of cabinet opening (B + C = D). (D) 72 183
Recommended electrical connection location. (E) See below schematic
Minimum height from floor to bottom of the microwave oven (F) 12	18	30.8
Recommended height from floor to bottom of the microwave oven (F) 18	18	46
Minimum height of Flat back surface (G) 18		45.8

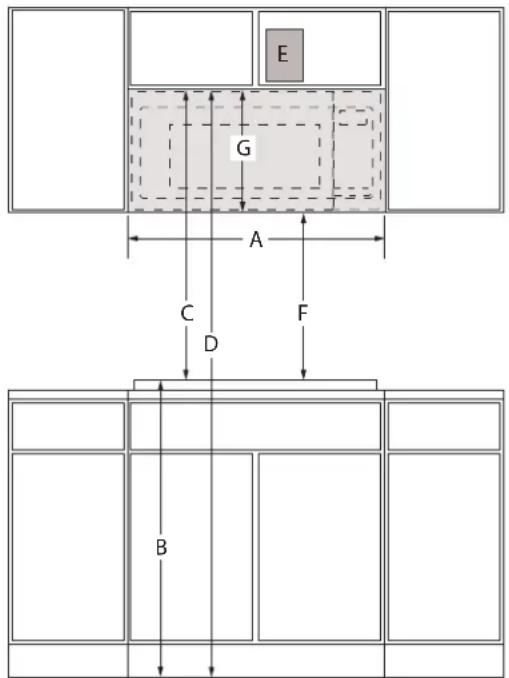

E G A C D F B

FRONT VIEW

ELECTRICAL REQUIREMENTS

120 V, 60 Hz AC only, 15 A or 20 A fused, electrical supply is required. A time-delay fuse or dedicated circuit is recommended. Do not use an extension cord.

LOCATION REQUIREMENTS

Support structure must be able to support 150 lb (68 kg) including microwave oven and upper cabinet including contents. Mounting plate must attach to a minimum of one 2" x 4" (5.1 cm x 10.2 cm) wall stud.

Mounting distance between a fixed wall on the higed-side of the door and the microwave oven is 5" (12.7 cm).

VENTING REQUIREMENTS

The microwave oven is factory set for recirculating ventilation. To vent through the roof or wall, refer to installation instructions for further information.

IMPORTANT: Dimensional specifications are provided for planning purposes only. Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation. All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030P/YMMMF6030PKMMF330P/YKMMF330P/WMMF7330R/YWMMF7330RWMMF7530R/MMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730P/JMHF730RYJMHF730R/JMHF930R/YJMHF930R
Opening/Clearance Measurement in cm
Depth of upper cabinet (minimum-maximum) Stand Out* (A)	12~12.75 30.5~32.4
Depth of upper cabinet (minimum-maximum) Flush* (B)	12.75~13 32.4~33
Depth of upper cabinet (minimum-maximum)* (C)	0.5 1.27
Can this product be installed flush? Flush refers to there appliance not protruding past the cabinet depth. (Y/N)	(A) N(B) Y

*This microwave oven is factory set for 12" (30.5 cm)\~13" (33.02 cm) depth of upper cabinet, install with the provided mouting plate.

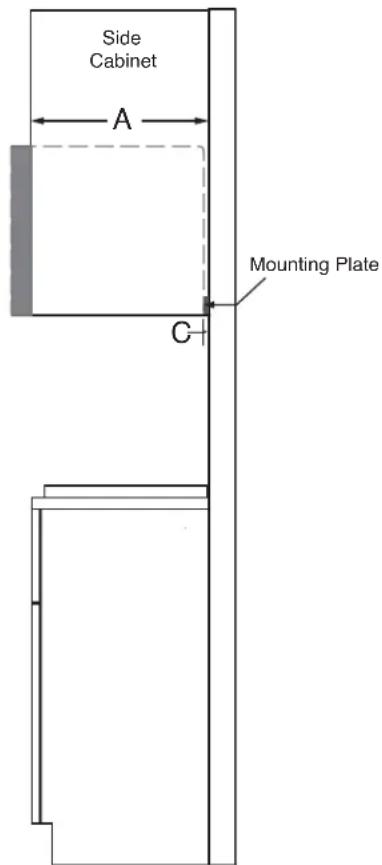

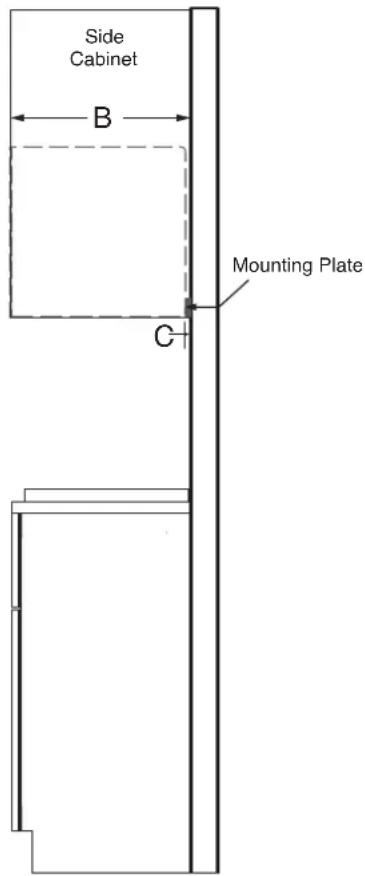

Side Cabinet B Mounting Plate C

SIDE VIEW SIDE VIEW

Mounting Plate

BACK VIEW

Side Cabinet A Mounting Plate C

IMPORTANT: Dimensional specifications are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation Guide before

selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.

All appliances are appropriately UL, CUL or CSA approved.

MICROWAVE OVEN

OPENING/CLEARANCE DIMENSIONS

MODEL #	WMMF5930P/YWMMF5930P/MMMF6030PYMMMF6030P/KMMF330P/YKMMF330PWMMF7330R/YWMMF7330R/WMMF7530RMMMF8030P/YMMMF8030P/KMMF530PYKMMF530P/KMMF730P/YKMMF730PJMHF730R/YJMHF730R/JMHF930R/YJMHF930R
OPENING/CLEARANCE DIMENSIONS	in cm
Depth of upper cabinet (minimum-maximum) Flush* (A1) 13 34 ~14	35~35.6
Depth of upper cabinet (minimum-maximum) Stand out* (A2) 13~	13 34 33~35
Depth of upper cabinet (minimum-maximum) Flush* (B1) 14 14 ~14	12 36.2~36.8
Depth of upper cabinet (minimum-maximum) Stand out* (B2) 14~	14 14 35.6~36.2
Depth of upper cabinet (minimum-maximum) Flush* (C1) 14 34 ~15	37.5~38.1
Depth of upper cabinet (minimum-maximum) Stand out* (C2) 14 12	~14 34 36.8~37.5
Depth of upper cabinet (minimum-maximum) Flush* (D1) 15 14 ~15	12 38.7~39.4
Depth of upper cabinet (minimum-maximum) Stand out* (D2) 15~	15 14 38.1~38.7
Depth of upper cabinet (minimum-maximum) Flush* (E1) 15 34 ~16	40~40.6
Depth of upper cabinet (minimum-maximum) Stand out* (E2) 15 12	~15 34 39.4~40
Back of the microwave oven to back of the cabinet or Wall (F) 1.5	~3.5 3.8~8.9
Can this product be installed flush? Flush refers to the appliance not protruding past the cabinet depth. (Y/N)	(A1, B1, C1, D1, E1) Y(A2, B2, C2, D2, E2) N

D-Depth of upper cabinet

*For the depth of upper cabinet larger than 13" (33.02 cm), and less than or equal to 16" (40.64 cm) depth of upper cabinet, install with the optional bump out mounting kit W11630300, the bump out mounting kit is not provided, but can purchased from Whirlpool®.

DEPTH=A1, B1, C1, D1, E1 Side Cabinet A1,B1,C1, D1,E1 Bump out mounting kit F+

SIDE VIEW

Bump Out Mounting Plate

BACK VIEW

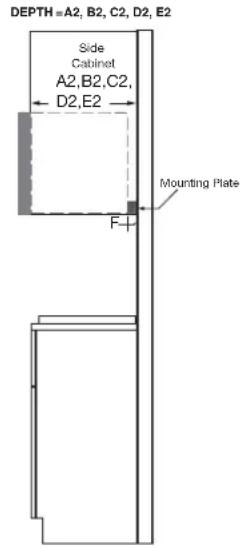

DEPTH=A2, B2, C2, D2, E2 Side Cabinet A2,B2,C2, D2,E2 Mounting Plate F

SIDE VIEW

IMPORTANT: Dimensional specifications are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.

All appliances are appropriately UL, CUL or CSA approved.

FOUR À MICRO-ONDES

DIMENSIONS DU PRODUIT

E G A C D F B

VUE DE FACE

DIMENSIONES DEL PRODUCTO

E G A C D F B

VISTA FRONTAL
