Video Doorbell 1080p (BatteryPowered) - Doorbells eufy - Free user manual and instructions

Product Type	Smart video doorbell
Brand	eufy
Model	T8222
Video Resolution	1080p (1920 × 1080)
Power Supply	Rechargeable battery, charges via USB 5V/1A
Battery Life	Up to 4 months (depending on usage)
Charging Time	6 hours (0% to 100%)
Connectivity	Wi-Fi 2.4 GHz
Motion Detection	PIR sensor
Night Vision	Yes (infrared LED)
Audio	Two-way (microphone and speaker)
Included Wi-Fi Chime	Yes
Storage	microSD card (not included)
App	eufy Security (iOS/Android)
Installation	Wall mount with included bracket
Box Contents	Video doorbell, Wi-Fi chime, power adapter, mounting bracket, 15° wedge, USB cable, ejection pin, screws and anchors, quick start guide
Certifications	FCC, IC
Operating Temperature	-10°C to 45°C
Protection Rating	IP54 (estimated)
Warranty	1 year (estimated)

Frequently Asked Questions - Video Doorbell 1080p (BatteryPowered) eufy

How to install the Eufy video doorbell?

To install the doorbell, first download the eufy Security app, create an account, then follow the on-screen instructions. Mount the mounting bracket to the wall using the provided screws, then snap the doorbell onto the bracket. Make sure the Wi-Fi chime is plugged in and connected to the internet.

How to recharge the battery?

The battery recharges via the micro USB port on the back of the doorbell. Use a standard USB charger (5V/1A). The LED indicator turns orange during charging and blue once fully charged. Full charging time is about 6 hours.

What is the battery life?

Battery life can reach up to 4 months under typical usage conditions (about 15 motion events per day with 20-second recordings). Actual duration varies depending on usage and environment.

How to connect the doorbell to the app?

After installing the eufy Security app, tap 'Add Device'. First add the Wi-Fi chime, then the video doorbell. Follow the on-screen instructions to connect the devices to your Wi-Fi network.

Does the doorbell work without a subscription?

Yes, the doorbell works without a subscription. Videos are stored locally on a microSD card inserted into the Wi-Fi chime. The eufy Security app also offers limited free cloud storage, but the primary storage is local.

Can the doorbell be used without the Wi-Fi chime?

No, the Wi-Fi chime is required because it serves as a hub for network connection and video storage. Without it, the doorbell cannot function properly.

What to do if the doorbell does not ring?

Check that the Wi-Fi chime is powered on and connected to the network. Ensure the doorbell is properly synchronized (SYNC button) and the battery is charged. In the app, check notification settings and chime volume.

How to reset the doorbell?

To reset the doorbell, press and hold the SYNC/RESET button on the back for about 10 seconds until you hear a beep. The doorbell will restart and be ready for a new setup.

Is the doorbell weather-resistant?

The Eufy video doorbell is designed for outdoor use with an estimated IP54 protection rating, meaning it is resistant to splashes and dust. However, avoid prolonged exposure to heavy rain or immersion.

How to detach the doorbell from the bracket?

Use the provided ejection pin. Insert it into the hole at the bottom of the doorbell and press. While maintaining pressure, lift the bottom part of the doorbell to release it from the bracket.

USER MANUAL Video Doorbell 1080p (BatteryPowered) eufy

Anker Innovations Limited. All rights reserved eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners.

51005002472 V01

eufy SECURITY

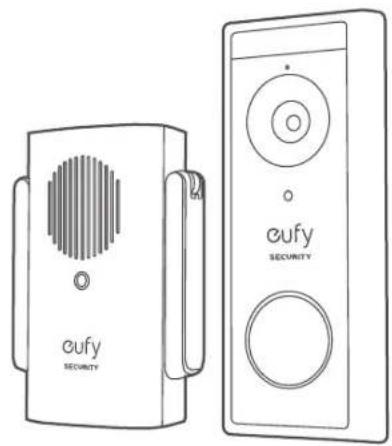

QUICK START GUIDE

Video Doorbell 1080p (Battery-Powered)

Line drawings of two eufy Security devices, one with a circular vent and the other with a circular button (no text or symbols on the devices themselves)

English 01

Deutsch 20

Español 37

Français 54

Italiano 71

Nederlands 88

Português 105

لعربيية 122

TABLE OF CONTENTS

What's Included 01 09 Finding a Mounting Spot Product Overview 03 11 Mounting the Bracket How the System Works 04 14 Mounting the Doorbell Powering on the Wi-Fi Doorbell Chime 05 15 Detaching the Doorbell Setting up the System 07 16 Recharging the Doorbell Charging Your Doorbell 08 17 Notice

WHAT'S INCLUDED

For Video Doorbell Installation

Video Doorbell (1080p, Battery-Powered) Model: T8222

FCC ID: 2AOKB-T8220 IC: 23451-T8220

USB Charging Cable

Mounting Bracket

Screw Hole Positioning Card

15° Mounting Wedge (Optional)

Screw Packs (Spare screws and anchors are included)

Doorbell Detaching Pin

Quick Start Guide

For Wi-Fi Doorbell Chime Installation

Line drawing of a dual-chamber electronic device with ventilation grille and terminal socket (no text or symbols)

Model: Wi-Fi Doorbell Chime

Power Plug

FCC ID: 2AOKB-T8020

IC: 23451-T8020

Note: Power plug may vary in different regions.

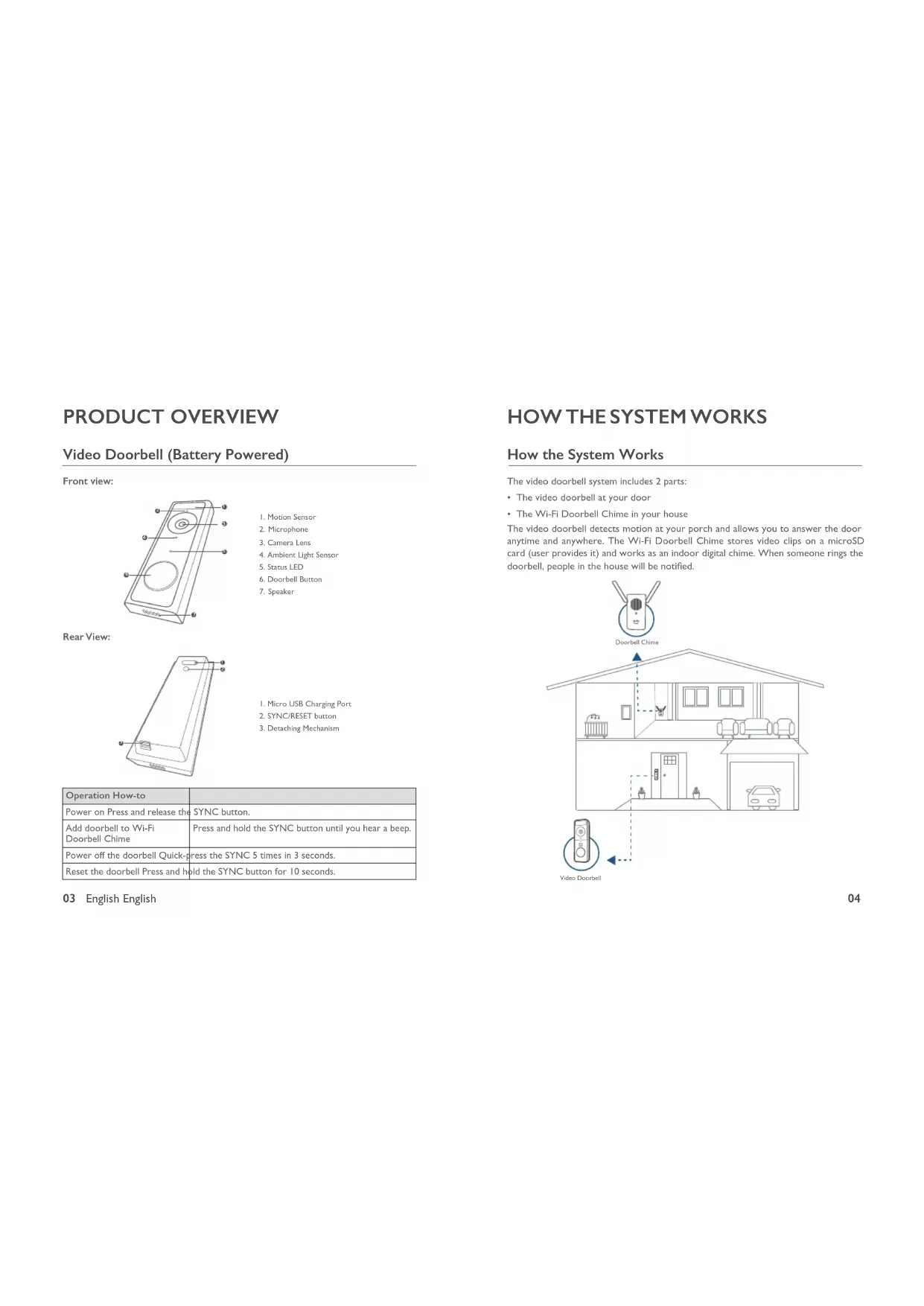

PRODUCT OVERVIEW

Video Doorbell (Battery Powered)

Front view:

Diagram of a handheld device with labeled components, showing internal circular elements and numbered parts.

1. Motion Sensor
2. Microphone
3. Camera Lens
4. Ambient Light Sensor
5. Status LED
6. Doorbell Button
7. Speaker

Rear View:

Line drawing of a rectangular electronic device with labeled ports (no text or symbols present)

I. Micro USB Charging Port
2. SYNC/RESET button
3. Decaching Mechanism

Operation How-to
Power on Press and release the SYNC button.
Add doorbell to Wi-Fi Doorbell Chime	Press and hold the SYNC button until you hear a beep.
Power off the doorbell Quick-press the SYNC 5 times in 3 seconds.
Reset the doorbell Press and hold the SYNC button for 10 seconds.

03 English English

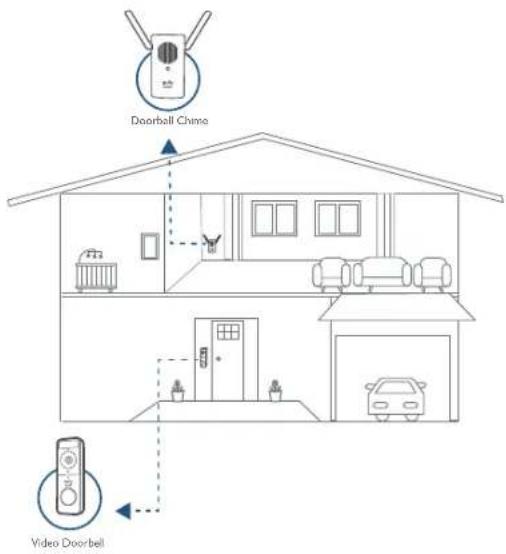

How the System Works

The video doorbell system includes 2 parts:

• The video doorbell at your door
• The Wi-Fi Doorbell Chime in your house
The video doorbell detects motion at your porch and allows you to answer the door anytime and anywhere. The Wi-Fi Doorbell Chime stores video clips on a microSD card (user provides it) and works as an indoor digital chime. When someone rings the doorbell, people in the house will be notified.

Doorbell Chimo Video Doorbell

STEP I POWERING ON THE WI-FI DOORBELL CHIME

Connect the Wi-Fi Doorbell Chime to the Internet

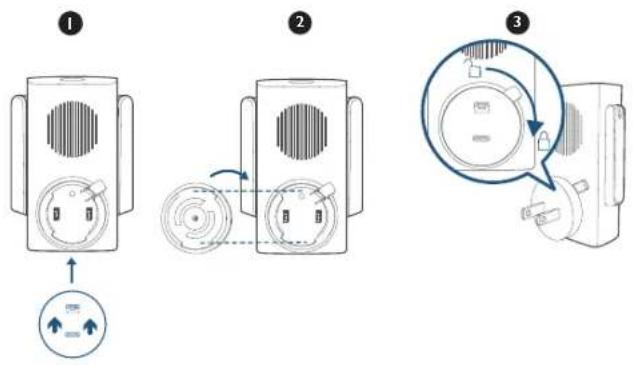

I. Fix the power connector to Wi-Fi Doorbell Chime.

① Place the power connector over Wi-Fi Doorbell Chime in the direction the arrows indicate.
② Align the raised slots of the power connector with the notch on the base of the doorbell chime.
③ Rotate clockwise to lock the power connector in place.

Diagram showing three-step installation of a device with labeled parts and directional arrows indicating motion.

1. Extend Wi-Fi Doorbell Chime's antennas.

eufy SECURITY

1. Plug Wi-Fi Doorbell Chime into an AC power supply at your desired location. The LED indicator turns solid green when the doorbell chime is ready for setup.

STEP 2 SETTING UP THE SYSTEM

Download the App and Set up the System

Download the eufy Security app from the App Store (iOS devices) or Google Play (Android devices).

Sign up for a eufy Security account and follow onscreen instructions to complete the setup.

Tap Add Device and add the following devices:

I. Add the Wii-Fi Doorbell Chime.
2. Add the doorbell.

Illustration of a hand holding a smartphone and two connected devices with sound waves (no text or symbols)

STEP 3 CHARGING YOUR DOORBELL

The doorbell comes with an 80% battery level for safe transportation. Fully charge it before mounting the doorbell at your front door.

Diagram showing connection between a device with battery and power supply, including bidirectional arrows and component labels

Note: The battery life varies depending on usage. In most common cases, a doorbell may have up to 15 events per day and each recording lasts 20 seconds on average. Under this scenario, the doorbell battery life can last up to 4 months.

STEP 4 FINDING A MOUNTING SPOT

Find a Mounting Spot

Take the Video Doorbell to your front door and check the live view on the eufy Security app at the same time. Find a position where you can get the desired field of view.

Consider the below factors:

1. Check if you can reuse the existing holes and anchors on the wall or door frame.
2. If you want to place the doorbell close to a side wall, make sure the wall doesn't show up in the field of view. Otherwise IR light will be reflected and night vision will become blurry.
3. If you are drilling the mounting holes for the first time the recommended mounting height is 48" / 1.2m from the ground.
4. Use the 15^ mounting wedge as a supplementary mounting bracket if you wish to see more on a specific side.

20m 30m 40m 50m 60m 70m 80m 90m 100m

Without 15° Meeting gauge

15° Sar Sar to Room

With 15° Morning wedge

Place the Screw Hole Positioning Card against the wall to mark the position.

Simple line drawing of a door corner with a speech bubble highlighting the door (no text or symbols)

STEP 5 MOUNTING THE BRACKET

Mount the Doorbell on a Wooden Surface

If you're mounting the doorbell on a wooden surface, you don't need to pre-drill pilot holes. Use the provided screws to secure the Mounting Bracket on the wall. The Screw Hole Positioning Card indicates the position of the screw holes.

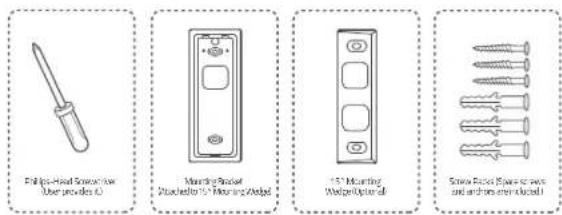

What is required: Power Drill, Mounting Bracket, 15° Mounting Wedge (Optional), Screw Packs

Fellips-Head Screwdriver User provides L0 Mounting Bracket PushelButton to 15" Mounting Wedge 15" Mounting Wedge Optimal Screw Fastener (Spas for press and from an electric)

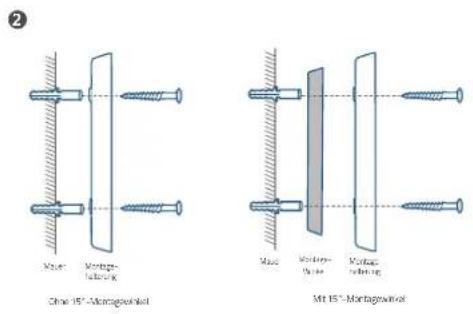

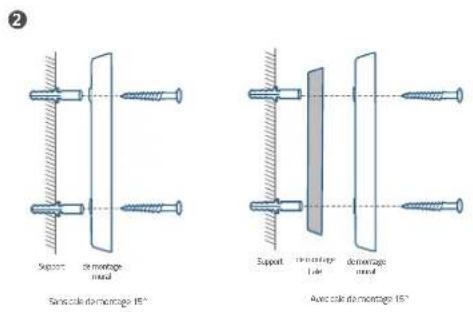

Wall Mounting Bracket Without 15" Mounting Wedge

Wall Mounting Wedge Mounting Bracket With 15° Mounting Wedge

11 English English

Mount the Video Doorbell on Surfaces Made Out of Hard Materials

1. If you're mounting the doorbell on a surface made out of hard materials, like brick, concrete, stucco, drill 2 holes through the Screw Hole Positioning Card with 15/64"(6mm) drill bit.
2. Insert the provided anchors, and then use the provided long screws to secure the Mounting Bracket on the wall.

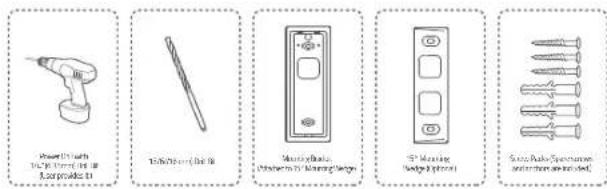

What is required: Power Drill, 15/64"(6mm) Drill Bit, Mounting Bracket, 15° Mounting Wedge (Optional), Screw Packs

Power tools 100% charged 150% Lampade 15 100% charged 150% Switchable Switch to 150% Lighting Upgrade ST Lighting Switched 150% Optimal Switchable Specimen and other are imaged

Diagram showing a screwdriver inserted into a door panel, with a magnified inset highlighting the component.

②

Wall Mounting Bracket

Whale 15' Mounting Wedge

Cut Harding Tensile Molding Insulated

With 15" Mounting Wedge

STEP 6 MOUNTING THE DOORBELL

Mount the Doorbell

Align the doorbell with the top of the mount and then snap the bottom into place.

Diagram showing two mechanical or structural configurations with directional arrows, no text or symbols present.

You're all set!

If you want to detach the doorbell or recharge it, please refer to the following sections.

APPENDIX I DETACHING THE DOORBELL

Detach the Doorbell

I. Use the doorbell detaching pin provided if you wish to detach the doorbell from the Mounting Bracket.
2. Insert and press the detaching pin into the hole on the bottom of the doorbell and then lift to take the bottom of the doorbell off.

What is required: Doorbell Detaching Pin

Technical diagram showing a magnified view of a component with dimension annotations and a magnified detail view.

Simple line drawing of a tilted rectangular object with an arrow indicating rotation, mounted on a vertical surface (no text or symbols)

APPENDIX 2 RECHARGING THE DOORBELL

Recharge the Doorbell

Charge the doorbell with universal USB chargers that deliver 5V IA output.

LED indication	Charging: Solid orange
	Fully charged: Solid blue
Charging time 6 hours from	0% to 100%

NOTICE

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio / TV technician for help.

FCC Radio Frequency Exposure Statement

The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure condition. The min separation distance is 20cm.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

The following importer is the responsible party:

Company Name: POWER MOBILE LIFE, LLC

Address: 400 108th Ave NE Ste 400, Bellevue, WA 98004-5541

Telephone: [phone]

CE This product complies with the radio interference requirements of the European Community.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site: https://www.eufylife.com/.

This product can be used across EU member states.

Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment.

The suitable temperature for T8020 and accessories is 0^ C- 40^ C.

The suitable temperature for T8222 is -20°C-50°C.

When charging, please place the device in an environment that has a normal room temperature and good ventilation.

It is recommended to charge the device in an environment with a temperature that ranges from 5^ C\~ 25^ C.

RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d=20 cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintains a 20cm distance between the device and human body.

CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Wifi Operating Frequency Range: 2412\~2472MHz (2.4G)

Wifi Max Output Power: 15.68dBm (ERIP for T8020); 15.01dBm (ERIP for T8222)

Bluetooth Operating Frequency Range: 2402\~2480MHz; Bluetooth Max Output Power: 2.048dBm (EIRP)

The following importer is the responsible party (contact for EU matters only)

Anker Technology (UK) Ltd, Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B11 2AA, United Kingdom

This product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

IC Statement

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device."

This Class B digital apparatus complies with Canadian ICES-003.

When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements.

Line drawing of a dual-chamber security device with ventilation grille and two terminal blocks (no text or symbols)

Diagram of a handheld device with numbered parts for identification

Diagram showing three-step installation of a device with labeled components and directional arrows indicating motion.

Illustration of a hand holding a smartphone and two connected devices with audio equipment (no text or symbols)

Diagram showing connection between a device with battery and power supply, including bidirectional arrows and component labels

Simple line drawing of a door corner with a speech bubble highlighting the panel (no text or symbols)

Diagram showing a screwdriver inserted into a door panel, with a magnified view highlighting the component.

Two technical diagrams showing a structural component with an upward arrow and a curved arrow indicating rotation (no text or symbols present)

Das war's!

Technical diagram showing a magnified view of a component with dimension annotations and a magnified detail view.

Simple line drawing of a tilted rectangular object with a curved arrow indicating rotation (no text or symbols)

ANHANG 2 – AUFLADEN DER TÜRKLINGEL

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

Diagram illustrating three-step device operation: adding a fan to a speaker, rotating the speaker with a circular dial, and finally adjusting the speaker's dial.

Illustration of a hand holding a smartphone and two connected devices with sound waves (no text or symbols)

PASO 3: CARGA DEL TIMBRE

Diagram showing connection between a power outlet, switch, and battery with bidirectional arrows indicating signal flow.

Simple line drawing of a door with a speech bubble highlighting the door (no text or symbols)

Diagram of a screwdriver inserted into a door, showing the tool and component (no text or symbols present)

2

Sin cuftade mortgage de 15°

Tuned Vaporate Bottle

Two technical line drawings of a folded panel or support structure with directional arrows indicating movement (no text or symbols)

¡Ya está!

Technical diagram showing a magnified view of a component with dimension annotations and a magnified inset view.

Simple line drawing of a tilted rectangular object with a curved arrow indicating rotation (no text or symbols)

Line drawing of a uufy Security device with ventilation grille and two terminal blocks (no text or symbols on main body)

Technical line drawing of a rectangular electronic device with labeled ports (no text or symbols present)

Diagram showing three-step installation of a device with labeled components and directional arrows indicating motion.

Diagram of a dual-band RF device labeled 'eufy SECURITY' with no visible text or symbols beyond the label.

Diagram showing a smartphone connected to two audio devices with visible sound waves and labels like 'αufy'

ÉTAPE 3 CHARGEMENT DE VOTRE SONNETTE

Diagram showing connection between a device with battery and power supply, including bidirectional arrows and component labels.

Simple line drawing of a door with a speech bubble highlighting a panel (no text or symbols)

ÉTAPE 5 MONTAGE DU SUPPORT

Power transformer in 3.5Vrms (1-2) 4.5Vrms (1-2) / 5 120mm (150mm) Capacitive switch pulsifier stator (100V) Circuit breaker 15 pulsifier Continuous stator stator (100V)

①

Diagram of a door with a screwdriver inserted, showing mechanical components (no text or symbols)

ÉTAPE 6 MONTAGE DE LA SONNETTE

Monter la sonnette

Two mechanical diagrams showing a tilted panel with an upward arrow and a curved arrow indicating rotation (no text or symbols)

Technical diagram showing a magnified view of a component with dimension annotations and a magnified detail view.

Simple line drawing of a tilted rectangular object with a curved arrow indicating rotation (no text or symbols)

ANNEXE 2 RECHARGEMENT DE LA SONNETTE

Line drawing of a security device with two pins and a label 'oufy SECURITY' (no additional text or symbols)

Diagram of a handheld device with labeled parts, showing front, back, and top views with numbered annotations.

Technical line drawing of a rectangular electronic component with mounting holes and a central slot (no text or symbols)

Diagram showing a device with a circular component and directional arrows, labeled with numbers 1 and 2.

Diagram of a device with circular components and a rotating arrow, no text or symbols present

Diagram of a device with a magnified circular detail and pointer, no visible text or symbols

Illustration of a hand holding a smartphone and two connected devices with sound waves (no text or symbols)

PASSAGGIO 3 RICARICA DEL CITOFONO

Diagram showing connection between a device and a battery, with bidirectional arrows indicating signal transmission.

Simple line drawing of a door with a speech bubble highlighting the door (no text or symbols)

PASSAGGIO 5 MONTAGGIO DELLA STAFFA

Montaggio del citofono su una superficie lignea

Impact electromotive pumpable connection to 250mm Pumpable connection to 5mm Cathode armature pumpable connection to 150mm Cathode armature to 150mm Cathode armature to 300mm cathode armature to 100mm

1

Line drawing of a door with a screwdriver inserted, showing the mechanism (no text or symbols)

83
Italiano Italiano

2

Serva nineoch montaggola 15°

Taste Kuolumpa Mucalpa

Two technical line drawings of a folded panel or support structure with directional arrows indicating movement (no text or symbols)

Technical diagram showing a magnified view of a paperclip with dimension labels and a magnified inset highlighting the measurement.

Simple line drawing of a tilted rectangular object with an arrow indicating rotation (no text or symbols)

APPENDICE 2 RICARICA DEL CITOFONO

Line drawing of a dual-chamber security device with ventilation grille and two terminal blocks (no text or symbols)

Model: Wifi-deurbelgong FCC-ID: 2AOKB-T8020 IC: 23451-T8020
Stekker

Diagram of a handheld device with numbered components for identification

Line drawing of a rectangular electronic device with labeled ports (no text or symbols)

I. Micro-USB-oplaadpoort
2. SYNC/RESET-knop
3. Loskoppelmechanisme

Diagram showing three-step installation of a device with labeled components and directional arrows indicating motion.

Illustration of a smartphone with wireless signal and two connected devices (no text or symbols)

STAP 3 UW DEURBEL OPLADEN

Diagram showing connection between a device with battery and power supply, including bidirectional arrows and battery symbol.

1.5m (m) 2.5m 3.5m 4.5m 5.5m 6.5m 7.5m 8.5m 9.5m 10.5m 11.5m 12.5m 13.5m 14.5m 15.5m 16.5m 17.5m 18.5m 19.5m 20.5m 21.5m 22.5m 23.5m 24.5m 25.5m 26.5m 27.5m 28.5m 29.5m 30.5m 31.5m 32.5m 33.5m 34.5m 35.5m 36.5m 37.5m 38.5m 39.5m 40.5m 41.5m 42.5m 43.5m 44.5m 45.5m 46.5m 47.5m 48.5m 49.5m 50.5m 51.5m 52.5m 53.5m 54.5m 55.5m 56.5m 57.5m 58.5m 59.5m 60.5m 61.5m 62.5m 63.5m 64.5m 65.5m 66.5m 67.5m 68.5m 69.5m 70.5m 71.5m 72.5m 73.5m 74.5m 75.5m 76.5m 77.5m 78.5m 79.5m 80.5m 81.5m 82.5m 83.5m 84.5m 85.5m 86.5m 87.5m 88.5m 89.5m 90.5m 91.5m 92.5m 93.5m 94.5m 95.5m 96.5m 97.5m 98.5m 99.5m

7.048 15° martagesig

15°

Hist 15° mar bagesig,

Simple line drawing of a door with a speech bubble highlighting a panel (no text or symbols)

STAP 5 DE BEUGEL MONTEREN

Diagram of a robotic arm holding a door, with a magnified inset showing the tool (no text or symbols present)

②

Muir Montzugs- bogel

Zander 15° montegeve

Lens Screen Screen lens

Met 15 ^m montage wie

STAP 6 DE DEURBEL MONTEREN

De deurbel monteren

Diagram showing two mechanical or structural configurations with directional arrows, no text or symbols present.

U bent klaar!

Technical diagram showing a magnified view of a component with labeled parts and a magnified inset highlighting the part number '000000'.

Simple line drawing of a tilted rectangular object with an arrow indicating rotation, no text or symbols present.

BIJLAGE 2 DE DEURBEL OPLADEN

De deurbel opladen

Line drawing of a simple electronic device with ventilation grille and two terminal blocks (no text or symbols)

Modelo: Campainha por Wi-Fi
Ficha de alimentação
ID da FCC: 2AOKB-T8020
IC: 23451-T8020

Diagram of a handheld device with labeled parts, showing front, back, and top views with numbered annotations.

Technical line drawing of a rectangular electronic component with mounting holes and a slot (no text or symbols)

Diagram showing a device with labeled components and directional arrows indicating movement or operation.

Diagram of a device with circular components and a rotating arrow, no text or symbols present

Diagram of a device with a magnified circular detail showing internal components (no text or symbols)

Diagram of a dual-band RF device labeled 'eufy SECURITY' with no visible text or symbols beyond the label.

Illustration of a smartphone with wireless signal and two connected devices (no text or symbols)

PASSO 3 CARREGAR A CAMPAINHA

Diagram showing connection between a device and a battery, with bidirectional arrows indicating signal flow.

Simple line drawing of a door with a speech bubble highlighting the door (no text or symbols)

PASSO 5 INSTALAR O SUPORTE

Irruption tool Benedo 150-70mm One-sided Benedo 150-70mm Benedo 150-70mm One-sided Benedo 150-70mm One-sided Audiopodorsal Penture and spugne One-sided Benedo 150-70mm

Diagram showing a screwdriver inserted into a door panel, with a magnified view highlighting the component.

Two technical line drawings of a structural component with directional arrows indicating movement (no text or symbols)

Está pronta!

Diagram showing a magnified view of a paperclip with measurement markings, likely illustrating a measurement or inspection process.

Simple line drawing of a tilted rectangular object with an arrow indicating rotation, no text or symbols present.

ANEXO 2 RECARREGAR A CAMPAINHA

Recarregar a campainha

Line drawing of a Security eufy device with two terminal blocks (no text or symbols on the device itself)

Technical diagram of a remote control device with numbered components for identification

Line drawing of a rectangular electronic device with labeled ports (no text or symbols present)

BSU orciM 1. ملذ شح

Diagram of a device with labeled components and directional arrows indicating movement or operation.

Diagram of a device with circular components and a rotating arrow, no text or symbols present

Diagram showing a device with a magnified circular component and an arrow indicating rotation or adjustment.

eufy RECINIT

Diagram showing a smartphone with wireless signal and two connected devices labeled 'oufy' with speaker and control buttons.

Diagram showing connection between a wall socket and a remote device via battery, with bidirectional arrow indicating signal flow.

Simple line drawing of a door corner with a magnified inset showing a rectangular panel (no text or symbols)

Diagram of a screwdriver inserted into a door, showing mechanical assembly (no text or symbols)

②

100%

10.5

Two schematic diagrams showing a structural component under axial tension, with directional arrows indicating rotation (no text or symbols present)

كل شي: جاهز للعمل!

Technical diagram showing a magnified view of a component with dimension annotations and a magnified inset highlighting the measurement.

Simple line drawing of a tilted rectangular object with a curved arrow indicating rotation (no text or symbols)

12-month limited warranty

12 Monate eingeschränkte Garantie | Garantía limitada de 12 meses

Garantie limitée de 12 mois | Garanzia limitata di 12 mesi | 12 maanden beperkte garantie

(US) [phone] Mon-Fri 9:00-17:00 (PT)

(UK) + 44 (0) 1604 936 200 Mon-Fri 6:00-11:00 (GMT)

(DE) [phone] Mon-Fri 6:00-11:00

[phone] (Middle East & Africa) Sun-Thu 9:00 - 17:30 (GMT+4)

[phone] (UAE) Sun-Thu 9:00 - 17:30 (GMT+4)

[phone] (KSA) Sun-Thu 8:00 - 16:30 (GMT+3)

[phone] (Kuwait) Sun-Thu 8:00 - 16:30 (GMT+3)

Customer Support: [e-mail]

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon,

Hong Kong

@EufyOfficial

@EufyOfficial

eufyofficial
