FH 17275 S - Basket AMICA - Free user manual and instructions

Brand	Amica
Model	FH 17275 S
Product type	Range hood
Operating mode	Extraction or recirculation (depending on installation)
Number of speeds	3 or 4 (depending on model)
Control type	Touch panel (sensor keys)
Timer function	Delayed shut-off up to 90 minutes
Lighting	Integrated, halogen or LED bulbs (depending on model)
Grease filter	Aluminum, dishwasher safe or hand washable
Charcoal filter	Active, replaceable (not washable)
Grease filter cleaning frequency	At least once a month
Charcoal filter replacement frequency	Every 2 months or more often depending on use
Power supply	220-240 V, 50 Hz (check rating plate)
Minimum mounting height	According to technical specifications (see manual)
Exhaust duct diameter	120 or 150 mm
Safety class	Compliant with CE directives
Warranty	According to the provided warranty card
After-sales service	Contact details on warranty card
Intended use	Domestic, extraction of cooking vapors
Material	Stainless steel (probable)
Mounting	Wall-mounted, above the cooking hob (chimney or universal hood)

Frequently Asked Questions - FH 17275 S AMICA

How to clean the grease filter of the Amica FH 17275 S hood?

The aluminum grease filter can be cleaned in the dishwasher or by hand with mild detergent. It is recommended to clean it at least once a month to prevent fire hazards.

How often should the charcoal filter be replaced?

The activated charcoal filter should be replaced every 2 months, or more frequently with heavy use. It is neither washable nor regenerable.

How to set the timer (delayed shut-off)?

Press the Timer button while the hood is running. Use the +/- buttons to select a delay from 1 to 9 (each level = 10 minutes, max 90 min). Press Timer again to activate. The blinking dot confirms the setting.

Can I use the hood without the grease filter?

No, it is forbidden to use the hood without the grease filter. The filter protects the motor and reduces fire risk.

How to change the lighting bulb?

Refer to figure 7 in the manual. Use bulbs with the same specifications as those installed at the factory (halogen or LED). If you do not have the figure, contact an authorized service.

Can the hood operate in recirculation mode?

Yes, in recirculation mode the air is filtered by the charcoal filter and returned to the room. This mode requires installation of a charcoal filter and an air deflector (for chimney hoods).

What mounting height should be maintained between the hood and the cooking hob?

The minimum height is indicated on the technical data sheet. For electric hobs, it is generally about 65-75 cm. For gas hobs, comply with the distance prescribed by the hob manufacturer.

What to do if the hood does not turn on?

First check that the hood is plugged in and that the circuit breaker has not tripped. Make sure the power cord is not damaged. If the problem persists, contact after-sales service.

How to cancel the delayed shut-off before the end?

Press the Timer button, then use the - button to reduce the time to zero. Confirm with the Timer button. The hood will stop immediately.

Where to find the serial number for a repair request?

The serial number is on the rating plate of the appliance. Write it down before contacting after-sales service. Contact details are on the warranty card.

USER MANUAL FH 17275 S AMICA

Kitchen extractor hood / kaminhaube /

Simple line drawing of a kitchen chimney with steam rising (no text or symbols)

FH 17275 S

IO-HOO-0854

(03.2021)

EN- Table of contents

NOTES ON SAFETY 7

UNPACKING 10

DISPOSAL OF OLD APPLIANCE 10

OPERATION 11

KITCHEN HOOD CONTROLS 11

CONTROL PANEL 11

OFF TIMER 11

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 12

CLEANING AND MAINTENANCE 13

MAINTENANCE 13

GREASE FILTER 13

ACTIVATED CHARCOAL FILTER 13

LIGHT 13

WARRANTY AND AFTER SALES SERVICE 14

WARRANTY 14

GARANTIE, NACHVERKAUF-SERVICE 25

GARANTIE 25

CS- Obsah

BEZPEČNOSTNÍ POKYNY 27

VYBALENI 30

LIKVIDACE OPOTŘEBOVANÝCH ZAŘÍZENÍ 30

OBSLUHA 31

OVLÁDÁNÍ ODSAVAČE 31

OVLÁDACÍ PANEL 31

ČASOVAČ (OPOŽDĚNÉ VYPNUTÍ MOTORU ODSAVAČE) 31

JINÉ DÜLEŽITÉ INFORMACE O OBSLUZE ODSAVACE 32

ČISTĚNÍ A ÚDRŽBA 33

ÚDRŽBA 33

PROTITUKOVÝ FILTR 33

UHLÍKOVÝ FILTR 33

OSVĚTLENÍ 33

ZÁRUKA, POPRODEJNÍ SERVIS 34

ZÁRUKA 34

SK- Obsah

BEZPEČNOSTNÉ POKYNY POUŽÍVANIA 36

ROZBALENIE

LIKVIDÁCIA ZARIADENÍ 40

OBSLUHA

OVLÁDANIE ODSÁVAČA 41

OVLÁDACÍ PANEL 41

ČASOVAČ (ONESKORENÉ VYPNUTIE MOTORA ODSÁVAČA) 41

INÉ DÔLEŽITÉ INFORMÁCIE TÝKAJÚCE SA POUŽÍVANIA ODSÁVAČA 42

ČISTENIE A ÚDRŽBA 43

KONZERVÁCIA

PROTITUKOVÝ FILTER 43

UHLÍKOVÝ FILTER 43

OSVETLENIE

ZÁRUKA, POPREDAJNÝ SERVIS 44

ZÁRUKA

40

41

43

43

44

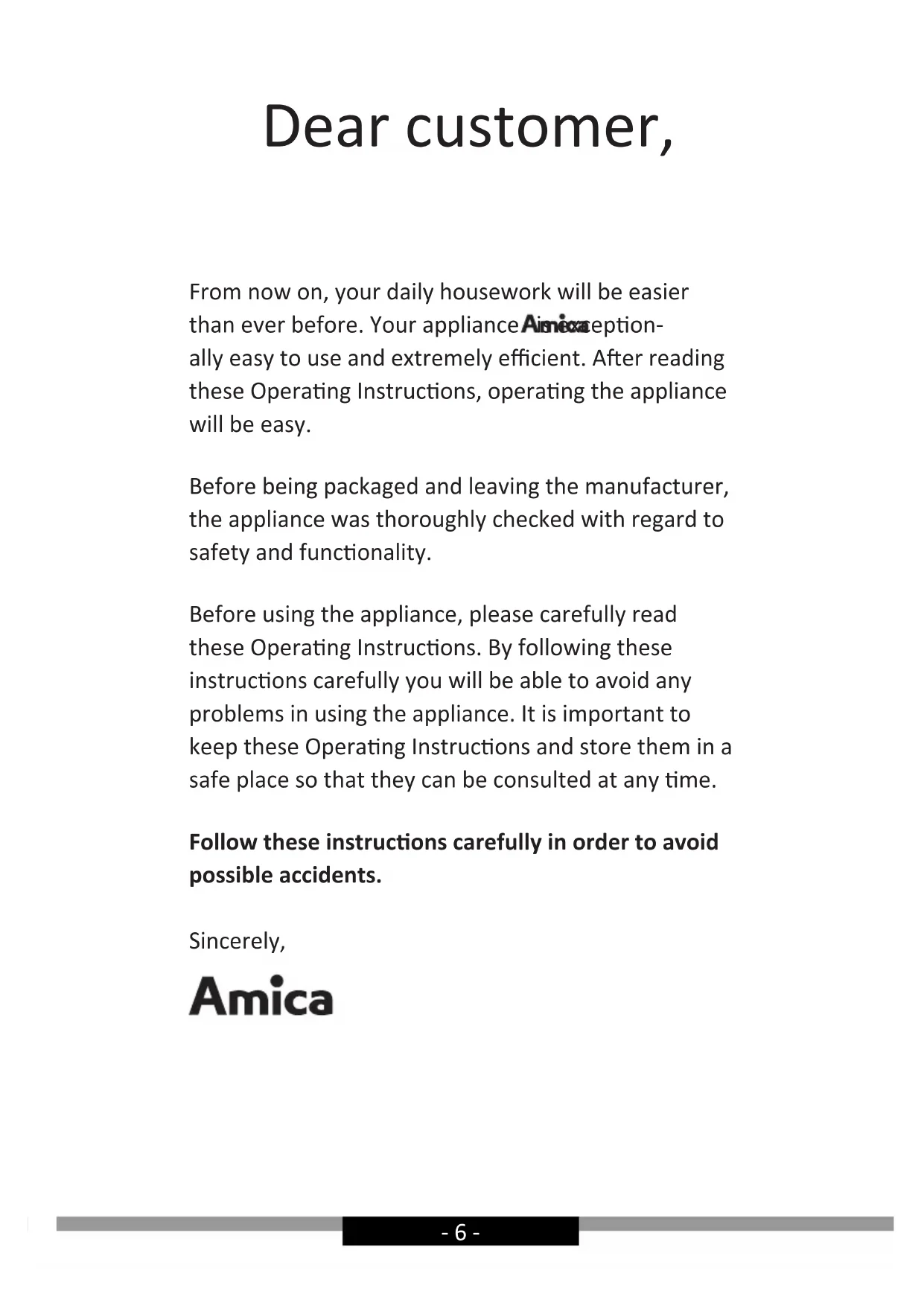

From now on, your daily housework will be easier than ever before. Your appliance Air*optionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

NOTES ON SAFETY

• Before using the appliance, please carefully read this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.
• The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual.
• Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.
• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of ∅ 120 or 150 mm) should not be longer than 4-5 m. An air extraction duct is also required for telescopic and furniture hoods in absorption mode.
• Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods).
• The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.
• Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the

wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

• For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).
• Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.
• When cooking on fat, supervise the pans constantly, because overheated fat can ignite.
• Unplug the appliance before any cleaning, replacing the filter or repair work.
• Cooker hood grease filter should be cleaned at least once a month, because the filter saturated with fat is flammable.
• Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring adequate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter)
• Do not lean on the hood.
• The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual)..Failure to adhere to the rules concerning cleaning the hood and replacing filters results in a fire risk.
• If the power cord is damaged it should be replaced by a specialised service centre.
• Ensure that it is possible to disconnect the ap-

pliance from the mains by removing the plug or switching off the bi-polar switch.

• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.
• Particular attention should be paid not to allow unaccompanied children to use the appliance.
• Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.
• Before use, extend and straighten the power cord.
• Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.
• Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.
• Do not operate your kitchen hood without the aluminium grease filters.
• It is strictly forbidden to cook dishes under on an open flame (flambé) under your kitchen hood.
• Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.
• Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.
• Hanging kitchen hoods operate only in air circulation / odour absorber mode
• WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

UNPACKING

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Kitchen hood controls

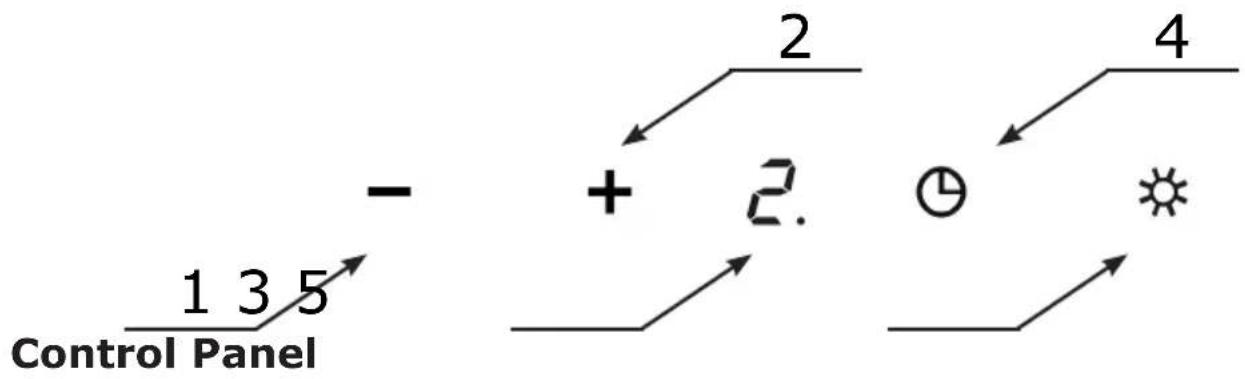

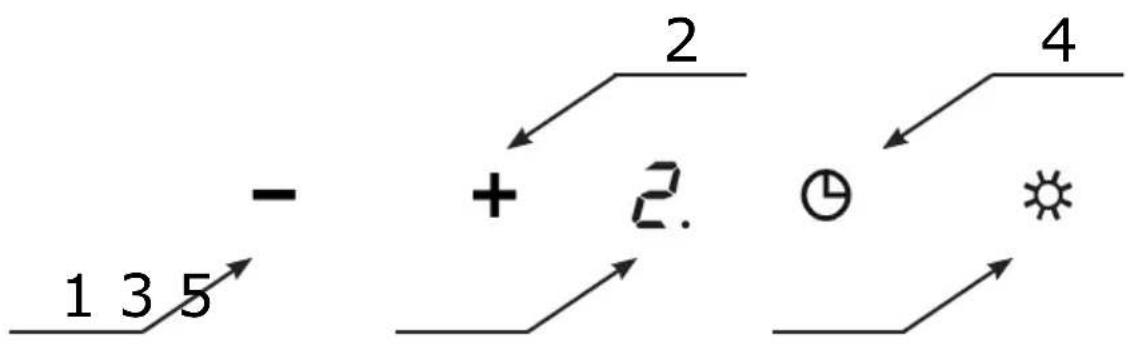

Control Panel is shown in Figure 4, for reference it is also shown below:

It is equipped with a touch controls. Touch one the sensors to enable the desired function:

1 — Reduce fan speed
2 — Increase fan speed
3 — Speed display The hood fan can run at 3 or 4 speeds (depending on the model).
4 — Off timer
5 — Lighting on/off The lighting operates independently of hood fan.

Available fan speeds:

• Low speed (1). Use this speed when cooking a little food with hardly any fumes.
• Medium speeds (2 and 3*). Use this speed when cooking multiple dishes at the same time with moderate amount of fumes.
• High speed (4*). Use this speed when frying or grilling, with large amount of fumes.

* Varies depending on the model

Off Timer

Use off timer to turn off the hood after a specified time. Use off timer to filter the fumes out of the air after cooking. Maximum delay time is 90 minutes. Touch Ⓜto cancel the off-timer at any time. The number ⏻will flash on the display. Then use + and - to select the delay in the range 1–9 (multiply the number by ten to obtain delay in minutes, 1 – 10 minutes, 2 – 20 minutes ... 5 – 50 minutes). Touch Ⓝagain to activate the function. The off timer is set a dot will flash on by the digit on the display. Touch Ⓞto cancel the off timer. Touch - to reduce the delay time down to zero. Touch Ⓡto confirm the off-timer has been cancelled. Cancelling the off-timer does not turn off the lighting.

Other important information concerning the operation of the hood

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

Air extraction operation: When cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120 mm, and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: Lowest and medium fan speed is used in normal conditions and less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

Note (applies to universal hoods only): Due to the design of universal hoods you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommend to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

For normal hood operation, grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

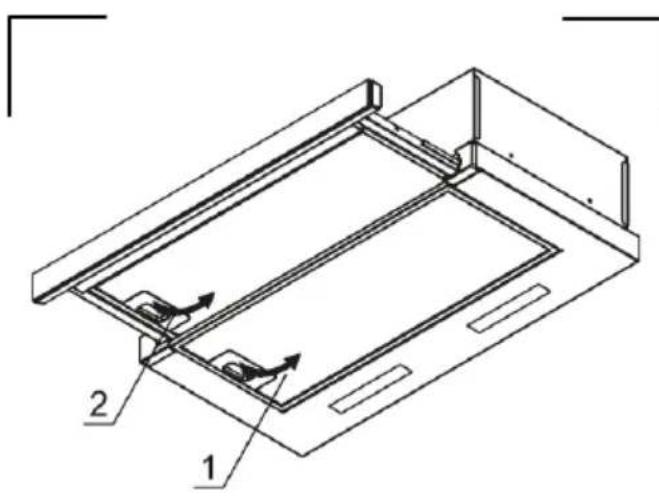

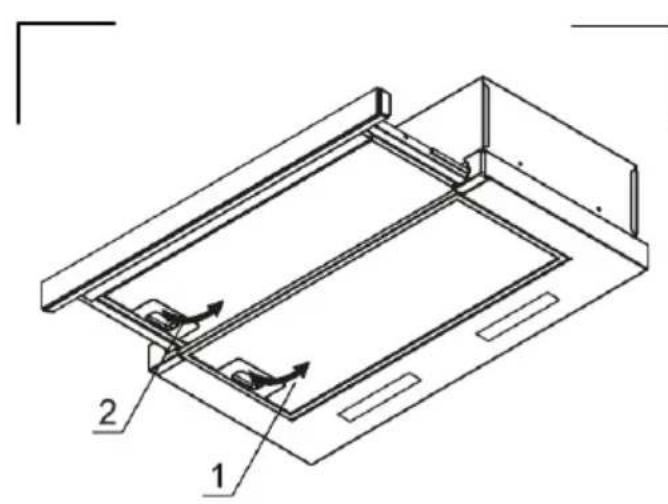

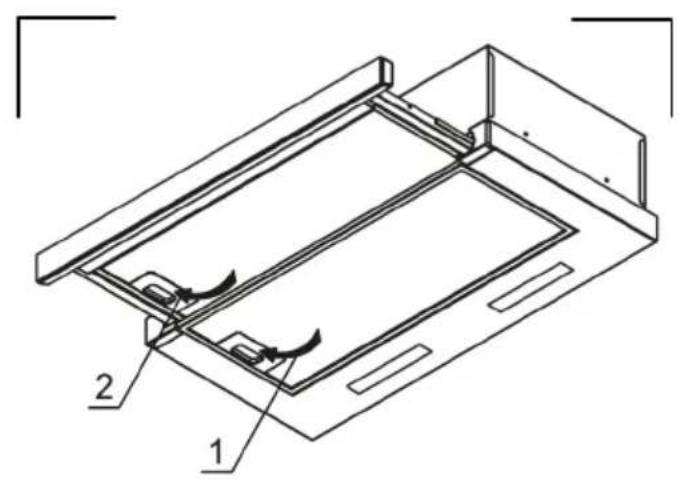

Dismantling of grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Activated charcoal filter

Charcoal filter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal filter can absorb odours until saturated. Charcoal filter is not suitable for washing or regeneration and should be replaced at least once every two months or more frequently if the appliance is used intensively.

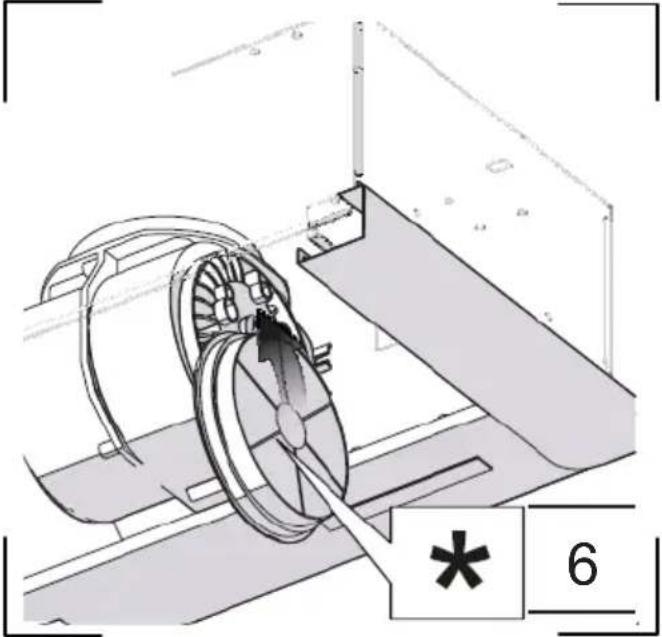

Dismantling of charcoal filter is shown on Figure 6.

Light

Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance. See Figure 7 for details how to replace lights. If there is no such figure in this manual, please contact authorised service to replace the lighting module.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. For safety reasons, repairs should be referred to professionals.
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
• The minimum warranty period for the appliance offered by the manufacturer, importer or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating instructions.

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please see warranty card for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identification sticker: For your convenience, please write it down below:

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

GARANTIE, NACHVERKAUFSERVICE

Garantie

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Uređaj je za vrijeme transporta za- štićen od oštećenja. Nakon vađenja uređaja iz pakiranja molimo Vas da elemente ambalaže uklonite na način koji ne ugrožava okoliš.

Svi materijali korišteni za pakiranje nisu štetni za okoliš, 100% materijala je prikladno za rečikliranje, stoga su označeni odgovarajućim simbolom.

Pozor! Elemente pakiranja (polietilenske vrećice, komadići stiropora itd.) prilikom uklanjanja ambalaže držati daleko od djece.

ZBRINJAVANJE POTROŠENIH UREĐAJA

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

Ovaj uređaj je označen u skladu s europskom uredbom 2012/19/EU.

Oznaka na proizvodu pokazuje da ovaj proizvod nakon njegovog životnog vijeka ne može biti tretiran kao obični kućanski otpad.

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

CONDUIT CARBON FILTER

h = min 650mm h = min 650mm h = min 450mm h = 450mm h h 1

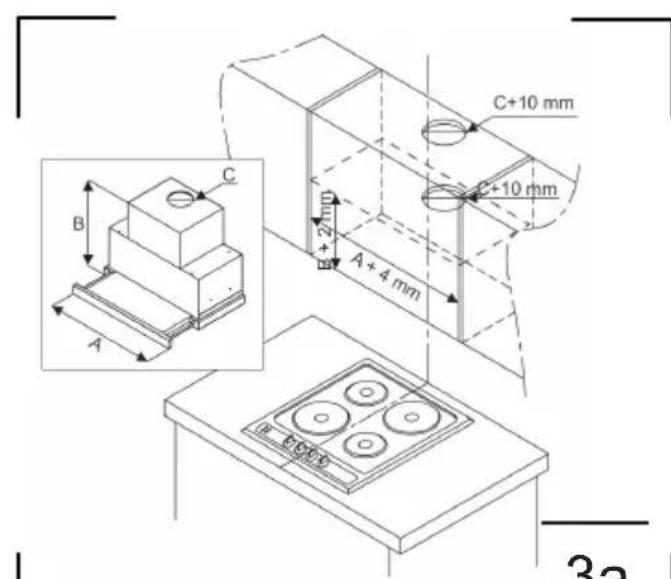

C+10 mm C+10 mm B A A + 2 mm A + 4 mm 3a

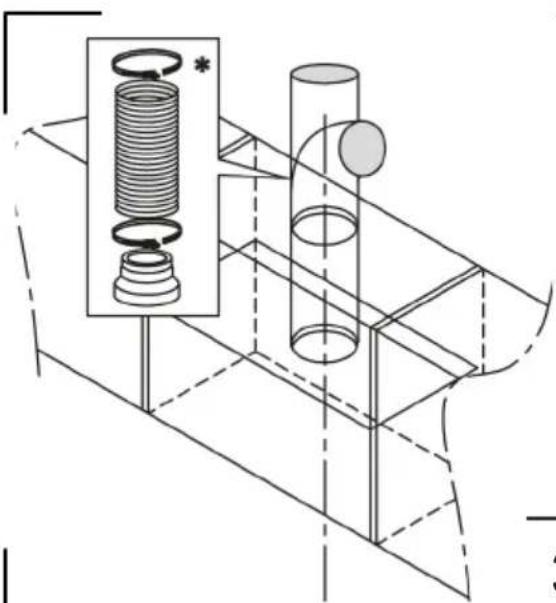

3a

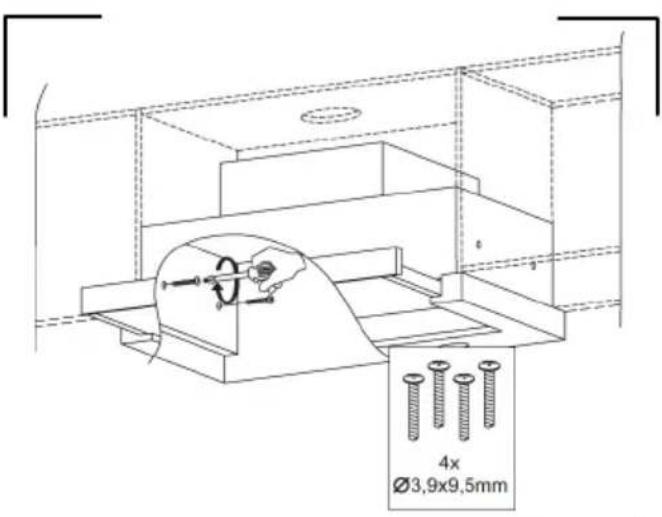

4x Ø3,9x9,5mm

3d

Technical diagram of a mechanical assembly with labeled components 1 and 2, showing internal structure and directional arrows.

3b

Technical line drawing of a mechanical assembly with cylindrical components and a spring-like component (no text or symbols)

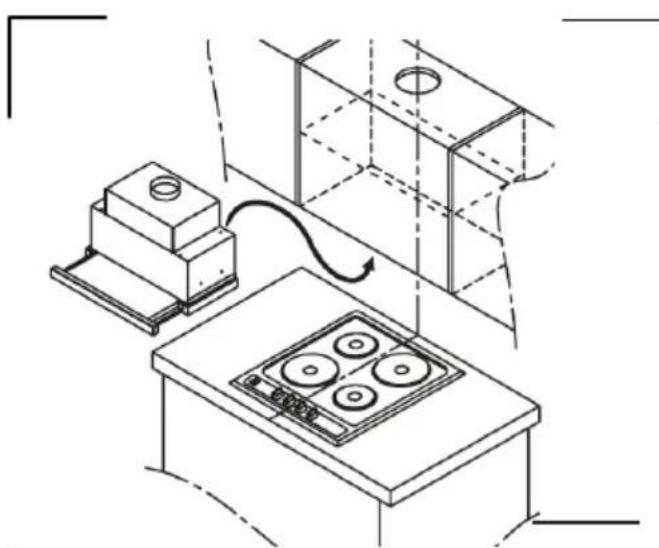

3e

Line drawing of a kitchen appliance setup with a stove, oven, and storage unit (no text or symbols)

3c

Technical line drawing of a mechanical assembly with a cylindrical component inserted into a housing (no text or symbols)

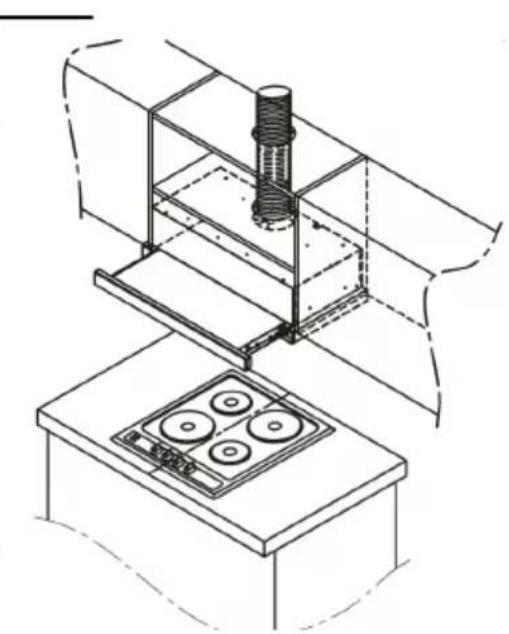

3f

Technical diagram of a mechanical or electrical component with labeled parts 1 and 2

3g

- 2 + 2. ① 4 1 3 5 → → → → → →

4

Technical diagram of a mechanical assembly with labeled components 1 and 2, showing internal components and directional arrows.

5

Technical line drawing of a mechanical component with a labeled section (6), showing internal components and alignment lines (no readable text or symbols)

Amica S.A.

ul . Mickiewicza 52 / 64-510 Wronki

tel. [phone] / fax [phone]

www.amica.pl

Amica International GmbH

Lüdinghauser Str. 52

D-59387 Ascheberg

Tel: 0 25 93 - 95 67-0

www.amica-group.de
