USER MANUAL TWM 0955 Orbegozo

Exterior view of a modern white cylindrical air conditioner unit (no visible text or symbols)

TWM 0955

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Circular diagram with radial lines and central dots, no text or symbols present

INSTRUCCIONES DE USO:

4H SLEEP HIGH 2H REFRESH MED 1H COOL LOW OSH

1 ON/OFF 4 FAN

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible injury.

- Make certain that the power source conforms to the electrical requirements of the Fan.

- Use this Fan only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons.

- This Fan must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmospheres.

- Where possible, avoid the use of extension cords. I minimize the risk of overheating by ensuring that they are UL listed. Never use a single extension cord to

operate more than one Fan.

• Do not block or manipulate the fan while it is working.
• Locate the Power Cord so the Fan or other objects are not resting on it. Do not run Power Cord under carpeting. Do not cover Power Cord with throw rugs, runners, or the like. Arrange Power Cord away from room traffic and where it will not be tripped over.
• This Fan is not intended for use in wet or damp locations. Never locate a Fan where it may fall into a bathtub or other water container.
• Do not use Fan outdoors.
• Never insert fingers, pencils or any other object through the grille when fan is running.
• Disconnect the plug when moving from one location to another.
• Disconnect plug when cleaning grills.
• Be sure fan is on a stable, even surface when operating to avoid overturning.
• DO NOT USE fan in window. Rain may create an electrical hazard. Do not leave the fan operating adjacent to an area where water has been collected to avoid the potential of electrical hazard.

INSTALLATION INSTRUCTION

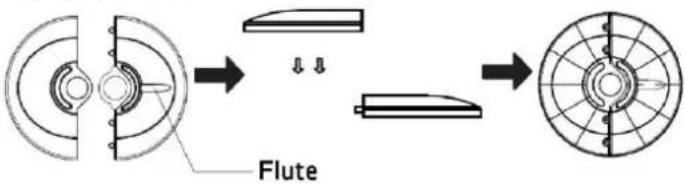

BASE INSTALLATION

1. Take out the fan body and the rest of the parts from the box. Join the back and front parts of the base. Pass the power cable through the hole indicated for it

Flute

1. Fix the base to the body with the help of the included screws

Circular diagram with radial lines and dots, no text or symbols present

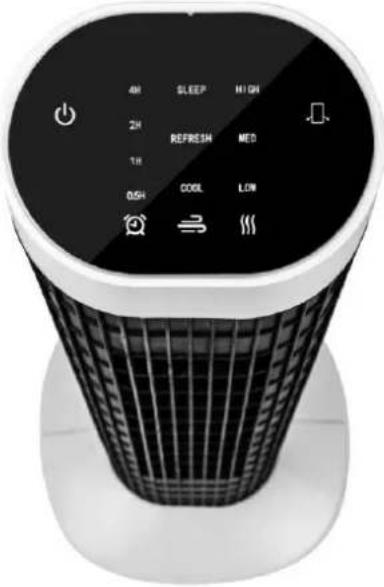

INSTRUCTIONS FOR USE:

- Connect the appliance to electricity.

- Press the 1.ON/OFF button to put it on.

- To select the air speed, press the 4.FAN button. The indicator light will come on, signaling the current speed.

- Select between static or moving position by pressing the 5.SWING button.

- To connect the timer, press the 2.TIMER button repeatedly until you select the chosen time. The timer function can be adjusted from 0.5h to 7.5h. In this way, the fan will stop automatically after the indicated time has elapsed. To disconnect the timer, once the maximum time of the timer has been reached, press once more to deactivate it.

- Use the 3.MODOS button to switch between the different operating modes of the tower. You can choose between the following modes:

• COOL: Normal functioning of the ventilation tower.
- REFRESH: The fan tower will emit a softer and quieter gust of air.
- SLEEP: The fan tower will emit pulsed air, increasing power little by little.

4h SLEEP HIGH 2h REFRESH MED 1h DISH COOL LOW

1 ON/OFF 4 FAN

2 TIMER 5 SWING

3 MODES

MAINTENANCE:

WARNING: ALWAYS DISCONNECT THE CABLE BEFORE MOVING THE APPLIANCE OR PROCEEDING TO CLEAN IT. DO NOT SUBMERG THE APPLIANCE IN WATER!

CLEANING: Clean the fan inlet and outlet openings with the brush attachment of your vacuum cleaner. This will remove the octopus and fur that could accumulate over time. DO NOT TRY TO DISARM THE VENTILADOR. Clean the body of the fan with a soft cloth.

CAUTION: Do not use gasoline, benzene, strippers, abrasive cleaners, etc. Ya que podrían damage the fan. NEVER use ALCOHOL OR SOLVENTS.

REPAIR:

Any other repair, with the exception of the general maintenance of the user, must be carried out by a professional from the authorized technical service.

STORAGE:

Store the Fan, with these instructions, in the original carton in a cool, dry place.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. (Check the legal conditions on our website).

INFORMATIONS GÉNÉRALES DE SÉCURITÉ

Circular diagram with radial lines and dots, no text or symbols present

MODE D'EMPLOI:

4H SLEEP HIGH 2H REFRESH MED 1H COOL LOW 0GH

1 ON/OFF

4 VENTILADOR

2 TEMPORIZADOR

5 GIRO

3 MODOS

MANUTENÇÃO:

ATENÇÃO: DESLIGUE SEMPRE O CABO ANTES DE DESLOCAR O APARELHO OU DE LIMPAR. NÃO MERGULHE O APARELHO NA ÁGUA!
