304007 - Grill plate ROLLER GRILL - Free user manual and instructions
Find the device manual for free 304007 ROLLER GRILL in PDF.
| Product type | Professional quartz infrared tube grill/toaster |
| Brand | Roller Grill |
| Model | 304007 |
| Power | 2000 W |
| Voltage | 230 V |
| Current | 8 A |
| Dimensions (W x D x H) | 450 x 285 x 305 mm |
| Weight | 10 kg |
| Number of heating elements | 4 quartz infrared tubes |
| Capacity | 150 to 400 toasts per hour |
| Preheat time | Less than 30 seconds |
| Heat positions | 4 positions: Off, Bottom tube, Top tube, All tubes |
| Timer | 15 minutes |
| Included accessories | One tray, one cooking grid, one grid release handle |
| Material | Stainless steel |
| Safety | Mandatory grounding, do not immerse, do not touch hot surfaces |
| Care and cleaning | Clean with non-abrasive sponge and soapy water; quartz tubes with alcohol |
| Intended use | Cook or reheat sandwiches, croque-monsieur, pizzas, quiches, toast baguettes and sandwich bread, gratin soups |
| Warranty | Warranty does not cover accidental damage, mishandling, or unqualified repairs |
| Standards | IEC60335-2-48, EN 60335-1, EN 55014, EN 61000 |
| Spare parts and repairability | Use only original parts; entrust repairs to qualified personnel |
Frequently Asked Questions - 304007 ROLLER GRILL
User questions about 304007 ROLLER GRILL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Grill plate in PDF format for free! Find your manual 304007 - ROLLER GRILL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 304007 by ROLLER GRILL.
USER MANUAL 304007 ROLLER GRILL

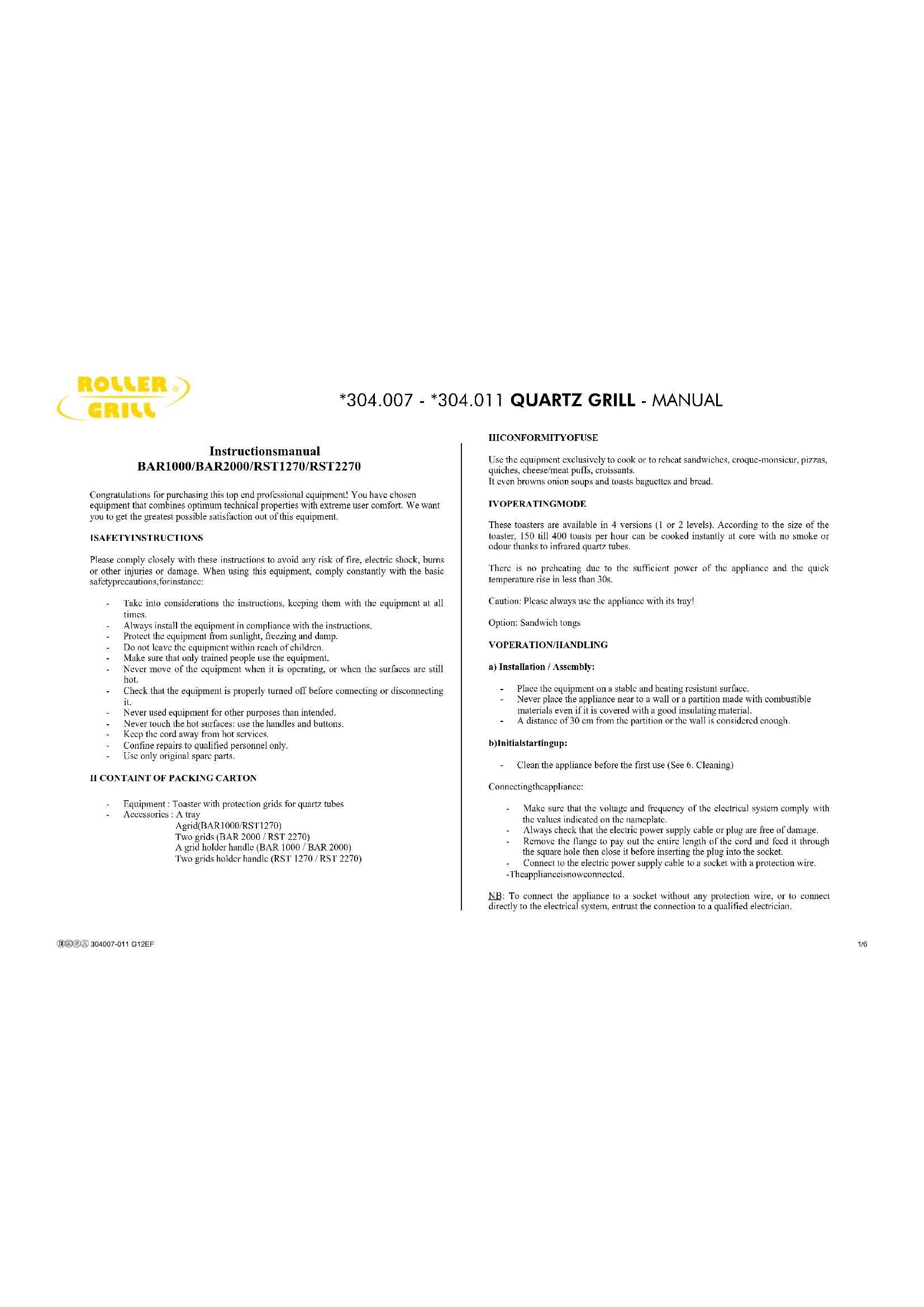

\*304.007 - \*304.011 QUARTZ GRILL - MANUAL
Instructionsmanual BAR1000/BAR2000/RST1270/RST2270
Congratulations for purchasing this top end professional equipment! You have chosen equipment that combines optimum technical properties with extreme user comfort. We want you to get the greatest possible satisfaction out of this equipment.
ISAFETYINSTRUCTIONS
Please comply closely with these instructions to avoid any risk of fire, electric shock, burns or other injuries or damage. When using this equipment, comply constantly with the basic safety precautions, for instance:
- Take into considerations the instructions, keeping them with the equipment at all times.
- Always install the equipment in compliance with the instructions.
- Protect the equipment from sunlight, freezing and damp.
- Do not leave the equipment within reach of children.
- Make sure that only trained people use the equipment.
- Never move of the equipment when it is operating, or when the surfaces are still hot.
- Check that the equipment is properly turned off before connecting or disconnecting it.
- Never used equipment for other purposes than intended.
- Never touch the hot surfaces: use the handles and buttons.
- Keep the cord away from hot services.
- Confine repairs to qualified personnel only.
- Use only original spare parts.
II CONTAIN'T OF PACKING CARTON
- Equipment : Toaster with protection grids for quartz tubes
- Accessories: A tray
Agrid(BAR1000/RST1270)
Two grids (BAR 2000 / RST 2270)
A grid holder handle (BAR 1000 / BAR 2000)
Two grids holder handle (RST 1270 / RST 2270)
IIICONFORMITYOFUSE
Use the equipment exclusively to cook or to reheat sandwiches, croque-monsieur, pizzas, quiches, cheese/meat pulls, croissants.
It even browns onion soups and toasts baguettes and bread.
IVOPERATINGMODE
These toasters are available in 4 versions (1 or 2 levels). According to the size of the toaster, 150 till 400 toasts per hour can be cooked instantly at core with no smoke or odour thanks to infrared quartz tubes.
There is no preheating due to the sufficient power of the appliance and the quick temperature rise in less than 30s.
Caution: Please always use the appliance with its tray!
Option: Sandwich tongs
VOPERATION/HANDLING
a) Installation / Assembly:
- Place the equipment on a stable and heating resistant surface.
- Never place the appliance near to a wall or a partition made with combustible materials even if it is covered with a good insulating material.
- A distance of 30 cm from the partition or the wall is considered enough.
b) Initialstartingup:
- Clean the appliance before the first use (See 6. Cleaning)
Connecting the appliance:
- Make sure that the voltage and frequency of the electrical system comply with the values indicated on the nameplate.
- Always check that the electric power supply cable or plug are free of damage.
- Remove the flange to pay out the entire length of the cord and feed it through the square hole then close it before inserting the plug into the socket.
- Connect to the electric power supply cable to a socket with a protection wire.
-Theapplianceisnowconnected.
NB: To connect the appliance to a socket without any protection wire, or to connect directly to the electrical system, entrust the connection to a qualified electrician.
\*304.007 - \*304.011 QUARTZ GRILL - MANUAL
c) Use of the equipment :
| Elements on the front of the board | Function |
| Commutator 4 positions : | |
| Position1 | Off |
| Position2 | Only the lower quartz tube is heating |
| Position3 | Only the upper quartz tube is heating |
| Position4 | Both bottom and top tubes are heating |
| Timer 15 mn | Duration for cooking time |
| Red Pilot light | Appliance is working |
Starting
- Select the commutator according to the power expected - Turn the button of the timer on the duration expected
-Pilotlightison
Stoppingtheappliance
-Setthecommalatoron0.
Remove the electric power supply cable
- Let the appliance cool down.
- Clean the appliance. (cf. 6 Cleaning)
d) Failure/Repair:
In case of failure or if a part is damaged, please call your after sales service and have qualified personnel deal with any technical operations.
VI CLEANING AND MAINTENANCE
-Removetheconnector
- Clean the appliance regularly each time you use it.
- For cleaning, use only mild non-abrasive maintenance products for stainless steel, soapy water or dishwashing liquid with a non-abrasive sponge.
- Wipe the appliance with a damp cloth.
- Dry the appliance with a soft clean cloth.
-
Never clean the quartz tubes when they are hot and avoid to touch them with your fingers. Clean them with an alcohol impregnated cloth.
-
Never clean the appliance with a jet of water because leaks could cause irreparable damagetoit.
- Never immerse the appliance, the cord or plug in wateroranyotherliquid, to avoidelectricshocks.
VIITECHNICALCHARACTERISTICS
| Model | BAR 1000 | BAR 2000 | RST 1270 | RST 2270 |
| Power | 2000 W | 3000 W | 3200 W | 4800 W |
| Outside dimensions | 450x285x305 | 450x285x420 | 610x335x315 | 610x335x460 |
| Qty of clements | 4 | 6 | 6 | 9 |
| Voltage | 230 V | 230 V | 230 V | 230 V3Ph+N+T |
| Ampere | 8 A | 13A | 14 A | 7 A / Phasc |
| Weight | 10 Kg | 12 Kg | 15 Kg | 17 Kg |
Wire Colours:
Phase Brown or Black or Grey
Neutral Blue
Earth Yellow-green
VIII STANDARDS AND DIRECTIVES
The appliance complies with the standards indicated below :
-IEC60335-2-48
-EN60335-1
-EN55014
-EN61000
*304.007 - *304.011 QUARTZ GRILL - MANUAL
IX ELIMINATION OF ELECTRICAL AND ELECTRONIC EQUIPMENTS
The display complies with the following directives :
- 2002/95CE (DEE) N°34270064800021
-2002/96/CE(ROHS)
- Do not dump the appliance with household waste.
- The appliance must be deposited at a recycling point for electrical equipment
The materials of the display are reusable. By properly eliminating electrical and electronic waste, by recycling and any other form of reuse of used equipment, you are making a significant contribution to environmental protection.
For any information regarding the collection of electrical and electronic waste, please contact yourretailer.
XGUARANTEE
The guarantee does not cover of failure due to accidental causes, handling error, negligence, unsuitable use, technical modifications or repairs made by unqualified people. The guarantee does not provide any entitlement to damages and interests.
