Product type	Infrared heating
Brand	Dimplex
Model	BS 1201 S
Nominal heat output	1,2 kW
Electrical supply	230-240 V~, 1/N/PE
Dimensions (W x H x D)	526 x 140 x 92 mm
Weight	1,6 kg
Protection rating	IP24 (protected against water splashes)
Minimum mounting height	1,8 m
Maximum tilt	40° downward
Power levels	3 levels: 600 W, 600 W, 1200 W (positions 1, 2, 3)
Control type	Manual pull-cord control, without room temperature regulation
Auxiliary consumption	0,0 W in operation and standby
Installation	Horizontal on vertical wall; ceiling or vertical mounting not allowed
Minimum clearances	65 cm in front of the unit; respect safety zones
Maintenance	Cleaning with damp cloth; dusting with soft-bristled brush
Safety	Do not use near flammable materials; do not cover; risk of burns
Spare parts	Heating elements replaceable by a specialist
Warranty	2 years
Disposal	Do not dispose of with household waste; take to a recycling center

Frequently Asked Questions - BS 1201 S DIMPLEX

What type of heating is the Dimplex BS 1201 S?

It is an infrared heater that directly warms objects and people in its radiation zone without heating the ambient air.

What is the maximum power and how many heat levels does it offer?

The maximum power is 1200 W. The device offers 3 heating levels (1, 2, 3) controlled by a pull-cord switch, plus position 0 for off.

How to install the Dimplex BS 1201 S correctly?

It must be mounted horizontally on a vertical wall, at a minimum height of 1.8 m from the floor. Maintain a distance of 65 cm in front of the unit. Do not install under a wall socket.

What are the risks of burns and how to avoid them?

Some parts become very hot. Do not touch the reflector or heating element. Wait for complete cooling before cleaning. Keep children away.

Can this device be used in a bathroom?

Yes, because it is certified IP24 (protected against water splashes). However, it must be installed out of reach of a person in the bathtub or shower.

How to clean the Dimplex BS 1201 S?

Turn it off and let it cool. Clean the exterior surfaces with a damp cloth, then dry. Use a soft-bristled brush to remove dust. Do not use abrasive products.

What to do if the device does not heat?

Check that the display is not on 0 and that the circuit breaker has not tripped. If the problem persists, contact a qualified electrician or after-sales service.

Can the heating elements be replaced by oneself?

No, only a specialist is authorized to replace the heating elements. The manual details the procedure for a professional.

What materials should be avoided near the device?

Keep flammable materials such as curtains, drapes, clothing or solvents away. Do not use as a changing table heater.

What to do in case of breakdown or malfunction?

Isolate the device from the mains. If the problem persists, contact Glen Dimplex Thermal Solutions after-sales service at [phone] or by email at [e-mail]. Have the type and manufacturing date at hand.

USER MANUAL BS 1201 S DIMPLEX

EN - This product is only suitable for well insulated spaces or occasional use.

Technical line drawing of a remote control device with internal components and directional arrows (no text or symbols)

Technical line drawing of a cylindrical device with internal components and a side view showing internal structure (no text or symbols)

3. Wandmontage

Technical line drawing of three cylindrical electronic components with internal structures and mounting points (no text or symbols)

10. Garantie

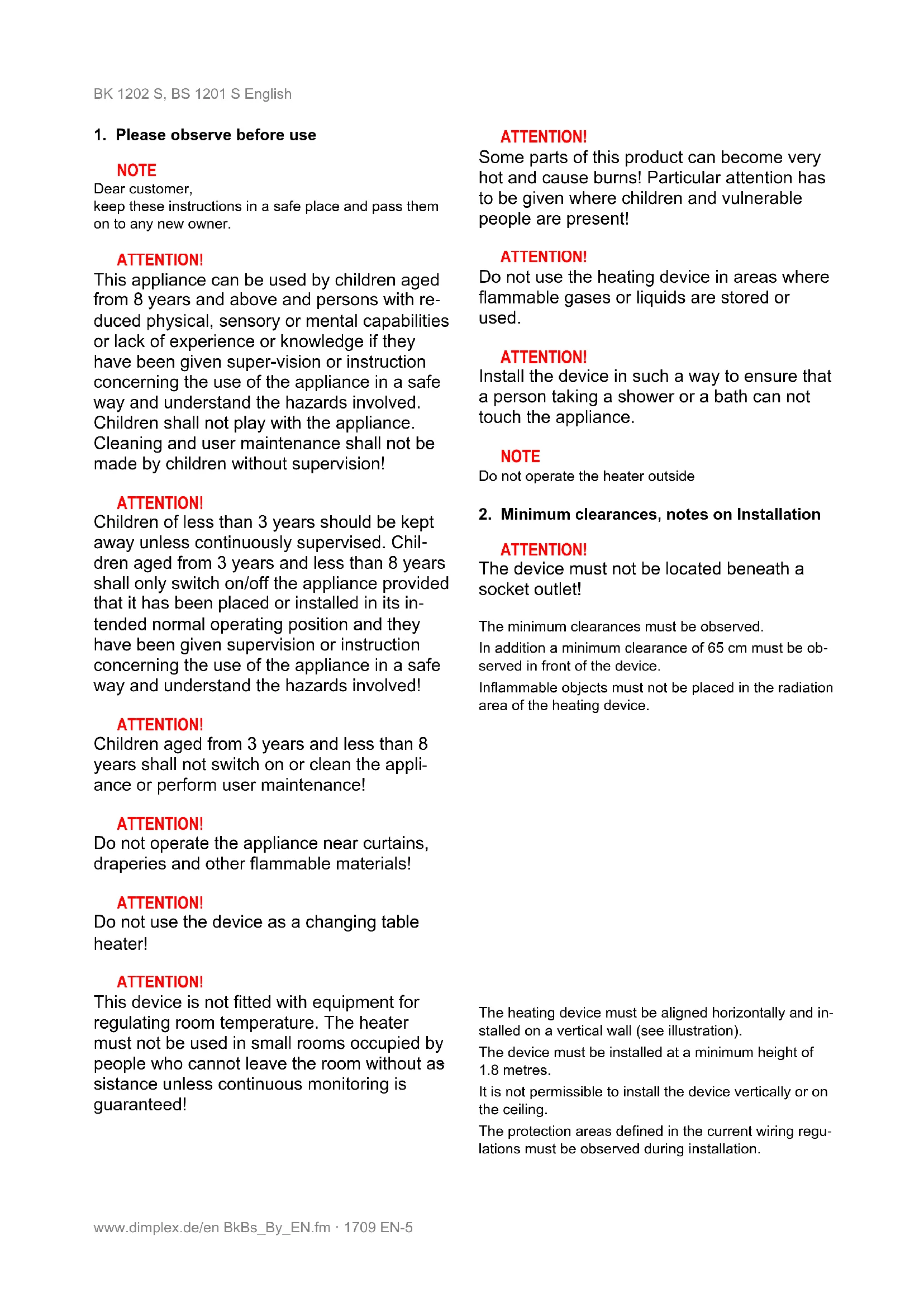

1. Please observe before use

NOTE

Dear customer,

keep these instructions in a safe place and pass them on to any new owner.

ATTENTION!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge if they have been given super-vision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision!

ATTENTION!

Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved!

ATTENTION!

Children aged from 3 years and less than 8 years shall not switch on or clean the appliance or perform user maintenance!

ATTENTION!

Do not operate the appliance near curtains, draperies and other flammable materials!

ATTENTION!

Do not use the device as a changing table heater!

ATTENTION!

This device is not fitted with equipment for regulating room temperature. The heater must not be used in small rooms occupied by people who cannot leave the room without assistance unless continuous monitoring is guaranteed!

ATTENTION!

Some parts of this product can become very hot and cause burns! Particular attention has to be given where children and vulnerable people are present!

ATTENTION!

Do not use the heating device in areas where flammable gases or liquids are stored or used.

ATTENTION!

Install the device in such a way to ensure that a person taking a shower or a bath can not touch the appliance.

NOTE

Do not operate the heater outside

2. Minimum clearances, notes on Installation

ATTENTION!

The device must not be located beneath a socket outlet!

The minimum clearances must be observed.

In addition a minimum clearance of 65 cm must be observed in front of the device.

Inflammable objects must not be placed in the radiation area of the heating device.

The heating device must be aligned horizontally and installed on a vertical wall (see illustration).

The device must be installed at a minimum height of 1.8 metres.

It is not permissible to install the device vertically or on the ceiling.

The protection areas defined in the current wiring regulations must be observed during installation.

The supply connection socket must be accessible after installation.

Due to the heat radiation of the device, the surface on which the device is installed can darken in colour.

i NOTE

Installation on wooden walls is permissible.

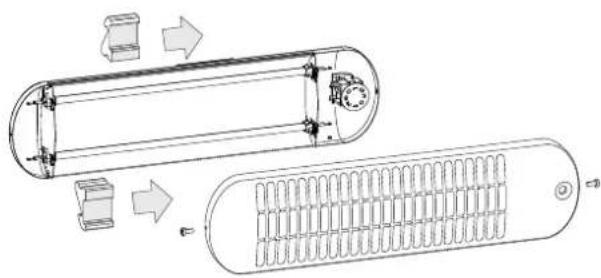

Remove transport fastening

■ Loosen the front grill screws (A) and remove the front grill.
■ Remove the transport fastenings (B) from the heating elements.
■ Re-attach the front grill.

Technical line drawing of a cylindrical device with internal components and a side view showing internal structure (no text or symbols)

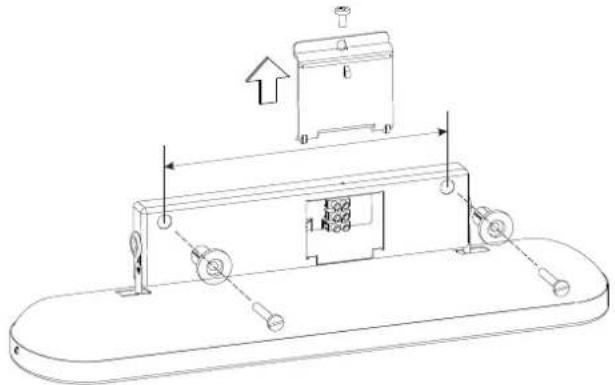

3. Wall mounting

To achieve the stipulated minimum installation height of 1.8 metres, the mounting holes for the wall holder must be drilled at a height of 1.9 metres.

■ Loosen the screw on the connection compartment cover and remove the cover.
■ Fold the radiator forward.
■ Mark and drill the mounting holes on a vertical wall and insert dowels.
■ Insert spacers with screws into the openings of the wall holder and screw the device into place.

4. Electrical connection

The voltage specified on the type plate must match the mains voltage.

The installation of this heater must be carried out by a competent electrician in accordance with the current safety regulations. Heating device must be earthed!

Connection only to fixed installed cables!

The connecting wires of the power lines must be fitted with a heat-resistant protective hose.

A separator with a minimum contact opening of 3mm must be provided on each pole in the permanently connected electrical installation (e.g. a circuit breaker).

It is recommended that a separate circuit be provided for the power supply.

5. Operation

The desired heating level can be set by pulling the cord switch once or repeatedly.

The set heating level can be read in the display window.

In position 0, the heating device is switched off.

The radiator heats the objects or persons upon which/whom it is directed without also directly heating the indoor air.

The radiator can be tilted downwards by a maximum of 40^ .

ATTENTION!

Adjustments may only be made when the device is fully cooled. Danger of burns!

Power output in switch position

	Display 0	Display 1	Display 1	Display 2
BK 1202 S	Off 600	W 600 W	1200 W
BS 1201 S	Off 600	W 600 W	1200 W

W = output power in watts.

6. Cleaning

Switch off the device and let it cool down before cleaning it.

Caution! Do not touch the reflector or heating element with bare hands.

The outer surfaces of the device can be cleaned with a damp cloth and then dried thoroughly.

No scouring agents or polishes should be used.

Dust which gathers inside the device can be removed using a brush with soft, long bristles.

If the device is heavily soiled, it should be cleaned by a specialist.

7. Faults

In the event of a fault, disconnect the device from the power supply

If the heating device does not give off heat, check the following points:

Is the display at "0"?
■ Is the fuse in the fuse box switched on?

If the fault cannot be corrected, please contact your electrical retailer.

If necessary, you can also call the Glen Dimplex Thermal Solutions Service Hotline.

Telephone: [phone]

Facsimile: [phone]-924545

Mail: [e-mail]

To process your order, the device type and the device's production date (FD number) are required. These specifications can be found on the device's type plate.

i NOTE

Repairs and corrective measures must only be carried out by a qualified electrician or the after-sales service.

8. Spare parts

Ordering spare parts at Glen Dimplex Germany GmbH on the Internet at:

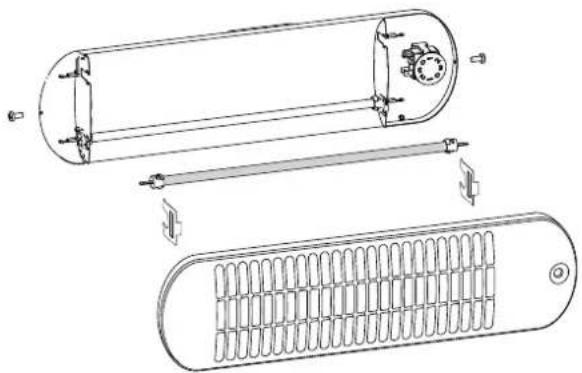

9. Changing the heating element

A heating element may only be changed by a specialist. Disconnect the device from the power supply and allow it to cool.

Do not touch the heating element or reflector with bare hands. Use a cloth to protect the surface.

■ Loosen the front grill screws (A) and remove the front grill.
■ Remove push-on connections using a suitable tool.
■ Pull out the two fixing brackets (B).
■ Remove the heating element.
■ Insert new heating element.
- Carry out assembly in reverse order.

Technical line drawing of three cylindrical components with internal structures and mounting brackets (no text or symbols)

10. Warranty

This product is supplied with a two-year warranty according to our warranty terms and conditions.

11. Note on disposal

Do not dispose of the unit with general household waste. The unit must be taken to a local waste disposal plant.

12. Technical data

Model reference BK 1202 S		BS 1201 S
Nominal voltage 1/N/PE, 230		-240 V~
Degree of protection IP24, splashproof
Dimensions (W x H x D) 768		x 100 x 92 mm	526 x 140 x 92 mm
Weight 1.6 kg	1.6 kg
Heat output
Nominal heat output	P_nom	1.2 kW	1.2 kW
Minimum heat output (indicative)	P_min	0.6 kW	0.6 kW
Maximum continuous heat output	P_max, C	1.2 kW	1.2 kW
Intrinsic consumption
At nominal heat output	e|_max	0.0 W	0.0 W
At minimum heat output	e|_min	0.0 W	0.0 W
In standby mode	e|_SB	0.0 W	0.0 W
Control for heat output
Two manual stages, no room temperature control
