Product Type	Built-in gas hob
Brand	Franke
Model	HMA 755 4G DCL
Number of burners	5
Types of burners	1 Double Crown, 1 Rapid, 2 Semi-Rapid, 1 Auxiliary
Recess dimensions (L x P x H)	560 x 480 x 40 mm
Cutout dimensions (Xp x Yp)	730 x 510 mm
Net weight	11.5 - 13 kg
Power supply	220-240 V ~ 50-60 Hz, 0.6 W
Compatible gas types	Natural gas G20, LPG G30 (Butane) / G31 (Propane)
Gas supply pressure	G20: 20 mbar; G30/G31: 28-30 / 37 mbar
Total installed power (gas)	10.8 kW (G20) / 10.5 kW (LPG)
Ignition	Integrated electric (rotary knob with safety)
Safety	Thermocouple (safety valve) shutting off gas if flame goes out
Surface material	Enameled steel or cast iron depending on grates
Grates	Cast iron or enameled, with rubber feet
Cleaning	Grates, caps and diffusers washable with soapy water (not dishwasher safe)
Installation class	Class 3 (built-in), type Y for electrical part
Minimum distance to walls	Lateral: 150 mm, Rear: 50 mm, Cabinets above: 700 mm
Spare parts	Injectors, knobs, grates, caps – available from Franke after-sales service
Repairability	Maintenance by qualified technician; original parts recommended
Warranty	See Franke after-sales service conditions

Frequently Asked Questions - HMA 755 4G DCL FRANKE

How to light a burner?

Press and turn the corresponding knob to the maximum position. Hold it down (3-4 s) to ignite and heat the thermocouple. Release then adjust the flame to the desired level.

What to do if the burner does not light or goes out?

Check the gas supply, the gas valve is open, the burner ports are not blocked, and all parts are correctly positioned. Make sure you held the knob long enough (3-4 s). Consult the troubleshooting guide in the manual.

Can the appliance be used with butane or propane gas?

Yes, provided you replace the injectors with those suitable for G30/G31 gas and adjust the minimum flame. The injectors and conversion sticker are supplied or available from after-sales service.

How to clean the hob?

After cooling, wipe with a soft cloth and water. Use specific products for vitroceramic surfaces. The grates, caps and diffusers should be washed in warm soapy water; do not put them in the dishwasher. Dry carefully.

What is the safety distance above the hob?

If a hood is installed, follow the hood's instructions. For cabinets, the minimum distance is 700 mm above the hob. For side walls, 150 mm; for the rear wall, 50 mm.

Can I use cast iron or earthenware pots?

Yes, but do not exceed 20 minutes of cooking at high power. For long cooking, reduce the flame to minimum. Avoid metallic heat diffusers.

How to adjust the minimum flame after gas conversion?

Remove the knob, use a screwdriver to turn the adjustment screw located under the seal. Turn clockwise to reduce the flame, counterclockwise to increase it. For LPG, screw the screw fully.

Is the appliance safe for children?

Yes, it is equipped with a safety valve that cuts off the gas if the flame goes out. However, accessible parts get hot; keep children away and do not let them play with the appliance.

What to do in case of an empty gas cylinder?

Replace the cylinder following safety instructions. Check that the cylinder valve is open after replacement. Purge the line if necessary.

Where to find spare parts or after-sales service?

Contact Franke after-sales service via www.franke.com. Have the model (Art./Cod.) and serial number (N.S.) shown on the rating plate under the hob ready.

USER MANUAL HMA 755 4G DCL FRANKE

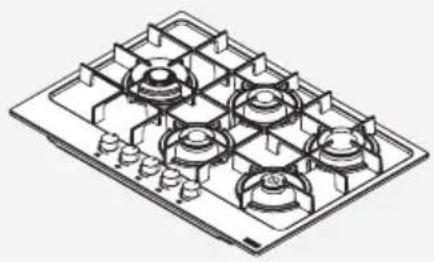

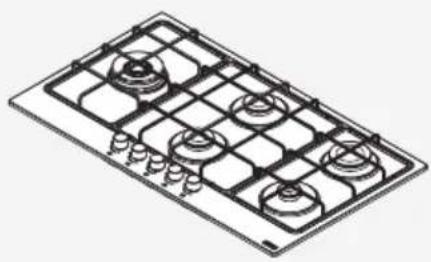

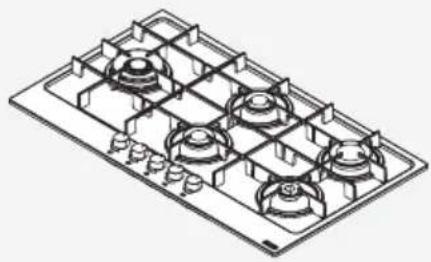

Isometric line drawing of a gas stove or gas stove with four fans and control knobs (no text or symbols)

Isometric technical drawing of a four-tiered mechanical component with no visible text or symbols

Isometric technical drawing of a mechanical component with four circular features arranged in a grid pattern (no text or symbols)

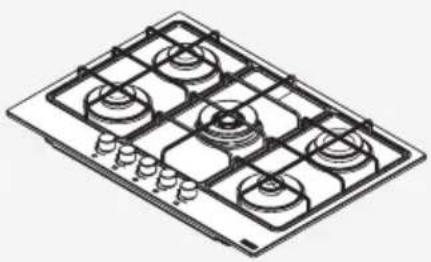

Isometric line drawing of a four-tier gas stove with four fans and three legs (no text or symbols)

Isometric technical drawing of a grid-based mechanical component with four circular features (no text or symbols)

Isometric technical drawing of a grid-based mechanical component with four circular holes (no text or symbols)

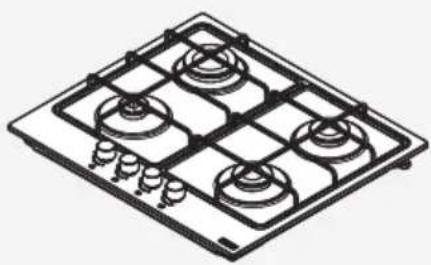

FHMA 604 3G DC

FHMA 755 4G DC/DCL

FHMA 905 4G DCL

FHSM 604 3G DC

FHSM 604 4G

FHSM 755 4G DC

FHSM 905 4G DCL

EN Installation and user manual Gas Hob

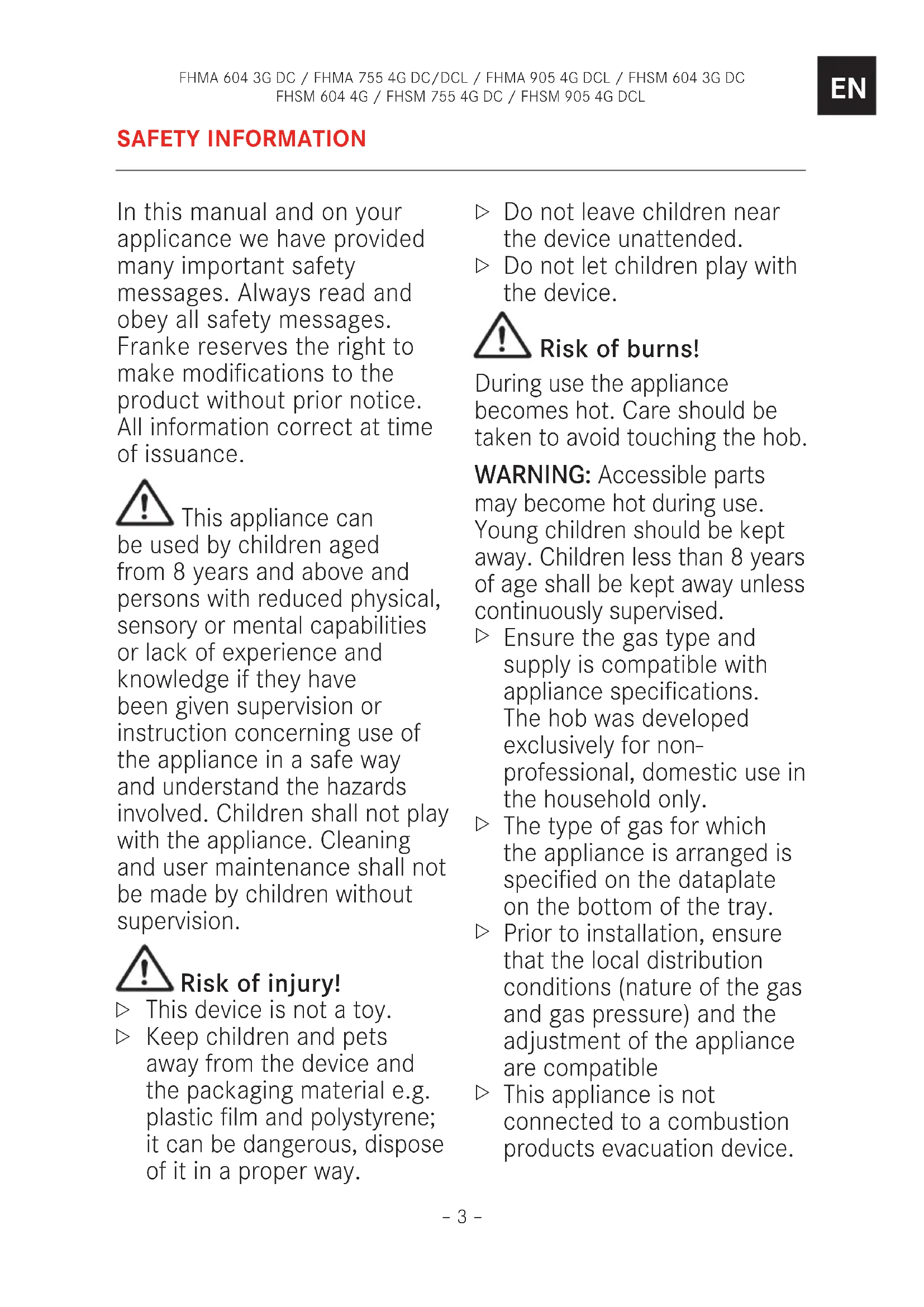

In this manual and on your applicance we have provided many important safety messages. Always read and obey all safety messages. Franke reserves the right to make modifications to the product without prior notice. All information correct at time of issuance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Risk of injury!

▷ This device is not a toy.
▷ Keep children and pets away from the device and the packaging material e.g. plastic film and polystyrene; it can be dangerous, dispose of it in a proper way.

Do not leave children near the device unattended.
Do not let children play with the device.

Risk of burns!

During use the appliance becomes hot. Care should be taken to avoid touching the hob.

WARNING: Accessible parts may become hot during use. Young children should be kept away. Children less than 8 years of age shall be kept away unless continuously supervised.

▷ Ensure the gas type and supply is compatible with appliance specifications. The hob was developed exclusively for non-professional, domestic use in the household only.
The type of gas for which the appliance is arranged is specified on the dataplate on the bottom of the tray.
Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible
▷ This appliance is not connected to a combustion products evacuation device.

It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation

The adjustment conditions for this appliance are stated on the label (or data plate).
Pay particular attention to the applicable regulations on ventilation.
▶ After use, switch off the hob by its controls.
▶ Make sure the burners are cold before closing the lid, if the appliance has one.

Risk of electric shock to entering liquid!

The device contains electrical components.

▶ Make sure that no liquid enters the interior of the device.
Do not use pressurised steam to clean the device.
In the event of the burner flames accidentally extinguished, turn off the burner control and do not attempt to reignite the burner for at least 1 min.
The device shall not be operated for more than 15 seconds if after 15 seconds the burner has not lit, stop operating the device and open the compartment door

and/or wait at least 1 minute before attempting a further ignition of the burner.

▶ Ensure that the device is installed in a way that allows to disconnect it from the power supply, with a contact opening distance (3 mm) that ensures complete disconnection in category III overvoltage conditions.
▶ Ensure that the appliance is connected to an earthing system in compliance with the current regulations.

CAUTION: The use

of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed.

▶ Ensure that the kitchen is well ventilated especially when the appliance is in use: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).
Do not operate the appliance with an external time switch or a separate remote control system.

CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

Do not use steam cleaners or direct jets of water.
▷ Never use scouring pads, steel wool, muriatic acid or other products which could scratch or mark the surface.
▷ Never use sharp objects, as they could damage the seals between the trim and worktop.
▷ Ensure the gas outlet zones are perfectly clean.
These instructions are only valid if the country symbol appears on the appliance. If the symbol does not appear on the appliance, it is necessary to refer to the

technical instructions which will provide the necessary instructions concerning modification of the appliance to the conditions of use of the country.

Risk of fire!

Do not store items on the cooking surfaces.

WARNING: Unattended omatic cooking on a hob at or oil can be dangerous may result in fire. Hot oil s readily.

TECHNICAL DATA

FHSM 604 4G

FHMA/FHSM 604 3G DC FHMA 755 4G DCL FHSM/FHMA 4G 755 DC FHMA/FHSM 905 4G DCL

Position Burner Rated		Capacity-G20	Injectors G20-20 mbar	Rated Capacity-G30	Rated Capacity-G31	Injectors G30/G31 28-30/37 mbar	Rated Power(Kw)	Reduced Power (Kw)
4 DC 0,315 1,35				240 240 0,91 3,3*218 *218 *0,85	*3			2,10
3	R	0,286	1,15	218	218	0,85	3	1,30
2	SR	0,166	0,97	127	127	0,65	1,75	0,70
1 AUX		0,095	0,72	73	73	0,50	1	0,65
Pressure(mbar)	min	17		20	25
	nom	20		28-30	37
	max	25		35	45
Type of Gas		G20 natural gas			LPGG30 ButaneG31 Propane		Cat. II2H3+

*ALL FHMA MODELS

MODELS'S CONFIGURATION

MOD. nr	AUX	nr SR	nr R	nr DC	N burners	Heat Source	Total Rated Capacity G20 (m3/h)	Total Rated Capacity G30/G31 (g/h)	Air Neccessary for combustion (m3/h)	Tot. Installed Gas Rated Power (kW)	Tot. Installed LPG Rated Power (kW)	Weight (net - gross) (kg)
FHSM 604 4G	1	2	1		4	GAS	0,713	545	15	7,5	7,5	8-9,4 (C) 7,1-8,5 (E)
FHSM 604 3G DC	1	2		1	4	GAS	0,742	567	15,6	7,8	7,8	8-9,4 (C) 7,1-8,5 (E)
FHSM 755 4G DC	1	2	1	1	5	GAS	1,028	785	21,6	10,8	10,8	10,5-12(C) 8,9-10,4 (E)
FHSM 905 4G DCL	1	2	1	1	5	GAS	1,028	785	21,6	10,8	10,8	14-15,7 (C) 12,5-14,2(E)
FHMA 604 3G DC	1	2		1	4	GAS	0,742	545	15,6	7,8	7,5	8,8-10,2 (C)
FHMA 755 4G DC	1	2	1	1	5	GAS	1,028	764	21,6	10,8	10,5	11,5-13 (C)
FHMA 755 4G DCL	1	2	1	1	5	GAS	1,028	764	21,6	10,8	10,5	11,5-13 (C)
FHMA 905 4G DCL	1	2	1	1	5	GAS	1,028	764	21,6	10,8	10,5	14,5-16,2 (C)

DC = Double Crown SR-Semi-Rapid R = Rapid AUX=Auxiliary C = Cast Iron Grid E = Enameled Grid
Power supply = 220-240 V; Frequency = 50-60 Hz; Power/current = 0.6 Watt

INSTALLATION

Installation and electrical/gas connection must only be carried out by specialized and licensed personnel.

The manufacturer declines any liability for injury to persons or damage to things due to failure noncompliance with these provisions. The gas connection must comply with the regulations in force in the country at the time of installation.

▷ Ensure that the device is connected directly to the mains socket. Ensure that no adapters, no multi-sockets and no extension cables are used to connect the device.

Cabinet requirements

This handbook refers to a class 3 built-in gas hob and type Y for electric part.

The gas pipe must not come into contact with the sides of any oven under the hob.

For fitted units, the components (plastic materials and veneered wood) must be assembled with heat-resistant adhesives (min.

100°C): Unsuitable materials and adhesives can result in warping and detachment.

The Ventilation of rooms must be in compliance with local regulation.

The kitchen element must allow sufficient room for the electrical connections of the appliance.

Important: These devices are „Y“ type with respect to the degree of protection against the dangers of fire. The minimum distance from the edge appliance is 150 mm for the side wall, 50 mm for the rear and 700 mm for any cabinets above it. The appliance is recommended to be built into 40 mm thick worktops. In case the dimensions are different, eventual modifications have to be managed by the technician.

Note: if a hood is installed above the hob, for the distance to be respected refer to the assembly instructions of the hood.

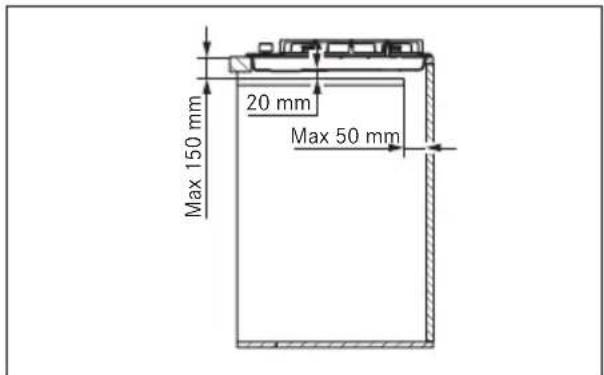

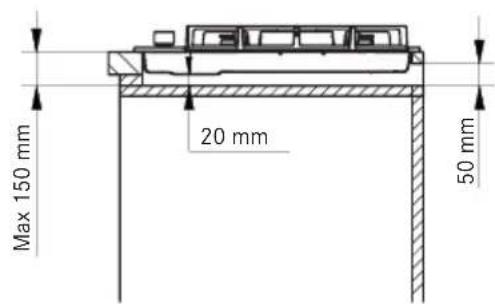

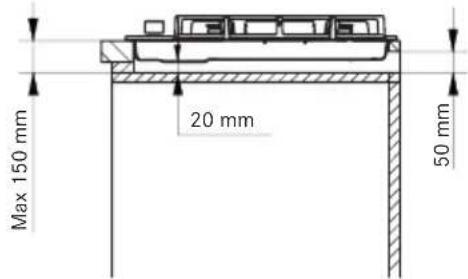

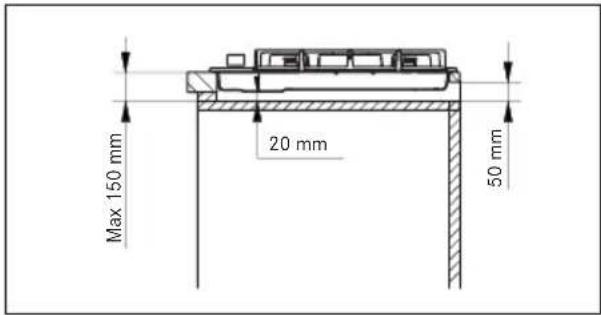

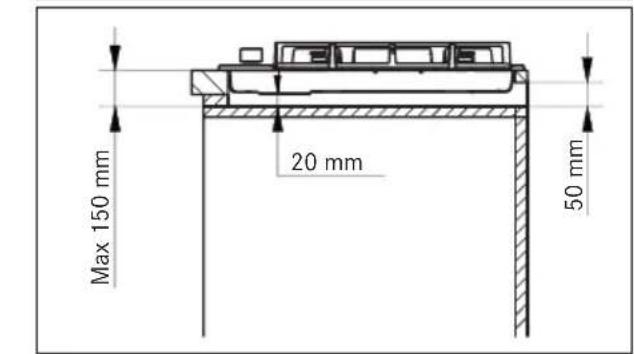

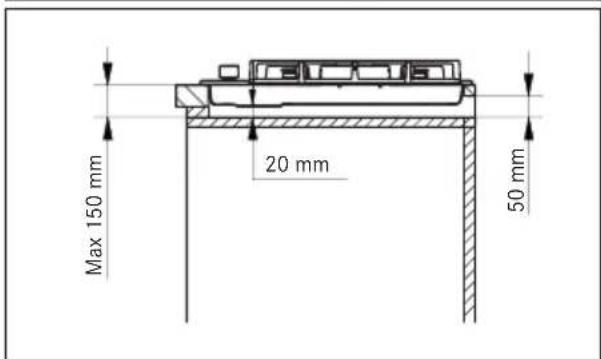

MINIMUM DIMENSIONS (MM)

$$ A = 5 9 0 / 7 3 0 / 8 8 0 B = 5 0 $$

$$ C = 4 0 0 D = 7 0 0 $$

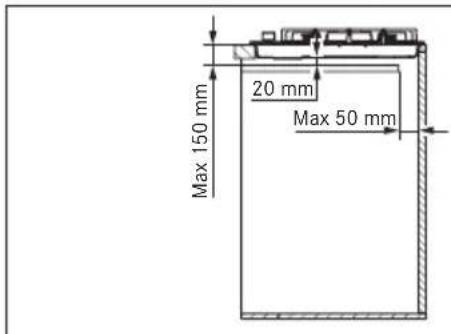

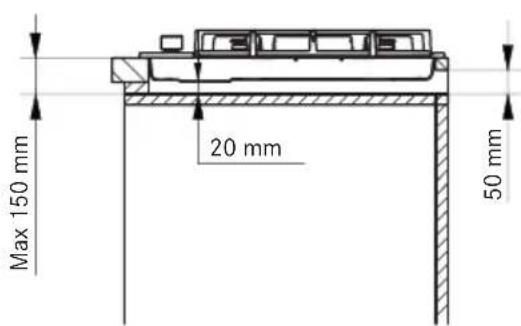

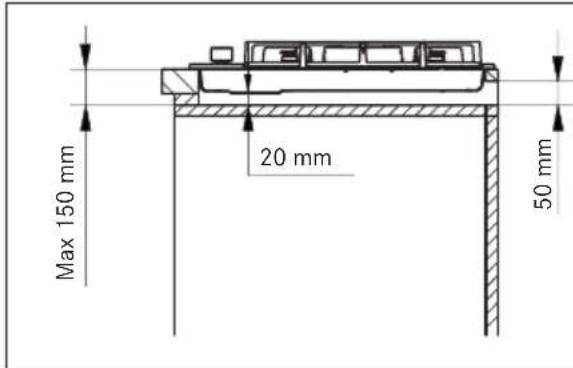

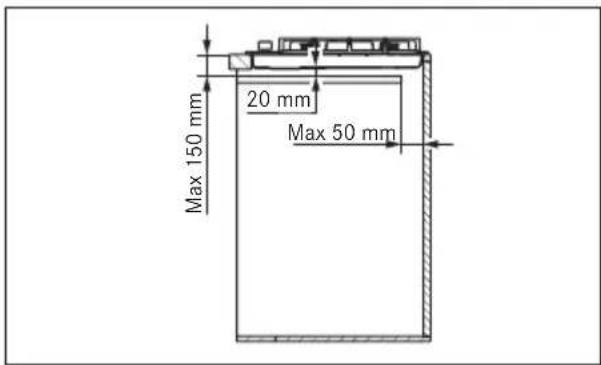

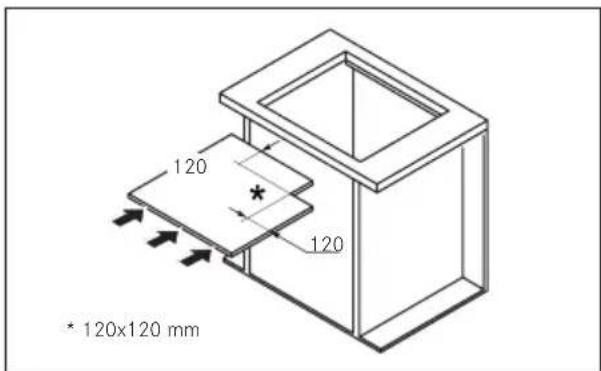

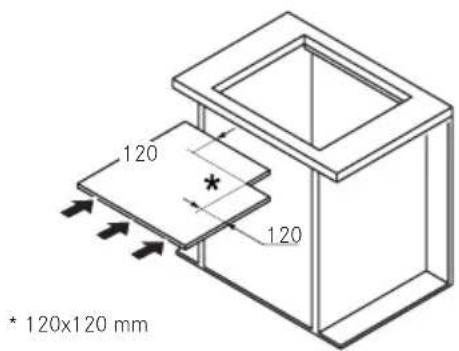

▷ If the appliance is not installed above an oven: arrange a separator baffle.

$$ * 1 2 0 \times 1 2 0 \mathrm{mm} $$

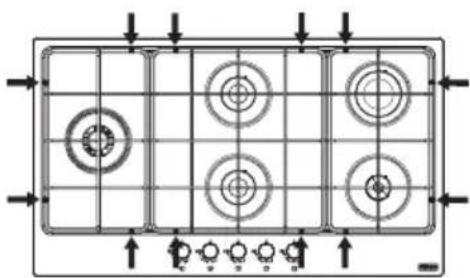

Installation procedure

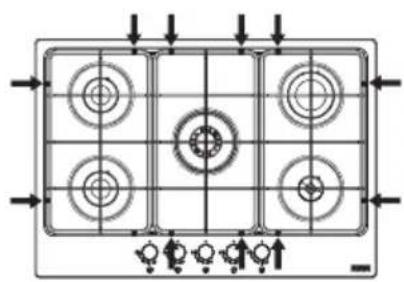

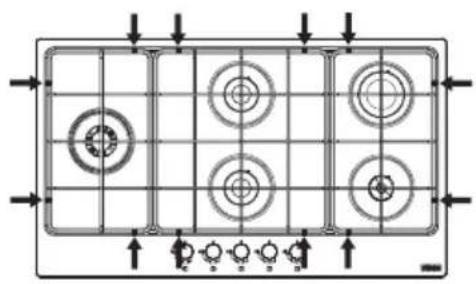

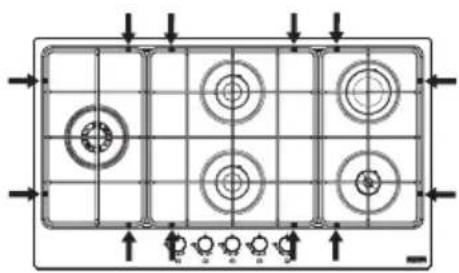

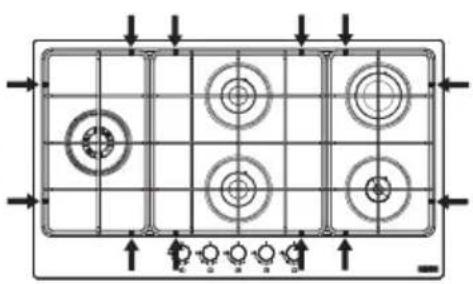

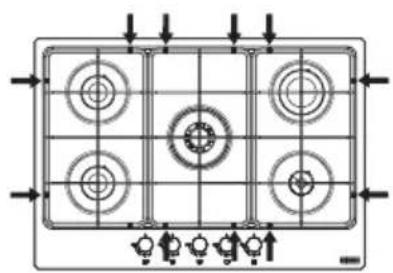

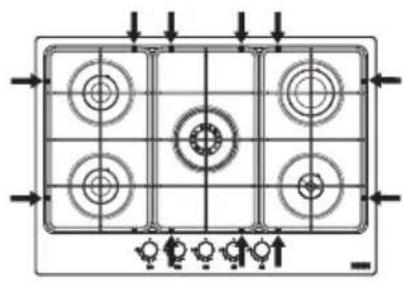

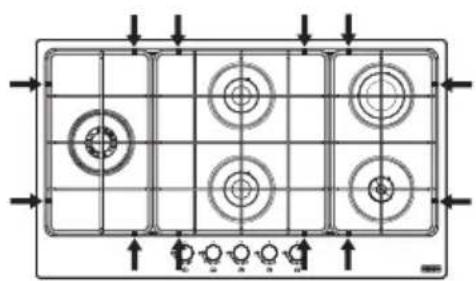

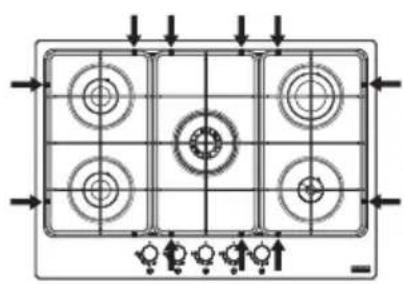

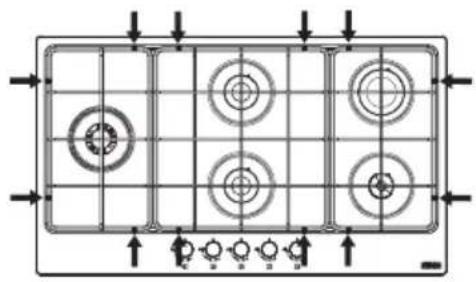

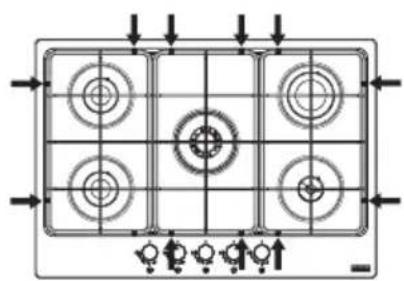

The appliance is fixed to the unit by means of the brackets and accessories provided.

Make sure that there is free access to the fixing elements in front and in the rear after the installation of the appliance.

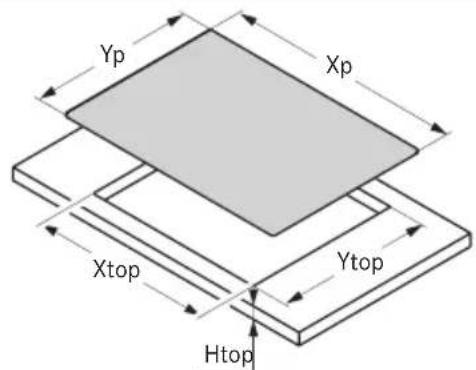

▷ Prepare the hole in the worktop according to the dimensions indicated. Be sure to comply with the dimensions indicated.

Model Xp Yp X
			top	Y top	H top
FHSM 604 3G DC	590	510	560	480	40
FHSM 604 4G	mm	mm	mm	mm	mm
FHMA 604 3G DC
FHSM 755 4G DC	730	510	560	480	40
FHMA 755 4G DC/DCL	mm	mm	mm	mm	mm
FHSM 905 4G DCL	880	510	840	480	40
FHMA 905 4G DCL	mm	mm	mm	mm	mm

▶ Apply the sealing strip around he hole and position the hob.
Fix the appliance with the screws and brackets.
▶ Remove any excess sealing strip.

Technical line drawing of a mechanical bracket or clamp assembly with no visible text or symbols

Connection to gas supply

Connect the appliance to the gas supply in compliance with the current regulations, only after making sure it is arranged for the type of gas to be used. Otherwise, carry out the operations described in the paragraph „Replacing injectors“.
For liquid gas use pressure regulators complying with the current regulations.

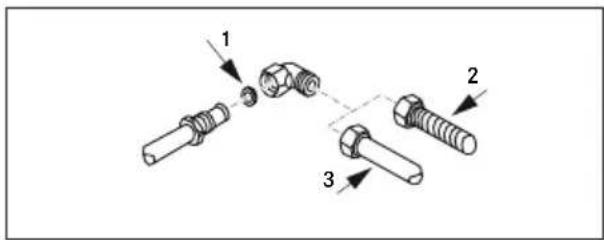

Connection to the gas supply can be made in two ways:

A. Connect the gas hob using a 12 mm diameter rigid copper pipe (3). To ensure a good seal, use the elastomer gasket supplied as an accessory (1).
B. Connect the hob using a continuous-surface flexible steel tube (2). Also in this case, to ensure a good seal use the gasket supplied as an accessory (1). The maximum length of the hose is 2 linear metres.

Important: if a stainless steel hose is used, it must be installed so as not to touch any mobile part of the furniture. It must pass through an area where there are no obstructions and where it is possible to inspect it on all its length.

After connection to the gas supply light up the burners and turn the knobs from max position to minimum position to check flame stability.

▶ After carrying out the connection use soapy water to check for any leaks.

For United Kingdom, Northern Ireland and Republic of Ireland.

Electrical connection

The FRANKE cooking hob comes with a 3-core power cable with free terminals.

▶ Ensure the following:

- The characteristics of your household electrical power supply (voltage, maximum output and current) are compatible with those of your FRANKE hob.

- The plug and the socket can be easily reached and are positioned so that no live part is accessible when inserting or removing the plug.

- A 3 x 0.75 mm² H05RR-F type cable for completely gas hobs is used when replacing the power cable.

- The terminals of two appliances are not connected to the same plug.

- The polarities of the free terminals (Blue = Neutral = (1) / Yellow and Green = Earth = (2) / Brown = Live = (3)) are respected.

Adjustment to different types of gas

WARNING: This operation must be performed by a qualified technician.

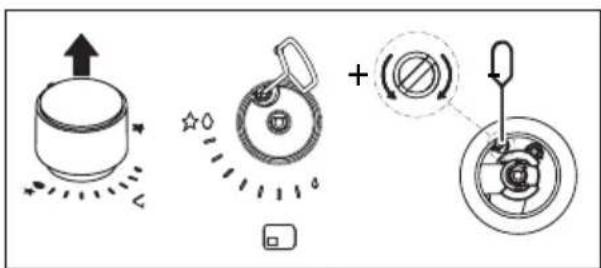

Minimum flame adjustment

Remove the knob.
▶ Insert the screwdriver between the gasket and the cover until it reaches the adjustment screw.
Adjust the minimum flame by turning the screw clockwise to decrease the flame and anticlockwise to increase it. The screwdriver for adjustment is supplied with the accessories.

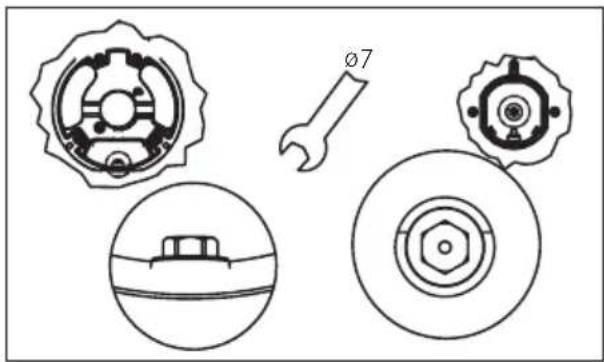

Replacing injectors

Not supplied injectors must be requested to the customer service.

Important: All the appliances are factory-set for natural gas (G20). If a different type of gas is to be used, change the injectors as follows:

• Remove the grids, burner caps and flame-spreaders;
• Unscrew the injectors and replace them with those provided and suitable for the gas supply, making sure the marking matches that given in the table;
• Refit the flame-spreaders, burner caps and grids.

These burners do not require air adjustment.

INTENDED USE

CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

Do not pull the appliance or the power cable to unplug it.
▷ Close the general gas supply cock when the hob is not in use.

Risk of burns!

Do not touch the pot grids during use.
Do not touch the appliance with wet parts of the body.

Accessing the hob

To access the tray containing the functional parts, proceed as follows:

• Remove the grids, burner caps and flame-spreaders;
• Remove the knobs, sliding them off their pins;
• Remove the screws that fix the burners to the hob;
• Lift the hob.

Important: When converting the appliance to a different type of gas, place the corresponding sticker (supplied as an accessory) in the special space on the data plate. For operation with LPG (G30 or G31), the minimum flame adjustment screw must be fully screwed down. These appliances are supplied in cat. II 2H3+.

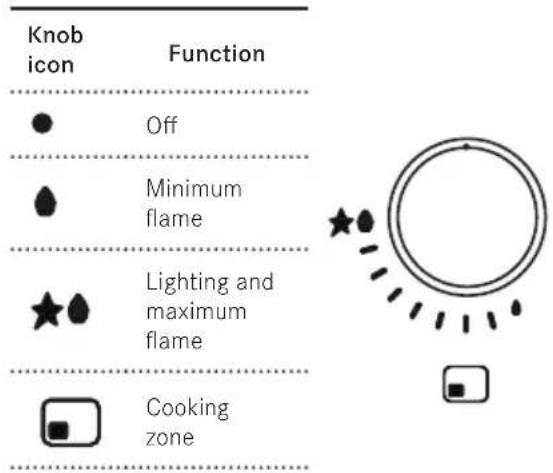

Lighting the burners

The hob is lit with the control knobs. To light the burners, proceed as follows:

• Press and turn the required knob to the lighting and max delivery position.
• Keep the knob pressed down for 3-4 seconds to allow the sparks to ignite the gas coming out the burner and to allow the thermocouple to heat up.

Then release the knob and, turning it anticlockwise, adjust the flame as required. If the flame does not stay lit, repeat the operation from step 1.

The hob is an item for daily use: signs of usage such as scratches or visible material abrasion from pots or cookware are normal. Intensive use leads to more distinctive signs of usage. In such cases, the appliance continues to function perfectly and a complaint is not justified. Safety is always guaranteed.

Do not use the appliance as support top. To avoid damaging the appliance:
In the case of thermal failure, switch the solid plate off and allow to cool down completely.
Do not put any dishes on it. Do not cool with cold water under any circumstances.
Do not climb onto the appliance. The appliance is manufactured in compliance with the relevant effective safety standard an safety requirements of Gas Directive.

Automatic Safety Valve

These hobs have a safety device that automatically closes the gas flow if the flame accidentally goes out due to draughts, pot spilling, or a temporary interruption of the gas supply. This device is activated approx. 30 seconds after the flame goes out.

Burner use

For lower gas consumption and better efficiency use pots of widths suitable for the burners, making sure the flame does not go beyond the edges (comply with the following table):

Burner	Pan bottom min-max. ∅ (recommended)
Double Crown 160 -240 mm
Rapid 140 - 220 mm
Semi-Rapid 140 - 200 mm
Auxiliary 60 - 140 mm

The use of larger pots than those specified can cause excessive overheating of the knobs and top and, in case of prolonged use, yellowing of the cover (if in stainless steel). FRANKE declines any liability for damage due to such use (Fig. 1).

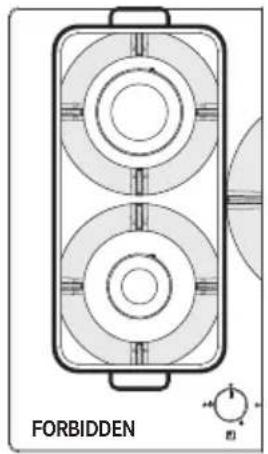

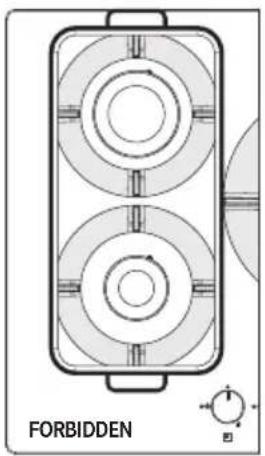

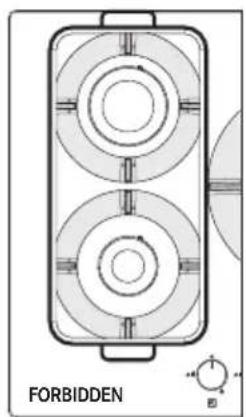

Do not put the same pan on two burners (Fig. 1).
Do not use two burners working at the same time with a single container, like a saucepan or a fish pan (Fig. 1).
Improper use of the grids can damage the hob: do not position the grids upside down or slide them across the hob.
In case of use of cast iron griddles, ollar stones, terracotta pots and pans, use them for no more than 20 minutes and, in case of prolonged cooking, adjust the burner to the minimum.
▷ Heat diffusers such as metal mesh, or any other types are not recommended.

CAUTION: The use of particular pans or pots may cause a light temporary deformation of the steel cooking surface. This is normal and does not affect the operation of the appliance.

Fig. 1

Pure mechanical component diagram without any text, numbers, or symbols

Technical diagram of a two-cylinder mechanical component labeled 'FORBIDDEN' with no readable text or symbols beyond the label.

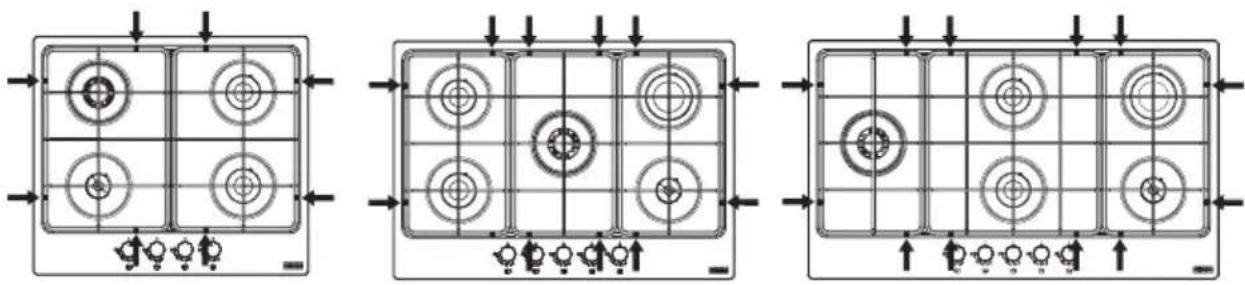

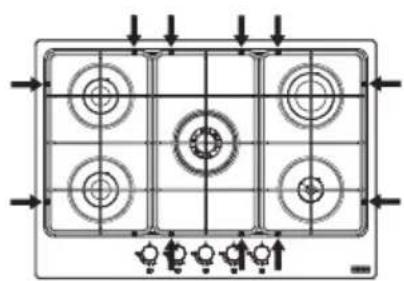

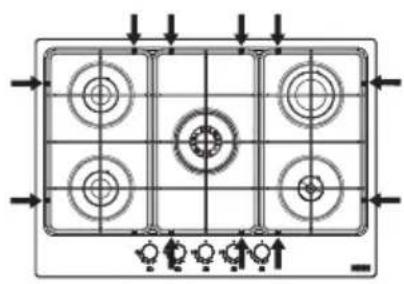

Correct position of the grids

Be sure to place the grids with the rubber feet in the right position as indicated by the arrows in the pictures below:

CLEANING AND CARE

Risk of burns!

Do not clean the appliance and its accessories until they are cold.
Do not use flammable liquids near the appliance.
Before performing any cleaning and care:
▷ Turn the appliance off.

Foods that accidentally fall or settle on the surface, on the functional or aesthetic elements of the hob must not be eaten.

Cleaning the appliance

▶ Clean the hob after every use in order to prevent food residues from burning on.
To clean food residues, use a soft cloth or sponge with water. We recommend using protective cleaning agents.
Immediately remove any foods with high sugar content that spill onto the hob.
To prevent limescale stains from forming, always thoroughly dry the appliance after going over it with a damp cloth.
Clean the grids, burner caps and flame-spreaders with hot soapy water, making sure to carefully dry them. Do not clean in a dishwasher. Make sure the gas outlet zones are perfectly clean.
The natural colour of the pot grids in the pot placing section may alter over time due to the heat.

MAINTENANCE AND REPAIR

Before any maintenance operations disconnect the appliance from the mains power supply. In case of any operation problems, contact the Franke Technical Service Centre.

Make sure that maintenance on electrical components is carried out only by the manufacturer or the customer service. Use original spare parts only.

Make sure that damaged cables are changed only by the manufacturer or the customer service.

When contacting the customer service, please provide the following information:

• type of fault
• appliance model (Art. / Cod.)
• serial number (S.N.)

This information is given on the data plate on the booklet or under the hob.

If the hob doesn't operate correctly, before calling the Franke Technical Service Centre, refer to the Troubleshooting Guide to determine the problem:

TROUBLESHOOTING GUIDE

Type of failure Check if:
AThe burner fails to ignite, does not stay lit or the flame is not steady	1	The gas or electrical supplies are not shut off
	2	The gas supply tap is not open
	3	The refillable gas cylinder (liquid gas) is not empty
	4	The burner openings are not clogged
	5	The plug end is not dirty
	6	All the burner parts have not been positioned correctly
	7	There are no draughts near the hob
	8	When lighting the burner, the knob has not been pressed for enough time to activate the protection device (see page 9 „Intended use“)
	9	The burner openings are not clogged near the thermocouple
	10	The minimum gas setting is not correct
BThe containers (pots, pans, kettles) are not stable	11	The bottom of the container is not perfectly flat
	12	The container is not centered on the burner
	13	The grids have not been exchanged or positioned incorrectly

If after the above checks the fault still occurs, get in touch with the nearest Franke Technical Service Centre.

DISPOSAL

Packaging

All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way.

Disconnection

▶ Disconnect the appliance from the mains. With a fixed appliance, this must be carried out by a qualified electrician.

Disposal

The symbol on the product or on the packaging indicates that the device must not be disposed of in the domestic waste.

▷ Dispose of the device, which is to be discarded, via a specialised waste collection point for electronic and electrical devices.

In accordance with the Directive 2012/19/EU, regarding the reduction of the hazardous substances used in electrical and electronic appliances, and waste disposal.

Proper separate waste collection of the scrapped appliance for subsequent recycling, treatment and environmentally-friendly disposal helps prevent a potentially negative impact on the environment and health and facilitates recycling of the materials used in appliance construction.

CUSTOMER SERVICE

Refer to the contact address for your country on the back page or on our website: www.franke.com

SICHERHEITSHINWEISE

$$ A = 5 9 0 / 7 3 0 / 8 8 0 B = 5 0 $$

$$ C = 4 0 0 D = 7 0 0 $$

$$ * 1 2 0 \times 1 2 0 \mathrm{mm} $$

Installationsablauf

Technical line drawing of a mechanical component with no visible text or symbols

Gasanschluss

Technical diagram of a mechanical component with concentric circles and mounting holes (no text or symbols)

Abb. 1

Technical diagram of a mechanical component with concentric circles and mounting holes (no text or symbols)

Technical diagram of a mechanical component with concentric rings and mounting features (no text or symbols)

$$ A = 5 9 0 / 7 3 0 / 8 8 0 B = 5 0 $$

$$ C = 4 0 0 D = 7 0 0 $$

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a mechanical component with no visible text or symbols

Fig. 1

Technical diagram of a mechanical component with concentric circles and mounting holes (no text or symbols)

Technical diagram of a mechanical component with concentric circles and mounting features (no text or symbols)

Technical diagram of a four-panel electrical cabinet or enclosure with mounting holes and directional arrows (no text or labels)

Pure technical diagram of a rectangular panel with circular cutouts and directional arrows, no text or symbols present.

Technical diagram of a mechanical component with circular features and grid lines, no visible text or symbols

NETTOYAGE ET ENTRETIEN

Line drawing of a mechanical component with a lever and base, no text or symbols present

Simple line drawing of a sun with rays and a star, no text or symbols present

Technical diagram of a circular mechanical component with mounting holes and a central hub, labeled 'OK' (no text or symbols beyond basic labels)

Fig. 1

Technical diagram of a mechanical component with concentric circles and mounting holes (no text or symbols)

Top-down view of a mechanical component with concentric rings and mounting features (no text or symbols)

Pure technical diagram of a four-part mechanical component with mounting holes and alignment arrows (no text or symbols)

Pure technical diagram of a rectangular panel with circular cutouts and directional arrows, no text or symbols present.

Technical diagram of a mechanical component with grid and circular features, no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a circular mechanical component with mounting holes and adjustment knobs (no text or symbols)

Fig. 1

Pure mechanical component diagram without any text, numbers, or symbols

Top-down schematic of a mechanical component with concentric circles and adjustment knobs (no text or symbols)

Simple line drawing of a mechanical component or bracket with no text or symbols

Para Reino Unido, Irlanda do Norte e República da Irlanda.

Ligação elétrica

Technical diagram of a mechanical component with circular features and a dial indicator (no readable text or symbols)

Fig. 1

Pure mechanical component diagram without any text, numbers, or symbols

Technical diagram of a mechanical component with concentric circles and mounting holes (no text or symbols)

A = 590/730/880 B = 50

C = 400 D = 700

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing mechanical components including gears, a wrench, and a bolt head (no text or labels)

Πρόσβαση στην εστία

Technical diagram of a circular mechanical component with mounting holes and a central hub (no text or symbols)

Eik. 1

Technical diagram of a mechanical component with concentric circles and mounting holes (no text or symbols)

Technical diagram of a mechanical component with concentric rings and mounting features (no text or symbols)

Σωστή θέση σχαρών

$$ A = 5 9 0 / 7 3 0 / 8 8 0 B = 5 0 $$

$$ C = 4 0 0 D = 7 0 0 $$

Technical line drawing of a mechanical component with a pin and mounting bracket (no text or symbols)

Elektrické zapojení

Výměna trysek

Simple line drawing of a sun with stars and rays, no text or symbols present

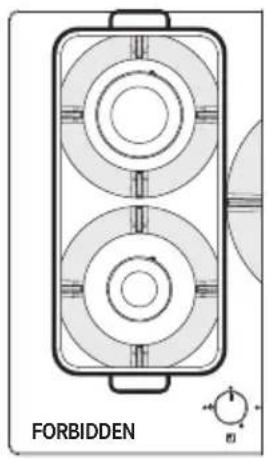

Technical diagram of a two-cylinder mechanical component with a labeled 'FORBIDDEN' section (no other text or symbols)

Pure technical diagram of a four-segment display with circular targets and directional arrows, no text or symbols present.

Pure technical diagram of a rectangular panel with circular cutouts and directional arrows, no text or symbols present.

Pure technical diagram of a rectangular component with internal circular features and directional arrows, no text or symbols present.

ČIŠTĚNÍ A PÉČE

Nebezpečí popálení!

A = 590/730/880 B = 50

C = 400 D = 700

Technical line drawing of a mechanical component with no visible text or symbols

Wymiana dysz

Simple line drawing of a sun with rays and a star, no text or symbols present

Technical diagram of a mechanical component with no visible text or symbols

Rys. 1

Technical diagram of a mechanical component with concentric circles and mounting holes (no text or symbols)

Top-down view of a circular mechanical component with concentric rings and two side brackets (no text or symbols)

Pure technical diagram of a four-part mechanical component with mounting holes and alignment lines (no text or symbols)

Pure technical diagram of a rectangular panel with circular cutouts and directional arrows, no text or symbols present.

Technical diagram of a mechanical component with grid lines and circular features (no text or symbols)

CZYSZCZENIE I PIELEGNACJA

KONSERWACJA I NAPRAWA

Procedura de instalare

Technical line drawing of a mechanical assembly with no visible text or symbols

Racordarea la sursa de alimentare cu gaz

Simple line drawing of a sun with rays and a star, no text or symbols present

Top-down view of a circular mechanical component with mounting flanges and a small inset diagram (no text or symbols)

Fig. 1

Technical diagram of a mechanical component with concentric circles and mounting holes (no text or symbols)

Top-down schematic of a mechanical component with concentric rings and mounting features (no text or symbols)

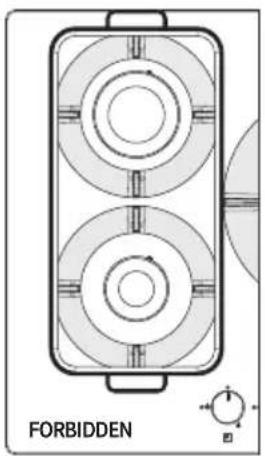

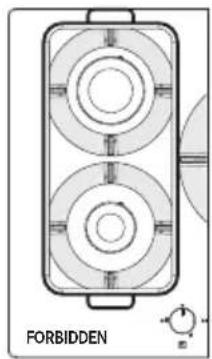

Technical diagram of a two-cylinder mechanical component with a labeled 'FORBIDDEN' section (no other text or symbols)

Technical diagram of a four-panel mechanical component with mounting holes and directional arrows (no text or labels)

Pure technical diagram of a rectangular panel with circular cutouts and directional arrows, no text or symbols present.

Pure technical diagram of a rectangular grid with circular features and directional arrows, no text or symbols present.

$$ A = 5 9 0 / 7 3 0 / 8 8 0 B = 5 0 $$

$$ C = 4 0 0 D = 7 0 0 $$

Ak spotrebič nie je inštalovaný nad rúrou, nainštalujte oddel'ovaciu priečku.

Technical line drawing of a mechanical component with no visible text or symbols

Výmena vstrekovačov

Technical diagram of a mechanical component with circular features and a labeled 'OK' (no readable text or symbols beyond basic labels)

(obr. 1)

Technical diagram of a mechanical component with concentric circles and mounting holes (no text or symbols)

Technical diagram of a mechanical component with concentric circles and mounting features (no text or symbols)

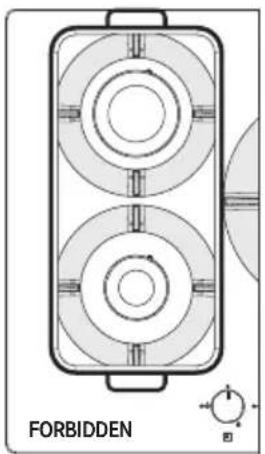

Technical diagram of a two-cylinder mechanical component with a labeled 'FORBIDDEN' section (no other text or symbols)

Pure technical diagram of a four-part mechanical component with mounting holes and directional arrows (no text or symbols)

Pure technical diagram of a rectangular grid layout with circular features and directional arrows, no text or symbols present.

Technical diagram of a mechanical component with circular features and grid lines, no visible text or symbols

ČISTENIE A STAROSTLIVOSŤ

Riziko popálenia!

$$ A = 5 9 0 / 7 3 0 / 8 8 0 B = 5 0 $$

$$ C = 4 0 0 D = 7 0 0 $$

Процедура установки

Technical line drawing of a mechanical component with no visible text or symbols

Замена инжекторов

Simple line drawing of a sun with a star and dashed lines, no text or symbols present

Technical diagram of a circular mechanical component with mounting holes and a scale bar (no text or symbols)

Рис. 1

Technical diagram of a mechanical component with concentric circles and mounting holes (no text or symbols)

Technical diagram of a mechanical component with concentric circles and mounting features (no text or symbols)

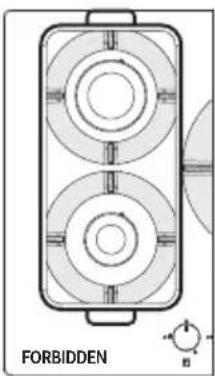

Technical diagram of a two-cylinder mechanical component with a labeled 'FORBIDDEN' section (no other text or symbols)

A = 590/730/880 B = 50

C = 400 D = 700

Technical line drawing of a mechanical component with no visible text or symbols

Заміна інжекторів

Technical diagram of a circular mechanical component with mounting holes and adjustment symbols (no readable text or labels)

Мал. 1

Technical diagram of a mechanical component with concentric circles and mounting holes (no text or symbols)

Top-down schematic of a mechanical component with concentric rings and mounting holes (no text or symbols)

Three technical diagrams showing a grid-based mechanical or electrical component layout with circular features and directional arrows (no text or symbols)

ЧИЩЕННЯ ТА ДОГЛЯД

Небезпека опіків!

$$ A = 5 9 0 / 7 3 0 / 8 8 0 B = 5 0 $$

$$ C = 4 0 0 D = 7 0 0 $$

Kurulum işlemi

Technical line drawing of a mechanical bracket with a handle and angle annotation (no text or symbols)

Elektrik bağlantısı

Technical diagram of a circular mechanical component with mounting holes and adjustment knobs (no text or symbols)

Şek. 1

Technical diagram of a mechanical component with concentric circles and mounting holes (no text or symbols)

Technical diagram of a mechanical component with concentric rings and mounting holes (no text or symbols)

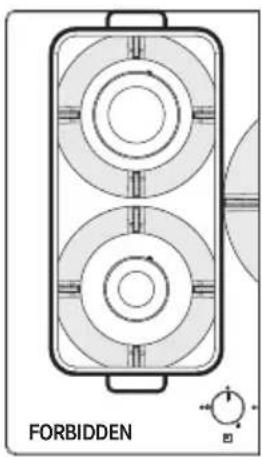

Technical diagram of a two-cylinder mechanical component with a label 'FORBIDDEN' below (no other text or symbols)

Pure technical diagram of a four-panel electrical cabinet or enclosure with mounting holes and control buttons (no text or symbols)

Pure technical diagram of a rectangular grid layout with circular features and directional arrows, no text or symbols present.

Technical diagram of a mechanical component with circular features and directional arrows (no text or labels)

TEMIZLIK VE BAKIM

Yanık riski!

Technical diagram of a four-part mechanical component with mounting holes and directional arrows (no text or labels)

Pure technical diagram of a rectangular grid with circular features and directional arrows, no text or symbols present.

Technical diagram of a mechanical component with circular features and grid lines (no text or symbols)

التنظيف والعناية

Technical diagram of a two-cylinder mechanical component with a labeled 'FORBIDDEN' section (no other text or symbols)

Technical diagram of a circular mechanical component with mounting holes and a central hub (no text or symbols)

Technical diagram of a mechanical component with concentric circles and mounting holes (no text or symbols)

Technical diagram of a mechanical component with concentric circles and mounting features (no text or symbols)

1 الشكل

Ejراء التركيب

$$ 8 8 0 / 7 3 0 / 5 9 0 = A 5 0 = B $$

$$ 4 0 0 = \mathrm{C} 7 0 0 = \mathrm{D} $$

Technical line drawing of a mechanical component with a lever and base (no text or symbols)

Franke Aus. Pty. Ltd.

(PR Kitchen Systems)

Melbourne 3175

Phone [phone]

Belgium

Franke N.V.

9400 Ninove

Phone [phone]

Brazil

Franke Sistemas de

Heshan, Guangdong, 529700

Hotline [phone]

Czech Republic

Franke s.r.o.

190 00 Praha 9

Phone [phone]

Denmark

Franke KS Denmark

8520 Lystrup

Phone [phone]

Egypt

Franke Kitchen Systems

Egypt S.A.E.

6th of October City

Hotline 16828

Finland

Franke Finland Oy

76850 Naarajärvi

Phone [phone]

France

Franke France S.A.S.

60230 Chambly

Phone [phone]

Germany

Franke GmbH

79713 Bad Säckingen

Phone [phone]

Greece

Franke Hellas S.A.

19003 Markopoulo Attikis

(Athens)

Phone [phone]

Hong Kong SAR

Franke Asia Hong Kong

Causeway Bay

Phone [phone]

India

Franke Faber India Pvt Ltd.

Aurangabad - 431 136

Phone [phone]

Italy

Franke S.p.A.

37019 Peschiera del Garda

Numero Verde 800 359 359

Kazakhstan

Franke Kazakhstan Ltd.

040918 Almaty City

Phone [phone]

Morocco

Franke Kitchen System SARL

21 000 Casablanca

Phone [phone]

Norway

Franke KS Norway

8520 Lystrup, Denmark

Phone [phone]

Poland

Franke Polska Sp. z o.o.

05-090 Raszyn

Phone [phone]

Portugal

Franke Portugal S.A.

2735-531 Cacém

Phone [phone]

Romania

Franke Romania SRL

Pantelimon 077145

Phone [phone]

Russia

Franke Russia GmbH

199106 St. Petersburg

Phone [phone]

Slovak Republic

Franke Slovakia s.r.o.

010 01 Žilina

Phone [phone]

South Africa

Franke South Africa

Durban 4052

Phone [phone]

Spain

Phone [phone]

Switzerland

United Arab Emirates

Franke LLC

Ras Al Khaimah

Phone [phone]

United Kingdom

Franke UK Ltd.

Manchester M22 5WB

Phone [phone]

USA

Franke Kitchen Systems LLC

Smyrna, TN 37167

Phone [phone]
