USER MANUAL Odyssey KM0547 Krüger&Matz

Before use Thank you for purchasing this system. Please read these operating instructions before operating the unit. The operating instructions should be retained for future reference. For your safety Before operating this system, check the voltage of this system to see if it is identical with the voltage of your local power supply. When you disconnect the power cord, always pull the plug, never the cable. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the device. Never place the product and accessories

including direct sunlight. To avoid electric shock, do not open the

service personnel. Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product.

an equilateral triangle is intended to alert the user to the presence of uninstalled “dangerous voltage” within the product’s enclosure that may be of

shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of

instructions in the literature accompanying the appliance. Don’t obstruct the ventilation openings of the equipment with items such as newspaper, table-cloths, curtains, etc.. Overheating will cause damage and shorten the life of the equipment. NEVER let anyone especially children push anything into holes, slots or any other opening in the case - this could result in a

Never hit the product using sharp objects.

NOT EXPOSE THIS APPLIANCE TO DRIPPING

TO QUALIFIED SERVICE PERSONNEL. ALWAYS disconnect this device from power supply mains before cleaning. Clean this device with soft, slightly damp cloth. Do not use any abrasives or chemical agents to clean this product. Avoid using/storing it in the strong magnetic environment.21 Owner’s manual

Hearing safety Listen at a moderate volume:

• Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So after prolonged listening, what sounds “normal” can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there. To establish a safe volume level:

• Set your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, without distortion. Listen for reasonable periods of time:

• Prolonged exposure to sound, even at normally “safe” levels, can also cause hearing lose.

• Be sure to use your equipment reasonably and take appropriate breaks. IMPORTANT! This appliance may be used by children who are above 8 years old and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a cautious manner, and all the safety precautions are understood and followed. Children should not play with this device. Children should not perform cleaning and servicing of the device unsupervised.22 Owner’s manual

press and hold to disconnect with currently

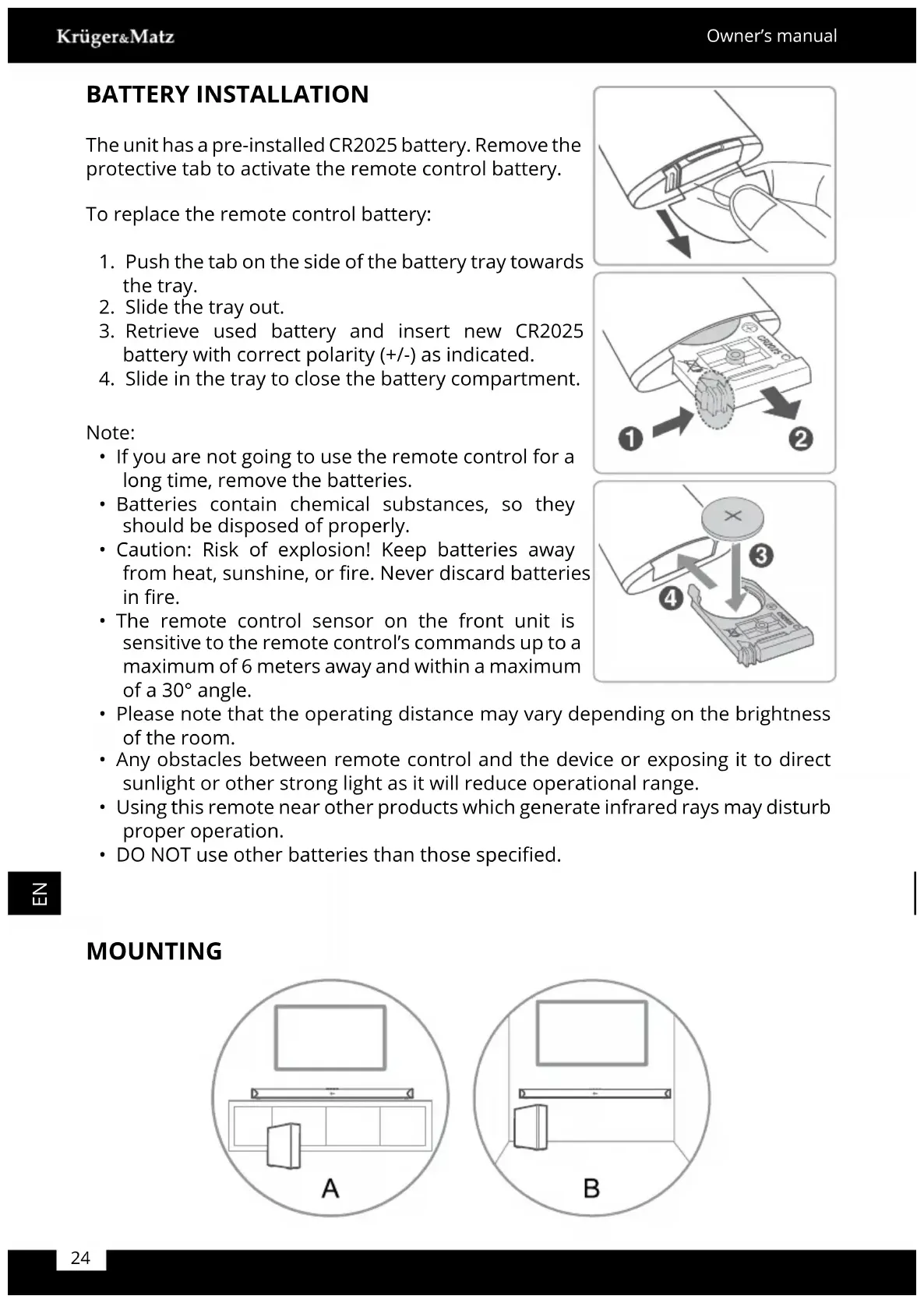

BATTERY INSTALLATION The unit has a pre-installed CR2025 battery. Remove the protective tab to activate the remote control battery. To replace the remote control battery:

1. Push the tab on the side of the battery tray towards

2. Slide the tray out.

4. Slide in the tray to close the battery compartment.

Note: If you are not going to use the remote control for a long time, remove the batteries. Batteries contain chemical substances, so they should be disposed of properly. Caution: Risk of explosion! Keep batteries away

The remote control sensor on the front unit is sensitive to the remote control’s commands up to a maximum of 6 meters away and within a maximum of a 30° angle. Please note that the operating distance may vary depending on the brightness of the room. Any obstacles between remote control and the device or exposing it to direct sunlight or other strong light as it will reduce operational range. Using this remote near other products which generate infrared rays may disturb proper operation.

Note: assembly may result in severe personal injury and property damage. During mounting, make sure the electric/plumbing installation will not get damaged when drilling holes in walls! The supplied wall brackets are only for use on vertical walls suitable for such mounting. It is the installer’s responsibility to verify that the wall will safely support the total load of the soundbar and wall brackets. Additional tools required for the installation are not included. Do not overtighten screws.

hole in the wall if necessary.

2. Tighten the wall mount brackets on the wall with screws and screwdriver (not

3. Remove the screws at the back of the unit. Install the wall mounting screws into

the back of the unit.

4. Lift the unit onto the wall mount brackets and slot into place.26

is available only in HDMI mode.

in HDMI mode, your TV has to support Dolby Atmos

2. Make sure that “No Encoding“ is selected for bitstream in the audio output of

4. While the soundbar is using Dolby Atmos audio, you can only adjust the bass

HDMI Using HDMI to connect the soundbar, AV equipment and TV refer to below illustration: Method 1: ARC (Audio Return Channel)

compliant TV to your soundbar through a single HDMI connection. To enjoy the ARC function, please ensure your TV is both HDMI-CEC and ARC compliant and set up accordingly. When correctly set up, you can use your TV remote control to adjust the

your ARC compliant TV. Then press the remote control to select HDMI ARC. Tips: Your TV must support the HDMI-CEC and ARC function. HDMI-CEC and ARC must be set to On.27 Owner’s manual

details about ARC function, please refer to the owner’s manual of your TV. Please note, only HDMI 1.4 cables can support the ARC function. Method 2: Standard HDMI If your TV is not HDMI ARC-compliant, connect your soundbar to the TV through a standard HDMI connection.

Tip: The unit may not be able to decode all digital audio formats from the input source. In this case, the unit will mute. This is NOT a defect. Ensure that the audio setting of the input source (e.g. TV, game console, DVD

sockets to the AUX socket on the unit. B. Use a 3,5 mm to 3,5 mm audio cable to connect the TV’s or external audio device headphone socket to the AUX socket on the unit.29 Owner’s manual

Connecting subwoofer Connecting to power mains Automatic pairing The subwoofer and soundbar will automatically pair when both units are plugged into the mains sockets and turned on. No cable is needed for connecting the two units.

1. When the subwoofer is pairing with the main unit, the pair indicator will ash fast.

2. When the subwoofer is paired with the main unit, the pair indicator will light up.

• Do not press the pair button on the rear of the subwoofer, except for manual pairing.

• If the automatic pairing fails, pair the subwoofer with the main unit manually. Manual pairing

1. Ensure that all the cables are properly connected and the device is in standby

2. Press and hold the pair button on the rear of the subwoofer for a few seconds.

Soundbar: Unwind the power adapter and mains cable to their full length. Connect the power adapter to the DC IN 23V socket of the soundbar, then connect the power cable to the adapter and into a power mains socket. Subwoofer: Connect the power cable to the AC~ socket of the subwoofer and then into a power mains socket. Note:

• Before connecting the AC power cord, ensure you have completed all other connections.

• Risk of product damage! Ensure that the power mains voltage corresponds to the voltage required by this device.

• Disconnect the mains plug from the mains socket if you want to switch the unit OFF completely.30 Owner’s manual

The subwoofer will enter the pairing mode and the pair indicator will blink quickly.

button on the main unit or on the remote control to switch the main unit on.

4. After the wireless connection succeeded, the pair indicator will light up.

5. If the pair indicator blinks, the wireless connection has failed. Unplug the power

cable of the subwoofer, wait for around 4 minutes and connect it again. Repeat steps 1 ~ 4. NOTE:

The subwoofer should be within 6 m of the soundbar in an open area. If the main unit is not connected with the subwoofer and it is turned on, the

unit. Do not connect this soundbar to any other subwoofer nor connect this

button on the unit or on the remote control to switch the unit ON.

3. Disconnect the mains plug from the mains socket if you want to switch the unit

soundbar and the subwoofer will switch on automatically when the TV or the external device is switched on: - when connected via HDMI, the TV or external device has to support CEC

- when connected via AUX, the function will be active on condition that the input source level is high enough. When there is no input signal from the unit in over 15 minutes, then it will automatically switch to standby mode. Select modes Press the button repeatedly on the unit or the SOURCE / HDMI buttons on the remote control to select the AUX / OPTICAL / COAXIAL / HDMI 1 / HDMI 2 / HDMI ARC

Adjust the bass level Press the BASS button on the remote control to activate bass setup, then press the

Turn the surround sound ON/OFF Press the SURROUND button on the remote control to turn on the surround sound.

Adjust the volume Press the VOL+/- buttons on the unit or on the remote control to adjust the volume. Press the MUTE button on the remote control to mute sound. Press the MUTE button again or press the VOL+/- buttons on the unit or on the remote control to resume normal listening. Adjust the brightness Press the DIMMER button on the remote control to change brightness level. Equaliser (EQ) settings While playing, press the EQ button on the remote control to select preset equalisers:

1. Ensure that the unit is connected to the TV or audio device.

3. Operate your audio device directly for playback features.

Tips: The unit may not be able to decode all digital audio formats from the input source. In this case, the unit will mute. This is NOT a defect. Ensure that the

to PCM or Dolby Digital (Refer to the user manual of the input source device for

BLUETOOTH Pairing Bluetooth-enabled devices Note: Pairing needs only to be done once. The operational range is approximately 8 meters. Compatibility with all Bluetooth devices is not guaranteed. Any obstacle can reduce the operational range.

button repeatedly on the unit or press the SOURCE button on the remote control to select Bluetooth mode. The display will show “NO BT” if the unit is not paired with any device. Note: if the previously connected mobile device has Bluetooth function on and is within operational range, this unit will connect to it automatically. To connect with /PAIR button on the remote to disconnect from the currently connected device.

2. Activate your Bluetooth device and search for external devices. Connect with

/PAIR button on the remote control to be searchable. The display will show “PAIR” and you will hear “Pairing” from the unit. Enter default password „0000” if necessary.

3. After successful pairing, the device will issue “Paired” voice prompt and the

display will show “BT”.

4. Play music from the connected Bluetooth device.

Note: The devices will disconnect when moved beyond the operation range. If you want to reconnect the device to the unit, place it within the operational range. If no other Bluetooth device pairs with this player within two minutes, the player will recover its previous connection.

use the player’s remote control to play music stored on the device. USB

button repeatedly on the unit or press the SOURCE button on the remote control to select USB mode.

I cannot nd soundbar on my Bluetooth device Ensure the bluetooth function is activated on your bluetooth device. No sound TV has display problem while viewing HDR content from HDMI source Make sure that the unit is not muted. Press MUTE or VOL+/VOL– button to resume sound. Switch the soundbar to standby mode. Then press the power button again to switch the soundbar on. Unplug both the soundbar and the subwoofer from the mains socket, then plug them again. Switch on the soundbar. Ensure the audio setting of the input source (e.g. TV, game console, DVD player,

The subwoofer is out of range, please move the subwoofer closer to the soundbar. Make sure the subwoofer is within the operational range (the closer

The soundbar may have lost connection with the subwoofer. Re-pair the units by following the steps on the section “Connecting subwoofer”. The unit may not be able to decode all digital audio formats from the input source. In this case, the unit will mute. This is NOT a defect. Some 4K HDR TVs require the HDMI input or picture settings to be set for HDR content reception. For further setup details on HDR display, please refer to the instruction manual of your TV. If you are having a problem with your system, check this list for a possible solution before calling for service. If you can not solve the problem from the hints give here, or the system has

TROUBLESHOOTING No power Ensure the unit is properly connected to power mains. Make sure that the device is turned on. Tips: The unit can support USB devices with up to 32 GB of memory. This unit can play MP3. CLEANING Before cleaning the unit, make sure it’s fully unplugged from the mains supply. To clean the unit, wipe the case with a slightly moist, soft cloth.

The subwoofer is idle or the indicator of subwoofer do not light up Unplug power cord from the mains socket, and plug it in again after 4 minutes to reset the subwoofer.34 Owner’s manual

Remote control does not work Use the remote control near the unit. Point the remote control at the remote sensor on the unit. Replace the battery in the remote control with a new one. Remove any obstacles between the remote control and the unit. The device turns o on its own When the unit’s external input signal

Supported formats: A2DP, AVRCP Mounting: horizontally, on a wall SOUNDBAR Type: active Speakers

Frequency response: 120 Hz – 20 kHz THD: 10% Audio input sensitivity: 700 mV S/N: 70 dB Power consumption in standby: <0,5 W Power adapter

SUBWOOFER Type: active

English Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer

take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

LEARN MORE For more information on this device visit: www.krugermatz.com. Read owner's manual carefully before using your device. Visit www.krugermatz.com website for more products and accessories. In case of any doubts or questions reach out to our Frequently Asked Questions section. Lechpol Electronics Sp. z o.o. Sp.k. hereby declares that soundbar KM0547 is consistent with directive 2014/53/UE. Full text of the EU Declaration of Conformity is available at following Internet address: www.lechpol.eu. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG,. Inc. Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. REMOTE CONTROL Distance: up to 6 m Angle: 30° Power supply: CR2025 battery36 Mode d’emploi
