professionalLINE X 8051 M - Lamp BRENNENSTUHL - Free user manual and instructions

Product type	Mobile LED floodlight
Brand	Brennenstuhl
Model	professionalLINE X 8051 M
Dimensions	31 x 31 x 9.7 cm
Weight	3.7 kg
Rated voltage	220 - 240 V AC
Frequency	50/60 Hz
Rated current	0.34 A
Power consumption	80 W
Power factor	0.9
Protection rating	IP54, IK08
Protection class	I
Power cable	5 m, H07RN-F 3G1.5
Integrated power socket	Yes, max load 3400 W
Operating temperature range	-20 °C to +50 °C
Dimming	Step (100% / 50%) and continuous
Use	Indoor and outdoor
Maximum projection area	0.096 m²
Light source	Non-replaceable LED
Maintenance	Dry or slightly damp cloth, without solvent
Safety	Do not look directly into the beam; do not use in explosive environments; check for damage before use
Package contents	Floodlight, mounting screws (1x M6x45 + washer, 2x M6x60 + washers + nuts)
Optional accessories	Tripod (not included)

Frequently Asked Questions - professionalLINE X 8051 M BRENNENSTUHL

How to turn on and adjust the brightness of the floodlight?

Turn on the floodlight with the switch on the back. For step dimming, press twice to switch from 100% to 50%. For continuous dimming, hold down the switch: intensity decreases slowly. Release and press again to increase.

Can the floodlight be used outdoors?

Yes, this floodlight is designed for indoor and outdoor use thanks to its IP54 protection rating (protection against water splashes and dust).

Can I replace the bulb or light source?

No, the LED light source is not replaceable. When it reaches the end of its service life, the entire floodlight must be replaced.

How to clean the floodlight?

Before any cleaning, unplug the device. Use a dry or slightly damp cloth. Never use solvents or abrasive products.

Is the floodlight dimmable with an external dimmer?

No, this floodlight is not suitable for use with external dimmers. Dimming is done exclusively via the integrated switch.

Can the floodlight be mounted on a tripod?

Yes, the floodlight can be fixed on a suitable tripod using the holes on the carrying handle. Mounting screws are provided in the package.

What is the power consumption of the floodlight?

The floodlight has a power of 80 W and a rated current of 0.34 A at 220-240 V. The integrated socket can support up to 3400 W.

What to do if the power cable is damaged?

The cable cannot be replaced. If the cable is damaged, the floodlight must be disposed of in accordance with electrical waste regulations.

What safety precautions must be observed?

Never look directly into the light beam. Do not use the floodlight in explosive environments. Check for damage before each use. Keep out of reach of children.

How to dispose of the floodlight at the end of its life?

Do not dispose of it with household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE) in accordance with Directive 2012/19/EU.

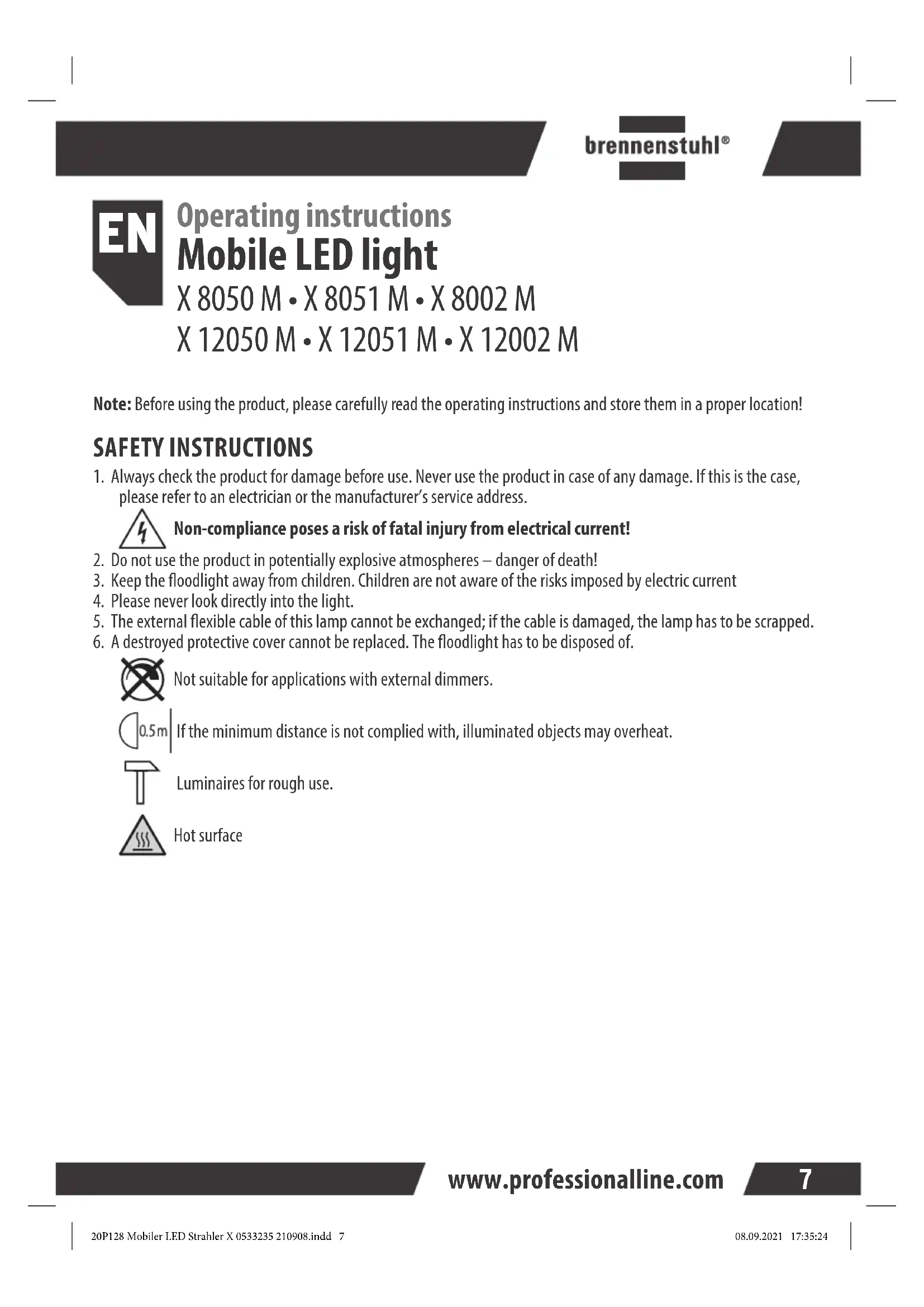

USER MANUAL professionalLINE X 8051 M BRENNENSTUHL

Operating instructions

Mobile LED light

X 8050 M • X 8051 M • X 8002 M

X 12050 M • X 12051 M • X 12002 M

Note: Before using the product, please carefully read the operating instructions and store them in a proper location!

SAFETY INSTRUCTIONS

1. Always check the product for damage before use. Never use the product in case of any damage. If this is the case, please refer to an electrician or the manufacturer's service address.

Non-compliance poses a risk of fatal injury from electrical current!

1. Do not use the product in potentially explosive atmospheres – danger of death!
2. Keep the floodlight away from children. Children are not aware of the risks imposed by electric current
3. Please never look directly into the light.
4. The external flexible cable of this lamp cannot be exchanged; if the cable is damaged, the lamp has to be scrapped.
5. A destroyed protective cover cannot be replaced. The floodlight has to be disposed of.

Not suitable for applications with external dimmers.

If the minimum distance is not complied with, illuminated objects may overheat.

Luminaires for rough use.

Hot surface

www.professionalline.com

7

professionalLINE

TECHNICAL DATA

Type designation X 8050 M/X 8051 M	X 8002 M X 12050 M/X	12051 M X 12002 M
Power socket
Output
Nominal voltage	50/60 Hz	220 - 240 V AC50/60 Hz	220 - 240 V AC50/60 Hz	220 - 240 V AC50/60 Hz
Power factor	0.9	0.9	0.9	0.9
Mains current	0.34 A	0.34 A	0.52 A	0.52 A
IP, IK	IP 54. IK 08	IP 54. IK 08	IP 54. IK 08	IP 54. IK 08
Protection class	I	I	I	I
Connection cable	5m H07RN-F 3G1.5	5m H07RN-F 3G1.5	5m H07RN-F 3G1.5	5m H07RN-F 3G1.5
Loading capacity socket	max. 3400 W	max. 2000 W	max. 3400 W	max. 2000 W
Operational temperature range	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C
Size	31 x 31 x 9.7 cm	31 x 31 x 9.7 cm	31 x 31 x 10.4 cm	31 x 31 x 10.4 cm
Weight	3.7 kg	3.7 kg	4.15 kg	4.15 kg
Maximum projected area	0.096 m^2	0.096 m^2	0.096 m^2	0.096 m^2

This product is suitable for indoor and outdoor lighting purposes.

OPERATION

Setting up and turning on the light

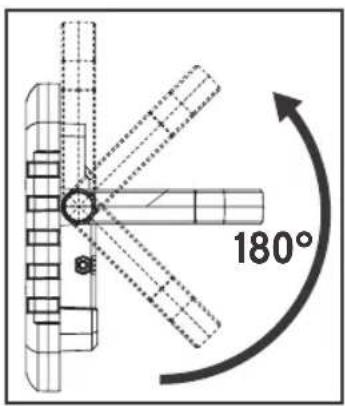

Place the light on a dry, flat surface. Only use the light with the bracket A extended. The adjustable bracket A can be adjusted to several levels and can be used to set the light at different tilt angles.

Mounting the light on a tripod

The light can be mounted on a suitable tripod using the holes on bracket (mounting material not included!). Make sure the tripod is sufficiently stable and the light is securely mounted.

Switching and Dimming the light

Switch on the spotlight with the switch B on the back.

The light intensity can be adjusted in steps and continuously:

Steps dimming: by pressing the switch twice, 100 and 50% light can be adjusted.

Stepless dimming: press the switch permanently – the light intensity is slowly reduced.

Proceed in the same way to increase the intensity again.

If the switch is left in any of its "on" positions for longer than 3 seconds, then pressing it once again will always turn it off.

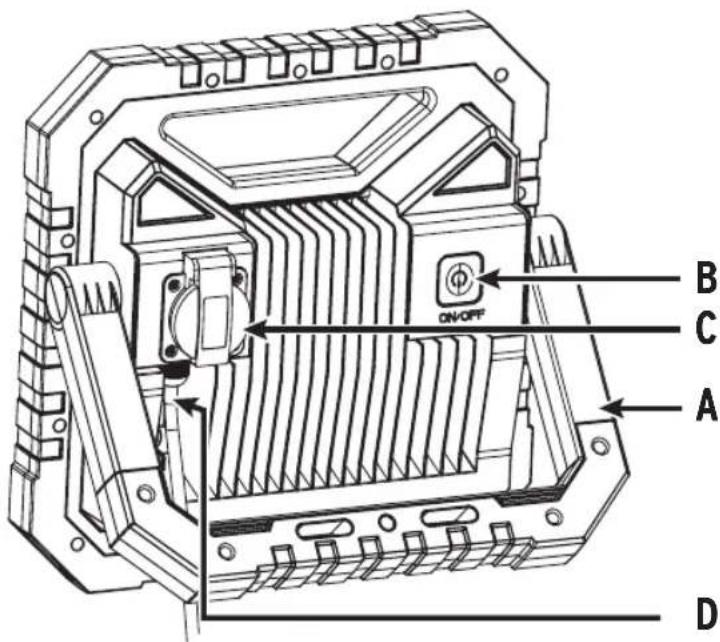

ILLUSTRATED COMPONENTS

A Folding clamp
B On/Off and function switch
C Power socket
D Connection cable

Power socket

At the back side of the floodlight, there is a power socket © by means of which it can also be used as power distributor. The power socket © is also functional when the light is switched off.

OPTIONAL STAND (not included in the scope of delivery)

You can find suitable accessories on our homepage www.brennenstuhl.com.

TRIPOD MOUNTING

By means of the holes in the holding bracket, the floodlight can be mounted on a Brennenstuhl tripod.

SCOPE OF DELIVERY

A screw set is included for mounting the spotlight on Brennenstuhl tripods. 1 x M6 x 45 screw + 1 x washer, 2 x M6 x 60 screws, 2 x washers and 2 x nuts

www.professionalline.com

professionalLINE

MAINTENANCE

ATTENTION! The LED lamp does not contain components that require maintenance. The light source in this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.

CLEANING

Before cleaning, disconnect the floodlight from the mains power.

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

DISPOSAL

Dispose of electrical devices in an environmentally friendly way! Electrical devices do not belong in the household rubbish!

According to the European Directive 2012/19/EU on old electrical and electronic devices, used electrical devices must be collected separately and turned over for environmentally friendly recycling. You can find out about options for disposal of the out-of-service device at your town or city administration.

CE EU DECLARATION OF CONFORMITY

The EU declaration of conformity is deposited at the manufacturer.

ADRESSES

For more information please visit the Service/FAQ section on our homepage, www.brennenstuhl.com.
