SCC-B5344 SCC-B5345 operating instructions Digital Color Dome Camera imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register

This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product. This symbol alerts you that important literature concerning operation and maintenance has been included with this product. To prevent damage which may result in re or electric shock hazard, do not expose this appliance to rain or moisture. WARNING

1. Be sure to use only the standard adapter

that is specied in the specication sheet. Using any other adapter could cause re, electrical shock, or damage to the product

2. Incorrectly connecting the power

supply or replacing battery may cause explosion, re, electric shock, or damage to the product.

Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat generation or re.

4. Securely plug the power cord into the

power receptacle. Insecure connection may cause re.

5. When installing the camera, fasten it

securely and rmly. A falling camera may cause personal injury.

6. Do not place conductive objects (e.g.

screwdrivers, coins, metal things, etc.) or containers lled with water on top of the camera. Doing so may cause personal injury due to re, electric shock, or falling objects.

7. Do not install the unit in humid, dusty, or

sooty locations. Doing so may cause re or electric shock.

8. If any unusual smells or smoke come

from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause re or electric shock. Safety Precautions

9. If this product fails to operate normally,

contact the nearest service center. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modications or attempted repair.)

10. When cleaning, do not spray water

directly onto parts of the product. Doing so may cause re or electric shock. CAUTION

1. Do not drop objects on the product or

apply strong shock to it. Keep away from a location subject to excessive vibration or magnetic interference.

2. If you want to relocate the already

installed product, be sure to turn off the power and then move or reinstall it.

3. Remove the power plug from the

outlet when then there is a lightning. Neglecting to do so may cause re or damage to the product.

4. Keep out of direct sunlight and heat

radiation sources. It may cause re.

5. Install it in a place with good ventilation.

6. Avoid aiming the camera directly towards

extremely bright objects such as sun, as this may damage the CCD image sensor.

7. Apparatus shall not be exposed to

dripping or splashing and no objects lled with liquids, such as vases, shall be placed on the apparatus.

8. The Mains plug is used as a disconnect

device and shall stay readily operable at any time FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful

2) This device must accept any interference

received including interference that may cause undesired operation. Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. B5344_B5345-00687D(00).indb 3 2008-09-05 오전 10:40:214

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources

such as radiators, heat registers, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of

the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being

walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories

specied by the manufacturer.

12. Use only with cart, stand, tripod, bracket,

or table specied by the manufacturer, or sold with the apparatus.

14. Refer all servicing to qualied service

personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or been dropped. B5344_B5345-00687D(00).indb 4 2008-09-05 오전 10:40:214 ENG

About this guide This user guide includes basic instructions for the product. It is recommended that all users read this guide before use. This guide is divided as follows:

Chapter 1, “Overview,” introduces the user guide and product related information. (This chapter)

Chapter 2, “Installation,” explains how to set and install the product.

Appendix, “Specications,” provides the specications of the product.

Product overview This is the high resolution (540 TV lines) dome camera equipped with a Vari-focal lens, which has no dynamic delay when implementing motion pictures, and provides the features such as digital noise reduction (DNR) by real-time CCD defect compensation, low speed shutter (LSS: Auto x128) to implement clear picture quality, Day/Night color compensation, and the like.

Power: DC 12V/AC 24V Special functions Line lock (LL) control Auto white balancing Horizontal/vertical image reversing Flickerless control Low shutter speed control Backlight compensation control Automatic switching between color and black & white modes Equipped with vari-focal lens Auto Iris function Digital noise reduction (DNR) Dynamic CCD defect compensation

Components Checking components in the package Please check your camera and accessories are included in the package. Those components are as shown below:Camera Test Monitor CableTab screw User’s Guide Note The test monitor cable is used to test the camera by connecting to a portable display. If you really want to connect the camera to a monitoring display, use the BNC cable. B5344_B5345-00687D(00).indb 6 2008-09-05 오전 10:40:216 ENG

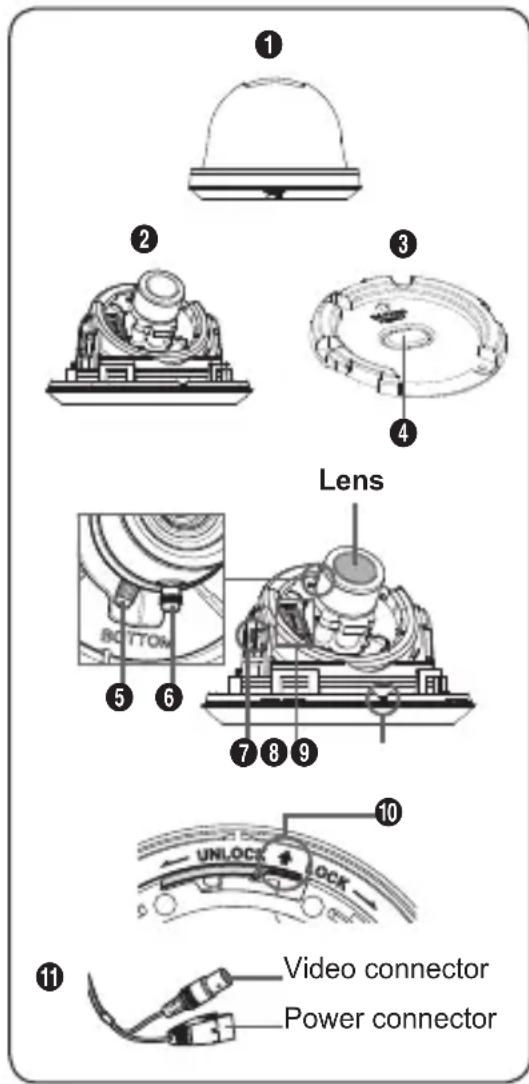

Components of your camera Your camera has the following components:

Cover dome : Covers the main body for protection.

Main body: Includes a lens, a switch board, a PCB board, screws, and such.

Mount bracket : Used as a ceiling or wall xture. It is xed using three long tab screws provided in the package.

Cable Stopper: If drawing the cable from a hole in the ceiling, remove this stopper and pass the cable through the opening to connect.

Zoom lever : Using this lever, the lens zoom can be adjusted and xed.

Focus lever : The lens focus can be adjusted by rotating it left or right. Rotate it clockwise for xing.

Tiltxingscrew : Using this screw, the slope of the lens can be adjusted and xed.

Switch board : Includes two kinds of control switches such as function switches and phase-control switches. The board has eight function switches in the middle and two phase-control buttons on each side of the function switch area.

Installation Guide Mark: This mark must be aligned with the marking on the bracket when attaching the camera to the bracket.

Lock releaser : Push it outward and rotate the main body in UNLOCK direction when you want to remove the Mount bracket from the Main body or to remove the installed camera from the Mount bracket.

Cable : Connect the Video connector to BNC cable and Power connector to power adapter.

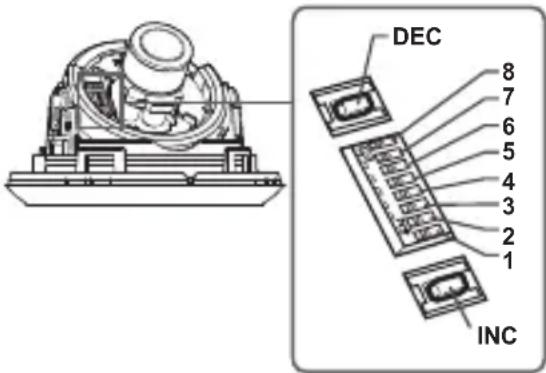

Setting switches Setting function switches To set the available functions on your camera, adjust eight switches as shown below: Installation No Name Brief description1 LL Line lock ON/OFF2 LSS Sens-up or Low speed shutter ON/OFF3 H-REV Horizontal reverse ON/OFF4 V-REV Vertical reverse ON/OFF5 BLC Backlight compensation ON/OFF6 FL Flickerless ON/OFF7 D/NAutomatic switching between color and black & white ON/OFF8 AWB Automatic white balance ON/OFF

1. Switch 1 (LL): When this switch is set to OFF, the camera operates in the internal

synchronization mode, while when it is set to ON, the camera operates in the line lock mode. In the internal synchronization mode, the camera always uses an inside crystal oscillator for synchronization. However if multiple cameras are connected to a sequential switcher, picture rolling or ickering may occur when switching from one camera to another. In this case, you can set this switch to ON to solve this problem. The line lock mode allows the camera to use the phase of the AC power as the synchronization reference. In this mode, you can use the phase control buttons(INC/DEC). Note When you are using the DC 12V power, set this switch to OFF. The line lock feature will not normally operate even when the switch is set to ON. Set the LL switch to ON while the AC power is connected. If any picture roll happens, you have to adjust the phase using the phase-control buttons. Press the INC or DEC button to increase or decrease the phase by one degree. DEC INC

2. Switch 2 (LSS): This sens-up mode accumulates the image elds in memory to reduce

noise but increase the brightness and contrast rate. When this switch is set to ON, the camera automatically switches to a maximum of 128 times of image acquisition speed to implement a clear picture for darker image.

: When this switch is set to ON, the camera image is reversed horizontally. If you want to monitor your site using a mirror, you can use this feature to see the right image.

: When this switch is set to ON, the camera image is reversed vertically. If your camera reluctantly displays the vertically reversed image, you can use this feature to see the right image.

: When this switch is set to ON, you can view a clear image even though the camera faces any excessive light such as sunlight and uorescent light. When it is set to OFF, the subject with excessive light is not clearly shown.

: When this switch is set to ON, the shutter speed is xed to 1/100 sec (for NTSC) or 1/120 sec (for PAL) to prevent screen from ickering by the disaccordance between vertical synchronous frequency (50Hz for NTSC, 60Hz for PAL) and on-and-off frequency of a light.

: When this switch is set to ON, the camera automatically switches between color and B&W according to the brightness of the vicinity.

: This switch adjusts white balancing. When this switch is set to ON, this camera operates in ATW mode, and in case of OFF, this camera operates in AWC mode.

ATW (Auto Tracking White Balance): The color temperature is automatically adjusted according to the environmental change. (Approx. 2000°K to 11,000°K)

AWC (Auto White Balance Control): It stores the color temperature just when the switch is changed to OFF. Accordingly color temperatures are adjusted by the stored value. Caution -. The IRIS setting range for the camera is approximately 80 to 120 IRE. It means the camera does not provide the IRIS full open/close feature but the restricted variation range. -. Use the camera after setting to the proper level (80 IRE or above) because the IRIS hunting may occur when the level is 75 IRE or below. B5344_B5345-00687D(00).indb 9 2008-09-05 오전 10:40:2410

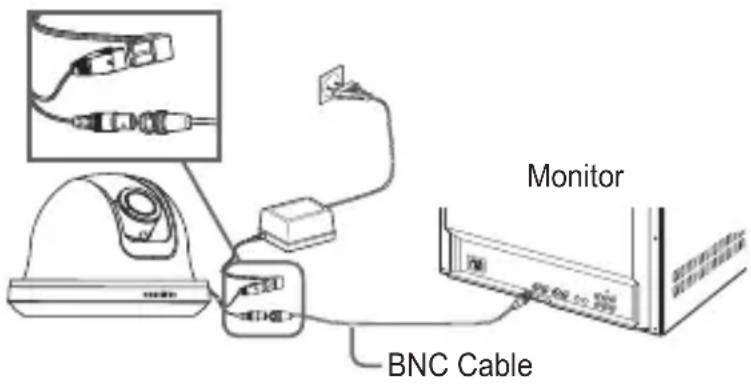

Connecting cables and changing the settings Before installing your camera, you have to adjust the lens focus, zoom, and switch settings. To connect cables

1. Connect the BNC cable

to the Video connector attached on your camera.

Connect the BNC cable to the Video Input on a monitor.

Connect the power adapter to the Power connector attached on your camera. When the monitor is turned on, the camera image appears. To adjust the lens focus, zoom, and function settings

1. Remove the Cover dome and Inner cover. For more details about the removing procedures,

see “Installation procedure,” in the Installing camera section on the next page.

Adjust the focus, zoom, and function settings of your camera using the Focus lever, Zoom lever, and Switch board while you are viewing the image on the screen.

If you want to x the adjusted focus and zoom, screw up the levers. BNC Cable Monitor B5344_B5345-00687D(00).indb 10 2008-09-05 오전 10:40:2510 ENG

Installing camera Before installation Before installing your camera, you have to read the following cautions: You have to check whether the location (ceiling or wall) can bear ve times the weight of your camera. Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or re. When installing your camera, don’t allow any person to approach the installation site. If you have any valuable things under the place, move them away. Partial blind spot can occur at tilt angles of less than 20°, depending on the lens conguration. Installation procedure To install your camera

Pry up the outer casing with a at-head screwdriver to remove the protective cover from the Main body of the camera.

Remove the Mount bracket from the Main body by rotating the Main body in the UNLOCK direction while pushing the Lock releaser outward. If it is not easily done, rotate the Mount bracket in the LOCK direction while holding small holes on the Mount bracket.

Fix the Mount bracket to the location (ceiling or wall) with supplied three screws. Note The CAMERA FRONT sign on the Mount bracket should face the camera monitoring area.

If a hole has been drilled on the bracket installation surface for cable access, press down to remove the Cable Stopper and then draw the cable in. If connecting through the side of the camera, use the empty space opposite to the side marked CAMERA FRONT.

Now attach the Main body to the Mount bracket by rotating it in the LOCK direction after aligning the Groove mark on the Main body with the wide groove around the CAMERA FRONT inlay.

Adjust the camera direction. For more details on the direction control, see “Adjusting the camera direction,” on the same page. When required to adjust the zoom and focus for your camera, see “Connecting cables and changing the settings,” on page 10.

Attach the Inner cover to the Main body by pressing it until a “click” sound is heard after aligning two screw holes on the Wing lockers of the Inner cover with two screw holes on the Main body’s left and right sides.

Finally attach the Cover dome to the Main body by pressing it until a “click” sound is heard after aligning the bump inside the Cover dome with the Groove mark on the Main body.

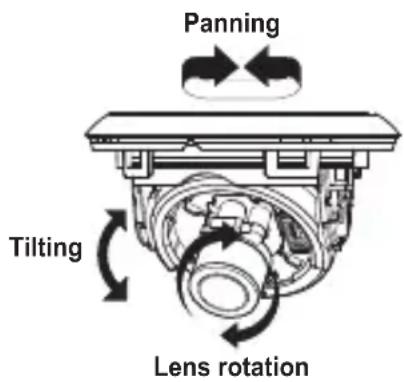

Adjusting the camera direction When the camera is xed on the ceiling, you can adjust the camera viewing angle. You can rotate your camera leftward or rightward (Panning), and can change the slope of your camera upward or downward (Tilting). In case of panning, the rotation limit of your camera is set to 355 degree (100 degree clockwise and 255 degree counterclockwise). The rotation is stopped by the Stopper inside of the camera. For panning control, rst unfasten two screws located on the bottom and rotate in the direction you want, and then fasten them to x the camera. Tilt can be adjusted between 0° to 90°; however, tilt angles of less than 20° may result in a partial blind spot, depending on your lens conguration. To x the location after adjusting the tilting angle, use the Tiltxingscrews. To adjust the focus and zoom of your camera, use the Zoom lever and Focus lever. When you install the camera on the inclined ceiling or wall, you can rotate the camera lens to see a correct direction image. Panning Tilting Lens rotation B5344_B5345-00687D(00).indb 12 2008-09-05 오전 10:40:2612 ENG

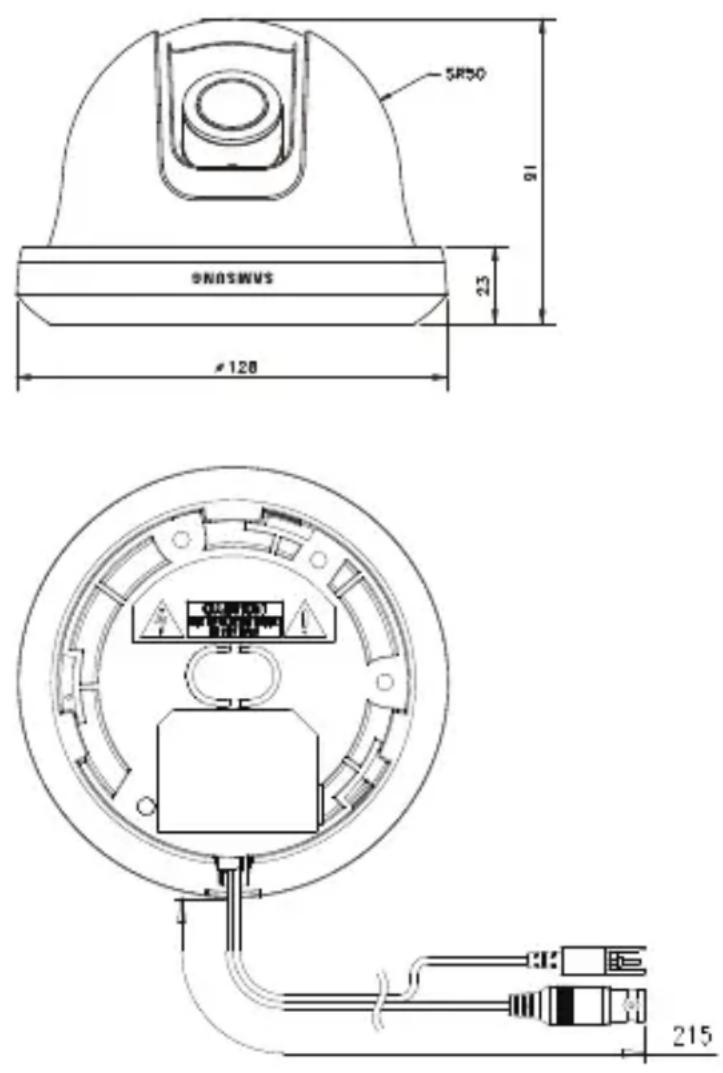

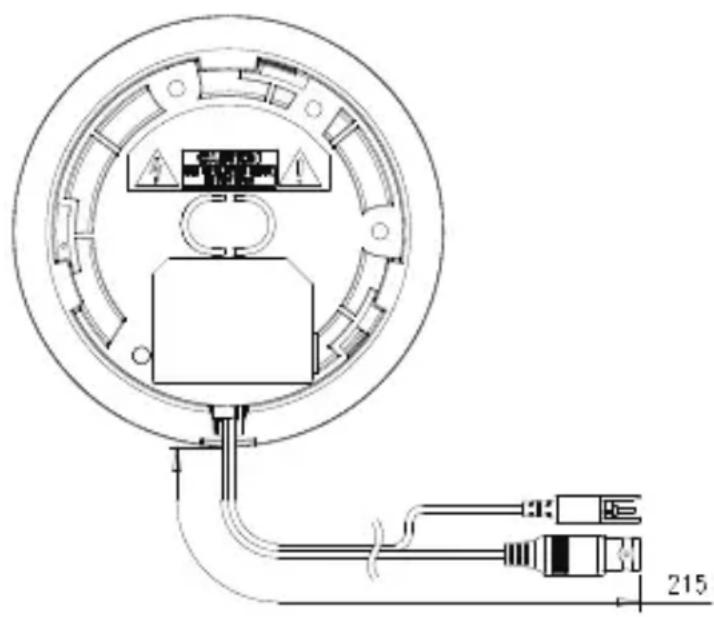

Appendix A: Specications for NTSC Standard Appendix B: Specications for PAL Standard Item Details Product type CCTV color dome camera Power input AC 24V ± 10% (50Hz ± 0.3 Hz), DC 12V +10%/-5% Broadcast type PAL Standard System (625 Lines, 50 Fields) Power consumption Approx. 1.7W Image device 1/3 inch IT Type Super-HAD CCD Pixels Total: 795(H) x 596(V), 470,000 pixels Effective: 752(H) x 582(V), 440,000 pixels Scanning mode 625 Lines, 2:1 Interlace Scanning line frequency Horizontal: 15.625Hz(INT)/15.625Hz(LL) Vertical: 50Hz(INT)/50Hz(LL) Synchronization mode INT/Line Lock (Adjusting the phase using INC/DEC button) Horizontal resolution 540 TV Lines S/N Ratio Approx. 50dB Min. object illumination SCC-B5345 (Color/BW) SCC-B5344 (Color/BW) F1.2 Sens-up Off 50IRE 0.4/0.04Lux 0.4/0.4Lux 30IRE 0.24/0.024Lux 0.24/0.24Lux 15IRE 0.12/0.012Lux 0.12/0.12Lux Sens-up x128 50IRE 0.0031/0.00031Lux 0.0031/0.0031Lux 30IRE 0,0019/0.00019Lux 0.0019/0.0019Lux 15IRE 0.0009/0.00009Lux 0.0009/0.0009Lux Signal output COMPOSITE Video(1.0 Vp-p, 75ohm, BNC), Test Monitor OUT(1.0 Vp-p, 75ohm, Harness cable) Lens Auto Iris (DC) / Focal length: 2.9 ~ 10.0mm / Aperture ratio: 1.2 PAN function Range: 0 to 355° (100 degree clockwise and 255 degree counterclockwise) TILT function Range: 0 to 90° Controls Line Lock (LL) Sens-Up; Low Speed Shutter(LSS) Horizontal Reverse (H-REV) Vertical Reverse (V-REV) Backlight compensation (BLC) Flickerless (FL) Switching between color and B&W modes (D/N) Auto white balancing (AWB) Digital noise reduction (DNR) Dynamic CCD defect compensation Product color SCC-B534xP : White Operation temperature -10°C to +50°C Operation humidity Up to 90% Size 128(Ø) x 91(H)mm Weight 327g B5344_B5345-00687D(00).indb 15 2008-09-05 오전 10:40:27Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofce, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. B5344_B5345-00687D(00).indb 16 2008-09-05 오전 10:40:27SCC-B5344 SCC-B5345 Mode d’emploi Caméra Dôme Numérique Couleur imaginez les possibilités Merci d’avoir acheté un produit Samsung. Pour bénéficier d’un service plus complet, veuillez vous enregistrer sur www.samsung.com/global/register FRA B5344_B5345-00687D(00).indb 1 2008-09-05 오전 10:40:282
