HG00563A - Kitchen grater Ernesto - Free user manual and instructions

Product type	Manual multi-blade kitchen grater
Brand	Ernesto
Maurice	HG00563A
Model	HG00563A
Main material	Plastic and stainless steel (blades)
Included blades	1 cheese blade (slice and grate), 2 garlic blades (1+1), 2 herb blades (1+1)
Transparent container capacity	Approximately 300 ml (up to the maximum fill line)
Estimated dimensions (height x diameter)	20 x 12 cm
Estimated weight	0.4 kg
Power supply	None (manual use)
Main functions	Grate garlic, herbs, chocolate, nuts; grate or slice cheese
Care and cleaning	Wash components in warm soapy water; do not put blades in dishwasher; dry completely
Safety	Very sharp blades; keep out of reach of young children
Assembly	Detailed instructions in manual; locking via rotating rings
Accessories	Spring pusher, collection base with lid, blade storage compartment
Recycling	Recyclable packaging; used product to be disposed of at a waste disposal site
Usage	Foods: garlic, herbs, cheese, chocolate, nuts (for herbs: remove stems)

Frequently Asked Questions - HG00563A Ernesto

How to assemble the grater for grating garlic?

Insert the garlic blade [1] into the blade base with the inscription 'Outside' facing up, lock the white ring, flip the base, insert the garlic blade [2] with 'Inside' facing up, then attach the transparent container and the pusher.

How to clean the blades?

Disassemble the grater completely and wash the parts in warm soapy water. Never put the blades in the dishwasher, as it will dull them. Dry thoroughly before storing.

Can the grater be used for chocolate?

Yes, the herb blade or the cheese blade are suitable for grating chocolate and nuts. Use the same method as for herbs or cheese.

How to slice cheese with this grater?

Use the cheese blade alone. Turn the blade storage compartment counterclockwise to slice, clockwise to grate.

What is the maximum capacity of the container?

Do not exceed the maximum fill line indicated on the transparent container. Beyond that, the mechanism may jam or the food may not be properly grated.

Is it possible to grate herbs without stems?

Yes, remove the stems from the herbs before inserting them into the container. This prevents clogging the blades and makes grating easier.

How to store unused blades?

Stack the unused blades in the storage compartment at the top of the device, then close with the top cover.

Can the grater cause injury?

Yes, the blades are very sharp. Keep the device out of reach of children and handle the blades with care when cleaning or changing.

How to unlock the parts after use?

To unlock, turn the locking rings in the opposite direction to that used for locking. Refer to the arrows on the parts if necessary.

Can I grate other foods than those indicated?

The blades are designed for garlic, herbs, cheese, chocolate and nuts. For other hard foods, check compatibility; hard vegetables could damage the blades.

USER MANUAL HG00563A Ernesto

MULTI-PURPOSE GRATER

GB IE

MULTI-PURPOSE GRATER

Operation and safety notes

DK

MULTIRIVEJERN

GB/IE Operation and safety notes Page 5

MULTI-PURPOSE GRATER

Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

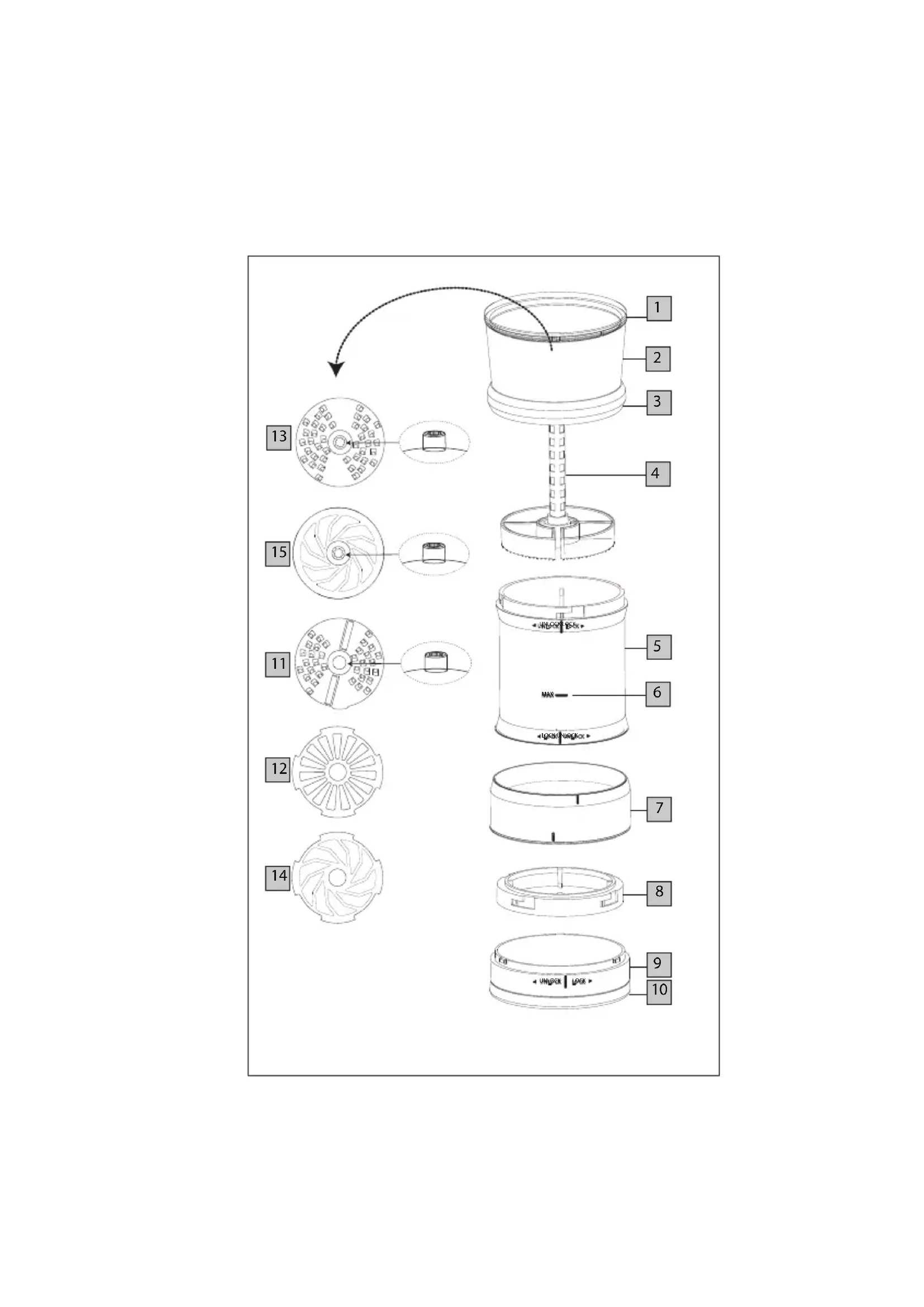

Description of parts

Top lid
2 Blade storage container
3 Top locking ring
4 Spring loaded pusher
5 Transparent cup
6 Maximum fill line
7 Blade base
8 White base lock
9 Collecting base
10 Lid of collecting base
11 Cheese blade
Garlic [1] blade
Garlic [2] blade
14Herb [1]blade
[15]Herb [2]blade

WARNING!

Keep well away from small children.

Blades can cause serious injury!

Assembly and use instructions (for garlic, herbs)

Note:For grating garlic, chocolate and nuts, use garlic [1] blade 12 and garlic blade [2] 13 in combination.

For grating herbs, use herb [1] blade[14] and herb [2] blade[15] in combination.

1. Place the blade base upside down.
2. Insert the garlic blade [1] or herb [1] blade into the blade base with the wording "Outside" facing upward (figure A, B).
3. Align the grooves in the white base lock with the notches in the blade base 7. Turn the white base lock 8 in clockwise direction to lock in place (figure C).
4. Return the blade base to the upright position, you can now see the wording "Inside" is facing upward.
5. Insert the second blade (garlic [2] or herb [2] into the blade base with the wording "Inside" facing upward (figure D, E).

6. Align the grooves in the transparent cup with the notches in the blade base. Turn the transparent cup in clockwise direction to lock in place (figure F).

7. Fill the transparent cup with garlic or herbs (figure G).

Note: DO NOT allow the content to exceed the maximum fill line 6.

Hint: For grating herbs, remove the herbs' stems from herbs before filling into the transparent cup 5.

1. Insert the spring loaded pusher 4 into the transparent cup 5. Push the top locking ring 3 down and turn the transparent cup 5 in anti-clockwise direction to lock in place (figure G).

2. Align the grooves in the collecting base with the notches in the blade base 7. Turn the collecting base 9 in anti-clockwise direction to lock in place (figure G).

3. Turn the base storage container in clockwise and anti-clockwise direction to grate the foods (figure H).

Hint: The garlic blades can also be used for chocolate and nuts.

Assembly and use instructions (for cheese)

Note:Only cheese blade 11 is needed.

1. Align the grooves in the white base lock with the notches in the blade base 7. Turn the white base lock 8 in clockwise direction to lock in place (figure 1).

2. Insert the cheese blade into the blade base with the wording "Inside" facing upward (figure J).

3. Align the grooves in the transparent cup 5 with the notches in the blade base 7. Turn the transparent cup 5 in clockwise direction to lock in place (figure F).

4. Fill the transparent cup 5 with cheese. Note: DO NOT allow the content to exceed the maximum fill line 6.
5. Insert the spring loaded pusher 4 into the transparent cup 5, push the top locking ring 3 down and turn the transparent cup 5 in anti-clockwise direction to lock in place (figure G).
6. Align the grooves in the collecting base with the notches in the blade base. Turn the collecting base in anti-clockwise direction to lock in place (figure G).
7. To shred cheese, turn the base storage container 2 in clockwise direction.
8. To slice cheese, turn the base storage container 2 in anti-clockwise direction.

Hint: The cheese blade can also be used for chocolate and nuts.

- Cleaning and storage

Disassemble the product and separate all components.
Clean all components by using a commercially available cleaning agent and warm water.
Blades can be cleaned in a dishwasher.
Avoid using aggressive and abrasive cleaning agents.
Dry all components thoroughly and assemble the product.

• Stack the unused blades inside the blade storage container 2 and close by its top lid 1.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
