Product type	Manual kitchen grater
Brand	Ernesto
Model	HG00583A
Functions	Grate, mince, shred cheese; grate garlic, herbs, chocolate, nuts
Main material	Plastic (ABS) and stainless steel blades
Container capacity	Approximately 250 ml (max fill line)
Approximate dimensions	Height 15 cm, diameter 10 cm
Approximate weight	300 g
Power source	None (manual)
Number of blades	5 (cheese, garlic [1] and [2], herbs [1] and [2])
Blade storage compartment	Yes, in the top lid
Maintenance	Hand wash with warm water and mild detergent; do not put in dishwasher
Safety	Keep out of reach of children; blades are very sharp
Spare parts available	Blades and transparent container (specific reference not provided)
Repairability	Simple mechanical product; possibility to replace blades
Usage	Cheese, garlic, herbs, chocolate, nuts
Recycling instructions	Packaging recyclable; used product to be disposed of at recycling center

Frequently Asked Questions - HG00583A Ernesto

How to assemble the grater for grating garlic?

Turn over the blade base, insert the garlic blade [1] (inscription 'Outside' facing up), lock with the white ring. Turn the base right side up (inscription 'Inside' facing up), insert the garlic blade [2], then screw the transparent container onto the base. Fill with garlic, place the pusher, lock the top ring and turn the storage compartment in both directions.

Can I grate cheese with the same blade as garlic?

No. For cheese, use the cheese blade [11]. Insert it into the base (inscription 'Inside' facing up) after locking the white ring. The direction of rotation determines the result: turn clockwise to shred, counterclockwise to slice.

How to clean the grater?

Disassemble the device completely. Clean each part with warm water and mild detergent. Do not put the blades in the dishwasher. Dry well before reassembling.

What can I grate with the herb blade?

The herb blade can grate aromatic herbs, chocolate, nuts and garlic. For herbs, remove the stems first.

Is there a filling limit?

Yes. Do not exceed the maximum fill line [6] on the transparent container to avoid clogging or overflow.

How to store unused blades?

Stack the blades in the storage compartment [2] located under the top lid [1]. Close the lid.

Can the grater go in the dishwasher?

No. Only hand washing is recommended to preserve the sharpness of the blades.

Is the grater suitable for nuts and chocolate?

Yes. Use the herb blade or the cheese blade depending on the desired texture. Tip: cut the nuts into pieces before grating.

How to change the direction of rotation for cheese?

To shred, turn the storage compartment clockwise. To slice, turn counterclockwise. The cheese blade allows both.

Where can I find replacement blades?

Contact Ernesto customer service HG00583A. The blades are model-specific. Check availability on the manufacturer's website.

USER MANUAL HG00583A Ernesto

MULTI-PURPOSE GRATER

GB IE

MULTI-PURPOSE GRATER

Operation and safety notes

DK

MULTIRIVEJERN

GB/IE Operation and safety notes Page 5

MULTI-PURPOSE GRATER

Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

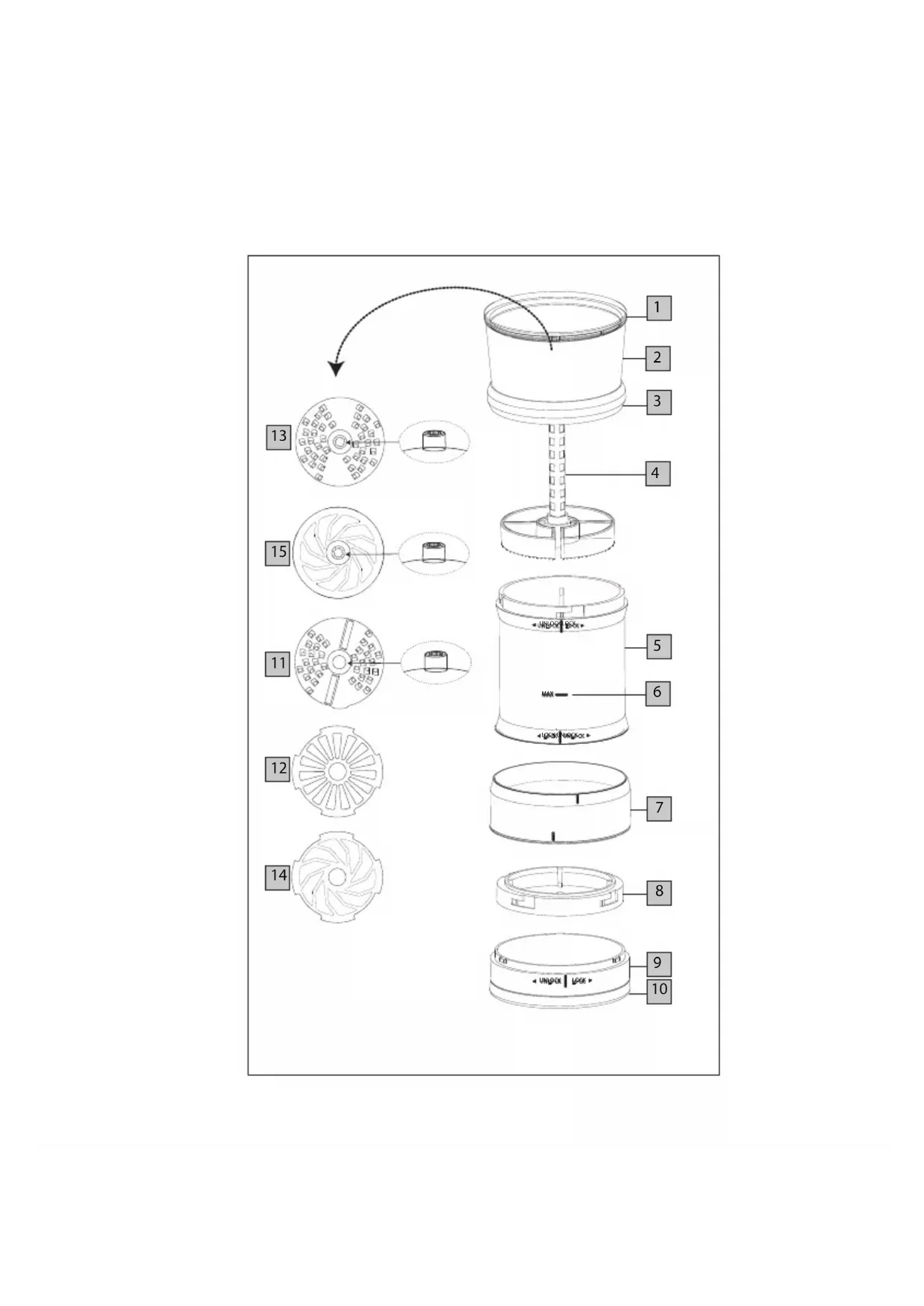

Description of parts

Top lid
2 Blade storage container
3 Top locking ring
4 Spring loaded pusher
5 Transparent cup
6 Maximum fill line
7 Blade base
8 White base lock
9 Collecting base
10 Lid of collecting base
11 Cheese blade
Garlic [1] blade
Garlic [2] blade
14Herb [1]blade
[15]Herb [2]blade

WARNING!

Keep well away from small children.

Blades can cause serious injury!

Assembly and use instructions (for garlic, herbs)

Note: For grating garlic, chocolate and nuts, use garlic [1] blade [12] and garlic blade [2] [13] in combination.

For grating herbs, use herb [1] blade[14] and herb [2] blade[15] in combination.

1. Place the blade base upside down.
2. Insert the garlic blade [1] or herb [1] blade into the blade base with the wording "Outside" facing upward (figure A, B).
3. Align the grooves in the white base lock with the notches in the blade base 7. Turn the white base lock 8 in clockwise direction to lock in place (figure C).
4. Return the blade base to the upright position, you can now see the wording "Inside" is facing upward.
5. Insert the second blade (garlic [2] or herb [2] into the blade base with the wording "Inside" facing upward (figure D, E).

6. Align the grooves in the transparent cup with the notches in the blade base. Turn the transparent cup in clockwise direction to lock in place (figure F).

7. Fill the transparent cup with garlic or herbs (figure G).

Note: DO NOT allow the content to exceed the maximum fill line 6.

Hint: For grating herbs, remove the herbs' stems from herbs before filling into the transparent cup 5.

1. Insert the spring loaded pusher 4 into the transparent cup 5. Push the top locking ring 3 down and turn the transparent cup 5 in anti-clockwise direction to lock in place (figure G).

2. Align the grooves in the collecting base with the notches in the blade base 7. Turn the collecting base 9 in anti-clockwise direction to lock in place (figure G).

3. Turn the base storage container in clockwise and anti-clockwise direction to grate the foods (figure H).

Hint: The garlic blades can also be used for chocolate and nuts.

Assembly and use instructions (for cheese)

Note:Only cheese blade 11 is needed.

1. Align the grooves in the white base lock with the notches in the blade base 7. Turn the white base lock 8 in clockwise direction to lock in place (figure 1).

2. Insert the cheese blade into the blade base with the wording "Inside" facing upward (figure J).

3. Align the grooves in the transparent cup 5 with the notches in the blade base 7. Turn the transparent cup 5 in clockwise direction to lock in place (figure F).

4. Fill the transparent cup 5 with cheese. Note: DO NOT allow the content to exceed the maximum fill line 6.
5. Insert the spring loaded pusher 4 into the transparent cup 5, push the top locking ring 3 down and turn the transparent cup 5 in anti-clockwise direction to lock in place (figure G).
6. Align the grooves in the collecting base with the notches in the blade base. Turn the collecting base in anti-clockwise direction to lock in place (figure G).
7. To shred cheese, turn the base storage container 2 in clockwise direction.
8. To slice cheese, turn the base storage container 2 in anti-clockwise direction.

Hint: The cheese blade can also be used for chocolate and nuts.

- Cleaning and storage

Disassemble the product and separate all components.
Clean all components by using a commercially available cleaning agent and warm water.
Blades can be cleaned in a dishwasher.
Avoid using aggressive and abrasive cleaning agents.
Dry all components thoroughly and assemble the product.

• Stack the unused blades inside the blade storage container 2 and close by its top lid 1.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
