USER MANUAL 949165 Westfalia

LCD Borescope Camera

Art. 94 91 65

D Originalanleitung

GB Original Instructions

Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.

Chers clients,

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

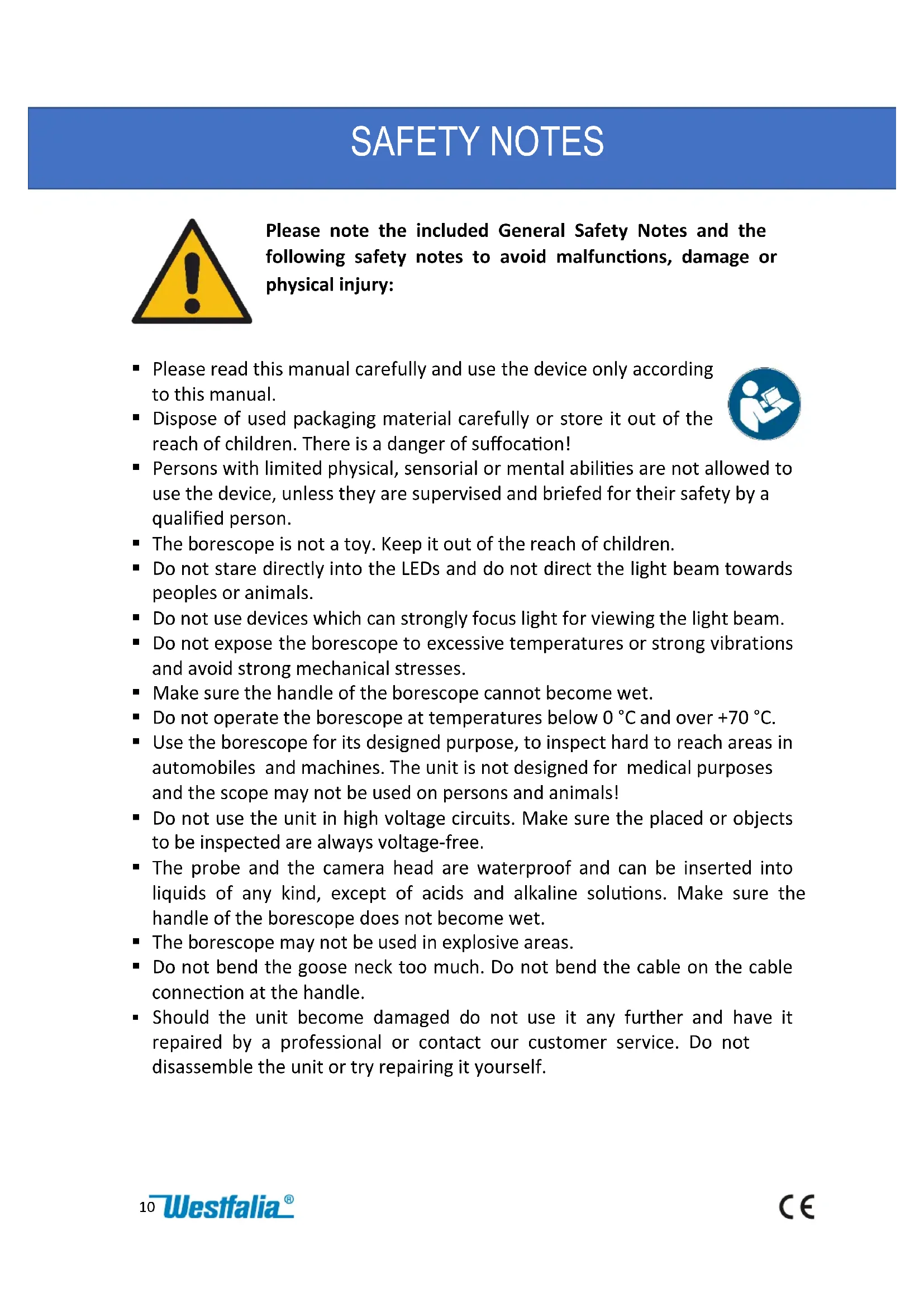

Please note the included General Safety Notes and the following safety notes to avoid malfunctions, damage or physical injury:

- Please read this manual carefully and use the device only according to this manual.

- Dispose of used packaging material carefully or store it out of the reach of children. There is a danger of suffocation!

- Persons with limited physical, sensorial or mental abilities are not allowed to use the device, unless they are supervised and briefed for their safety by a qualified person.

■ The borescope is not a toy. Keep it out of the reach of children.

- Do not stare directly into the LEDs and do not direct the light beam towards peoples or animals.

- Do not use devices which can strongly focus light for viewing the light beam.

- Do not expose the borescope to excessive temperatures or strong vibrations and avoid strong mechanical stresses.

■ Make sure the handle of the borescope cannot become wet.

- Do not operate the borescope at temperatures below 0 °C and over +70 °C.

- Use the borescope for its designed purpose, to inspect hard to reach areas in automobiles and machines. The unit is not designed for medical purposes and the scope may not be used on persons and animals!

- Do not use the unit in high voltage circuits. Make sure the placed or objects to be inspected are always voltage-free.

- The probe and the camera head are waterproof and can be inserted into liquids of any kind, except of acids and alkaline solutions. Make sure the handle of the borescope does not become wet.

■ The borescope may not be used in explosive areas.

- Do not bend the goose neck too much. Do not bend the cable on the cable connection at the handle.

- Should the unit become damaged do not use it any further and have it repaired by a professional or contact our customer service. Do not disassemble the unit or try repairing it yourself.

Operation

Intended Use

This product is designed for long distance inspection. Classic applications are inspections of HVAC systems, vehicles, circuits, boats and the likes. In tight spaces, accessories can be used to pick up small objects such as rings, keys and screws.

The borescope is designed for domestic use, and is not for use in commercial premises. Any use other than that described above is not permitted.

Operating Tips for using the Borescope

Never insert the camera head (I) into a fuel tank or a flammable liquid or gas such as unleaded petrol, diesel fuel, machine oil, brake fluid or transmission fluid.

The probe contains thin wires running along its entire length. Accordingly handle it with care:

• Do not bend the probe (1) more than 70° within 30 mm of its camera tip.
• Do not bundle the probe into a tight circle to store it.
• Never use the camera end to clear its own path of debris or obstructions.
• Don't place the probe into anything or anywhere that may contain a live electrical charge.
• Please observe the following points to avoid damage or injury.

For Walls: For inspecting inside the walls, make sure the electricity of the whole house is shut down before using the tool.

For Pipes: If you suspect a metal pipe could contain an electrical charge, have a qualified electrician check the pipe before using. Ground circuit, in some cases, can be grounded to the water pipes and cause them to be charged in the case of a malfunction.

For Vehicles: Never use the unit to inspect a vehicle during operation or with the engine running. Metal parts and liquids may be hot. Make sure no oil or fuel gets on the camera head.

Function of the Operating Elements

There are 5 buttons on the device:

• With the button (2) “Menu/back” you can bring up the menu in camera mode and in menu mode you can use this button to navigate back to the previous selection.
• With the button (3) “darker/up”, you can degrease the brightness of the display in camera mode. In menu mode, you can navigate up with this button.

Once you have selected the point "Screen Rotation" in the menu, you can turn and reverse the picture with this button. The red symbol shows the current alignment.

- Wth the button (4) "on/off/OK", you can turn the device on and off. In the menu, you can use this button to confirm your selection.

- With the button (5) “brighter/down”, you can increase the brightness of the display in camera mode. In menu mode, you can navigate down with this button.

Once you have selected the point "Screen Rotation" in the menu, you can turn and reverse the picture with this button. The red symbol shows the current alignment.

- With the button (6) „record“, you can record pictures and videos on the external video card. Press this button briefly to record a picture. Press the button longer to record a video. Stop recording by pressing the button briefly.

The Menu

Use the button (2) to enter the menu. Use the buttons (3) and (5) to navigate up and down in the menu. Use the button (4) to confirm the selected function and to confirm your selections. With the button (2) you can return to the previous selection. To return to the camera mode from the main menu press the button (2).

Inserting a Memory Card

Insert a suitable micro-SD memory card into the card slot (9). Select the function “Formatting” to format an unformatted card. Please keep in mind that the device can only use up to 32 GB memory. A larger card will be formatted o 32 GB.

Charging the build-in Battery

Connect the device via the USB 2.0 Micro USB Socket (8) and the included charging wire with a suitable USB-Port. During charging, the charging control light (7) is illuminated red and turns off when the battery is fully charged. With a sufficiently charged battery, the control light is illuminated green during operation.

Accessories

Three attachments for the camera head are included with the borescope. Included are a hook attachment, a mirror attachment and an attachment with a magnet.

Replacing the Battery

The battery is not designed to be changed by the customer. Please turn to a professional.

Cleaning and Storing

• Clean the housing and the camera head only with a dry or, if necessary, with a moistened cloth. Wipe the lens of the camera head with a lint-free cloth to keep the glass clean and free from grease. Do not use aggressive chemicals or abrasives for cleaning.
• If the probe was accidentally inserted into liquids, clean it after each use and dry thoroughly.
  ■ Store the borescope out of reach of children.

Technical Data

Monitor: 4,3" / 10,92 cm LCD Colour Display

Camera head: ∅ 8 mm

Angle of view: 70^

Resolution: 1920 x 1080 P, 30 FPS

Focus Range: 4 – 500 cm

Probe Length: 185 cm, semi-rigid

Operating duration: 5 – 7 hours

Battery: 2 Ah, 7,4 Wh Lithium-Ion

Degree of protection: IP 67 (camera head)

Working temperature: 0 – 70 °C

Dimensions (L x W x H): 15 x 8,8 x 1,6 cm (housing)

Weight: 160 g

Batteries do not belong in the household garbage.For battery disposal please check with your local council.

CONSIGNES DE SÉCURITÉ

Opname: 1920 x 1080 P, 30 FPS

declare by our own responsibility that the product

LCD-Endoskop-Kamera

LCD Borescope Camera

Article No. 94 91 65

is according to the basic requirements, which are defined in the European Directives and their amendments.

2011/65/EU Restriction of the Use of certain hazardous Substances in electrical and electronic Equipment (RoHS)

The technical documentations are on file at the QA department of the Westfalia Werkzeug company.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Werter Kunde,

Please help avoid waste materials.

If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled. Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
