Product type	Hair clipper
Brand	GAMA
Model	GBS Absolute Stage
Motor speed	5300 rpm
Battery life	Approximately 120 minutes
Charging time (first)	12 hours
Charging time (subsequent)	Approximately 90 minutes
Cutting height without comb	0.8 mm to 3.8 mm (adjustable via lever)
Cutting heights with combs	1.5 / 3 / 4.5 / 6 / 10 / 13 / 19 / 25 mm
Power source	Rechargeable battery + mains operation
Battery type	Lithium-ion (not user-replaceable)
Blade material	Hardened stainless steel
Included accessories	8 cutting combs, lubrication oil, cleaning brush, mains adapter
Warranty	1 to 2 years depending on consumer (European Directive 1999/44/EC)
Maintenance	Regular blade lubrication; cleaning with the provided brush; do not immerse
Safety	Do not use near water; unplug after use; do not attempt to replace the battery
Usage	Home and professional use
Country of origin	Italy (Italian brand)
Dimensions (approx.)	18 x 4 x 4 cm (head included)
Weight (approx.)	350 g

Frequently Asked Questions - GBS Absolute Stage GAMA

How to charge the clipper for the first time?

Before the first charge, it is recommended to fully discharge the battery. Then, plug the mains adapter into the device while it is off. The red LED indicates charging. The first charge must last 12 hours, even if the LED changes color. Subsequent charges last approximately 90 minutes.

How long does the battery last after a full charge?

The operating time at full charge is approximately 120 minutes (2 hours). The duration varies based on frequency and usage times.

How to adjust the cutting height?

Without comb, use the adjustment lever on the left side of the body: up for 0.8 mm, down for 3.8 mm. With combs, select the desired height from the 8 provided combs (1.5 / 3 / 4.5 / 6 / 10 / 13 / 19 / 25 mm).

How to clean the clipper?

Make sure the device is off and unplugged. Remove the attachment. Use the provided brush to remove hair between the blades and at the back of the head. Never immerse the device in water or clean any part under running water.

How to lubricate the blade?

Before first use and regularly thereafter, apply a few drops of oil (supplied) to the blade. To do this, tip the clipper so that oil does not drip onto the device, then turn it on for a few seconds to distribute the oil. Wipe off excess with a dry cloth. For professional use, lubricate daily; for home use, once a month.

Can the clipper be used plugged in without battery?

Yes, the clipper can be used by plugging it directly into the mains, even if the battery is empty. However, it is recommended not to leave it plugged in permanently once charged to avoid battery deterioration.

What to do if the blade no longer cuts effectively?

First check that the blade is clean and well lubricated. If the problem persists despite proper maintenance, the blade's lifespan may be over. Contact the manufacturer to replace the entire head. Do not disassemble the head yourself, as this would void the warranty.

Is the clipper waterproof or can it be used in the shower?

No, the clipper is not waterproof. Do not use it near bathtubs, showers, or other containers with water. Do not immerse it in water. Use only on dry hair.

What is the warranty period of the clipper?

The limited warranty is 1 or 2 years depending on the type of end consumer, in accordance with European Directive 1999/44/EC. To benefit from after-sales service, keep the original proof of purchase and go to the point of sale.

How to change accessories (combs)?

Always turn off the clipper before changing an accessory. To attach a comb, place the notch near the comb teeth on the blade, then push the base of the comb against the head until it clicks. To remove, pull the tab at the base of the comb outward.

USER MANUAL GBS Absolute Stage GAMA

ABSOLUTE STAGE GBS SINCE 1969 GA.MA BARBER SERIES

MODELLO

ABSOLUTE STAGE

MODEL

SALON EXCLUSIVE GBS DANA BARTER PROCESSED ABSOLUTE STAGE

MANUALE D'USO

LEGGERE E CONSERVARE

READ AND KEEP FOR FUTURE NEEDS

[e-mail] / www.gamaprofessional.com

INDICE / INDEX

ITA / ITALIANO: 03

EN / ENGLISH: 11

FR / FRANÇAIS: 18

ESP / ESPAÑOL: 26

PT / PORTUGUÉS: 33

RU / РУССКИЙ: 40

ΕΛΛ / ΕΛΛΗΝΙΚΑ: 48

PL / POLSKI: 56

SWE / SVENSKA: 63

DE / DEUTSCH: 70

يېرع / عربى : 77

ITA

3D rendered object with three circular holes and a curved base (no text or symbols)

PRIMA DELL'UTILIZZO:

Abstract black geometric shape on gray background (no text or symbols)

Fig.2

Silhouette of a bear-like animal head (no text or symbols)

Close-up of a hairbrush and jawbone (no text or symbols visible)

LEVA REGOLABILE:

Illustration of a hand holding a small object with a comb, no text or symbols present

COME E QUANDO LUBRIFICARE LA LAMA:

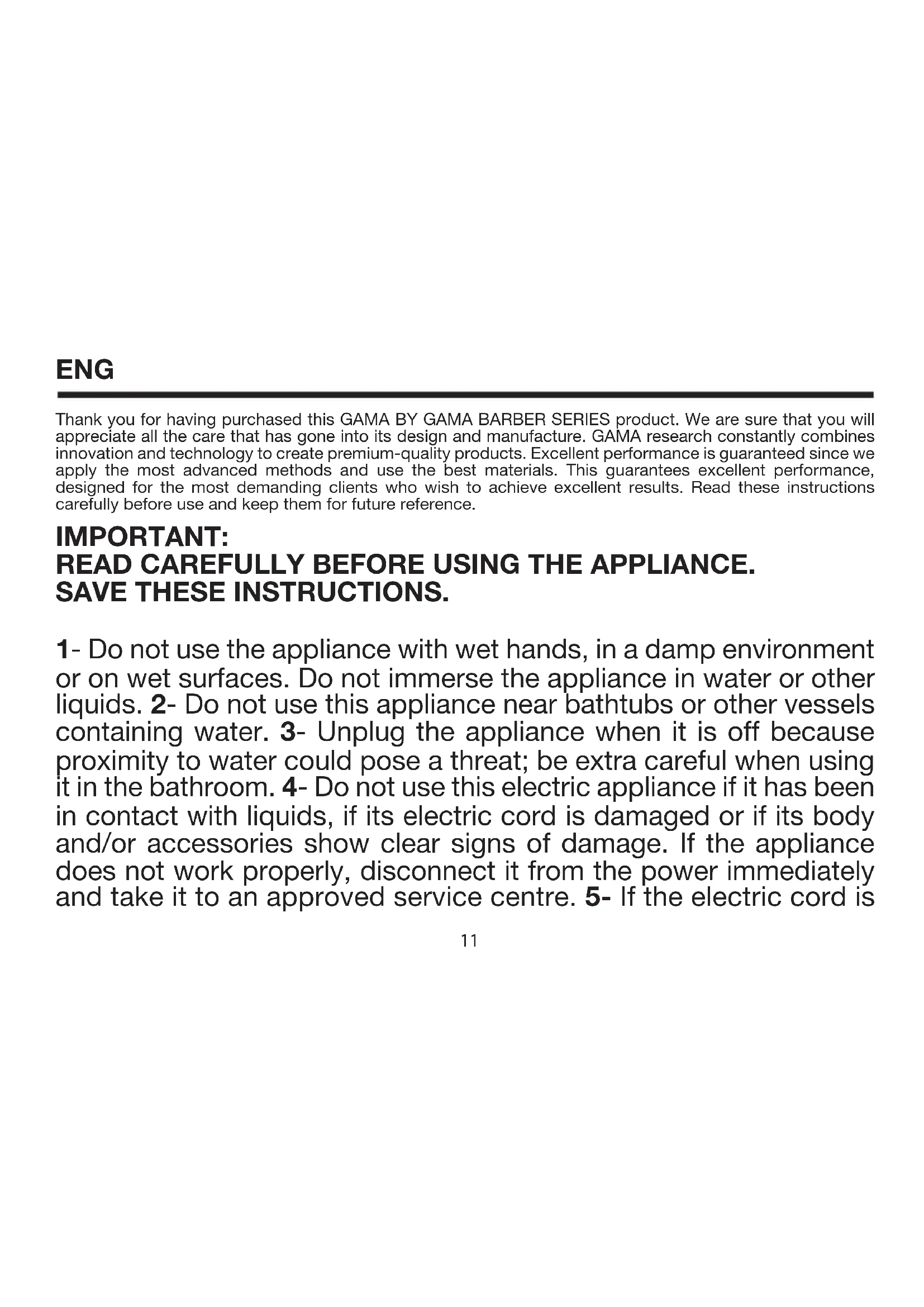

Thank you for having purchased this GAMA BY GAMA BARBER SERIES product. We are sure that you will appreciate all the care that has gone into its design and manufacture. GAMA research constantly combines innovation and technology to create premium-quality products. Excellent performance is guaranteed since we apply the most advanced methods and use the best materials. This guarantees excellent performance, designed for the most demanding clients who wish to achieve excellent results. Read these instructions carefully before use and keep them for future reference.

IMPORTANT:

READ CAREFULLY BEFORE USING THE APPLIANCE. SAVE THESE INSTRUCTIONS.

1- Do not use the appliance with wet hands, in a damp environment or on wet surfaces. Do not immerse the appliance in water or other liquids. 2- Do not use this appliance near bathtubs or other vessels containing water. 3- Unplug the appliance when it is off because proximity to water could pose a threat; be extra careful when using it in the bathroom. 4- Do not use this electric appliance if it has been in contact with liquids, if its electric cord is damaged or if its body and/or accessories show clear signs of damage. If the appliance does not work properly, disconnect it from the power immediately and take it to an approved service centre. 5- If the electric cord is

damaged, it must be replaced immediately by the manufacturer, an authorised service centre or similarly qualified persons in order to avoid a hazard. 6 - Keep the appliance and its electric cord away from sources of heat and from heat-sensitive surfaces (plastic, vinyl, etc.). 7- Do not hold or handle the appliance by the electric cord. Do not wind the electric cord around the appliance, bend it or twist it so as not to impair its correct functioning and thus damage the appliance. Lack of compliance with the above warnings and instructions could cause a short circuit and thus irreparable damage to the appliance, as well as put the user's safety at risk. 8- Unplug the appliance when not in use and allow it to cool down before storing it in a safe place. To disconnect the appliance, unplug the electric cord from the wall power outlet. 9- To clean the appliance, always disconnect it from the power outlet first and let it cool completely. When cleaning, do not use aggressive products containing phenylphenol. 10- This appliance should only be used for its intended purpose. 11- This appliance has especially sharp professional blades, so use it carefully to avoid injuries or lesions. 12- Always turn this appliance off before changing one of its accessories. 13- For additional protection the

installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

This appliance must not be used by people with reduced physical, motor or mental capacity (including children), or with limited knowledge of the appliance itself, unless such people have been trained for its use or are under adequate supervision to ensure their own safety. Children must be under supervision at all times to ensure that they do not play with the appliance.

Do not use this appliance near bathtubs or other vessels containing water.

CE

The symbol on the product or on the package indicates that the product should not be considered as normal domestic waste; once you have decided to dispose of it, it should be taken to the proper collection point for recycling electrical and electronic appliances. When you dispose of this product correctly, you help prevent potential negative consequences for the environment and health, which could derive from improper treatment of the product. For more detailed information on recycling this product, contact the municipal office, the local waste disposal service or the shop where it was purchased.

LIMITED WARRANTY:

Duration of warranty period: 1 or 2 years depending on customer category in compliance with Directive 1999/44/EC. For support service under warranty, please take the original purchase ticket / sales receipt to the shop where the product was purchased. The product will be repaired free of charge or immediately replaced with similar product of equal or greater value.

ABSOLLUTE STAGE - Motor 5300 RPM

RECOMMENDATIONS FOR USE:

Before using the hair clipper the hair must be clean and dry. We recommend cutting small quantities of hair at a time, adjusting the cutting length gradually until finding the one you want. The blades risk getting stuck if too fast movements are made or if a lot of hair is cut at the same time. It can be used without attachment comb to trim beard, neck hair and sideburns.

BEFORE USING THE APPLIANCE:

Before charging the hair clipper for the first time we recommend fully discharging the battery and then fully charging it.

3D rendered mechanical component with three circular holes and a central fastener (no text or symbols)

1. Make sure that the appliance is switched off.

2. Plug the appliance into the power outlet and then connect it to its adapter. The charging LED will light up and remain red for the whole charging process. As soon as the product is fully charged, the LED will change colour.

Attention: to prolong battery life, the first charge should be much longer even if the LED changes colour.

The first charge takes 12 hours. Subsequent charges take about 90 minutes. When fully charged, the battery will last about 120 minutes.

1. Disconnect the adapter from the outlet once it is fully charged.

2. The hair clipper may be used connected directly to the power outlet if the battery charge is depleted. It needs to be charged when the red charging LED, starts blinking.

The duration of the battery varies based on usage frequency and times. To increase the lifespan of the batteries, this procedure should be carried out at least twice every 12 months, discharging the battery completely and recharging it for the maximum time. If the appliance is not used often, remember in any case to carry out a charging cycle every so often during the year to keep it working efficiently. On the contrary, when the charging is finished, do not keep the appliance connected to the mains to prevent the battery from overcharging and damaging the appliance.

WARNING: Do not attempt to replace the internal battery of the hair clipper. This can lead to the risk of fire or electric shock. Tampering invalidates the warranty on the product.

CAUTION:

Lubricate the blade before the first use. Read the instructions contained in the section "HOW AND WHEN TO LUBRICATE THE BLADE"

USE INSTRUCTIONS:

• Insert the desired attachment. This operation should always be done with the hair clipper turned off.
• Turn on the hair clipper by pressing the (O/I) button.
• Turn off the hair clipper by pressing the (O/I) button

INSERTION OF COMBS:

The supplied combs have two snap on seats. One near the teeth of each comb (Fig. 1) and the other near the base of each comb (Fig. 2). To insert the combs in the hair clipper, set the snap on base near the teeth of the comb on the hair clipper blade and then push the base of the comb against the base of the blade head until you hear a slight click: insertion will be now be completed. Remove the combs using the tab located on the base of the comb, exerting an outward force.

Fig.1

Abstract black geometric shape on white background (no text or symbols)

Fig.2

Silhouette of a bear-like figure with striped ears and a small hat (no text or symbols)

CUTTING LENGTH ADJUSTMENT:

The ABSOLUTE STAGE hair clipper offers the possibility of making finishing touches from 0.8 mm to 3.8 mm (if used without any guide comb attached and using the adjustment lever) and performing classic hair cuts with the following lengths: 1.5, 3, 4.5, 6, 10, 13, 19 and 25 mm.

Close-up of a hairbrush and jawbone (no text or symbols visible)

ADJUSTABLE LEVER:

The lever for adjusting the cutting length is located on the left side of the body of the appliance (Fig. 3); this lever lets you adjust the cutting length to 0.8 mm if held upwards, i.e. towards the upper body of the appliance, or 3.8 mm if held downwards, i.e. towards the rear body of the appliance.

CLEANING AND MAINTENANCE:

A clean and properly lubricated hair clipper considerably improves its capacity and cutting precision. DO NOT CLEAN ANY PART OF THE APPLIANCE UNDER RUNNING WATER.

CLEANING THE HEAD:

Before any cleaning operation, make sure that the appliance is properly turned off and disconnected from the power outlet. Remove the accessory if it is inserted. Using the special brush supplied, remove any hair residues between the blades and the back of the blade head.

NEVER DISASSEMBLE THE HEAD INTO ITS INTEGRAL PARTS OR YOU WILL INVALIDATE THE WARRANTY ON THE ENTIRE PRODUCT.

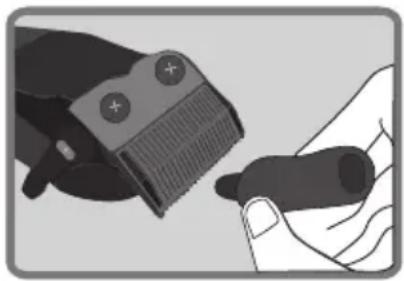

HOW AND WHEN TO LUBRICATE THE BLADE:

Before the first use we recommend lubricating the blade with a drop of the oil found in the package or with any other lubricating oil (make sure that it is not too viscous).

Illustration of a hand holding a small object next to a pair of scissors (no text or symbols visible)

Turn the hair clipper upside down (Fig.4) so that oil does not drip on the appliance. Lubricate the blade with a few drops of oil. Turn the appliance on for a few seconds so that the oil is distributed evenly along the entire blade. Then, using a dry cloth, eliminate any excess oil residues. For professional users, the lubrication process must be carried out daily. In case of domestic use, it can be carried out monthly or more frequently, depending on the type of use of the product.

BLADE DURATION:

The duration of the blade varies based on usage frequency and times. Although correct maintenance is performed, if the cutting efficiency is compromised, contact the manufacturer to have the entire head replaced.

On the website www.gamaprofessional.com you can find all product and instruction manuals with related warnings and information.

The date of production of this model mentioned on the box label in the format: XXX - number of goods part; XX - day; XX - month; XX - year

FR

3D rendered mechanical component with three circular holes and a central knob (no text or symbols)

Abstract black-and-white graphic of layered curved shapes (no text or symbols)

Fig.2

Silhouette of a bear-like animal (no text or symbols)

Close-up of a hairbrush and jawbone (no text or symbols visible)

LEVIER RÉGLABLE :

Illustration of a hairpin and a hand holding a comb (no text or symbols)

COMMENT ET QUAND LUBRIFIER LA LAME :

Simple grayscale illustration of a curved object with three circular holes (no text or symbols)

Abstract black geometric shape on gray background (no text or symbols)

Fig.2

Silhouette of a stylized animal head (no text or symbols)

Close-up of a hairbrush and comb with serrated texture (no text or symbols visible)

PALANCA REGULABLE:

Illustration of a hand holding a small object next to a pair of scissors (no text or symbols visible)

CÓMO Y CUÁNDO LUBRICAR LA CUCHILLA:

3D rendered mechanical component with three circular holes and a central knob (no text or symbols)

Abstract black-and-white graphic of layered curved shapes (no text or symbols)

Fig.2

Silhouette of a stylized animal head with striped pattern (no text or symbols)

REGULAÇÃO DE CORTE:

Close-up of a hairbrush and jawbone (no text or symbols visible)

ALAVANCA REGULÁVEL:

Illustration of a hand using a hairpin to clean or store items (no text or symbols visible)

COMO E QUANDO LUBRIFICAR A LÂMINA:

3D rendered mechanical component with three circular holes and a central knob (no text or symbols)

Abstract black geometric shape on gray background (no text or symbols)

Рис.1

Abstract grayscale illustration of a stylized human figure (no text or symbols)

Рис.2

Close-up of a hairbrush and jawbone (no text or symbols visible)

РЫЧАГ РЕГУЛИРОВКИ

Illustration of a hand using a hairpin to cut a toothed edge, no text or symbols present

3D rendered image of a curved mechanical component with three circular holes and a central knob (no text or symbols)

Abstract black geometric shape on gray background (no text or symbols)

Eik.2

Silhouette of a person holding an object, possibly a bird or abstract shape, with no visible text or symbols.

ΡΥΘΜΙΣΗ ΚΟΠΗΣ:

Close-up of a black and white object with a textured surface and a small protrusion (no visible text or symbols)

Illustration of a hand holding a small object next to a pair of scissors (no text or symbols visible)

3D rendered mechanical component with three circular holes and a curved body (no text or symbols)

Abstract black geometric shape on gray background (no text or symbols)

Rys. 2

Silhouette of a person's head and shoulders, no text or symbols visible

REGULACJA CIĘCIA:

Close-up of a hairbrush and jawbone (no text or symbols visible)

REGULOWANA DŻWIGNIA:

Illustration of a hand using a hairpin to cut a black object (no text or symbols visible)

3D rendered image of a curved mechanical component with three circular holes (no text or symbols)

Abstract black-and-white graphic of layered curved shapes, no text or symbols present

Simple grayscale illustration of a bear-like figure with no text or symbols

INSTÄLLNING AV KLIPPLÄNGD:

Close-up of a hairbrush and comb with serrated texture (no text or symbols visible)

INSTÄLLNINGSBAR SPAK:

Illustration of a hand holding a hair clip and a small object, no text or symbols present

3D rendered mechanical component with three circular holes and a central slot (no text or symbols)

Abstract black geometric shape on white background (no text or symbols)

Fig. 1

Silhouette of a person holding an object, possibly a lamp or lamp (no text or symbols visible)

Fig. 2

SCHNITTEINSTELLUNG:

Close-up of a hairbrush cutting through a slot (no text or symbols visible)

Illustration of a hand holding a hairpin and a small object, no text or symbols present

LEBENSDAUER DER KLINGE:

Abstract black-and-white graphic of layered curved shapes (no text or symbols)

2 الشكل

Silhouette of a hand holding a clipboard (no text or symbols visible)

ضبط مستوى القص:

Illustration of a hand holding a small tool with a serrated edge, no text or symbols present

عمر الشفرة:
