UAHD50EL - Air purifier SHARP - Free user manual and instructions

Product type	Air purifier with humidification
Brand	Sharp
Model	UAHD50EL
Dimensions (W x D x H)	399 x 230 x 615 mm
Weight	7.9 kg
Power supply	220-240 V, 50-60 Hz
Power consumption (standby)	0.9 W
Purification technology	Triple system + Plasmacluster + Humidification
Filters	Pre-filter, washable deodorizing filter, HEPA filter (white), humidification filter
HEPA filter efficiency	Removes 99.97% of particles of 0.3 microns
Sensors	Dust, odors, temperature, humidity
Operating modes	Air cleaning, Air cleaning and humidification, Clean ion shower
Fan speeds	Auto, Advanced auto, Pollen, Low, Med, Max
Airflow (Clean air - Max)	306 m³/h
Water tank capacity	2.5 L
Humidification (Max)	600 mL/h
Recommended area	Up to 38 m²
Useful functions	On/off timer, child lock, brightness control, sensor sensitivity adjustment
Maintenance	Regular filter cleaning, filter replacement every 10 years approximately

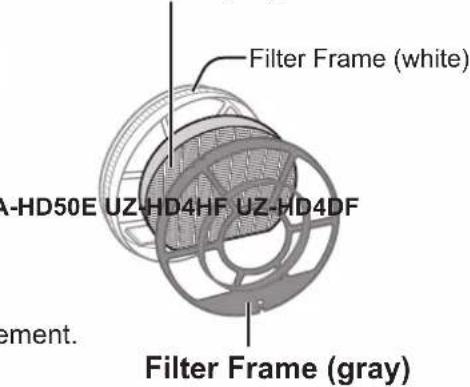

Replacement filters	HEPA: UZ-HD4HF, Deodorizing: UZ-HD4DF, Humidification: UZ-HD6MF
Safety	Child lock, automatic shut-off, restart after power failure

Frequently Asked Questions - UAHD50EL SHARP

How to install the filters for the first time?

Remove the back panel, take out the HEPA filter (white) and deodorizing filter (black) from their plastic bags. Install them in order: first the HEPA filter, then the deodorizing filter. Replace the back panel and note the start date of use.

How to fill the water tank?

Push the tank handle down and pull forward to remove it. Fill with fresh tap water only. Do not use hot water (>40°C), chemicals or aromatic substances. Replace the tank ensuring no leak.

What are the operating modes?

Three modes: Air cleaning (filtration without humidification), Air cleaning and humidification (filtration + humidification), Clean ion shower (intense release of Plasmacluster ions for 60 minutes).

How to activate or deactivate the Plasmacluster ions?

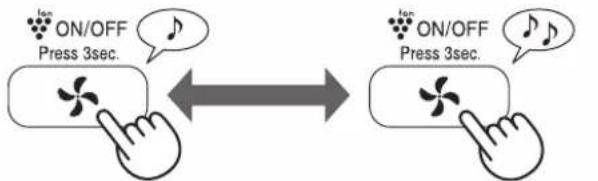

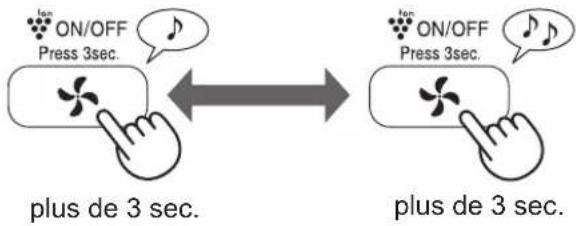

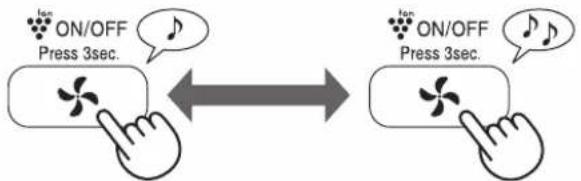

Press the corresponding button for 3 seconds. The indicator light (blue) turns on or off. By default, the ions are activated when the device is running.

What does the flashing of the humidification indicator mean?

If the indicator flashes red, the water tank is empty. Fill it. If it flashes green, humidification is in progress. If humidity reaches an adequate level, the indicator turns off.

How to clean the humidification filter?

Remove the humidification filter (do not detach it from the holder). Soak it in a solution of water and citric acid or lemon juice for 30 minutes. Rinse thoroughly with clean water and let dry.

When to replace the filters?

The HEPA filter and deodorizing filter have a lifespan of about 10 years after opening (depending on use). Replace them if odors or dust persist after cleaning. The humidification filter should also be replaced.

How to reset the filter indicator light?

After cleaning or replacing the filters, plug in the device and press the filter reset button (often the brightness control button) for 3 seconds. The light turns off.

What to do in case of error code 'C1' or 'C4'?

For error C1 (abnormal motor), unplug the device, wait one minute and plug it back in. For C4 (abnormal sensor), check that the device is not obstructed. If the error persists, contact a Sharp service center.

Can I use the purifier in a bathroom?

No, avoid humid places or areas prone to splashes. The device must not get wet. Place it on a flat surface, at least 30 cm from the wall, away from heat sources and steam.

USER MANUAL UAHD50EL SHARP

Operation Manual

UA-HD60E, UA-HD50E, UA-HD40E

Air Purifier with Humidifying Function

ENESDEPTFRPLNL

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

广力云智慧零售收银系统

1

SHARP®

UA-HD60E UA-HD50E UA-HD40E

HIGH-DENSITY 7000 *

"Plasmacluster" and "Device of a cluster of grapes" are trademarks of Sharp Corporation.

Free standing type

AIR PURIFIER with Humidifying Function OPERATION MANUAL

Please read before operating your new Air Purifier

The air purifier draws in room air from the air intake, passes the air through a Pre-Filter, a Deodorizing Filter, and a HEPA Filter inside of the unit, then discharges the air through the air outlet. The HEPA Filter can remove 99.97% of dust particles as small as 0.3 microns that pass through the filter and also helps absorb odours. The Deodorizing Filter gradually absorbs odours as they pass through the filter.

Some odours absorbed by the filters may break down over time, resulting in additional odour. Depending on the usage environment, especially when the product is used in extreme environments (significantly more severe than normal household use), this odour may become strong in a shorter period than expected. If the odour persists, the filters should be replaced.

NOTE

- The air purifier is designed to remove air-suspended dust and odour, but not harmful gases (for example, carbon monoxide contained in cigarette smoke). If the source of the odour still exists, the air purifier may not completely remove the odour.

(Common illustration has used "UA-HD60E".)

ENGLISH

FEATURES

Unique Combination of Air Treatment Technologies

Triple Filtration System + Plasmacluster + Humidification

TRAPS DUST*

Pre-Filter traps dust and other large airborne particles.

DECREASES ODOURS

Deodorizing Filter absorbs many common household odours.

REDUCES POLLEN & MOLD*

HEPA Filter traps 99.97% of particles as small as 0.3 microns.

FRESHENS

Plasmacluster treats the air similar to the way nature cleans the environment by emitting a balance of positive and negative ions.

HUMIDIFIES

*When air is drawn through the filter system.

Sensor Technology continuously monitors air quality, and automatically adjusts operation based on detected air purity and humidity.

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS...E-2

• WARNING • CAUTIONS CONCERNING OPERATION • INSTALLATION GUIDELINES • FILTER GUIDELINES

PART NAMES.....E-5

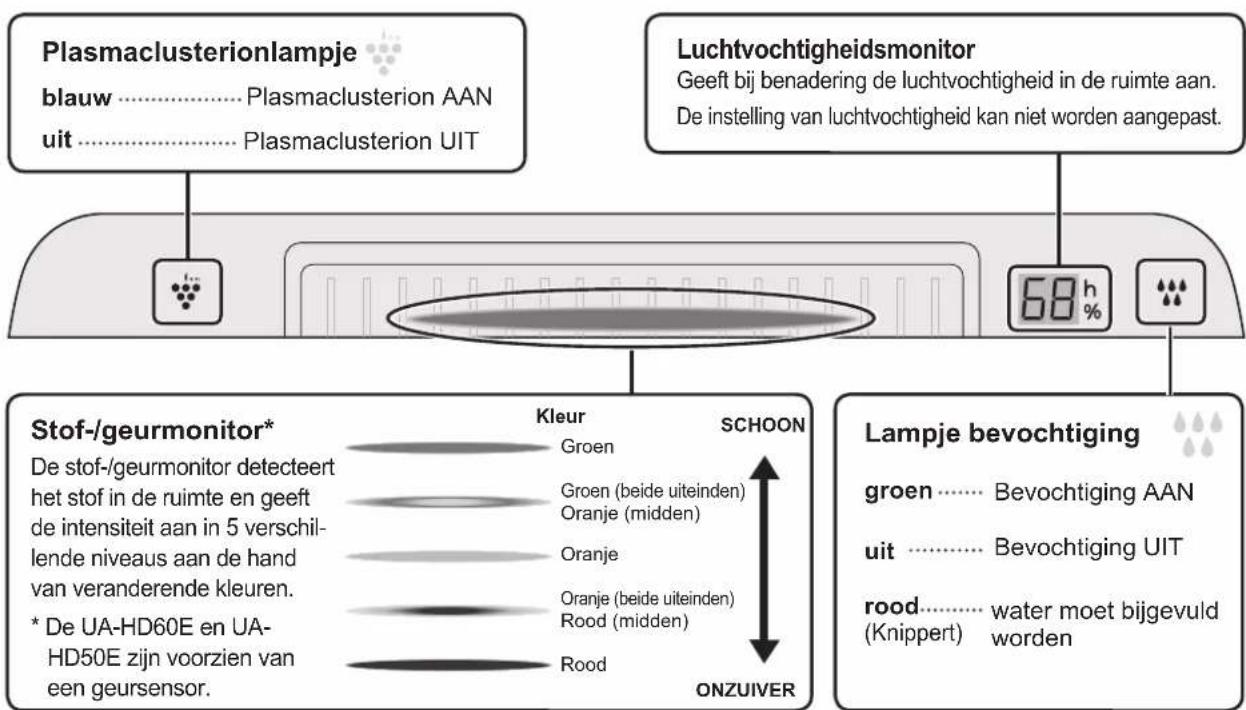

• FRONT / BACK • OPERATION PANEL • DISPLAY ILLUSTRATIVE DIAGRAM

PREPARATION.....E-7

• FILTER INSTALLATION • REFILLING THE WATER TANK

OPERATION E-9

• CLEAN AIR HUMIDIFY
• CLEAN AIR
• CLEAN ION SHOWER
• FAN SPEED • PLASMACLUSTER ION ON/OFF
• CHILD LOCK

USEFUL FUNCTIONS....E-11

• LIGHTS CONTROL - ON TIMER - OFF TIMER • ADJUSTMENT OF SENSOR DETECTION SENSITIVITY

CARE AND MAINTENANCE....E-12

• FILTER INDICATOR
• CARE INDEX • HUMIDIFYING DISINSTALLATION
• WATER TANK • HUMIDIFYING FILTER • HUMIDIFYING TRAY AND COVER
• BACK PANEL • HEPA FILTER/DEODORIZING FILTER
• UNIT • FILTER REPLACEMENT

TROUBLESHOOTING....E-17

SPECIFICATIONS......E-20

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING – To reduce the risk of electrical shock, fire or injury to persons:

• Read all instructions before using the unit.
• Use only a 220-240 volt outlet.
• Do not use the unit if the power cord or plug is damaged or the connection to the wall outlet is loosened.
• Periodically remove dust from the plug.
• Do not insert fingers or foreign objects into the air intake or air outlet.
• When removing the power plug, always hold the plug and never pull on the cord.

Electrical shock and/or fire from a short circuit may result.

- Be careful not to damage the power cord, it may cause electric shock, excess heat or fires.

- Do not remove the plug when your hands are wet.

- Do not use this unit near gas appliances or fireplaces.

- When refilling the Water Tank, cleaning the unit, or when the unit is not in use, be sure to unplug the unit. Electrical shock and/or fire from a short circuit may result.

- If the power cord is damaged, it must be replaced by the manufacturer, its service agent, a Sharp authorized Service Centre or similarly qualified person in order to avoid a hazard.

- Only a Sharp Authorized Service Centre should service this air purifier. Contact the nearest Service Centre for any problems, adjustments, or repairs.

- Do not operate when using aerosol insecticides or in rooms where there is oily residue, incense, sparks from lit cigarettes, chemical fumes in the air, or in locations where the unit may get wet, such as a bathroom.

- Be cautious when cleaning the unit. Strong corrosive cleansers may damage the exterior.

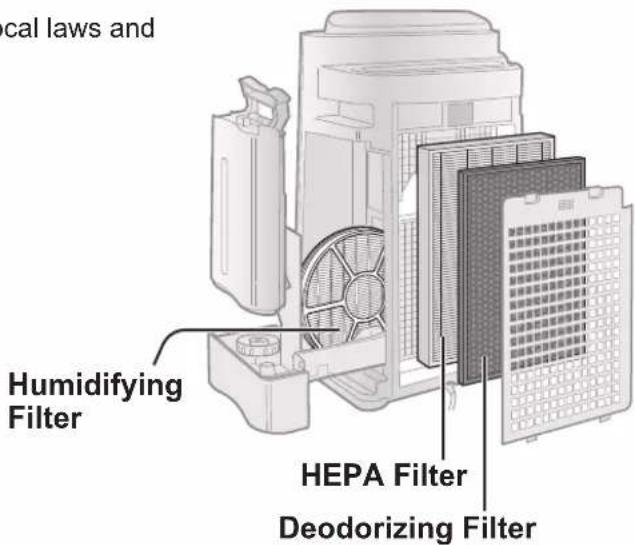

- When carrying the unit, remove the Water Tank and Humidifying Tray first and hold the unit by handles on both sides.

- Do not drink the water in the Humidifying Tray or Water Tank.

- Change the water in the Water Tank daily with fresh tap water and regularly clean the Water Tank and Humidifying Tray. (See E-13 and E-14). When unit is not in use, dispose of the water in the Water Tank and Humidifying Tray. Leaving water in the Water Tank and/or Humidifying Tray may result in mold, bacteria, and bad odours.

In rare cases, this bacteria may cause harmful physical effects.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

NOTE – Radio or TV Interference

If this air purifier should cause interference to radio or television reception, try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation distance between the unit and radio/TV receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTIONS CONCERNING OPERATION

• Do not block the intake and/or air outlet.
• Do not use the unit near or on hot objects, such as stoves or heaters, or where it may come into contact with steam. • Always operate the unit in an upright position.
• Hold the unit by using the handles on both sides when moving.
• Do not move or change the direction of the main unit while dragging the casters.
• Lift it up and move it over soft mats, floors that get damaged easily, uneven places, and thick-piled carpet.
• When moving by the caster, move it in a horizontal direction.
• Turn the appliance off and remove the water tank before moving, and take care not to catch your fingers.
• Do not operate the unit without the filters, water tank, and humidifying tray properly installed.
• Do not wash and reuse the HEPA filter and the deodorizing filter. Not only does it not improve filter performance, it may cause electric shock or malfunction.
• Clean the exterior with a soft cloth only. Do not use volatile fluids and/or detergents. The unit surface may be damaged or cracked. In addition, the sensors may malfunction as a result.
• Frequency of maintenance required (descaling) will depend on the hardness or the impurities of the water that you use; the harder the water, the more often descaling will be necessary.
• Keep the unit away from water.

Do not move when the unit is in operation.

IMPORTANT SAFETY INSTRUCTIONS

• Use only fresh tap water. Use of other water sources may promote the growth of mold, fungus, and/or bacteria.
• Do not shake the water tank when holding the carrying handle.
• Do not remove the humidifying filter from a filter frame.
• Avoid spilling water when removing or cleaning the Humidifying Tray.

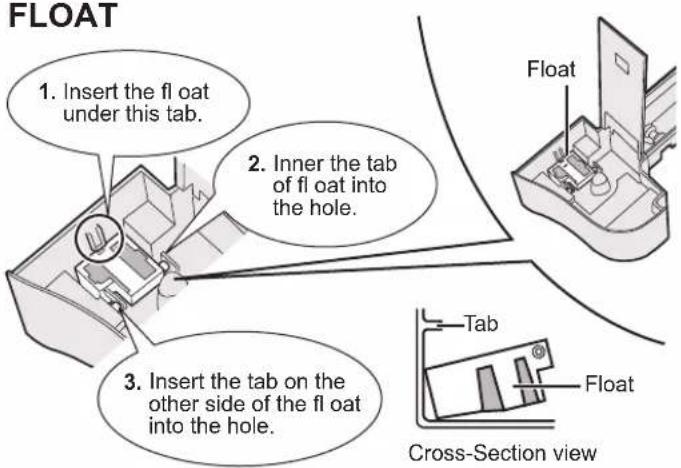

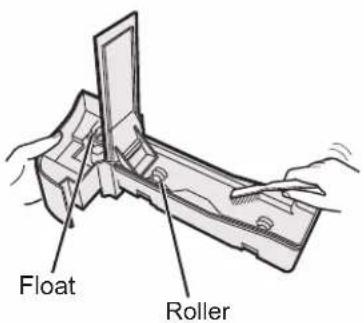

• Do not remove the Float and the Roller. Refer to E-18 if the Float and/or Roller comes off.
• Do not use detergents for maintenance of the Humidifying Tray and Cover. It may cause deformation, tarnishing, cracking (water leakage).

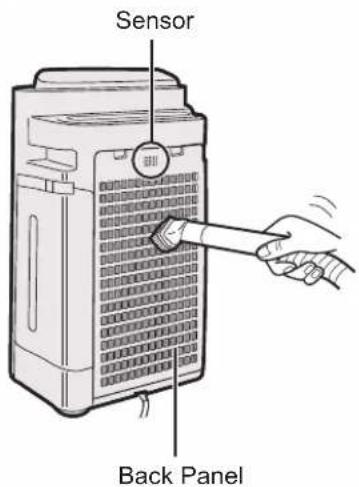

• Do not scrub the Back Panel hard during its maintenance.
• Avoid bending or folding the Deodorizing Filter when washing.

INSTALLATION GUIDELINES

- When using the unit, place at least 2 m away from equipment utilizing electric waves such as televisions or radios to avoid electrical interference.

- Avoid a location where the sensor is exposed to direct wind.

- When using the unit, place at least 2 m away from equipment utilizing electric waves such as televisions or radios to avoid electrical interference. - Avoid a location where the sensor is exposed to direct wind.

The unit may not operate properly.

- Avoid use in locations where furniture, fabrics or other items may come in contact with and restrict the air intake and/or air outlet.

- Avoid use in locations where the unit is exposed to condensation or drastic temperature changes. Appropriate conditions are when room temperature is between 5 – 35 °C.

- Place on a stable surface with sufficient air circulation.

- Avoid use in locations where furniture, fabrics or other items may come in contact with and restrict the air intake and/or air outlet. - Avoid use in locations where the unit is exposed to condensation or drastic temperature changes. Appropriate conditions are when room temperature is between 5 – 35 °C. - Place on a stable surface with sufficient air circulation.

When placing the unit on a heavily carpeted area, the unit may vibrate slightly. Place the unit on an even surface to avoid water leakage from the Water Tank and/or Humidifying Tray.

- Avoid locations where grease or oily smoke is generated.

The unit surface may crack or the sensor may malfunction as a result.

- Place the unit about 30 cm (1 ft) away from the wall in order to ensure proper airflow.

The dust collecting performance will be the same even if using the unit 3 cm away from the wall, but place it as far as possible because it may dirty the wall or floor around.

FILTER GUIDELINES

- Follow the instructions in this manual for correct care and maintenance of the filters.

PART NAMES

FRONT / BACK

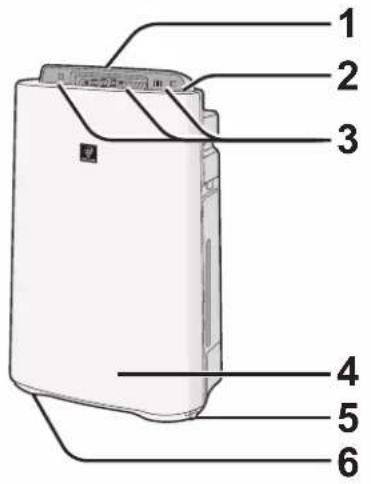

1 Air Outlet (Front)

2 Operation panel (Ref. E-6)

3 Display (Ref. E-6)

4 Main Unit

5 Stopper (2 Locations)

6 Caster (4 Locations)

(Plug shape varies by country.)

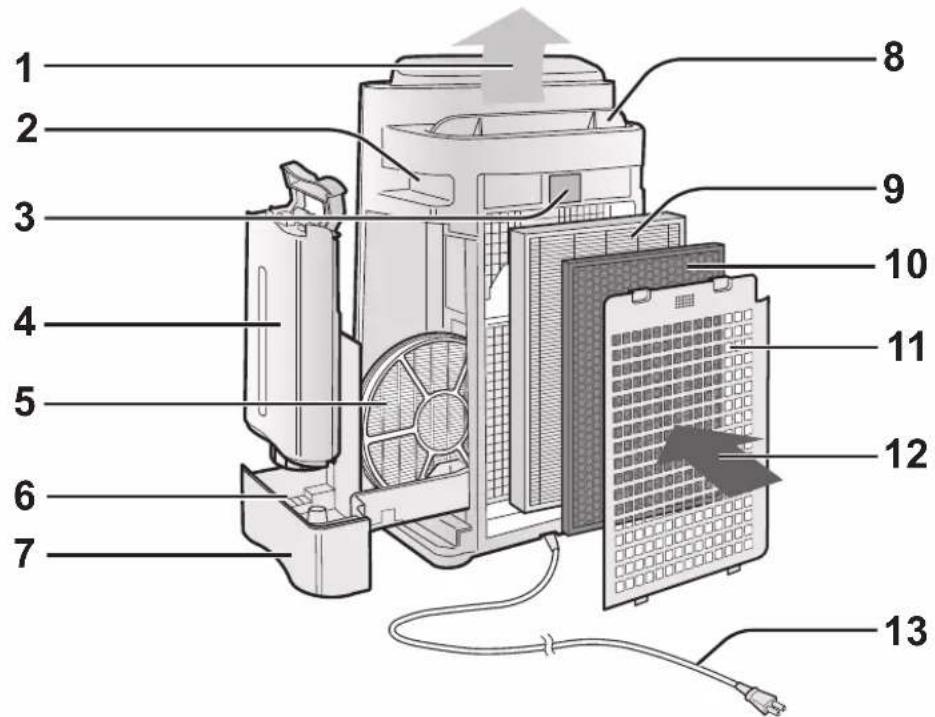

1 Air Outlet 6 Float
2 Handle (2 Locations)	7 Humidifying Tray
3 Sensor (Internal)•Dust Sensor•Temperature / Humidity Sensor•Odour Sensor(UA-HD60E and UA-HD50E only)	8 Louver (auto)
	9 HEPA Filter (white)
	10 Deodorizing Filter (black)
	11 Back Panel (Pre-Filter)
	12 Air Inlet
4 Water Tank 13 Power Cord / Plug
5 Humidifying Filter

PART NAMES

OPERATION PANEL

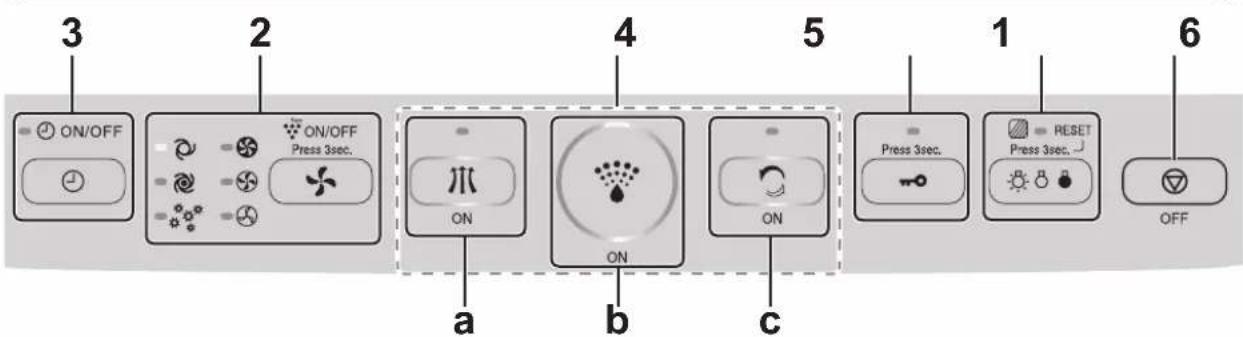

1 POWER ON Button
a CLEAN AIR MODE Button / INDICATOR LIGHT (green)
b CLEAN AIR HUMIDIFY MODE Button / INDICATOR LIGHT (green)
c CLEAN ION SHOWER MODE Button / INDICATOR LIGHT (green)
2 • FAN SPEED Button /INDICATOR LIGHT (green)• Plasmacluster Ion ON / OFF Button(Press 3 sec.) /INDICATOR LIGHT (green)	5 • LIGHT CONTROL Button• FILTER RESET Button (Press 3 sec.) /INDICATOR LIGHT (orange)
3 ON/OFF TIMER Button /INDICATOR LIGHT (green)	6 POWER OFF Button
4 CHILD-LOCK Button (Press 3 sec.) /INDICATOR LIGHT (green)

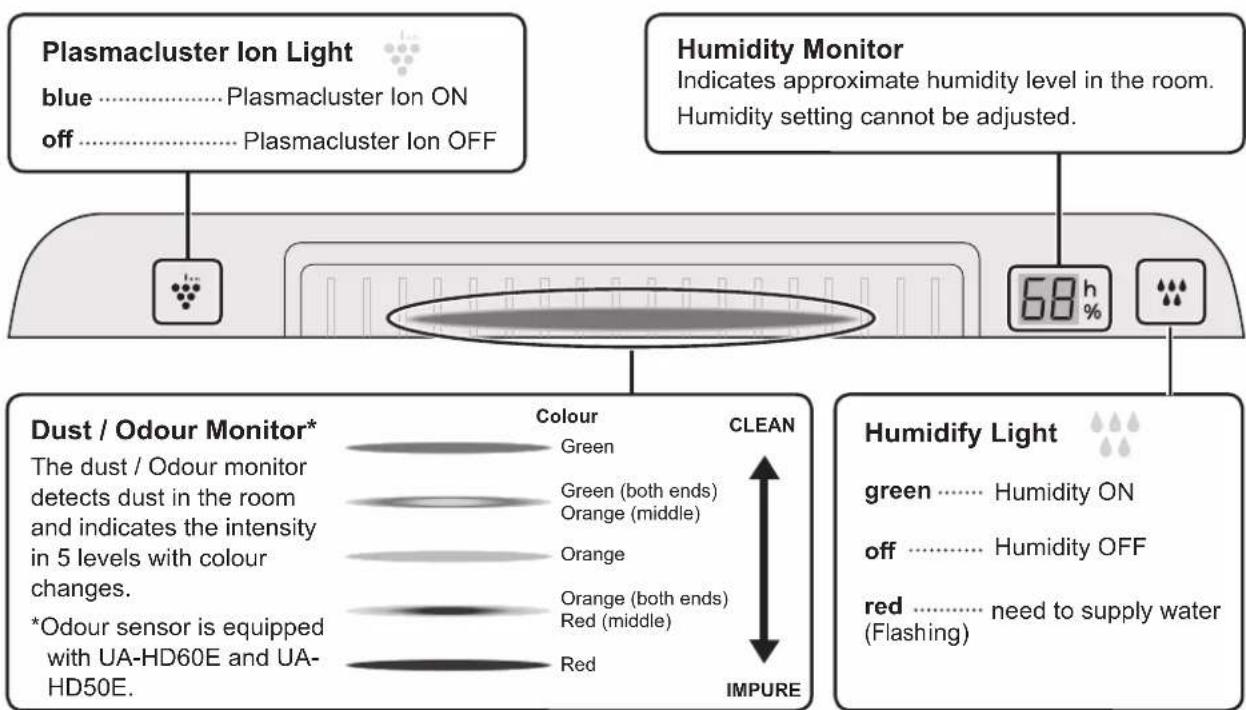

DISPLAY ILLUSTRATIVE DIAGRAM

FILTER INSTALLATION

1

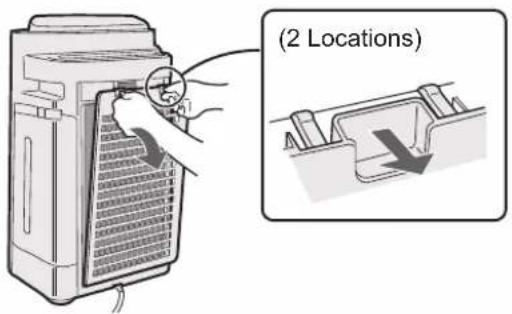

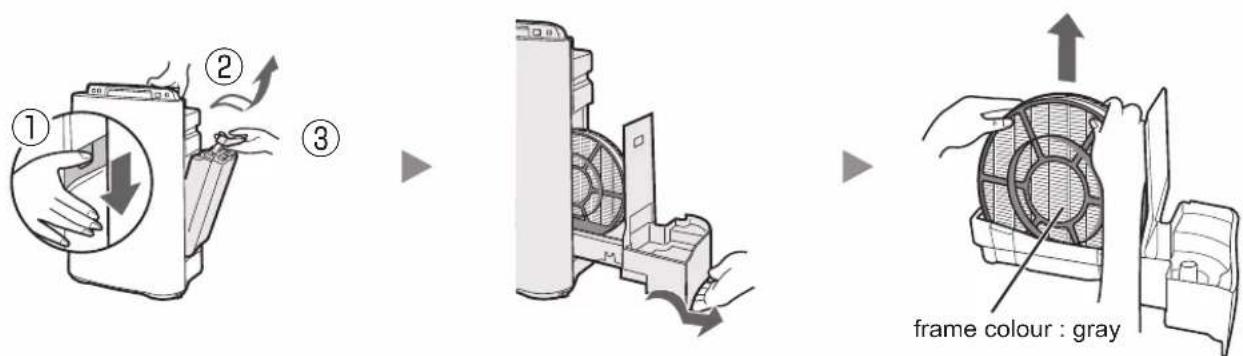

Remove the Back Panel.

2

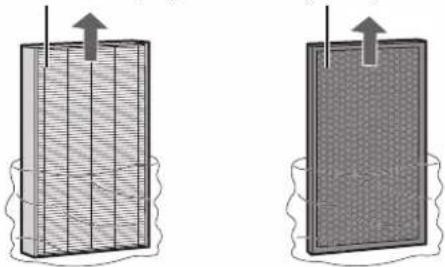

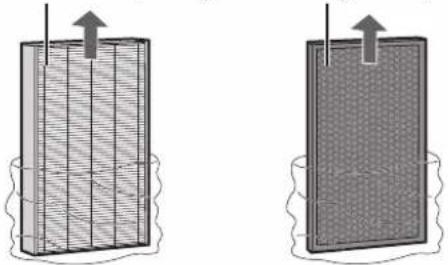

HEPA Filter (White) Deodorizing Filter (Black)

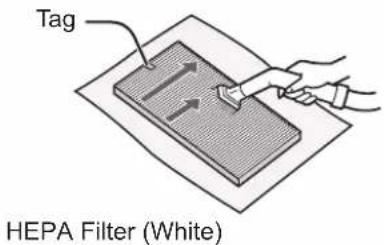

Remove the filters from the plastic bag.

3

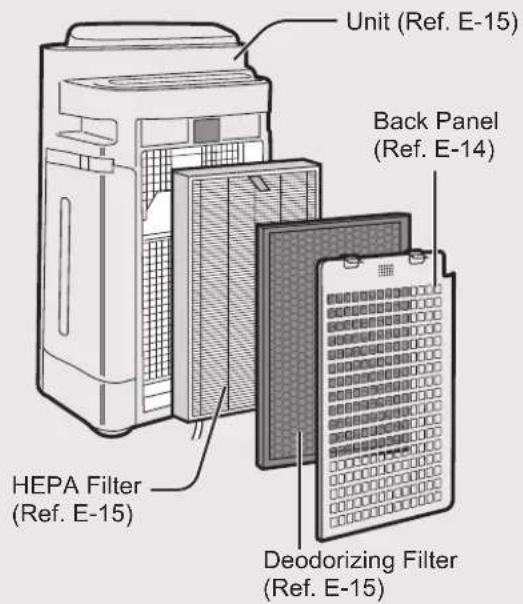

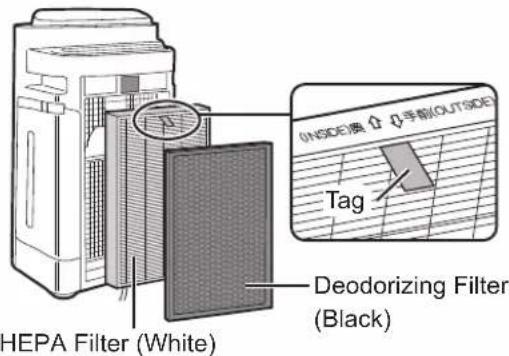

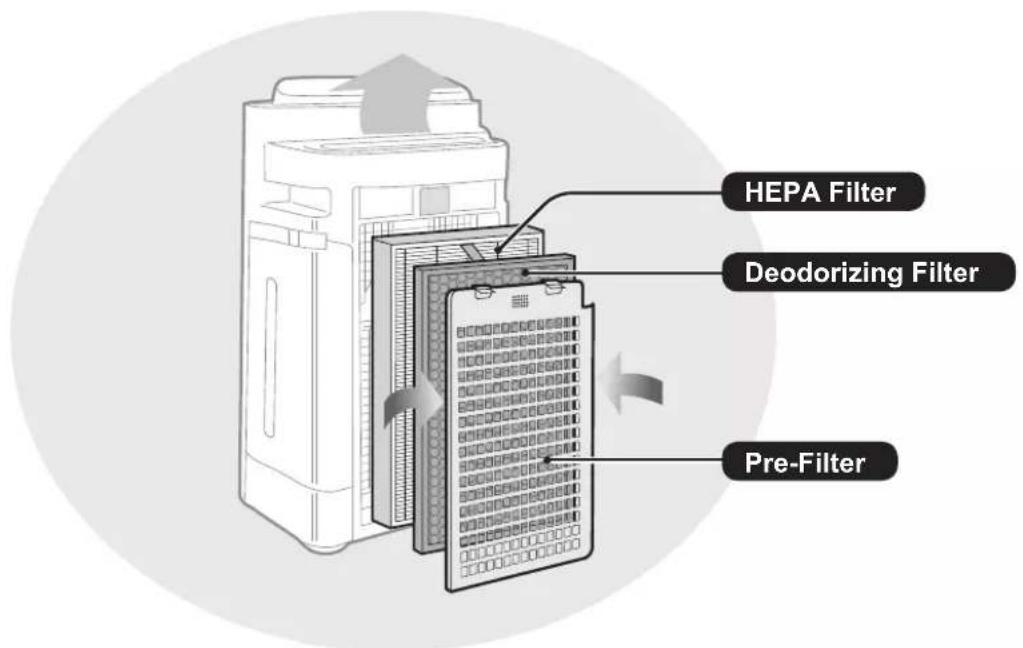

Install the filters in the correct order as shown.

4

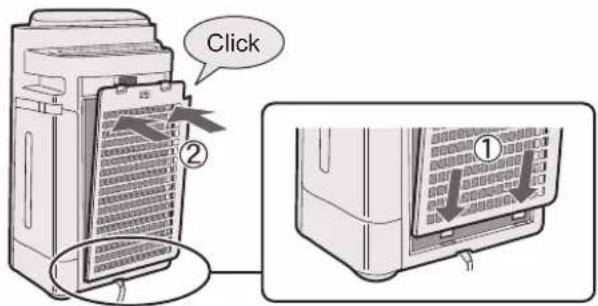

Install the Back Panel.

5

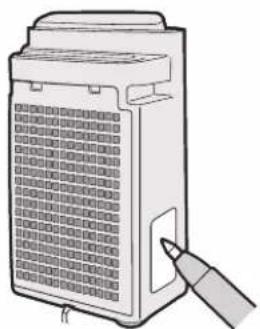

Fill in the usage start date on the Date Label.

REFILLING THE WATER TANK

When using the Clean Air Humidify Mode, or the Clean Ion Shower Mode.

1

Remove the Water Tank by pushing the handle down and pulling it forward.

2

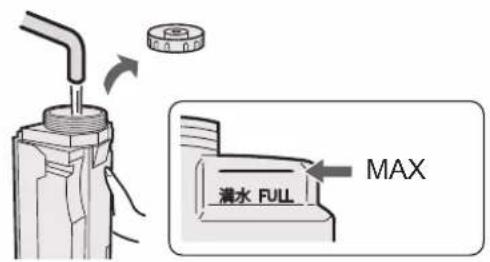

Fill the Water Tank with tap Water.

CAUTION

• Check to see that there is no water leaking.
• Be sure to wipe off any excess water on the outside of the Water Tank.
• When carrying the Water Tank, hold it with both hands so that the Water Tank opening is facing up.

3

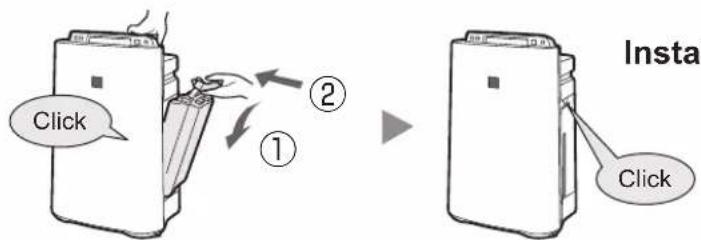

Install the Water Tank.

CAUTION

• Do not expose the unit to water. Short circuit and/or electrical shock may occur as a result.
• Do not use hot water (40 °C), chemical agents, aromatic substances, dirty water, or other damaging substances, deformation and/or malfunction may occur.
• Use only fresh tap water. Use of other water sources may promote the growth of mold, fungus and/or bacteria.

OPERATION

CLEAN AIR HUMIDIFY

Using to quickly clean the air, reduce odours and to humidify.

START

STOP

• The louver opens and the unit starts the operation automatically.

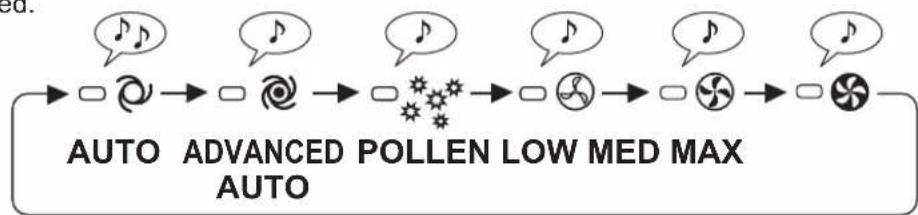

• Select the desired fan speed. (Ref. E-10)
• Unless the power cord has been unplugged, the operations starts in the previous mode it was operated in.

NOTE

• Fill the Water Tank. (Ref. E-8) - When the Water Tank is empty, the unit will operate in "CLEAN AIR MODE" and the indicator is flashing (red). - The indicator lights in green during operation of humidification.

About Automatic Humidify Mode

The Temperature/Humidity sensors automatically detect and adjust humidity according to changes in room temperature. Depending on the size and humidity of the room, humidity may not reach 55~65%. In such cases, it is recommended that CLEAN AIR HUMIDIFY/MAX MODE be used.

Temperature Humidity
~18 °C 65	%
18 °C~24 °C 60	%
24 °C~ 55 %

CLEAN AIR

Using when additional humidity is not required.

START

STOP

CLEAN ION SHOWER

Releases high-density Plasmacluster ions and discharges strong air flow for 60 minutes.

START

• The louver opens and the unit starts the operation automatically.
• Select the desired fan speed. (Ref. E-10)
• Unless the power cord has been unplugged, the operations starts in the previous mode it was operated in.

NOTE

• The louver opens and the unit starts the operation automatically.
• If the "Plasmacluster ion" is OFF, the plasmacluster ion will be not released.
• When the operation finishes, the unit will return to the prior operation mode.
• It is possible to switch this mode to another while operating. However, the CLEAN ION SHOWER mode will not function after switching mode.
• The unit releases Plasmacluster ions with the maximum air flow and collects dusts while decreasing static electricity for 10 minutes. After that, the unit operates while humidifying with strong air flow for 50 minutes.
• The unit stops humidifying and the Humidify Light will turn off once humidity reaches a proper level.
• When the Water Tank is empty, the Humidify Light is flashing (red) and the unit will operate without humidifying.

OPERATION

FAN SPEED

Select the desired fan speed.

NOTE

AUTO

The fan speed is automatically switched (between HIGH and LOW) depending on the amount of impurities in the air. The sensors detect impurities for efficient air purification.

ADVANCED

AUTO

The unit will automatically operate at a higher level than normal with the intensities of releasing high-density Plasmacluster ions and catching dust. When humidity reaches 70% or more, the unit discharges strong air flow continuously.

POLLEN

DUST SENSOR sensitivity is automatically set to "HIGH" and quickly detects impurities such as dust and pollen to clean the air.

PLASMACLUSTER ION ON/OFF

(In operation)

ON

OFF

more than 3 sec.

When Plasmacluster ion is OFF, the Plasmacluster Ion Light (blue) is turned off.

CHILD LOCK

Operation of the unit display will be locked. It is the same method as starting operation.

ON CANCELLATION

more than 3 sec.

more than 3 sec.

USEFUL FUNCTIONS

LIGHT CONTROL

Use this function to select the desired brightness.

ON TIMER

Select the length of time you want. The unit automatically starts once the selected time is reached.

(with the unit OFF)

OFF TIMER

Select the length of time you want, with the unit on. The unit automatically stops once the selected time is reached.

ADJUSTMENT OF SENSOR DETECTION SENSITIVITY

DUST/ODOUR MONITOR is constantly red to reduce sensitivity, and set to "high" if the DUST/ODOUR MONITOR is constantly green to increase sensitivity.

*Odour sensor is only equipped with UA-HD60E and UA-HD50E.

1 RED……SET to "LOW" GREEN……SET to "HIGH" (with the unit OFF) more than 3 sec.

2 High Standard Low

3

CAUTION - If the power OFF Button is not pushed within 8 seconds of adjusting sensor sensitivity, the setting will be saved automatically. - The sensor sensitivity setting will be saved even if the unit is unplugged.

FILTER INDICATOR

In case operating at the "MEDIUM" wind volume, the Indicator Light will turn on after approximately 720 hours. (30 days × 24 hours = 720) (The lighting time will vary between approximately 360-1080 hours depending on the wind volume.)

Reminder to perform maintenance of parts below. After performing maintenance, reset the Filter Indicator. (Ref. E-13)

more than 3 sec.

CARE INDEX

- Filter Indicator Light turn on.

- Notice an unpleasant odour from the air outlet. - Filter performance appears fall and / or odour persist.

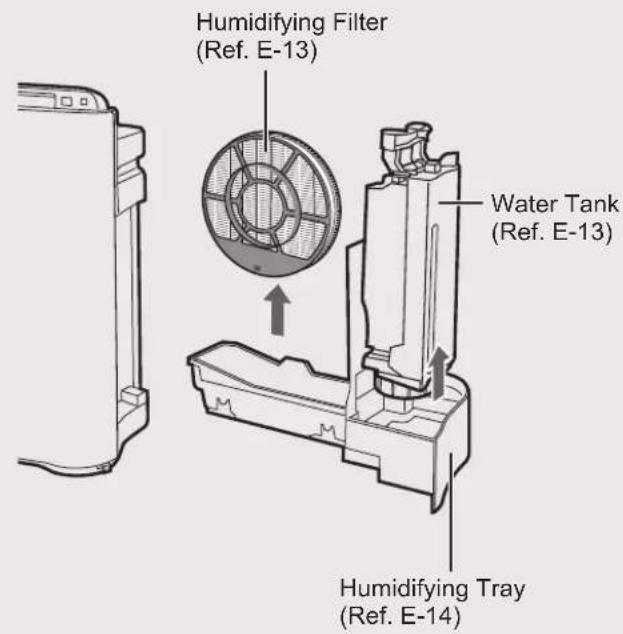

HUMIDIFYING DISINSTALLATION

After maintenance, replace the parts accurately.

E-12

WATER TANK

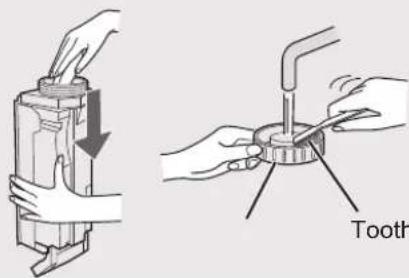

Rinse the inside with a small amount of water.

CAUTION

• Do not shake the Water Tank while holding the carrying handle.
• Do not place the Water Tank with the Tank Cap on the bottom. (Water may leak.)

NOTE for stubborn dirt...

Clean the inside of the water tank with a soft sponge and the tank cap with a cotton swab or a toothbrush.

Toothbrush, Tank cap

HUMIDIFYING FILTER

Rinse with plenty of water.

CAUTION

• Do not remove the Humidifying Filter from the Filter Frame.
• Avoid spilling water from the Humidifying Tray.

NOTE for stubborn dirt...

1. Soak in water with the descaling solution for about 30 minutes.

CAUTION: When using lemon juice, soak time longer.

1. Rinse off the descaling solution with plenty of water.

Descaling solution

• Citric acid (available at some drugstores or baking shops) • 100% bottled lemon juice with no pulp.

2 1/2 cups of water

3 cups of water

HUMIDIFYING TRAY AND COVER

Rinse the inside of the Humidifying Tray with a toothbrush.

CAUTION

• Do not remove the Float and the Roller.
• If the Float and / or the Roller comes off. (Ref. E-18)

NOTE

for stubborn dirt...

TRAY

1. Fill the tray half way with water.
2. Add a small amount of kitchen detergent.
3. Soak for 30 minutes.
4. Remove the kitchen detergent with clean water.

BACK PANEL

Gently remove dust with a vacuum cleaner attachment or similar tool.

NOTE

For stubborn dirt...

1. Soak in water with kitchen detergent for about 10 minutes. DO NOT scrub the back panel hard.
2. Remove the kitchen detergent with clean water.
3. Dry filter completely in a well-ventilated area.

CAUTION

HEPA FILTER / DEODORIZING FILTER

Deodorizing Filter (Black)

Remove the dust on the HEPA FILTER and DEODORIZING FILTER.

CAUTION

Do not WASH in water and DRY in the sun.

• HEPA FILTER

Apply the maintenance only to the side with the tag on. Do not clean the opposite side.

The filter is fragile, so be careful not to apply too much pressure.

• DEODORIZING FILTER

The maintenance can be applied to both sides.

The filter may be broken if too much power is applied to it, so please handle it with care.

UNIT

Wipe with a dry, soft cloth.

CAUTION

. Do not use volatile fluids

Benzine, paint thinner, polish powder, may damage the surface.

. Do not use detergents

Detergent ingredients may damage the unit.

FILTER REPLACEMENT

Replacement timing

Filter life will vary depending on the room environment, usage, and location of the unit. If dust or odour persists, replace the filter.

(Refer to "Please read before operating your new Air Purifier")

The following filter life and replacement period is based on the condition of smoking 5 cigarettes per day and the dust collection/deodorization power is reduced by half compared with that of new filter. We recommend to replace the filter more frequently if the product is used in a condition significantly severer than normal household use.

•HEPA Filter About 10 years after opening •Deodorizing Filter About 10 years after opening • Humidifying Filter About 10 years after opening

Replacement Filter Model

Please consult your dealer for purchase of replacement filter.

AIR PURIFIER MODEL	REPLACEMENT FILTER MODEL
	HEPA Filter : 1 unit	Deodorizing Filter : 1 unit	Humidifying Filter : 1 unit
UA-HD40E UZ-HD4HF UZ-HD4DF			UZ-HD6MFU
UA-HD60E UZ-HD6HF UZ-HD6DF

Humidifying Filter

NOTE

Use the date label as a reminder for next replacement.

Disposal of Filters

Please dispose of used filters according to any local laws and regulations.

HEPA Filter material :

• Filter : Polypropylene
• Frame : Polyester

Deodorizing Filter material :

• Deodorizer : Activated charcoal • Filter : Polyester, Rayon

Humidifying Filter material :

• Filter: Rayon, Polyester

TROUBLESHOOTING

Before calling for service, please review the Troubleshooting chart below, since the problem may not be a unit malfunction.

SYMPTOM REMEDY (not a malfunction)
Odours and smoke are not removed.	·Clean or replace the fi Iters if they appear to be heavily soiled. (Ref. E-12,E-13,E-15)
The Dust/Odour Monitor illuminates green even when the air is impure.	·The air could be impure at the time the unit was plugged in. Unplug the unit, wait one minute, and plug the unit in again.
The Dust/Odour Monitor illuminates orange or red even when the air is clean.	·Sensor operation is aff ected if the dust sensor openings are dirty or clogged. Gently clean the dust sensors. (Ref. E-5).
A clicking or ticking sound is heard from the unit.	·Clicking or ticking sounds may be audible when the unit is generating ions.
The discharged air has an odour.	·Check to see if the fi Iters are heavily soiled.·Clean or replace the fi Iters.·Plasmacluster Air Purifi ers emit small traces of ozone which may produce an odour.
The unit does not operate when cigarette smoke is in the air.	·Is the unit installed in a location that is diffi cult for the sensor to detect cigarette smoke?·Are the dust sensor openings blocked or clogged? (In this case, clean the openings.) (Ref. E-5)
Filter Indicator Light is illuminated.	·After replacing fi Iters, connect the power cord to an outlet and press the Filter Reset Button. (Ref. E-12)
The Dust/Odour Monitor are turned off.	·Check to see if the Lights OFF Mode selected. If so, then press the Lights Control Button to activate the indicator lights. (Ref. E-11)
The Water Supply Indicator Light does not illuminate when the tank is empty.	·Check Styrofoam float for impurities. Clean the HumidifyingTray. Ensure unit is located on a level surface.
Water lever in the tank does not decrease or decreases slowly.	·Check to see if the Humidifying Tray and Water Tank are correctly installed. Check the Humidifying Filter.·Clean or replace the fi Iter when it is heavily soiled. (Ref. E-15 and E-16).
The Dust/Odour Monitor lights change colour frequently.	·The Dust/Odour Monitor lights automatically change colours as impurities are detected by the dust sensor and odour sensor.

TROUBLESHOOTING

SYMPTOM REMEDY (not a malfunction)

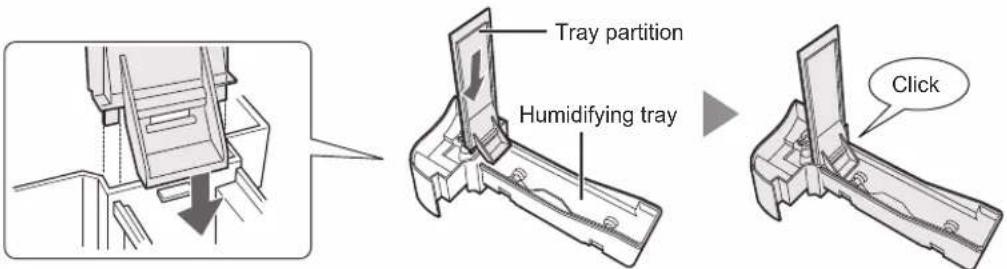

When the Roller / Float / Tray partition was removed.	• Install the Roller / Float / Tray partition in order below.
	ROLLERFix the roller in the tray from side way.
AUTO RESTARTAfter a power failure, automatically resume the operation when the power recovers.	Auto Restart can be set.• Even when the plug is unplugged or the breaker is thrown during the operation, the operation resumes at the previous operation mode and settings if the power recovers.
ON(with the unit OFF)(simultaneously for more than 3 sec.)If the ,amp lights up for 10 seconds, the setting is complete.	CANCELLATION(with the unit OFF)(simultaneously for more than 3 sec.)

AUTO RESTART

ON

CANCELLATION

ERROR DISPLAY If error occurs again, contact the Sharp Service Centre.

DIGITAL INDICATION	ERROR DETAILS REMEDY
E2	Abnormal Humidity Filter.	Verify if the Humidifying Filter, Humidifying Tray and Roller are properly installed and then turn power ON again.
C1	Abnormal fan motor.	Unplug the unit, wait one minute, and plug the unit in again.
C4	Abnormal temperature-humidity sensor.

Model UA-HD60E UA-HD50E UA-HD40E
Power supply 220-240 V 50-60 Hz
Fan Speed Adjustment		MAX MED LOW MAX MED			LOW MAX MED LOW
CLEAN AIR	Fan Speed (m3/hour)	396 240 90 306 186 60 216			144 60
	Rated Power (W)	80 24 5.5 54 17 5 25 12 5
	Noise Level (dBA)	55 45 25 55 43 23 47 37 23
CLEAN AIR & HUMIDIFY	Fan Speed (m3/hour)	366 240 90 288 186 60 180			144 60
	Rated Power (W)	7	0	2	6	7	4	9	2	0	7
	Noise Level (dBA)	54 45 25 54 43 23 43 37 23
	Humidifi cation (mL/hour)*1	660 480 230 600 460 190 440 370 190
Recommended Room Size (m2)*2 ~48		~38			~26
High density Plasmacluster ion recommended room size (m2)*3		~35			~28			~21
Water Tank Capacity (L)		3.0			2.5			2.5
Sensors		Dust/Odour/Temperature & Humidity			Dust/Odour/Temperature & Humidity			Dust/Temperature & Humidity
Filter type	Dust collection	HEPA with Microbial control *4
	Deodorization	Deodorizing
Cord Length (m)		2.0
Dimensions (mm)		420 (W) × 242 (D) × 637 (H)			399 (W) × 230 (D) × 615 (H)			399 (W) × 230 (D) × 615 (H)
Weight (kg)		8.6			7.9			7.9

*1 • Humidification Amount changes in accordance with indoor and outdoor temperature and humidity. Humidification Amount increases as temperatures rise or humidity decreases. Humidification Amount decreases as temperatures decrease or humidity rises. Measurement Condition: 20°C, 30% humidity (IFM1186) • Measurement Condition: 20 °C, 30 % humidity (JEM1426)

*2 • The Recommended Room Size is appropriate for operating the unit at maximum fan speed. • The Recommended Room Size area indicates the space where a certain amount of dust particles can be removed in 30 minutes. *3 • Size of a room in which approximately 7000 ions can be measured per cubic centimeter (floor) when the product is placed next to a wall and run at the MED operation position. *4 • The filter removes more than 99.97% of particles of 0.3-micron dust. (JEM1467)

Standby Power

In order to operate the electrical circuits while the power plug is inserted in the wall outlet, this

product consumes about 0.9 W of standby power.

For energy conservation, unplug the power cord when the unit is not in use.

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

A. Information on Disposal for Users (private households)

1. In the European Union

IF YOU WISH TO DISPOSE OF THIS EQUIPMENT, DO NOT USE THE ORDINARY WASTE BIN, AND DO NOT PUT IT INTO A FIREPLACE!

Used electrical and electronic equipment should always be collected and treated SEPARATELY in accordance with local law.

Separate collection promotes an environment-friendly treatment, recycling of materials, and minimizing final disposal of waste. IMPROPER DISPOSAL can be harmful to human health and the environment due to certain substances! Take USED EQUIPMENT to a local, usually municipal, collection facility, where available.

If in doubt about disposal, contact your local authorities or dealer and ask for the correct method of disposal.

ONLY FOR USERS IN THE EUROPEAN UNION, AND SOME OTHER COUNTRIES; FOR INSTANCE NORWAY AND SWITZERLAND: Your participation in separate collection is requested by law.

The symbol shown above appears on electrical and electronic equipment (or the packaging) to remind the users of this.

Users from PRIVATE HOUSEHOLDS are requested to use existing return facilities for used equipment. Return is free of charge.

If the equipment has been used for BUSINESS PURPOSES, please contact your SHARP dealer who will inform you about take-back. You might be charged for the costs arising from take-back. Small equipment (and small quantities) might be taken back by your local collection facility. For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users.

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

广力云智慧零售收银系统

1

(No text)

[Non-Text]

[Non-Text]

[Non-Text]

SHARP®

UA-HD60E UA-HD50E UA-HD40E

HIGH-DENSITY 7000 *

Freestanding type

Deofi Iter (black)

SYSTEM

"Plasmacluster" and "Device of a cluster of grapes" are trademarks of Sharp Corporation.

Standalone type

more than 3 seconds

more than 3 seconds

USEFUL FUNCTIONS

LIGHT CONTROL

ON TIMER

Deodorizing filter (black)

• HEPA FILTER

HIGH-DENSITY 7000 *

"Plasmacluster" and "Device of a cluster of grapes" are registered trademarks of Sharp Corporation.

Standalone type

ON TIMER

TRAY

Deodorizing filter (black)

DEODORIZING FILTER

HIGH-DENSITY 7000 *

Free-standing type

FILTER INSTRUCTIONS

PLASMACLUSTER IONS ON/OFF

(During operation)

On

USEFUL FUNCTIONS

BRIGHTNESS CONTROL

ON TIMER

Free-standing type

ON TIMER

TANK

TROUBLESHOOTING ....EN-17

SPECIFICATIONS....EN-20

1 AAN-knop
a Knop LUCHT REINIGEN/INDICATORLAMPJE (groen)
b Knop LUCHT REINIGEN EN BEVOCHTIGEN/INDICATORLAMPJE (groen)
c Knop REINIGEN DOOR IONENDOUCHE/INDICATORLAMPJE (groen)
2 • Knop VENTILATORSNELHEID/INDICATORLAMPJE (groen)• AAN/UIT-knop plasmclusterion (3 sec. indrukken) / INDICATORLAMPJE (groen)	5 • Knop BESTURING LAMPJES• Knop FILTER RESETTEN (3 sec. indrukken) / INDICATORLAMPJE (oranje)
3 Knop TIMER AAN/UIT/INDICATORLAMPJE (groen)	6 UIT-knop
4 Knop KINDERSLOT (3 sec. indrukken) / INDICATORLAMPJE (groen)

ILLUSTRATIVE SCHEMATIC REPRESENTATION

HEPA filter (white) Deodorizing filter (black)

CAUTION

PLASMACLUSTER IONS ON/OFF

(in operation)

ON

OFF

more than 3 sec.

ON-TIMER

CAUTION

HEPA filter (white)

Deodorizing filter (black)

• HEPA FILTER

CAUTION

TROUBLESHOOTING

TINS-B185KKRZ 18K - ①

UMC Poland Sp. z o.o.

Ostaszewo 57B, 87-148 Łysomice, Poland

SHARP CORPORATION

OSAKA, JAPAN

SDA/MAN/0022

www.sharpconsumer.eu

SHARP
