Maxxpack 18V BTCWL002 - Lamp Batavia - Free user manual and instructions

Product type	LED work light
Brand	Batavia
Model	Maxxpack 18V BTCWL002
Weight	3.5 kg
Dimensions (W × H × D)	15 × 23.1 × 18.2 cm
Power supply	Mains (230 V~ 50 Hz) or Maxxpack 18 V battery (not included)
Power in mains mode	45 W LED
Power in battery mode	25 W LED
Luminous flux (mains)	4,300 lm
Luminous flux (battery at 100%)	2,700 lm
Battery life with 4 Ah battery	Approximately 2.5 hours
Protection rating	IP54
Number of brightness levels	4 (25%, 50%, 75%, 100%)
Lighting angle	360°
Stand	Foldable tripod
Intended use	Indoor and outdoor under cover
Warranty	2 years
Maintenance	Clean with a damp cloth and mild soap; do not use solvents
Spare parts and repairability	Maxxpack batteries and chargers available separately; no user-serviceable parts
Safety	Do not stare at the light beam; do not direct at people or animals

Frequently Asked Questions - Maxxpack 18V BTCWL002 Batavia

How to turn on the lamp on battery?

Insert a charged battery into the holder, set the main switch to position II, then press the on/off button. Each press increases brightness (25%, 50%, 75%, 100%) and the fifth press turns it off.

Which battery is compatible with this lamp?

The lamp works with Maxxpack 18 V 4 Ah or 5 Ah batteries (not included).

Can the lamp be used on mains power?

Yes, plug the mains cord into a 230 V~ 50 Hz outlet and set the switch to position I (on) or 0 (off).

What is the battery life of the lamp?

With a Maxxpack 18 V 4 Ah battery, the battery life is approximately 2.5 hours at full power.

How to unfold and store the lamp?

To unfold: pull the lamp upward until it clicks. To fold: press the release button, fold down the head and fold the legs simultaneously.

Is the lamp waterproof?

It has an IP54 protection rating, which protects against water splashes and dust, but do not immerse it.

How to clean the lamp?

Use a damp cloth with a little mild soap. Do not use solvents or abrasive products. Ensure no water enters the interior.

Where to store the lamp?

Store it in a dark, dry, frost-free place, preferably in its original packaging.

What safety precautions should be taken?

Do not stare directly into the light beam. Do not direct the light at people, animals, or vehicle drivers. Read all safety instructions before use.

How to dispose of the lamp at end of life?

Do not dispose of it with household waste. Take it to an electronic waste collection point or return it to a participating retailer.

USER MANUAL Maxxpack 18V BTCWL002 Batavia

360° hybrid LED work light

Operating instructions

Close-up of a portable electronic device with a cylindrical lens and tripod base, set against an orange background (no visible text or symbols)

Model: BT-CWL002

Item-No.: 7064211

www.bataviapower.com

Technical diagram of a mechanical assembly with numbered components and cross-sectional views

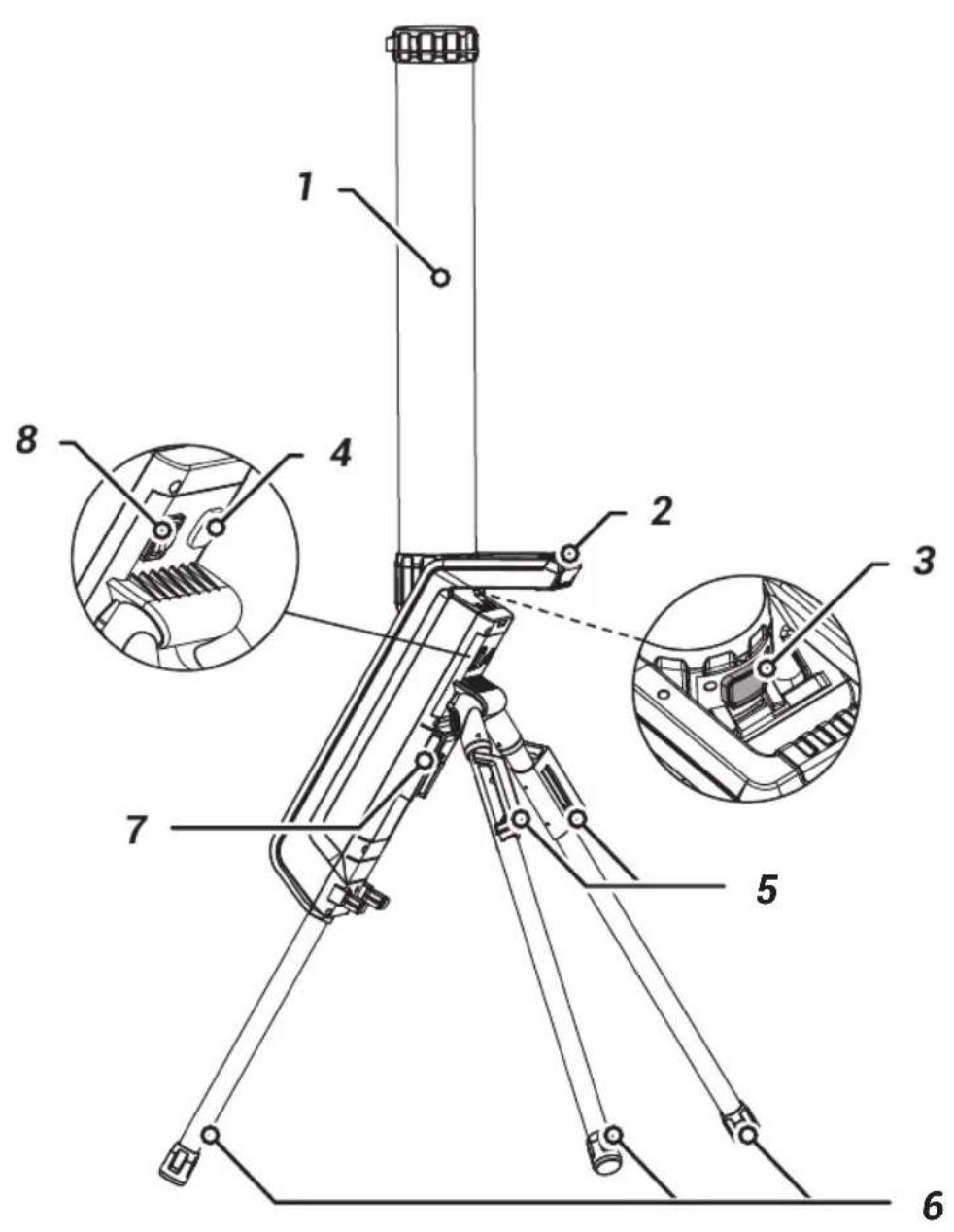

Overview

1. LED light
2. Handle
3. Unlock Button
4. ON/OFF Switch
5. Cord holder
6. Leg / Tripod
7. Battery holder (Battery not included)
8. ON/OFF Switch - AC/DC

Übersicht

User Guides provide useful tips on how to use your new device. They help you to use all functions, avoid misunderstandings and prevent damage. Please take your time to read this manual carefully and keep it for future reference.

Please read the separately attached "General Safety Instructions for Power Tools" and all additional safety instructions in these operating instructions!

These operating instructions contain important information on the operation and handling of the unit. Keep these operating instructions for further reference. Please pass it on together with the unit if it is handed over to third parties.

Battery and charger not included.

The Maxxpack batteries and chargers are available online and in participating shops.

1. Explanation of symbols

The following symbols are used in the User Guide or on the product:

WARNING - Read the instructions to reduce the risk of injury.

General warning - Be alert and pay attention to general hazards.

Do not expose the unit to rain or water except for the tank.

UKCA stands for: "UK Conformity Assessment". This means "Compliant with UK regulations". With the UKCA mark manufacturer confirms that this unit complies with the applicable UK regulations.

CE stands for: "Conformité Européenne". This means: "Compliant with EU directives". With the CE mark manufacturer confirms that this unit complies with the applicable European directives.

The unit must not be disposed of with household waste.

2. Specific safety instructions

- Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

CAUTION! Do not stare into the light beam. The optical radiation can be harmful for your eyes.

• Do not direct the light beam at persons or animals and do not stare into the light beam yourself (not even from a distance).
• Do not point the beam at: cars, motorcycles, aircraft, ships or any other vehicle or machinery that is operated by a person. Bright light can be blinding and you could cause a serious accident.

3. Before first use

Remove the machine and the accessories from the packaging. Check the machine for transport damage and do not use the machine in case of damages. Keep the packing materials away from children, risk of suffocation!

4. Intended Use

Work light with a light range of 360^ . For indoor and outdoor use under a canopy.

The work light works on mains power and with an 18V Maxxpack battery 4.0Ah + 5.0Ah (battery not included).

5. Use

The work light comes with a tripod, unfold all three legs (6) of the tripod completely so that the light is stable and straight. Then unfold the light (1) upwards until it audibly clicks into place.

Place the work light on a stable, flat surface so that the work light cannot tip over.

5.1 Operation on mains (AC):

• Insert the plug into the socket
• Set the on/off switch (8) to position I
• Set the on/off button (8) to position 0 to switch off the light:

5.2 Operation with battery:

• Place a full battery in the battery holder (7)
• Set the on/off switch (8) to position II

- Press the on/off button (4) to switch on the light and to set the brightness:

• 1× click = light on 25%
• 2× clicks = light on 50%
• 3× clicks = light on 75%
• 4x clicks = light on 100%
• 5× clicks = light off

- Set the on/off switch (8) to position 0 to switch off the light completely

5.3 Folding the light:

• Set the on/off switch (8) to position 0
• Press the release button (3) and fold down the light (1)
• Fold the tripod's 3 legs together
• Store the cord in the cord holder (5)

6. Cleaning, maintenance and storage

6.1 Cleaning

Clean the machine regularly with a damp cloth and a little mild soap. Do not use cleaning agents or solvents; these may damage the plastic parts of the machine. Make sure that no water can get into the inside of the machine.

6.2 Maintenance

There are no serviceable parts inside the machine.

6.3 Storage

Store the unit and accessories in a dark, dry and frost-free place.

7. Technical data

AC mode

Input voltage .....230 V\~ 50Hz

Work light . . . . . . . . . . . . . . . . 45 W LED

Lumen. 4300 lm

DC mode

Input voltage 18 V=

Work light . . . . . . . . . . . . . . . . . 25 W LED

Lumen. . . . . . . . . Max 2700 Im (100%)

Working time on a full 4Ah battery . . 2.5 hours

IP class IP54

Measurements. . . . . . 15 × 23.1 × 18.2 cm

Weight: 3.5 kg

8. Disposal

Do not dispose of electric power tools with domestic refuse.

The electric power tool is shipped

in packaging to reduce transport damage.

This packaging is a raw material and as such can either be reused or can be fed back into the raw material cycle. The electric power tool and its accessories are made from various materials such as metals and plastics. Take defective components to a special refuse collection point. Ask about these at your specialist shop or local council.

8.1 Batteries

Think of the environment when disposing of batteries. Contact your local authorities to find out where your nearest disposal area is. Do not dispose of batteries with domestic refuse. Do not dispose of by burning, risk of explosion.

9. EC-Declaration of conformity

We, the Batavia B.V., Weth.

Wassebaliestraat 6d, NL-7951 SN

Staphorst, declare by our own responsibility that the product LED Work light,

Item-No 7064211, Model Nr. BT-CWL002

is according to the basic requirements, which are defined in the European

Directives Electromagnetic Compatibility

2014/30/EU (EMC), RoHS: 2011/65/EU,

2014/35/EU (LVD) and their amendments.

For the evaluation of conformity, the following harmonized standards were consulted:

EN 60598-1:2015+A1:2018;

EN 60598-2-4:2018;

EN IEC 62031:2020;

EN 62471:2008;

EN 62493:2015;

EN 61547:2009;

EN IEC 55015:2019+A11:2020;

EN IEC 61000-3-2:2019+A1:2021;

Staphorst, 22 April 2022

Jenny

Meino Seinen, QA Representative

Batavia B.V., Weth. Wassebaliestraat 6d,

7951 SN Staphorst, Netherlands

The product and the user manual may be

subject to changes. Technical data may be

changed without prior notice.

Handwritten signature or scribble on a white background, possibly a signature or autograph.

Handwritten signature or scribble on a white background, possibly a signature or autograph.

Handwritten signature or scribble on a white background, possibly a signature or autograph.

Meino Seinen, Rappresentante QA

Batavia B.V., Weth. Wassebaliestraat 6d,

7951 SN Staphorst, Paesi Bassi
