USER MANUAL MW 7770 SEVERIN

SEVERIN. SUNDERN. GERMANY QUALITY SINCE 1892

SEVERIN

TASTEFUL TECHNOLOGY

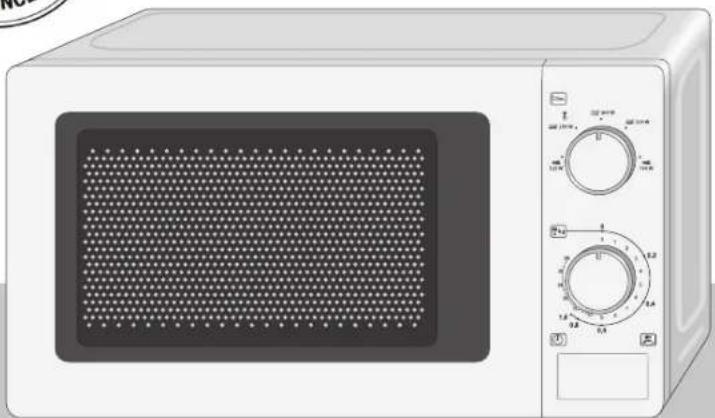

Illustration of a microwave oven with control knobs and a mesh grille (no text or symbols visible)

BEDIENUNGSANLEITUNG

Mikrowelle MW 7770

Mikrowelle MW 7897

Mikrowelle MW 7899

GB Operating instructions Microwave 15

250 W 400 W 550 W 125 W 700 W 2

1 Overview and scope of delivery

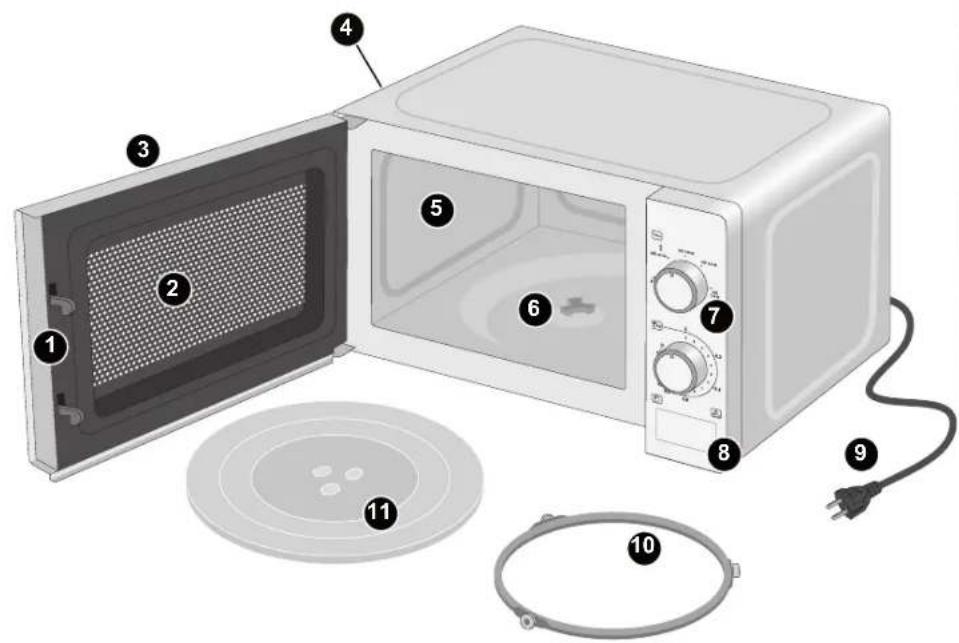

Labeled diagram of a microwave oven showing interior components and parts including open door, lid, and power cord.

Abb. 1: Parts of the appliance

Item	Name/function
1	Door lock
2	Door window
3	Door
4	Ventilation openings (covered)
5	Cooking chamber
6	Turntable drive
7	Control panel, ▶ „Operating controls“ on page 23
8	Door opener
9	Power cable
10	Roller ring
11	Turntable

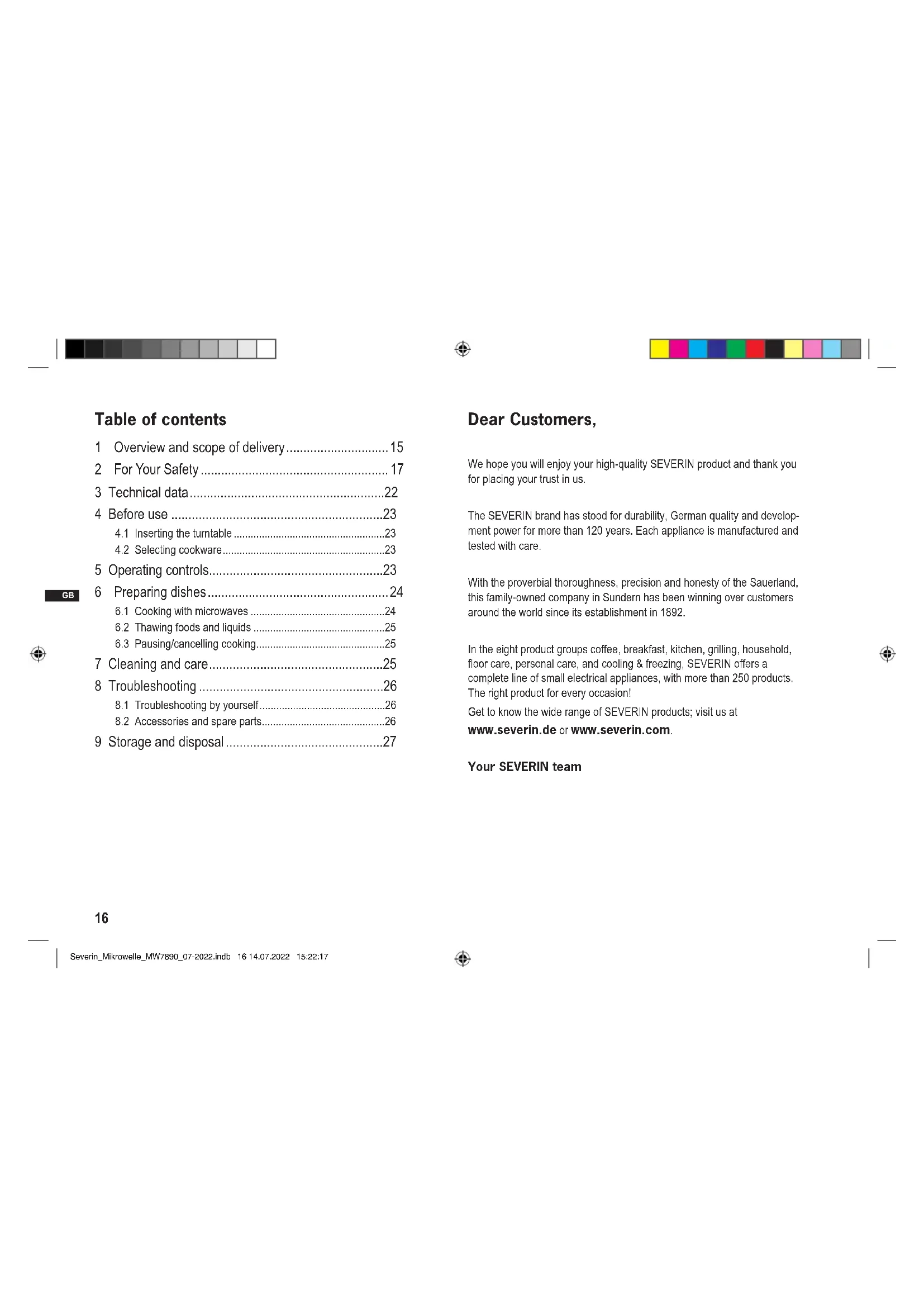

Table of contents

1 Overview and scope of delivery....15
2 For Your Safety 17
3 Technical data....22
4 Before use 23
4.1 Inserting the turntable....23
4.2 Selecting cookware....23
5 Operating controls....23
6 Preparing dishes....24
6.1 Cooking with microwaves 24
6.2 Thawing foods and liquids 25
6.3 Pausing/cancelling cooking....25
7 Cleaning and care....25
8 Troubleshooting....26
8.1 Troubleshooting by yourself....26
8.2 Accessories and spare parts....26
9 Storage and disposal....27

Dear Customers,

We hope you will enjoy your high-quality SEVERIN product and thank you for placing your trust in us.

The SEVERIN brand has stood for durability, German quality and development power for more than 120 years. Each appliance is manufactured and tested with care.

With the proverbial thoroughness, precision and honesty of the Sauerland, this family-owned company in Sundern has been winning over customers around the world since its establishment in 1892.

In the eight product groups coffee, breakfast, kitchen, grilling, household, floor care, personal care, and cooling & freezing, SEVERIN offers a complete line of small electrical appliances, with more than 250 products. The right product for every occasion!

Get to know the wide range of SEVERIN products; visit us at

www.severin.de or www.severin.com

Your SEVERIN team

SEVERIN

2 For Your Safety

Follow the operating instructions

Read the operating instructions completely before using the appliance. Keep the instructions in a safe place for future reference. If you give the appliance to somebody else, also give them the operating instructions.

Non-observance of these instructions can cause severe injuries and damage to the appliance.

Important notes for your safety are highlighted in the operating instructions as shown below. Be sure to follow these instructions to prevent accidents and damage to the appliance:

WARNING!

Indicates notes that must be adhered to in order to prevent the risk of injury or fatal injury.

CAUTION!

Indicates notes that must be adhered to in order to prevent the risk of material damage.

TIP:

Emphasises tips and other useful information.

Hazards for certain persons

Particular groups of people are at an increased risk:

• This appliance may be operated by children 8 years and older and persons with limited physical, sensory or intellectual capacities or those lacking experience and/or knowledge. The prerequisite for this is that they must be supervised or trained with respect to the safe operation of the appliance and they must have understood the resulting dangers.
  • Children must not play with the appliance.
  • Children may not clean or maintain the appliance without supervision.
• Keep children away from the packaging material. It presents a suffocation risk.
• Persons with sensitivity disorder, in particular reduced sensitivity to temperature differences, must be especially careful when using this appliance.

Correct use

The appliance is used exclusively for heating and thawing foods and beverages. Any other use is deemed improper use and can cause personal injuries and damage to the appliance.

• The appliance is designed for household use or use in a similar environment, e.g.
  – in kitchens for employees in stores, offices and other commercial areas;
  – on agricultural estates;
  – by customers in hotels, motels and other residential facilities;
  – in bed-and-breakfast facilities.

- The appliance is not designed to be operated with a timer or separate remote control system.

- The appliance may not be used in built-in furniture.

- WARNING: Do not heat liquids or other foods in closed containers since these can easily explode.

- Do not heat eggs in the shell or whole hard-boiled eggs with the appliance since they can explode, even after the heating by the microwaves is finished.

Power

Since the appliance is operated with electrical current, there is a risk of receiving an electric shock. Be sure to follow the precautions mentioned below::

• Only connect the appliance to a properly installed, earthed safety outlet socket. Do not use any extension cords or multi-outlet sockets.
• Only operate the appliance if the voltage specified on the rating plate matches the voltage of your outlet socket.
• Make sure that the power cable is not kinked or pinched and that the power cable and the appliance do not come in contact with heat sources (e.g. hot plates, gas flames).
• When you pull the power cable out of the outlet, always pull directly on the plug. Never carry the appliance by the power cable.
• Never immerse the appliance in water or other fluids, do not clean it under running water, and do not place it in the dishwasher.
• Do not clean the appliance with a steam cleaner.

SEVERIN

• Never touch the power plug with wet hands.
• Never operate the appliance outdoors.
• If a dangerous situation or defect occurs, unplug the appliance from the outlet socket immediately. For this reason, make sure that the outlet with the power plug of the appliance is easily accessible at any time.
• Disconnect the power cable out from the socket before you clean or carry out maintenance work on the appliance, or when assembling or disassembling it.
• Never remove screws from the appliance to open it and never carry out any technical modifications.
• Even when the appliance is turned off, it carries voltage on the inside of the appliance as long as the power cable is plugged into the outlet. The appliance is only disconnected from the mains if the power cable is disconnected.
• Always unplug the appliance from the outlet socket after use.

Risk of burning and scalding

• Remove beverages heated with microwaves from the cooking chamber carefully since there can be a delayed boiling.
• Stir baby food heated with microwaves or shake it. Before use, check the temperature to avoid burns.

Risk of fire

• Set up the appliance so that the top side is at least 20 cm away from walls and other objects.
• Do not operate the appliance when it is empty.
• Do not operate the appliance without the roller ring and turntable.
• Do not leave the appliance unattended while it is in operation. This applies especially if you are heating foods in plastic or paper containers, since these can catch on fire.

• Do not use the appliance to dry foods or clothing. These can catch on fire.
• Do not use the appliance to heat hot pillows, slippers, sponges, damp cleaning cloths and such. This can cause fire and injuries.
• Do not use the appliance to heat pillows that are filled with grain, cherry pits or gel.
• Only use cookware that is suitable for use in microwave cooking appliances, ▶ „Selecting cookware“ on page 23. Do not use metal containers or cookware with metal edges/decorations.
• Pull the power cable if the appliance starts to smoke.

Dangers due to microwaves

With microwave rays, there is a danger of burns.

• Do not remove the cover (silver plate on the right inside wall) in front of the microwave outlet opening in the cooking chamber.
• Do not operate the microwave with an open door.

Poor hygiene

Poor cleaning of the cooking appliance can cause the destruction of the surface, which in turn influences the usage duration and can cause dangerous situations.

Bacteria can form in the appliance due to poor hygiene.

• Clean the appliance regularly.
• Wipe the cooking chamber, door and door seals with damp cloth. If necessary, use a non-caustic, non-abrasive cleaning agent.
• Remove food remains after each use.
• Do not store any food in the cooking chamber.
  The use of improper cleaning agents harbours health risks:
• Only use the cleaning agents and utensils described in these operating instructions to clean the appliance.

SEVERIN

Risks for the appliance

Damage can be caused by handling the appliance incorrectly.

• Place the appliance on a dry, level, non-slip, heat-resistant surface which will not react with the rubber feet.
• Before you stow the appliance, disconnect the power cable and let the appliance cool off completely.
• Do not cover the ventilation openings since otherwise the appliance will overheat.

In case of a defective appliance

A defective appliance can cause material damage and injuries:

• WARNING: If the door or door seals are damaged, the cooking appliance may not be operated before it has been repaired by a trained person.

• Always check the appliance for damage before use. In the event that you detect damage due to transport, immediately contact the dealer where you have purchased the appliance.

• Never operate a defective appliance. Never operate a appliance that has fallen down.

• If the appliance's power cable is damaged, it must be replaced by manufacturer or their customer service department or a similarly-qualified person to prevent hazards.
• WARNING: It is dangerous for any other persons than those so trained to carry out maintenance or repair work that requires the removal of a cover which ensures protection against radiation due to microwave energy.
• The appliance does not contain any parts that you can repair yourself. Repair work must only be carried out through SEVERIN customer service department (see
  ▶ "Service Centres" on page 159).

3 Technical data

Type of appliance Microwave MW 7770
	Microwave MW 7897Microwave MW 7899
Voltage 230 V~
Rated frequency 50 Hz
Output power of microwave 700 W at 2450 MHz
Power Approx. 1050/700 W (microwave)
Dimensions (W x H x D) 435 mm x 345 mm x 254 mm
Weight approx. 10.3 kg
Cooking chamber Approx. 20 l
Identification
	Do not dispose of as household waste!
[HCTB]	The appliance conforms with all EU directives that are binding for CE certification.
[DW50]	Protection class I

Information about microwave oven (Group II, class B according to EN 55011)

Electromagnetic waves are generated in the appliance, which excite the molecules in the food (primarily water molecules) to strong vibrations. Heat arises due to these vibrations. Therefore, foods with a high liquid content heat faster than relatively dry foods. Cookware is heated only indirectly by the foods.

This product is an ISM appliance of Group 2, Class B. Group 2 includes all ISM appliances (industrial, scientific, medical) in which radio frequency energy arises and/or is used in the form of electromagnetic radiation to process material, as well as spark erosion devices. Class B are appliances for household use or appliances on power networks that feed residential buildings.

GB

SEVERIN

4 Before use

1. Remove all foils and other packaging material from the appliance.
2. Clean the appliance, ▶ „Cleaning and care" on page 25.
3. Set up the appliance in a place that fulfils the following conditions:

• Near an isolated ground receptacle (fuse at least 10 A)
• Horizontal and free from shocks
- Heat-resistant
- Away from heated or flammable surfaces, objects (> 1 m)
- Away from walls (> 20 cm top, > 10 cm rear, > 5 cm on the sides)

1. Plug the mains plug into the outlet.

4.1 Inserting the turntable

1. Press the door opener to open the microwave.
2. Place the roller ring in the middle of the cooking chamber.
3. Place the turntable on the drive in the interior so that the retaining lugs grip one another.

4.2 Selecting cookware

Round, transparent containers are best suited for cooking in the microwave.

Microwaves cannot penetrate metal. Therefore, do not use cookware with metal edges or metal containers. Use only containers plastic or heat-resistant glass/heat-resistant ceramic.

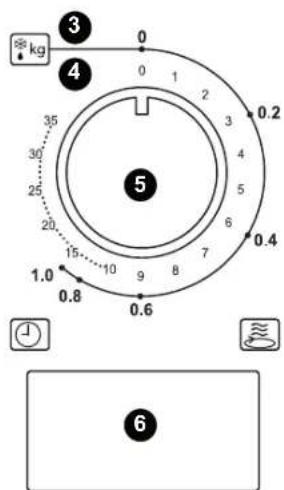

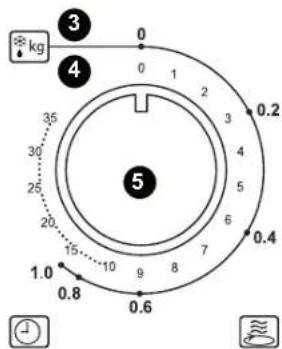

5 Operating controls

400 W 550 W 125 W 700 W 250 W 2 1

1Scale for the power;

*: Thaw function

2Power control dial

3Scale for the thaw

function (weight)

4Scale for the cooking

time

5Cooking time/weight

control dial

6Door opener

3 0 4 0 1 2 3 0.2 35 30 4 25 5 6 0.4 20 15 10 9 8 7 1.0 0.8 0.6 6

6 Preparing dishes

WARNING!

Risk of fire!

- Use only microwave-safe containers, ▶ "Selecting cookware" on page 23.

WARNING!

Risk of burns!

– Remove the heated dishes or liquids carefully from the cooking chamber since the containers may have heated up due to the hot contents.
- Do not heat liquids or other foods in closed containers since these can easily explode.
– Remove beverages heated with microwaves from the cooking chamber carefully since there can be a delayed boiling.

TIP:

You can interrupt cooking at any time by opening the door.

6.1 Cooking with microwaves

TIP:

When cooking with microwaves, you should cover the food with an appropriate cover so that it does not dry out.

1. Place the food to be heated on the turntable in a microwave-safe container (▶ "Selecting cookware" on page 23).
2. Close the door.
3. Turn the power control dial to the desired power.
4. Turn the cooking time/weight control dial to set the desired cooking time. With a cooking time of less than three minutes, the dial must first be turned beyond this time and then back.
   Cooking begins. It ends when the cooking time/weight control dial points to "0".
5. Let the food rest a few minutes so that the heat can be distributed evenly in the food.

SEVERIN

6.2 Thawing foods and liquids

1. Place the food to be thawed on the turntable in a microwave-safe container (▶ "Selecting cookware" on page 23).
2. Close the door.
3. Turn the power control dial to 250 W or ♂.
4. Turn the cooking time/weight control dial to the weight of the food/liquid.

The microwave begins thawing. It ends thawing when the cooking time/weight control dial points to "0".

TIP:

So that the food/liquid is thawed evenly, after half the cooking time you should open the door, turn or stir the food or liquid, and close the door again.

6.3 Pausing/cancelling cooking

Open the door to pause cooking.

Close the door again to continue cooking.

Turn the cooking time/weight control dial by hand to "0" to interrupt cooking.

7 Cleaning and care

WARNING!

Danger of electric shock!

• Disconnect the power cable from the outlet before you clean the appliance.
  – Never immerse the appliance in water.

• Make sure that the appliance is not in operation and that it has cooled off, the power cable is disconnected and the cooking chamber is empty.

• Remove the turntable and roller ring from the cooking chamber.
• Wipe the cooking chamber and door with a damp cloth. In case of heavy soiling, use a non-caustic, non-abrasive cleaning agent.
• Clean the housing of the appliance with a damp cloth.
• Clean the turntable and roller ring in warm soapy water.
• Let all components dry.
• Replace the roller ring and turntable in the appliance.

8 Troubleshooting

8.1 Troubleshooting by yourself

WARNING!

Risk of injury! The appliance does not contain any parts that you can repair yourself.

– Never attempt to operate a defective appliance.
- Never attempt to repair the appliance by yourself. If your appliance is defective, contact our customer service department (see ▶ "Service Centres" on page 159).

Before contacting our customer service, check with the aid of below table whether you can remedy the problem by yourself.

Problem Cause Remedy
The appliance will not turn on.	Power cable not plugged in correctly.	Plug the power cable into the outlet.
Cooking does not start.	The door is not closed properly.	Close the door.
Sparks are generated during operation.	Wrong cook-ware.	Use only microwave-safe cookware without decorative metal edges.
	Metallic objects in the cooking chamber.	Do not put any metal objects in the cooking chamber when you are cooking with microwaves.

Problem Cause Remedy
Turntable turns with a jerk.	Roller ring and bottom of the cooking chamber soiled.	Clean the roller ring and bottom of the cooking chamber, ▶ „Cleaning and care" on page 25.
Food/beverage is too cold/not cooked through.	Power too low. Increase the power.
	Cooking time too short.	Set a longer cooking time.
Food/beverage is too hot/burned.	Power too high. Reduce the power.
	Cooking time too long.	Set a shorter cooking time.

8.2 Accessories and spare parts

You can order spare parts or accessories conveniently via the Internet on our home page http://www.severin.com by using the "Service / Spare Parts Shop" menu.

SEVERIN

9 Storage and disposal

Disconnect the power cable and clean the appliance before you store it or dispose of it.

Appliances that are marked with this symbol must be disposed of separately from household waste. These appliances contain valuable raw materials that can be recycled. Proper disposal protects the environment and the health of your fellow men.

Your local authorities or dealer can provide information regarding proper disposal.

250 W 400 W 550 W 125 W 700 W 2

Labeled diagram of a microwave oven showing interior components and parts including open door, lid, and power cord.

400 W 550 W 125 W 700 W 250 W 2 1

250 W 400 W 550 W 125 W 700 W 2

Labeled diagram of a microwave oven showing interior components and parts including open door, lid, and power outlet.

400 W 550 W 125 W 700 W 250 W 2 1

1

Labeled diagram of a microwave oven showing interior components and parts including open door, lid, and power outlet.

Abb. 1: Ovnens dele

250 W 400 W 550 W 125 W 700 W 2

Labeled diagram of a microwave oven showing interior components and external wiring

Abb. 1: Apparatens delar

400 W 550 W 125 W 700 W 250 W 2 1

250 W 400 W 550 W 125 W 700 W 2

Labeled diagram of a microwave oven showing interior components and parts including open door, inner pan, and power cord.

250 W 400 W 550 W 125 W 700 W 2

250 W 400 W 550 W 125 W 700 W 2

3 0 4 0 1 2 3 0.2 35 30 25 20 15 10 9 8 7 6 5 4 3 2 1 0.4 5 1.0 0.8 0.6

Labeled diagram of a microwave oven showing interior components and parts including open door, lid, and power cord.

250 W 400 W 550 W 125 W 700 W 2

AVEDA Lifestyle EOOD

ul. Angel Kanchev 1, et. 5

BG 1124

Sofia

Croatia

Koracell d.o.o.

Donje Svetice 40

26 Oaktree Business Park

Trim Co., Meath

Tel.: [phone]

Fax: [phone]

Web: www.bluestone.ie

Italia

ASSISTENZA POST-VENDITA

NUMERO VERDE 800224155

E-Mail: [e-mail]

Indonesia

PT. Setai Modern Elektronik

Email.: [e-mail]

Web.: www.severin.co.id

Jakarta

Komp. Glodok Plaza Blok F No. 9, Jl. Pinangsia

Raya, Jakarta Barat

021 65911888 / 021 6592889

Medan

Dr. Waleed Maraga commercial center, Level 1

Khalda, Amman Zip code: 11953

Tel.: [phone]

Fax: [phone]

Mob Jordan: [phone]

Kuwait

Mohammed Abdulrahman Al Bahar

Al Bahar Building P.O. Box 148

Safat 13002 Kuwait

Tel.: [phone]

Latvia

SIA GTCL BALTIC

Piedrujas iela 7

LV - Riga 1073

Tel.: [phone]

Fax: [phone]

Lebanon

Khoury Home

7th Floor, Cité Dora 3 Building, Dora

P.O.Box 70611

Antelias, Lebanon

Tel.: [phone]

Fax:[phone]

E-Mail: [e-mail]

Internet: www.khouryhome.com

Lithuania

UAB Topo Grupe

Savanoriu PR. 206A,

50193 Kaunas, Lithuania

Tel.: [phone]

Web: www.severinshop.hu

Malta

Crosscraft Co Ltd

Valletta Road

Paola. PLA1511

Malta

Tel: [phone]

[phone]

E-Mail: [e-mail]

Maroc

BS Cast

19, Allee des Villas Ain Sebaa

20250 Casablanca

Fax: [phone]

TEL Port: [phone]

Nederland

A.A.K & Partners L.L.C.

P.O Box:-1650, Muttrah

Postal Code - 114

Sultanate of Oman

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Peru

SEVERIN PERU / Comercial Rebeca S.R.L

Mezzanine 1, South Center Tower

2206 Venture Street, Madrigal Business Park

Alabang, Muntinlupa City

Tel.: [phone]

E-Mail: severinconsumercare@colombophils.

com.ph

Polska

Severin Polska Sp.z o.o.

6 Tagore Drive, #03-04

Singapore 787623

Tel.: [phone]

Fax: [phone]

Web: www.beste.com.sg

E-Mail: [e-mail]

Slovenia

SEVTIS d.o.o.

Smartinska 130

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

Slowak Republic

BVZ Commerce s.r.o.

Odbavovací centrum

Závodu míru 974/66a

360 17 Karlovy Vary

Tel.: [phone]

3rd Floor, Grove Exchange

Grove Avenue

Claremont

South Africa

7708

Tel: [phone]

Fax: [phone]

Web: http://www.alcdashley.co.za

Mail: [e-mail]

Svenska

EI & Digital Service AB

Folkungagatan 144

11630 Stockholm

Tel.: [phone]

www.eldigital.se

E-Mail: [e-mail]

Switzerland

SPC Electronics AG

Mövenstrasse 12

CH - 9015 St. Gallen

Tel.: [phone]

E-Mail: [e-mail]

www.spc.ch

Thailand

Verasu Ltd. part.

83/7 Wireless Rd., Lumpini,

Patumwan, Bangkok 10330

Tel.: [phone]

E-Mail: [e-mail]

Tunisie

GEI

54, rue du Mercure

Zone Industrielle 2013-BEN AROUS

TUNISIE

Vietnam

BRAND PARTNER

CTY TNHH DOI TAC NHAN HIEU

FLOOR 8, DAG HOLDINGS

87A HAM NGHI

NGUYEN THAI BINH WARD, DISTRICT 1

HO CHI MINH CITY, VIETNAM

Tel.: [phone]

E-Mail: [e-mail]

[e-mail]

Stand: 03/2022

Ukrayina

Service for Modern Electronics LLC

Sim'i Khokhlovykh Str.8

4119 Kiev

Tel.: [phone]

E-Mail: [e-mail]

United Kingdom

Homespares Centres Limited

Peel House

2 Chorley Old Road

BL13AA

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Web: www.homespares.co.uk

SEVERIN

Model specifications are subject to change.
