Product type	CD player for car radio
Brand	Kenwood
Model	KDCMP172U
Dimensions (W × H × D)	182 × 53 × 158 mm
Net weight (with trim plate and sleeve)	1.2 kg
Operating voltage	14.4 V DC (10.5-16 V allowable)
Maximum current consumption	10 A
Maximum output power	50 W × 4
Full bandwidth power (THD <1%)	22 W × 4
Speaker impedance	4 Ω – 8 Ω
Supported audio file types (CD)	MP3, WMA
Supported audio file types (USB)	MP3, WMA, WAV, FLAC
Compatible disc formats	CD-R, CD-RW, CD-ROM
FM band	87.5 – 108.0 MHz (50 kHz steps)
AM band	530 – 1700 kHz (10 kHz steps)
Auxiliary input (AUX)	3.5 mm stereo mini jack
USB port	USB 1.1/2.0, max current 1 A
Android compatibility	Android OS 4.1 and later (via AOA 2.0)
Remote control included	RC-406 (CR2025 coin battery)
Preamp outputs	Front, rear/subwoofer (switchable)
Audio adjustments	3-band equalizer, presets, bass boost, loudness, subwoofer filter
Display functions	Dimmer, adjustable brightness, text scrolling
Maintenance and cleaning	Clean the front panel with a dry cloth, clean the connectors with a cotton swab
Repairability	Replaceable 10 A fuse, possible reset, firmware update

Frequently Asked Questions - KDCMP172U KENWOOD

How to reset the device?

Remove the detachable faceplate, then press the reset button located on the faceplate using a pen or paperclip. All settings will be cleared except the stored radio stations.

What to do if there is no sound?

Check the volume, speaker connections, and cables. If the message PROTECTING SEND SERVICE appears, contact after-sales service.

Why is radio reception poor?

Make sure the antenna is properly connected. You can activate MONO SET to improve FM reception, but the stereo effect will be lost.

How to insert and play a CD?

Insert the disc into the slot, label side up. Playback starts automatically. To eject, press the eject button. Make sure the disc is clean and compatible (CD-R, CD-RW).

Why is my USB device not recognized?

Check that the device is formatted as FAT12/16/32, does not exceed 1 A, and is not connected via a hub. Try reconnecting or restarting the device.

How to connect an Android smartphone?

Use a USB cable. In BROWSE MODE, install the KENWOOD MUSIC PLAY app on the smartphone. In HAND MODE, control from the smartphone. Some devices may not support AOA 2.0.

The remote control does not work, what should I do?

Check the CR2025 coin battery. Remove the insulating sheet during first use. Do not expose it to direct sunlight.

How to clean the device and discs?

Wipe the front panel with a dry cloth. Clean the connectors with a cotton swab. For discs, wipe from the center outward with a soft cloth. Do not use solvents.

How to set the clock?

Press the volume knob to enter FUNCTION, select CLOCK, then CLOCK ADJUST. Turn the knob to set the hour and minute. You can also synchronize the clock via Radio Data System (RDS).

Where to find detailed specifications?

Refer to the complete manual downloadable from our website. Technical specifications (power, frequencies, dimensions) are also listed in the features table.

USER MANUAL KDCMP172U KENWOOD

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below.

Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product.

Model KDC-MP172U

Serial number

US Residents Only

Register Online

Register your Kenwood product at http://www.kenwood.com/usa/

B5A-2089-00 (KN)© 2017

CONTENTS BEFORE USE

BEFORE USE 2

BASICS

3

GETTING STARTED 4

1	Select the display language and cancel the demonstration
2	Set the clock and date
3	Set the initial settings

RADIO

5

CD/USB/ANDROID

7

AUX

9

AUDIO SETTINGS 10

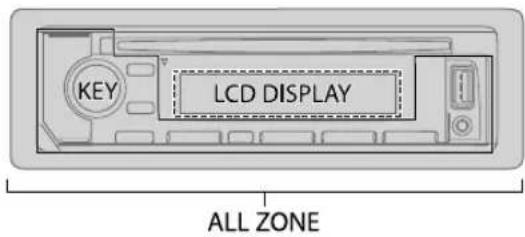

DISPLAY SETTINGS 11

TROUBLESHOOTING

12

REFERENCES

14

Maintenance

More information

INSTALLATION/ CONNECTION

15

SPECIFICATIONS

18

IMPORTANT

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.
• Please keep the manual in a safe and accessible place for future reference.

WARNING

- Do not operate any function that takes your attention away from safe driving.

• Do not ingest the battery, Chemical Burn Hazard
  The remote control supplied with this product contains a coin/button cell battery.
  If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
  Keep new and used batteries away from children.
  If the battery compartment does not close securely, stop using the product and keep it away from children.
  If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
  • Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.
• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.
• Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected (47). Turn off the unit or change the source to STANDBY when parking at a low ceiling area.

Remote control (RC-406):

• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

How to read this manual

• Operations are explained mainly using buttons on the faceplate.
- English indications are used for the purpose of explanation. You can select the display language from the [FUNCTION] menu. (→6) - [XX] indicates the selected items.
- (→XX) indicates references are available on the stated page.

BASICS

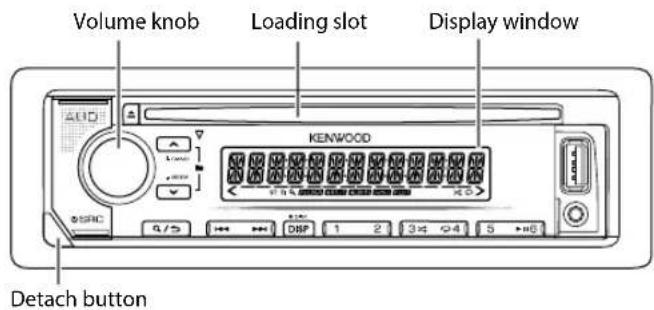

Faceplate

Volume knob Loading slot Display window KENWOOD Detach button

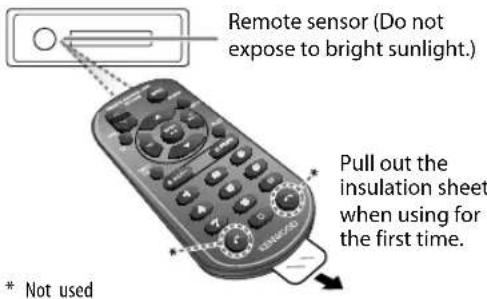

Remote control (RC-406)

Remote sensor (Do not expose to bright sunlight.) Pull out the insulation sheet when using for the first time. * Not used

Diagram illustrating two steps of a device or installation, labeled ① and ②, with arrows indicating motion direction.

How to resetAttach Detach

Your preset adjustments will be erased except stored radio stations.

How to replace the battery

① ② ③ ④ CR2025

To On the faceplate On the remote control

Turn on the power	Press ⏻ SRC.• Press and hold to turn off the power.	Press and hold SRC to turn off the power.(Pressing SRC does not turn on the power.)
Adjust the volume Turn the volume knob. Press		VOL ∧ or VOL √• Press and hold VOL ∧ to continuously increase the volume to 15.
		Press ATT during playback to attenuate the sound.• Press again to cancel.
Select a source	Press ⏻ SRC repeatedly.	Press SRC repeatedly.
Change the display information* Press DISP repeatedly. (-45)		(Not available)

* You can also turn off the display information by pressing DISP repeatedly.

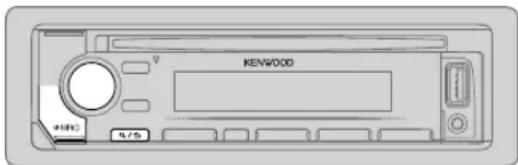

GETTING STARTED

KEYWOOD POWER POWER

1 Select the display language and cancel the demonstration

When you turn on the power (or after you reset the unit), the display shows: "SEL LANGUAGE" → "PRESS" → "VOLUME KNOB"

1 Turn the volume knob to select [ENG] (English) or [SPA] (Spanish), then press the knob.

[ENG] is selected for the initial setup.

Then, the display shows: "CANCEL DÉMO" → "PRESS" → "VOLUME KNOB".

2 Press the volume knob.

[YES] is selected for the initial setup.

3 Press the volume knob again.

"DEMO OFF" appears.

2 Set the clock and date

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [CLOCK], then press the knob.
3 Turn the volume knob to select [CLOCK ADJUST], then press the knob.
4 Turn the volume knob to make the settings, then press the knob. Hour→Minute
5 Turn the volume knob to select [CLOCK FORMAT], then press the knob.
6 Turn the volume knob to select [12H] or [24H], then press the knob.

To adjust the clock

To set the date

7 Turn the volume knob to select [DATE FORMAT], then press the knob.

8 Turn the volume knob to select [DD/MM/YY] or [MM/DD/YY], then press the knob.
9 Turn the volume knob to select [DATE SET], then press the knob.
10 Turn the volume knob to make the settings, then press the knob. Day → Month → Year or Month Day Year

11 Press and hold to/exit.

To return to the previous setting item, press Q/5.

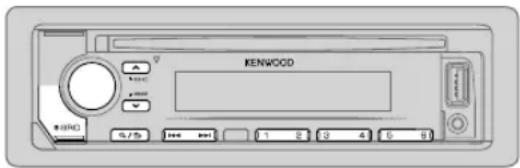

3 Set the initial settings

1 Press repeatedly to enter STANDBY.
2 Press the volume knob to enter [FUNCTION].
- Pressing AUD enters [AUDIO CONTROL] directly.
3 Turn the volume knob to select an item (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected or activated.
5 Press and hold to exit.

To return to the previous setting item, press 9/5.

Default: XX

AUDIO CONTROL
SWITCH PREOUT	REAR/SUB-W: Selects whether rear speakers or a subwoofer are connected to the line out terminals on the rear (through an external amplifier). (-47)
SP SELECT	OFF/ 5/4/ 6 × 9/6/OEM: Selects according to the speaker size (5 inches or 4 inches, 6×9 inches or 6 inches) or OEM speakers for optimum performance.

GETTING STARTED RADIO

TUNER SETTING
PRESET TYPE	NORMAL:Memorizes one station for each preset button in each band (FM1/FM2/FM3/AM).;MIX:Memorizes one station for each preset button, regardless of the selected band.
SYSTEM
KEY BEEP	ON:Activates the keypress tone.;OFF:Deactivates.
SOURCE SELECT
BUILT-IN AUX	ON:Enables AUX in source selection.;OFF:Disables.(→)
CD READ	1:Automatically distinguishes between audio file disc and music CD.;2:Forces to play as a music CD. No sound can be heard if an audio file disc is played.
F/W UPDATE
UPDATE SYSTEM
F/W UP xxxx	YES:Starts upgrading the firmware.;NO: Cancels (upgrading is not activated).For details on how to update the firmware, visit
CLOCK
CLOCK DISPLAY	ON:The clock time is shown on the display even when the unit is turned off.;OFF: Cancels.
ENGLISH	Select the display language for [FUNCTION] menu and music information if applicable.
ESPAHOL	By default,[ENGLISH] is selected.

KENWOOD #WIND 0 / 5 1 2 3 4 5 6

Search for a station

1 Press repeatedly to select RADIO.
2 Press repeatedly (or press / on the remote *AM-control) to select FM1/FM2/FM3/AM.
3 Press |◀◀ / ▶▶| (or press |◀◀ / ▶▶| (+) on the remote control) to search for a station.
- To change the searching method for ◀◀/▶▶: Press ▼SEEK repeatedly.
AUTO1 : Automatically search for a station.
AUTO2 : Search for a preset station.
MANUAL : Manually search for a station.
- To store a station: Press and hold one of the number buttons (1 to 6).
- To select a stored station: Press one of the number buttons (1 to 6) (or press one of the number buttons (1 to 6) on the remote control).

Direct Access Tuning (using the remote control)

1 Press DIRECT to enter Direct Access Tuning.
2 Press the number buttons to enter a frequency.
3 Press for earth for a station.
- To cancel, press ↩ or DIRECT.
- If no operation is done for 10 seconds after step 2, Direct Access Tuning is automatically canceled.

RADIO

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press and hold to exit.

To return to the previous setting item, press Q/5.

Default: XX

TUNER SETTING
AUTO MEMORY	YES: Automatically starts memorizing 6 stations with good reception. ;NO: Cancels.Selectable only if [NORMAL] is selected for [PRESET TYPE]. (-)
MONO SET	ON: Improves the FM reception, but the stereo effect may be lost. ;OFF: Cancels.
NEWS SET ON	: The unit will temporarily switch to News Programme if available. ;OFF: Cancels.
REGIONAL ON	: Switches to another station only in the specific region using the "AF" control. ;OFF: Cancels.
AF SET ON	: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ;OFF: Cancels.
TI ON	: Allows the unit to temporarily switch to Traffic Information if available ("TI" lights up). ;OFF: Cancels.
PTY SEARCH	1 Turn the volume knob to select the available Program Type (see the following), then press the knob.Turn the volume knob to select the PTY language (ENGLISH/FRENCH/GERMAN), then press the knob.Press ◀◀◀ / ▶▶▶ to start searching.

CLOCK

TIME SYNC ON Synchronizes the unit's time to the Radio Data System station time. ; OFF, Cancels.

Available Program Type for [PTY SEARCH]

SPEECH : NEWS, AFFAIRS, INFO (information), SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, DOCUMENT

MUSIC : POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music)

The unit will search for the Program Type categorized under [SPEECH] or [MUSIC] if selected.

• [MONO SET]/[NEWS SET]/[REGIONAL]/[AF SET]/[TI]/[PTY SEARCH] is selectable only when the band is FM1/FM2/FM3.
- If the volume is adjusted during reception of traffic information or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information or news bulletin is turned on.

CD/USB/ANDROID

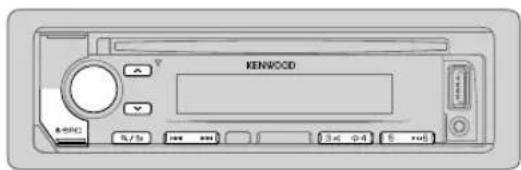

Start playback

The source changes automatically and playback starts.

CD

▲ Eject disc Label side

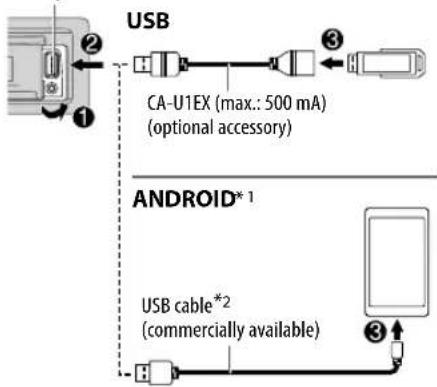

USB input terminal

USB CA-U1EX (max.: 500 mA) (optional accessory) ANDROID* 1 USB cable*2 (commercially available)

KENWOOD R0 / 50 100 400 3.5 ±4 5 400

To On the faceplate On the remote control
Playback/pause Press .	▶II6	Press ENT ▶II.
Reverse/Fast-forward*3	Press and hold ◀◀/ ▶▶. Press and hold ◀◀/ . ▶▶(+)
Select a track/file	Press ◀◀/ ▶▶. Press ◀◀/	▶▶(+)
Select a folder*4	Press ∧. √	Press #FM+/*AM-.
Repeat play*3	Press ▶peatedly.TRACK REPEAT/ALL REPEAT: Audio CDFILE REPEAT/FOLDER REPEAT/ALL REPEAT: MP3/WMA/WAV/FLAC fileFILE REPEAT/FOLDER REPEAT/REPEAT OFF: ANDROID
Random play*3	Press 3repeatedly.DISC RANDOM/RANDOM OFF: Audio CDFOLDER RANDOM/RANDOM OFF: MP3/WMA/WAV/FLAC file, or ANDROID
	Press and hold 3× to select ALL RANDOM.*5

* 1 When connecting an Android device, "Press [VIEW] to install KENWOOD MUSIC PLAY APP" is shown. Follow the instructions to install the application. You can also install the latest version of KENWOOD MUSIC PLAY application on your Android device before connecting. For more information, visit .
* 2 Do not leave the cable inside the car when not using.
*3 For ANDROID: Applicable only when [BROWSE MODE] is selected. (-8)
*4 For CD: Only for MP3/WMA files. This does not work for ANDROID.
*5 For CD: Only for MP3/WMA files.

CD/USB/ANDROID

Select control mode

While in ANDROID source, press 5 repeatedly.

BROWSE MODE : Control Android device from this unit via KENWOOD MUSIC PLAY application installed in the Android device.

HAND MODE : Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause and file skip from this unit.

Select music drive

While in USB source, press 5 repeatedly.

Stored songs in the following drive will be played back.

- Selected internal or external memory of a smartphone (Mass Storage Class).

- Selected drive of a multiple drives device.

Select a file from a folder/list

For ANDROID, applicable only when [BROWSE MODE] is selected.

1 Press .Q/5
2 Turn the volume knob to select a folder/list, then press the knob.
3 Turn the volume knob to select a file, then press the knob.

Quick Search

If you have many files, you can search through them quickly.

Turn the volume knob quickly to browse through the list quickly.

Skip Search (applicable only for ANDROID source)

Press ◀◀◀ / ▶▶▶ to search at a preset skip search ratio. (→, [SKIP SEARCH])

- Pressing and holding ◀◀◀ / ▶▶▶ searches at a 10% ratio.

Alphabet search (applicable only for ANDROID source)

You can search for a file according to the first character.

1 Press /to enter character search.
2 Turn the volume knob to select the character.

^A^: Upper case letters (A to Z)

_A_: Lower case letters (a to z)

-0-: Numbers (0 to 9)

***: Character other than A to Z, 0 to 9

3 Press the volume knob to start searching.

• To return to the root folder/first file/top menu, press 5.
• To return to the previous setting item, press / .
• To cancel, press and hold 0/5.

Direct Music Search (using the remote control)

1 Press DIRECT.
2 Press the number buttons to enter a track/file number.
3 Press ENSEarth for music.

• To cancel, press ↩ or DIRECT.
• Not available if Random Play is selected.
• Not applicable for ANDROID source.

CD/USB/ANDROID

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to exit.

To return to the previous setting item, press 9/5.

Default: XX

USB

MUSIC DRIVE DRIVE CHANGE : The next drive ([DRIVE 1] to [DRIVE 5]) is selected automatically and playback starts. Repeat steps 1 to 3 to select the following drives.

SKIP SEARCH 0.5%____/1%/5%/10%: While listening to ANDROID source, selects the skip search ratio over the total files.

AUX

Preparation:

Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. (-5)

Start listening

1 Connect a portable audio player (commercially available).

Auxiliary input jack ① ② ③ Portable audio player

3.5 mm (1/8") stereo mini plug with "L" shaped connector (commercially available)

2 Press repeatedly to select AUX.

3 Turn on the portable audio player and start playback.

Set the AUX name

While listening to a portable audio player connected to the unit...

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [SYSTEM], then press the knob.
3 Turn the volume knob to select [AUX NAME SET], then press the knob.
4 Turn the volume knob to select an item, then press the knob. AUX (default)/DVD/PORTABLE/GAME/VIDEO/TV

5 Press and hold to exit.

To return to the previous setting item, press 9/5.

AUDIO SETTINGS

While listening to any source...

1 Press AUD to enter [AUDIO CONTROL] directly.
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to exit.

To return to the previous setting item, press 9/5.

(or using the remote control)

1 Press AUD to enter [AUDIO CONTROL].
2 Press ▲/▼ to select an item, then press ENT ▶II.

Default: XX

AUDIO CONTROL
SUB-W LEVEL	-15 to +15 (0)	Adjusts the subwoofer output level.
BASS LEVEL -8	to +8 (+2)	Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.)
MID LEVEL -8	to +8 (+1)
TRE LEVEL -8	to +8 (+1)

EQ PRO (This setting is stored to [USER].)
BASS ADJUST BASS CTR FRQ 60	/80/100/200: Selects the center frequency.
BASS LEVEL -8	to +8 (+2): Adjusts the level.
BASS Q FACTOR 1.00 / 1.25/1.50/2.00: Adjusts the quality factor.
BASS EXTEND ON	: Turns on the extended bass.; OFF: Cancels.
MID ADJUST MID CTR FRQ 0.5KHZ	/1.0KHZ/1.5KHZ/2.5KHZ: Selects the center frequency.
MID LEVEL -8	to +8 (+1): Adjusts the level.
MID Q FACTOR 0.75	/1.00/1.25: Adjusts the quality factor.
TRE ADJUST TRE CTR FRQ 10.0KHZ	/12.5KHZ/15.0KHZ/17.5KHZ: Selects the center frequency.
TRE LEVEL	-8to +8 (+1): Adjusts the level.
PRESET EQ	DRIVE EQ/TOP40/POWERFUL/ROCK/POPS/EASY/JAZZ/NATURAL/ USER Selects a preset equalizer suitable to the music genre. (Select [USER] to use the settings made in [EQ PRO].) [DRIVE EQ]is a preset equalizer that reduces noise outside the car or running noise of the tyres.
BASS BOOST	LV1/LV2/LV3: Selects your preferred bass boost level.; OFF: Cancels.
LOUDNESS	LV1/LV2: Selects your preferred low and high frequencies boost to produce a well-balanced sound at a low volume level.; OFF: Cancels.
SUBWOOFER SET	ON: Turns on the subwoofer output.;OFF: Cancels.

AUDIO SETTINGS

LPF SUBWOOFER THROUGH : All signals are sent to the subwoofer. ;85HZ/120HZ/160HZ: Audio signals with frequencies lower than85 Hz/120 Hz/160 Hz are sent to the subwoofer.

SUB-W PHASE REVERSE (180°)/NORMAL (0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance.(Selectable only if a setting other than [THROUGH] is selected for[LPF SUBWOOFER].)

FADER R15 to F15 (0): Adjusts the rear and front speaker output balance.

BALANCE L15 to R15 (0): Adjusts the left and right speaker output balance.

VOLUME OFFSET For AUX: -8 to +8 (0); For other sources: -8 to 0: Preset the initial volume level of each source. (Before adjustment, select the source you want to adjust.)

SOUND RECNSTR ON Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression.;OFF: Cancels.

- [SUB-W LEVEL]/[SUBWOOFER SET]/[LPF SUBWOOFER]/[SUB-W PHASE] is selectable only if [SWITCH PREOUT] is set to [SUB-W]. (4)

- [SUB-W LEVEL]/[LPF SUBWOOFER]/[SUB-W PHASE] is selectable only if [SUBWOOFER SET] is set to [ON] (→10)

DISPLAY SETTINGS

KEY LCD DISPLAY ALL ZONE

Set the dimmer

Press and hold DISP (DIM) to turn on or off the dimmer.

- If you have set [DIMMER TIME] (12), it will be canceled once you press and hold this button.

Other settings

1 Press the volume knob to enter[FUNCTION].
2 Turn the volume knob to select an item (42), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

4 Press and hold to exit.

To return to the previous setting item, press Q/5.

DISPLAY SETTINGS

Default: XX
DISPLAY
DIMMER	Dim the illumination.ON: Dimmer is turned on. ;OFF: Cancels.DIMMER TIME: Set the dimmer on and off time.1 Turn the volume knob to adjust the [ON] time, then press the knob.2 Turn the volume knob to adjust the [OFF] time, then press the knob.(Default: [ON]: 6:00PM; [OFF]: 6:00AM)
BRIGHTNESS	1 Select a zone. (See illustration on page 11.)2 0 — 31: Select your preferred brightness level for the selected zone.
TEXT SCROLL AUTO	/ONCE: Select whether to scroll the display information automatically, or scroll only once. ;OFF: Cancels.

TROUBLESHOOTING

Symptom Remedy
General	Sound cannot be heard.	Adjust the volume to the optimum level.Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears.	Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears.	Send the unit to the nearest service center.
	Sound cannot be heard.The unit does not turn on.Information shown on the display is incorrect.	Clean the connectors. (-4)
	The unit does not work at all. Reset the unit. (-3)
Radio	Radio reception is poor.Static noise while listening to the radio.	Connect the antenna firmly.
CD/USB	Disc cannot be ejected.	Press and hold ▲ to forcibly eject the disc. Be careful not to drop the disc when it is ejected. If this does not solve the problem, reset the unit. (-3)
	Noise is generated. Skip to another track or change the disc.
	Tracks do not play back as you intended them to play.	Playback order is determined when files are recorded.
	"READING" keeps flashing. Do not use too many hierarchical levels or folders.
	Elapsed playing time is not correct.	This is caused by how the tracks are recorded.
	Correct characters are not displayed (e.g. album name).	This unit can only display uppercase letters, numbers, and a limited number of symbols.Depending on the display language you have selected (-5), some characters may not be displayed correctly.
	"NA FILE" Make sure the disc contains supported audio files. (-4)
	"NO DISC" Insert a playable disc into the loading slot.

TROUBLESHOOTING

Symptom Remedy
CD/USB	“TOC ERROR” Make sure the disc is clean and inserted properly.
	“PLEASE EJECT” Reset the unit. If this does not solve the problem, consult your nearest service center.
	“NO DEVICE” Connect a USB device, and change the source to USB again.
	“COPY PRO” A copy-protected file is played.
	“NA DEVICE” Connect a supported USB device, and check the connections.
	“NO MUSIC” Connect a USB device that contains playable audio files.
ANDROID	Sound cannot be heard during playback.Sound output only from the Android device.	Reconnect the Android device.If ir[HAND MODE], launch any media player application on the Android device and start playback.If ir[HAND MODE], relaunch the current media player application or use another media player application.Restart the Android device.If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (4)
	Cannot playback at [BROWSE MODE].	Make sure KENWOOD MUSIC PLAY APP is installed on the Android device. (7)Reconnect the Android device and select the appropriate control mode.If this does not solve the problem, the connected Android device does not support [BROWSE MODE]. (14)
	“NO DEVICE” or “READING” keeps flashing.	Switch off the developer options on the Android device.Reconnect the Android device.If this does not solve the problem, the connected Android device does not support [BROWSE MODE]. (14)

Symptom Remedy
ANDROID	Playback is intermittent or sound skips.	Turn off the power saving mode on the Android device.
	"ANDROID ERROR"/ "NA DEVICE"	Reconnect the Android device.Restart the Android device.

Muting upon the reception of a phone callConnect the MUTE wire to your telephone using a commercial telephone accessory. (47)

When a call comes in, "CALL" appears. (The audio system pauses.)To continue listening to the audio system during a call, press CIRC disappears and the audio system resumes.

When the call ends, "CALL" disappears. (The audio system resumes.)

REFERENCES

Maintenance

Cleaning the unit

Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector

Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector.

Connector (on the reverse side of the faceplate)

Handling discs

• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove burrs from the center hole and disc edge before inserting a disc.

■ More information

For: – Latest firmware updates and latest compatible item list – Any other latest information

Visit .

General

• This unit can only play the following CDs:

- For detailed information and notes about the playable audio files, visit .

playable files

• Playable audio file:
  For disc: MP3 (.mp3), WMA (.wma)
  For USB mass storage class device: MP3 (.mp3), WMA (.wma), WAV (.wav), FLAC (.flac)
• Playable disc media: CD-R/CD-RW/CD-ROM
• Playable disc file format: ISO 9660 Level 1/2, Joliet, Long file name
• Playable USB device file system: FAT12, FAT16, FAT32
  Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device.

Unplayable discs

• Discs that are not round.
• Discs with coloring on the recording surface or discs that are dirty.
• Recordable/ReWritable discs that have not been finalized.
- 8 cm CD. Attempting to insert using an adapter may cause malfunction.

About USB devices

• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5 m may result in abnormal playback.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A.

About Android device

• This unit supports Android OS 4.1 and above.
- Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.
- If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority.

REFERENCES

Change the display information

Each time you press DISP, the display information changes.

- If the information is unavailable or not recorded, "NO TEXT", "NO INFO", or other information (eg. station name, playing time) appears.

Source name Display information
STANDBY Source name (*) Clock (back to the beginning)
RADIO Frequency	→ (*)→Clock (back to the beginning)
	(For FM Radio Data System stations only)Station name →(*) Radio text Radio text+ Title/Artist →Frequency →Clock →back to the beginning)
CD or USB	(For CD-DA)Disc name/Artist →*) Track title/Artist Playing time Clock→ (back to the beginning)
	(For MP3/WMA/WAV/FLAC files)Song title/Artist →*) Album title/Artist Folder name →File name →Playing time→Clock (back to the beginning)
ANDROID When	[BROWSE MODE] is selected. (-8)Song title/Artist →*) Album title/Artist Playing time →Clock →(back to the beginning)
AUX Source name	→ (*)→Clock (back to the beginning)

* Turn off the display information.

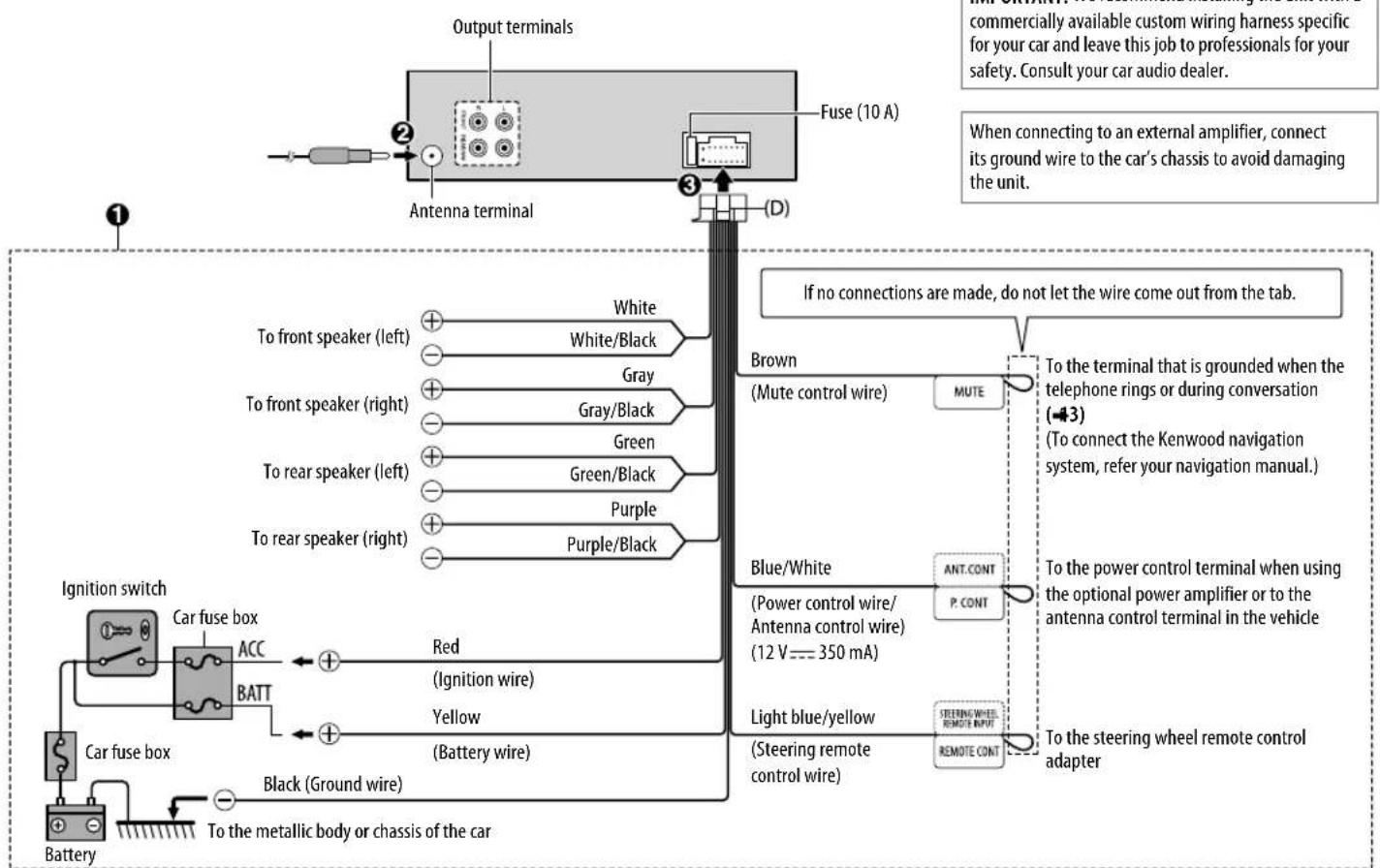

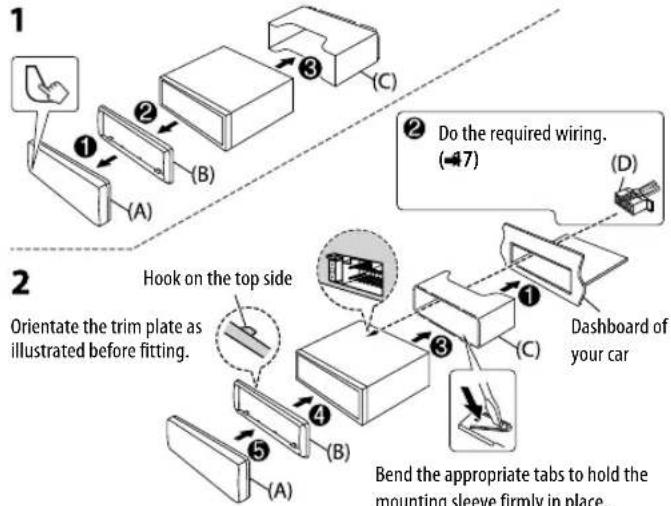

INSTALLATION/CONNECTION

▲ Warning

• The unit can only be used with a 12 V DC power supply, negative ground.

- Disconnect the battery's negative terminal before wiring and mounting.

- Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.

• To prevent short circuit:

- Insulate unconnected wires with vinyl tape.

- Be sure to ground this unit to the car's chassis again after installation.

- Secure the wires with cable clamps and wrap vinyl tape around the wires that come into contact with metal parts to protect the wires.

Caution

- For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.

• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.

- Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.

- Mount the unit at an angle of less than 30^ .

- If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.

- Keep all cables away from heat dissipate metal parts.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

- If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

Basic procedure

1 Remove the key from the ignition switch, then disconnect the ⊖ terminal of the car battery.

2 Connect the wires properly.

See Wiring connection. (17)

3 Install the unit to your car.

See Installing the unit (in-dash mounting). (-16)

4 Connect the terminal of the car battery.

5 Detach the faceplate and reset the unit. (3)

INSTALLATION/CONNECTION

Installing the unit (in-dash mounting)

When installing without the mounting sleeve

1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (supplied).
Use only the specified screws. Using wrong screws might damage the unit.

(B) 8 mm (3/8") MAX M5 mm M5 mm

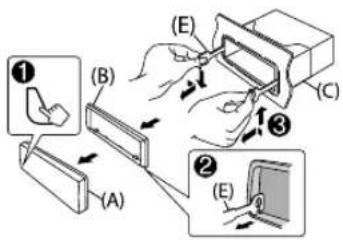

How to remove the unit

1 Detach the faceplate.
2 Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out.
3 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the illustration.

Diagram illustrating a device operation with labeled steps (A) through (E), showing hand movement and assembly.

Part list for installation

(A) Faceplate

(B) Trim plate

(C) Mounting sleeve

(D) Wiring harness

(E) Extraction key

(F) Screws

INSTALLATION/CONNECTION

Wiring connection

SPECIFICATIONS

Tuner	FM Frequency Range 87.5 MHz — 108.0 MHz (50 kHz space)
	Usable Sensitivity (S/N = 26 dB) 8.2 dBf (0.71 μV/75 Ω)
	Quieting Sensitivity (DIN S/N = 46 dB)	17.2 dBf (2.0 μV/75 Ω)
	Frequency Response (±3 dB) 30 Hz — 15 kHz
	Signal-to-Noise Ratio (MONO) 64 dB
	Stereo Separation (1 kHz) 40 dB
	AM Frequency Range 530 kHz — 1 700 kHz (10 kHz space)
	Usable Sensitivity (S/N = 20 dB) 29 dBμ (28.2 μV)
CD player	Laser Diode GaAIAs
	Digital Filter (D/A) 8 times over sampling
	Spindle Speed 500 rpm — 200 rpm (CLV)
	Wow & Flutter Below measurable limit
	Frequency Response (±1 dB) 20 Hz — 20 kHz
	Total Harmonic Distortion (1 kHz) 0.01 %
	Signal-to-Noise Ratio (1 kHz) 105 dB
	Dynamic Range 90 dB
	Channel Separation	85 dB
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio
Auxiliary	Frequency Response (±3 dB) 20 Hz — 20 kHz
	Input Maximum Voltage	1 000 mV
	Input Impedance	30 kΩ

USB	USB Standard	USB 1.1, USB 2.0 Full Speed
	File System	FAT12/16/32
	Maximum Supply Current	DC 5 V---1 A
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio
	WAV Decode Linear-PCM
	FLAC Decode FLAC file (Up to 48 kHz/16 bit)
Audio	Maximum Output Power	50 W × 4
	Full Bandwidth Power	22 W × 4 (at less than 1 % THD)
	Speaker Impedance	4 Ω — 8 Ω
	Tone Action	Bass 100 Hz ±8 dB
		Middle 1.0 kHz ±8 dB
		Treble 12.5 kHz ±8 dB
	Preout Level/Load (CD)	2 500 mV/10 kΩ
	Preout Impedance	≤ 600 Ω
General	Operating Voltage	14.4 V (10.5 V — 16 V allowable)
	Maximum Current Consumption 10 A
	Operational Temperature Range -10°C — +60°C
	Installation Size (W × H × D)	182 mm × 53 mm × 158 mm(7-3/16" × 2-1/16" × 6-1/4")
	Net Weight (includes Trimplate,Mounting Sleeve)	1.2 kg (2.7 lbs)

Subject to change without notice.

TABLE DES MATIERES

Diagram illustrating two steps of a device or installation, labeled ① and ② with directional arrows and numbered components.

SPEECH : NEWS, AFFAIRS, INFO (information), SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE DOCUMENT

KEY LCD DISPLAY

ALL ZONE

Réglez le gradateur

INSTALLATION/RACCORDEMENT

Avertissement

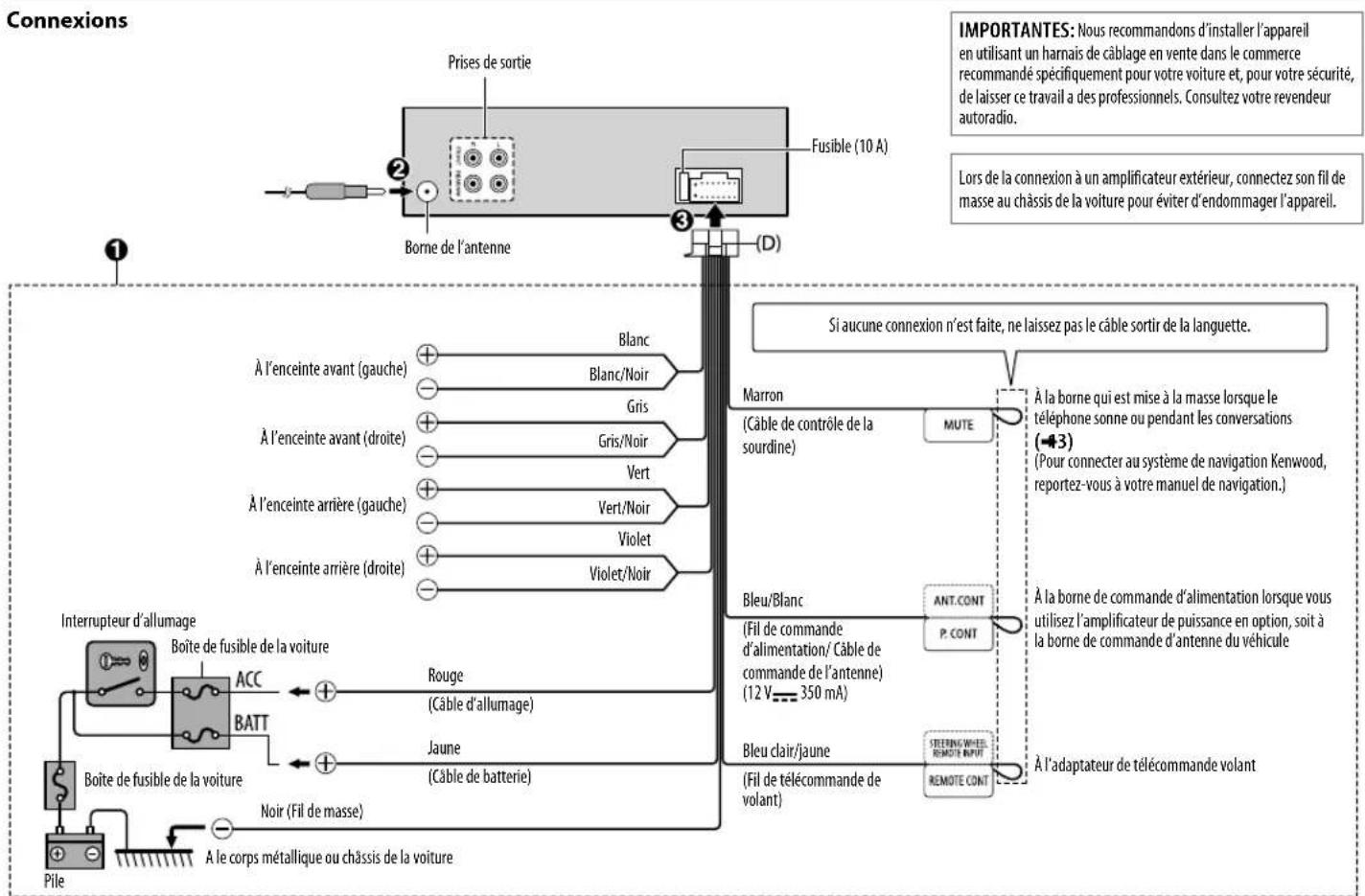

INSTALLATION/RACCORDEMENT

Diagram illustrating a device operation sequence with labeled steps (A) through (E), showing hand movement and assembly.

INSTALLATION/RACCORDEMENT

Diagram illustrating two steps of a device or installation, labeled ① and ② with directional arrows and numbered components.

Cómo reinicializarFijar Desmontar

KEY LCD DISPLAY

ALL ZONE

Ajuste del dimmer

Diagram illustrating a device operation with labeled steps (A) through (E), showing hand movement and assembly.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety.

JVC KENWOOD Corporation

2967-3, ISHIKAWA-MACHI.

THIS PRODUCT COMPLIES WITH DHHS RULES 21CFR

SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE.

Location : Top Plate

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

FCC NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
  • Android is trademark of Google Inc.

libFLAC

Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR

CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
