USER MANUAL KDCBT365U KENWOOD

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below.

Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product.

Model KDC-BT365U/ KDC-BT265U/ KDC-X300/ KDC-MP365BT/ KMR-D365BT

Serial number ____

US Residents Only

Register Online

Register your Kenwood product at www.Kenwoodusa.com

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety.

JVC KENWOOD Corporation

2967-3, ISHIKAWA-MACHI,

THIS PRODUCT COMPLIES WITH DHHS RULES 21CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE.

Location: Top Plate

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

FCC NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

IC (Industry Canada) Notice

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

The term "IC:" before the certification/registration number only signifies that the Industry Canada technical specification were met.

Note de IC (Industrie Canada)

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person's body (excluding extremities: hands, wrists, feet and ankles).

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

ATTENTION

The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions which Users shall follow in order to use the Licensed Software.

The User shall use the Licensed Software by agreeing with the terms of this Software License Agreement. This Agreement shall be deemed completed at the time the User (hereinafter the "User") initially used the Product in which the "Licensed Software" is embedded.

The Licensed Software may include the software which has been licensed to the Licensor directly or indirectly from any third party. In such case, some third parties require the Users to follow their conditions for use separately from this Software License Agreement. Such software shall not be subject to this Agreement, and the Users are urged to read the "Important Notice concerning the Software" to be provided separately below.

Article 1 General Provision

The Licensor shall grant to the User a non-exclusive and non-transferable (other than the exceptional case referred to in Article 3, Paragraph 1) licensed to use the Licensed Software within the country of the User. (the country where the User bought the Product(hereinafter the "Country")

Article 2 License

1. The license granted under this Agreement shall be the right to use the Licensed Software in the Product.
2. The User shall not duplicate, copy, modify, add, translate or otherwise alter, or lease the Licensed Software and any related documents, whether in whole or in part.
3. The use of the Licensed Software shall be limited to personal purpose, and the Licensed Software shall not be distributed, licensed or sub-licensed whether it is for commercial purpose or not.
4. The User shall use the Licensed Software according to the directions described in the operation manual or help file, and is prohibited to use or duplicate any data in a manner violating the Copyright Law or any other laws and regulations by applying whole or a part of the Licensed Software.

Article 3 Conditions for Grant of License

1. When the User transfers the Product, it may also transfer the license to use the Licensed Software embedded in the Product (including any related materials, updates and upgrades) on condition that no original, copies or related materials continue in the possession of the User, and that the User shall cause the transferee to comply with this Software License Agreement.
2. The User shall not carry out reverse engineering, disassembling, decompiling or any other code analysis works in connection with the Licensed Software.

Article 4 Right pertaining to the Licensed Software

Any and all copyrights and other rights pertaining to the Licensed Software and related documents shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be entitled to any right other than the license granted hereunder, in respect of the Licensed Software and any related documents.

Article 5 Indemnification of Licensor

1. Neither the Licensor nor the Original Rightholder shall be liable for any damage incurred by the User or any third party due to the exercise of the license granted to the User under this Agreement, unless otherwise restricted by law.
2. The Licensor will offer no guarantee for the merchantability, convertibility and consistency with certain objective of the Licensed Software.

Article 6 Liability to Third Party

If any dispute has arisen with any third party due to an infringement upon a copyright, patent or any other intellectual property right that was caused by the User's use of the Licensed Software, the User shall settle such dispute at its own cost and hold the Licensor and the Original Rightholder harmless from any inconvenience it may cause.

Article 7 Confidentiality

The User shall keep the confidentiality of such portion of the Licensed Software, related documents thereof or any other information to be granted under this Agreement, as well as the conditions of this Agreement as has not yet entered the public domain, and shall not disclose or divulge the same to any third party without approval of the Licensor.

Article 8 Termination

In case the User falls under any of the events described in the following items, the Licensor may immediately terminate this Agreement or claim that the User compensates for the damage incurred by the Licensor due to such event:

(1) when the User violated any provision of this Agreement; or

(2) when a petition has been filed against the User for an attachment, provisional attachment, provisional disposition or any other compulsory execution.

Article 9 Destruction of the Licensed Software

If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed Software, any related documents and copies thereof within two (2) weeks from such date of termination.

Article 10 Protection of Copyright

1. The copyright and all the other intellectual property rights relating to the Licensed Software shall belong to the Licensor and the Original Rightholder, and in no event shall they be under the ownership of the User.
2. The User shall, whenever it uses the Licensed Software, comply with any laws relating to the copyright and other intellectual property rights.

Article 11 Export Restriction

1. It is prohibited to export the Licensed Software and any related documents outside the country of the User (including transmission thereof outside the country of the User via Internet of other communication tools).
2. The User shall understand that the Licensed Software shall be subject to the export restrictions adopted by the country of User and any other countries.
3. The User shall agree that the software will be subject to any and all applicable international and domestic laws (including the export control regulation of the country of User and any other countries, and any restrictions concerning the end-users, the use by end-users and importing countries to be provided by the country of User and any other countries, and any other governmental authorities).

Article 12 Miscellaneous

1. In the event any part of this Agreement is invalidated by operation of law, the residual provisions shall continue in force.
2. Matters not stipulated in this Agreement or any ambiguity or question raised in the construction of this Agreement shall be provided or settled upon good-faith consultation between the Licensor and the User.
3. The Licensor and the User hereby agree that this Agreement is governed by the laws of Japan, and any dispute arising from, and relating to the rights and obligations under, this Agreement shall be submitted to the exclusive jurisdiction of the Tokyo District Court for its first instance.

Important Notice concerning the Software

-jansson

Copyright (c) 2009-2012 Petri Lehtinen [e-mail]

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

CONTENTS BEFORE USE

BEFORE USE 2

BASICS

3

GETTING STARTED 4

1	Select the display language and cancel the demonstration
2	Set the clock and date
3	Set the initial settings

RADIO

6

AUX

7

SiriusXM® Radio(for KMR-D365BT

12

BLUETOOTH®

15

AUDIO SETTINGS 21

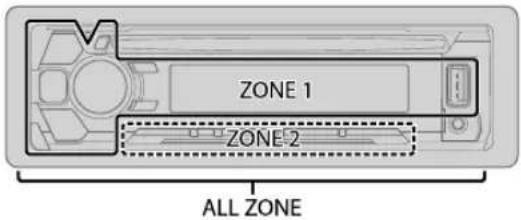

DISPLAY SETTINGS 22
TROUBLESHOOTING	23

REFERENCES	26
Maintenance
More information

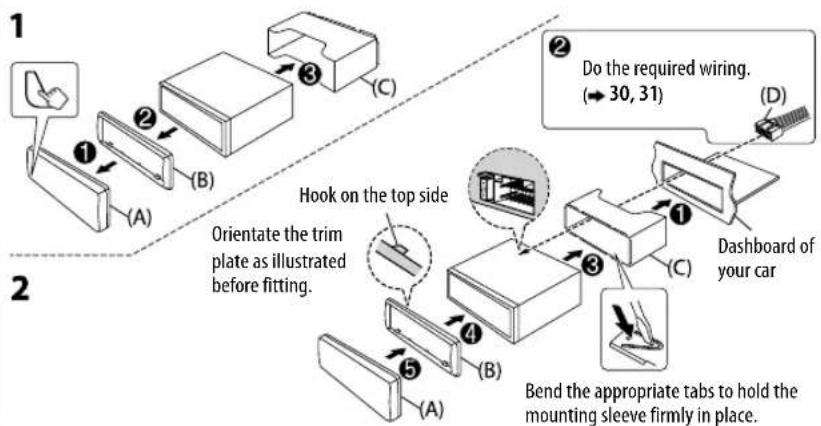

INSTALLATION / CONNECTION	29
SPECIFICATIONS	32

IMPORTANT

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.
• Please keep the manual in a safe and accessible place for future reference.

▲ Warning

Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.
  • Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.
• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.
• USB rating is indicated on the main unit. To view, detach the faceplate. (→ 3)
• Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected ( 30, 31). Turn off the unit or change the source to STANDBY when parking at a low ceiling area.

Remote control (RC-406):

• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep the battery out of reach of children and in its original packaging when not in used. Dispose of used batteries promptly. If swallowed, contact a physician immediately.

How to read this manual

• Operations are explained mainly using buttons on the faceplate of KDC-BT365U
- English indications are used for the purpose of explanation. You can select the display language from the [FUNCTION] menu. (→ 5)
• [XX] indicates the selected items.
- (→ XX) indicates references are available on the stated page.

BASICS

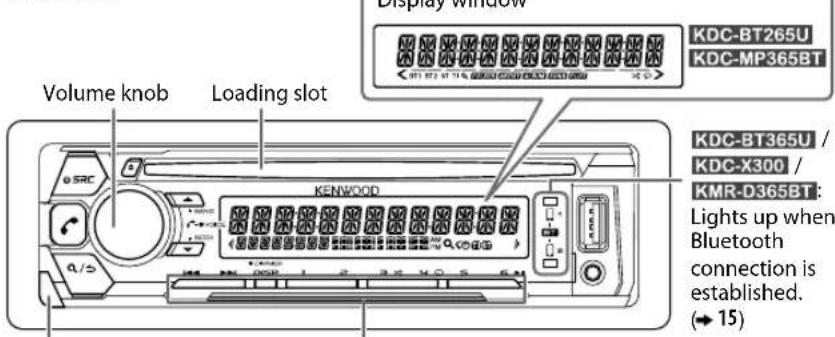

Faceplate

Volume knob Loading slot KENWOOD KDC-BT265U KDC-MP365BT KDC-BT365U / KDC-X300 / KMR-D365BT: Lights up when Bluetooth connection is established. (→ 15)

Detach button
KDC-BT365U / KDC-X300 KMR-D365BT
Flashes when the unit enters searching status.

How to resetAttach Detach

Press the switch twice within 5 seconds after detaching the faceplate.

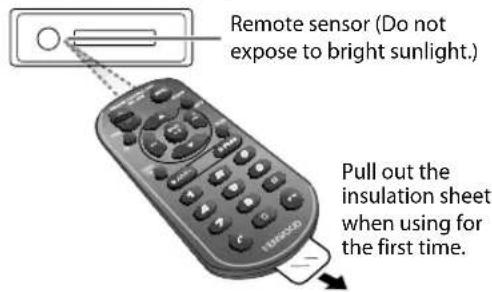

Remote control (RC-406)

Remote sensor (Do not expose to bright sunlight.) Pull out the insulation sheet when using for the first time.

KDC-BT265U : Can be remotely controlled with an optionally purchased remote control.
KMR-D365BT : Remote control functions are not available.

How to replace the battery

To On the faceplate On the remote control

Turn on the power	Press ⏻ SRC.• Press and hold to turn off the power. *1	Press and hold SRC to turn off the power.(Pressing SRC does not turn on the power.)
Adjust the volume Turn the volume knob. Press		VOL ∧ or VOL ∨
		Press ATT during playback to attenuate the sound.• Press again to cancel.
Select a source	Press ⏻ SRC repeatedly.	Press SRC repeatedly.
Change the display information*2	Press DISP repeatedly. (→ 28) (Not available)

*1 For K the power will automatically turn off after 20 minutes when in standby mode (Auto Power Off).

*2 For K'outan also turn off the display information by pressing DISP repeatedly.

GETTING STARTED

KENWOOD

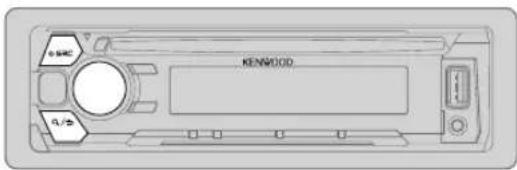

1 Select the display language and cancel the demonstration

When you turn on the power for the first time (or [FACTORY RESET] is set to [YES], → 5), the display shows: "SEL LANGUAGE" → "PRESS" → "VOLUME KNOB"

1 Turn the volume knob to select [ENG] (English) or [SPA] (Spanish), then press the knob.

[ENG] is selected for the initial setup.

(For KDC-BT365U / KDC-BT265U KDC-X300 KDC-MP365BT

Then, the display shows: "CANCEL DEMO" → "PRESS" → VOLUME KNOB".

2 Press the volume knob.

[YES] is selected for the initial setup.

3 Press the volume knob again.

"DEMO OFF" appears.

2 Set the clock and date

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [ CLOCK], then press the knob.

To adjust the clock

3 Turn the volume knob to select [ CLOCK ADJUST], then press the knob.
4 Turn the volume knob to make the settings, then press the knob. Hour → Minute
5 Turn the volume knob to select [ CLOCK FORMAT], then press the knob.
6 Turn the volume knob to select [12H] or [24H], then press the knob.

To set the date

7 Turn the volume knob to select [ DATE FORMAT], then press the knob.
8 Turn the volume knob to select [ DD/MM/YY] or [MM/DD/YY], then press the knob.
9 Turn the volume knob to select [ DATE SET], then press the knob.
10 Turn the volume knob to make the settings, then press the knob. Day → Month → Year or Month Day Year
11 Press and hold to/exit.

To return to the previous setting item, press Q/3

3 Set the initial settings

1 Press repeatedly to enter STANDBY.
2 Press the volume knob to enter [FUNCTION].
3 Turn the volume knob to select an item (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected or activated.
5 Press and hold to exit.

To return to the previous setting item, press R/S

Default: XX

AUDIO CONTROL

SWITCH	(For KDC-BT265U KDC-MP365BT
PREOUT	REAR/ SUB-W: Selects whether rear speakers or a subwoofer are connected to the line out terminals on the rear (through an external amplifier).

GETTING STARTED

DISPLAY
EASY MENU	(ForKC-C-BT365U KDC-X300 KMR-D365BTON: Both display and button illumination change to white color when entering [FUNCTION]. ;OFF: Both display and button illumination remain as [COLORSELECT] color. (→ 23)
TUNER SETTING
PRESET TYPE	NORMAL: Memorizes one station for each preset button in each band (FM1/ FM2/ FM3/ AM). ;MIX: Memorizes one station or SiriusXM channel for each preset button, regardless of the selected band or SiriusXM channel.
SYSTEM
KEY BEEP	ON: Activates the keypress tone. ;OFF: Deactivates.
SOURCE SELECT
PANDORA SRC	(ForKC-C-BT365U KDC-BT265U KDC-X300 KMR-D365BTON: Enables PANDORA in source selection. ;OFF: Disables. (→ 10)
IHEART SRC	(ForKC-C-BT365U KDC-BT265U KDC-X300 KMR-D365BTON: Enables IHEARTRADIO in source selection. ;OFF: Disables. (→ 11)
BUILT-IN AUX ON__: Enables AUX in source selection. ;OFF: Disables. (→ 7)
CD READ 1	_: Automatically distinguishes between audio file disc and music CD. ;2: Forces to play as a music CD. No sound can be heard if an audio file disc is played.
F/W UPDATE
UPDATE SYSTEM
F/W UP xx.xx	YES: Starts upgrading the firmware. ;NO: Cancels (upgrading is not activated). For details on how to update the firmware, see: www.kenwood.com/cs/ce/
FACTORY RESET YES : Resets the settings to default (except the stored station). ;NO: Cancels.

REM SETTING* (for IKMR-D365BT
REMOTE ID SET	Remote control ID list is displayed.YES: Indicates that this ID is already registered. ;NO: Indicates that this ID is available.Turn the volume knob to select an available ID (REM ID1/ ID2 / ID3), then press the knob to register.
REMOTE ID DEL ID1	DELETE_/ID2 DELETE/ ID3 DELETE Selects the registered remote control ID to delete.YES: Deletes the selected remote control ID. ; NO: Cancels.
CLOCK
CLOCK DISPLAY	(For IKTC-BT365UKDC-BT265UKDC-X300KDC-MP365BT)ON: The clock time is shown on the display even when the unit is turned off. ; OFF: Cancels.
DATE SET	(For IKMR-D365BTD D/MM/YY: Sets the date for marine remote control display.
ENGLISH	Select the display language for [FUNCTION] menu and music information if applicable.
ESPANOL	By default, [ENGLISH] is selected.

* Displayed only when KCA-RC55MR (optional accessory) is connected. (→ 31)

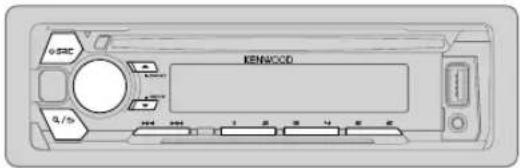

RADIO

IENWOOD G/5%

Search for a station

1 Press repeatedly to select TUNER.
2 Press rapidly (or press / on RC-400) to *AM-select FM1/FM2/FM3/AM.
3 Press |◀◀ / ▶▶| (or press |◀◀ / ▶▶| (+) on RC-406) to search for a station.

- To change the searching method for ◀◀◀ / ▶▶▶: Press ▼ SEEK repeatedly.

AUTO1 : Automatically search for a station.

AUTO2 : Search for a preset station.

MANUAL : Manually search for a station.

• To store a station: Press and hold one of the number buttons (1 to 6).
- To select a stored station: Press one of the number buttons (1 to 6) (or press one of the number buttons (1 to 6) on RC-406).

Direct Access Tuning (using RC-406)

1 Press DIRECT to enter Direct Access Tuning.
2 Press the number buttons to enter a frequency.
3 Press ENear for a station.

• To cancel, press to DIRECT.

- If no operation is done for 10 seconds after step 2, Direct Access Tuning is automatically canceled.

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to exit.

To return to the previous setting item, press Q/3

Default: XX

TUNER SETTING
AUTO MEMORY	YES: Automatically starts memorizing 6 stations with good reception. ;NO: Cancels.• Selectable only if [ NORMAL] is selected for [ PRESET TYPE]. (→ 5)
MONO SET ON	: Improves the FM reception, but the stereo effect may be lost. ;OFF: Cancels.
NEWS SET	(For KDC-MP365BTON: The unit will temporarily switch to News Programme if available. ;OFF: Cancels.
REGIONAL	(For KDC-MP365BTON: Switches to another station only in the specific region using the “AF” control. ;OFF: Cancels.
AF SET	(For KDC-MP365BTON: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ;OFF: Cancels.
TI ON	: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up). ;OFF: Cancels.
PTY SEARCH	Select the available Program Type (→ 7), then, press |◀◀/▶▶| to start.

RADIO

CLOCK

TIME SYNC

ON: Synchronizes the unit's time to the Radio Broadcast Data System/Radio Data System station time. ; OFF: Cancels.

Available Program Type for PTY SEARCH

(For KDC-BT365U / KDC-BT265U KDC-X300 KMR-D365BT

SPEECH : NEWS, INFORM (information), SPORTS, TALK, LANGUAGE, REL TALK (religious talk), PERSNLTY (personality), PUBLIC, COLLEGE, HABL ESP (spanish talk), WEATHER

MUSIC : ROCK, CLS ROCK(classic rock), ADLT HIT(adult hits), SOFT RCK (softrock), TOP 40, COUNTRY, OLDIES, SOFT, NOSTALGA(nostalgia), JAZZ, CLASSICL (classical), R & B (rhythm and blues), SOFT R&B (soft rhythm and blues), REL MUSC (religious music), MUSC ESP (spanish music), HIP HOP

(For KDC-MP365BT)

SPEECH : NEWS, AFFAIRS, INFO (information), SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, DOCUMENT

MUSIC : POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music)

The unit will search for the Program Type categorized under [SPEECH] or [MUSIC] if selected.

• [MONO SET]/ [NEWS SET]/ [REGIONAL]/ [AF SET]/ [TI]/ [PTY SEARCH] is selectable only when the band is FM1/ FM2/ FM3.
• If the volume is adjusted during reception of traffic information or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information or news bulletin is turned on.

AUX

Preparation:

Select [ON] for [BUILT-IN AUX]. (→ 5)

Start listening

1 Connect a portable audio player (commercially available).

Auxiliary input jack ① ② ③ Portable audio player

3.5 mm (1/8") stereo mini plug with "L" shaped connector (commercially available)

2 Press repeatedly to select AUX.
3 Turn on the portable audio player and start playback.

Set the AUX name

While listening to a portable audio player connected to the unit...

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [ SYSTEM], then press the knob.
3 Turn the volume knob to select [ AUX NAME SET], then press the knob.
4 Turn the volume knob to select an item, then press the knob. AUX (default)/ DVD/ PORTABLE/ GAME/ VIDEO/ TV
5 Press and hold to exit.

To return to the previous setting item, press R/5

The source changes automatically and playback starts.

▲ Eject disc Label side

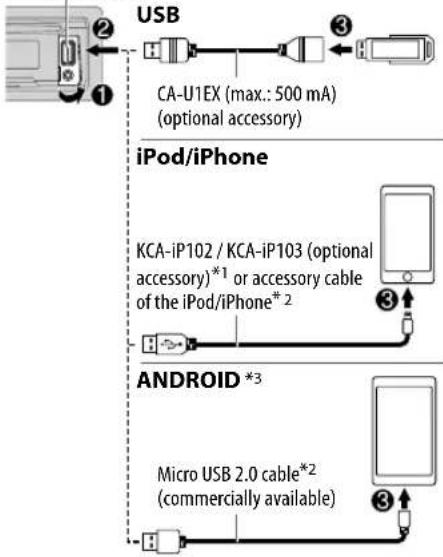

USB input terminal

* KCA-iP102 : 30-pin type, KCA-iP103 : Lightning type

*2 Do not leave the cable inside the car when not using.

To On the faceplate On the remote control
Playback / pause Press .	6 ▶II	Press ENT ▶II.
Reverse / Fast-forward*4	Press and hold ▶◀/ ▶▶. Press and hold ▶◀/ . ▶▶(+)
Select a track/file	Press ▶◀/ ▶▶. Press ▶◀/	▶▶(+)
Select a folder*5	Press ▲/ ▼.	Press #FM+ / *AM-
Repeat play*6	Press 4 repeatedly. TRACK REPEAT/ ALL REPEAT : Audio CD FILE REPEAT/ FOLDER REPEAT/ ALL REPEAT: MP3/WMA/AAC/WAV/FLAC file FILE REPEAT/ FOLDER REPEAT/ REPEAT OFF: iPod or ANDROID
Random play*6	Press 3 repeatedly. DISC RANDOM/ RANDOM OFF : Audio CD FOLDER RANDOM/ RANDOM OFF: MP3/WMA/AAC/WAV/FLAC file, iPod or ANDROID
	Press and hold 3× to select ALL RANDOM.*7

*3 When connecting an Android device, "Press [VIEW] to install KENWOOD MUSIC PLAY APP" is shown. Follow the instructions to install the application. You can also install the latest version of KENWOOD MUSIC PLAY application on your Android device before connecting. (→ 26)
*4 For ANDROID: Applicable only when [ BROWSE MODE ] is selected. (→ 9)
*5 For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ ANDROID.
*6 For iPod/ ANDROID: Applicable only when [MODE OFF]/[BROWSE MODE] is selected. (→9)
*7 For CD: Only for MP3/WMA/AAC files.

Select control mode

While in IPOD source, press 5 repeatedly.

MODE ON : Control iPod using the iPod itself. However, you can still play/pause, file skip, fast-forward or reverse from this unit.

MODE OFF : Control iPod from this unit.

While in ANDROID source, press 5 repeatedly.

BROWSE MODE : Control Android device from this unit via KENWOOD MUSIC PLAY application installed in the Android device.

HAND MODE : Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause and file skip from this unit.

Select music drive

Press 5 repeatedly.

Stored songs in the following drive will be played back.

- Selected internal or external memory of a smartphone (Mass Storage Class).

- Selected drive of a multiple drives device.

Listen to Tuneln Radio/ Tuneln Radio Pro/ Aupeo

While listening to TuneIn Radio, TuneIn Radio Pro or Aupeo, connect the iPod/iPhone to the USB input terminal of the unit.

- The unit will output the sound from these applications.

Select a file from a folder/list

1 Press Q/5
2 Turn the volume knob to select a folder/list, then press the knob.
3 Turn the volume knob to select a file, then press the knob.

Quick Search

If you have many files, you can search through them quickly.

Turn the volume knob quickly to browse through the list quickly.

- Not applicable for iPod.

(or)

Press |◀◀ / ▶▶ to search at a preset skip search ratio. (→ 10, [SKIP SEARCH])

- Pressing and holding ◀◀◀ / ▶▶▶ searches at a 10% ratio.

- Not applicable for audio CD and MP3/ WMA/ AAC/ WAV/ FLAC files.

(or)

Alphabet search (applicable only for iPod)

If you have many files in the iPod, you can search through them quickly according to the first character of the file name.

1 Turn the volume knob quickly to enter character search.
2 Turn the volume knob to select the character.
To search for a character other than A to Z and 0 to 9, enter only "*".
3 Press |◀◀ / ▶▶▶ to move to the entry position.
- You can enter up to 3 characters.
4 Press the volume knob to start searching.

- To return to the root folder/ first file/ top menu, press 5. (Not applicable for BT AUDIO source.)

• To return to the previous setting item, press / .
  • To cancel, press and hold 0/5.
• For iPod, applicable only when [MODE OFF] is selected.
• For ANDROID, applicable only when [BROWSE MODE] is selected.

1 Press DIRECT.
2 Press the number buttons to enter a track/file number.
3 Press ENSErth for music.
- To cancel, press or DIRECT.
- Not available if Random Play is selected.
- Not applicable for iPod and ANDROID.

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to exit.

To return to the previous setting item, press 9/5

Default: XX

USB

MUSIC DRIVE DRIVE CHANGE : The next drive ([DRIVE 1] to [DRIVE 4]) is selected automatically and playback starts. Repeat steps 1 to 3 to select the following drives.

SKIP SEARCH 0.5%/1%/5%/10%: While listening to iPod or ANDROID, selects the skip search ratio over the total files.

Pandora®

(for KDC-BT365U KDC-BT265U KDC-X300 KMR-D365BT

Preparation:

Install the latest version of the Pandora application on your device (iPhone/ iPod touch), then create an account and log in to Pandora.

- Select ON] for [PANDORA SRC]. (→ 5)

Start listening

1 Open the Pandora application on your device.

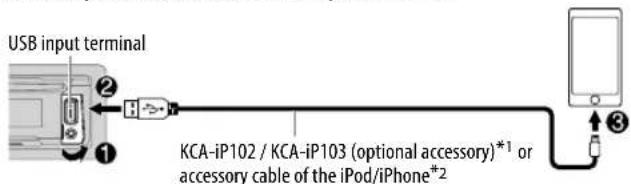

2 Connect your device to the USB input terminal.

USB input terminal KCA-iP102 / KCA-iP103 (optional accessory)*1 or accessory cable of the iPod/iPhone*2

3 Press repeatedly to select PANDORA.

Broadcast starts automatically.

To	On the faceplate	On the remote control
Playback / pause	Press 6▶II.	Press ENT▶II.
Skip a track	Press ▶▶i.	Press ▶▶i (+).
Thumbs up or thumbs down*3	Press ▲/▼.	Press #FM+ / *AM-.

*1 KCA-iP102:30-pin type, KCA-iP103:Lightning type
*2 Do not leave the cable inside the car when not using.
*3 If thumbs down is selected, the current track is skipped.

Create and save a new station

1 Press Q/5
2 Turn the volume knob to select [ NEW STATION], then press the knob.
3 Turn the volume knob to select [FROM TRACK] or [FROM ARTIST], then press the knob.
A new station is created based on the current song or artist.
4 Press and hold one of the number buttons (1 to 5) to store.
To select a stored station, press one of the number buttons (1 to 5).

Pandora® (for KDC-BT365U KDC-BT265U KDC-X300 KMR-D365BT)

Search for a registered station

1 Press Q/5
2 Turn the volume knob to select an item, then press the knob. [SORT BY DATE]: According to the registered date [SORT BY A-Z]: Alphabetical order
3 Turn the volume knob to select the desired station, then press the knob.

To cancel, press and hold / .

(or using RC-406)

Press ▲/▼ to search for a station, then press ENT ▶II.

Bookmark current song information

Press and hold the volume knob.

"BOOKMARKED" appears and the information is stored to your device. The bookmark is available on your Pandora account but not on this unit.

Delete a station

While listening to PANDORA...

1 Press the volume knob to enter [ FUNCTION].
2 Turn the volume knob to select [ SYSTEM], then press the knob.
3 Turn the volume knob to select [ STATION DEL], then press the knob.
4 Turn the volume knob to select [SORT BY A-Z] or [SORT BY DATE], then press the knob.
5 Turn the volume knob to select the desired station to delete, then press the knob.
6 Turn the volume knob to select [ YES], then press the knob.
7 Press and hold 10 exit.
To return to the previous setting item, press 9/5

iHeartRadio® (for KDC-BT365U KDC-BT265U KDC-X300 KMR-D365BT)

Preparation:

Install the latest version of iHeartAuto application on your device (iPhone/ iPod touch), then create an account and log in to iHeartRadio.

- Select [ON] for [IHEART SRC]. (→ 5)

Start listening

1 Open the iHeartAuto application on your device.

2 Connect your device to the USB input terminal.

USB input terminal KCA-iP102 / KCA-iP103 (optional accessory)*1 or accessory cable of the iPod/iPhone*2

3 Press repeatedly to select IHEARTRADIO.

Broadcast starts automatically.

*1 KCA-iP102:30-pin type, KCA-iP103:Lightning type
*2 Do not leave the cable inside the car when not using.

To On the faceplate On the remote control
Playback / pause	Press 6 ▶II. Press	ENT ▶II.
Skip a track for custom station	Press ▶▶I.	Press ▶▶I (+).
Thumbs up or thumbs down	Press ▲ / ▼.	( Not available )
Create a new/custom station	Press 1. (Not available)
Scan for live station	1 Press 2 to start scanning.2 Press ▶▶II listen to the station.	( Not available )

ENGLISH

iHeartRadio® (for KDC-BT365U KDC-BT265U / KDC-X300 KMR-D365BT

Search and store a station

1 Press Q/5
2 Turn the volume knob to select a category, then press the knob.
3 Turn the volume knob to select the desired station, then press the knob.
When a city list appears, you can search cities in alphabetical order by turning the volume knob quickly.

To cancel, press and hold 9/5.

(or using RC-406)

Press ▲/▼ to search for a station, then press ENT▶II.

• To store a station: Press and hold one of the number buttons (3 to 5).
• To select a stored station: Press one of the number buttons (3 to 5).

SiriusXM® Radio (for KMR-D365BT)

Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com.

Preparation:

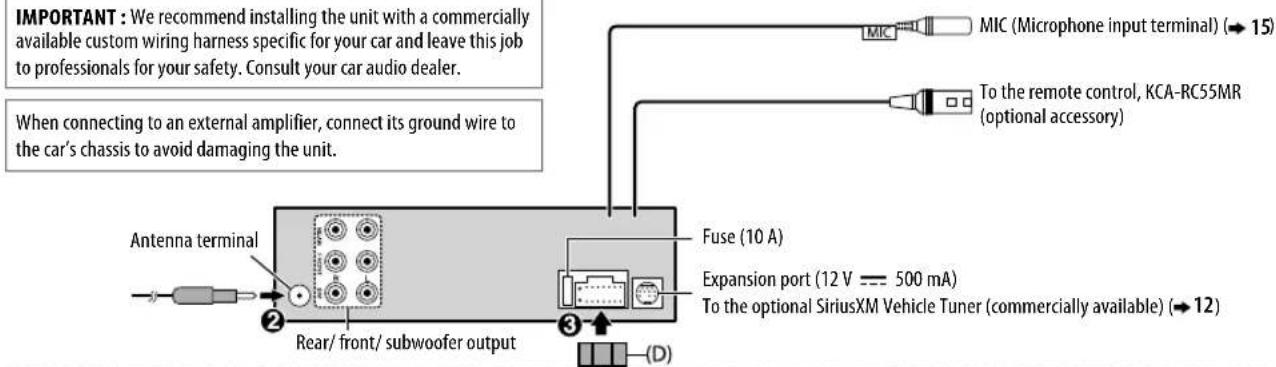

1 Connect the optional SiriusXM Vehicle Tuner (commercially available).

2 Check your Radio ID for activation.

The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as on the label found on the SiriusXM Connect tuner and its packaging. The Radio ID does not include the letters I, O, S or F.

3 Activate the subscription.

For users in the U.S.A.:
Online: Go to www.siriusxm.com
Phone: Call 1-866-635-2349
For users in Canada:
Online: Go to www.siriusxm.ca/activatexm
Phone: Call 1-877-438-9677

4 Press repeatedly to select SIRIUS XM to start updating.

Start listening

1 Press repeatedly to select SIRIUS XM.

2 Press rapidly to select a band.

3 Press .Q/5

"Q" lights up.

4 Turn the volume knob to select a category, then press the knob.

If "ALL CHANNELS" is selected, all the available channels will be shown.

SiriusXM® Radio (for KMR-D365BT)

5 Turn the volume knob to select a channel, then press the knob. (or)

Press ◀◀◀ / ▶▶▶ to search for a channel manually.

- Pressing and holding |/| changes the channel rapidly.

If a locked channel or a mature channel is selected, a pass code input screen appears. Enter the pass code to receive the channel. (→ 14)

To change the tuning method for ◀◀◀ / ▶▶▶: Press ▼ SEEK.

Each time you press ▼ SEEK, the tuning method switches between "CHANNEL" (manually search for a channel) and "PRESET" (searches for a preset channel of the selected band).

SiriusXM Keymode

Press and hold ▼oChange the keymode (channel or replay). (Default: Channel keymode)

“①” lights up when replay keymode is selected.

When channel keymode is selected...

To On the faceplate

Select a channel	Press |◀◀ / ▶▶.
Change a channel rapidly	Press and hold |◀◀ / ▶▶.
Store a channel of the current band	Press and hold one of the number buttons (1 to 6).
Select a stored channel of the current band	Press one of the number buttons (1 to 6).

When replay keymode is selected...

To On the faceplate

Playback / pause	Press 6 ▶II.
Select a track	Press |◀◀ / ▶▶|.
Rewind / Fast-forward	Press and hold |◀◀ / ▶▶|.

Go to Live Press 1.

SmartFavorites and TuneStart™

User stored channels are recognized as SmartFavorite channels*. The SiriusXM Vehicle Tuner automatically buffers the broadcast content in the background.

• SmartFavorites feature is available with SXV200 or later SiriusXM Vehicle Tuner.
  * SXV300 (and later) SiriusXM Vehicle Tuner can use all 18 stored channels as SmartFavorites. The SXV200 SiriusXM Vehicle Tuner can use 6 stored channels from the current band as SmartFavoites.

When you select a SmartFavorite channel, you can rewind and replay up to 30 minutes of any of the missed news, talk, sports or music content.

- Playback starts from the beginning of the song if [TUNE START] is set to [ON] (→ 14) for most music channels stored as a SmartFavorite.

Press one of the number buttons (1 to 6) to select a stored channel.

TuneScan™

You can get a short preview of the songs that you have missed on each of your SmartFavorite music channels or currently tuned music channel.

Press and hold ▲ BAND to start scanning the first 6 seconds of the recorded music contents.

• To listen to the current song, press the volume knob to stop scanning. The unit continues playing the current song.
• To select the previous/next song, press ◀◀◀ / ▶▶.
• To cancel scanning, press and hold the volume knob. Playback returns to the channel before you entered TuneScan.

SiriusXM settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [ SIRIUS XM], then press the knob.
3 Turn the volume knob to select an item (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item.
5 Press and hold to exit.
To return to the previous setting item, press 9/5

Default: XX

CHANNEL LOCK	To unlock settings:1 Turn the volume knob to select a number.2 Press |◀◀ / ▶▶| to move to the entry position.3 Repeat step1 and 2 to enter the current pass code.(Initial pass code is 0000.)4 Press the volume knob to confirm.
CODE SET	1 Turn the volume knob to select a number.2 Press |◀◀ / ▶▶| to move to the entry position.3 Repeat step1 and 2 to enter a new 4-digit pass code.4 Press the volume knob to confirm.5 Repeat step1 to 4 to reconfirm the pass code.• Make a note of the new pass code to enter channel lock settings for next time.
LOCK SETTING MATURE CH : Selects the SiriusXM-defined lock setting. ; USER DEFINED: Selectsthe individual channels the user wants to lock. ;OFF: Cancels.
CHANNEL EDIT*1	1 Turn the volume knob to select a category, then press the knob.2 Turn the volume knob to select a channel you want to lock, then press the knob."L" appears in front of the channel number.3 Press and hold toexin
CHANNEL CLEAR*1	YES: Clears all the locked channels. ;NO: Cancels.
TUNE START*2	ON: All qualified music channels in the SmartFavorite will start playback from the beginning of the song. ;OFF: Cancels.
SIGNAL LEVEL NO SIGNAL /WEAK / GOOD/STRONG: Shows the strength of the current received signal.
BUFFER USAGE 0%	— 100% (Q: Shows the memory usage for Replay buffer.
SXM RESET YES	: Resets stored channel and lock setting to default. ;NO: Cancels.

*1 Displayed only when [USER DEFINED] is selected.
*2 Available only if the connected SiriusXM Vehicle Tuner is SXV200 or later that supports SmartFavorites.

BLUETOOTH®

BLUETOOTH — Connection

Supported Bluetooth profiles

• Hands-Free Profile (HFP)
• Advanced Audio Distribution Profile (A2DP)
  – Audio/Video Remote Control Profile (AVRCP)
• Serial Port Profile (SPP)
  – Phonebook Access Profile (PBAP)

Supported Bluetooth codecs

• Sub Band Codec (SBC)
• Advanced Audio Coding (AAC)

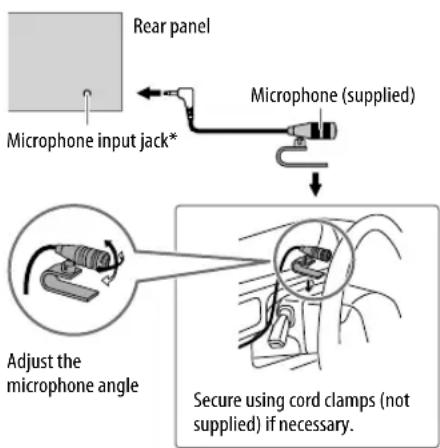

Connect the microphone

Rear panel Microphone (supplied) Microphone input jack* Adjust the microphone angle Secure using cord clamps (not supplied) if necessary.

* For K connected to the microphone input terminal. (→ 31)

Pair and connect a Bluetooth device for the first time

1 Press to turn on the unit.
2 Search and select this unit model name (KDC-BT3 **U/ KDC-BT2**U/ KDC-X3**/ KDC-MP3**BT/ KMR-D3**BT) on the Bluetooth device.

"PAIRING" → "PASS XXXXXX" → Device name → PRESS" → "VOLUME KNOB" scrolls on the display.

- For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.

3 Press the volume knob to start pairing.

"PAIRING OK" appears when pairing is completed.

• This unit supports Secure Simple Pairing (SSP).
- Up to 10 devices can be registered (paired) in total.
- Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, 19, [DEVICE DELETE].

Once pairing is completed, Bluetooth connection is established automatically.

• KDC-B365 and/or CB320 indicator on the faceplate lights up.

• KDC-BT265U / K1BT-Mand/or "BT2" on the display window lights up.

• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time.

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.
• Refer to the instruction manual of the Bluetooth device for more information.

Auto Pairing

When you connect iPhone/ iPod touch/ Android device to the USB input terminal, pairing request (via Bluetooth) is automatically activated.

Press the volume knob to pair once you have confirmed the device name.

Automatic pairing request is activated only if:

• Bluetooth function of the connected devcie is turned on.
• [AUTO PAIRING] is set to [ON]. (→ 19)
• KENWOOD MUSIC PLAY application is installed on the Android device ( 8) and [BROWSE MODE] is selected ( 9).

BLUETOOTH®

BLUETOOTH — Mobile phone

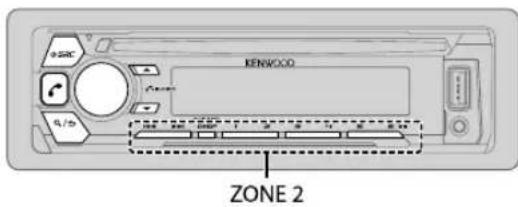

KENWOOD ZONE 2

Receive a call

When there is an incoming call:

• KDC-BT365U / KDC-X300 KMR-D365BT ZONE 2 illuminates in green color and flashes.
• The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. (→ 17)

During a call:

• KDC-BT365U / KDC-X300 KMR-D365BT The display illuminates according to the settings made for [DISPLAY] (→ 23) and ZONE 2 illuminates in green color.
• If you turn off the unit or detach the faceplate, the Bluetooth connection is disconnected.

The following operations may differ or not available depending on the connected phone.

To On the faceplate On the remote control
First incoming call...
Answer a call	Pressor the volume knob or one of the number buttons (1 to 6).	Press.
Reject a call	Press / .	Press.
End a call	Press / .	Press.
While talking on the first incoming call...
Answer another incoming call and hold the current call	Press. Press .	.
Reject another incoming call	Press / .	Press.
While having two active calls...
End current call and activate held call	Press / .	Press.
Swap between the current call and held call	Press.	Press.
Adjust the phone volume [00] to [35] (Default: [15])	Turn the volume knob during a call.This adjustment will not affect the volume of the other sources.	(Not available)
Switch between hands-free and private talk modes	Press6▶II during a call.Operations may vary according to the connected Bluetooth device.	(Not available)

BLUETOOTH®

Improve the voice quality

While talking on the phone...

1 Press the volume knob to enter [ FUNCTION].
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to exit.

To return to the previous setting item, press 9/5

Default: XX

MIC GAIN -10	— +10 (-4): The sensitivity of the microphone increases as the number increased.
NR LEVEL -5	— +5 (0): Adjust the noise reduction level until the least noise is being heard during a phone conversation.
ECHO CANCEL -5	— +5 (0): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

Make the settings for receiving a call

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to exit.

To return to the previous setting item, press R/5

Default: XX

SETTINGS

AUTO ANSWER	1 — 30: The unit answers incoming call automatically in the selected time (in seconds). ;OFF: Cancels.
BATT/SIGNAL*	(ForKTC-BT365UKDC-X300KMR-D365BT AUTO: Shows the strength of the battery and signal when the unit detects a Bluetooth device and the Bluetooth device is connected. ;OFF: Cancels. Clock time is shown.

* Functionality depends on the type of the phone used.

Make a call

You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature.

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press and hold to exn.
To return to the previous setting item, press R/5

CALL HISTORY (Applicable only if the phone supports PBAP)

1 Press the volume knob to select a name or a phone number.
• KDC-BT365U / KDC-NOMINGKMR-D365BT
"OUTGOING", or "MISSED" is shown on the lower part of the display to indicate the previous call status.
KDC-BT265U / KDC-indicates all received, "0" indicates call made, "M" indicates call missed.
• PreDISP to change the display category (NUMBER or NAME).
- "NO DATA" appears if there is no recorded call history.
2 Press the volume knob to call.

BLUETOOTH®

PHONE BOOK	(Applicable only if the phone supports PBAP)1 Turn the volume knob quickly to enter alphabet search mode (if the phonebook contains many contacts).The first menu (ABCDEFGHIJK) appears.To go to the other menu (LMNOPQRSTUV orWXYZ1 *), press ▲/▼.To select the desired first letter, turn the volume knob or press ◀◀◀ / ▶▶▶, then press the knob.Select “1” to search with numbers and select “ *” to search with symbols.Turn the volume knob to select a name, then press the knob.Turn the volume knob to select a phone number, then press the knob to call.The phonebook of the connected phone is automatically transferred to the unit when pairing.Contacts are categorized as: HOME, OFFICE, MOBILE, OTHER, GENERAL or HM (home), OF (office), MO (mobile), OT (other), GE (general)This unit can display only non-accent letters. (Accent letters such as “Ú” is shown as “U”.)
NUMBER DIAL	1 Turn the volume knob to select a number (0 to 9) or character (#, +).2 Press ◀◀◀ / ▶▶▶I to move the entry position.Repeat steps 1 and 2 until you finish entering the phone number.Press the volume knob to call.(or using RC-406)1 Press the number buttons (0 to 9) to enter the phone number.Press ⬇ to call.
VOICE	Speak the name of the contact you want to call or the voice command to control the phone functions.(→Make a call using voice recognition)
BATT LOW/MID/FULL*: Shows the strength of the battery.
NO SIGNAL/LOW/MID/MAX*: Shows the strength of the current received signal.

* Functionality depends on the type of the phone used.

Make a call using voice recognition

1 Press and hold to activate the voice recognition of the connected phone.
2 Speak the name of the contact you want to call or the voice command to control the phone functions.
- Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.
- This unit also supports the intelligent personal assistant function of iPhone.

Settings in memory

Store a contact in memory

You can store up to 6 contacts into the number buttons (1 to 6).

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [CALL HISTORY], [PHONE BOOK], or [NUMBER DIAL], then press the knob.
3 Turn the volume knob to select a contact or enter a phone number.

If a contact is selected, press the volume knob to show the phone number.

4 Press and hold one of the number buttons (1 to 6).

"STORED" appears when the contact is stored.

To erase a contact from the preset memory, select [NUMBER DIAL] in step 2 and store a blank number.

Make a call from memory

1 Press to enter Bluetooth mode.
2 Press one of the number buttons (1 to 6).
3 Press the volume knob to call.

"NO MEMORY" appears if there is no contacts stored.

BLUETOOTH®

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press and hold to exit.
To return to the previous setting item, press 9/5

Default: XX

BT MODE

PHONE SELECT	Selects the phone or audio device to connect or disconnect. “*” appears in front of the device name when connected.
AUDIO SELECT	• You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at any time.
DEVICE DELETE	1 Turn the volume knob to select a device to delete, then press the knob.2 Turn the volume knob to select [ YES] or [NO], then press the knob.
PIN CODE EDIT (0000)	Changes the PIN code (up to 6 digits).1 Turn the volume knob to select a number.2 Press I◄◄/►►I to move the entry position.Repeat stepand 2 until you finish entering the PIN code.3 Press the volume knob to confirm.
RECONNECT ON	_: The unit automatically reconnect when the last connected Bluetooth device is within range. ;OFF: Cancels.
AUTO PAIRING ON	_: The unit automatically pair supported Bluetooth device (iPhone/iPod touch/ Android device) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work. ;OFF: Cancels.
INITIALIZE YES	: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). ;NO: Cancels.

Bluetooth test mode

You can check the connectivity of the supported profile between the Bluetooth device and the unit.

- Make sure there is no Bluetooth device paired.

1 Press and hold.

"PLEASE PAIR YOUR PHONE PIN 0000" appears.

2 Search and select this unit model name (KDC-BT3 **U/KDC-BT2**U/KDC-X3**/KDC-MP3**BT/KMR-D3**BT) on the Bluetooth device.

3 Operate the Bluetooth device to confirm pairing.

"TESTING" flashes on the display.

The connectivity result (OK or NG) appears after the test.

PAIRING: Pairing status

HF CNT: Hands-Free Profile (HFP) compatibility

AUD CNT: Advanced Audio Distribution Profile (A2DP) compatibility

PB DL: Phonebook Access profile (PBAP) compatibility

To cancel test mode, press and hold ⏻ SRC to turn off the unit.

BLUETOOTH®

BLUETOOTH — Audio

KENWOOD

Audio player via Bluetooth

1 Press (repeatedly to select BT AUDIO (or press SRC on RC-406).
2 Operate the Bluetooth audio player to start playback.

To On the faceplate On the remote control
Playback / pause	Press 6▶II. Press	ENT▶II.
Select group or folder	Press ▲/▼.	Press #FM+ / *AM-
Reverse / Forward skip	Press |◀◀ / ►▶|. Press |◀◀ /	▶▶| (+).
Reverse / Fast-forward	Press and hold |◀◀ / ►▶|. Press and hold |◀◀ /	▶▶| (+).
Repeat play Press	4○ repeatedly.ALL REPEAT, FILE REPEAT, REPEAT OFF	( Not available )
Random play Press and hold	3× to selectALL RANDOM• Press 3× to select RANDOM OFF.	( Not available )
Select a file from a folder/list	Refer to “Select a file from a folder/list” on page 9.	( Not available )

Operations and display indications may differ according to their availability on the connected device.

Internet radio via Bluetooth (for KDC-BT365U KDC-BT265U / KDC-X300 KMR-D365BT

Listen to Pandora

You can listen to Pandora on the Android device via Bluetooth on this unit.

Preparation:

Select [ON] for [PANDORA SRC]. (→ 5)

1 Open the Pandora application on your device.
2 Connect your Bluetooth audio player via Bluetooth connection. (→ 15)
3 Press repeatedly to select PANDORA. The source switches and broadcast starts automatically.

You can operate Pandora in the same way as

Pandora for iPod/iPhone. (→ 10)

Listen to iHeartRadio

You can listen to iHeartRadio on the Android device via Bluetooth on this unit.

Preparation:

Select [ON] for [IHEART SRC]. (→ 5)

1 Open the iHeartAuto application on your smart phone.
2 Connect your smart phone via Bluetooth connection. (→ 15)
3 Press repeatedly to select IHEARTRADIO.

The source switches and broadcast starts automatically.

You can operate iHeartRadio in the same way as iHeartRadio for iPod/iPhone. (→11)

AUDIO SETTINGS

While listening to any source...

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [ AUDIO CONTROL], then press the knob.
3 Turn the volume knob to select an item (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected or activated.
5 Press and hold to exit.

(or using RC-406)

1 Press AUD to enter [ AUDIO CONTROL].
2 Press ▲/▼ to select an item, then press ENT ▶II.

To return to the previous setting item, press 9/5.

Default: XX

SUB-W LEVEL -50 to +10 (0): Adjusts the subwoofer output level.
MANUAL EQ
BAND1 LEVEL LEVEL -9 to +9 (0): (Refer to BAND2 LEVEL below.)
	BASS EXTEND ON : Turns on the extended bass. ;OFF: Cancels.
BAND2 LEVEL to BAND13 LEVEL -9 to +9 (0): The sound elements (frequency level, tone level, Q factor) are preset into each selection (BAND1 LEVEL to BAND13 LEVEL).Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.)
Q FACTOR 1.35 /1.50/ 2.00: Adjust the quality factor.
PRESET EQ NATURAL __/ROCK/ POPS/ EASY/TOP40/JAZZ/ POWERFUL/ USER: Selects a preset equalizer suitable to the music genre. (Select [USER] to use the settings made in [MANUAL EQ].)
BASS BOOST LEVEL1 / LEVEL2/LEVEL3/ LEVEL4/LEVEL5 or LV1/LV2/LV3/LV4/LV5: Selects your preferred bass boost level.OFF: Cancels.
LOUDNESS LEVEL1 / LEVEL2or LV1/LV2: Selects your preferred low and high frequencies boost to produce a well-balanced sound at a low volume level. ;OFF: Cancels.
SUBWOOFER SET ON :Turns on the subwoofer output. ;OFF: Cancels.

FADER R15	to F15 (0): Adjusts the rear and front speaker output balance.
BALANCE L15	to R15 (0): Adjusts the left and right speaker output balance.
VOLUME OFFSET -15	to +6 (0): Preset the initial volume level of each source. (Before adjustment, select the source you want to adjust.)
SOUND EFFECT
SOUND RECNSTR(Sound reconstruction)	(Not applicable for TUNER source, AUX source and SIRIUS XM source.)ON: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression. ;OFF: Cancels.
SPACE ENHANCE	(Not applicable for TUNER source.)SMALL/ MEDIUM/LARGE or SML/ MED/LRG: Virtually enhances the sound space. ;OFF: Cancels.
SND REALIZER LEVEL1	/LEVEL2/ LEVEL3 or LV1/LV2/ LV3: Virtually makes the sound more realistic. ;OFF: Cancels.
STAGE EQ LOW	/ MIDDLE/ HIGH: Virtually adjust the sound position heard from the speakers. ;OFF: Cancels.
DRIVE EQ	ON: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres. ;OFF: Cancels.
SPEAKER SIZE	The frequency and slope settings are automatically set for the crossover of the selected speaker. (→22)
FRONT	SIZE 3.5"/4"/4.75"/5"/6.5"/6.75"/7"/4×6/5×7/6×8/6×9/7×10: Selects according to the connected speaker size for optimum performance.
	TWEETER SMALL/MIDDLE/LARGE: Selects according to the size range of the connected tweeter for optimum performance. ;NONE: Not connected.
REAR	3.5"/4"/4.75"/5"/6.5"/6.75"/7"/4×6/5×7/6×8/6×9/7×10: Selects according to the connected speaker size for optimum performance. ;NONE: Not connected.
SUBWOOFER	6.5"/8"/10"/12"/15" OVER: Selects according to the connected speaker size for optimum performance. ;NONE Not connected.

AUDIO SETTINGS

X'OVER

TWEETER FRQ		1KHZ/ 1.6KHZ/ 2.5KHZ/ 4KHZ/ 5KHZ/ 6.3KHZ/ 8KHZ/ 10KHZ/ 12.5KHZ: Adjusts the crossover frequency for the tweeter speaker.
		GAIN LEFT -8 to 0: Adjusts the output volume of the left tweeter.
		GAIN RIGHT -8 to 0: Adjusts the output volume of the right tweeter.
FRONT HPF F - HPF FRQ 30HZ		/40HZ/ 50HZ/ 60HZ/ 70HZ/ 80HZ/ 90HZ/ 100HZ/ 120HZ/ 150HZ/ 180HZ/ 220HZ/ 250HZ: Adjusts the crossover frequency for the selected speakers (high pass filter).; THROUGH: All signals are sent to the selected speakers.
		F - HPF SLOPE -6DB /-12DB/ -18DB/ -24DB: Adjusts the crossover slope. (Selectable only if a setting other than [THROUGH] is selected for [F - HPF FRQ].)
		F - HPF GAIN -8 to 0: Adjusts the output volume of the selected speaker.
REAR HPF R - HPF FRQ		(Refer FRONT HPF settings above.)
		R - HPF SLOPE
		R - HPF GAIN
SUBWOOFER LPF	SW LPF FRQ	30HZ/40HZ/ 50HZ/ 60HZ/ 70HZ/ 80HZ/ 90HZ/ 100HZ/ 120HZ/ 150HZ/ 180HZ/ 220HZ/ 250HZ: Adjusts the crossover frequency for the subwoofer (low pass filter).; THROUGH: All signals are sent to the subwoofer.
	SW LPF SLOPE -6DB /-12DB/ -18DB/ -24DB: Adjusts the crossover slope. (Selectable only if a setting other than [THROUGH] is selected for [SW LPF FRQ].)
	SW LPF PHASE REVERSE (180°)/ NORMAL (0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance.
	SW LPF GAIN -8 to 0: Adjusts the output volume of the subwoofer.

• (For KDC-BT265U KDC-MP365BT

[SUB-W LEVEL]/[SUBWOOFER SET]/[SUBWOOFER] of [SPEAKER SIZE]/[SUBWOOFER LPF] of [X'OVER] is selectable only if [SWITCH PREOUT] is set to [SUB-W].(→4)

- [SUB-W LEVEL]/[SUBWOOFER] of [SPEAKER SIZE]/[SUBWOOFER LPF] of [X'OVER] is selectable only if [SUBWOOFER SET] is set to [ON].

- [TWEETER], [REAR HPF] and [SUBWOOFER LPF] of [X 'OVER] is selectable only if a setting other than [NONE] is selected for [TWEETER], [REAR] and [SUBWOOFER] of [SPEAKER SIZE].

DISPLAY SETTINGS

(For KDC-BT365U / KDC-X300 / KMR-D365BT)

ZONE 1 ZONE 2 ALL ZONE

Set the dimmer

Press and hold DISP (DIMMER) to turn on or off the dimmer.

- If you have set [DIMMER TIME] (→ 23), it will be canceled once you press and hold this button.

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [ DISPLAY], then press the knob.
3 Turn the volume knob to select an item ( 23), then press the knob.
4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item.
5 Press and hold Q/5to exit.

To return to the previous setting item, press Q/5.

DISPLAY SETTINGS

COLORSELECT*1	Select color for ALL ZONE, ZONE 1 and ZONE 2 separately.1 Select a zone. (→ 22)2 Select a color for the selected zone.VARIABLE SCAN/ CUSTOM R/G/B/ preset colors*2Default:KDC-BT365U/ KDC-BT265UKDC-MP365BT: VARIABLE SCANKMR-D365BT: CUSTOM R/G/B (R = 9/ G = 9/ B = 9)To make your own color, select [CUSTOM R/G/B]. The color you have made will be stored in [CUSTOM R/G/B].1 Press the volume knob to enter the detailed color adjustment.2 Press I◄◄ / ►►I to select the color ( R/G/ B) to adjust.3 Turn the volume knob to adjust the level ( 0 — 9), then press the knob.
DIMMER	Dim the display illumination (and button illumination* 1).ON: Dimmer is turned on. ;OFF : Cancels.DIMMER TIME: Set the dimmer on and off time.1 Turn the volume knob to adjust the [ ON ] time, then press the knob.2 Turn the volume knob to adjust the [ OFF] time, then press the knob.(Default: [ON]: 6:00 PM; [ OFF]: 6:00 AM)
BRIGHTNESS	(For K7C-BT365UKDC-X300KMR-D365BT1 Select a zone. (→ 22)2 0 —31: Select your preferred brightness level for displayillumination and button illumination.(For KDC-BT265U / KDC-MP365BT0 —31: Select your preferred brightness level for display illuminationand button illumination.
TEXT SCROLL AUTO / ONCE: Select whether to scroll the display informationautomatically, or scroll only once. ;OFF: Cancels.

*1 For KDC-BT365U / KDC-X300 KMR-D365BT

*2 Preset colors: RED1/RED2/RED3/PURPLE1/PURPLE2/PURPLE3/PURPLE4/BLUE1/BLUE2/BLUE3/SKYBLUE1/SKYBLUE2/LIGHTBLUE/AQUA1/AQUA2/GREEN1/GREEN2/GREEN3/YELLOWGREEN1/YELLOWGREENZ YELLOW/ORANGE1/ORANGE2/ORANGERED

TROUBLESHOOTING

SymptomRemedy
General	Sound cannot be heard.	Adjust the volume to the optimum level.Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears.	Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears.	Send the unit to the nearest service center.
	Sound cannot be heard.The unit does not turn on.Information shown on the display is incorrect.	Clean the connectors. (→26)
	The unit does not work at all. Reset the unit. (→3)
	(For KMR-D365BT)"SET ERROR" / "DEL ERROR"	Setting/deleting the remote control ID is unsuccessful.Turn the power off, then turn on the power and perform the operation again. (→5)
Radio	Radio reception is poor.Static noise while listening to the radio.	Connect the antenna firmly.
CD/USB/iPod	Disc cannot be ejected.	Press and hold ▲ to forcibly eject the disc. Be careful not to drop the disc when it is ejected. If this does not solve the problem, reset the unit. (→3)
	Noise is generated.	Skip to another track or change the disc.
	Tracks do not play back as you intended them to play.	Playback order is determined when files are recorded.
	"READING" keeps flashing.	Do not use too many hierarchical levels or folders.
	Elapsed playing time is not correct.	This is caused by how the tracks are recorded.

TROUBLESHOOTING

SymptomRemedy
CD/USB/iPod	“LOADING” appears when you enter search mode by pressing / .	This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later.
	Correct characters are not displayed (e.g. album name).	This unit can only display uppercase letters, numbers, and a limited number of symbols.Depending on the display language you have selected ( 5 ), some characters may not be displayed correctly.
	“NA FILE” Make sure the disc contains supported audio files. ( →27)
	“NO DISC” Insert a playable disc into the loading slot.
	“TOC ERROR” Make sure the disc is clean and inserted properly.
	“PLEASE EJECT” Reset the unit. If this does not solve the problem, consult your nearest service center.
	“READ ERROR” Copy the files and folders onto the USB device again. If this does not solve the problem, reset the USB device or use another USB device.
	“NO DEVICE” Connect a USB device, and change the source to USB again.
	“COPY PRO” A copy-protected file is played.
	“NA DEVICE” Connect a supported USB device, and check the connections.
	“NO MUSIC” Connect a USB device that contains playable audio files.
	“iPod ERROR”	Reconnect the iPod.Reset the iPod.
ANDROID	Sound cannot be heard during playback.Sound output only from the Android device.	Reconnect the Android device.If in [HAND MODE], launch any media player application on the Android device and start playback.If in [HAND MODE], relaunch the current media player application or use another media player application.Restart the Android device.If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (→27)

SymptomRemedy
ANDROID	Cannot playback at [BROWSE MODE].	Make sure KENWOOD MUSIC PLAY APP is installed on the Android device. (→ 8)Reconnect the Android device and select the appropriate control mode.If this does not solve the problem, the connected Android device does not support [BROWSE MODE].(→ 27)
	"NO DEVICE" or "READING" keeps flashing.	Switch off the developer options on the Android device.Reconnect the Android device.If this does not solve the problem, the connected Android device does not support [BROWSE MODE].(→ 27)
	Playback is intermittent or sound skips.	Turn off the power saving mode on the Android device.
	"ANDROID ERROR" / "NA DEVICE"	Reconnect the Android device.Restart the Android device.
Pandora	"ADD ERROR" New station creation is unsuccessful.
	"CHECK DEVICE" Check the Pandora application on your device.
	"NO SKIPS" The skip limit has been reached.
	"NO STATIONS"	No stations are found.
	"STATION LIMIT"	The number of registered stations has reached its limit.Retry after deleting unnecessary stations from your device.
	"CONNECT ERROR"	Communication is unstable.
	"RATING ERROR"	Registration of thumbs up/thumbs down has failed due to insufficient network connectivity.
	"THUMBS N/A"	Registration of thumbs up/thumbs down is not allowed.
	"LICENSE ERROR"	You try to access from a country which Pandora is not deliverable.

TROUBLESHOOTING

SymptomRemedy
iHeartRadio	iHeartRadio station cannot be selected.	If "Explicit Content" in [Account Settings] is checked in the web version of iHeartRADIO, custom stations become unavailable.
	"NOT CONNECTED" Link to the application is impossible.
SiriusXM® Radio	"CH LOCKED LOCK CODE?" The selected channel is locked. Enter the correct pass code to unlock. (→ 14)
	"CHAN UNSUB" The selected channel is unsubscribed. Call 1-866-635-2349 in the U.S.A. or 1-877-438-9677 in Canada to subscribe. (→ 12)
	"CH UNAVAIL" The selected channel is unavailable. Visit www.siriusxm.com for more information about the SiriusXM channel lineup.
	"CHECK ANTENNA"	Check that the antenna and its connection are in good condition.
	"CHECK TUNER"	Make sure the SiriusXM Vehicle Tuner is connected to the unit.
	"NO SIGNAL" Make sure the antenna is mounted outside the vehicle.
	"SUBSCRIPTION UPDATED – PRESS ENTER TO CONTINUE."	Your subscription is updated. Press the volume knob to continue.
	"CODE ERROR" Make sure you have entered the correct pass code. (→ 14)
	"NO CONTENT"	There is insufficient content to start TuneScan.
	"SCAN CANCEL"	TuneScan has been aborted.

SymptomRemedy
Bluetooth^a	No Bluetooth device is detected.	Search from the Bluetooth device again.Reset the unit. (→ 3)
	Bluetooth pairing cannot be made.	Make sure you have entered the same PIN code to both the unit and Bluetooth device.Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (→ 15)
	Echo or noise is heard during a phone conversation.	Adjust the microphone unit's position. (→ 15)Check the [ ECHO CANCEL] setting. (→ 17)
	Phone sound quality is poor.	Reduce the distance between the unit and the Bluetooth device.Move the car to a place where you can get a better signal reception.
	Voice calling method is not successful.	Use voice calling method in a more quiet environment.Reduce the distance from the microphone when you speak the name.Make sure the same voice as the registered voice tag is used.
	Sound is being interrupted or skipped during playback of a Bluetooth audio player.	Reduce the distance between the unit and the Bluetooth audio player.Turn off, then turn on the unit and try to connect again.Other Bluetooth devices might be trying to connect to the unit.
	The connected Bluetooth audio player cannot be controlled.	Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)Disconnect and connect the Bluetooth player again.

TROUBLESHOOTING

Symptom Remedy
Bluetooth ^®	"DEVICE FULL" The number of registered devices has reached its limit.Retry after deleting an unnecessary device. (→ 19, DEVICE DELETE)
	"N/A VOICE TAG" Make sure the same voice as the registered voice tag is used.
	"NOT SUPPORT" The connected phone does not support Voice Recognition feature or phonebook transfer.
	"NO ENTRY" / "NO PAIR" There is no registered device connected/found via Bluetooth.
	"ERROR" Try the operation again. If "ERROR" appears again, check if the device supports the function you have tried.
	"NO INFO" / "NO DATA" Bluetooth device cannot get the contact information.
	"HF ERROR XX" / "BT ERROR" Reset the unit and try the operation again. If this does not solve the problem, consult your nearest service center.

REFERENCES

Maintenance

Cleaning the unit

Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector

Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector.

Connector (on the reverse side of the faceplate)

Handling discs

• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove burrs from the center hole and disc edge before inserting a disc.

■ More information

Visit also the following website for:

– Latest firmware updates and latest compatible item list
-Android™ application KENWOOD MUSIC PLAY
- Any other latest information

General

• This unit can only play the following CDs:

- Detailed information and notes about the playable audio files are stated in an online manual on the following website: www.kenwood.com/cs/ce/audiofile/

REFERENCES

playable files

• Playable audio file: MP3 (.mp3), WMA (.wma), AAC (.aac)
• Playable disc media: CD-R/CD-RW/CD-ROM
• Playable disc file format: ISO 9660 Level 1/2, Joliet, Long file name.
• Playable USB device file system: FAT12, FAT16, FAT32
  Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device.
  The AAC (.m4a) file in a USB device or a CD encoded by iTunes cannot be played on this unit.

Unplayable discs

• Discs that are not round.
• Discs with coloring on the recording surface or discs that are dirty.
- Recordable/ReWritable discs that have not been finalized.
- 8 cm CD. Attempting to insert using an adapter may cause malfunction.

About USB devices

• This unit can play MP3/WMA/AAC/WAV/FLAC files stored on a USB mass storage class device.
• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5 m may result in abnormal playback.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1.5 A.

About iPod/iPhone

Made for

• iPod touch (2nd, 3rd, 4th, and 5th generation)
• iPod classic
• iPod nano (3rd, 4th, 5th, 6th, and 7th generation)
• iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus
• You cannot operate iPod if "KENWOOD" or "√" is displayed on iPod.
• Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit.

About Android device

• This unit supports Android OS 4.1 and above.
- Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.
- If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority.

About Pandora

• Pandora is only available in certain countries.
  Please visit http://www.pandora.com/legal for more information.
• Because Pandora is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired, or some or all of the services may become unavailable.
• Some functions of Pandora cannot be operated from this unit.
• For issues using the application, please contact Pandora at [e-mail].

About iHeartRadio

• iHeartRadio® is a third-party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.
• Some iHeartRadio® functionality cannot be operated from this unit.

About Bluetooth

• Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.
• This unit may not work with some Bluetooth devices.
  • Signal conditions vary, depending on the surroundings.

REFERENCES

Change the display information

Each time you press DISP, the display information changes.

- If the information is unavailable or not recorded, "NO TEXT", "NO INFO", or other information (eg. station name, playing time) appears.

Source name	KDC-BT365U / KDC-X300 KMR-D365BT	KDC-BT265U KDC-MP365BT
STANDBY	Source name (Date/Clock)*1	Source name (* 2) Clock (back to the beginning)
TUNER	Frequency (Date/Clock)*1	Frequency (* 2) Clock (back to the beginning)
	(For FM Radio Broadcast Data System stations only)Station name (Date/Clock)*1 Radio text (Date/Clock)* 1 Radio text+ (R.TEXT+)Title (Artist) Title (Date/Clock)*1 Frequency (Date/Clock)* 1 back to the beginning)	(For FM Radio Broadcast Data System stations / FM Radio Data System stations only)Station name (* 2) Radio text Radio text+ Title/Artist Frequency Clock → (back to the beginning)
CD or USB	(For CD-DA)Track title (Artist) Track title (Disc name) Track title (Date/Clock)* 1 Playing time (Date/Clock)*1 (back to the beginning)	(For CD-DA)Disc name/Artist (* 2) Track title/Artist Playing time Clock → (back to the beginning)
	(For MP3/WMA/AAC/WAV/FLAC files)Track title (Artist) Track title (Album title) Track title (Date/Clock)* 1 File name (Folder name) File name (Date/Clock)*1 Playing time (Date/Clock)* 1 back to the beginning)	(For MP3/WMA/AAC/WAV/FLAC files)Track title/Artist (* 2) Album title/artist Folder name Filename Playing time Clock back to the beginning)
IPOD or ANDROID	Track title (Artist) Track title (Album name) Track title (Date/Clock)* 1 Playing time (Date/Clock)*1 (back to the beginning)	Track title/Artist (* 2) Album title/Artist Playing time Clock → (back to the beginning)
PANDORA	Station name (Date/Clock)*1 Shared / Radio station (Date/Clock)* 1 Track title (Artist) Track title (Album title) Track title (Date/Clock)* 1 Playing time (Date/Clock)* 1 (back to the beginning)	Station name (* 2) Shared/Radio station Track title Artist Album title Playing time Clock (back to the beginning)
IHEARTRADIO	Station name (Date/Clock)*1 Track title (Artist) Track title (Date/Clock)* 1 (back to the beginning)	Station name (* 2) Track title/Artist Clock (back to the beginning)
SIRIUS XM Channel number (Status) Channel name (Status) Artist name (Status) Song title (Status) Content information (Status) Category name (Status) Clock (Status) (back to the beginning)		—
BT AUDIO	Track title (Artist) Track title (Album name) Track title (Date/Clock)* 1 Playing time (Date/Clock)*1 (back to the beginning)	Track title/Artist (* 2) Album title/Artist Playing time Clock (back to the beginning)
AUX	Source name (Date/Clock)*1	Source name (* 2) Clock (back to the beginning)

* Battery and signal strength of the Bluetooth device will be shown if [BATT/SIGNAL] is set to [AUTO]. (→ 17)
*2 Only for Kturn off the display information.

INSTALLATION / CONNECTION

▲ Warning

• The unit can only be used with a 12 V DC power supply, negative ground.
• Disconnect the battery's negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
  • Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car's chassis again after installation.

Caution

• For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.
  • Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Mount the unit at an angle of less than 30^ .
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• Keep all cables away from heat dissipate metal parts.
  • After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

Basic procedure

1 Remove the key from the ignition switch, then disconnect the ⊖ terminal of the car battery.
2 Connect the wires properly.
See Wiring connection. ( → 30, 31)
3 Install the unit to your car.
See Installing the unit (in-dash mounting).
4 Connect the ⊖ terminal of the car battery.
5 Press to turn on the power.
6 Detach the faceplate and reset the unit within 5 seconds. (→ 3)

Installing the unit (in-dash mounting)
    note right of B: "Orientate the trim plate as illustrated before fitting"
    note right of C: "Hook on the top side"
    note right of D: "Dashboard of your car"
    note right of G: "Bend the appropriate tabs to hold the mounting sleeve firmly in place"
    note right of H: "Do the required wiring. (→ 30, 31)"

When installing without the mounting sleeve

1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (supplied/commercially available).
Use only the specified screws. Using wrong screws might damage the unit.

(B) 8 mm (3/8") MAX M5 mm M5 mm

How to remove the unit

1 Detach the faceplate.
2 Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out.
3 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the right.

Diagram illustrating a mechanical assembly or disassembly process with labeled steps (A, B, C, E) and numbered components.

ENGLISH

Wiring connection (for KDC-BT365U KDC-BT265U KDC-X300 KDC-MP365BT

IMPORTANT: We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer.

Part list for installation

(A) Faceplate

(×1)

(B) Trim plate

(×1)

(C) Mounting sleeve

(×1)

(D) Wiring harness

(×1)

(E) Extraction key

(×2)

(F) Screws (supplied for KDC-MP365BT)

M5×8 mm (×4)

M5×8mm(×4)

M4×8mm(×1)

Wiring connection (for KMR-D365BT)

IMPORTANT: We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer.

When connecting to an external amplifier, connect its ground wire to the car's chassis to avoid damaging the unit.

IMPORTANT : We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. When connecting to an external amplifier, connect its ground wire to the car's chassis to avoid damaging the unit. Antenna terminal ② Rear/ front/ subwoofer output ③ Fuse (10 A) Expansion port (12 V — 500 mA) To the optional SiriusXM Vehicle Tuner (commercially available) (→ 12) MIC (Microphone input terminal) (→ 15) To the remote control, KCA-RC55MR (optional accessory) (D)

SPECIFICATIONS

Tuner	FM Frequency Range	KDC-BT365U / KDC-BT265UKDC-X300 / XMR-D365BT87.9 MHz — 107.9 MHz (200 kHz space)KDC-MP365BT :87.5 MHz — 108.0 MHz (50 kHz space)
	Usable Sensitivity (S/N = 26 dB) 8.2 dBf (0.71 μV/75 Ω)
	Quieting Sensitivity (DIN S/N = 46 dB) 17.2 dBf (2.0 μV/75 Ω)
	Frequency Response (±3 dB) 30 Hz — 15 kHz
	Signal-to-Noise Ratio (MONO) 64 dB
	Stereo Separation (1 kHz) 40 dB
	AM Frequency Range 530 kHz — 1 700 kHz (10 kHz space)
	Usable Sensitivity (S/N = 20 dB) 29 dBμ (28.2 μV)
CD player	Laser Diode GaAIAs
	Digital Filter (D/A) 8 times over sampling
	Spindle Speed 500 rpm — 200 rpm (CLV)
	Wow & Flutter Below measurable limit
	Frequency Response (±1 dB)	20 Hz — 20 kHz
	Total Harmonic Distortion (1 kHz) 0.01 %
	Signal-to-Noise Ratio (1 kHz)	KDC-BT365U / KDC-BT265UKDC-MP365BT / KI05-13365BTKDC-X300 : 110 dB
	Dynamic Range	90 dB
	Channel Separation	85 dB
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio
	AAC Decode	AAC-LC “.aac” files

USB	USB Standard	USB 1.1, USB 2.0 Full Speed
	File System	FAT12/ 16/ 32
	Maximum Supply Current	DC 5 V === 1.5 A
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio
	AAC Decode	AAC-LC “.aac” files
	WAV Decode	Linear-PCM
	FLAC Decode	FLAC file (Up to 48 kHz / 16 bit)
Bluetooth	Version	Bluetooth Ver.2.1+EDR / Bluetooth 3.0
	Frequency Range	2.402 GHz — 2.480 GHz
	Output Power	+4 dBm (MAX), 0 dBm (AVE) Power Class 2
	Maximum Communication Range	Line of sight approx. 10 m (32.8 ft)
	Profile HFP (Hands-Free Profile)	A2DP (Advanced Audio Distribution Profile)AVRCP (Audio/Video Remote Control Profile)SPP (Serial Port Profile)PBAP (Phonebook Access Profile)
Auxiliary	Frequency Response ( ± 3 dB)	20 Hz — 20 kHz
	Input Maximum Voltage	1 000 mV
	Input Impedance	30 k

SPECIFICATIONS

Audio	Maximum Output Power 50 W × 4
	Full Bandwidth Power 22 W × 4 (at less than 1 % THD)
	Speaker Impedance 4 Ω — 8 Ω
	Tone Action Band 1: 62.5 Hz ±9 dB	Band 2: 100 Hz ±9 dBBand 3: 160 Hz ±9 dBBand 4: 250 Hz ±9 dBBand 5: 400 Hz ±9 dBBand 6: 630 Hz ±9 dBBand 7: 1 kHz ±9 dBBand 8: 1.6 kHz ±9 dBBand 9: 2.5 kHz ±9 dBBand 10: 4 kHz ±9 dBBand 11: 6.3 kHz ±9 dBBand 12: 10 kHz ±9 dBBand 13: 16 kHz ±9 dB
	Preout Level/Load (CD)	KDC-BT365U / KDC-BT265UKDC-MP365BT / KMR-D365BT2 500 mV/10 kΩKDC-X300 : 4 000 mV/10 kΩ
	Preout Impedance ≤ 600 Ω
General	Operating Voltage 14.4 V (10.5 V — 16 V allowable)
	Maximum Current Consumption 10 A
	Operational Temperature Range -10°C — +60°C
	Installation Size (W × H × D) 182 mm × 53 mm × 159 mm(7-3/16" × 2-1/8" × 6-1/4")
	Weight 1.3 kg (2.87 lbs)

Subject to change without notice.

TABLE DES MATIERES

(Pour KDC-BT365U / KDC-BT265U

KDC-X300

KDC-MP365BT

Puis, l'affichage montre: "CANCEL DEMO"

→ "PRESS" → VOLUMEKNOB".

(Pour KDC-BT365U / KDC-BT265U KDC-X300 KMR-D365BT

SPEECH : NEWS, INFORM (information), SPORTS, TALK. LANGUAGE. REL TALK (discussion religieuse), PERSNLTY (personnalité), PUBLIC, COLLEGE, HABL ESP (discussion en espagnol), WEATHER

SPEECH : NEWS, AFFAIRS INFO (information), SPORT, EDUCATE DRAMA, CULTURE, SCIENCE, VARIED WEATHER FINANCE. CHILDREN. SOCIAL. RELIGION, PHONE IN, TRAVEL, LEISURE DOCUMENT

BATT/SIGNAL* (Pour KDC-BT365U KDC-X300 KMR-D365BT

KDC-BT365U / KDMONRC, KMR-D365BT

1 Retirez la façade.

Diagram illustrating a device operation sequence with labeled steps (A, B, C, E) and directional arrows indicating movement.

Connexions (pour KDC-BT365U KDC-BT265U KDC-X300 KDC-MP365BT

IENWOOD G /%

(Para KDC-BT365U / KDC-BT265U KDC-X300 KMR-D365BT

KDC-BT365U / KONOMING, KMR-D365BT

- iPod touch (2nd, 3rd, 4th y 5th generation)

- iPod classic

- iPod nano (3rd, 4th, 5th, 6th y 7th generation)

- iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus

Diagram illustrating a device operation sequence with labeled steps (A, B, C, E) and directional arrows indicating movement.

Conexión del cableado (para KDC-BT365U KDC-BT265U KDC-X300 KDC-MP365BT

• "Made for iPod," and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, iPod touch and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.
  • Lightning is a trademark of Apple Inc.
• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
• iHeartRadio® and iHeartAuto™ are trademarks owned by iHeartMedia, Inc. All uses are authorized under license.
• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.
  • The "AAC" logo is a trademark of Dolby Laboratories.
• The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
  • Android is trademark of Google Inc.

libFLAC

Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
