TKD740 - Talkie Walkie KENWOOD - Free user manual and instructions

Product Type	Walkie-talkie (digital transceiver)
Brand	Kenwood
Model	TKD740
Power Supply	12 V DC (negative ground)
Recommended Fuse	10 A
Power Cable Included	Yes (with fuses)
Accessories Included	DC power cable (with fuses), mounting bracket, screw set, user guide
Main Functions	Transmit and receive, zone/channel selection, volume adjustment, monitor, group/individual call, scan, scrambler, silent
Display	Digital display with zone, channel, mode indicators
Microphone Jack	Yes
External Speaker Jack	Yes
Antenna Connector	Yes
TX/RX Indicator	Red (transmit), green (receive), orange (signaling call)
PTT Key	Yes
Vehicle Installation	Mounting bracket included, screw fixing
Safety Precautions	Do not use in explosive atmospheres, do not transmit near detonators, avoid RF burns
Maintenance	Do not disassemble, avoid direct sunlight, do not place near heat sources
Compliance	Directive 2014/53/EU

Frequently Asked Questions - TKD740 KENWOOD

How to power on the Kenwood TKD740?

Press the Power key (switch). To turn off, press the same key again.

How to adjust the volume?

Use the programmed Volume Up and Volume Down keys to adjust the sound level.

How to select a channel?

Use the programmed Channel Up and Channel Down keys to scroll through channels. The channel number is displayed.

How to transmit a message?

Select the desired channel, press the PTT switch, and speak into the microphone. Release to listen.

How to receive a call?

Select the channel. If the signaling matches, you will hear the call. For individual calls, a tone sounds; press PTT to answer.

What accessories are included with the TKD740?

The kit includes: DC power cable with fuses, mounting bracket, screw set (4 self-tapping screws 5x16 mm, 4 hex screws M4x6 mm with washers), and user guide.

What power supply is required for this walkie-talkie?

The device operates on a 12 V DC negative ground system. Use only the supplied power cable or an optional KENWOOD cable.

Can I use the walkie-talkie while driving?

It is not recommended to set up the device while driving. Check local regulations, as use may be prohibited.

How to install the TKD740 in a vehicle?

Attach the mounting bracket using the provided screws, connect the antenna and power cable, then slide the device into the bracket and tighten the hex screws.

What to do in case of abnormal smell or smoke?

Immediately turn off the transceiver and contact your authorized KENWOOD dealer.

USER MANUAL TKD740 KENWOOD

Authorised Representative in Europe

This User Guide covers only the basic operations of your radio. Ask your dealer for information on any customized features they may have added to your radio. For using details instruction manual (User Manual), refer to the following URL.

http://manual.kenwood.com/en_contents/search/keyword

NOTIFICATION

This equipment complies with the essential requirements of Directive 2014/53/EU.

This equipment requires a licence and is intended for use in the countries as below.

AT BE DK FI		FR DE	GR IS	IE IT LI	LU
NL	NO	PT	ES	SE	CH	GB	CY	CZ	EE	HU	LV
LTM	T PL SK	SI BG	RO HR	TR

THANK YOU

We are grateful you have chosen KENWOOD for your Digital Transceiver applications.

CONTENTS

NOTICES TO THE USER ....3

PRECAUTIONS 4

UNPACKING AND CHECKING EQUIPMENT ....5

SUPPLIED ACCESSORIES 5

PREPARATION 6

ORIENTATION 8

FRONT AND REAR VIEWS 8

DISPLAY....9

BASIC OPERATION 10

SWITCHING POWER ON/ OFF 10

ADJUSTING THE VOLUME 10

SELECTING A ZONE AND CHANNEL 10

TRANSMITTING 10

RECEIVING 10

NOTICES TO THE USER

◆ Government law prohibits the operation of unlicensed radio transmitters within the territories under government control.

◆ Illegal operation is punishable by fi ne and/or imprisonment.
◆ Refer service to qualified technicians only.

Safety: It is important that the operator is aware of, and understands, hazards common to the operation of any transceiver.

WARNING

◆ EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.)

Turn OFF your transceiver while taking on fuel or while parked in gasoline service stations. Do not carry spare fuel containers in the trunk of your vehicle if your transceiver is mounted in the trunk area.
◆ INJURY FROM RADIO FREQUENCY TRANSMISSIONS

Do not operate your transceiver when somebody is either standing near to or touching the antenna, to avoid the possibility of radio frequency burns or related physical injury.

◆ DYNAMITE BLASTING CAPS

Operating the transceiver within 500 feet (150 m) of dynamite blasting caps may cause them to explode. Turn OFF your transceiver when in an area where blasting is in progress, or where “TURN OFF TWO-WAY RADIO” signs have been posted. If you are transporting blasting caps in your vehicle, make sure they are carried in a closed metal box with a padded interior. Do not transmit while the caps are being placed into or removed from the container.

The AMBE+2 ^™ voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment.

The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. #8,315,860, #8,595,002, #6,199,037, #6,912,495, #8,200,497, #7,970,606, and #8,359,197.

Firmware Copyrights

The title to and ownership of copyrights for firmware embedded in KENWOOD product memories are reserved for JVC KENWOOD Corporation.

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.

Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.

Contact your local authority for details in locating a recycle facility nearest to you.

Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

PRECAUTIONS

Observe the following precautions to prevent fire, personal injury, and transceiver damage.

• Do not attempt to configure the transceiver while driving; it is too dangerous.
• Do not disassemble or modify the transceiver for any reason.
• Do not expose the transceiver to long periods of direct sunlight, nor place it near heating appliances.
• If an abnormal odor or smoke is detected coming from the transceiver, switch the transceiver power off immediately, and contact your KENWOOD dealer.
• Use of the transceiver while you are driving may be against traffic laws. Please check and observe the vehicle regulations in your area.
• Do not use options not specified by KENWOOD.
• Do not put the plastic bag used for packing of this equipment on the place which reaches a small child's hand. It will become a cause of suffocation if it wears flatly.
• Do not place the transceiver on unstable surfaces.
• Keep the volume as low as possible to protect your hearing.
• Always switch the transceiver power off before installing optional accessories.

CAUTION

◆ The transceiver operates in 12 V negative ground systems only! Check the battery polarity and voltage of the vehicle before installing the transceiver.
◆ Use only the supplied DC power cable or a KENWOOD optional DC power cable.

◆ Do not cut and/or remove the fuse holder on the DC power cable.

- Do not place the microphone cable around your neck while near machinery that may catch the cable.

WARNING

For passenger safety, install the transceiver securely using the supplied mounting bracket and screw set so the transceiver will not break loose in the event of a collision.

UNPACKING AND CHECKING EQUIPMENT

Note:

◆ The following instructions are for use by your KENWOOD dealer, an authorized KENWOOD service facility, or the factory.

Carefully unpack the transceiver. We recommend that you identify the items listed below before discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately.

SUPPLIED ACCESSORIES

DC power cable (with fuses) 1

- 10 A fuse .... 2

Mounting bracket 1

Screw set

• 5 x 16 mm self-tapping screw .... 4
• M4 x 6 mm hex-headed screw with washer. 4
• Spring washer .... 4
• Flat washer .... 4

User guide 1

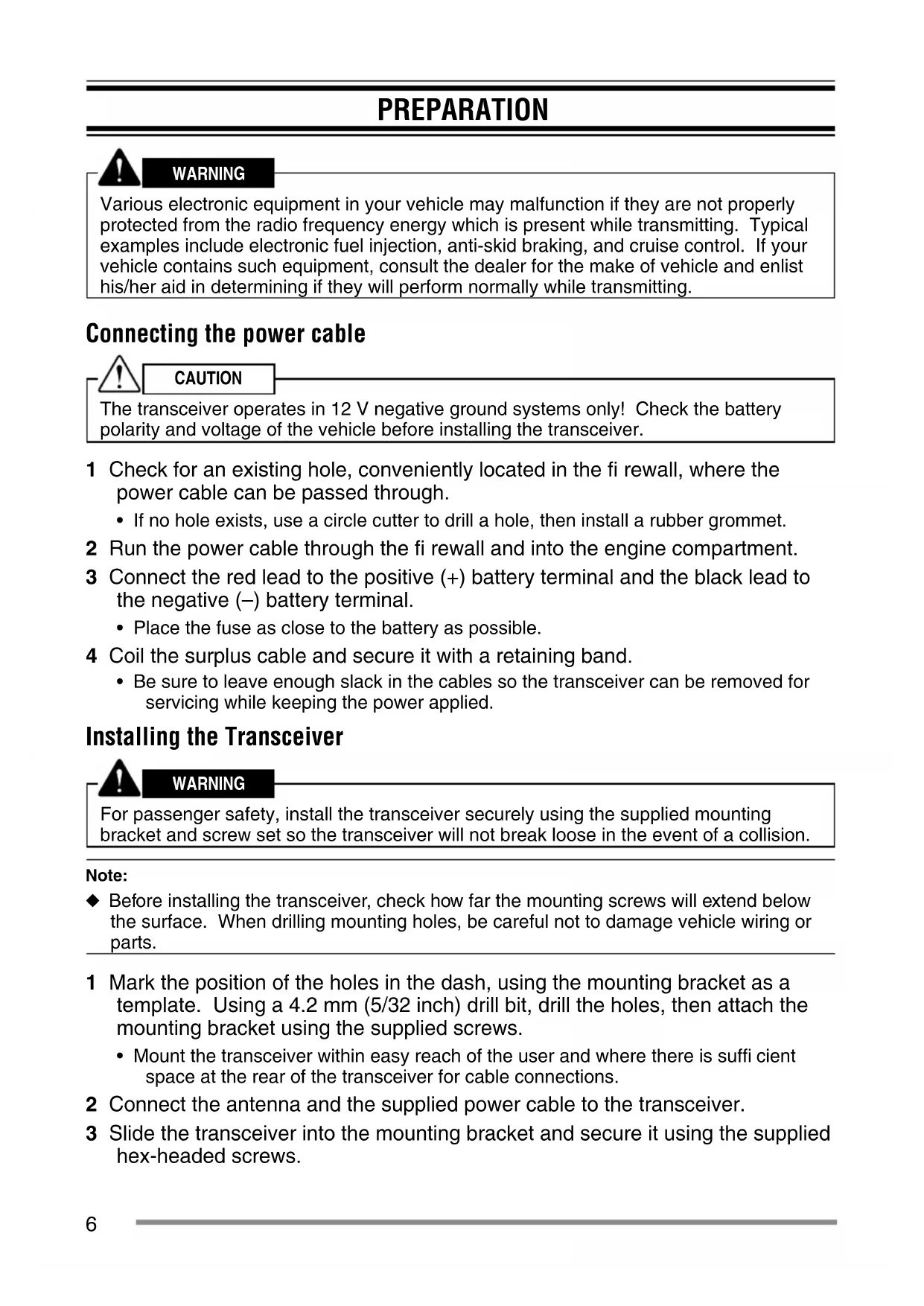

PREPARATION

WARNING

Various electronic equipment in your vehicle may malfunction if they are not properly protected from the radio frequency energy which is present while transmitting. Typical examples include electronic fuel injection, anti-skid braking, and cruise control. If your vehicle contains such equipment, consult the dealer for the make of vehicle and enlist his/her aid in determining if they will perform normally while transmitting.

Connecting the power cable

CAUTION

The transceiver operates in 12 V negative ground systems only! Check the battery polarity and voltage of the vehicle before installing the transceiver.

1 Check for an existing hole, conveniently located in the fi rewall, where the power cable can be passed through.
- If no hole exists, use a circle cutter to drill a hole, then install a rubber grommet.
2 Run the power cable through the fi rewall and into the engine compartment.
3 Connect the red lead to the positive (+) battery terminal and the black lead to the negative (−) battery terminal.
- Place the fuse as close to the battery as possible.
4 Coil the surplus cable and secure it with a retaining band.
- Be sure to leave enough slack in the cables so the transceiver can be removed for servicing while keeping the power applied.

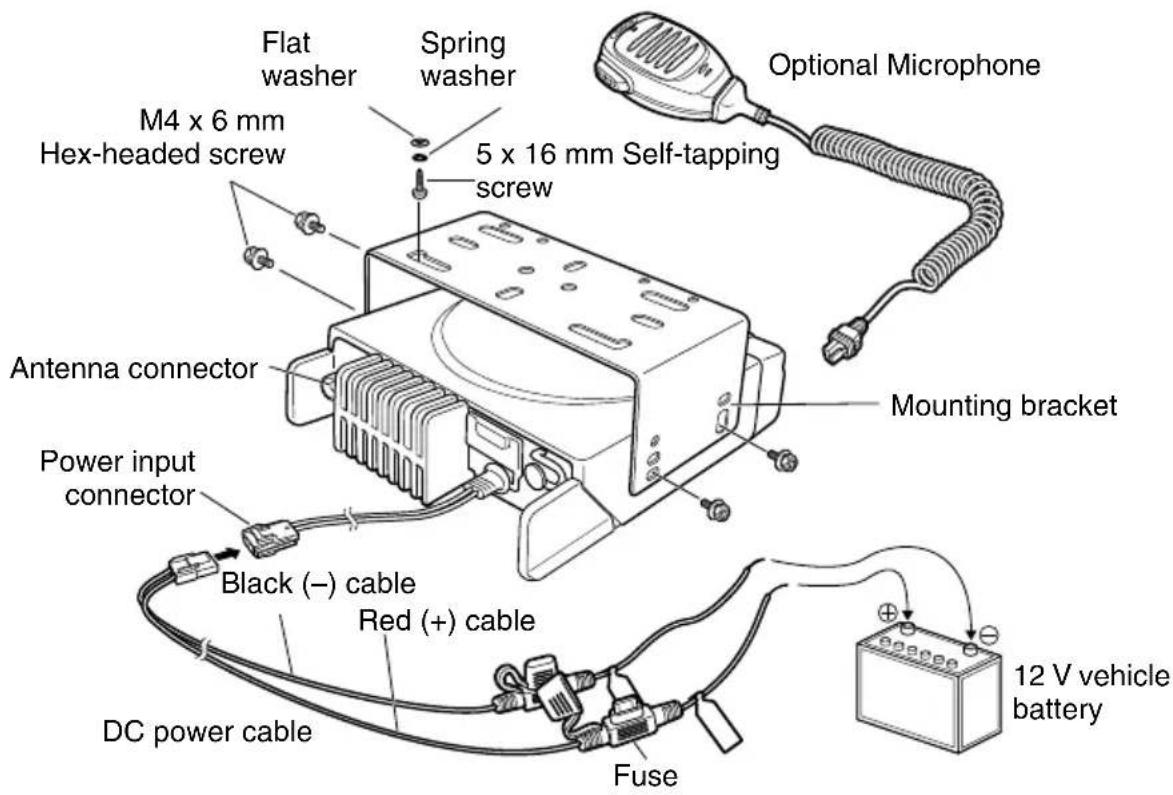

Installing the Transceiver

WARNING

For passenger safety, install the transceiver securely using the supplied mounting bracket and screw set so the transceiver will not break loose in the event of a collision.

Note:

Before installing the transceiver, check how far the mounting screws will extend below the surface. When drilling mounting holes, be careful not to damage vehicle wiring or parts.

1 Mark the position of the holes in the dash, using the mounting bracket as a template. Using a 4.2 mm (5/32 inch) drill bit, drill the holes, then attach the mounting bracket using the supplied screws.

- Mount the transceiver within easy reach of the user and where there is sufficient space at the rear of the transceiver for cable connections.

2 Connect the antenna and the supplied power cable to the transceiver.

3 Slide the transceiver into the mounting bracket and secure it using the supplied hex-headed screws.

4 Mount the microphone hanger in a location where it will be within easy reach of the user.

- The microphone and microphone cable should be mounted in a place where they will not interfere with the safe operation of the vehicle.

CAUTION

When replacing the fuse in the DC power cable, be sure to replace it with a fuse of the same value. Never replace a fuse with one that is rated with a higher value.

Flat washer Spring washer M4 x 6 mm Hex-headed screw 5 x 16 mm Self-tapping screw Optional Microphone Mounting bracket Antenna connector Power input connector Black (−) cable Red (+) cable DC power cable Fuse 12 V vehicle battery

ORIENTATION

FRONT AND REAR VIEWS

1 2 3 4 8.8. S A KENood 11 12 13 ACC. SP 10 14

① (Power) switch

Press to switch the transceiver ON or OFF.

② keys

Press to activate their programmable functions.

③ Display

Refer to page 9.

④ keys

Press to activate their programmable functions.

⑤ TX/RX Indicator

Lights red while transmitting. Lights green while receiving a signal. Flashes orange when receiving an optional signaling call.

⑥ Microphone jack

Insert the microphone plug into this jack.

⑦ Status Indicator

Lights during a specifi ed mode, based on dealer programming.

⑧ S / A / / △keys

Press to activate their programmable functions.

⑨ Speaker

Internal speaker.

⑩ PTT switch

Press this switch, then speak into the microphone to call a station.

⑪ Antenna connector

Connect the antenna to this connector.

⑫ ACC connector

Connect the ACC to this connector, via the KCT-60.

⑬ External speaker jack

Connect an external speaker to this jack.

Power input connector

Connect the DC Power Cable to this connector.

DISPLAY

The display shows the zone/ channel number and the 2 dots show various modes of operation.

Display	Description Display Description
	Zone Display (Zone 1)		Appears when a channel is removed from the scan list. (cd)
	Channel Display (Channel 16)		Appears when the Lone Worker function is activated. (Ln)
	Appears during Scan. (Sc) Appears		ending data. (dt)
	Appears during the transceiver is stunned. (St)		Appears when the channel is busy.
	Appears when switch the transceiver ON.The Transceiver Password function is programmed. (PS)		The selected channel is the Priority channel. (P)
	Appears when the Squelch Level setting is activated. (SL)		Appears when the Scrambler function is activated. (Sr)
	Appears when the Talk Around function is activated. (tA)		Appears when the Scrambler code mode is activated. (co)
	Appears when the Horn Alert function is activated. (HA)		Appears when the Message is completed. (Ed)
	Appears when the Public Address function is activated. (PA)		Appears when the Call Interrupt function is activated. (It)
	Appears when the AUX function is activated. (AU)		Appears when the External Speaker is selected. (SP)
	Appears when a channel is added to the scan list. (cA)

BASIC OPERATION

SWITCHING POWER ON/OFF

Press [∅] to switch the transceiver ON.

Press [⏻] again to switch the transceiver OFF.

ADJUSTING THE VOLUME

Press the key programmed as [Volume Up] to increase the volume. Press the key programmed as [Volume Down] to decrease the volume.

SELECTING A ZONE AND CHANNEL

Select the desired zone and channel using the keys programmed as [Zone Up]/[Zone Down] and [Channel Up]/[Channel Down].

- “G1” (Zone 1)/“16” (Channel 16) appears on the display.

TRANSMITTING

1 Select the desired zone and channel.

2 Press the key programmed as [Monitor] or [Squelch Off] to check whether or not the channel is free.

- If the channel is busy, wait until it becomes free.

3 Press the PTT switch and speak into the microphone. Release the PTT switch to receive.

- For best sound quality at the receiving station, hold the microphone approximately 1.5 inches (3 cm to 4 cm) from your mouth.

RECEIVING

Select the desired zone and channel. If signaling has been programmed on the selected channel, you will hear a call only if the received signal matches your transceiver settings.

Receiving Group Calls

When you receive a group call and the received group ID matches the ID set up on your transceiver, you can hear the caller's voice.

Receiving Individual Calls

When you receive an individual call, a ringing tone will sound. To respond to the call, press and hold the PTT switch and speak into the transceiver as you would during a normal transmission.

ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE VHF

TK-D740

ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE UHF

TK-D840

GUIDE DE L'UTILISATEUR

MISE SOUS/ HORS TENSION 10

RÉGLAGE DU VOLUME 10

SÉLECTION D'UNE ZONE ET D'UN CANAL 10

TRANSMISSION....10

RÉCEPTION....10

AVIS AUX UTILISATEURS

Press to switch the transceiver ON or OFF.

② Touches ^/ √

Connect the antenna to this connector.

⑫ Connecteur ACC

MISE SOUS/ HORS TENSION

TRANSCEPTOR DIGITAL VHF

TK-D740

TRANSCEPTOR DIGITAL UHF

TK-D840

GUÍA DEL USUARIO

- M4 x 6 mm hex-headed screw with washer. 4

- Rondella a molla .... 4

◆ EXPLOSIEVE ATMOSFEER (GAS, STOF, ROOK enz.)

1 2 3 4 8.8 S A KENood 11 12 13 ACC. SP 10 14

① EIN-/AUS-Schalter

◆ EXPLOSIEVE ATMOSFEER (GAS, STOF, ROOK enz.)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.

Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.

Contact your local authority for details in locating a recycle facility nearest to you.

Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

VOORZORGSMAATREGELEN

Hereby, JVCKENWOOD Nederland B.V. declares that the radio equipment types TK-D740-E, TK-D840-E are in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.kenwood.com/cs/com/ecdoc/

(Note: The detail type designations are described in the EU declaration of conformity.)

Model Frequency range Max. output power
TK-D740-ETX/RX 136.000	- 174.000 MHz 25 W
TK-D840-ETX/RX 400.000	- 470.000 MHz 25 W
