USER MANUAL MAXXPACK BTNXF001 Batavia

Cordless pressure cleaner

Akku-Druckreiniger

Operating instructions

Close-up of a white curled corner with an orange background, no text or symbols visible.

G 0°15°25°40° JET

Illustration of a hand inserting a screw into a mechanical component (no text or symbols)

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with labeled parts (no readable text or symbols)

Illustration of a faucet spraying water onto a battery pack (no text or symbols)

K ② ①

Overview

1. Safety switch
2. Main ON/OFF switch lever
3. Pressure setting switch (Eco)
4. Gripping surface
5. Hose adapter
6. Ventilation slots
7. Extension lance
8. Hose
9. Foam sprayer
10. Multi spray nozzle
11. Nozzle adapter
12. Short lance
13. Battery (not included)
14. Hose clip
15. Floater
16. Hose filter
17. Quick connect coupling
18. Soap bottle

Übersicht

Please familiarize yourself with the proper usage of the device by reading and following each chapter of this manual, in the order presented. Keep these operating instructions for further reference.

Please read the enclosed "General safety instructions for power tools" and all additional safety instructions in this operating instructions!

This manual contains important information on operating and handling the device. Keep these operating instructions for further reference. Please pass it on along with the unit if it is handed over to a third party.

Battery and charger not included!

The battery is available separately under art. No: 7062517 (2Ah) or 7062518 (4Ah). The charger is available separately under art. No: 7062519.

These items are available online and in participating stores.

1. Explanation of the symbols

The following symbols are used in the user manual or on the product:

Warning! To reduce the risk of injury, the user must read the instruction manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Always wear hearing protection. The effects of noise can cause hearing loss.

Do not burn.

Do not expose to rain or water.

CE stands for "Conformité Européenne", which means "In accordance with EU Regulations". With the CE marking, the manufacturer confirms that this Electric tool complies with the applicable European directives.

Do not dispose of electric power tools with domestic refuse.

2. Pressure washer specific safety warnings

- The user must use the appliance as intended. The person must consider the local conditions and pay attention to other persons in the vicinity when working with the appliance.

- The must appliance may not be operated in explosive atmospheres.

- If the appliance is used in hazardous areas the corresponding safety provisions must be observed.

- Do not use the appliance if it fell down, is visibly damaged or leaking.

- The liquid must not be directed towards equipment containing electrical components. Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).

- WARNING: The appliance must not be operated by children or persons who have not been instructed accordingly.

- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- Supervise children to prevent them from playing with the appliance.

- Operate or store the appliance only in accordance with the description or illustration!

- Never direct the jet at people, animals or loose objects!

- The appliance contains electrical components – do not clean under running water.

- CAUTION: Dry running may damage the device.

- Never leave the appliance unattended as long as it is in operation.

- ATTENTION: Do not operate the appliance at temperatures below 0 °C.

3. Additional safety warnings for pressure washers

3.1 The liquid must not be directed towards equipment containing electrical components.
3.2 Remove or disconnect the battery pack after use and before carrying out user maintenance on the appliance.
3.3 The appliance shall not be left unattended while it is connected to the battery pack.
3.4 The appliance is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
3.5 Keep the appliance out of reach of children when it is energized cooling down.
3.6 Exhausted batteries are to be removed from the appliance and safely disposed of.
3.7 If the appliance is to be stored unused for a long period, the batteries are removed.
3.8 The supply terminals must not be short-circuited.

4. Before the first use

Remove the machine and all accessories from the package. Keep the packaging materials out of the reach of small children. There is a danger of suffocation!

5. Contents of packing

1× Cordless pressure cleaner
1× Lance extension
1× Short lance
1× Multi-spray nozzle
1× Soap bottle
1× Hose (5m)
1× Regulator stop
1× Instruction manual

6. Intended use

This tool is intended for cleaning and watering. This battery powered pressure cleaner should be used for private households only.

7. Assembly

7.1 Assembly short lance

— Attach the multi-spray nozzle to the short lance.

(See Fig. D).

Slide the ring of the nozzle adaptor (11) of the short lance (12) backwards.

Snap the multi spray nozzle (10) into the nozzle adaptor (11). Slide the ring back.

NOTE: Check that the spray nozzle is properly secured (See Fig. D).

— Attach the short lance to the machine.

NOTE: To attach, align the two tabs on the lance with the recesses in the pressure cleaner as shown (See Fig. C).

72 Assembly extension lance

— Attach the short lance with multi-spray nozzle to the extension lance (7) (See Fig. F).

- Attach the extension lance (7) to the machine (See Fig. E).

NOTE: To attach, align the two tabs on the lance with the recesses in the pressure cleaner as shown (See Fig. C, E, F).

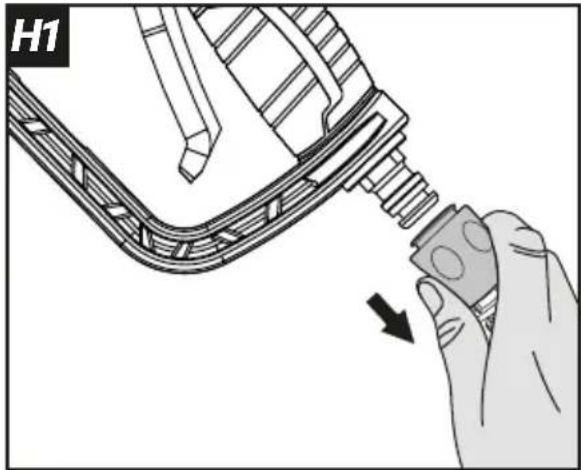

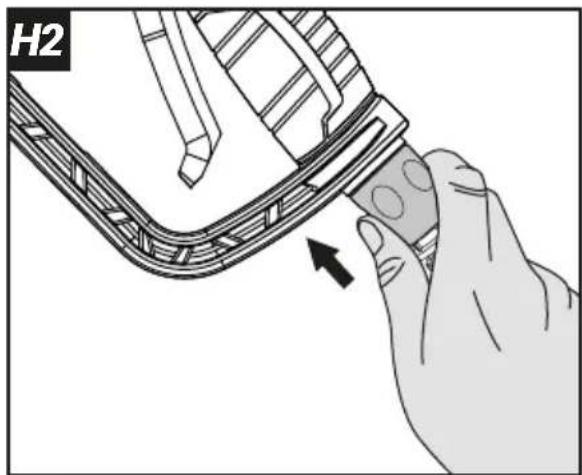

7.3 Attach the hose (8) to the machine.

- Connect quick connect coupling (17) to hose adaptor (5) (See Fig. H1, H2).

NOTE: After attaching the hose, check the connection by gently pulling on the hose. You should not be able to pull the hose off.

8. Use

8.1 Select water source

WARNING: Do not use the machine with a water source that is cloudy, muddy or corrosive.

— Suitable water sources:

• Bucket / water bag
• Ditches / canals / lakes / sea (After use, the system must be completely flushed with fresh water).

NOTE: When using in open water (ditches / canals / lakes etc.), make sure that the filter remains far away from the bottom (move the floater if necessary). Always use the supplied hose with filter for the water sources.

- (Drinking) water network. Always in combination with a system separator. The use of a regulator stop is recommended.

NOTE: Use a standard water hose with suitable coupling (s) for this.

WARNING: Never use the machine without a system separator on the drinking water network. Ensure that the connection of your water installation to which the device is connected is equipped with a system separator according to EN 12729 type BA.

WARNING: Water that has flowed through a system separator is considered non-drinkable.

8.2 Switch on / off

To switch the pressure cleaner on, hold down the safety switch (1) and press the main on / off switch lever (2) (see Fig. B).

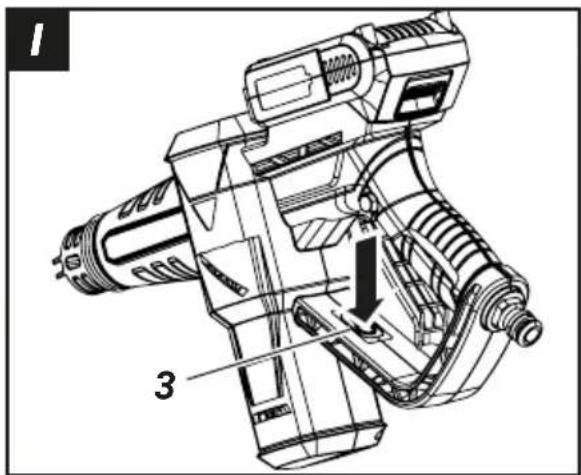

8.3 Pressure setting

The machine has two pressure settings. The high pressure setting is suitable for thorough cleaning removal and the low pressure setting is suitable for light cleaning and watering (See Fig. 1). The machine is standard in high pressure mode. Press pressure setting switch (eco) (3) to activate the low pressure mode.

NOTE: Before use, remove the air in the hose, hold the machine at your waist (max. 1.5 m above water source) and switch on the machine. It can take around 30 seconds for the water to reach the machine.

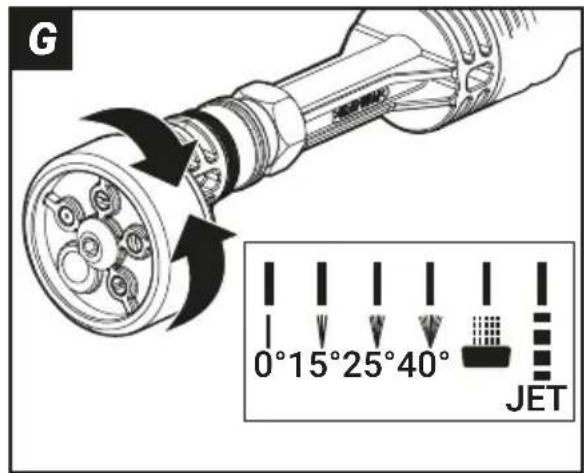

8.4 Select a spray mode

Choose a spray mode depending on your work. Spray settings 0^ , 15^ , 25^ , 40^ and Jet are suitable for cleaning and the spray position with the spray symbol is best suited for watering (See Fig. G).

WARNING: Do not change the spray setting when the appliance is switched on.

8.5 Use of the foam sprayer

Always use the foam sprayer (9) in combination with the extension lance (7).

NOTE: When using on a (drinking) water network, it must be ensured that the water supply is blocked (by means of a regulator stop, for example) when the pressure cleaner is not being used. This prevents the reservoir from draining.

— Attach the extension lance (7) to the machine (See Fig. E).

NOTE: To attach, align the two tabs on the lance with the cutouts as shown (See Fig. E)

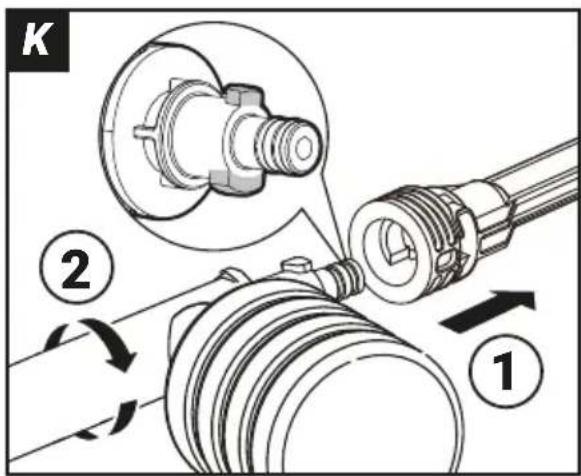

— Attach the foam sprayer (9) to the extension lance (7) (See Fig. K).

NOTE: For mounting, align the two tabs on the foam nozzle with the recesses in the extension lance as shown (See Fig. K).

— Remove the soap bottle(18) from the foam sprayer. This is attached by means of a bayonet fitting.
— Fill the soap bottle with the appropriate cleaning agent.
— Reattach the soap bottle to the foam sprayer
— After use, remove the remaining cleaning agent from the soap bottle.

9. Cleaning and maintenance

Remove the battery pack from the tool before carrying out any adjustment, servicing or maintenance.

Inspect the product for damaged or worn parts before each use. Do not operate it if you find damaged or worn parts. Contact your supplier or the manufacturer for replacement parts.

9.1 NOTE: For proper maintenance after using with sea water, the product should be rinsed by fresh water.

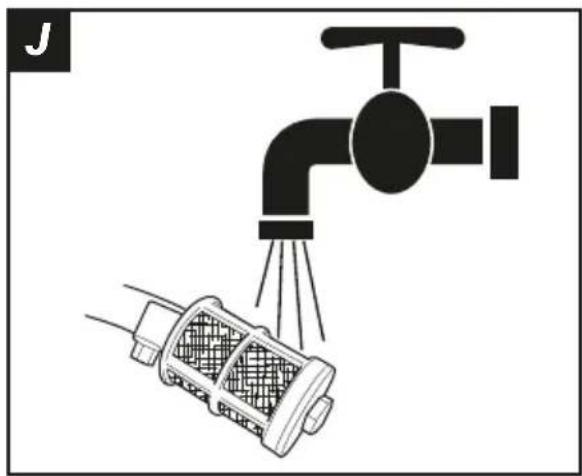

9.2 Hose filter maintenance

Rinse the filter with clean water.(See Fig. J).

Clean the molded plastic housing of the machine using a soft brush and clean cloth.

Do not use water, solvents or polishes. Store in a secure and dry place out of the reach of children. Do not place other objects on the product.

10. Cleaning/storage

Before storage, completely drain all the water from the machine and hose.

Store the machine and the accessories in a frost free place.

11. Technical data

Voltage: . . . . . . . . . . . . . 18 VDC Pressure: . . . . . . . . . . I : 19 Bar / II : 24 Bar Max water flow rate: . . . . . 160 / 170 L/H Suction height: . . . . . . . . . . . . 1.5 m Weight (with lance, without battery): . 1.1 kg

12. Disposal

Do not dispose of electric power tools with domestic refuse.

The electric power tool is shipped in packaging to reduce transport damage. This packaging is a raw material and as such can either be reused or can be fed back into the raw material cycle. The electric power tool and its accessories are made from various materials such as metals and plastics. Take defective components to a special refuse collection point. Ask about these at your specialist shop or local council.

12.1 Batteries

Think of the environment when disposing of batteries. Contact your local authorities to find out where your nearest disposal area is. Do not dispose of batteries with domestic refuse. Do not dispose of by burning, risk of explosion.

13. EC-Declaration of conformity

We, the Batavia GmbH, Weth. Buitenhuisstraat 2a, NL-7951 SM Staphorst, declare by our own responsibility that the product Cordless pressure cleaner, Item-No 7063576, Model Nr. BT-NXF001 is according to the basic requirements, which are defined in the European Directives Electromagnetic Compatibility 2014/30/EU (EMC), 2006/42/EC (Machinery), RoHS: 2011/65/EU and their amendments. For the evaluation of conformity, the following harmonized standards were consulted:

EN 60335-1, EN 60335-2-54, EN 62233, EN 55014-1, EN 55014-2

Staphorst, 1 August 2019

Handwritten signature or scribble on a document, possibly a signature or official document

Meino Seinen, QA Representative Batavia GmbH, Weth. Buitenhuisstraat 2a, 7951 SM Staphorst, Netherlands The product and the user manual may be subject to changes. Technical data may be changed without prior notice.

Staphorst, den 1. August 2019

Handwritten signature or scribble on a white background, possibly a signature or autograph.

Handwritten signature or scribble on a circular line, likely a personal autograph or document

Handwritten signature or scribble on a plain background

18 V Cordless collection

30+ TOOLS

Collage of four industrial tools: a hand holding a tool, a close-up of a small electronic device, a high-speed cutter on a workbench, and a BATAVIA cutting cutter (no visible text or symbols)

BATAVIA

2 YEAR WARRANTY

This product has got a 2 year warranty

Dear Client, if for any reason this product is not working, please ensure you contact our Client Service Centre. Ensure you have your original receipt of purchase. This warranty covers all defects in workmanship or materials in this Batavia product for a two year period from the date of purchase. The warranty does not cover any malfunction, or defect resulting from misuse, neglect, alteration, or repair.
