USER MANUAL Series 7 790 cc3 BRAUN

Black and white photo of a Bruhman electric shaver with 360° angle and S7 brand mark (no text or symbols on body)

English 4,

Français 6,

Español 8,

12

Thank yo0 for purchasing a Braun product.

We hope you are completely satisfied with your new Braun shaver.

If you have any questions, please visit

www.service.braun.com or call:

US residents 1-800-BRAUN-11

1-800-272-8611

Canadian residents 1-800-387-6657

Two views of a handwashing device showing internal components and red directional arrows (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

When disconnected, the hand-held part of this shaving appliance may be used in a bath or shower. For safety reasons this appliance can only be operated cordless.

DANGER

To reduce the risk of electric shock:

1. The charger unit is not for immersion in water or for use in shower.
2. Do not reach for a charger that has fallen into water. Unplug immediately.
3. Do not place, store or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
4. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
5. This appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.
6. Do not use an extension cord with this appliance.
7. Unplug this appliance before cleaning.

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.
4. Keep the cord away from heated surfaces.
5. Never drop or insert any object into any opening of the appliance.
6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
7. Do not use this appliance with a damaged or broken foil, as serious skin injuries may occur.
8. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls off, then remove plug from outlet.
9. When plugging to an electrical outlet outside North America, use a plug adapter to match the outlet's pin configuration.
10. Caution: The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100 °C ( 212 °F ), or incinerate.
11. To recharge the battery, only use the detachable power supply provided with this appliance. If the appliance is marked D-492-C, only use Braun power supplies coded 492-XXXX.

SAVE THESE INSTRUCTIONS

CONSIGNES DE SÉCURITÉ IMPORTANTE

This product is for household use only.

Caution

Keep power supply and charging stand dry.

Do not expose the appliance to temperatures higher than 50^ C / 122^ F for extended periods of time.

The brush (03-BR) must not be used on damaged or irritated skin or on wounds. If skin irritation occurs, discontinue use.

Avoid direct contact with eyes and hairline.

When the distance comb is removed, the trimmer should not be pressed into the skin. Risk of injury!

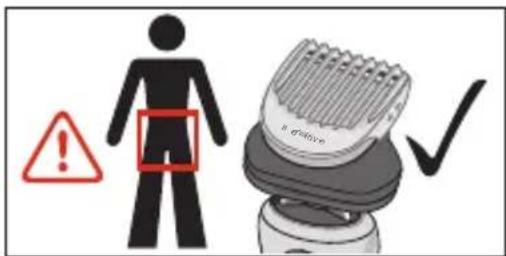

The body trimmer (06-BDT) must only be used with comb attachment in delicate areas.

Important

Do not open the appliance! The built-in rechargeable batteries can only be replaced by an authorized Braun Service center.

Only at the end of the product's useful life, disassemble the rechargeable battery for disposal reasons: Disassemble the housing as shown in the battery removal pictures, remove the rechargeable battery and recycle or dispose of properly, according to local guidelines. Caution: Disassembling the appliance will destroy it and invalidate the warranty.

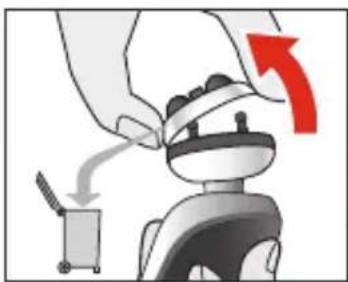

The shaver head needs cleaning under hot running water after each foam or gel usage! The brush needs to be cleaned with cool running water after each usage! Switch the shaver on and rinse until all residues have been removed. For hygienic reasons, do not share this appliance with other persons.

Subject to change without notice.

Français

Diagram illustrating lithium-ion battery recycling process with labeled components and directional arrows

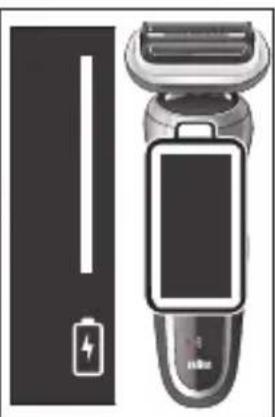

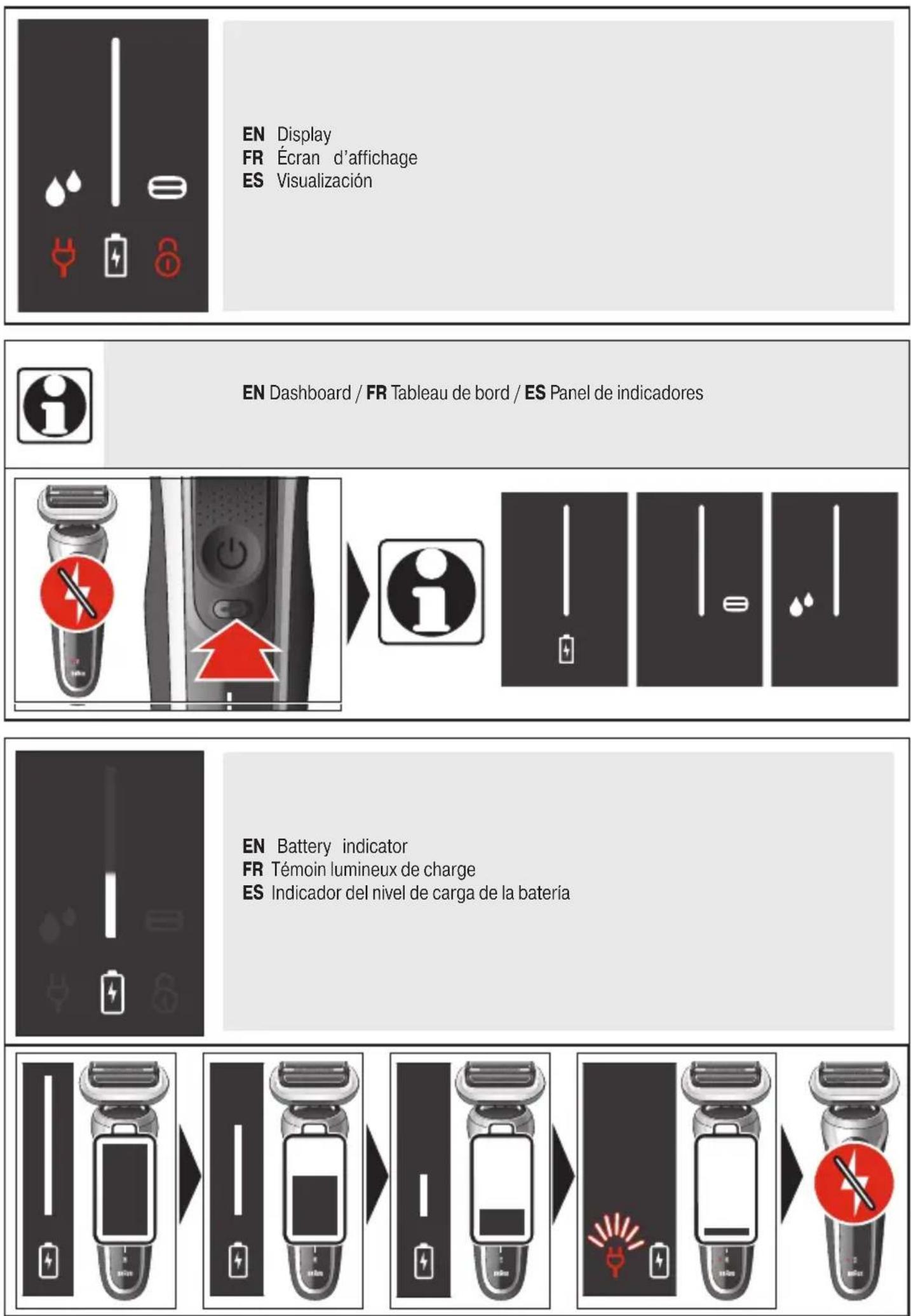

EN Display
FR Écran d'affichage
ES Visualización

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

a.

Illustration of a brand smiley electric shaver (no text or symbols visible)

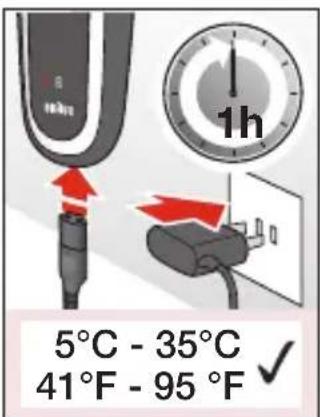

5°C - 35°C 41°F - 95 °F

Electric shaver with battery and charging button (no text or symbols visible)

b.

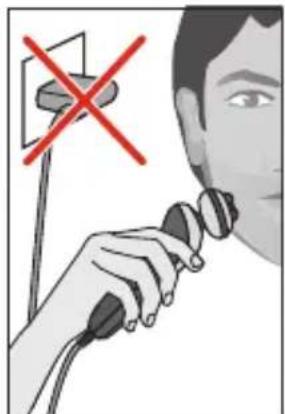

Illustration of a person using a handheld device with a red X symbol (no text or symbols present)

Diagram showing a plug with red arrows indicating disassembly or disassembly, alongside a warning symbol and a digital display panel.

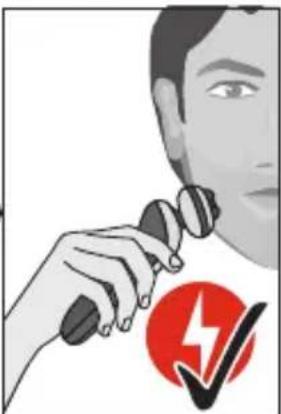

Illustration of a person using a handheld device with a red circular icon containing a lightning bolt (no text or symbols)

Pure electrical circuit symbols without any text or labels

EN Travel lock indicator
FR Témoin lumineux de verrouillage de voyage
ES Indicador de seguro de viaje

Illustration of a handheld electronic device with a flat case and handle (no text or symbols)

3 sec.

3 sec.

Solid dark gray rectangle with no visible text, symbols, or features.

Pure electrical circuit lines without any symbols

EN Replacement indicator
FR Indicateur de remplacement
ES Indicador de reemplazo

Pure electrical circuit symbols without any text or labels

73S

Illustration of a robotic arm with a tool and red directional arrows indicating motion (no text or symbols)

click!

Close-up of a white electric shaver blade with mesh grille (no text or symbols visible)

8 sec.

Pure electrical circuit lines without any symbols

EN Cleaning indicator
FR Indicateur de nettoyage
ES Indicador de limpieza

Pure electrical circuit lines without any symbols

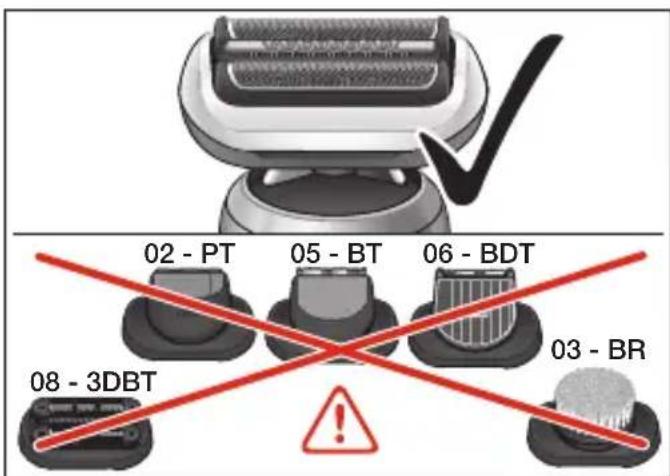

02 - PT 05 - BT 06 - BDT 03 - BR 08 - 3DBT

Product photo of a Balcon electric shaver with a printed cover (no visible text or symbols on the device itself)

5^ C - 35^ C

41°F - 95°F

Illustration of a digital brush with a power cord and cable, no text or symbols present

Exterior view of a modern electric toothbrush with a charging cable (no text or symbols visible)

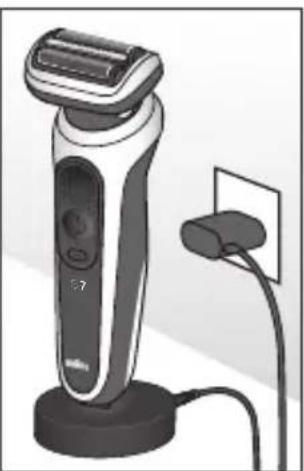

3D rendering of a handheld electric shaver with cable, mounted on a wall (no text or symbols visible)

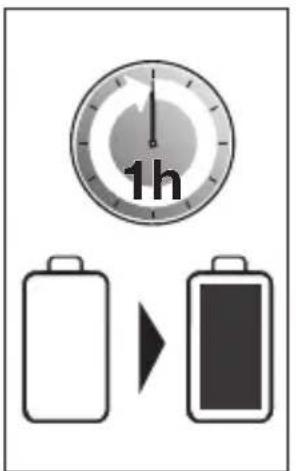

1h

Illustration of a person using a handheld device to clean or brush (no text or symbols visible)

15^ C - 35^ C

60^ F - 95^ F

EN Usage
FR Utilisation
ES Uso

Abstract graphic with a red upward arrow and the number 57, no readable text or symbols

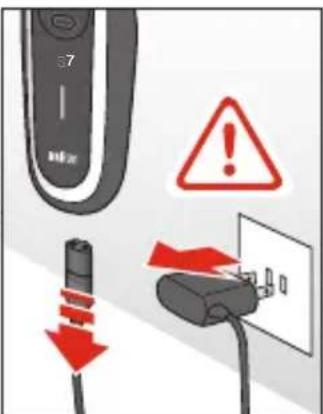

Safety warning symbols and diagram showing a plug, warning triangle, and red arrows indicating safety changes.

Close-up of a modern electric shaver with dual blade and handle (no visible text or symbols)

Illustration of a hairbrush with red arrows indicating motion or force direction (no text or symbols)

Close-up of hands holding a small electronic device with a black and white component (no visible text or symbols)

Illustration of a person applying oral care to their mouth, showing hand placement and eye movements (no text or symbols)

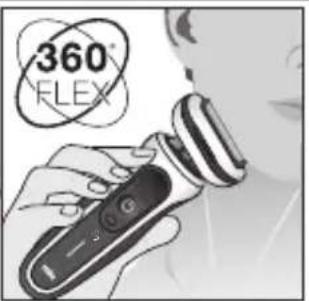

360 FLEX

Close-up of a robotic arm with a red arrow indicating motion or force (no text or symbols)

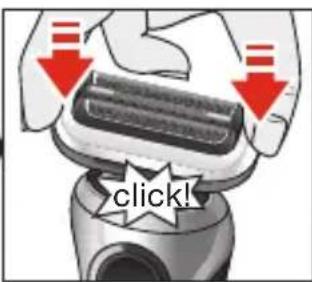

click!

Illustration of a hand holding a small object with a checkmark (no text or symbols present)

Illustration of a hand holding a small object with a checkmark symbol (no text or symbols present)

3D rendered image of a dark gray plastic component with striped pattern (no text or symbols)

02 - PT

Close-up of a dark, textured object with a striped top and circular base (no visible text or symbols)

05 - BT

Illustration of a person's face with hand near ear (no text or symbols)

Close-up of a dark, textured object with striped top and base (no visible text or symbols)

05 - BT

1 mm

2mm3mm5mm7mm

Close-up of hands holding a black mechanical component (no visible text or symbols)

Side profile illustration of a person's ear and hand (no text or symbols)

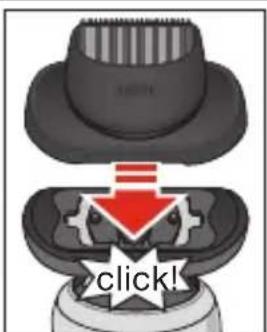

click!

Close-up of hands holding a camera lens, no visible text or symbols

Close-up of a white and gray striped object with a dark base, resembling a stylized brush or comb (no text or symbols visible)

06 - BDT

3 mm

Illustration of a person holding an arm with a wristband (no text or symbols)

Illustration of a hand holding a handheld device with a black strap (no text or symbols visible)

click!

! davise

08-3DBT

Illustration of a person using a hairbrush (no text or symbols visible)

Illustration of a person's face with a checkmark (no text or symbols present)

Illustration of a person's face with a red X mark, no text or symbols present

Close-up of a mechanical device with internal components and a red arrow indicating a specific section (no text or symbols visible)

0,5-2,3 mm

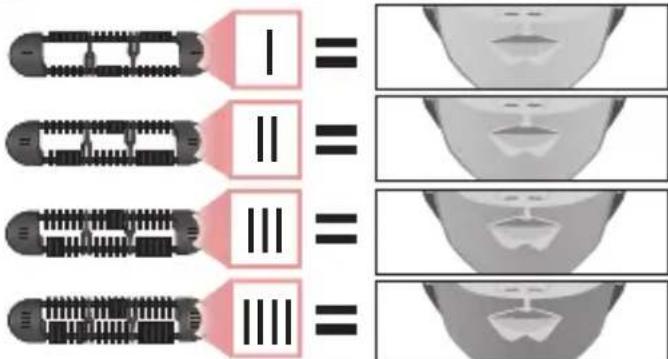

I = II = III = IV =

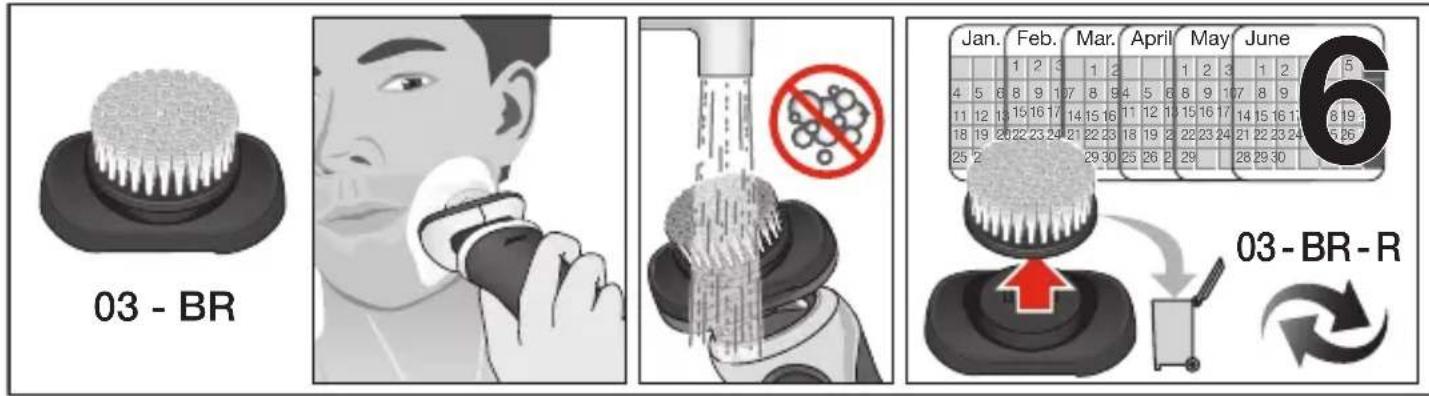

03 - BR Jan. Feb. Mar. April May June 1 2 3 1 2 1 2 3 1 2 3 1 2 5 4 5 6 8 9 10 7 8 9 4 5 6 8 9 10 7 8 9 11 12 13 15 16 17 14 15 16 11 12 13 15 16 17 14 15 16 17 18 19 20 22 23 24 21 22 23 18 19 20 22 23 24 21 22 23 24 25 2 29.30 25 26 2 29 6 03 - BR - R

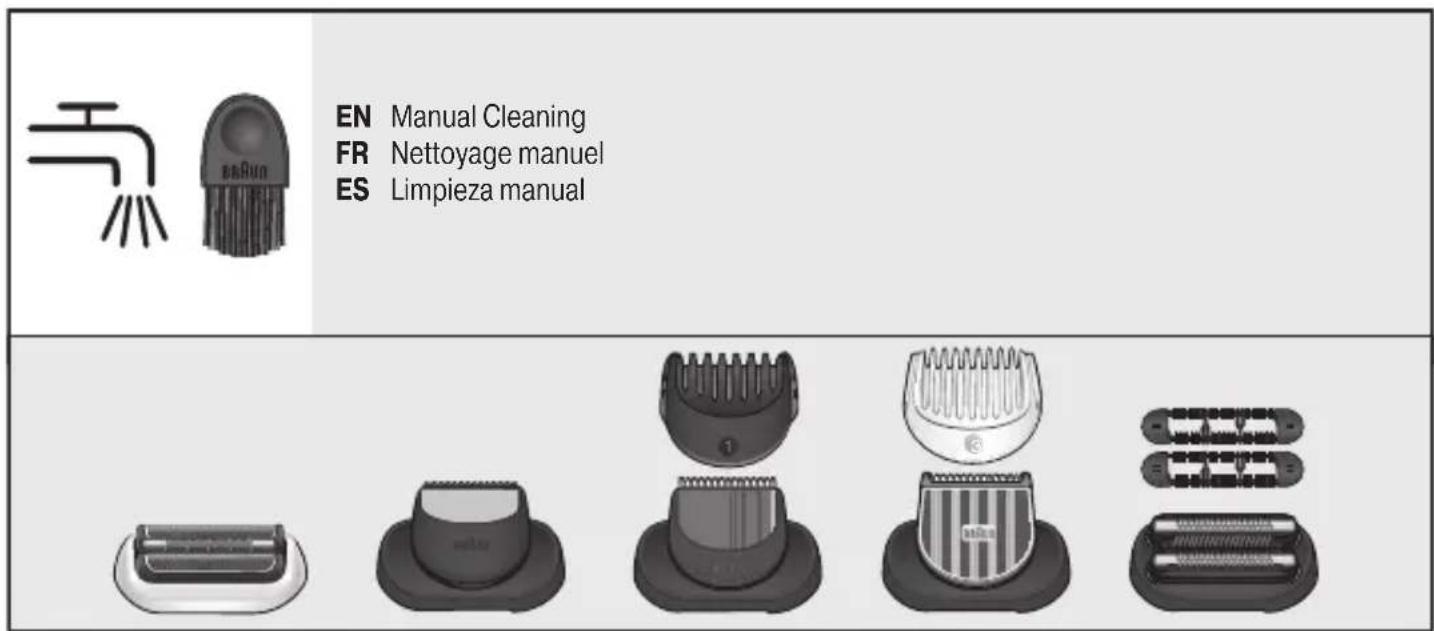

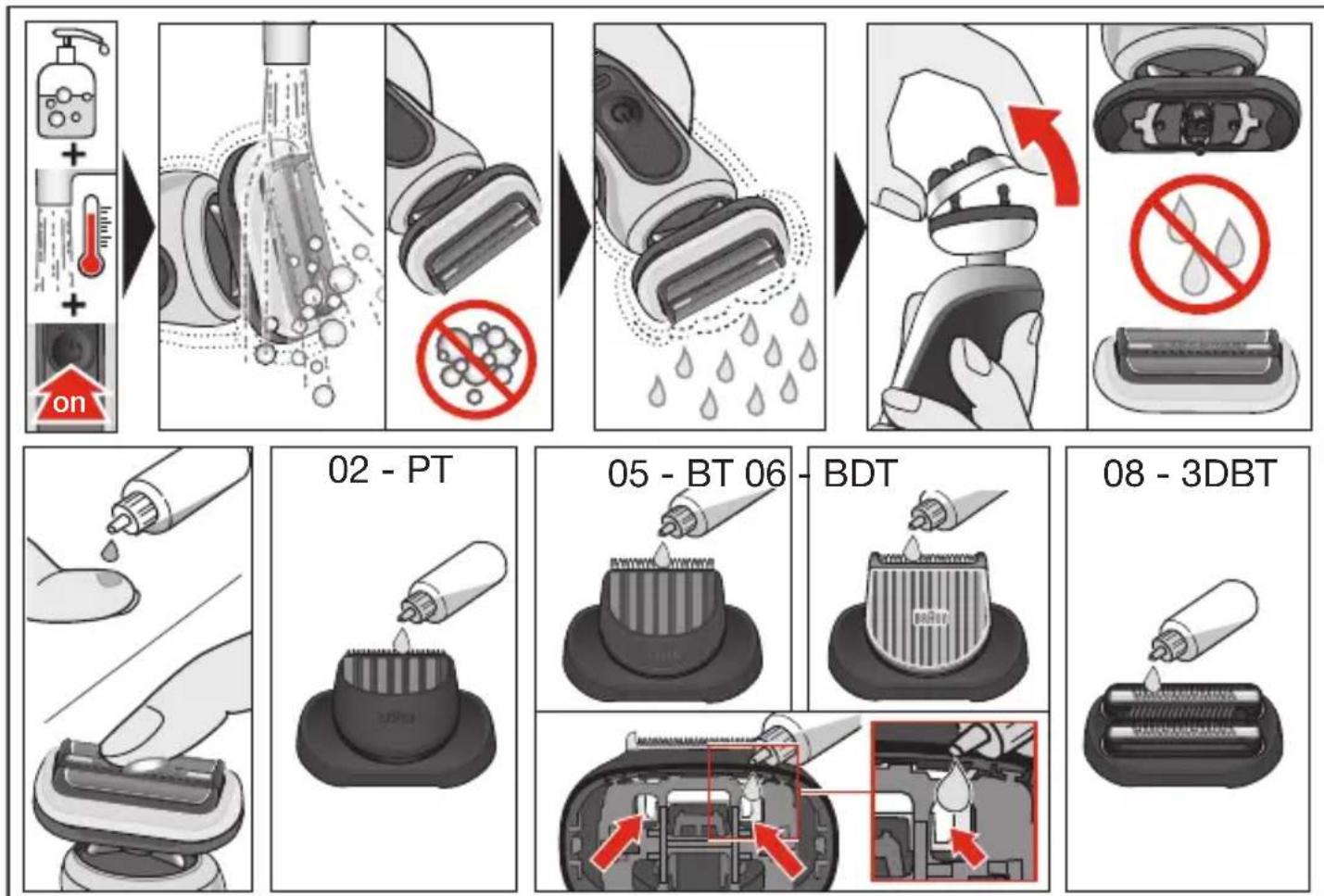

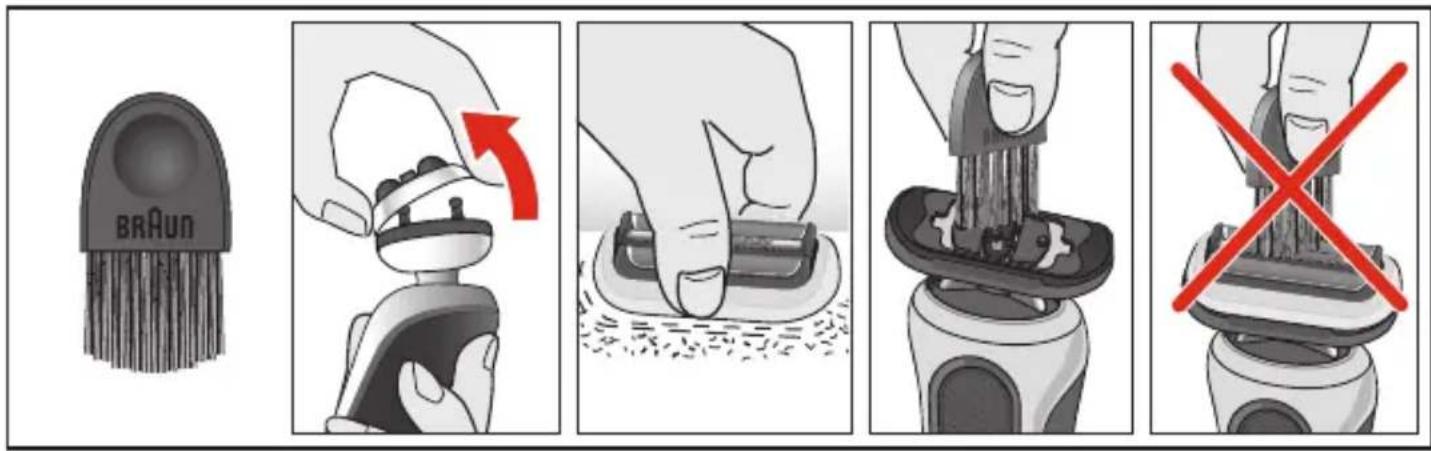

EN Manual Cleaning FR Nettoyage manuel ES Limpieza manual

BRAUN

Battery icon with circular arrow symbol, no text or numbers present

EN Battery replacement
FR Remplacement des piles
ES Reemplazo de la batería

Simple line icon of a battery with a sad face and arrow, symbolizing negative energy or stress (no text or symbols)

www.service.braun.com

Exterior view of a modern electric shaver with dual leads (no text or symbols visible)

Battery icon with circular arrow symbol indicating cycle (no text or numbers)

Simple line drawing of a battery with a smiley face inside (no text or symbols)

Black and white photo of a Bruke brand electric shaver with a V button and power switch (no text or symbols visible)

How to obtain service in the USA

Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or,
B. Ship the product to the Authorized Braun Service Center of your choice.
Pack the product well.
Ship the product prepaid and insured (recommended).
Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts and accessories:

Contact a Braun Authorized Service Center.

Please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized

Braun Service Center closest to you or visit www.service.braun.com.

To speak to a Braun Consumer Service Representative:

Please call 1-800-BRAUN 11 (272-8611).

How to obtain service in Canada

Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or,
B. Ship the product to the Authorized Braun Service Center of your choice.
Pack the product well.
Ship the product prepaid and insured (recommended).
Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts & accessories:

Contact a Braun Authorized Service Center.

Please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

To speak to a Braun Service Representative:

Please call 1-800-387-6657.

60 day money back satisfaction guarantee for men's grooming products

Braun Shavers

Braun Beard Trimmers

Once you have tried your new Braun shaver or beard trimmer, we are confident you will appreciate its performance. We suggest using the product regularly for 2 to 3 weeks. If you are not satisfied with the product, please call 1-800-211-6661 for instructions on how to return the product. Return the unit and all parts within 60 days of purchase. Retain original cash receipt, product and all product parts, including the box. Do not return to the retailer for guarantee fulfillment.

Please note: No refunds will be made for any product damaged by accident, neglect or unreasonable use.

Your product must be shipped in its original packaging, with your original sales slip indicating the date of purchase.

Please include the following information when you return your product:

Name

Street

City

State

Zip code

Telephone number

Please allow 6-8 weeks for handling.

FOR USA ONLY

2 year limited warranty (foil and cutter block excluded)

Braun warrants this Braun shaver (except foil and cutter block) to be free of defects in material and workmanship for a period of two years from the date of original purchase.

If the shaver exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge.

Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you or visit www.service.braun.com.

This warranty does not cover foil and cutter cassette or damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, normal wear, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance, including recharging.

ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 2 YEARS FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state.

FOR CANADA ONLY

2 year limited warranty (foil and cutter block excluded)

In the event a Braun Shaver fails to function within 2 years from date of purchase, because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer.

This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse, kinks in the shaver foil as well as the normal wear of the shearing parts.

Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada. Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product.

Close-up of a hairless electric shaver with a red arrow indicating the process (no text or symbols visible)

Please note down the suggested replacement date (in 18 months from now) below replacement part reference number.

73S

Three identical rectangular shapes with vertical lines inside, arranged horizontally (no text or symbols)
