Mission RTKn 2000 KR172E - Lawn mower KRESS - Free user manual and instructions
Find the device manual for free Mission RTKn 2000 KR172E KRESS in PDF.
| Product type | Robotic lawn mower |
| Brand | Kress |
| Model | Mission RTKn 2000 KR172E |
| Rated voltage | 20 V (max) |
| No-load speed | 2700/min |
| Maximum mowing area | 2000 m² |
| Cutting diameter | 20 cm |
| Cutting height | 30-60 mm (7 positions) |
| Battery type | Lithium-ion |
| Battery model | KA3024 |
| Charging time | Approximately 180 min |
| Charger model | KA0200/KA0201 |
| Weight | 12 kg |
| Protection class | III |
| Maximum slope | 40% |
| Sound pressure level | 47.5 dB(A) |
| Sound power level | 55.5 dB(A) |
| Navigation system | RTK (Real-Time Kinematic) |
| Virtual boundary | Yes (via RTK antenna and magnetic strip) |
| Sensors | Ultrasonic, rain sensor |
| Automatic return to base | Yes |
| Programming | Via mobile app |
| Number of blades | 9 (interchangeable) |
| Charging dock | Included (with fixing nails) |
| RTK antenna | Included (1 piece) |
| Maintenance | Clean with water hose, regular blade replacement |
| Safety | STOP button, PIN code, automatic stop when lifted |
Frequently Asked Questions - Mission RTKn 2000 KR172E KRESS
User questions about Mission RTKn 2000 KR172E KRESS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lawn mower in PDF format for free! Find your manual Mission RTKn 2000 KR172E - KRESS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Mission RTKn 2000 KR172E by KRESS.
USER MANUAL Mission RTKn 2000 KR172E KRESS


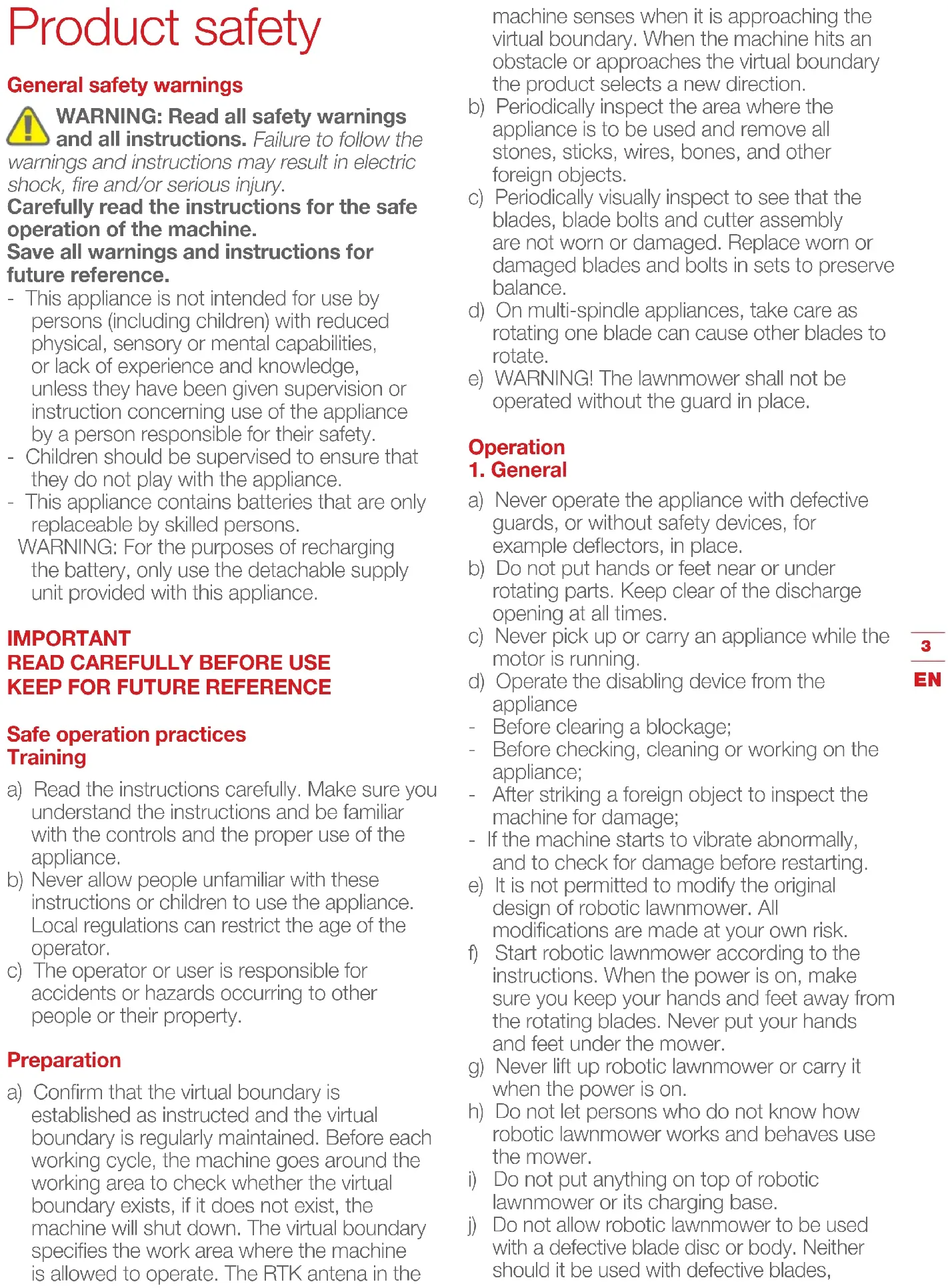

General safety warnings
WARNING: Read all safety warnings
and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Carefully read the instructions for the safe operation of the machine.
Save all warnings and instructions for future reference.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- This appliance contains batteries that are only replaceable by skilled persons.
WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
Safe operation practices Training
a) Read the instructions carefully. Make sure you understand the instructions and be familiar with the controls and the proper use of the appliance.
b) Never allow people unfamiliar with these instructions or children to use the appliance. Local regulations can restrict the age of the operator.
c) The operator or user is responsible for accidents or hazards occurring to other people or their property.
Preparation
a) Confirm that the virtual boundary is established as instructed and the virtual boundary is regularly maintained. Before each working cycle, the machine goes around the working area to check whether the virtual boundary exists, if it does not exist, the machine will shut down. The virtual boundary specifies the work area where the machine is allowed to operate. The RTK antenna in the
machine senses when it is approaching the virtual boundary. When the machine hits an obstacle or approaches the virtual boundary the product selects a new direction.
b) Periodically inspect the area where the appliance is to be used and remove all stones, sticks, wires, bones, and other foreign objects.
c) Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
d) On multi-spindle appliances, take care as rotating one blade can cause other blades to rotate.
e) WARNING! The lawnmower shall not be operated without the guard in place.
Operation
1. General
a) Never operate the appliance with defective guards, or without safety devices, for example deflectors, in place.
b) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
c) Never pick up or carry an appliance while the motor is running.
d) Operate the disabling device from the appliance
- Before clearing a blockage;
- Before checking, cleaning or working on the appliance;
- After striking a foreign object to inspect the machine for damage;
- If the machine starts to vibrate abnormally, and to check for damage before restarting.
e) It is not permitted to modify the original design of robotic lawnmower. All modifications are made at your own risk.
f) Start robotic lawnmower according to the instructions. When the power is on, make sure you keep your hands and feet away from the rotating blades. Never put your hands and feet under the mower.
g) Never lift up robotic lawnmower or carry it when the power is on.
h) Do not let persons who do not know how robotic lawnmower works and behaves use the mower.
i) Do not put anything on top of robotic lawnmower or its charging base.
j) Do not allow robotic lawnmower to be used with a defective blade disc or body. Neither should it be used with defective blades,
screws, nuts or cables.
k) Always switch off robotic lawnmower when you do not intend to use the mower. Robotic lawnmower can only start when the power is on and the correct PIN code has been entered.
I) Keep your hands and feet away from the rotating blades. Never place your hands or feet close to or under the body when robotic lawnmower is in operation.
m) To avoid using the machine and its peripherals in bad weather conditions especially when there is a risk of lightning.
n) Not to touch moving hazardous parts before these have come to a complete stop.
o) For machines used in public areas, that warning signs shall be placed around the working area of the machine. They shall show the substance of the following text: Warning! Automatic lawnmower! Keep away from the machine! Supervise children!
2. Additionally when the appliance is operating automatically
a) Do not leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.
Maintenance and storage
WARNING! When the mower is turned upside down the power must always be off.
The power should be off during all work on the mower's underframe, such as cleaning or replacing the blades.
a) Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.
b) Inspect the robotic lawnmower each week and replace worn or damaged parts for safety.
c) Check especially that the blades and blade disc are not damaged. Replace all blades and screws at the same time if necessary so that the rotating parts are balanced.
d) Ensure that only replacement cutting means of the right type are used.
e) Ensure that batteries are charged using the correct charger recommended by the manufacturer. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
f) In the event of leakage of electrolyte flush with water/neutralizing agent, seek medical help if it comes into contact with the eyes etc.
g) Servicing of the appliance should be
according to manufacturers' instructions.
Recommendation
To connect the machine and/or its peripherals only to a supply circuit protected by a residual current device (RCD) with a tripping current of not more than 30 mA.
Residual risks
To avoid injuries, wear protective gloves when replacing the blades.
Transport
The original packaging should be used when transporting robotic lawnmower over long distances.
To safely move form or within the working area:
a) Press the STOP button to stop the mower. You select the four digit PIN code when you start the mower for the first time.
b) Always switch off robotic lawnmower if you intend to carry the mower.
c) Carry the mower by the handle at the rear under the mower. Carry the mower with the blade disc away from the body.
RF exposure requirements
To satisfy RF exposure requirements, a separation distance of 200mm or more should be maintained between this device and persons during device operation.
To ensure compliance, operators at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.
Safety Warnings for battery pack inside the tool
a) Do not dismantle, open or shred battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Keep battery pack clean and dry.
g) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment.
h) Do not use any battery pack which is not designed for use with the equipment.
i) Keep battery pack out of the reach of children.
j) Retain the original product literature for future reference.
k) Dispose of properly.
I) Do not mix cells of different manufacture, capacity, size or type within a device.
m) Keep the battery away from microwaves and high pressure.
Symbols
WARNING – robotic lawnmower can be dangerous if incorrectly used. Read through the Operator's manual carefully and understand the content before using your robotic lawnmower.
WARNING - Keep a safe distance from the machine when operating.
WARNING – Operate the disabling device before working on or lifting the machine.
WARNING – Do not ride on the machine.
Class III appliance
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
Li-lon battery. This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
Do not burn.
Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.

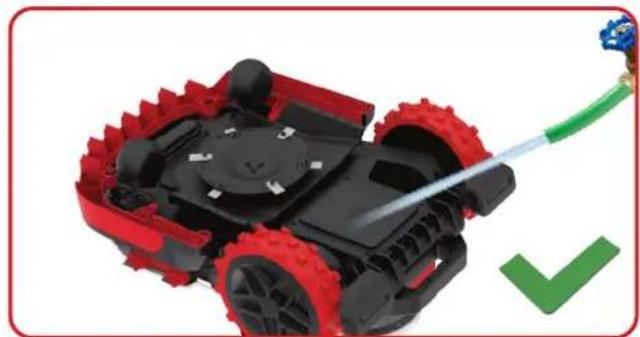

Do not wash the machine with a high pressure washer
Read operator's manual
Detachable supply unit

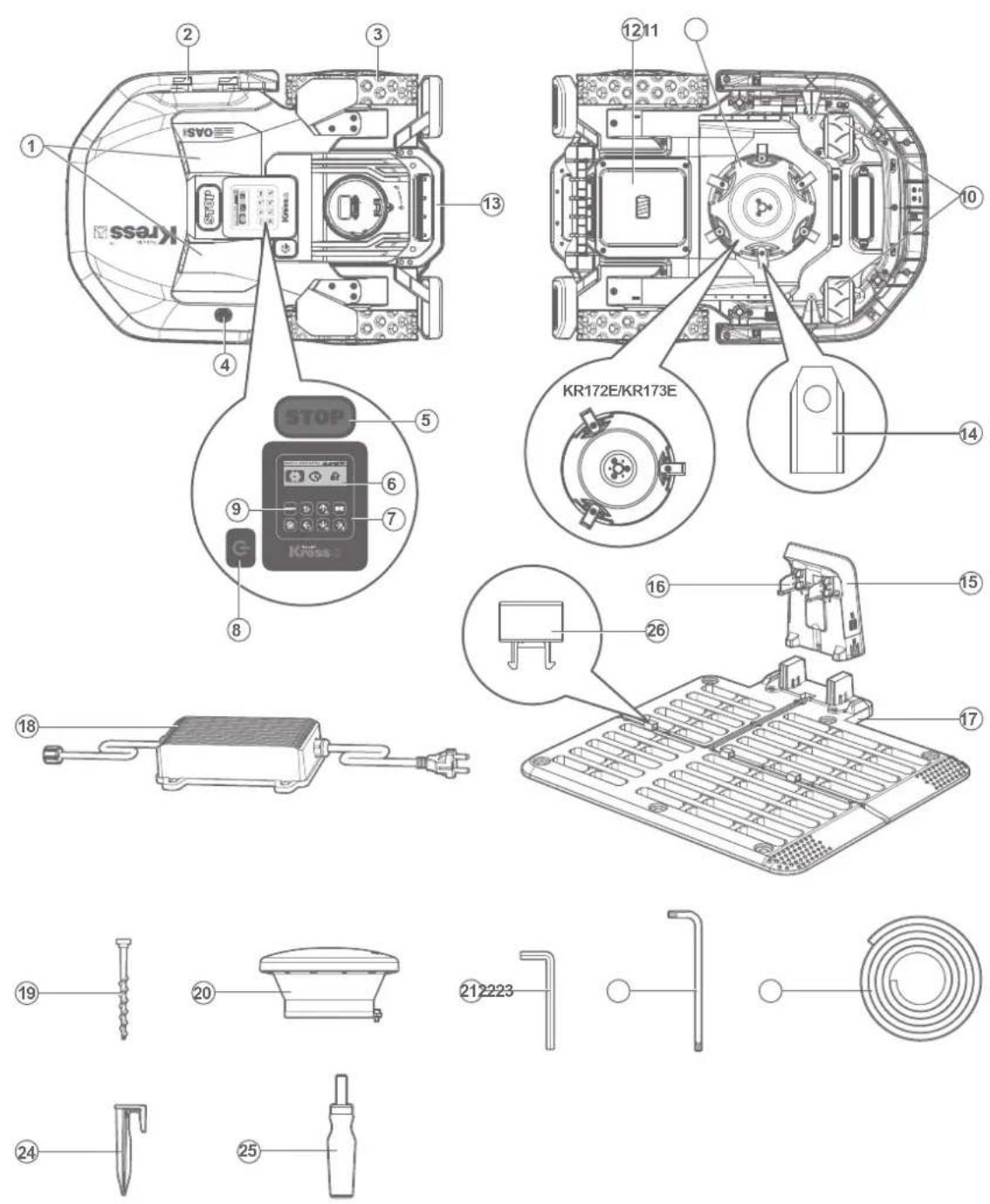

Component list
- Ultrasonic sensor 14. Cutting Blade
- Charging Strips 15. Charging Pile
- Rear Driving Wheel 16. Contact Pins
- Rain Sensor 17. Charging Base
- STOP Button 18. Power Adapter
- Display 19. Charging Base Fixing Nails
- Keypad 20. RTK Antenna
- ON/OFF Key 21. Hex Key
- START Key 22. Wrench for RTK antenna
-
Front Wheel 23. Magnetic Strip
-
Blade Turning Disc
-
Staples
-
Battery Pack *
-
Hexagon Screwdriver * (Only for KR174E)
-
Handle
-
Buckle
*Not all the accessories illustrated or described are included in standard delivery.
Technical data
Type KR172E KR173E KR174E (100-199 - designation of machinery, representative of Robotic Lawnmower)
| KR172E | KR173E | KR174E | |
| Rated voltage | 20V --- Max.* | ||
| No load speed | 2700/min | 2600/min | |
| Cutting area | 2000m^2 | 3000m^2 | 5000m^2 |
| Cutting diameter | 20cm | 22cm | |
| Cutting height | 30-60mm | ||
| Cutting height positions | 7 | ||
| Battery type | Lithium-ion | ||
| Battery model | KA3024 KA3006 | ||
| Charging time approx. | 180 min | 90 min | 72 min |
| Charger model | KA0200 / KA0201 | KA3710/KA3711 | KA3719/KA3819 |
| Charger rating | Input: 100-240V~50/60Hz, 38W, Output: 20V, 1.5A | Input: 100-240V~50/60Hz, 90W, Output: 20V, 3.0A | Input: 100-240V~50/60Hz, 190W, Output: 28V, 5.0A |
| Machinery weight | 12kg | 12.2kg | 12.6kg |
| Protection degree | III | ||
| App | Y | ||
| Maximum slope within the work surface | 40% | ||
* Voltage measured at no load. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.
Technical Data For Antenna
| Rated voltage 5V±2% | |||
| operating temperature -40°C~85°C | |||
| Storage temperature -40°C~85°C | |||
| Band Tx(Mhz) Rx(Mhz) RF Output Power (Max) | |||
| EGSM900(B8) 880-915 925-960 33dBm±2dB | |||
| DCS1800(B3) 1710-1785 1805-1880 | 30dBm±2dB | ||
| WCDMA B1 1920-1980 2110-2170 | 24dBm+1/-3dB | ||
| WCDMA B8 | 880-915 925-960 | 24dBm+1/-3dB | |
| LTE-FDD B1 | 1920-1980 2110-2170 | 23dBm±2dB | |
| LTE-FDD B3 | 1710-1785 1805-1880 | 23dBm±2dB | |
| LTE-FDD B7 | 2500-2570 2620-2690 | 23dBm±2dB | |
| LTE-FDD B8 | 880-915 925-960 23dBm±2dB | ||
| LTE-FDD B20 | 832-862 791-821 23dBm±2dB | ||
| LTE-FDD B28 | 703-748 758-803 23dBm±2dB | ||
| LTE-TDD B38 2570-2620 2570-2620 | 23dBm±2dB | ||
| LTE-TDD B40 2300-2400 2300-2400 | 23dBm±2dB | ||
| LTE-TDD B41 2555-2655 2555-2655 | 23dBm±2dB | ||
Noise data
| KR172E KR173E | KR174E | |
| A weighted sound pressure | L_pA = 47.5 dB (A), K_pA = 3.0 dB(A) | L_pA = 50.3 dB (A), K_pA = 3.0 dB(A) |
| A weighted sound power | L_wA = 55.5 dB (A), K_wA = 3.0 dB(A) | L_wA = 58.3 dB (A), K_wA = 3.0 dB(A) |
| Wear ear protection when sound pressure is over | 80dB(A) [IMAGE] | |
A degree of noise from the machine is not avoidable. Route noisy work is to be licensed and limits for certain periods. Keep rest periods and they may need to restrict the working hours to a minimum. For their personal protection and protection of people working nearby, an appropriate hearing protection shall be worn.
Accessories
| KR172E KR173E KR174E | |||
| Screw for fixing disk // 3 | |||
| Screw for fixing blades 9 9 18 | |||
| Charging base 1 1 1 | |||
| Charging base fixing nails 6 6 6 | |||
| Hex key 1 1 1 | |||
| Wrench for RTK antenna 1 1 1 | |||
| Magnetic strip 1 1 1 | |||
| Measurement gauge 1 1 1 | |||
| Blade | 9 9 18 | ||
| RTK antenna | 1 1 1 | ||
| Staples | 16 | 16 | 16 |
| Hexagon screwdriver | // 1 | ||
| Battery pack (KA3024 / KA3006) | 1 1 1 | ||
| Charger (KA0200/KA0201) | 1 | / | / |
| Charger (KA3710/KA3711) | / | 1 / | |
| Charger (KA3719/KA3819) | // 1 | ||
We recommend that you purchase genuine accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
Intended Use
The garden product is intended for domestic lawn mowing. It is designed to mow often, maintaining a healthier and better looking lawn than ever before. Depending on the size of your lawn, Mission ^TM RTK ^n may be programmed to operate at any time or frequency. It is not intended for digging, sweeping or snow cleaning.
Maintenance

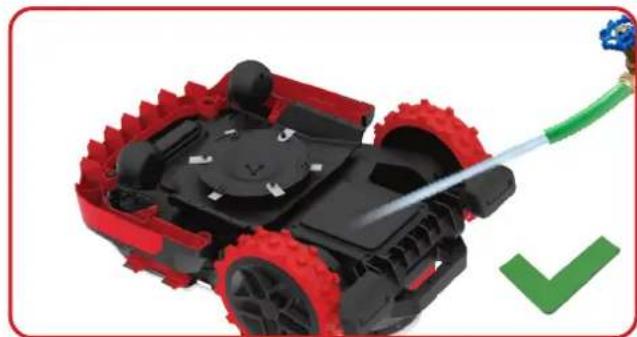

Your Mission™ RTK ^n works hard and needs to be cleaned and checked from time to time. Some parts will require replacement as they become worn. Never use your Mission™ RTK ^n with defective on/off switch. Switch off the machine before carrying out any service or maintenance. Here's how to take care of your Mission™ RTK ^n .
1
Keep it Sharp
WARNING: Before cleaning, adjusting, or replacing the blades, turn your Mission™ RTK ^n OFF and put on protective gloves.
WARNING: When fitting new blades, make sure you replace ALL the blades. Always use new screws when fitting blades. This is important to ensure blade retention and balance the blade ring disc. Failure to use new screws could cause serious injury.
The Mission™ RTK ^n does not cut grass like other mowers. Its cutting blades are razor sharp on 2 edges and rotate in both directions for maximum cutting capacity. Redesigned blade profile better prevents grass clippings from getting caught in the gap between the disc and the blade. And with new material, the service life of each cutting blade will be longer than that of other brands' when it is programmed to mow every day. Always check to see if the blades are chipped or damaged and replace them if they are. When the cutting blades are dull and worn out, they should be replaced with the spare blades provided with your Mission™ RTK ^n . Spare blades are also available at your nearest Kress retailer.

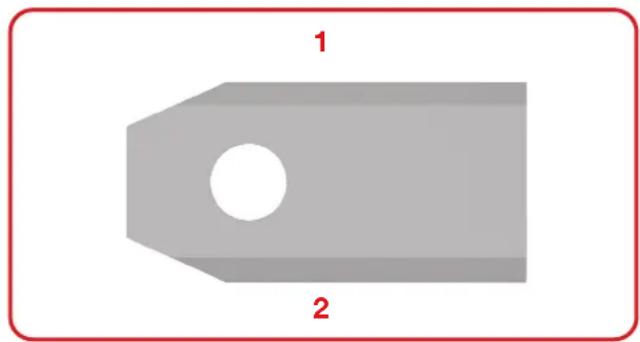

Usually your Mission ^™ RTK ^n 's blades need to be reversed each month and replaced every week, you can adjust the frequency of replacing the blade according to the cutting quality of the lawn. When replacing the blades, make sure to replace all of them at the same time. You can replace them with one of the spare blade kits and extra blade screws supplied with your Mission ^™ RTK ^n .

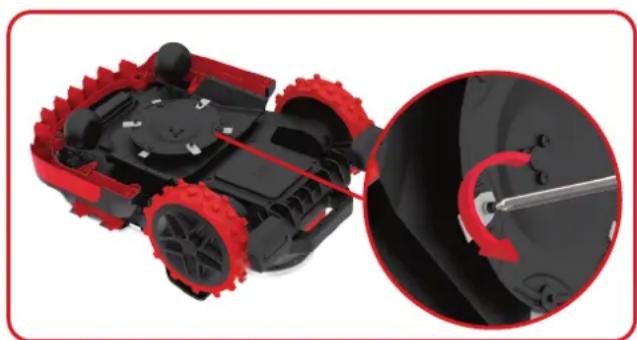

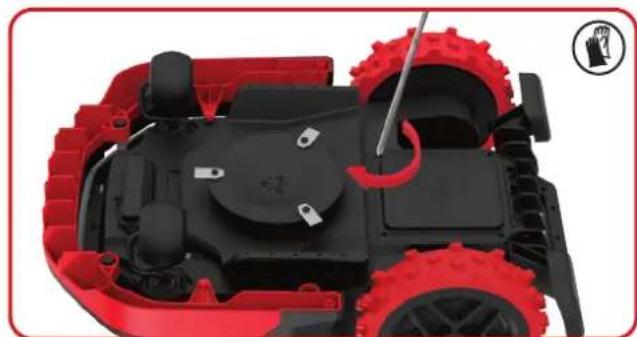

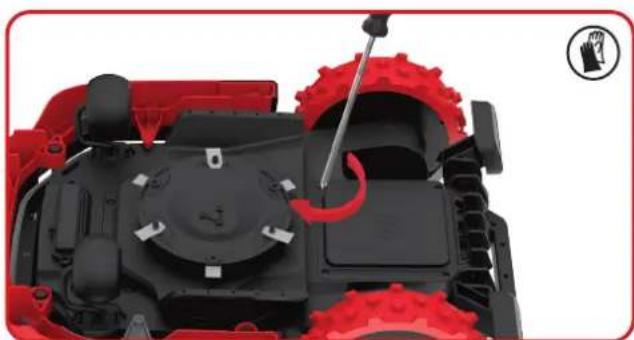

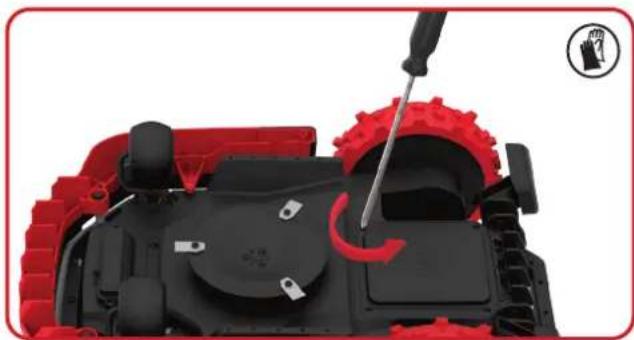

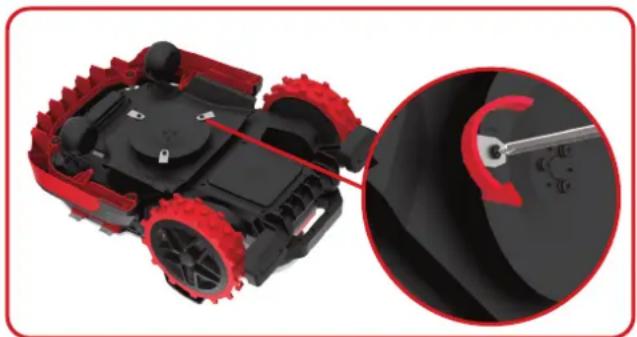

Before attempting to replace your Mission™ RTK ^n 's blades, turn the power off and put on protective gloves and follow these steps:
- Gently flip the Mission ^TM RTK ^n over.

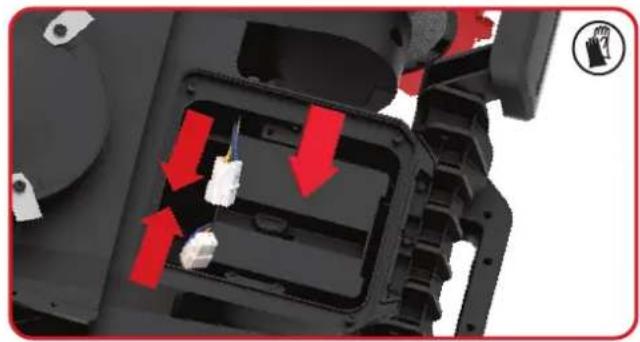

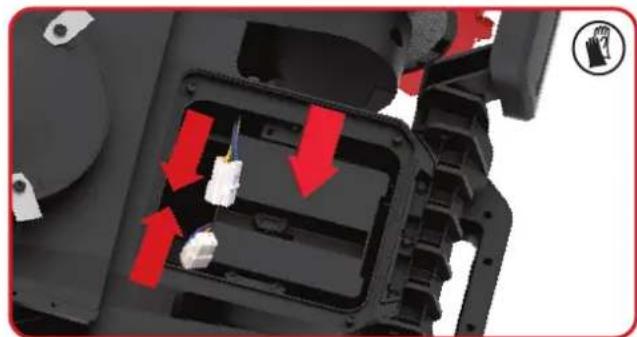

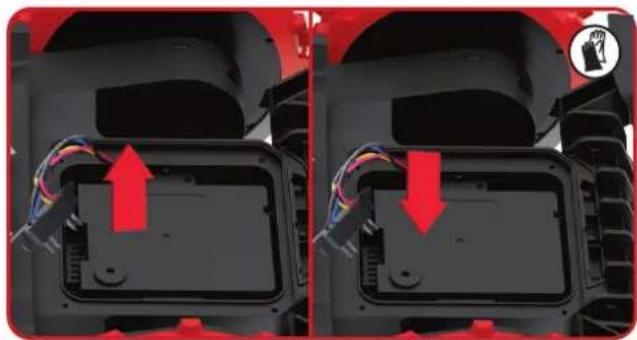

- Remove the battery cover and remove the battery.

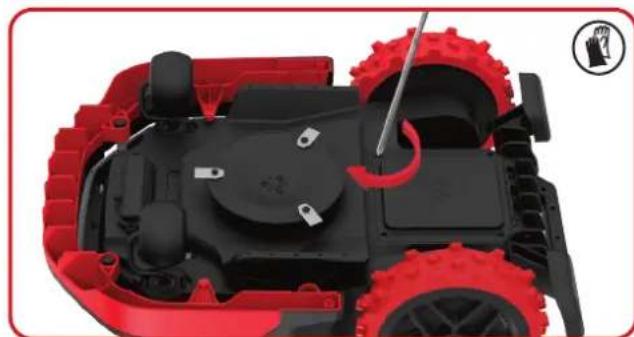

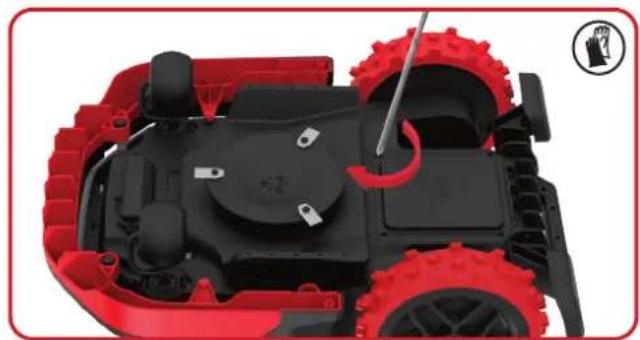

- Take the screws off the blades with a screwdriver.
- Firmly screw on the new blades.
- Refit the battery and the battery cover.
If your Mission ^TM RTK ^n has dual-layer blades, follow these steps to replace:
- Turn off and gently flip the Mission ^TM RTK ^n over.
- Remove the battery cover and remove the battery.
- Take the 3 screws for fixing disk off with a hexagon screwdriver.
- Remove the disk.
- Take the 6 screws for fixing blades off with a screwdriver and remove the blades.
- Firmly screw on the new blades and new screws for fixing blades.
- Refit and firmly screw on the disk on the underside of Mission ^TM RTK ^n .
- Refit the battery and the battery cover.
2
Keep it Clean
WARNING: Before cleaning, turn your Mission™ RTK ^n OFF. Put on protective gloves before cleaning the blade turning disc and do not rinse or flush with water.
WARNING! YOUR Mission™ RTK ^n can only be washed by using a hose! DO NOT use high pressure washer on your Mission™ RTK ^n . High pressure water can go inside the sealings and damage electronic and mechanical parts.
A. Cleaning the Body
Your Mission™ RTK ^n will live a much happier and longer life if it is cleaned regularly. Since your Mission™ RTK ^n is an electric machine, you will need to take care when cleaning. Hose water clean is supported. It is best to use a spray bottle filled with water. When cleaning the machine body, use a soft brush or clean cloth and avoid using solvents or polishes. Lastly, remove all build up of grass clippings and debris.

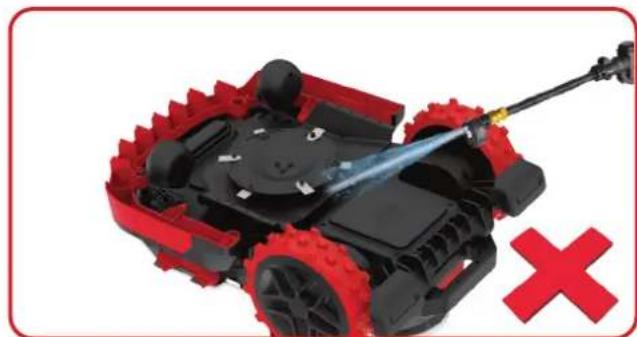

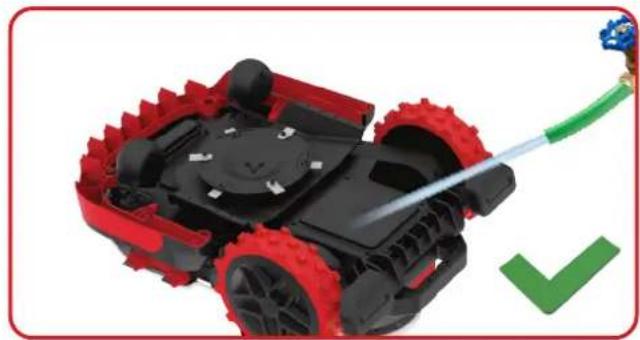

B. Cleaning the underside
Again, it is important that you power the Mission™ RTK® OFF and wear protective gloves before touching the blade turning disc. First, flip your Mission™ RTK® upside down to expose its underside. Here you will see the blade disc, the chassis, and the front wheel and driving wheels. Clean everything thoroughly with a soft brush or moist rag. Hose water clean is supported.
Rotate the blade disc to ensure it rotates freely. Check the blades spin freely around the fixing screws. Remove any obstructions.
IMPORTANT: Remove any stuck debris so that it does not cause a crack in the blade disc. Even the tiniest crack can decrease your Mission™ RTK ^n 's mowing output.
Clean the contact pins located on the charging base and the charging strips located on the Mission™ RTK ^n using a cloth. Remove any built up grass clippings or debris around the contact pins and charge strips periodically to ensure the Mission™ RTK ^n successfully charges each time.
3
Battery Life
The heart of the Mission™ RTK ^® is its 20V Li-Ion Battery. For proper storage of the battery, make sure it is fully charged and kept in a cool dry place between (-20°C\~+60°C).
NOTE: The recommend Mission™ RTK ^n operation temperature is between 0-55°C.
The life-span of the MissionTM RTKn's battery depends on various factors, such as:
• The length of the mowing season in your region
- Amount of hours the Mission ^TM RTK ^n mows per day
• Battery maintenance during storage

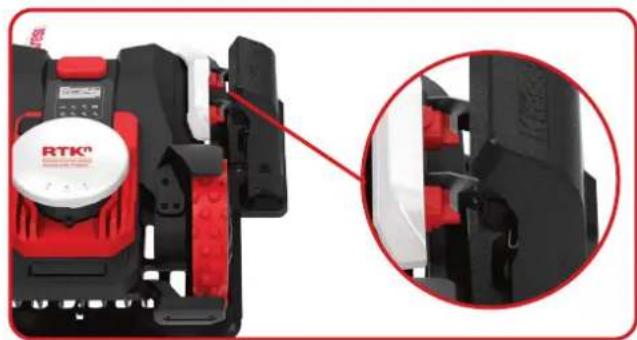

Mission ^TM RTK ^n can be charged manually.
- Connect the charging base to a suitable power supply. The green light on the charging base will turn on.
- Manually dock the Mission ^TM RTK ^n into the charging base while the Mission ^TM RTK ^n is powered off.
- The green light on the charging base will be flashing and Mission™ RTK ^n will begin to charge.
Winter Hibernation
Your Mission ^TM RTK ^n will live longer and healthier if it is allowed to hibernate. So even though it is tough, we recommend storing your Mission ^TM RTK ^n in your shed or garage during the winter.
Before you prepare your Mission™RTK ^n for winter hibernation, we recommend you:
• Thoroughly clean your Mission™ RTK®
• Fully charge the battery
- Turn the power off
To maximize the battery life, fully charge the battery before storage during winter.
WARNING: Protect the underside of Mission™ RTK ^n from water. NEVER store Mission™ RTK ^n upside down outdoors.
NOTE: When bringing the Mission™ RTK ^n back to work after winter hibernation, make sure the charging strips and contact pins are clean. We recommend using a fine grade emery cloth to clean the contacts. Using the app, make sure the date and time are correct and send Mission™ RTK ^n back to what it loves doing: mowing.
5
Replacing the battery
WARNING: Power off before attempting any adjustment, replacement or repair.
Before replacing the blades, turn your Mission™ RTK ^n OFF and put on protective gloves.
If you need to replace the battery, follow these steps: (Only for KR172E & KR173E)

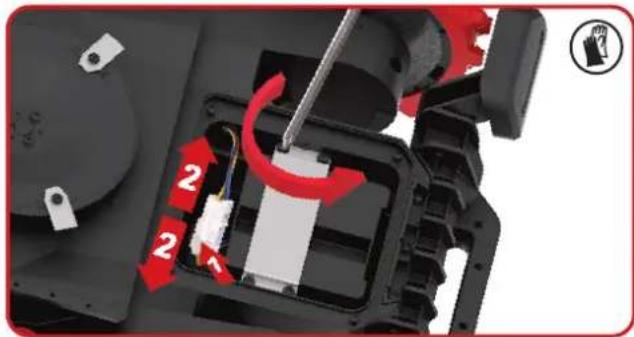

- Gently turn your Mission™ RTK ^n upside down.

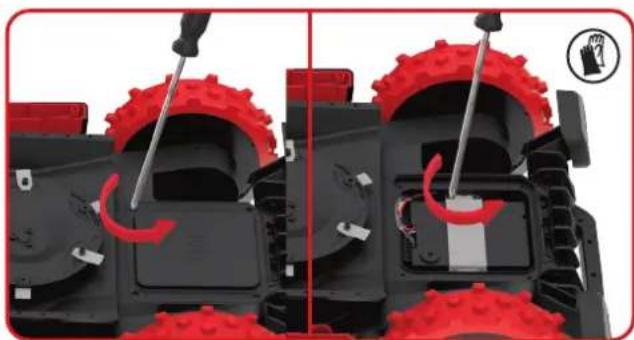

- Remove the screws on the battery cover. Remove the battery cover.


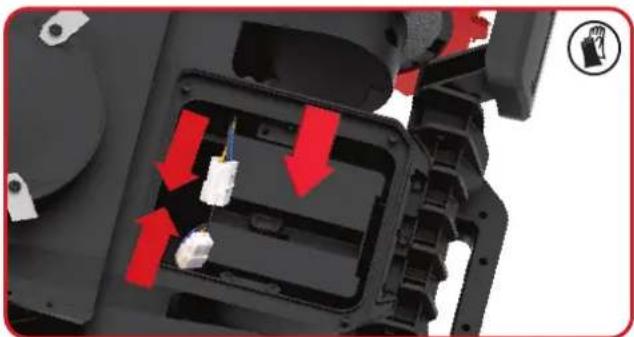

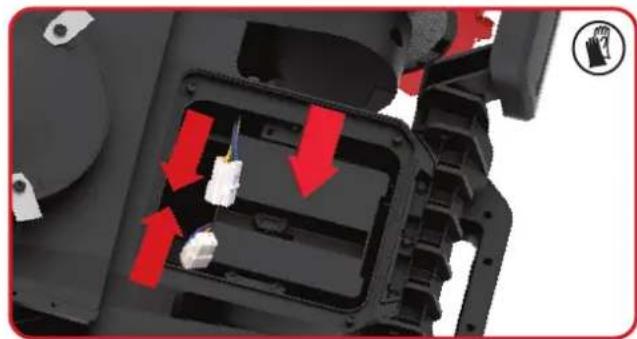

- Press the latch and release the connectors as the picture shown. Lift out the battery box carefully.
NOTE: Do not pull by the cables. Hold the connectors and release the latch.

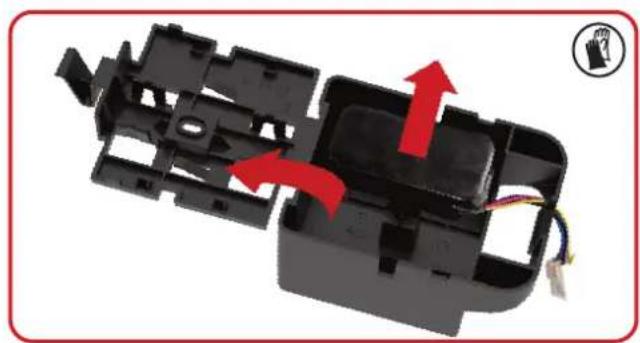

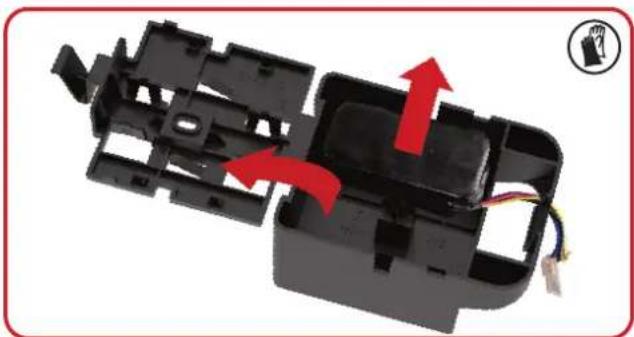

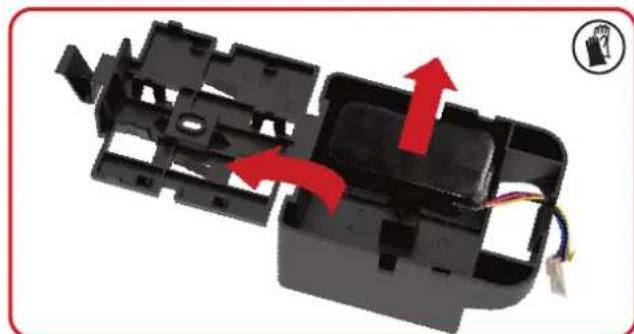

- Open the battery box then lift out the battery carefully. Replace the old battery with the new one.
- Put the battery box back in its position and plug the connectors. Refit the sheet metal.
- Place the cover back in its position and tighten the screws.
- Gently turn your Mission™ RTK ^n upside down.
- Remove the screws on the battery cover. Remove the battery cover.
-
Remove the screws on the sheet metal. Remove the sheet metal.
-

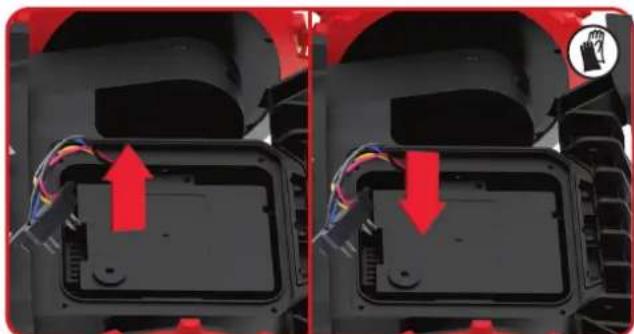

Unplug the connector. Replace the old battery with the new one. Then plug the connector.
- Refit the sheet metal. Place the cover back in its position and tighten the screws.
If your Mission ^™ RTK ^® does not work correctly, follow the trouble shooting guide below. If the fault persists, contact your dealer.
| Symptom Cause Solution | ||
| The LED light on the charging base does not turn on. | There is no power. | Check the charging base is connected properly to the charger and the charger is connected to a suitable power supply. |
| MissionTM RTKn cannot correctly dock with the charging base. | The magnetic strip is placed in the wrong direction. | Check if the magnetic strip is placed in the wrong direction. When correctly placed, the green stripe of the magnetic strip is facing away from the charging base. |
| Machine runs out of power but does not return to charging base. | No virtual charging base is mapped. | Rebuild the map and add the virtual charging base. |
| The length of the magnetic strip is less than 2.5 m. | The length of the magnetic strip should be guaranteed to be greater than 2.5 m. | |
| When MissionTM RTKn is going downhill, it overruns the boundary line. | The angle of the border line is very sharp. | Try to avoid layout scenarios with sharp angles. |
| After MissionTM RTKn is turned on, the start button is pressed, but MissionTM RTKn does not work. | MissionTM RTKn is outside the working area. | Move MissionTM RTKn inside the working area. |
| Poor positioning signal | Find an open place, wait for the positioning signal light to turn green, and then press start button. | |
| MissionTM RTKn does not give an alarm when it is outside the Geo fence. | The software of MissionTM RTKn itself is not the latest. | Update the software of the MissionTM RTKn. |
| MissionTM RTKn is powered off. Turn Mission TM RTKn on. | ||
| MissionTM RTKn is parked in the middle of the obstacle. | The obstacles around MissionTM RTKn are relatively small, and MissionTM RTKn fails to get out of trouble. | Set the area where MissionTM RTKn is easily trapped as No-Go. |
| The sensor of MissionTM RTKn is abnormal | Detect MissionTM RTKn's diagnostic page on the APP and check the sensor status. | |
| Unable to read log | The format of U-disk is not FAT32. | Convert the format of U-disk to FAT32. |
| MissionTM RTKn is parked around the wall and cannot be started, and the positioning light is always on red. | MissionTM RTKn works in the shaded area for too long, triggering the safety protection. | Try to avoid letting MissionTM RTKn mow in areas with too much shade. |
| There are too many walls or trees in the area, blocking the positioning signal. | ||
Environmental protection
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
Declaration of conformity
We,
Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
On behalf of Positec declare that the product
Description Robotic Lawnmower
Type KR172E KR173E KR174E (100-199- designation of machinery, representative of Robotic Lawnmower) (Year, article number and month of serial number are placed on the back page. The complete serial number is clearly stated on the enclosure of lawnmower) with battery charger KA0200 / KA0201/ KA3710 / KA3711 /KA3719 / KA3819 and charging base KA0074
Function Cutting grass
Complies with the following Directives,
2006/42/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU&(EU)2015/863, 2000/14/EC amended by 2005/88/EC, 2014/53/EU
2000/14/EC amended by 2005/88/EC
- Conformity Assessment Procedure as per
- Measured Sound Power Level 55.5 dB (A)
- Declared Guaranteed Sound Power Level
KR172E KR173E
Annex V
A)
59 dB (A)
KR174E
Annex V
58.3 dB (A)
61 dB (A)
KR172E KR173E KR174E
The notified body involved
Name: Intertek, Semko AB (notified body0413)
Address: Torshamnsgatan 43164 22 Kista Sweden
16
EN
GeoTrace:
The notified body involved
Name: TIMCO ENGINEERING, Inc (notified body CE1177)
Address: 849 NW State Road 45, Newberry, Florida 32669, USA
Standards conform to,
EN 60335-1:2012+A11+A13+A1+A14+A2:2019+A15:2021, EN 50636-2-107:2015+A1+A2:2020
+A3:2021,
EN 60335-2-29:2004+A2+A11:2018, EN 62233:2008, EN 55014-1:2017+A11:2020,
EN 55014-2:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN ISO 3744:2005,
EN 300 328 V2.2.2, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN IEC 62311:2020,
EN 55011:2016+A11:2020
The person authorized to compile the technical file,
Name Marcel Filz
Address Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany
2022/09/02
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd.
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Produktsicherheit
Close-up of a red and black robotic lawn mower with a close-up inset showing the tool interacting with the engine (no text or symbols visible)
Red and black lawn mower with a tool, marked with a red X (no text or symbols on the robot itself)
Close-up of a mechanical assembly with red arrows indicating motion or force, no visible text or symbols
Close-up of a red and black toy vehicle showing mechanical components and red motion arrows (no text or symbols)
Close-up of a red and black toy vehicle's internal components, showing gear and wheel assembly (no text or symbols visible)Fehlerbehebung
Name: TIMCO ENGINEERING, Inc (notified body CE1177)
Anschrift: 849 NW State Road 45, Newberry, Florida 32669, USA
Normen,
EN 60335-1:2012+A11+A13+A1+A14+A2:2019+A15:2021, EN 50636-2-107:2015+A1+A2:2020
+A3:2021,
EN 60335-2-29:2004+A2+A11:2018, EN 62233:2008, EN 55014-1:2017+A11:2020,
EN 55014-2:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN ISO 3744:2005,
EN 300 328 V2.2.2, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN IEC 62311:2020,
EN 55011:2016+A11:2020
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
Sécurité du produit
Close-up of a red and black robotic lawn mower with a close-up inset showing the tool interacting with the engine (no text or symbols visible)
Nettoyage
Hibernation
Close-up of a mechanical assembly with red and white components, no visible text or symbols
Top-down view of a red and black robotic vehicle with visible gears and mechanical components (no text or symbols)natural_image
Close-up of a red and black toy vehicle showing mechanical components and red motion arrows (no text or symbols)
Close-up of a red and black toy vehicle's internal components, showing gear and wheel assembly (no text or symbols visible)Address: 849 NW State Road 45, Newberry, Florida 32669, USA
Et conforme aux normes,
EN 60335-1:2012+A11+A13+A1+A14+A2:2019+A15:2021, EN 50636-2-107:2015+A1+A2:2020
+A3:2021, EN 60335-2-29:2004+A2+A11:2018, EN 62233:2008, EN 55014-1:2017+A11:2020,
EN 55014-2:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN ISO 3744:2005,
EN 300 328 V2.2.2, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN IEC 62311:2020,
EN 55011:2016+A11:2020
18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China
Close-up of a red and black robotic lawn mower with a close-up inset showing the tool interacting with a mechanical component (no text or symbols visible)
Red and black robotic lawn mower with a water spray, marked with a red X (no text or symbols on the main image)
Close-up of a red and black RTK® water heater device with a magnified inset showing internal components (no text or symbols visible)4
Close-up of a mechanical device with red arrows indicating motion or force, showing internal components and a hand gesture (no text or symbols)
Close-up of a red and black toy vehicle showing mechanical components and red motion arrows (no text or symbols)
Close-up of a red and black toy vehicle showing mechanical components and a wrench, with no visible text or symbols.Nome: TIMCO ENGINEERING, Inc (notified body CE1177)
Indirizzo: 849 NW State Road 45, Newberry, Florida 32669, USA
Conforme a,
EN 60335-1:2012+A11+A13+A1+A14+A2:2019+A15:2021, EN 50636-2-107:2015+A1+A2:2020
+A3:2021, EN 60335-2-29:2004+A2+A11:2018, EN 62233:2008, EN 55014-1:2017+A11:2020,
EN 55014-2:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN ISO 3744:2005,
EN 300 328 V2.2.2, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN IEC 62311:2020,
EN 55011:2016+A11:2020
18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China
Close-up of a red and black robotic lawn mower with a close-up inset showing the tool interacting with the engine (no text or symbols visible)
Red and black robotic lawn mower with a water spray, marked with a red X (no text or symbols on the main image)
Close-up of a red and black RTK® water purifier device with a magnified inset showing internal components (no text or symbols visible)4
Hibernación
Close-up of a mechanical device with red arrows indicating components, no visible text or symbols
Close-up of a red and black toy vehicle showing mechanical components and red motion arrows (no text or symbols)
Close-up of a red and black toy vehicle's internal components, showing gear and wheel assembly (no text or symbols visible)18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China
Productveiligheid
Close-up of a red and black robotic lawn mower with a close-up inset showing the tool interacting with the engine (no text or symbols visible)
Red and black robotic lawn mower with a water spray, marked with a red X (no text or symbols on the main subject)
3
Winteropslag
Close-up of a mechanical assembly with red arrows indicating motion or force direction (no text or symbols visible)
Close-up of a red and black toy vehicle showing mechanical components and red motion arrows (no text or symbols)
Close-up of a red and black RTK® water heater device with a magnified inset showing internal components (no text or symbols visible)4
Close-up of a mechanical assembly with red and white components, no visible text or symbols
Close-up of a red and black toy vehicle showing mechanical components and red motion arrows (no text or symbols)
Close-up of a red and black toy vehicle's internal components, showing gear and wheel assembly (no text or symbols visible)18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China
Produktsikkerhed
To safely move form or within the working area:
Close-up of a red and black tracked robot with a close-up inset showing a tool interacting with the wheel (no text or symbols visible)
Hold den ren
Close-up of a red and black RTK® device with a magnified inset showing internal components (no text or symbols visible)4
Opbevarelse om vinteren
Close-up of a mechanical assembly with red and white components, no visible text or symbols
Close-up of a red and black toy vehicle showing tire assembly and tool path (no text or symbols visible)
Close-up of a red and black toy vehicle showing mechanical components and a tool, with no visible text or symbols.Fejlfinding
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
121
DK
Produktsikkerhet
Red and black robotic lawn mower with a tool, marked with a red X (no text or symbols on the main image)
Close-up of a red and black RTK® robotic device with a close-up inset showing internal components (no text or symbols visible)4
Vinterdvale
Mission™ RTK ^n får lengre levetid og fungerer bedre hvis den får gå i dvale om vinteren. Så selv om det er tøft, anbefaler vi at du lagrer Mission™ RTK ^n i uteboden eller garasjen om vinteren.
Close-up of a red and black toy vehicle showing tire assembly and tool path (no text or symbols visible)
Close-up of a red and black off-road vehicle with visible tire tracks and mechanical components (no text or symbols)Feilsøking
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
135
NOR
Produktsäkerhet
Rengöring
Vinterförvaring
Close-up of a mechanical assembly with red and white components, no visible text or symbols
Close-up of a red and black toy vehicle showing tire assembly and tool path (no text or symbols visible)
Close-up of a red and black toy vehicle showing mechanical components and a wrench, with a hand icon indicating a hazard (no text or symbols present)Felsymptom
Adress: 849 NW State Road 45, Newberry, Florida 32669, USA
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
www.kress-robotik.com
