Product Type	Coffee Percolator / Coffee Urn
Brand	Waring Commercial
Model	WCU30
Capacity	30 cups (4.35 L)
Power Supply Voltage	120 V AC
Body Material	Stainless Steel
Functions	Automatic Brewing and Keep Warm
Coffee Type	Standard or Percolator Ground Coffee
Heating System	Dual Element
Indicator Light	Green Brew Ready Light
Faucet	Yes, for serving
Level Gauge	Removable Glass Tube
Dishwasher Safe Parts	Lid, Filter Basket, Water Tube (top rack)
Cord Length	Short (exact not specified)
Grounding	Three-prong plug, temporary adapter possible (except Canada)
Minimum Capacity	10 cups (1.45 L)
Included Accessories	Cleaning Brush for Gauge
Usage	Commercial

Frequently Asked Questions - WCU30 Waring Commercial

How to prepare coffee with the WCU30?

Remove the lid and filter basket. Fill the reservoir with cold water to the desired level (min 10 cups, max 30). Wet the filter basket, add the recommended amount of ground coffee (see chart), level the surface. Place the basket on the water tube, close the lid by turning clockwise. Plug the appliance into a 120 V outlet. The percolation cycle starts automatically; at the end of the cycle, the green light turns on and the appliance switches to keep warm mode.

How much ground coffee to use for 30 cups?

For 30 cups (4.35 L), use 3 cups (230 g) of ground coffee, approximately 48 tablespoons. Refer to the chart on the filter basket and in the manual for other volumes.

How to clean the appliance after each use?

Unplug the appliance and let it cool. Remove the lid, filter basket, and water tube. Wash these parts with soapy water or in the dishwasher (top rack). Clean the tank with a damp cloth. Never immerse the base in water. For the level gauge, disassemble the glass tube, clean it with the provided brush and dish soap, then rinse thoroughly.

What to do if coffee overflows during brewing?

Check that the lid is properly closed: it should rest all around the tank rim and be locked by turning clockwise. An improperly closed lid can cause overflow and risk of severe burns. Also ensure you do not exceed the maximum capacity.

How to descale the percolator?

Use a coffee maker descaler/cleaner following the manufacturer's instructions. Fill the tank to about 4 cm from the top with the descaling solution. Let it sit, then rinse thoroughly. Perform this regularly to prevent residue buildup that affects coffee taste.

Can I use an extension cord?

Yes, but with caution. Use an extension cord with electrical ratings at least equal to those of the appliance (120 V, appropriate wattage). Do not let the cord hang over the edge of the table or within reach of children/pets. For safety, it is preferable to use the supplied short cord.

How to empty the tank after service?

The faucet does not allow complete emptying. After serving coffee, open the faucet and carefully tilt the appliance forward to drain the rest into a container. Discard the coffee. Let it cool before cleaning.

How to safely plug in the appliance?

The appliance is equipped with a three-prong grounded plug. Plug it only into a properly grounded outlet. In Canada, use of an adapter is prohibited. In the US, a temporary adapter may be used if the metal tab is secured to the outlet box with a screw. If in doubt, consult an electrician.

What does the green light mean?

The green light illuminates at the end of the percolation cycle to indicate that the coffee is ready. The appliance then automatically switches to keep warm mode to maintain the coffee at the ideal drinking temperature.

Which parts are dishwasher safe?

The lid, filter basket, and water tube are dishwasher safe, top rack only. The level gauge and base must not be immersed.

USER MANUAL WCU30 Waring Commercial

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

When using electrical appliances, basic safety precautions should always be taken, including the following:

1. READ ALL INSTRUCTIONS.
2. Always unplug from outlet prior to handling or cleaning.
3. Do not touch hot surfaces. Use handles or knobs.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are under supervision or have been given instruction concerning use of the appliance by a person responsible for their safety.
5. To protect against fire, electrical hazards, and/or personal injury, do not immerse cord, plugs or base in water or other liquids.
6. Close supervision is necessary when any appliance is used by or near children.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been dropped or damaged in any manner. Return appliance to the nearest Waring Repair Center for examination, repair, and electrical or mechanical adjustment.
8. The use of accessory attachments not recommended by Waring may cause injuries.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces.
11. Use extreme caution in moving coffee urn when it contains hot liquids.
12. Do not place on or near a hot gas or electric burner, or in a heated oven.
13. Do not use appliance for other than its intended use.
14. In replacing the cover, make sure that it is seated all around the rim of the body. To remove, grasp knob, twist, and lift off.

15. Scalding may occur if the lid is removed during the brewing cycle.

16. This coffeemaker is equipped with a 3-prong grounding plug and must be plugged into a correctly polarized 3-prong grounding-type wall receptacle.

SAVE THESE INSTRUCTIONS FOR COMMERCIAL USE ONLY

INTRODUCTION

Thank you for purchasing a Waring™ Commercial Professional Coffee Urn. All three models are built to higher performance standards, and Waring offers users a choice of 30-, 55-, and 110-cup capacities. A dual heater system first brews coffee at a hotter temperature to ensure maximum flavor, then automatically shifts to the second heater to lower the temperature and hold it at the ideal drinking temperature. Shorter brew times, extra-large capacities, and classic stainless styling make these coffee urns perfect for special events and large commercial kitchens.

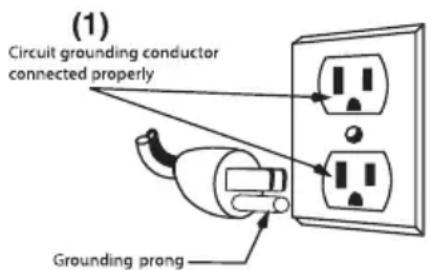

GROUNDING INSTRUCTIONS

For your protection, Waring™ Commercial Professional Coffee Urns are equipped with a 3-conductor cordset that has a molded 3-prong grounding-type plug, and should be used in combination with a properly connected grounding-type outlet as shown in Figure 1. If a grounding-type outlet is not available, an adapter, shown in Figure 2, may be obtained so that a 2-slot wall outlet can be used with a 3-prong plug. Referring to Figure 3, the adapter must be grounded by attaching its grounding lug under the screw of the outlet cover plate.

CAUTION: Before using an adapter, it must be determined that the outlet cover plate screw is properly grounded. If in doubt, consult a licensed electrician. Never use an adapter unless you are sure it is properly grounded.

Note: Use of an adapter is not permitted in Canada.

SHORT CORD INSTRUCTIONS

A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

If a longer detachable power-supply cord or extension cord is used, (1) the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, and (2) the longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of fire or electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

BEFORE FIRST USE

1. Carefully unpack coffee urn and remove all packing materials.
2. Wash the coffee urn thoroughly before brewing for the first time.

NOTE: It is recommended that prior to brewing your first pot of coffee, you run the unit with cold water only (without coffee grounds).

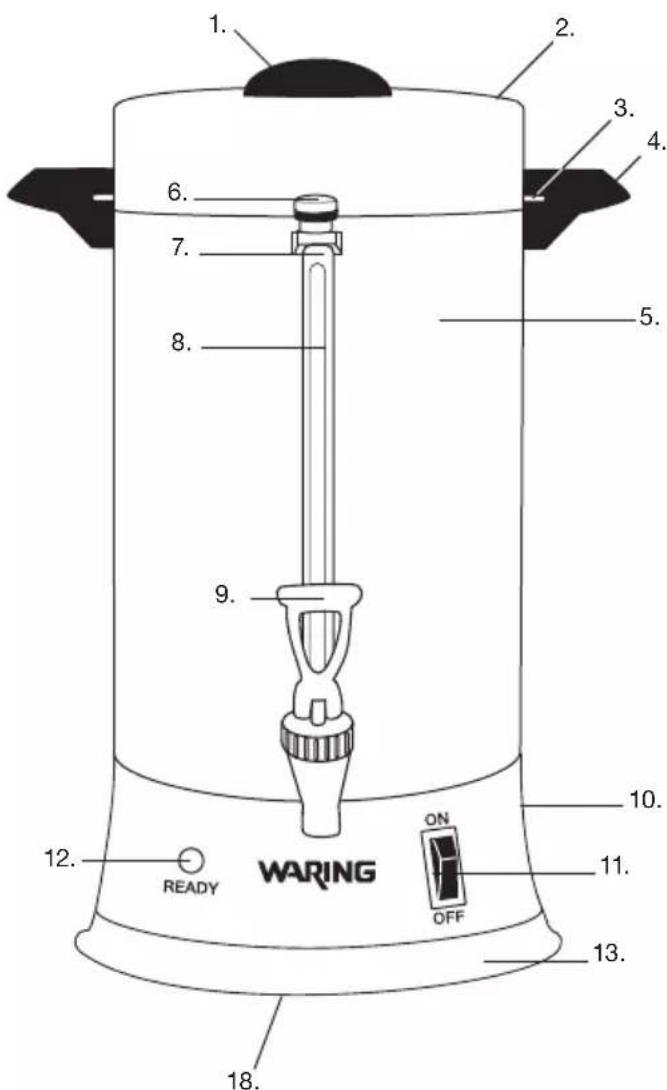

PARTS

1. Cover handle
2. Cover
3. Locking tabs
4. Handles
5. Body
6. Sight glass cap
7. Coffee level indicator
8. Removable sight glass
9. Spigot lever
10. Coffee urn base
11. On/Off power switch
12. Ready indicator light

1. Base cover
2. Brew basket
3. Coffee brew quantities
4. Pump tube
5. Cord (not shown)
6. Cord wrap storage (underneath)

BREWING COFFEE - IMPORTANT STEPS TO FOLLOW

1. Remove cover and brew basket. Check to see that spigot is closed. Use cold, fresh tap water to fill coffee urn. DO NOT OVERFILL OR UNDERFILL. Fill according to markings on inside of urn for number of cups desired. Use cold tap water – the automatic brewing cycle is timed to begin with a cold-water start.

NOTE: DEPENDING ON MODEL, THE MINIMUM BREW FOR EACH URN IS 10/25/30 CUPS.

1. Wet the coffee basket to help keep small particles of coffee from sifting through. Add desired amount of REGULAR or PERCOLATOR GRIND COFFEE to basket. Use bottom of measuring cup to smooth out the grounds so you have a flat, even surface. Place basket on the pump tube. The pump tube must be resting correctly in center well in order for the unit to brew properly.

NOTE: Ground coffee quantities are printed on the side of the brew basket and on the following page for added convenience. The number of cups is based on the use of a standard dry measuring cup.

1. Replace the urn cover and secure in position by turning cover clockwise.
2. Plug into standard household 120 volt AC wall outlet. To avoid unnecessary strain on the heating mechanism, PLUG IN COFFEE URN AFTER THE WATER AND COFFEE ARE ADDED.
3. When coffee brewing is complete, percolating will stop and the green indicator light will come on. The urn automatically switches to the "keep warm" setting to preserve fresh-tasting coffee at a hot, ready-to-serve temperature.

CAUTION: Keep cover in place during brew cycle because hot water may splash from pump tube.
6. Unplug urn when only 1 or 2 cups of coffee remain.

For best flavor, remove coffee basket and pump tube when brewing is completed.

NOTE: Excess coffee will remain under the spigot level. See cleaning section for emptying instructions.

REMOVE PARTS CAREFULLY: COFFEE URN AND PARTS WILL BE HOT!

The following chart suggests amount of coffee to use for medium brew; amounts can be varied to suit personal taste and particular coffees.

Cups to Be Brewed	Amt. of Ground Coffee to Use
	Cups* Tablespoons
WCU30
MIN 10 1 16
20 2 32
30 3 48
WCU55
MIN 25 2½ 40
35	3¼ 52
45 4 64
55	4¾ 76
WCU110
MIN 30 3½ 56
50 5 80
70 6 96
90 7 112
110 8 128
1 cup brewed coffee = 5 fluid ounces * Use standard dry measuring cup

CLEANING & MAINTENANCE

CAUTION: Always remove plug from outlet after each use. Let coffee urn cool. Remove cover, coffee basket and pump tube carefully – grounds and remaining coffee may still be warm. After dispensing, excess coffee will remain under the spigot level. To empty, use handles and carefully tilt the body forward with the spigot open so that excess coffee can drain out into a container. Discard coffee.

Before using for the first time and after each use, wash the brew basket, pump tube and interior of the urn with water and detergent. Never immerse base of urn in liquid. Rinse urn thoroughly. The cover, basket, and pump tube may be washed on top rack of dishwasher.

SITE GLASS CLEANING

To clean the sight glass tube, remove the sight glass cap and pull out glass tube. Remove the rubber caps from each end. Using the sight glass brush included, fill tube with water and liquid detergent and scrub the tube. This will sanitize the tube and remove any stains that may have built up. Rinse thoroughly.

IMPORTANT: You must replace rubber caps at each end of the tube in order for the unit to continue to brew properly.

CLEANING THE EXTERIOR

Wipe exterior with a damp cloth and dry.

DECALCIFICATION

After repeated use: Accumulation of oil and coffee stains may cause a bitter taste. Remove stains with an all-purpose coffee cleanser. Follow the directions on the package, filling with water to 1 12 inches from top. Rinse well.

NOTE: Any other servicing should be performed by an authorized service representative.
