Series 6 HWO45NB6T0B2 - Microwave Oven HAIER - Free user manual and instructions

Product type	Microwave oven
Brand	Haier
Model	Series 6 HWO45NB6T0B2
Capacity	45 L (estimate)
Power supply	230 V ~ 50 Hz
Maximum power	3200 W
Microwave power	900 W
Grill power	1500 W
Convection power	1300 W
Microwave frequency	2450 MHz
Cooking functions	Pulsed heat, Grill, Pulsed heat + grill, Turbogrill, Microwave grill, Microwave + convection, Microwave, Time defrost, Weight defrost
Control type	Electronic with control panel
Cleaning	Manual cleaning with water and soap, avoid abrasive products
Safety	Safety instructions, do not use if door damaged, children supervision required
Repairability	Repairs by qualified technician only
Installation	Under hob or in a column
Included accessories	Flat rack, drip tray
Number of rack levels	2

Frequently Asked Questions - Series 6 HWO45NB6T0B2 HAIER

How to clean the oven cavity after use?

Clean regularly with a soft cloth and soapy water. Avoid abrasive products or steam cleaners. Dry thoroughly.

Can I use metal utensils in the microwave oven?

No, only use utensils suitable for microwave ovens. Metal can cause sparks and damage the appliance.

How to defrost food using the defrost function?

Use the Weight defrost or Time defrost function. Select the food type and weight, the oven automatically adjusts the power.

What to do if smoke comes out of the oven?

Turn off or unplug the appliance and keep the door closed to smother flames. Do not use until the cause has been identified.

Can I heat hard-boiled eggs in the microwave?

No, hard-boiled or shell eggs can explode even after cooking. Never heat them in the microwave.

What is the maximum microwave power?

The maximum microwave power is 900 W.

How to use the grill function?

Select the Grill function, set the temperature (50-230°C) and place food on the rack. Use the door closed and monitor cooking.

Can I operate the microwave empty?

No, never operate the microwave empty. This can overload the appliance. Only turn it on with food inside.

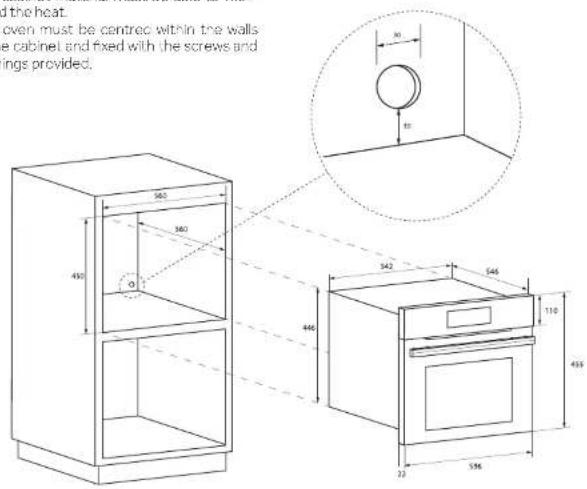

How to install the oven in a cabinet?

Install it in a heat-resistant cabinet, centered and fixed with the provided screws. Follow the dimensions indicated in the installation diagram.

What to do if the door or seals are damaged?

Do not use the oven. Call a qualified technician to repair the door or seals before any use.

USER MANUAL Series 6 HWO45NB6T0B2 HAIER

Simple line drawing of a rectangular box with two diagonal lines inside, no text or symbols present.

CANDY HOOVER GROUP Via Comolli 16 Brugherio – Italy

Haier

Pokyny pro uživatele
TROUBY
Bedienungsanleitung DE
ÖFEN
User Instructions EN
OVENS
Instrucciones de uso ES
HORNOS
Mode d'emploi FR
FOURS
Istruzioni per l'uso IT
FORNI
Instrukcje użytkownika PI
PIEKARNIKI
Instruções para o utilizador PT
FORNOS
Návod na použitie SK
RÚRY SK
Navodila za uporabnika SI
PEČICE
Gebruikershandleiding NI
OVENS

Two glassware illustrations: a spoon inside and a cross symbol crossed out (no text or symbols present)

Nebezpečí výbuchu

Diagram of a device front view with an arrow pointing to the bottom panel (no text or symbols present)

Line drawing of an open oven with a grater inside (no text or symbols)

Line drawing of an open oven with a rack inside (no text or symbols)

Line drawing of a hand placing a tray into an oven with a grater inside (no text or symbols)

Line drawing of hands inserting a rack into an oven (no text or symbols)

CS 12 CS 13

Ovládací panel

PRVNÍ NASTAVENÍ

12H

24H

HLAVNÍ NABÍDKA

MANUÁL MY TASTE

MIKROVLNNÁ TROUBA

ROZMRAZOVÁNÍ DLE ČASU

ROZMRAZOVÁNÍ DLE HMOTNOSTI

TROUBA

KOMBINOVANÉ

U-CREATE NAPOSLEDY POUŽITO

MOJE OBLÍBENÉ

ZÁMEK OBRAZOVKY BĚHEM PEČENÍ

ZAPNUTÍ / VYPNUTÍ 00:14

DEMO REŽIM

ZAPNUTÍ / VYPNUTÍ Settings LANGUAGE LAMP ON Kg UNITS SETT

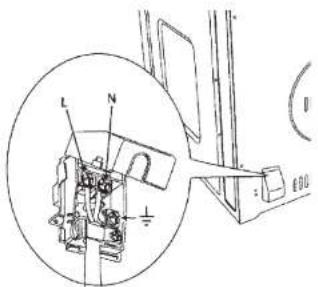

Technical diagram showing mechanical assembly with labeled parts L and N, including a magnified inset view of internal components.

Illustration showing two people in a meeting with a rising trend line, one person gesturing while the other watches.

KOUR

Line drawing of a cabinet with a scroll and handle, no text or symbols present

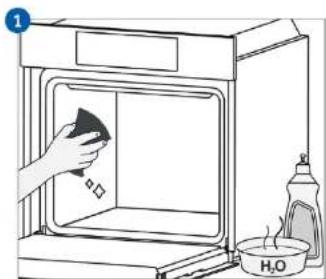

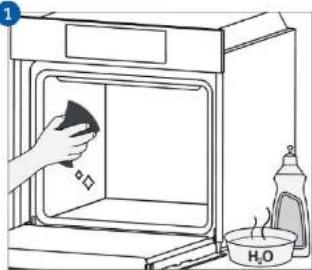

1 H₂O

Two glassware illustrations: a spoon inside and a cross symbol crossed out (no text or symbols present)

Explosionsgefahr

Diagram of a device front view with an arrow pointing to the bottom panel (no text or symbols present)

DATENSATZ FÜR KUNDENSERVICE

Line drawing of an open oven with a grater inside (no text or symbols)

Line drawing of an open oven with a rack inside (no text or symbols)

Line drawing of a hand placing an oven into a rack (no text or symbols)

Line drawing of hands inserting a rack into an oven (no text or symbols)

DE 32 DE 33

ERSTE EINRICHTUNG

12H24H

12H 24H 03 : 30 PM

12H 15:30 24H

12H 19 : 30 24H

HAUPTMENÜ

MANUELL MY TASTE

MIKROWELLE

TERMINIERTES AUFTAUEN

GEWICHT AUFTAUEN

OFEN

KOMBI

U-CREATE ZULETZT VERWENDET

MEINE FAVORITEN

ON / OFF Settings LANGUAGE LAMP ON Kg UNITS SET

DE 34 DE 35

Technical diagram of a mechanical assembly with labeled parts L and N, including a magnified inset view showing internal components.

Illustration showing two people in a meeting with a rising trend line, one person gesturing while the other watches.

RAUCH

Line drawing of a cabinet with a scroll and handle, no text or symbols present

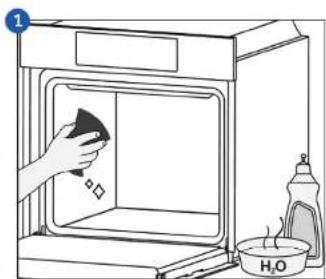

1 H₂O

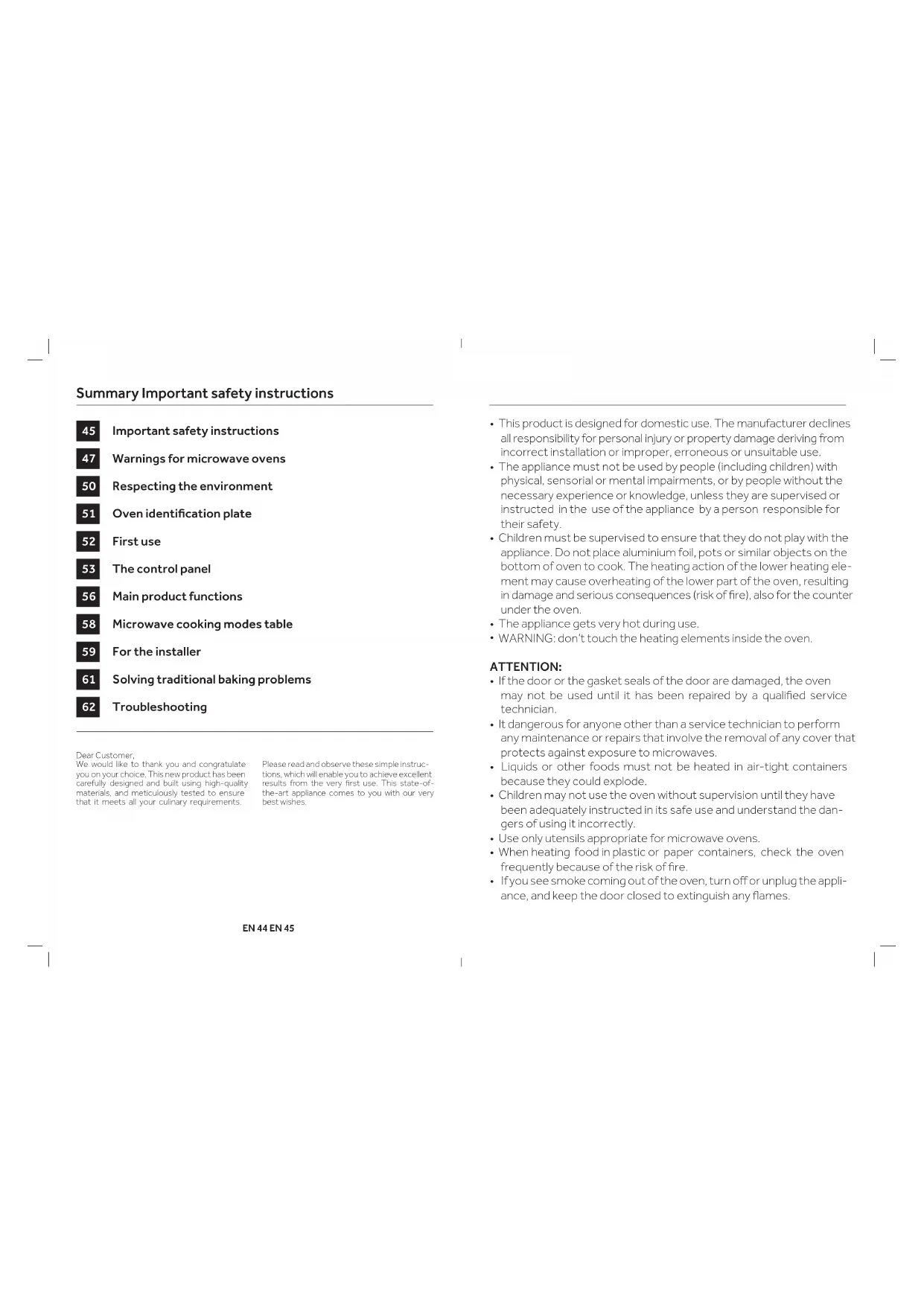

Summary Important safety instructions

45 Important safety instructions
47 Warnings for microwave ovens
50 Respecting the environment
51 Oven identification plate
52 First use
53 The control panel
56 Main product functions
58 Microwave cooking modes table
59 For the installer
61 Solving traditional baking problems
62 Troubleshooting

• This product is designed for domestic use. The manufacturer declines all responsibility for personal injury or property damage deriving from incorrect installation or improper, erroneous or unsuitable use.
• The appliance must not be used by people (including children) with physical, sensorial or mental impairments, or by people without the necessary experience or knowledge, unless they are supervised or instructed in the use of the appliance by a person responsible for their safety.
• Children must be supervised to ensure that they do not play with the appliance. Do not place aluminium foil, pots or similar objects on the bottom of oven to cook. The heating action of the lower heating element may cause overheating of the lower part of the oven, resulting in damage and serious consequences (risk of fire), also for the counter under the oven.
  • The appliance gets very hot during use.
• WARNING: don't touch the heating elements inside the oven.

ATTENTION:

• If the door or the gasket seals of the door are damaged, the oven may not be used until it has been repaired by a qualified service technician.
• It dangerous for anyone other than a service technician to perform any maintenance or repairs that involve the removal of any cover that protects against exposure to microwaves.
• Liquids or other foods must not be heated in air-tight containers because they could explode.
• Children may not use the oven without supervision until they have been adequately instructed in its safe use and understand the dangers of using it incorrectly.
• Use only utensils appropriate for microwave ovens.
• When heating food in plastic or paper containers, check the oven frequently because of the risk of fire.
• If you see smoke coming out of the oven, turn off or unplug the appliance, and keep the door closed to extinguish any flames.

Dear Customer.

We would like to thank you and congratulate you on your choice. This new product has been carefully designed and built using high-quality materials, and meticulously tested to ensure that it meets all your culinary requirements.

Please read and observe these simple instructions, which will enable you to achieve excellent results from the very first use. This state-of-the-art appliance comes to you with our very best wishes.

• Heating beverages in the microwave oven may cause a delayed boil-over, so be careful when handling the container.
• The contents of baby bottles and baby food in jars must be stirred or shaken, and their temperature must be checked before feeding to avoid scalding.

ATTENTION:

• Eggs in the shell and whole hard-boiled eggs must not be heated in microwave ovens because they could explode, even after heating in the microwave has ended.
• A detailed explanation of how to clean the gasket seals of the doors of the oven cavity and adjacent parts.
• The oven must be cleaned periodically and all food residues must be removed.
• Failure to keep the oven clean could cause deterioration of the surfaces, which could reduce the lifespan of the appliance and cause dangerous conditions.
• Do not use rough abrasives or sharp metal scrapers to clean the glass door of the oven as they could scratch the surface and cause the glass to shatter.
• Do not use steam cleaners to clean the appliance.

Warnings for microwave ovens

FOOD PREPARATION

Danger of fire

Use the microwave function only for preparation of food to be eaten. Any other use may be dangerous or cause damage. For example, heating slippers or pillows filled with grain or cereals could cause these items to catch fire, even after several hours.

POTS AND PANS

Danger of injury

Porcelain and ceramic crockery may have small holes in the handles and cover. There could be cavities hidden behind these holes. If water gets into these cavities, the crockery could break. Do not use crockery that is unsuitable for microwave ovens.

Danger of burns

The heat of the food can heat the dish. Always use a pot-holder to remove dishes and accessories from the cooking chamber.

Never set values that are too high for the microwave power or the cooking time. The food could catch fire and damage the appliance. Follow the rules in these instructions.

PACKAGING

Danger of fire

Never heat food in thermal packaging. Food in containers made of plastic, paper or other inflammable materials must be watched constantly.

Danger of burns

Airtight packaging can explode. Follow the instructions shown on the package. Always use a pot-holder to remove dishes.

BEVERAGES

Danger of burns

When heating liquids, boiling may be delayed. This means that the boiling temperature has been reached without forming the typical little steam bubbles. Even a slight knock could cause liquid to overflow suddenly or splash. When heating liquids, always put a spoon in the container to prevent delayed boiling.

Two glassware illustrations: one with a spoon inside, the other with a black X symbol crossed out (no text or symbols present)

Danger of explosion

Never heat beverages or other types of food in covered containers.

Never heat alcoholic beverages excessively.

BABY FOOD

Danger of burns

Never heat baby food in a covered container. Always remove the cover or nipple.

When finished heating, always shake or stir carefully to ensure that heat is evenly distributed.

Test the temperature before giving the food to the baby.

FOODS WITH SKIN OR PEEL

Danger of burns

Never cook eggs in the shell.

Never heat hard-boiled eggs, as they could explode even after the microwave is turned off. The same applies to shellfish and crustaceans.

When frying eggs, pierce the yolk first. In the case of foods with a hard peel or skin like apples, tomatoes, potatoes or sausage, the peel or skin could explode. Pierce the peel or skin before cooking.

DRYING FOODS

Danger of fire

Never dry food in the microwave.

FOODS WITH LOW WATER CONTENT

Danger of fire

Never defrost or heat foods with low water content, such as bread, for too long or at an excessive power level.

OIL

Danger of fire

Never use the microwave to heat oil alone.

CAUSES OF DAMAGE

Juice leaking from fruit

When preparing desserts containing very juicy fruit, do not overfill the baking dish. Fruit juice overflowing the baking dish can leave indelible stains.

Technical breakdown

Never use enamelled baking dishes in the microwave as they could cause a technical breakdown.

Cooling with the door of the appliance open

The cooking chamber must only be cooled with the door closed. Check that nothing is stuck on the door of the appliance.

Even if the door is only ajar, nearby cabinets could be damaged over time.

Very dirty gasket seal

If the gasket seal is very dirty, the door of the appliance will not close correctly during operation. The surfaces of nearby cabinets could be damaged. Always keep the gasket seal clean.

Using the door of the appliance as a support surface

Do not rest or lean on the open door of the appliance and do not put dishes or accessories on it.

Using the microwave without food inside

Only turn on the microwave after you have put the food in the cooking compartment. Without food inside, the appliance can become overloaded. The only exceptions allowed are brief tests of dishes (in this regard, refer to the warnings about pots and pans).

Moist foods

Do not leave moist foods in the cooking compartment for extended periods of time.

Respecting the environment Oven identification plate

The documentation for this appliance is printed on paper bleached without chlorine or recycled paper to contribute to protecting the environment.

The packaging was designed to prevent damage to the environment; these are ecological products that can be re-used or recycled. Recycling the packing saves raw materials and reduces the volume of industrial and domestic waste.

THE PACKING MATERIAL is 100% recyclable and marked with the recycling symbol. Dispose of in compliance with local laws. The packing material (plastic bags, polystyrene parts, etc.) must be kept out of the reach of children as it is potentially dangerous.

THIS APPLIANCE is marked in compliance with European Directive 2002/96/EC - Waste Electrical and Electronic Equipment (WEET). By making sure that this product is disposed of correctly, the user contributes to preventing potential negative consequences for the environment and health.

THE SYMBOL on the product or accompanying documentation indicates that this product must not be treated as domestic waste, but must be delivered to a suitable collection point for the recycling of electrical and electronic equipment.

DISPOSAL MUST BE MADE in compliance with local laws on waste dispose.

FOR ADDITIONAL INFORMATION regarding the treatment, recovery and recycling of this product, contact the local office of competence, domestic waste collection service or the store where the product was purchased.

BEFORE SCRAPPING, make it unusable by cutting the electrical cord.

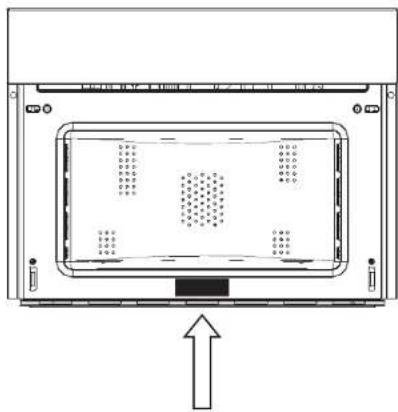

SERIAL TAG LOCATION:

Diagram of a device front view with an arrow pointing to the bottom panel (no text or symbols present)

SERVICE DATA RECORD
Model Number
Serial Number
Date of Installation or Occupancy

First use The control panel

• The oven should be thoroughly cleaned with soap and water, and carefully rinsed.
• Heat the oven for about 30 minutes at the maximum temperature; this eliminates all the residual manufacturing oils that could cause unpleasant colours during cooking.
• Use the circular plus fan function without accessories in the oven. Before using the accessories for the first time, clean them carefully with a very not alkaline washing solution and a soft cloth.

ASSEMBLING AND DISASSEMBLING THE FLAT GRILL

To remove the flat grill, pull the grill towards you until it stops and then lift, by pulling upwards, until it comes fully out. To put the flat grill back in, insert it at a 45-degree angle and then position it horizontally and push it all the way in to the end of the grill track. If the flat grill has a drip-pan (tray), to remove it, lift slightly and slide it towards you. To re-insert it, slice it back until it is correctly seated.

IMPORTANT: As a safety precaution, before cleaning the oven, always disconnect the plug from the outlet or remove the appliance's power cord. In addition, avoid using acid or alkaline substances such as lemon, vinegar, salt, tomatoes, etc. Avoid using products containing chlorine, acids or abrasives, especially for cleaning the painted walls.

Line drawing of an open oven with a grater inside (no text or symbols)

Line drawing of an open oven with a rack inside (no text or symbols)

Line drawing of a hand placing an oven into a rack (no text or symbols)

Line drawing of hands inserting a rack into an oven (no text or symbols)

EN 52 EN 53

FIRST SETUP

12H24H

MAIN MENU

MANUAL MY TASTE

MICROWAVE

TIMED DEFROST

WEIGHT DEFROST

OVEN

COMBINED

U-CREATE LAST USED

MY FAVOURITES

SCREEN LOCK DURING COOKING

ON / OFF 180° 00:14 00:30

DEMO MODE

ON / OFF Settings LANGUAGE LAMP ON Kg SET

EN 54 EN 55

Main product functions

OVEN COOKING

Symbol	Description Suggestions
	Multi-levelPre-set: 165°CRange: 50-230°C	IDEAL FOR: pastries, biscuits, cakes, stuffed and braised dishes. Use this function to cook different foods at the same time on one or more shelf positions. Heat is distributed better and penetrates food better, thus reducing both pre-heating and cooking times. Aroma are not mixed. Allow about 10 minutes extra when cooking different. Foods together.
	GrillPre-set: 230°CRange: 50-230°C	IDEAL FOR: grilled meat, fish, vegetables.This function only uses the top heating element and the grill level can be adjusted. Use with the door closed. Do not place white meats too close to the grill.
	Multi-level + GrillPre-set: 210°CRange: 50-230°C	IDEAL FOR: gritin and crispy food.This function combines the benefits of multi-level cooking with the capacity to every cook multi-layer recipes and thicker pieces of food, grilling to lightly crisp the external surface.
	Grill + FanPre-set: 165°CRange: 50-230°C	IDEAL FOR: whole pieces of meat (broast).The top heating element is used with the fan to circulate the air inside the oven. Ideal for cooking thicker food items and whole pieces of meat, such as roast pork, poultry, etc.Turn the food halfway through cooking.WARNINGS:Make sure that the food is not too close to the grill.Pre heating is necessary for red meats but not for white meats.

COMBINED COOKING

Symbol	Description Suggestions
	Microwave Grill	Use this function to cook meals quickly and at the same time give the meal a brown crust (or gratin). The microwave and the grill operate together. The microwave is cooking and the grill's roasting.
[HDW8]	Microwave + Convection + Fan	IDEAL FOR: roasts, stuffed and baked dishes.This function combines the microwave and convection functions, which means instead of just heating the inside of the food, it also browns and cooks the outside of your food. This function can help you cook baked dishes quickly.WARNINGS:·Always place food on the grill so that the air can circulate well around it.

MICROWAVE COOKING

Symbol Description Suggestions
	Microwave	Use the microwave function to cook and reheat vegetables, potatoes, rice, fish and meat.
	Timed Defrost Use this function to quickly defrost food by the specified time.
	Weight Defrost	Use this function to quickly defrost different types of food (i.e. bread, vegetable, meat, fish) by setting the weight.

Microwave cooking modes table

Symbol Description Set		Weight Watt Temperature
		Min.	Presol. Max	Min Presol. Max	Min Presol. Max	Min Presol. Max
	Microwave Grill	150 W	50 W	20 °C
		300 W	300 W
		450 W	450 W
	Microwave + Convection + Fan	150 W	50 W		50°C	60°C	200°C
		500 W	500 W
		450 W	450 W
	Microwave					150 W	900 W	900 W
	Timed Defrost						150 W
	Weight Dofrost	Breed	100 g	500 g	600 g		150 W
		Vegetable	100 g	500 g	1000 g		150 W
		Meal	100 g	500 g	1500 g		150 W
		High	100 g	500 g	800 g		150 W

For the installer

INSTALLING THE OVEN IN THE COUNTER

• The oven must be installed under a cooker too, in a column, or combined with the corresponding food-warm or drawer.
• The dimensions of the space must be those shown in the figure.
• The cabinet material must be able to withstand the heat.
• The oven must be centred within the walls of the cabinet and fixed with the screws and bushings provided.

with the heat. even must be centred within the walls the cabinet and fixed with the screws and ings provided. 360 360 450 446 342 546 110 455 32 356

43,2 ) 30 48°

TECHNICAL DATA
Power supply	220-240 V, 50 Hz
Maximum absorbed power	3200 W
Microwave power	900 W
Gill	1900 W
Hot air	1500 W
Microwave frequency	2150 MHz

TYPE AND MINIMUM DIAMETER OF THE CABLES
	SASO
HOSR7-F 6x	1.5 mm^2 HOSR7-F 6x 2.5 mm^2
HOSW7 F 5x	1.5 mm^2 HOSW7 F 3x 2.5 mm^2
HOSN7-F 6x	1.5 mm^2 HOSN7-F 3x 2.5 mm^2
I-OSV2V2 F 3x	1.5 mm^2 HOSV2V2 F 3x 2.5 mm^2

ELECTRICAL CONNECTION

Before connecting the appliance to the mains, make sure that:

- the characteristics of the electrical system satisfy what is shown on the serial number plate applied to the front of the oven;

- the electrical system has an effective earth connection conforming to standards and current law.

The earth connection is required by law. The cable must not, at any point, reach a temperature greater than 50°C above the ambient temperature.

I his oven must be connected to the power supply by a supply cord fitted with an appropriately rated plug compatible with the socket in the final sub-circuit of the wing powering the oven. If a fixed appliance does not have a power cord and plug, or another device that ensures disconnection from the mains with a contact opening distance that allows for complete disconnection under the conditions of excessive voltage category ill, such disconnection devices must be provided by the mains power supply and must conform to the installation rules.

The omnipolar socket or switch must be easy to reach when the appliance is installed.

NOTE: The manufacturer declines all liability if the usual accident prevention standards and the above instructions are not followed.

Technical diagram showing mechanical assembly with labeled parts L and N, including a magnified inset view of internal components.

Solving traditional baking problems

Poor results can occur with either Bake or Convection Bake for many reasons other than malfunctioning of the oven. Check the chart below for the causes of the most common problems. Since the size, shape and material of baking

utensils directly affect baking results, the best solution may be to replace old baking utensils that have darkened and warped with age and use.

BAKING PROBLEM	CAUSE
Food browns unevenly	Oven not protractedAluminum foil on oven rack or oven bottomBaking utensil too large for recipePans touching each other or oven walls
Food too brown on bottom	Oven not protractedUsing glass, dull or darkened metal pansIncorrect rack positionPans touching each other or oven walls
Food is dry or has shrunk excessively	Oven temperature too lowOven not protractedOven door opened frequentlyTightly sealed with aluminum foilPan size too small
Food is baking or roasting too slowly	Oven temperature too lowOven not protractedOven door opened frequentlyTightly sealed with aluminum foilPan size too small
Pies do not brown on bottom or have a soggy crust	Baking time not long enoughUsing shiny stock pansIncorrect rack positionOven temperature is too low
Cakes are pale, flat, and may not be done inside	Oven temperature too lowIncorrect baking timeCake sealed too soonOven door opened too oftenPan size may be too large
Cakes are high in the middle and cracked on the top	Baking temperature too highBaking time too longPans touching each other or oven wallsIncorrect rack positionPan size too small
Pie crust edges are too brown	Oven temperature too highEdges of crust too thin

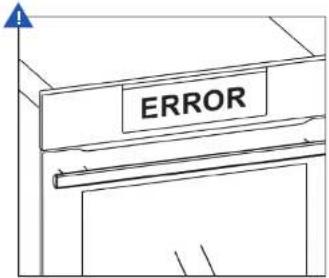

Troubleshooting

ERROR

ERROR

Illustration showing two people in a meeting with a rising trend line, one person gesturing while the other watches.

SMOKE

Line drawing of a cabinet with a scroll and handle, no text or symbols present

1 H₂O

Two glassware illustrations: a spoon inside and a cross symbol crossed out (no text or symbols present)

Diagram of a device front view with internal components and an upward arrow indicating orientation (no text or symbols)

Line drawing of an open oven with a grater inside (no text or symbols)

Line drawing of an open oven with a rack inside (no text or symbols)

Line drawing of a kitchen appliance with a tray and oven (no text or symbols)

Line drawing of hands inserting a rack into an oven (no text or symbols)

ES 72 ES 73

Technical diagram showing mechanical assembly with labeled parts L and N, including a magnified inset view of internal components.

Illustration showing two people in a meeting with a rising trend line, one person gesturing while the other watches.

HUMO

Line drawing of a cabinet with a scroll and handle, no text or symbols present

1 H₂O

Two glassware illustrations: a spoon inside and a cross symbol crossed out (no text or symbols present)

Risque d'explosion

Diagram of a device front view with an arrow pointing to the bottom panel (no text or symbols present)

Line drawing of an open oven with a grater inside (no text or symbols)

Line drawing of an open oven with a rack inside (no text or symbols)

Line drawing of a hand placing an oven into a rack (no text or symbols)

Line drawing of hands inserting a rack into an oven (no text or symbols)

FR 92 FR 93

PREMIÈRE CONFIGURATION

12H

24H

MENU PRINCIPAL

MANUEL MY TASTE

MICRO-ONDES

MARCHE / ARRÊT Settings Language LEEP ON Units SET

FR 94 FR 95

INSTALLATION DU FOUR DANS LE MEUBLE

Technical diagram showing mechanical assembly with labeled parts L and N, including a magnified inset view of internal components.

Illustration showing two people in a meeting with a rising trend line, one person gesturing while the other watches.

FUMÉE

Line drawing of a cabinet with a scroll and handle, no text or symbols present

1 H₂O

Two glassware illustrations: one with a spoon inside, the other with a black X symbol crossed out (no text or symbols present)

Diagram of a device front view with internal grid layout and an upward arrow (no text or symbols)

Line drawing of an oven with a grater inside (no text or symbols)

Line drawing of an open oven with a rack inside (no text or symbols)

Line drawing of a hand placing a tray into an oven with a grater inside (no text or symbols)

Line drawing of hands inserting a rack into an oven (no text or symbols)

IT 112 IT 113

PRIMA IMPOSTAZIONE

12H24H

MENU PRINCIPALE

MANUALE MY TASTE

MICROONDE

SCONGELAMENTO IN BASE AL TEMPO

SCONGELAMENTO IN BASE AL PESO

FORNO

COTTURA COMBINATA

U-CREATE ULTIMI USATI

PREFERITI

BLOCCO DELLO SCHERMO DURANTE LA COTTURA

ACCENSIONE/SPEGNIMENTO 00:14

MODALITÀ DEMO

ACCENSIONE/SPEGNIMENTO SETTINGS LANGUAGE LAMP ON Kg UNITS SET

IT 114 IT 115

Technical diagram showing mechanical assembly with labeled parts L and N, including a magnified inset view of internal components.

Illustration showing two people in a meeting with a rising trend line, one person gesturing while the other watches.

FUMO

Line drawing of a cabinet with decorative swirls on top (no text or symbols)

1 H₂O

Two glassware illustrations: one with a spoon inside, the other with a crossed X symbol (no text or labels)

Diagram of a device front view with an arrow pointing to the bottom panel (no text or symbols present)

REJESTR DANYCH SERWISOWYCH
Numer modelu
Numer serjiny
Data montazu lub nabycia

Line drawing of an open oven with a grater inside (no text or symbols)

Line drawing of an open oven with a rack inside (no text or symbols)

Line drawing of a kitchen appliance with a tray and oven (no text or symbols)

Line drawing of hands inserting a rack into an oven (no text or symbols)

PL 132 PL 133

Panel sterowania

PIERWSZA KONFIGURACJA

12H

24H

GŁÓWNE MENU

PODRE CZNIK MY TASTE

KUCHENKA MIKROFALOWA

CZAS ROZMRAŻANIA

WAGA DLA ROZMRAŻANIA

PIEKARNIK

DWA W JEDNYM

U-CREATE OSTATNIO UŻYWANE

MOJE ULUBIONE

BLOKADA EKRANU PODCZAS GOTOWANIA

WL / WYL 00:14

TRYB DEMO

WL / WYL Settings LANGUAGE LAMP ON kg UNITS SET

PL 134 PL 135

Technical diagram showing mechanical assembly with labeled parts L and N, including a magnified inset view of internal components.

Illustration showing two people in a meeting with a rising trend line, one person gesturing while the other watches.

DYM

Line drawing of a cabinet with a scroll and handle, no text or symbols present

1 H₂O

Illustration showing a spoon inside a glass and a crossed-out X symbol indicating prohibition or prohibition.

Perigo de explosão

Diagram of a device front view with an arrow pointing to the bottom panel (no text or symbols present)

Line drawing of an oven with a grater inside (no text or symbols)

Line drawing of an open oven with a rack inside (no text or symbols)

Line drawing of a kitchen appliance with a tray and oven (no text or symbols)

Line drawing of hands inserting a rack into an oven (no text or symbols)

PT 152 PT 153

ON / OFF Settings LANGUAGE LAMP ON kg UNITS SET

Technical diagram showing mechanical assembly with labeled parts L and N, including a magnified inset view of internal components.

Illustration showing two people in a business environment with a rising trend line and computer work, labeled with number 1.

FUMO

Line drawing of a cabinet with a scroll and handle, no text or symbols present

1 H2O

Two glassware illustrations: a spoon inside and a cross symbol crossed out (no text or symbols present)

Diagram of a device front view with internal components and an upward arrow indicating orientation (no text or symbols)

ZÁZNAM SERVISNÝCH ÚDAJOV
Číslo mode u
Sériové číslo
Dátum inštalácie sleko činnosti

Line drawing of an open oven with a grater inside (no text or symbols)

Line drawing of an open oven with a rack inside (no text or symbols)

Line drawing of a kitchen appliance with a tray and oven (no text or symbols)

Line drawing of hands inserting a rack into an oven (no text or symbols)

SK 172 SK 173

PRVÉ NASTAVENIE

12H24H

HLAVNÁ PÓNUKA

MANUÁL MY TASTE

MIKROVLNNÁ RÚRA

ČASOVANÉ ROZMRAZOVANIE

ROZMRAZOVANIE PODLA HMOTNOSTI

RÚRA NA PEČENIE

KOMBINOVANÉ

U-CREATE NAPOSLEDY POUŽITÉ

MOJE OBLÚBENÉ

UZAMKNUTIE OBRAZOVKY POČAS VARENIA

Zapnutie/vyputie 00:14

REŽIM UKÁŽKY

Zapnutie/vypnutie Settings LANGUAGE LAMP ON kg UNITS SET

Technical diagram showing mechanical assembly with labeled parts L and N, including a magnified inset view of internal components.

Illustration showing two people in a meeting with a rising trend line, one person gesturing while the other watches.

DYM

Line drawing of a cabinet with a scroll and handle, no text or symbols present

1 H₂O

Povzetek

Diagram showing a spoon inside a glass and a crossed-out X sign in another glass, indicating no text or symbols.

Nevarnost eksplozije

Diagram of a device front view with internal grid layout and an upward arrow (no text or symbols)

Line drawing of an open oven with a grater inside (no text or symbols)

Line drawing of an open oven with a rack inside (no text or symbols)

Line drawing of a kitchen appliance with a hand placing a tray into a oven (no text or symbols)

Line drawing of hands inserting a grid into an oven (no text or symbols)

SL 192

Nadzorna plošča

PRVA NAMESTITEV

12H

24H

GLAVNI MENI

SL 193

ROČNO

MIKROVALOVNA PEČICA

ODTAJANJE NA ČAS

ODTAJANJE GLEDE NA TEŽO

PEČICA

KOMBINIRANO

MY TASTE

My taste LUNCHBOX BY YOUR LUNCHBOX LAST USED

U-CREATE

PRILJUBLJENO

My Favourites 500m - 12.00" 90.00% 1 500m - 120" - 68.00" 12.70"

ZAKLEPANJE ZASLONA MED PEKO

VKLOP/IZKLOP 00:14

PREDSTAVITVENI NAČIN

VKLOP/IZKLOP Settings LANGUAGE LAMP ONLY UNITS SET

NAZADNJE UPORABLJENO

Glavne funkcije izdelka

PEKA V PEČICI

Illustration showing two people in a meeting with a rising trend line, one person gesturing while the other watches.

DIM

Simple line drawing of a cabinet with ornate ceiling and scrollwork (no text or symbols)

1 H2O

Samenvatting

Two glassware illustrations: a spoon inside and a cross symbol crossed out (no text or symbols present)

Explosiegevaar

Technical diagram of a device front view with labeled components and an upward arrow indicating orientation or movement.

Line drawing of an oven with a grater inside (no text or symbols)

Line drawing of an open oven with a rack inside (no text or symbols)

Line drawing of a kitchen appliance with a grater inside (no text or symbols)

Line drawing of hands inserting a grid into a rack inside a cabinet (no text or symbols)

NL 212

AAN/UIT 180° 00:14 00:30

DEMO-MODUS

AAN/UIT Settings LANGUAGE LAMP ON WINS SET

Technical diagram showing mechanical assembly with labeled parts L and N, including a magnified inset view of a component.

Traditionele bakproblemen oplossen

Illustration showing two people discussing a rising stock chart, with one person using a computer and the other gesturing with hand gestures.

ROOK

Simple line drawing of a cabinet with a scroll on top (no text or symbols)

1

1 H2O

Haier

PRODUCT CODE
