USER MANUAL Nomad HS250TC HeatStar

OPERATING INSTRUCTIONS AND OWNER'S MANUAL

Model #

HS115TC

HS190TC

HS250TC

READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place instructions in a safe place for future reference. Do not allow anyone who has not read these instructions to assemble, light, adjust or operate the heater.

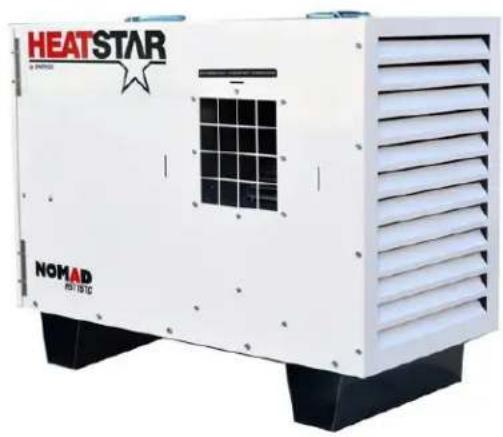

White heatstar industrial machine with wheels and solar panel, no visible text or symbols on the device itself.

White industrial heat star heater with black base and ventilation slots (no visible text or symbols on body)

FORCED AIR DUAL-FUEL NOMAD HEATER

LANGUAGES INCLUDED

•ENGLISH

•FRENCH

•SPANISH

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result, causing property damage, personal injury or loss of life.

— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
— An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS

- Do not try to light appliance.

- Extinguish any open flame.

- Shut off gas to appliance.

— Service must be performed by a qualified service agency.

This is an un-vented gas-fired portable heater. It uses air (oxygen) from the area in which it is used. Adequate combustion and ventilation must be provided. Refer to pages 4 & 5.

[Non-Text]

WARNING:

YOUR SAFETY IS IMPORTANT TO YOU AND TO OTHERS, SO PLEASE READ THESE INSTRUCTIONS BEFORE YOU OPERATE THIS HEATER.

GENERAL HAZARD WARNING:

FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN, ASPHYXIATION, CARBON MONOXIDE POISONING, AND/OR ELECTRICAL SHOCK. ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE OR SERVICE THIS HEATER.

IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTIONS MANUAL, LABELS, ETC. CONTACT THE MANUFACTURER.

⚠ WARNING: Fuels used in liquefied propane gas appliances, and the products of combustion of such fuel, can expose you to chemicals including benzene, which is known to the state of California to cause cancer and cause birth defects or other reproductive harm, for more information go to www.P65Warnings.ca.gov

WARNING:

NOT FOR HOME OR RECREATIONAL VEHICLE USE

⚠ WARNING:

FIRE, BURN, INHALATION, AND EXPLOSION HAZARD. KEEP SOLID COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER, OR CARDBOARD, A SAFE DISTANCE AWAY FROM THE HEATER. AS RECOMMENDED BY THE INSTRUCTIONS NEVER USE THE HEATER IN SPACES WHICH DO OR MAY CONTAIN VOLATILE OR AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE, SOLVENTS, PAINT THINNER, DUST PARTICLES OR UNKNOWN CHEMICALS.

WARNING:THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD AND LEAD COMPOUNDS, WHICH ARE KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION VISIT WWW.P65WARNINGS.CA.GOV

CONTENTS

WARNINGS....2

SPECIFICATIONS....3

OPERATING PRECAUTIONS 4

SAFETY PRECAUTIONS....4

ODOR FADE WARNING 5

ASSEMBLY AND PREPARATION FOR OPERATION....6

HOSE AND REGULATOR INFORMATION......6

FUEL AND RATE SELECTION....7

OPERATION 7

USING THE ACCESSORIES 8

SHUT DOWN AND STORAGE 9

MAINTENANCE....9

PROPANE TANK SIZE SELECTION 10

TROUBLESHOOTING 11

WIRING DIAGRAM....12

PARTS LISTS AND EXPLODED VIEWS....14

WARRANTY INFORMATION 20

This NOMAD Forced Air Duel-fuel construction heater was Assembled in the U.S.A. by:

Enerco Group Inc. 4560 West 160th Street Cleveland, Ohio 44135

For Questions and Inquiries Contact us at:

CALL: 866-447-2194

FAX: [phone]

VISIT: HEATSTARBYENERCO.COM.

Office hours are:

Monday - Friday 8:00am - 5:00pm

HEATSTAR

by ENERCO

This is a propane or natural gas, direct-fired, forced air heater. It's intended use is primarily temporary heating of buildings under construction, alteration or repair.

Propane is heavier than air. If the fuel leaks from a connection or fitting, it sinks to the floor, collecting there with the surrounding air, forming a potentially explosive mixture. Obviously, fuel leaks should be avoided, so set up the fuel supply with utmost care. Read the Odor Fade and Propane warnings included in this manual for additional information about detecting gas leaks. Leak check new connections or re-connections with a soap and water solution and follow all connection instructions herein. Also, ask your propane dealer or natural gas supply company for advice on the heater application and supply installation and ask him to check it if there are any questions.

This heater was designed and certified for use as a construction heater in accordance with ANSI Standard Z83.7/CSA 2.14. Check with your local fire safety authority if you have any questions about your applications. Other standards govern the use of fuel gases and heat producing products in specific applications. Your local authority can advise you about these.

Direct-Fired means that all of the combustion products enter the heated space. Even though this heater operates very close to 100 percent combustion efficiency, it still produces small amounts of carbon monoxide. Carbon monoxide (called CO) is toxic. We can tolerate small amounts but not a lot. CO can build up in a heated space and failure to provide adequate ventilation could result in death. The symptoms of inadequate ventilation are:

• headache
• dizziness
• burning eyes and nose
• nausea
• dry mouth or sore throat

So, be sure to follow advice about ventilation in these operating instructions.

Forced Air means that a blower or fan pushes the air through the heater. Proper combustion depends upon this air flow; therefore, the heater must not be revised, modified or operated with parts removed or missing. Likewise, safety systems must not be circumvented or modified in order to operate the heater.

When the heater is to be operated in the presence of other people the user is responsible for properly acquainting those present with the safety precautions and instructions, and of the hazards involved.

SAFETY PRECAUTIONS

1. Check the heater thoroughly for damage. DO NOT operate a damaged heater.
2. DO NOT modify the heater or operate a heater which has been modified from its original condition.
3. Use only fuel types for which the heater has been certified.
4. If using propane use only VAPOR WITHDRAWAL type propane supply. If there is any question about vapor withdrawal, ask your propane dealer.
5. Mount the propane cylinders vertically (shutoff valve up). Secure them from falling or being knocked over and protect them from damage.
6. Locate propane containers at least (USA) 7 ft. (2.13m), (Canada) 10 ft. (3m) from the heater and do not direct exhaust toward containers.
7. IMPORTANT Use only the hose and regulator assembly provided with the heater. Inspect hose assembly before each use of the heater. If there is excessive abrasion or wear, or hose is cut, replace with hose assembly listed on parts list in this manual before using heater.
8. For indoor or outdoor use where adequate ventilation has been provided. Minimum openings of 1/2 sq. ft. (.046 m) near the floor and 1/2 sq. ft. (.046 m) near the ceiling (also see "Operating Precautions").
9. If at any time gas odor is detected, IMMEDIATELY DISCONTINUE operation until the source of gas has been located and corrected. Read enclosed Odor fade and Propane information for additional information about detecting propane or natural gas leaks.
10. While this heater is designed to withstand a reasonable about of harsh weather. It is best to install the heater such that it is not directly exposed to water spray, rain and/or dripping water.
11. Maintain minimum clearance from normal combustible material like paper, canvas, plastic tarpaulins or similar coverings and secure them to prevent flapping or movement due to wind action.
12. Due to the high surface and exhaust temperatures, adults and children must observe clearances to avoid burns or clothing ignition.
13. Operate only on a stable, level surface.
14. For use with only approved duct lengths and materials.
15. Use only the electrical power specified. The electrical connection and grounding must comply with National Electrical Code - ANSI/NFPA 70 (USA) and CSA C22.1 Canadian Electrical Code, Part 1 (Canada).
16. Use only a properly grounded 3-prong receptacle or extension cord (6 ft (1.83m) in length minimum).
17. Do not move, handle or service while hot or burning.
18. Use only in accordance with local codes or, in the absence of local codes, with the Standard for the Storage and Handling of Liquefied Petroleum Gases ANSI/NFPA 58 and CSA B149.1, Natural Gas and Propane Installation Code.

ODOR FADE WARNING

WARNING- ASPHYXIATION HAZARD

Do not use this heater for heating human living quarters.

• Do not use in unventilated areas.
• The flow of combustion and ventilation air must not be obstructed.
• Proper ventilation air must be provided to support the combustion air requirements of the heater being used.
• Refer to the specification section of the heater's manual, heater data-plate, or contact the Factory to determine combustion air ventilation requirements of the heater.
• Lack of proper ventilation air will lead to improper combustion.
• Improper combustion can lead to carbon monoxide poisoning leading to serious injury or death. Symptom of carbon monoxide poisoning can include headaches dizziness and difficulty in breathing.

FUEL GAS ODOR

LP gas and natural gas have man-made odorants added specifically for detection of fuel gas leaks. If a gas leak occurs you should be able to smell the fuel gas. Since these fuels are heavier than air you should smell for the gas odor low to the floor. ANY GAS ODOR IS YOUR SIGNAL TO GO INTO IMMEDIATE ACTION!

• Do not take any action that could ignite the fuel gas. Do not operate any electrical switches. Do not pull any power supply or extension cords. Do not light matches or any other source of flame. Do not use your telephone.
• Get everyone out of the building and away from the area immediately.
• Close all propane (LP) gas tank or cylinder fuel supply valves, or the main fuel supply valve located at the meter if you use natural gas.
• Propane (LP) gas is heavier than air and may settle in low areas. When you have reason to suspect a propane leak, keep out of all low areas.
• Use your neighbor's phone and call your fuel gas supplier and your fire department. Do not re-enter the building or area.
• Stay out of the building and away from the area until declared safe by the firefighters and your fuel gas supplier.
  • FINALLY, let the fuel gas service person and the firefighters check for escaped gas. Have them air out the building and area before you return. Properly trained service people must repair any leaks, check for further leakages, and then relight the appliance for you.

ODOR FADING - NO ODOR DETECTED

• Some people cannot smell well. Some people cannot smell the odor of the man-made chemical added to propane (LP) or natural gas. You must determine if you can smell the odorant in these fuel gases.

• Learn to recognize the odor of propane (LP) gas and natural gas. Local propane (LP) gas dealers will be more than happy to give you a scratch and sniff pamphlet. Use it to become familiar with the fuel gas odor.

• Smoking can decrease your ability to smell. Being around an odor for a period of time can affect your sensitivity to that particular odor. Odors present in animal confinement buildings can mask fuel gas odor.

• The odorant in propane (LP) gas and natural gas is colorless and the intensity of its odor can fade under some circumstances.
• If there is an underground leak, the movement of gas through the soil can filter the odorant.
• Propane (LP) gas odor may differ in intensity at different levels. Since Propane (LP) gas is heavier than air, there may be more odor at lower levels.
• Always be sensitive to the slightest gas odor. If you continue to detect any gas odor, no matter how small, treat it as a serious leak. Immediately go into action as discussed previously.

ATTENTION- CRITICAL POINTS TO REMEMBER

• Propane (LP) gas has a distinctive odor. Learn to recognize these odors. (Reference Fuel Gas Odor and Odor Fading sections above.
• Even If you are not properly trained in the service and repair of the heater, ALWAYS be consciously aware of the odors of propane (LP) gas and natural gas.
• If you have not been properly trained in repair and service of propane (LP) gas then do not attempt to light heater, perform service or repairs, or make any adjustments to the heater on the propane (LP) gas fuel system.
• A periodic sniff test around the heater or at the heater's joints; i.e. hose, connections, etc., is a good safety practice under any conditions. If you smell even a small amount of gas, CONTACT YOUR FUEL GAS SUPPLIER IMMEDIATELY. DO NOT WAIT!

UNPACKING (Tools needed: Box cutter)

Remove heater and all components from cardboard container. Thoroughly inspect all packing material for pieces that are not garbage. Next check the unit for possible shipping damage. If any is found immediately notify the factory.

Assembly

INSTALLING THE WHEELS & FOOT (Tools needed: Pliers) Most units will be completely assembled. However if for any reason you do need to assemble these components follow the these instructions. Using the cardboard that your heater was shipped in turn your heater on to one of it sides or its top so that the bottom of the heater is accessible. First, take the axel and insert it into one of the wheels supplied. Then on the outside of the wheel place the large washer over the axle. You can then insert one of the cotter pins into the hole in the end of the axle and bend over one or both of the tails of the pin so that it cannot be removed. Then on the inside of that wheel run one of the spacers over the other end of the axle so that it is pressed against the back of the wheel. Then slide the axle into the holes along the bottom edge of the heater. Then install the other spacer followed by the other wheel and washer. You can then insert and bend the other cotter pin. Finally you can press the rubber hub caps over the end of the axle. It is designed to press over the washer to hold the cap in place once you are sure you have the wheels and axle installed on your heater in the order shown in figure 1.

FIGURE 1

DESCRIPTION QTY

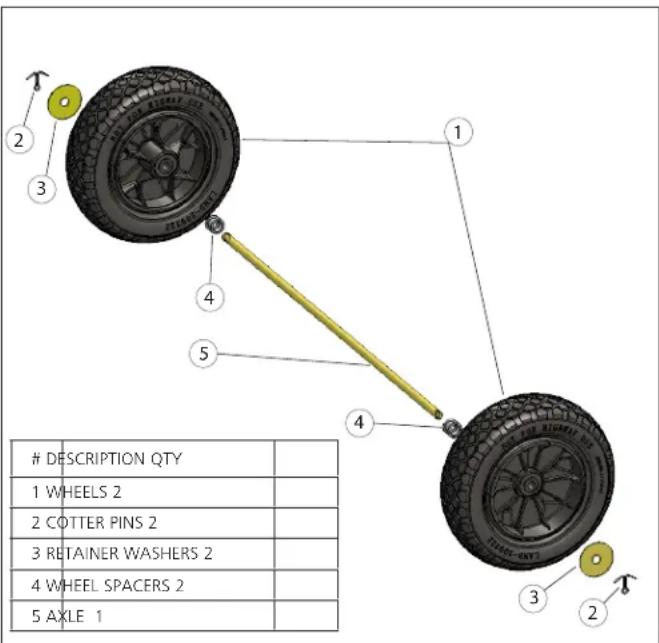

1 WHEELS 2 2 COTTER PINS 2 3 RETAINER WASHERS 2 4 WHEEL SPACERS 2 5 AXLE 1

INSTALLING THE HANDLE

Most units will be completely assembled. However if for any reason you do need to assemble these components follow the these instructions. First locate the metal "U" shaped handle that was packed with your heater. (Does not apply to model # HS115TC, If this is your model move to hose and regulator setup). Next locate the two handle bolts included in your hardware package. Then, while looking at the outlet side of the heater open the access panel opposite the control panel side by removing the screws that hold it in place around its perimeter. Just

above the top edge of the door opening you should see two holes close to the top edge of the heater. Align the threaded holes in the handle up to the holes in the cover of the heater. Then thread the two supplied bolts through the case into the handle from inside of the case. Using a socket wrench tighten down the bolts. Be sure not to over tighten.

Hose and Regulator setup

Whenever joining a male threaded pipe to female threaded pipe, apply a pipe dope compound or PTFE tape to male threads prior to assembly. Leave the first two threads bare.

SETUP FOR PROPANE

First locate the hose and regulator assembly included with your heater. Inspect the hose for cracks, breaks and any signs of damage. If any damage is found, contact the factory for a replacement. The regulator end is equipped with a standard POL connection designed to fit most vertical vapor draw propane tanks. Note: This is a reverse "left hand" thread. Next attach the P.O.L. to an appropriately sized tank for your application. This is a flared fitting and this type of connection does not require any additional sealant or thread tape. Check all connections with a mixture of soap and water for leaks. Mix water and a small amount of dish soap in a spray bottle and apply the solution on all connections, looking for small bubbles to appear. If you see bubbles that is an indication of a leak. Tighten your connection until the bubble are eliminated. For proper tank sizing, refer to the sizing chart in the trouble shooting section of this manual. (page 10)

You must first determine if a regulator will be required. When using NG a regulator will only be required when the source of the gas has an output pressure greater than 14" w.c. (3.48 Kpa).

First locate the hose and regulator assembly included with your heater. Inspect the hose for any cracks breaks or signs of damage. If any damage is found, contact the factory for a replacement. The regulator end is equipped with a standard POL connection designed to fit most vertical vapor draw propane tanks. If you are using your unit with Natural Gas and you have determined the regulator will be needed, first the "P.O.L. fitting will have to be removed and replaced with a connector/connectors that will allow for connection to your Natural Gas supply. To remove the P.O.L. fitting, secure the regulator body in a vice being careful not to damage it. Then using a socket wrench remove he P.O.L. stem and nut from the regulator. Then replace the POL with the appropriate pieces to make your connection. Be sure to use an appropriate sealant or thread tape when required. Check all connections with a mixture of soap and water for leaks. Mix water and a small amount of dish soap in a spray bottle and apply the solution on all connections, looking for small bubbles to appear. If you see bubbles that is an indication of a leak. Tighten your connection until the bubble are eliminated.

POL Remove for NG installation

RATE AND FUEL SELECTION

FUEL SELECTION

When setting up your Nomad heater you will need to know which fuel you will be using and move the Rate/Fuel selector switch to the correct settings before use. For LP you will use the Red settings and rate. For NG you will use the Blue settings and rates Refer to figure 5.

RATE SELECTION

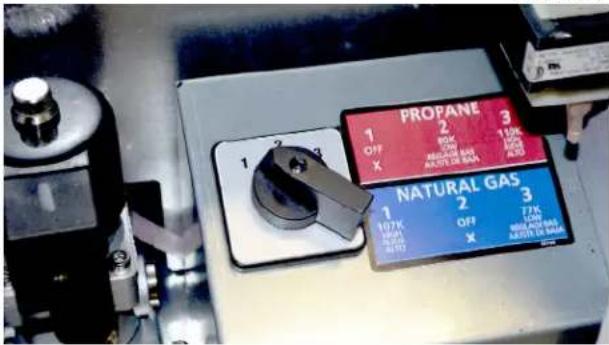

Your Nomad heater is equipped with multi-rate and dual fuel technology. During setup of your area to be heated you have the option to use the heater on either the high or low setting. In order to bring the heat in your space up to your desired temperature as quickly as possible set the heater on its high setting (refer to figure 5). Once you have your space heated to the desired temperature, you can then turn your setting to the low position to maintain your desired temperature resulting in dramatic cost savings from the lower fuel consumption during the entire heating project.

FIGURE 5

PROpane 1 2 3 OFF X BOLK AQUISOL BAN AKTUL DE GAS 107K 107K 107K 107K NATURAL GAS 1 2 3 OFF X BOLK AQUISOL BAN AKTUL DE GAS

OPERATION (NO THERMOSTAT)

Plug in your unit using an appropriately sized properly grounded three pronged extension cord. Attach the small length of power cord on the heater to your extension cord. Once power is supplied to the heater you should see the green indicator light above the switch light up. Before you turn on your heater you will want to ensure that you make your fuel and rate selection. Refer to the "Rate and fuel selection" section for more information. You can now flip your power switch to the ON position. After a few seconds your heater will light and you should feel hot air begin to emit from the outlet of the heater. With this setup the heater will run continuously until the operator flips the switch to the off position. If you would like your heater to cycle on and off based on the temperature of the space, you will need to use the supplied remote thermostat.

OPERATION (WITH THERMOSTAT)

To operate your Nomad heater with a thermostat you will need to place the thermostat in the environment to be heated and turn the dial to the lowest temperature. Take the "Piggy-Back" style plug end that was factory installed on the thermostat and attach it to the small length of power cord attached to the heater (located near the

power switch). The male plug end of the heater will go inside the female receptacle on the thermostat plug end. Next plug in your properly grounded three pronged extension cord into the other side of the thermostat plug. You can now switch on your heater and return to where you have your thermostat located and set the temperature at which you would like your heater to cycle on and off at. Once the temperature in the space to be heated drops below the point at which your thermostat is set, the green indicator light above the switch will illuminate and the heat sequence will begin. The unit will continue to run until the setting of the thermostat is satisfied. If your heater shuts down for any reason other than the operator turns it off or the thermostat is satisfied, refer to the troubleshooting portion of this manual on page 11.

INCLUDED THERMOSTAT

Part # 00618 PIGGY BACK PLUG

THERMOSTAT HOOKUP

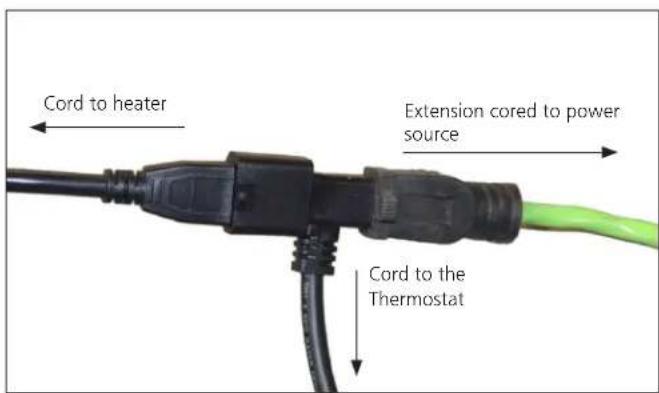

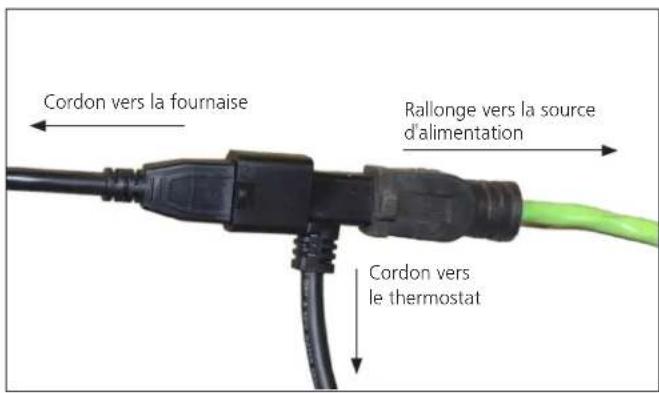

Cord to heater Extension cored to power source Cord to the Thermostat

The Nomad line of forced air heaters is designed to be used as a stand alone gas fired heating appliance. It is also designed and certified to be used with a collection of useful accessories. For information on any additional accessories that may be available for your model refer to the list of accessories in this booklet or visit www.heatstarbyenerco.com.

USING NOMAD HEATERS WITH DUCT & DIFFUSERS

When using this heater to heat a party tent or construction environment from out side of the space you will need to employ the help of a few different diffuser attachments.

Direct Diffuser & Duct Adapter

A direct diffuser allows the user to duct the heat being

3D rendering of a cylindrical mechanical component with mounting holes and a small inset detail (no text or symbols)

DUCT ADAPTER

produced by the Nomad heater into a space needing heat without having the heater in that space. To do this you will need a duct adapter. The duct adapter attaches to special connection points on the heater that match up to the connectors on the adapter. Align the tabs on the adapter to the holes on

the heater and turn clock wise to lock them in place. Next you will need the flexible duct transition piece. The duct transition is a short piece of special silicone lined ducting that attaches the adapter to the End diffuser. With the duct adapter attached to the heater, place the transition duct piece over the outside of the adapter ring and tighten down the strap. The other end of the Duct is then attached to the diffuser see figure 6. The diffuser is an accessory designed to help direct the air being discharged from the heater. The air comes out of the diffuser and spreads out in multiple directions to better fill the space and heat more evenly. The channel on top of the diffuser is designed to hold the tent material from falling in front of the diffuser. The heater can be used without the diffuser but it is recommended for more effective and efficient use.

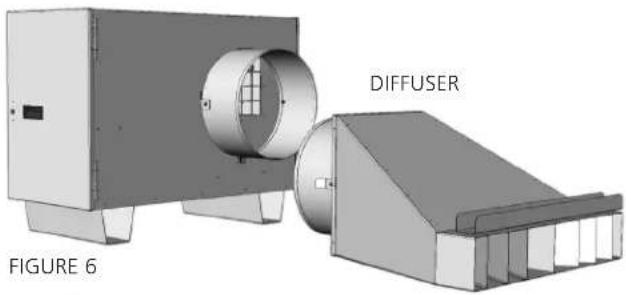

3D diagram of a device labeled 'DIFFUSER' and 'FIGURE 6', showing internal components without any readable text or symbols.

Long Duct & Diffuser

Nomad heaters are also designed to be used with 10' of flexible duct for when distance from the area to be

heated is needed or required. To use this setup you will need the end diffuser and the 10' specially designed ducting. To assemble attach one end of the 10' length of duct to the duct adapter and the other to the end Diffuser. Then place the end diffuser in the space to be heated.

FITS HS115TC

12" X 30" TRANSITION DUCT F109107

12" DUCT ADAPTER F109106

FITS HS190TC & HS250TC

Close-up of a white plastic threaded component with no visible text or markings

16" DUCT ADAPTER F10911616" X 30"

12" X 10' SILICONE LINED FLEXIBLE HEATING DUCT F109108

Close-up of a flexible, corrugated fabric or hose with visible folds and straps (no text or symbols)

FITS HS115TC

16" X 10' SILICONE LINED FLEXIBLE HEATING DUCT F109118

Close-up of a flexible, coiled metal hose or hose with visible internal bands (no text or symbols)

FITS HS190TC & HS250TC

12" UNIVERSAL DIFFUSER F109105

3D rendering of a mechanical component with a cylindrical housing and flanged base (no text or symbols visible)

FITS HS115TC

16" UNIVERSAL DIFFUSER F109115

3D rendering of a mechanical component with a cylindrical shaft and stepped base (no text or symbols visible)

FITS HS190TC & HS250TC

SHUTDOWN, STORAGE & MAINTENANCE

When your Nomad heater is no longer needed there are a few steps you should take to ensure it is ready and in working condition the next time you need it.

SHUTDOWN

While the heater is running, turn off the gas supply to the heater and allow the fuel left in the system and in the hose and regulator to burn off. This should only take a few seconds. Then at the heater, flip the switch to the middle or OFF position. You should allow your heater to completely cool before placing your heater in storage

or before you perform any service or maintenance. Once the unit has cooled verify that the gas has been shut off. Then disconnect the hose and regulator from the fuel source. Next disconnect the hose from the inlet fitting on the heater and neatly wrap up your hose assembly. You

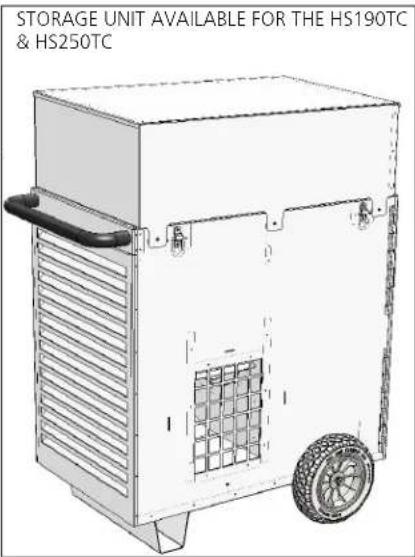

STORAGE UNIT AVAILABLE FOR THE HS190TC & HS250TC

can then place your hose into storage until it is needed again. On the HS190TC and HS250TC Nomad units you can use the optional top mounted storage box to store your heater hose and regulator along with any other accessories or tools needed for setup and tear down. Next unplug the unit and wrap up the thermostat and return it to storage. Your heater can now be stored.

Before and after extended storage or if the heater was used in dusty conditions you should thoroughly clean the heater. With the heater unplugged, use soap, water and a soft cloth to clean off any loose dust or dirt. While your Nomad heater is certified to be used outdoor and can withstand wet weather, water should not be used. This can cause water to be forced into components where it should not be. To clean off the inside, you will need a standard flat head screwdriver to open the access panel. To clean do not use water, use compressed air to blow dust and debris from the insides. Once the unit is again clean shut the door and secure the latch with the screwdriver used to open it. You can now store your heater until it is needed again. Be sure to make note of the storage "do's and Don't" listed on this page. At least once a year or the heater has been used in a dusty environment, it is recommended that the blower wheel be thoroughly cleaned. Start by removing the access

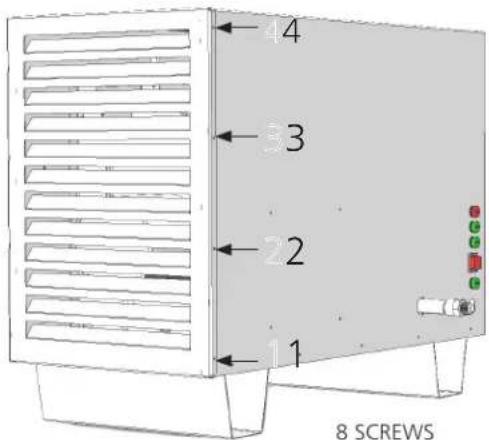

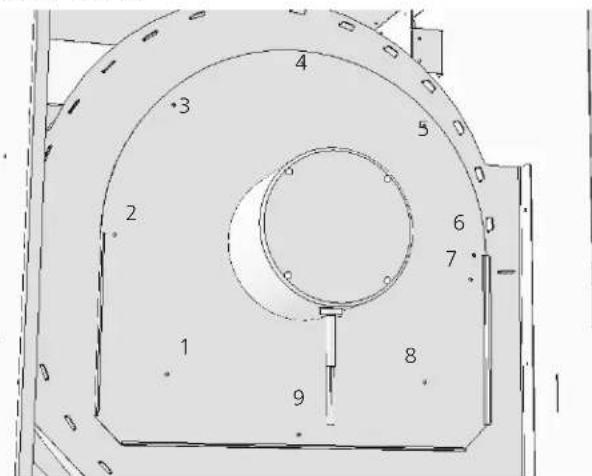

panel cover on the blower side of the heater. There are 8 screws on the HS115 and 14 Screws on the larger HS190 and HS250 (4 and 7 on each side respectively) holding the panel in place.

4 3 2 1 8 SCREWS

4 ON EACH SIDE

Once you have access to the blower motor mounting plate remove the motor and wheel then use compressed air to blow off the wheel. If a more aggressive cleaning method is required to get the wheel clean you can remove the wheel from the motor by loosening the set screw. Water solvents and cleaners can then be utilized to complete the cleaning. Re install the blower in the reverse it was removed.

1 2 3 4 5 6 7 8 9

DO NOT....

• Do not store the unit outside.
• Do not lose the components shipped with your heater.
• Do not store your heater in an area prone to rodents. They can damage internal wiring and the nesting material is a fire hazard. Always open and inspect your heater for signs of insect and rodents before use especially after long bouts of storage.

SERVICE & REPAIR

A hazardous condition may result if a heater is used that has been modified or is not functioning properly.

When the heater is working properly:

• The flame is contained within the heater.
- The flame is essentially blue with perhaps some yellow tipping.
- There is no strong disagreeable odor, eye burning or other physical discomfort.
- There is no smoke or soot internal or external to the heater.
• There are no unplanned or unexplained shut downs of the heater.
- The parts lists and wiring diagram show the heater as it was constructed. Do not use a heater which is different from that shown. In this regard, use only the hose, regulator and cylinder connection fitting (called a POL fitting) supplied with the heater.

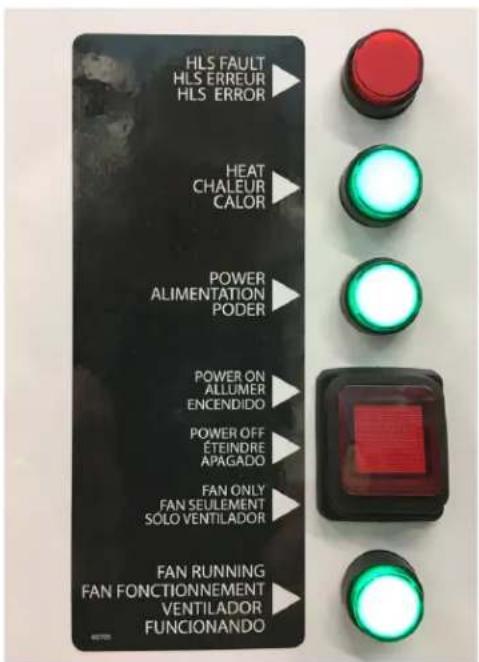

• (3) of the four lights on the side of the heater should be illuminated (Heat, Power, Fan Running) per Figure 2.

For this heater, the regulator must be set as shown in "SPECIFICATIONS". If there is any uncertainty about the regulator setting, have it checked. A heater which is not working right must be repaired, but only by a trained, experienced service person. The heater is equipped with a 1 year Limited Warranty, for full warranty information please read page 20. Please include a brief statement indicating date, place of purchase, the nature of the problem and proof of purchase for warranty inquiries.

Out-of-warranty products can be repaired with a charge for parts and labor. Contact customer service for a list of certified repair centers near you.

Figure 2

HLS FAULT HLS ERREUR HLS ERROR HEAT CHALEUR CALOR POWER ALIMENTATION PODER POWER ON ALLUMER ENCENDIDO POWER OFF ETEINDRE APAGADO FAN ONLY FAN SEULEMENT SOLO VENTILADOR FAN RUNNING FAN FONCTIONNEMENT VENTILADOR FUNCIONANDO

PROPANE TANK SIZE SELECTION

Below are a few quick points of reference for when you need to select propane cylinders for your applications.

There are two major points to consider. What is the temperature outside? & What are the BTU requirements of the heater I will be using. While 20lb, 40lb and 100lb tanks are the most common tank sizes, there are various other options available. Contact you propane supplier for details.

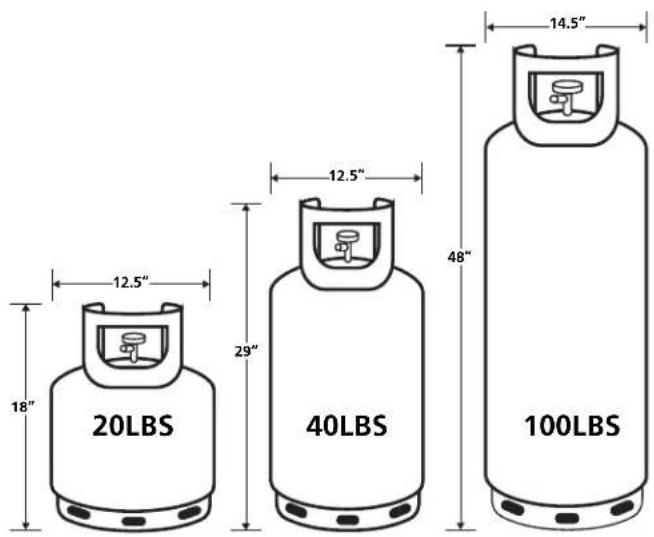

20LBS 18" 12.5" 29" 12.5" 40LBS 48" 14.5" 100LBS

LBS OF LP IN THE CYLINDER	MAXIMUM CONTINUOUS BTU OUTPUT PER HOUR@ VARIOUS TEMPERATURES
	0°F (-18°C)	20°F(-7°C)	40°F (4°C)
200 (2 x 100's) 226,000	334,000	428,000
100 113,000 167	000	214,000
80 (2 x 40's) 94,000	137,000	180,000
40	55,000	79,000	105,000
20	36,000	51,000	69,000

EXAMPLE TANK SELECTION

PROPANE TANK SELECTION @ 20 F (-7 C)
	HIGH SETTING	LOW SETTING
HS115TC	110,833 BTU/HR	80,612 BTU/HR
	2 X 40LB TANKS	1 X 40LB TANK
HS190TC 190,200 BTU/HR 127,100 BTU/HR
	2 X 100LB TANKS	2 X 40LB TANKS
HS250TC 248,625 BTU/HR 181,119 BTU/HR
	2 X 100LB TANKS	2 X 100LB TANKS

Symptom Troubleshooting
Blower does not come on 1. Make sure the switch is either in the position2. Verify the extension cord being used is not too long3. Check power source is 110v4. Verify the setting on the thermostat is higher than the temperature in the space to be heated
Blower runs but the burner does not ignite	Make sure the switch is in the on position not in the fan only positionVerify that the fuel connected to the unit is turned on and flowing. It may take a few cycles to get all the air out of the lines.Make sure the rate and fuel switch are in the desired position for the fuel you are using and the setting (high or low) that you desire.
Unit producing little heat or no heat.	Make sure the switch is in the on position not the fan only positionMake sure the rate and fuel switch are in the desired position for the fuel you are using and the setting (high or low) that you desire.Verify that the fuel pressure being supplied to the heater is adequate. Refer to the specification table in this manual for required pressures.Make sure the factory supplied hose and regulator are being used.
Heater will not shut down	Verify the switch is in the off position not on or fan only.Check current setting on the thermostat. Is it set to a temperature higher than the space being heated?Heater will only cycle on and off when optional thermostat is installed.
Unit will not turn on with thermostat installed	Verify that the thermostat is installed correctly. Heater will only cycle on and off when the optional thermostat is installed.Verify the setting on the thermostat is higher than the temperature in the space to be heatedCheck that the power switch is in the "on" position. The thermostat will only cycle on and off if the power switch is in the on position
Unit will not turn off with thermostat installed.	Verify the setting of the thermostat is lower than the temperature in the space being heated.Verify that the thermostat is installed correctly, the unit may just be on the on position.Heater may be undersized or for the space being heated.
Red HLS fault light is on (Figure 2)	Verify that the path of heat is not obstructed.Check for blockage in the duct and at the end diffuserCheck the fuel and rate selections are accurate. If the wrong fuel is selected the unit will over heat.

If after you have reviewed the trouble shooting in this manual and you still require assistance please use any of the following methods to contact our technical service department. We will do our absolute best to resolve any issues or problems that arise. Most problems can be solved in just a few minutes.

HOURS ARE: Monday- Friday 8:00am until 5:00pm

CALL: 866-447-2194

FAX: [phone]

SW1 L 1 2A 1B 1A 2B 2 led 2 ign 6 n/c 5 n/c 4 3 N 2 VP 1 G N G chassis ground SW4 hls led 4 M1 M led 1 T1 24vac sw3 sail switch Gas Valve GV1 led 5 Position Valve(s) Open 1 SV1 & SV2 2 SV2 3 SV1 5 SV1 S 6 10 9 3 4 7 8 11 12 15 16 13 14 11 2 SV2

Chassis wiring is stranded 18 AWG / 105 C / @ 600 Volts
Igniter wiring is 16 AWG / 25 KVDC / 10 KVAC
(replace with same ratings)
(all quick connects fully insulated)

⚠ WARNING

Air Quality Hazard

• Do not use this heater for heating human living quarters.
• Use of direct-fired heaters in the construction environment can result in exposure to levels of CO, CO2, and NO2 considered to be hazardous to health and potentially life threatening.
• Do not use in unventilated areas.
• Know the signs of CO and CO2 poisoning.
  • Headaches, stinging eyes
  • Dizziness, disorientation
  • Difficulty breathing, feels of being suffocated

- Proper ventilation air exchange (OSHA 29 CFR 1926.57) to support combustion and maintain acceptable air quality shall be provided in accordance with OSHA 29 CFR Part 1926.154, ANSI A10.10 Safety Requirements for Temporary and Portable Space Heating Devices and Equipment used in the Construction Industry or the Natural Gas and Propane Installation Codes CSA B149.1.

- Periodically monitor levels of CO, CO2 and NO2 existing at the construction site – at the minimum at the start of the shift and after 4 hours.

- Provide ventilation air exchange, either natural or mechanical, as required to maintain acceptable indoor air quality.

	USA 8-Hr Time weighted average(OSHA 29 CFR 1926.55 App A)	Canada 8-hr time weighted averageWorkSafe BC OHS Guidelines Part 5.1and Ontario Workplaces Reg 833
CO 50 ppm 25 ppm
CO_2	5000 ppm 5000 ppm
NO_2		3 ppm (Reg 833)
	USA – Ceiling Limit(Short Term Exposure Limit = 15 minutes)	Canada STEL (15 minutes Reg 833/1 hourWSBC) WorkSafe BC OHS Guidelines Part5.1 and Ontario Workplaces Reg 833
CO 100 ppm
CO_2		15000 ppm (WSBC)30000 ppm (Reg 833)
NO_2	5 ppm	1.0 ppm (WorkSafeBC)5.0 ppm (Reg 833)

• Ensure that the flow of combustion and ventilation air exchange cannot become obstructed.
• As the building 'tightens up' during the construction phases ventilation may need to be increased.

Installation of this appliance at altitudes above 2000 ft (610 m) shall be in accordance with local codes, or in the absence of local codes, the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or National Standard of Canada, Natural Gas and Propane Installation Code, CSA B149.1

The heater has been shipped from the factory set up for operation on propane gas.

P/N PART DESCRIPTION QTY

1 60801 HEATER FOOT 2
2 60800 HEATER BASE			1
3 60802 SOLENOID SUPPORT 1
4 60818 COMBUSTION CHAMBER -RIGHT 1
5 60820 COMBUSTION CHAMBER -BACK		1
6 60817 COMBUSTION CHAMBER -LEFT		1
7 60819 COMBUSTION CHAMBER -TOP		1
8 60822 COMBUSTION CHAMBER -UPPER FLANGE		1
9 60821 COMBUSTION CHAMBER -LOWER FLANGE		1
10	60823	LOWER BURNER COVER	1
11	60824	COMBUSTION CHAMBER -HEAT SHIELD	2
12	60813	INSIDE BLOWER PANEL	1
13	60815	BLOWER TUBE	1
14	60816	115 BLOWER WHEEL	1
15	60812	OUTSIDE BLOWER PANEL	1
16	60814	MOTOR MOUNTING PLATE	1
17	60843	115 MOTOR - 1/3HP	1
18	00613	SAIL SWITCH	1
19	00613	SAIL SWITCH BRACKET	1
20	60958	HIGH LIMIT SWITCH	1
21	60833	HEATER COVER	1
22	60835	MOTOR DOOR	1
23	60834	CONTROLS DOOR	1

P/N PART DESCRIPTION QTY

24	60837	DOOR HINGE	1
25	60839	D-RING LAICH/LOCK	1
26	60847	24V RED LED LAMP - FAULT INDICATOR	1
27	60846	24V GREEN LED LAMP - GAS VALVE ON INDICATOR	1
28	60845 12	2V LED LAMP - GREEN	2
29	60841	MAIN POWER ROCKER SWITCH	1
30	60883	SELECTOR SWITCH BRACKET	1
31	60842	SELECTOR SWITCH	1
32	27808	FLAME CONTROL BOARD	1
33	60810	115 BURNER	1
34	60827	115 IGNITER BURNER PLATE-FRONT	1
35	60729	IGNITER/FLAME SENSE ASSY.	1
36	60831	115 BURNER CLAMP	1
37	60832	115 BURNER CLAMP BASE	1
38	60826	115 IGNITER BURNER PLATE-BACK	1
39	00600	GAS TRAIN ASSY.	1
40	60129	GAS VALVE	1
41	60848	SOLENOID VALVE	2
42	60809	ORIFICE HOLDER	1
**	60969	HOSE,ASSY,NOMAD,15',1/2"MP,1/2"FF	1
**	00617	REGULATOR W/ POL	1
**	00618	THERMOSTAT ASSEMBLY W/ CORD	1

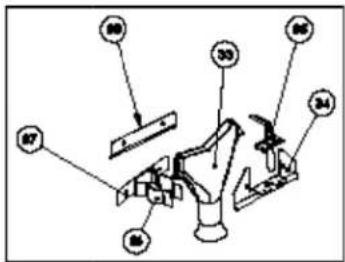

Technical diagram of a mechanical assembly with numbered components labeled 81 to 90

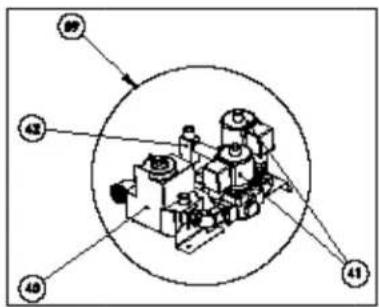

Technical diagram of a mechanical assembly with numbered components and a circular annotation highlighting a specific part.

Technical diagram of an electronic component with labeled parts (ID, M1, M2)

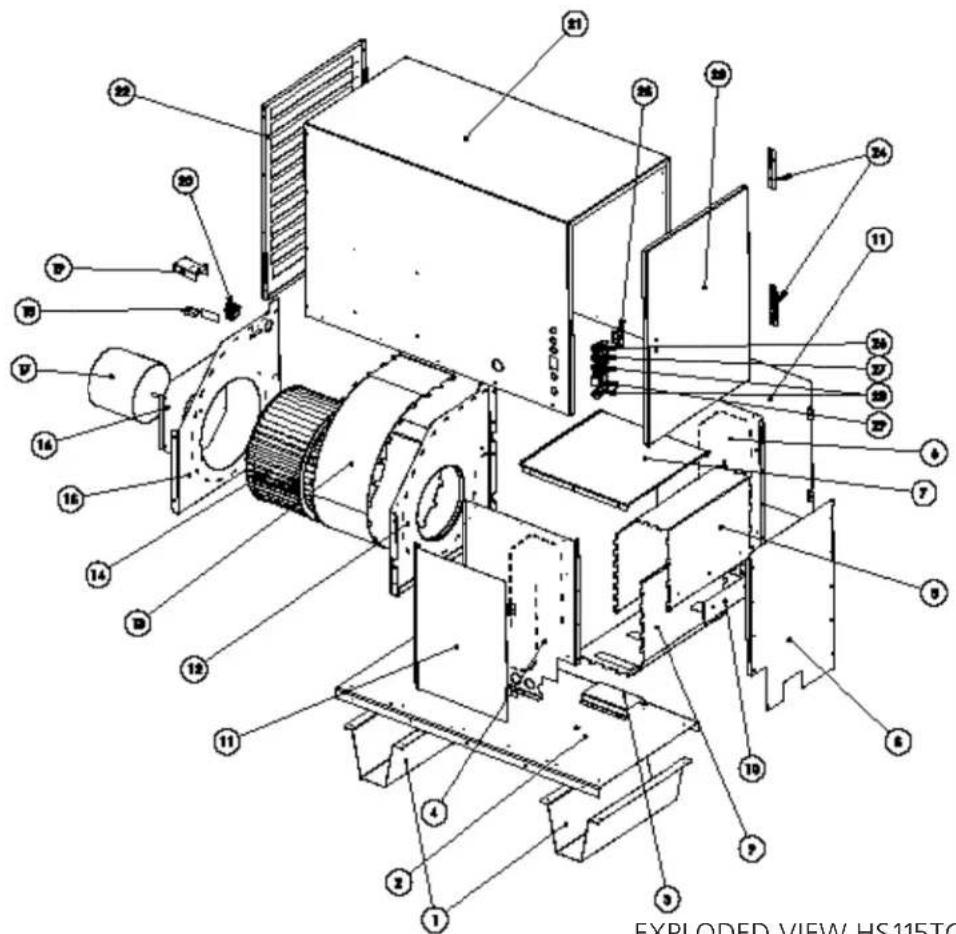

EXPLODED VIEW HS115TC

EXPLODED VIEW HS115TC

Exploded view diagram of a mechanical device with numbered components for identification

EXPLODED VIEW HS250TC

NOTES:

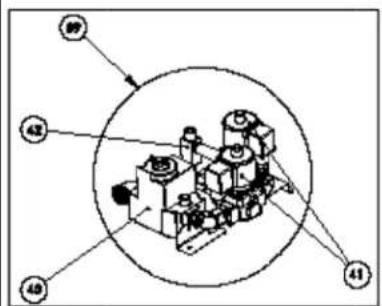

Gas Train for HS

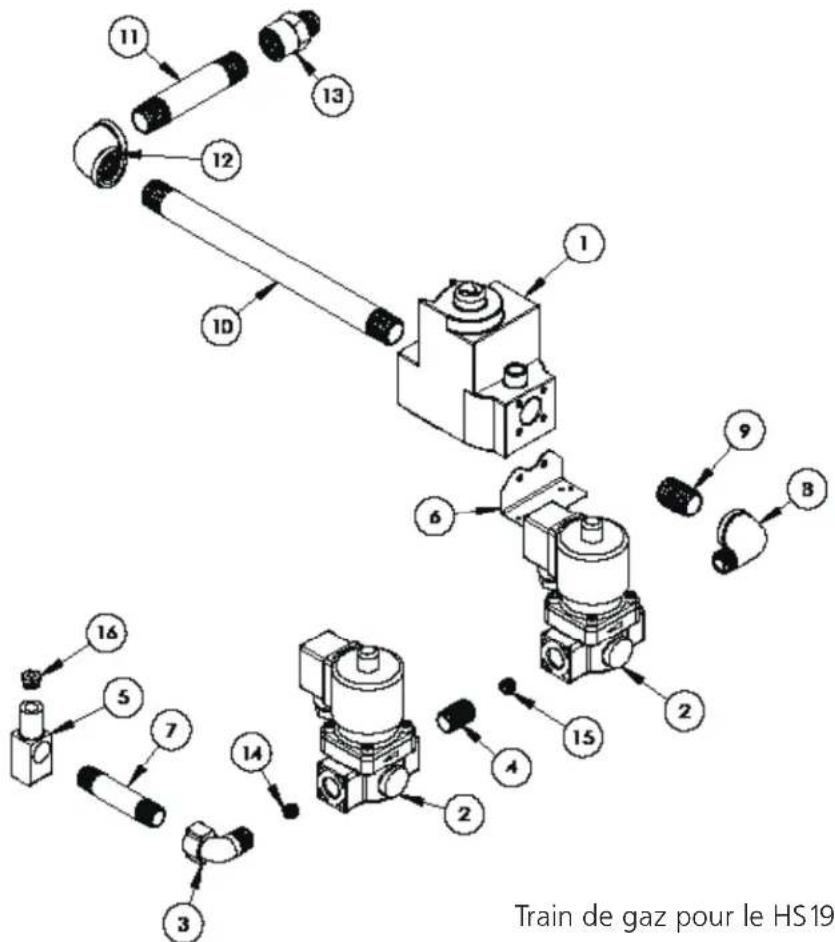

Gas Train for HS190TC & HS250TC

WARNING:

USE ONLY MANUFACTURER'S REPLACEMENT PARTS. USE OF ANY OTHER PARTS COULD CAUSE INJURY OR DEATH. REPLACEMENT PARTS ARE ONLY AVAILABLE DIRECT FROM THE FACTORY AND MUST BE INSTALLED BY A QUALIFIED SERVICE AGENCY.

FOR SERVICE OR PARTS INQUIRIES

PLEASE CALL: 866-447-2194 OR 216-916-3000

CLEVELAND, OHIO 44135

OUR OFFICE HOURS ARE 8:00 AM -5:00 PM EST MONDAY-FRIDAY

WHEN CONTACTING US:

PLEASE HAVE YOUR SERIAL NUMBER AND MODEL NUMBER HANDY. THESE CAN BOTH BE LOCATED ON THE RATING LABEL LOCATED ON THE INSIDE OF THE ACCESS PANEL.

RETAIN THIS MANUAL FOR FUTURE REFERENCE.

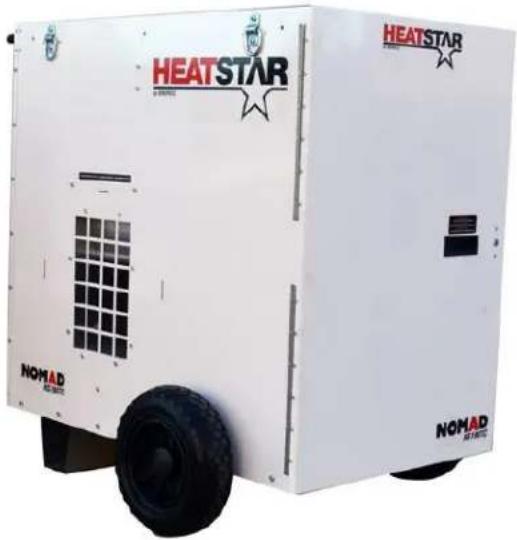

OPERATING INSTRUCTIONS AND OWNER'S MANUAL

Model #

HS115TC

HS190TC

HS250TC

READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place instructions in a safe place for future reference. Do not allow anyone who has not read these instructions to assemble, light, adjust or operate the heater.

White heatstar industrial machine with wheels and a solar panel, no visible text or symbols on the device itself.

Exterior view of a white heat star industrial machine with ventilation slots and a solar panel (no visible text or symbols)

WARNING:

USE ONLY MANUFACTURER'S REPLACEMENT PARTS. USE OF ANY OTHER PARTS COULD CAUSE INJURY OR DEATH. REPLACEMENT PARTS ARE ONLY AVAILABLE DIRECT FROM THE FACTORY AND MUST BE INSTALLED BY A QUALIFIED SERVICE AGENCY.

PARTS ORDERING INFORMATION:

PURCHASING: Accessories may be purchased at any HEAT STAR local dealer or direct from the factory

FOR INFORMATION REGARDING SERVICE

Please call Toll-Free 866-447-2194 • HEATSTARBYENERCO.COM

Our office hours are 8:00 AM – 5:00 PM, EST, Monday through Friday.

Please include the model number, date of purchase, and description of problem in all communication.

LIMITED WARRANTY

The company warrants this product to be free from imperfections in material or workmanship, under normal and proper use in accordance with instructions of The Company, for a period of one year from the date of delivery to the buyer. The Company, at its option, will repair or replace products returned by the buyer to the factory, transportation prepaid within said one year period and found by the Company to have imperfections in material or workmanship.

If a part is damaged or missing, call our Technical Support Department at 866-447-2194.

Address any Warranty Claims to the Service Department, HEAT STAR Group, Inc., 4560 W. 160th St., Cleveland, Ohio 44135. Include your name, address and telephone number and include details concerning the claim. Also, supply us with the purchase date and the name and address of the dealer from whom you purchased our product.

The foregoing is the full extent of the responsibility of the Company. There are no other warranties, express or implied. Specifically there is no warranty of fitness for a particular purpose and there is no warranty of merchantability. In no event shall the Company be liable for delay caused by imperfections, for consequential damages, or for any charges of the expense of any nature incurred without its written consent. The cost of repair or replacement shall be the exclusive remedy for any breach of warranty. There is no warranty against infringement of the like and no implied warranty arising from course of dealing or usage of trade. This warranty will not apply to any product which has been repaired or altered outside of the factory in any respect which in our judgment affects its condition or operation.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from state to state.

HEAT STAR Group, Inc. reserves the right to make changes at any time, without notice or obligation, in colors, specifications, accessories, materials and models.

Intertek

PRODUCT REGISTRATION: Thank you for your purchase.

Please log in to HEATSTARBYENERCO.COM to register your product.

INSTRUCTIONS D'UTILISATION ET MANUEL DU PROPRIÉTAIRE

No de modèle

HS115TC

HS190TC

HS250TC

White industrial heat star heater with 'HEATSTAR' branding and 'NOMAD 05/10/1C' label, no visible text beyond branding and specifications.

FOURNAISE NOMAD À DEUX COMBUSTIBLES ET À AIR PULSÉ

LANGUES INCLUDES

• ANGLAIS

• FRANCAIS

- ESPAGNOL

Black and white striped border with diagonal stripes (no text or symbols)

⚠ AVERTISSEMENT:

VOTRE SÉCURITÉ EST IMPORTANTE POUR VOUS ET POUR LES AUTRES, PAR CONSÉQUENT VEUILLEZ LIRE CES DIRECTIVES AVANT DE FAIRE FONCTIONNER CET APPAREIL DE CHAUFFAGE.

⚠ AVERTISSEMENT GÉNÉRAL DE DANGER:

LE NON-RESPECT DES MESURES DE PRÉVENTION ET DES INSTRUCTIONS FOURNIES AVEC CET APPAREIL DE CHAUFFAGE RISQUE DE CAUSER LA MORT, DES BLESSURES GRAVES ET DES DOMMAGES OU DES PERTES MATÉRIELLES RÉSULTANT D'INCENDIE, D'EXPLOSION, DE BRÛLURE, D'ASPHYXIE, D'INTOXICATION AU MONOXYDE DE CARBONE ET/OU D'ÉLECTROCUTION. SEULES LES PERSONNES APTES À COMPRENDRE ET À RESPECTER LES INSTRUCTIONS DEVRAIENT UTILISER OU EFFECTUER LE SERVICE DE CET APPAREIL DE CHAUFFAGE. SI VOUS AVEZ BESOIN D'AIDE OU D'INFORMATION CONCERNANT LA FOURNAISE TELS QUE MANUEL D'INSTRUCTIONS, ÉTIQUETTES, ETC., VEUILLEZ COMMUNIQUER AVEC LE FABRICANT.

⚠ AVERTISSEMENT: CE PRODUIT PEUT

VOUS EXPOSER À PLOMB ET COMPOSÉS DE PLOMB, IDENTIFIÉ PAR L'ÉTAT DE CALIFORNIE COMME POUVANT CAUSER LE CANCER. LAVEZ-VOUS LES MAINS APRÈS AVOIR MANIPULÉ CE PRODUIT. POUR DE PLUS AMPLES INFORMATIONS, PRIÈRE DE CONSULTER WWW. P65WARNINGS.CA.GOV.

CONTENU

AVERTISSEMENTS 2

SPÉCIFICATIONS 3

PRÉCAUTIONS LIÉES AU FONCTIONNEMENT .... 4

PRÉCAUTIONS DE SÉCURITÉ 4

MISE EN GARDE LIÉE AUX SUBSTANCES ODORANTES......5

ASSEMBLAGE ET PRÉPARATION POUR L'UTILISATION....6

INFORMATION SUR LE TUYAU ET LE RÉGULATEUR ...... 6

SÉLECTION DU COMBUSTIBLE ET DU TAUX 7

FONCTIONNEMENT 7

INFORMATION SUR LA GARANTIE....20

PRÉCAUTIONS LIÉES AU FONCTIONNEMENT

FONCTIONNEMENT (SANS THERMOSTAT)

FONCTIONNEMENT (AVEC THERMOSTAT)

Coiled black cable with a power plug and a labeled component, no readable text or symbols on the main subject.

CROCHET DU THERMOSTAT

3D rendering of a cylindrical mechanical component with mounting holes and a small labeled section (no text or symbols)

Line drawing of a portable industrial machine with ventilation slots and a wheel (no text or symbols)

20LBS 18" 12.5" 29" 12.5" 40LBS 48" 14.5" 100LBS

LB DE GPL DANS LE CYLINDRE	SORTIE CONTINUE MAXIMUM EN BTU À L'HEURE À DIVERSES TEMPÉRATURES
	0 °F (-18 °C)	20 °F (-7 °C)	40 °F (4 °C)
200 (2 x 100) 226 000	334 000 428 000
100 113 000 167	000 214 000
80 (2 x 40) 94 000	137 000	180 000
40	55 000	79 000	105 000
20	36 000	51 000	69 000

EXEMPLE DE SÉLECTION DE CYLINDRE

SÉLECTION DU CYLINDRE AU PROPANE À -7 C (20 F)
	RÉGLAGE ÉLEVÉ	RÉGLAGE BAS
HS115TC	110 833 BTU/H	80 612 BTU/H
	2 CYLINDRES DE 40 LB	1 CYLINDRE DE 20 LB
HS190TC	190 200 BTU/h	127 100 BTU/h
	2 CYLINDRES DE 100 LB	2 CYLINDRES DE 40 LB
HS250TC	248 625 BTU/h	181 119 BTU/h
	2 CYLINDRES DE 100 LB	2 CYLINDRES DE 100 LB

SW1 12A L 1B 1A 2B 2 led 2 ign 6 n/c 5 n/c 4 3 N 2 VP 1 G N G chassis ground SW4 hls led 4 M1 M led 1 T1 24vac sail switch SW3 Gas Valve GV1 led 5 Position 1 2 3 SV1 & SV2 SV1 & SV2 SV2 SV1 Position 1 2 3 SV1 & SV2 SV1 & SV2 SV1 & SV2 SV1 & SV2 SV1 & SV2 SV1 & SV2 SV1 & SV2 SV1 & SV2 SV1 & SV2 SV1 & SV2 SV1 & SV2 SV1 & SV2 SV1 & SV2 SV1 & SV2 SV1 & SV2

Chassis wiring is stranded 18 AWG / 105 C / @ 600 Volts
Igniter wiring is 16 AWG / 25 KVDC / 10 KVAC
(replace with same ratings)
(all quick connects fully insulated)

⚠AVERTISSEMENT

Technical diagram of a mechanical assembly with numbered components labeled 81 to 90

89 42 40 41

Technical diagram of a mechanical component with labeled parts ①, ②, and ③

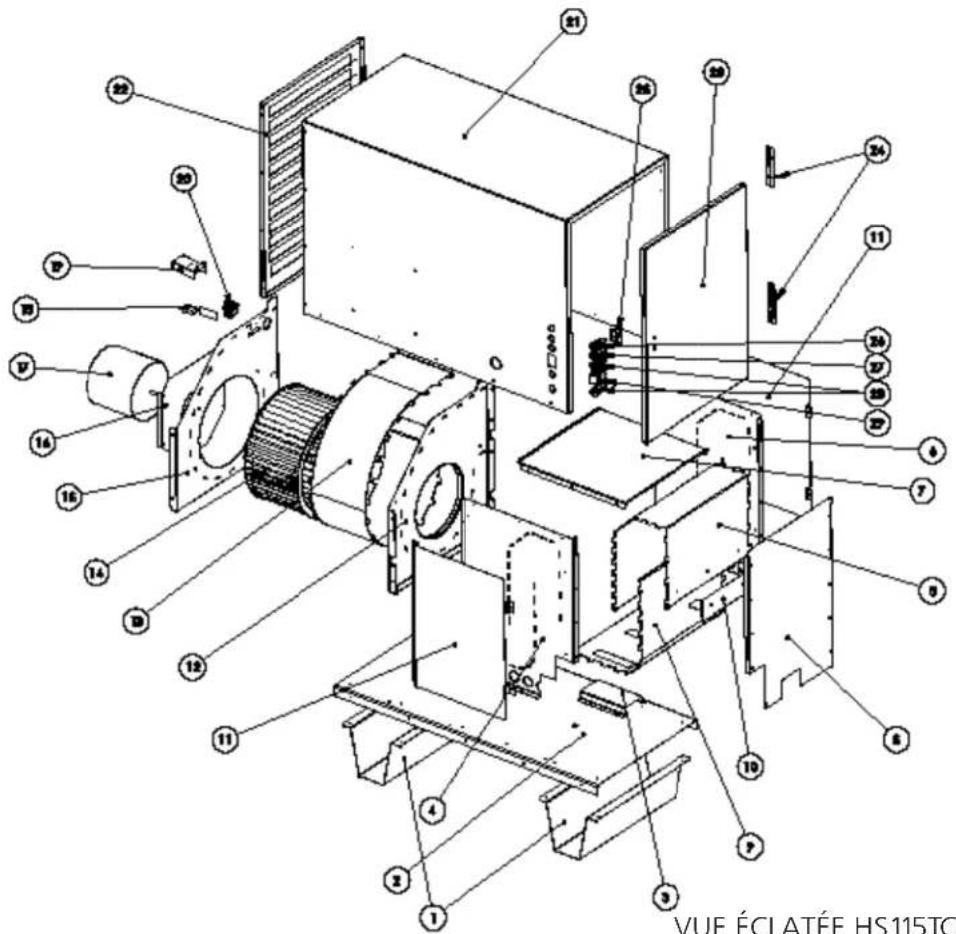

VUE ÉCLATÉE HS115TC

VUE ÉCLATÉE HS115TC

NE JAMAIS LAISSER LE CHAUFFAGE SANS SURVEILLANCE PENDANT LE BRÛLAGE!

# No DESCRIPTION DE LA PIÈCE QTÉ
1 60973 COUVERCLE 190 1
2 60904 PORTE ÉLECTRIQUE 1
3 60905 PORTE DU MOTEUR 1
4	60906	MONTAGE DE LA POIGNÉE DE PIÈCE FIXE	1
5 60908 POIGNÉE 1
6 60916 POIGNÉE DE PORTE			1
7	60913	ESPACEUR DE LA POIGNÉE DE PORTE	1
8 60917 LOQUET DE PORTE			1
9	60915	ANNEAUX DU PALAN	4
10	60884	BASE	1
11	60901	PIED DE BASE	1
12	60802 SUPPORT DU SOLÉNOIDE		1
13	40940	ROUE	2
14	60902	AXE	1
15	28787	TROUSSE DE QUINCAILLERIE DE LA ROUE	1
16	60851	INTERRUPTEUR À ABATTANT	1
17	60938	SUPPORT DE L'INTERRUPTEUR À ABATTANT	1
18	60922	CHAMBRE DE COMBUSTION - HAUT	1
19	60891	CHAMBRE DE COMBUSTION - GAUCHE	1
20	60890	CHAMBRE DE COMBUSTION - DROIT	1
21	60923	CHAMBRE DE COMBUSTION - BOUCLIER DE CHALEUR DROIT	1

#	No	DESCRIPTION DE LA PIÈCE	QTÉ
22	90924	CHAMBRE DE COMBUSTION - BOUCLIER DE CHALEUR GAUCHE	1
23	60892	CHAMBRE DE COMBUSTION - REBORD DU HAUT	1
24	60893	CHAMBRE DE COMBUSTION - REBORD DU BAS	1
25	60925	SUPPORT DU BRÛLEUR - RETIRÉ	1
26	60885	CHAMBRE DE COMBUSTION - BOUCLIER DE CHALEUR INFÉRIEUR	1
27	60974	ÉTAGÈRE DE LA SOUFFLEUSE	1
28	60975	SUPPORT DE L'ÉTAGÈRE DE LA SOUFFLEUSE	1
29	60899	COMMUTATEUR DE LIMITE SUPÉRIEURE	1
30	60894	SUPPORT DE CHAMBRE DE COMBUSTION	2
31	60977	CÔTÉ DROIT DE L'ENCEINTE	1
32	60978	TUBE DE SOUFFLEUSE	1
33	60981	ACCESSOIRE DE DÉFLECTION DE L'ENCEINTE	1
34	60980	ADAPTATEUR D'ENTRÉE DE L'ENCEINTE	1
35	60976	CÔTÉ GAUCHE DE L'ENCEINTE	1
36	60979	MONTURE DU MOTEUR	1
37	60998	ROUE DE LA SOUFFLEUSE 190	1
38	60971	1/2 HP MOTEUR 190	1
**	60969	TUYAU DE GAZ,ASSY,NOMAD,15',1/2"MP - 1/2"FF	1
**	00617	RÉGULATEUR W/ POL	1
**	00618	THERMOSTAT ASSEMBLY W/ CORD	1

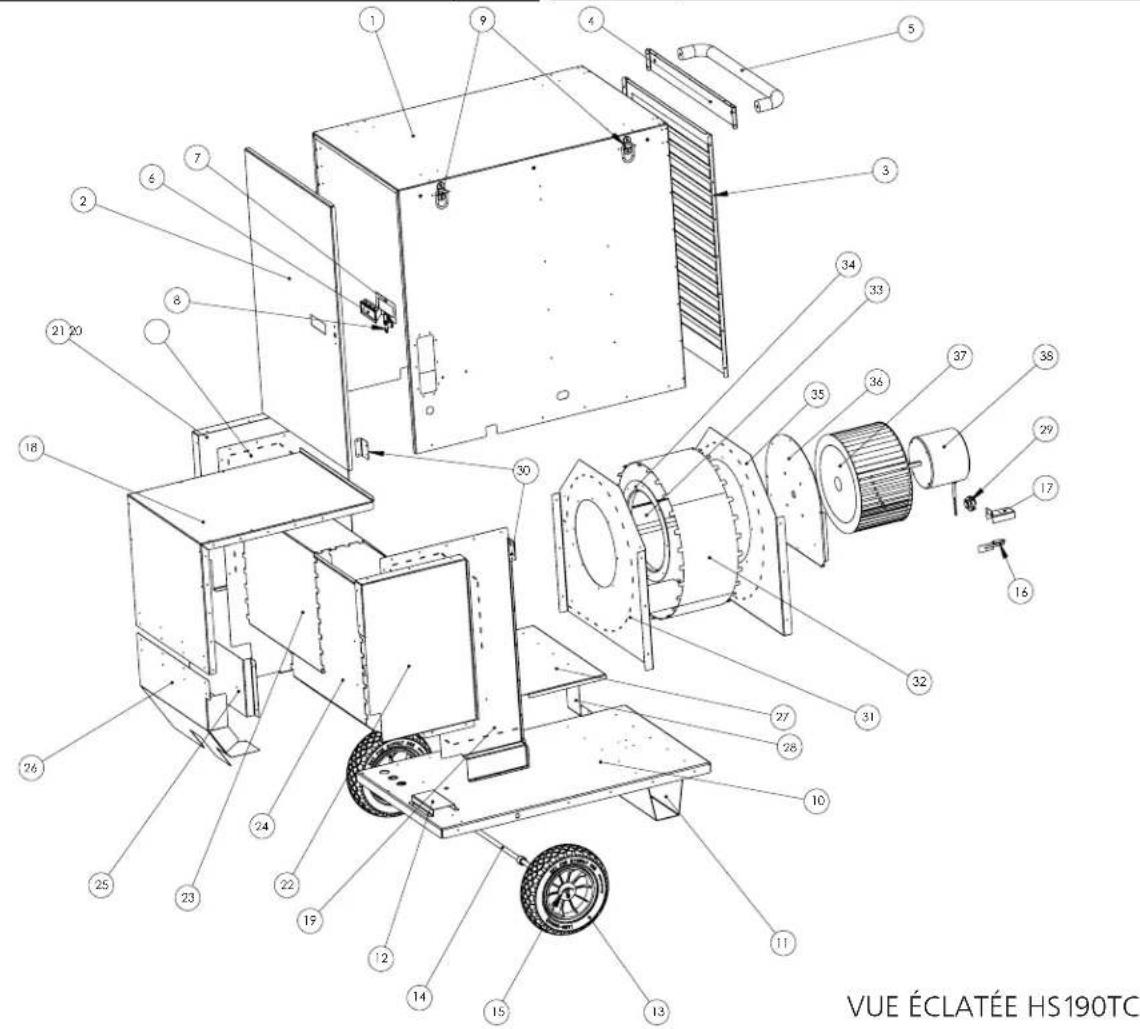

VUE ÉCLATÉE HS190TC

REMARQUES :

NE JAMAIS LAISSER LE CHAUFFAGE SANS SURVEILLANCE PENDANT LE BRÛLAGE!

# No DESCRIPTION DE LA PIÈCE QTÉ
1 60903 COUVERCLE 250 1
2 60904 PORTE ÉLECTRIQUE 1
3 60905 PORTE DU MOTEUR 1
4 60906 MONTAGE DE LA POIGNÉE DE PIÈCE FIXE 1
5 60908 POIGNÉE 1
6 60916 POIGNÉE DE PORTE			1
7	60913	ESPACEUR DE LA POIGNÉE DE PORTE	1
8 60917 LOQUET DE PORTE			1
9	60915	ANNEAUX DU PALAN	4
10	60900	BASE	1
11	60901	PIED DE BASE	1
12	60802 SUPPORT DU SOLÉNOIDE		1
13	40940	ROUE	2
14	60902	AXE	1
15	28787	TROUSSE DE QUINCAILLERIE DE LA ROUE	1
16	00673	INTERRUPTEUR À ABATTANT	1
17	60938	SUPPORT DE L'INTERRUPTEUR À ABATTANT	1
18	60922	CHAMBRE DE COMBUSTION - HAUT	1
19	60919	CHAMBRE DE COMBUSTION - GAUCHE	1
20	60918	CHAMBRE DE COMBUSTION - DROIT	1
21	60923	CHAMBRE DE COMBUSTION - BOUCLIER DE CHALEUR DROIT	1

#	No	DESCRIPTION DE LA PIÈCE	QTÉ
22	60924	CHAMBRE DE COMBUSTION - BOUCLIER DE CHALEUR GAUCHE	1
23	60920	CHAMBRE DE COMBUSTION - REBORD DU HAUT	1
24	60921	CHAMBRE DE COMBUSTION - REBORD DU BAS	1
25	60925	SUPPORT DU BRÛLEUR - RETIRÉ	1
26	60885	CHAMBRE DE COMBUSTION - BOUCLIER DE CHALEUR INFÉRIEUR	1
27	60930	ÉTAGÈRE DE LA SOUFFLEUSE	1
28	60931	SUPPORT DE L'ÉTAGÈRE DE LA SOUFFLEUSE	1
29		COMMUTATEUR DE LIMITE SUPÉRIEURE	1
30	60894	SUPPORT DE CHAMBRE DE COMBUSTION	2
31	60933	CÔTÉ DROIT DE L'ENCEINTE	1
32	60934	TUBE DE SOUFFLEUSE	1
33	60937	ACCESSOIRE DE DÉFLECTION DE L'ENCEINTE	1
34	60936	ADAPTATEUR D'ENTRÉE DE L'ENCEINTE	1
35	60932	CÔTÉ GAUCHE DE L'ENCEINTE	1
36	60935	MONTURE DU MOTEUR	1
37	60940	ROUE DE LA SOUFFLEUSE 250	1
38	60960	3/4 HP MOTEUR 190	1
**	60969	TUYAU DE GAZ,ASSY,NOMAD,15',1/2"MP - 1/2"FF	1
**	00617	RÉGULATEUR W/ POL	1
**	00618	THERMOSTAT ASSEMBLY W/ CORD	1

Technical diagram of an industrial device with numbered components, likely a machine or enclosure assembly.

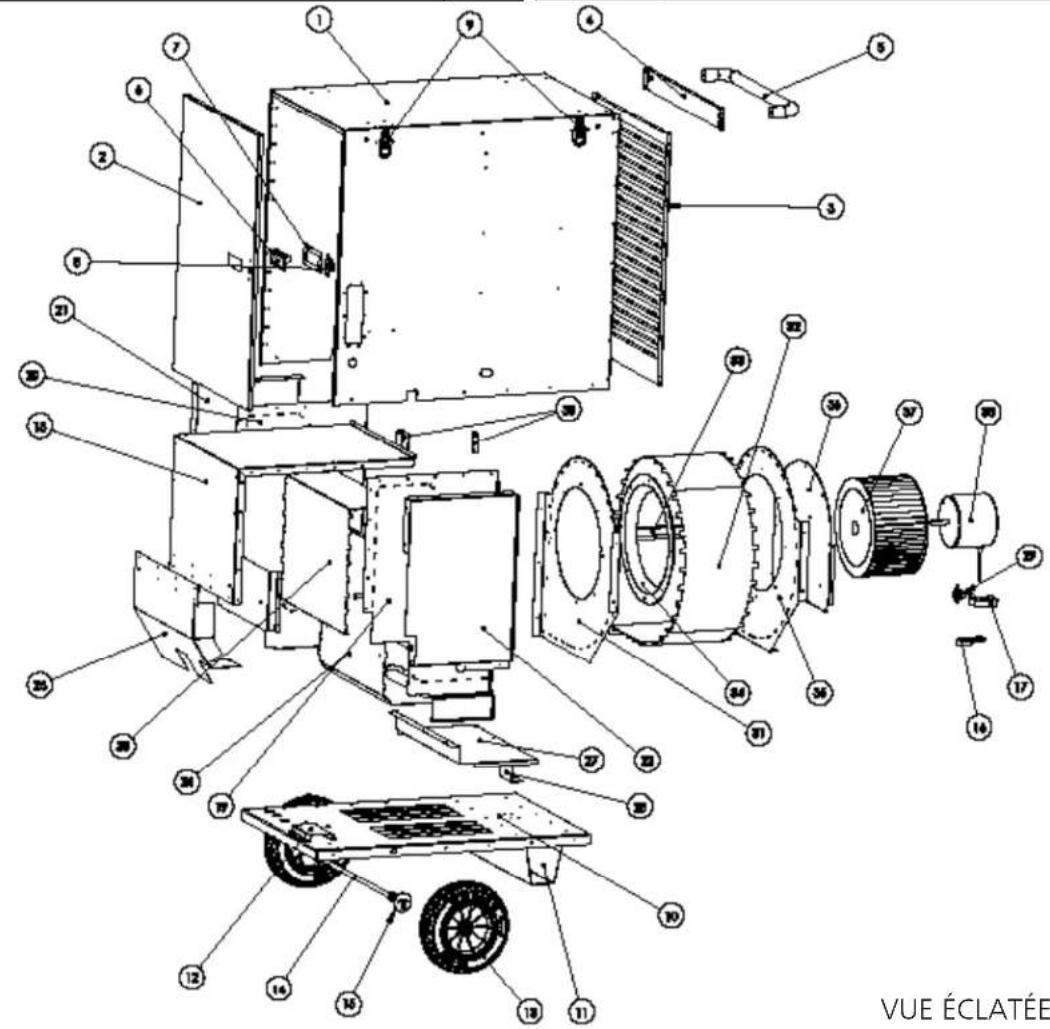

VUE ÉCLATÉE HS250TC

REMARQUES :

NE JAMAIS LAISSER LE CHAUFFAGE SANS SURVEILLANCE PENDANT LE BRÛLAGE!

No DESCRIPTION DE LA PIÈCE QTÉ

1 60129 SOUPAPE À GAZ HONEYWELL 1
2 60848 VALVE DU SOLÉNOIDE			2
3 70597		9,5 MM (3/8 PO) FPT X 9,5 MM (3/8 PO) MPT - COUDE MÂLE ET FEMELLE	1
4 60804 9,5 MM (3/8 PO) MAMELON DE FERMETURE DE TUYAU 1
5 60948 SUPPORT D'ORIFICE 1
6 60949 SUPPORT DE LA SOUPAPE À GAZ			1
7 60805 9,5 MM (3/8 PO) X 7,5 CM (3 PO) MAMELON DE TUYAU			1
8 60955		12,7 MM (1/2 PO) FPT X 9,5 MM (3/8 PO) MPT - COUDE MÂLE ET FEMELLE	1
9	60954	12,7 MM (1/2 PO) MAMELON DE FERMETURE DE TUYAU	1
10	60956	12,7 MM (1/2 PO) X 25,4 CM (10 PO) MAMELON DE TUYAU	1

No DESCRIPTION DE LA PIÈCE QTÉ

11	02724	12,7 MM (1/2 PO) X 10,0 CM (4 PO) MAMELON DE TUYAU	1
12	60957	12,7 MM (1/2 PO) X 12,7 MM (1/2 PO) COUDE	1
13	02744	12,7 MM (1/2 PO) ENTRÉE MÂLE	1
14-A	60881	ORIFICE DE CONTOURNEMENT 250 1	1
15-A	60882	ORIFICE DE CONTOURNEMENT 250 2	1
16-A	60880	ORIFICE PRINCIPAL 250	1
14-B	60878	ORIFICE DE CONTOURNEMENT 190 1	1
15-B	60879 ORIFICE DE CONTOURNEMENT 190 2		1
16-B	60887 ORIFICE DE CONTOURNEMENT 190 2		1

Exterior view of a white heatstar industrial machine with wheels and a solar panel (no visible text or symbols)

Exterior view of a white heat star industrial machine with ventilation slots and a solar panel (no visible text or symbols)

AVERTISSEMENT :

N'UTILISEZ QUE LES PIÈCES DE REMPLACEMENT DU FABRICANT. L'UTILISATION D'AUTRES PIÈCES RISQUE DE CAUSER DES BLESSURES ET LA MORT. LES PIÈCES DE REMPLACEMENT NE SONT OFFERTES QUE PAR LE FABRICANT ET DOIVENT ÊTRE INSTALLÉES PAR UNE ENTREPRISE DE SERVICE SPÉCIALISÉE.

INFORMATION SUR LA COMMANDE DES PIÈCES :

White industrial heat star heater with black cooling fins and a grid-patterned vent, labeled 'HEATSTAR' and 'NOMAD 05/16 C' (no additional text or symbols visible)

CALEFACTOR NÓMADE A AIRE FORZADO Y DOBLE ALIMENTACIÓN

IDIOMAS INCLUIDOS

• INGLÉS

•FRANCÉS

• ESPAÑOL

Enerco Group Inc. 4560 West 160th Street Cleveland, Ohio 44135

3D rendering of a cylindrical mechanical component with mounting holes and a small rectangular feature (no text or symbols)

ADAPTADOR DE CONDUCTO

3D diagram of a difusor device with labeled components, shown in technical view (FIGURA 6)

Close-up of a coiled, flexible hose or hose with visible insulation and straps (no text or symbols)

PARA HS115TC

Close-up of a flexible, corrugated metal pipe bundle (no text or symbols visible)

PARA HS190TC Y HS250TC

DIFUSOR UNIVERSAL DE 12" F109105

3D rendering of a mechanical component labeled PARA HS115TC, showing internal structure without any text or symbols beyond the label.

DIFUSOR UNIVERSAL DE 16" F109115

3D rendering of a mechanical component with a cylindrical housing and a stepped base (no text or symbols visible)

PARA HS190TC Y HS250TC

Line drawing of a portable industrial machine with a wheel and ventilation grilles (no text or symbols)

20LBS 18" 12.5" 29" 12.5" 40LBS 48" 14.5" 100LBS

LIBRAS DE LP EN EL CILINDRO	MÁXIMA SALIDA CONSTANTE EN BTU POR HORA A VARIAS TEMPERATURAS
	0 °F (-18 °C)	20 °F (-7 °C)	40 °F (4 °C)
200 (2 x 100) 226.000	334.000 428.000
100 113.000 167.000	214.000
80 (2 x 40) 94.000	137.000	180.000
40	55.000	79.000	105.000
20	36.000	51.000 69.000

SW1 L 1 2A 1B 1A 2B 2 led 2 ign 6 n/c 5 n/c 4 3 N 2 VP 1 G N G chassis ground SW4 hls led 4 M1 M led 1 T1 24vac sw3 sail switch Gas Valve GV1 led 5 Position Valve(s) Open 1 SV1 & SV2 2 SV2 3 SV1 5 SV1 S 6 10 9 3 4 7 8 11 12 15 16 13 14 11 2 SV2

Chassis wiring is stranded 18 AWG / 105 C / @ 600 Volts
Igniter wiring is 16 AWG / 25 KVDC / 10 KVAC
(replace with same ratings)
(all quick connects fully insulated)

ADVERTENCIA

Technical diagram of an electronic component with labeled parts (ID, 01, 32)

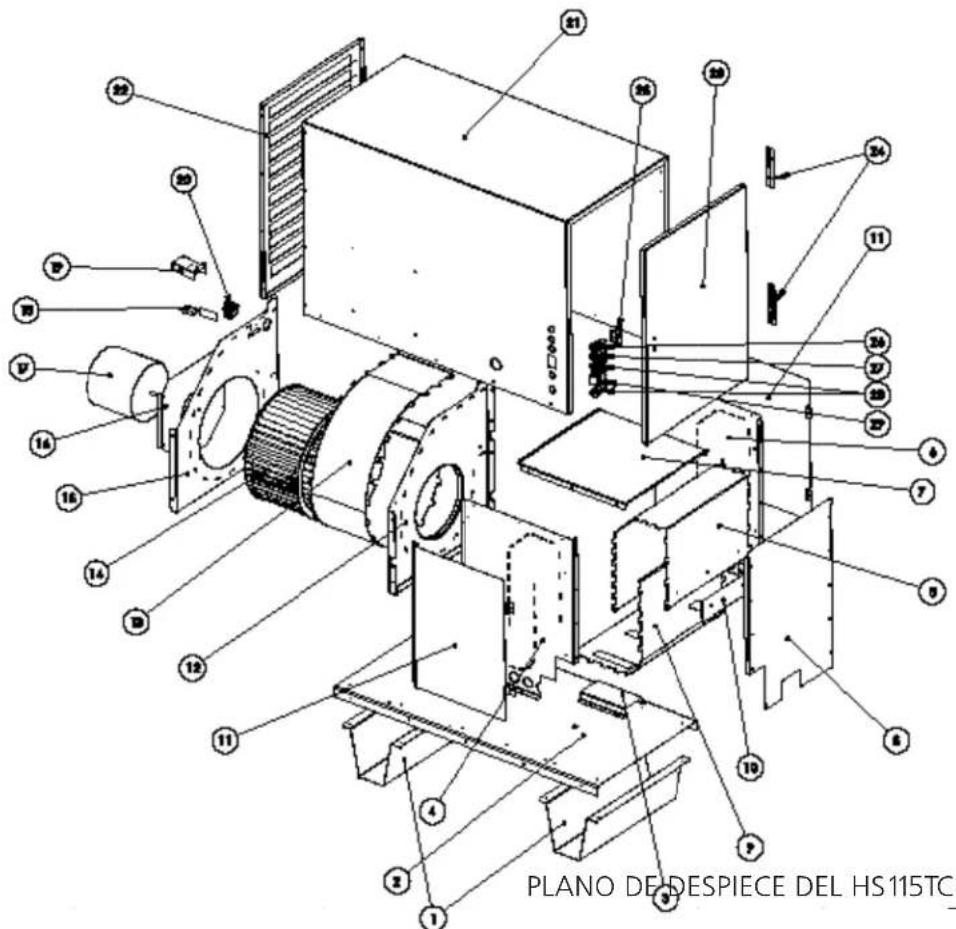

PLANO DE DESPIECE DEL HS115TC

CLEVELAND, OHIO 44135

EL HORARIO DE NUESTRA OFICINA ES: LUNES A VIERNES DE 8:00 A 17:00

CUANDO NOS LLAME:

TENGA SU NÚMERO DE SERIE Y NÚMERO DE MODELO A MANO. AMBOS ESTÁN UBICADOS EN LA ETIQUETA DE ESPECIFICACIONES EN EL INTERIOR DEL PANEL DE ACCESO.

Exterior view of a white heatstar industrial machine with wheels and a solar panel (no visible text or symbols)

Exterior view of a white heat star industrial machine with ventilation slots and a solar panel (no visible text or symbols)

ADVERTENCIA:

USE SOLAMENTE PARTES DE REPUESTO DEL FABRICANTE. EL USO DE CUALQUIER OTRA PARTE PODRÍA CAUSAR HERIDAS O LA MUERTE. LAS PARTES DE REPUESTO ESTÁN DISPONIBLES ÚNICAMENTE EN LA FÁBRICA Y DEBEN SER INSTALADAS POR UNA AGENCIA DE SERVICIO CALIFICADA.
