RW16 - Microphone DB Technologies - Free user manual and instructions

Product type	UHF wireless microphone system
Brand	DB Technologies
Model	RW16
Category	Microphone
Frequency bands	823-832 MHz / 863-865 MHz
Number of channels	16
Frequency response	60 Hz - 15 kHz (± 3 dB)
Total harmonic distortion (THD)	< 1%
Receiver type	RW16R, dual antenna with diversity reception
Audio outputs	Balanced XLR, unbalanced TRS
Included transmitters	Handheld (RW16M) or bodypack (RW16B) depending on bundle, with headset microphone for RW16B
Receiver power supply	Mains adapter included
Transmitter power supply	2 AA LR6 1.5 V batteries each
Receiver dimensions	212 x 44 x 115 mm
Receiver weight	400 g
Handheld transmitter dimensions	254 x 52.5 mm (diameter)
Handheld transmitter weight	250 g
Bodypack transmitter dimensions	64 x 90 x 23 mm
Bodypack transmitter weight	80 g
Microphone capsule	Dynamic, interchangeable (compatible with Shure)
Main functions	IR synchronization (ASC), level adjustment, AF indicators, diversity antenna
Maintenance and cleaning	Protect from moisture; clean with a dry cloth
Safety	Follow warnings; do not open; use supplied power supply
Spare parts and repairability	Interchangeable capsules, batteries available; repairs by DB Technologies after-sales service

Frequently Asked Questions - RW16 DB Technologies

How to turn on the RW16R receiver?

Press the POWER button for about 1 second. The receiver turns on and the screen displays information.

How to synchronize the transmitter with the receiver?

1. Turn on the receiver. 2. Turn on the transmitter (press and hold ON/OFF for 3s). 3. Align the IR ports of the transmitter and receiver. 4. Press the ASC button on the receiver. The screen flashes then becomes steady.

What to do if the receiver does not turn on?

Check the power supply (adapter plugged in) and the proper connection of cables. Repeat the power-on procedure.

What to do if the transmitter does not turn on?

Check that the AA batteries are inserted correctly and are charged. Replace them if necessary. Press ON/OFF for 3 seconds.

How to replace the capsule of the handheld transmitter?

Unscrew the existing capsule counterclockwise. Replace it with a Shure-compatible capsule. Screw it back on firmly.

Which batteries to use for the transmitters?

Use two alkaline batteries of type AA LR6 1.5V. Observe the polarity indicated in the compartment.

What is the range of the RW16 system?

The range depends on the environment. In open field, it can reach approximately 100 meters. Obstructions reduce the range.

How to adjust the audio level on the receiver?

Turn the INPUT LEVEL knob on the front panel of the receiver. The AF indicators help you adjust the optimal level.

Can I use multiple RW16 systems together?

Yes, each system offers 16 channels. Use different channels to avoid interference. The ASC function facilitates assignment.

How to clean and maintain the system?

Unplug the power supply. Clean the surfaces with a soft, dry cloth. Avoid liquids. Store in a dry, dust-free place.

USER MANUAL RW16 DB Technologies

RW16 MS/BS - UHF PLL SYSTEM

Illustration of a wireless audio recording device with two transmitters, a handheld device, and a microphone (no text or symbols visible)

USER MANUAL - Section 1

The warnings in this manual must be observed together with the "USER MANNUAL- Section 2".

This equipment is in conformity with RED directive 2014/53/EU in reference to the following harmonized standards:

Health EN 62479:2010

Safety EN 62368-1:2014+A11

EMC EN 301 489-1 v2.2.0, EN 301 489-9 v2.1.1,

Spectrum EN 300 422-1 v2.1.2, EN 301 357 v2.1.1

EMI CLASSIFICATION

According to the standards EN 55032 and EN 55035 this equipment is designed and suitable to operate in class B electromagnetic environments.

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, AEB Industriale declares that the radio equipment RW16 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

https://www.dbtechnologies.com/it/downloads/

RW16 MS/BS

Cod. 420120321 REV. 1.0

IMPORTANT SAFETY INSTRUCTIONS:

1. Read these instructions
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments /accessories specified by the manufacturer.

1. Use only with the cart, stand tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution, when moving the cart/apparatus combination to avoid injury from tip-over.
2. Unplug this apparatus during lightning storms or when unused for long periods of time.
3. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

ADDITIONAL SAFETY INSTRUCTIONS:

• No naked flame sources, such as lighted candles, should be placed on the apparatus
• Do not use the apparatus in tropical climates

RW16 MS/BS Cod. 420120321 REV. 1.0

ITALIANO

ENGLISH

DEUTSCH

FRANÇAIS

ESPAÑOL

RW16 MS/BS

Cod. 420120321 REV. 1.0

INDICE

Front view of a wireless router device with two antennas and control buttons (no visible text or symbols)

Illustration of a black wireless router with two antennas and control buttons (no text or symbols)

Diagram of a wireless device with two antennas and a lens, connected by a dashed line indicating signal transmission (no text or symbols present)

4. TRASMETTITORE BODYPACK RW16B

PRODUCT OVERVIEW.... 15

USER REFERENCE 15

CONTENT 16

2. RECEIVER RW16R 17

3. RADIOMICROFONO RW16M 18

4. RADIOMICROFONO RW16B.... 19

5. BRIEF TROUBLESHOOTING.... 20

6. TECH SPECS 21

RW16R TECH SPECS 21

RW16B TECH SPECS 21

RW16M TECH SPECS 21

RW16 MS/BS

Cod. 420120321 REV. 1.0

1. GENERAL INFORMATION

WELCOME!

Thanks for purchasing a product designed and developed in Italy by dBTechnologies! RW16 is the result of a long experience in the digital radio transmission field applied to the audio field. It uses optimised solutions for an easy configuration and robustness of use.

PRODUCT OVERVIEW

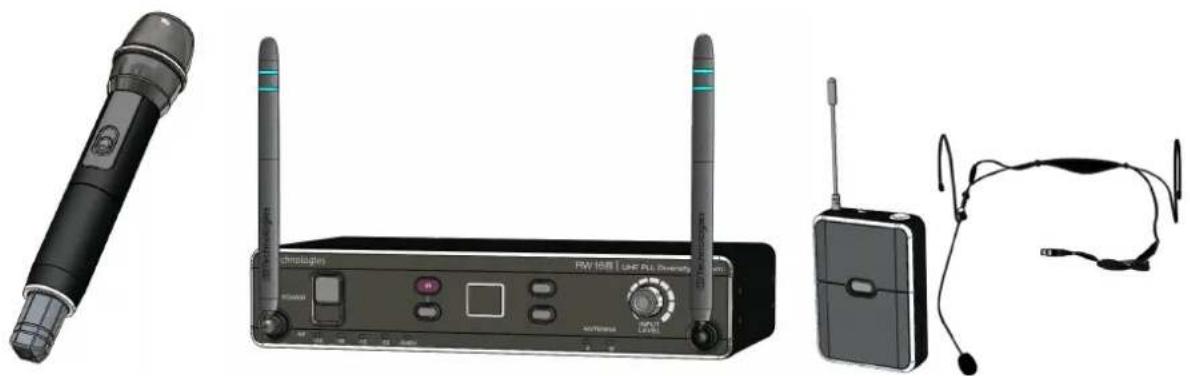

The RW16 wireless system, in the version with hand-held radio microphone (RW16 MS), or bodypack (RW16 BS), can operate at frequencies of 823-832 MHz / 863-865 MHz. 16 channels are available to the user. The system is versatile and ready for use. Its main features include:

• 2-antenna RW16R receiver with diversity reception system
- hand-held transmitter with the possibility of quick capsule change (Shure compatibility)
- bodypack transmitter with headset included and mini-xlr connector
• balanced (XLR) and unbalanced (TRS) system audio output

USER REFERENCE

To make the most of your RW16, we recommend that you:

• read the quick start user manual included in the package and this user manual thoroughly and keep this manual during the whole life of the product.
• register your product at http://www.dbtechnologies.com under "SUPPORT".
• keep proof of purchase and WARRANTY (User manual "section 2").

RW16 MS/BS Cod. 420120321 REV. 1.0

CONTENT

The package contains:

• receiver with antennas
  • pair of LR6 AAA batteries
• power supply
• audio cable

Depending on the bundle, the package may also include:

• RW16M Handheld transmitter with dynamic microphone capsule
• RW16B Bodypack transmitter (equipped with headset) with cardioid microphone capsule

RW16 MS/BS

Cod. 420120321 REV. 1.0

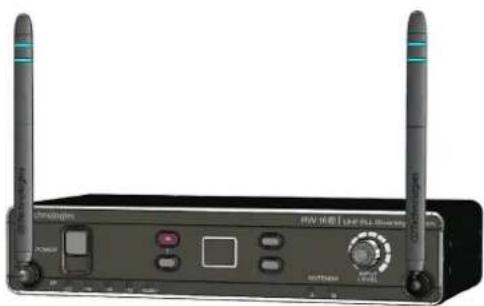

2. RECEIVER RW16R

Front view of a black RAV408 Litter Ultra Frequency device with two external antennas and control buttons (no visible text or symbols on the device body)

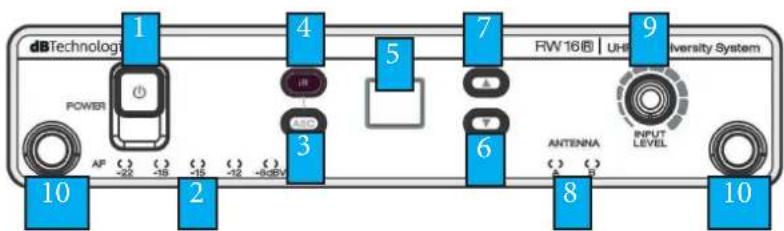

The receiver has the following controls on the front:

1. on/off button

2. audio level indicators

3. ASC sync button

4. IR infrared port

5. control display

6. "Down" button

7. "Up" button

8. antenna A or B antenna usage indicator

9. level adjustment knob

10. antennas

dBTechnology POWER 1 2 3 4 5 6 7 8 9 RW 16® | UHI University System INPUT LEVEL ANTENNA 10 AP (-) (-) (-) (-) (-) (-) -22 -18 -15 -12 -80kV 10

Illustration of a black wireless router with two antennas and ports (no text or symbols)

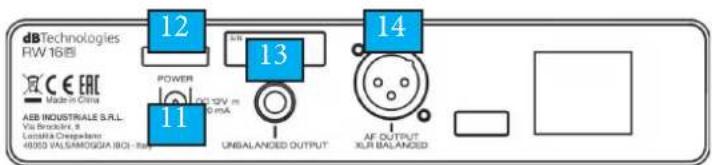

The following are on the back:

1. power supply input connector
2. cable fastening system
3. unbalanced output
4. balanced (XLR) output

dBTechnologies RW 16图 CE EAC Made in China AEB INDUSTRIALE S.R.L. Via Bredolini, 8 Lociotika Chegepilano 40005 VALSAMOGGA IBOI - IBAO POWER 12 13 14 11 UNBALANCED OUTPUT AF OUTPUT XLR BALANCED

RW16 MS/BS Cod. 420120321 REV. 1.0

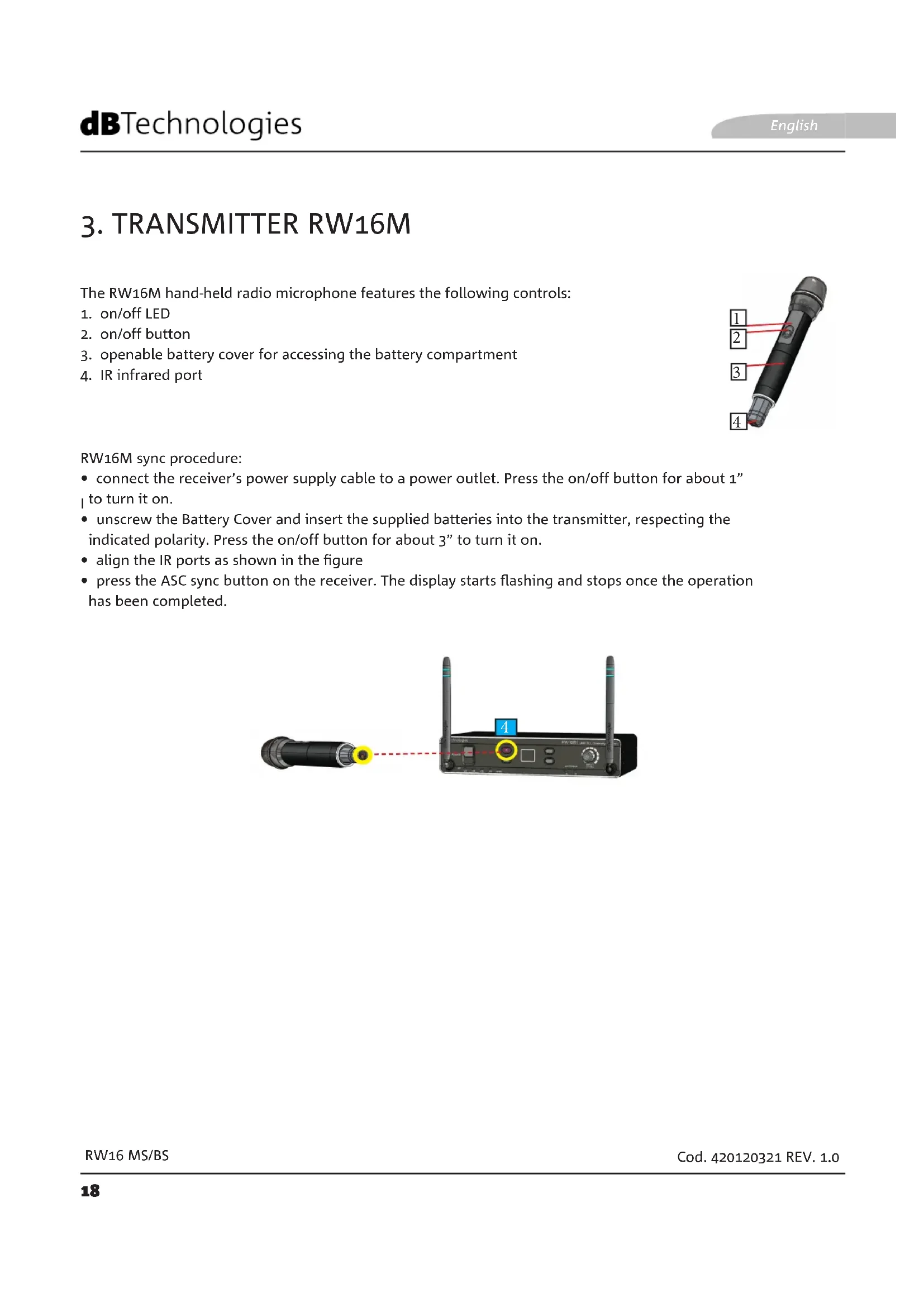

3. TRANSMITTER RW16M

The RW16M hand-held radio microphone features the following controls:

1. on/off LED
2. on/off button
3. openable battery cover for accessing the battery compartment
4. IR infrared port

Labeled diagram of a handheld device with numbered parts for identification

RW16M sync procedure:

• connect the receiver's power supply cable to a power outlet. Press the on/off button for about 1" to turn it on.
• unscrew the Battery Cover and insert the supplied batteries into the transmitter, respecting the indicated polarity. Press the on/off button for about 3" to turn it on.

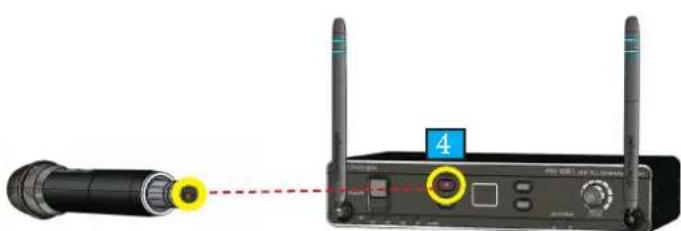

• align the IR ports as shown in the figure
• press the ASC sync button on the receiver. The display starts flashing and stops once the operation has been completed.

Diagram of a wireless device with two antennas connected to a microphone, showing a close-up of the front panel (no text or symbols present)

RW16 MS/BS

Cod. 420120321 REV. 1.0

4. TRANSMITTER RW16B

The RW16B hand-held radio microphone features the following controls:

1. mini-XLR connector
2. on/off LED
3. on/off button
4. battery cover
5. microphone attenuation selector (2 positions: 0 dB / -10 dB)

2 1 2 3 4 2

RW16B sync procedure:

• connect the receiver's power supply cable to a power outlet. Press the on/off button for about 1" to turn it on.
• open the battery cover and insert the supplied batteries, respecting the indicated polarity. Press the on/off button for about 3".

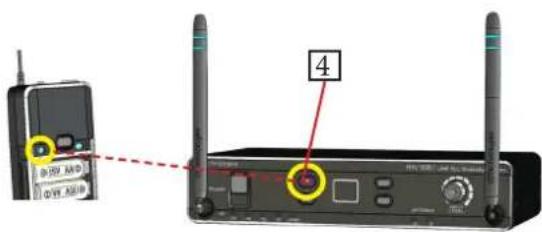

• align the IR ports as shown
• press the ASC sync button on the receiver. The display starts flashing and stops once the operation has been completed.

0.15V, AND 0.15V, AND 4

5. BRIEF TROUBLESHOOTING.

PROBLEM POSSIBLE SOLUTION
The receiver does not turn on • Make sure power is present upstream of the system, verify the proper connection of the wiring, and repeat the activation procedure.
The transmitter does not turn on • Check that the batteries are properly inserted and charged; replace them if necessary. Repeat the activation procedure
The mixer does not receive the audio signal	• Check the wiring and the input level on the receiver. Repeat the sync procedure if necessary.

RW16 MS/BS

Cod. 420120321 REV. 1.0

6. TECH SPECS

RW16R TECH SPECS

Available frequency bands: 823-832 MHz / 863-865 Mhz
Channels: 16
Frequency response: 60 Hz - 15 kHz (± 3 dB)
THD: <1%
Controls:	ON/OFF, CH UP, CH DOWN, ASC, input level
Dimensions (mm) [inch.]:	212 x 44 x 115 [8.34” x 4.25” x 1.73”]
Weight: (g) [oz] 400 [0.4]

RW16B TECH SPECS

Frequency response: 60 Hz - 15 kHz (±3 dB)

Input: mini-XLR per headset

Controls: gain, ON/OFF

Power supply: 2 pile AA LR6 1.5 V

Dimensions (mm) [inch.]: 64 x 90 x 23 [2.51"]

Weight (g) [oz]: 80 [0.08]

Headset: included

RW16M TECH SPECS

Frequency response:	60 Hz - 15 kHz (± 3 dB)
Capsule:	dynamic, interchangeable
Controls: ON/OFF

RW16 MS/BS

Cod. 420120321 REV. 1.0

Power supply:	2 AA LR6 1.5 V batteries
Dimensions (mm) [inch.]:	254 x 52.5 diam. [10” x 2.06” diam.]
Weight:	250 [0.25]

Product features, specifications and appearance are subject to changes without prior notice. dBTechnologies reserves the right to make changes or improvements in design or manufacture without any obligation to incorporate such changes or improvements in products manufactured before their introduction.

A.E.B. Industriale Srl

Via Brodolini, 8
