USER MANUAL CMCPW1500 Craftsman

Quick connect collar

Garden hose water intake

High pressure water outlet

Spray handle storage hook

Nozzle cleaning tool

English English (original instructions)

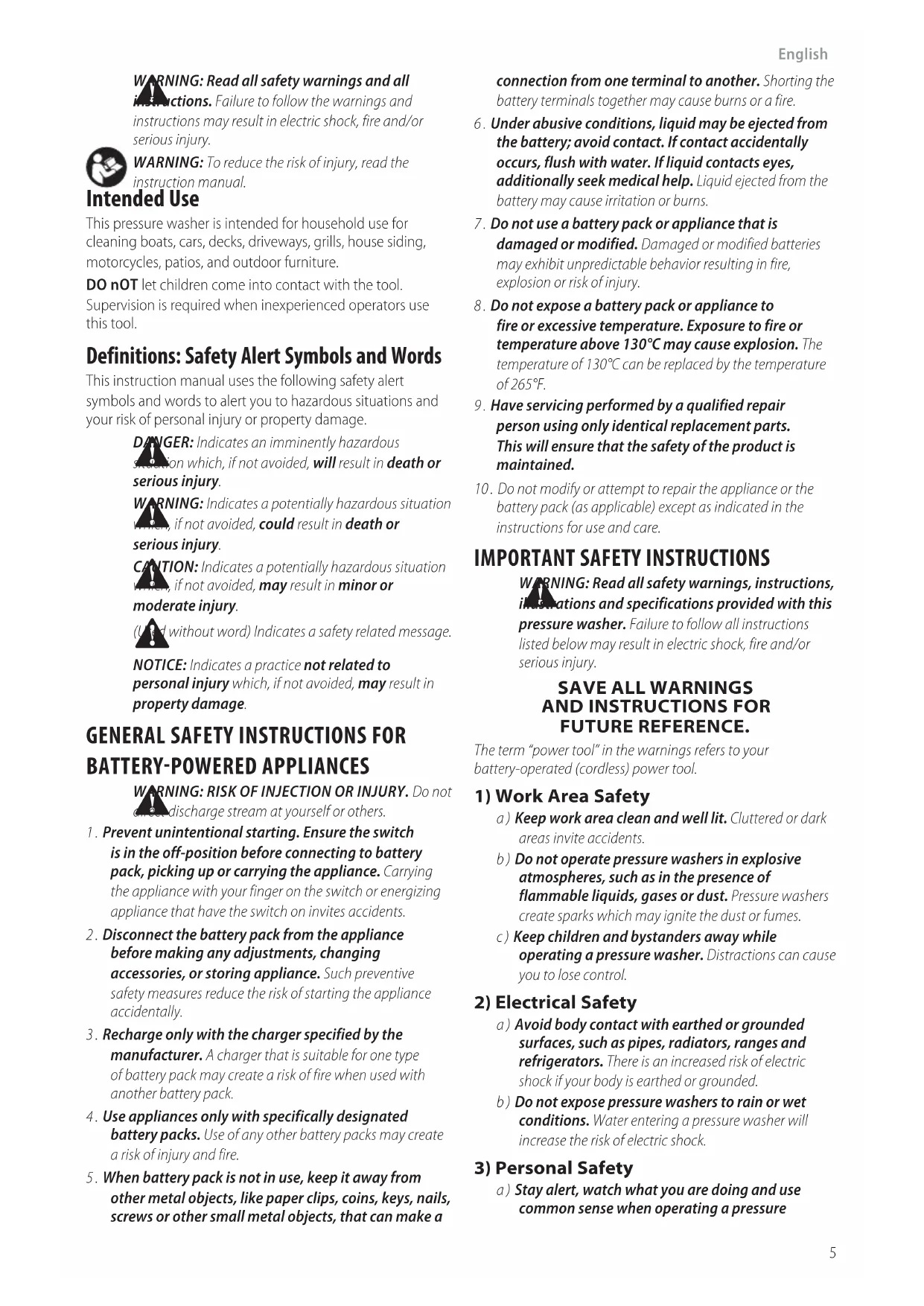

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: To reduce the risk of injury, read the

WARNING: Read all safety warnings, instructions,

illustrations and specifications provided with this pressure washer. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury.

AND INSTRUCTIONS FOR

FUTUREREFERENCE. The term “power tool” in the warnings refers to your battery‑operated (cordless) powertool.

a ) Keep work area clean and well lit. Cluttered or dark areas inviteaccidents. b ) Do not operate pressure washers in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Pressure washers create sparks which may ignite the dust orfumes. c ) Keep children and bystanders away while operating a pressure washer. Distractions can cause you to losecontrol.

2) Electrical Safety

a ) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed orgrounded. b ) Do not expose pressure washers to rain or wet conditions. Water entering a pressure washer will increase the risk of electricshock.

a ) Stay alert, watch what you are doing and use common sense when operating a pressure connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. 6 . Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. 7 . Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. 8 . Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion. The temperature of 130°C can be replaced by the temperature of 265°F. 9 . Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. 10 . Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.

direct discharge stream at yourself or others. 1 . Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents. 2 . Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally. 3 . Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. 4 . Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. 5 . When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or propertydamage.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation

which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety relatedmessage. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage. Intended Use This pressure washer is intended for household use for cleaning boats, cars, decks, driveways, grills, house siding, motorcycles, patios, and outdoorfurniture. DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool.English

When using this appliance, basic safety precautions should always be followed including thefollowing:

• Read all the instructions before using theproduct.

• To reduce the risk of injury, close supervision is necessary when a product is used nearchildren.

• Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with thecontrols.

• Stay alert – watch what you aredoing.

• Do not operate the product when fatigued or under the influence of alcohol ordrugs.

• Keep operating area clear of allpersons.

5) Battery Tool Use and Care

a ) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another batterypack. b ) Use pressure washers only with specifically designated battery packs. Use of any other battery packs may create a risk of injury andfire. c ) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or afire. d ) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation orburns. e ) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk ofinjury. f ) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion. g ) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk offire.

a ) Have your pressure washer serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the pressure washer ismaintained. b ) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized serviceproviders. washer. Do not use a pressure washer while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating pressure washers may result in serious personalinjury. b ) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non‑skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personalinjuries. c ) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to the battery pack, picking up or carrying the tool. Carrying pressure washers with your finger on the switch or energizing pressure washers that have the switch on invitesaccidents. d ) Do not overreach. Keep proper footing and balance at all times. This enables better control of the pressure washer in unexpectedsituations. e ) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in movingparts. f ) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of asecond.

4) Pressure Washer Use and Care

a ) Do not use the pressure washer if the switch does not turn it on and off. Any pressure washer that cannot be controlled with the switch is dangerous and must berepaired. b ) Remove the battery pack from the pressure washer before making any adjustments, changing accessories, or storing pressure washers. Such preventive safety measures reduce the risk of starting the pressure washeraccidentally. c ) Store idle pressure washers out of the reach of children and do not allow persons unfamiliar with the pressure washer or these instructions to operate the pressure washer. Pressure washers are dangerous in the hands of untrainedusers. d ) Maintain pressure washers and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the pressure washer’s operation. If damaged, have the pressure washer repaired before use. Many accidents are caused by poorly maintained pressurewasher. e ) Use the pressure washer, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the pressure washer for operations different from those intended could result in a hazardoussituation. f ) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpectedsituations.7 English The label on your tool may include the following symbols. The symbols and their definitions are asfollows: V ......................... volts Hz .......................hertz min ..................... minutes or DC ......direct current ...................... Class I Construction (grounded) …/min ..............per minute BPM .................... beats per minute IPM ..................... impacts per minute OPM .................... oscillations per minute RPM .................... revolutions per minute sfpm ................... surface feet per minute SPM .................... strokes per minute A ......................... amperes W ........................watts Wh ......................watt hours Ah ....................... amp hours or AC ...........alternating current or AC/DC .... alternating or direct current ...................... Class II Construction (double insulated)

WARNING: Never modify the power tool or any part of

it. Damage or personal injury couldresult.

WARNING: ALWAYS use safety glasses. Everyday

eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETYEQUIPMENT:

WARNING: Some dust contains chemicals known

to State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers,

• compounds in insecticides, herbicides andpesticides,

• arsenic and chromium from chemically treatedlumber. To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopicparticles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmfulchemicals.

WARNING: Use of this tool can generate and/or

disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face andbody.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts. 14 . Never defeat the safety features of thisproduct. 15 . Do not operate machine with missing, broken or unauthorisedparts. 16 . Never spray flammable liquids or use pressure washer in areas containing combustible dust, liquid, orvapors.

• Do not overreach or stand on unstable support. Keep good footing and balance at alltimes.

WARNING: Risk of Injection or Injury– Do Not Direct

WARNING: Risk of Injection or Severe Injury – Keep

Clear of Nozzle – Do Not Direct Discharge Stream at Persons – This Product Is To Be Used Only By TrainedOperators.

SAVE THESE INSTRUCTIONS

WARNING: Read this entire manual before attempting

to assemble, operate or install the product.

WARNING: This unit was designed for specific

applications. It should not be modified and/or used for any application other than that which it was designed. NOTICE: Always store your pressure washer in a location where the temperature will not fall below40°F(4°C). freeze damage is not covered by the warranty. 1 . Avoid accidental starts. Move switch on unit to OFF position before connecting or disconnecting batterypack. 2 . Water spray must never be directed towards any electric wiring or fatal electric shock mayoccur. 3 . The narrow pin point stream is very powerful. It is not recommended for use on painted surfaces, wood surfaces or items attached with an adhesivebacking. 4 . Keep operating area clear of all persons andanimals. 5 . Always use both hands when operating pressure washer to maintain complete control of thewand. 6 . Do not touch nozzle or water spray while operating. Never place hands in front ofnozzle. 7 . Wear safety goggles while operating. Wear protective clothing and footwear to protect against accidentalspraying. 8 . Disconnect battery pack when not in use and prior to the detaching of the high pressurehose. 9 . Do not operate or store this product in temperatures below 40°F(4°C). Freeze damage is not covered by thewarranty. 10 . Carefully observe all chemical instructions and warnings before using. Use only approved pressure washer cleaners. Do not use bleach, chlorine, or any cleaners containing acids. Always follow manufacturer’s label recommendations for proper use of cleaners. Always protect eyes, skin and respiratory system fromcleaners. 11 . The pressure washer should not be used in areas where gas vapors may be present. An electric spark could cause an explosion orfire. 12 . To prevent accidental discharge, the spray wand should be secured by locking the trigger when not inuse. 13 . Use only hoses and accessories rated for pressure higher than your pressure washer’s psi. Never use with any other manufacturer’s accessories orcomponents.English

at temperatures outside of the specified range may damage the battery and increase the risk offire.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

• Battery liquid may be flammable if exposed to spark orflame.

• Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center forrecycling. Storage Recommendations The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. Store the fully charged battery pack out of thecharger. Battery Pack Cleaning Instructions Dirt and grease may be removed from the exterior of the battery pack using a cloth or soft non‑metallic brush. Do not use water or any cleaningsolutions. Fuel Gauge Battery Packs (Fig.B) Some battery packs include a fuel gauge. When the fuel gauge button is pressed and held, the LED lights will indicate the approximate level of charge remaining. This does not indicate tool functionality and is subject to variation based on product components, temperature, and end‑userapplication. Transportation

WARNING: Fire hazard. Do not store, carry, or

transport the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, coins, hand tools, etc. When transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Li‑ion battery packs should not be put in checked baggage on airplanes and must be properly protected from short circuits if they are in carry‑onbaggage.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust orfumes.

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries andchargers.

• Charge the battery packs only in CRAFTSMAN chargers.

• DO NOT splash or immerse in water or otherliquids.

• DO NOT allow water or any liquid to enter batterypack.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life, store battery packs in a cool, drylocation. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ONposition.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium‑ion battery packs areburned.

• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion.

• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging proceduresoutlined. When ordering replacement battery packs, be sure to include the catalog number andvoltage. n .........................rated speed PSI....................... pounds per square inch ......................earthing terminal .....................safety alert symbol ..................... visible radiation– do not stare into the light ..................... wear respiratory protection ..................... wear eye protection ..................... wear hearing protection ..................... r ead all documentation

do not expose to rain9 ENGLISH Minimum Gauge for Cord Sets Volts Total Length of Cord in Feet (meters) 120V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7) Ampere Rating American Wire Gauge More Than Not More Than

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate the charger with a damaged cord orplug. Have them replacedimmediately.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger.

• Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities and ventilation slots.

• Always unplug the charger from the power supply when there is no battery pack in thecavity. Charging a Battery (Fig.C, D)

1. Plug the charger into an appropriate outlet.

2. Insert and fully seat battery pack until you hear an

3. The Green charging light(s) will continuously blink

4. Charging is complete when the green charging light(s)

remain(s) continuously ON.

5. Battery pack can be left in charger or removed.

Only charge batteries in air temperature over 40° F (4.5° C) and below 104° F (+40°C).

6. Charger will not charge a faulty battery pack, which may

be indicated by the charging light(s) staying OFF. Take charger and battery pack to an authorized service center if light(s) stay(s)OFF. NOTE: Refer to label near charging light(s) on charger for blinkpatterns. NOTE: To remove the battery pack, some chargers require the battery pack release button to bepressed. Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger. CRAFTSMAN chargers and battery packs are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable battery packs. Charging other types of battery packs may cause them to overheat and burst, resulting in personal injury, property damage, fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

• Do not allow water or any liquid to entercharger.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug andcord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the heavier the cord and thus the greater its capacity. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on total length of all extension cords plugged together, and nameplate ampere rating. If in doubt, use the next heaviergauge. The RBRC® Seal Please take your spent battery packs to an authorized CRAFTSMAN service center or to your local retailer for recycling. In some areas, it is illegal to place spent battery packs in the trash. You may also contact your local recycling center for information on where to drop off the spent battery pack. Do not place in curbside recycling. For more information visit www.call2recycle.org or call the toll‑free number in the RBRC®Seal. RBRC® is a registered trademark of Call 2Recycle,Inc.ENGLISH

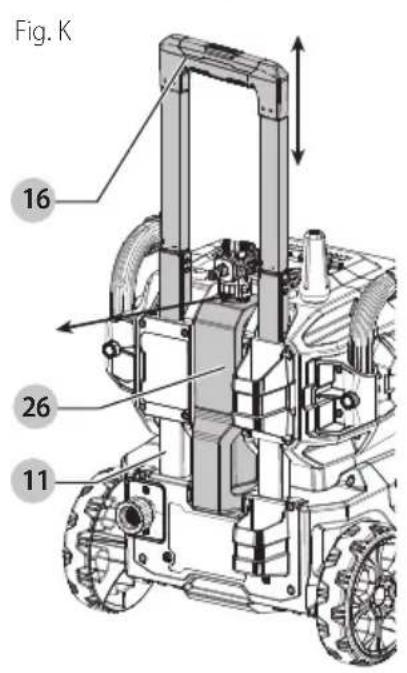

Telescoping Handle (Fig.A, E) This pressure washer has a convenient, built in telescoping handle and transportwheels.

and slide the handle upwards. You will hear an auidible click when it snaps intoposition. SPECIFICATIONS Maximum Pounds per Square Inch 1,500 Rated Gallons per Minute 1.2 Battery 2x20V

High Pressure Hose 25 ft (7.6 m) Suction Hose 10 ft (3 m) Pressure of Inlet Water 0-100 PSI Inlet Water Cold Tap

ASSEMBLY AND ADJUSTMENTS

To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. Wall Mounting Some CRAFTSMAN chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1” (25.4mm) long, with a screw head diameter of 0.28–0.35” (7–9mm), screwed into wood to an optimal depth leaving approximately 7/32” (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots. NOTE: Do not attempt to mount CMCB101 charger under a bench ortable. NOTE: Only mount CMCB101 charger with the charging lights pointed upward toward theceiling. VersaTrack™

WARNING: Do not charge batteries while charger is

hung onTrackwall. CRAFTSMAN chargers, except the CMCB101, can be stored on CRAFTSMAN VersaTrack™ Trackwall. Hooks and accessories are sold separately. Please refer to the VersaTrack™ Trackwall accessory sheet for furtherinformation. NOTE: The CMCB101 charger is not CRAFTSMAN VersaTrack™ Trackwallcompatible.

SAVE THESE INSTRUCTIONS FOR

FUTURE USE Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack may charge at a slower rate than a warm batterypack. The hot/cold pack delay will be indicated by the green light(s) continuing to blink but with the red light continuously ON. Once the battery pack has reached an appropriate temperature, the red light will turn OFF and the charger will resume the chargingprocedure. Electronic Protection System Li‑Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge. The tool will automatically turn off and the battery pack will need to berecharged. Important Charging Notes

1. Longest life and best performance can be obtained if

the battery pack is charged when the air temperature is between 65°F – 75°F (18° C– 24°C). DO NOT charge when the battery pack is below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to the batterypack.

2. The charger and battery pack may become warm to the

touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulatedtrailer.

3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance; b. Check to see if receptacle is connected to a light switch which turns power off when you turn out thelights; c. If charging problems persist, take the tool, battery pack and charger to your local servicecenter.

4. You may charge a partially used pack whenever you

desire with no adverse effect on the batterypack. Charger Cleaning Instructions

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non‑metallic brush. Do not use water or any cleaningsolutions.11 English Removing Soap Bottle from Storage (Fig. K) Always completely empty the soap bottle

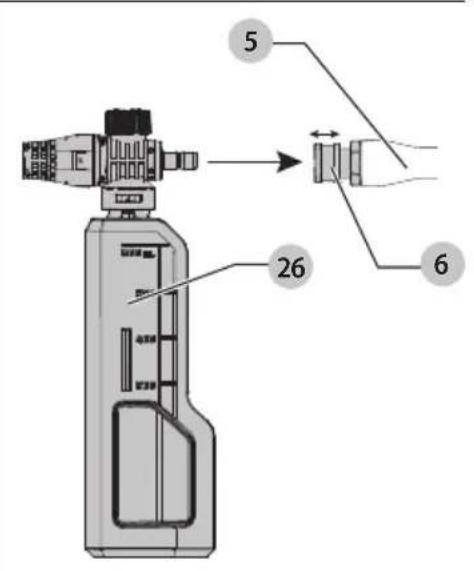

, and slide the handle upwards so you can access the soap bottle

2. To remove the soap bottle

from the built in storage space in the pressure washer unit, grasp the soap bottle

with one hand and pull it out and away from the pressure washer unit.

3. To place the soap bottle

into its storage slot, press the soap bottle

firmly into the storage slot until it snaps into the built in storage space in the pressure washer unit.

4. Ensure that soap bottle

is secured into the storage position by gently tugging on the soap bottle

nOTE: The nozzles listed below might not be included with your pressure washer but are available for purchase at an additionalcost. Common Spray Nozzles Common Applications 15 ° Orange Nozzle For brick or masonry. 25 ° Green Nozzle For vinyl siding. 40° White Nozzle For automotive washing. Black Turbo Nozzle For abrasive cleaning. Attaching Nozzles (Fig.I)

DANGER: Risk of fluid injection. Do not direct

discharge stream toward persons, unprotected skin, eyes or any pets or animals. Serious injury willoccur.

WARNING: Flying objects could cause risk of serious

injury. DO NOT attempt to change nozzles while pressure washer is running. Turn pressure washer unit OFF before changingnozzles.

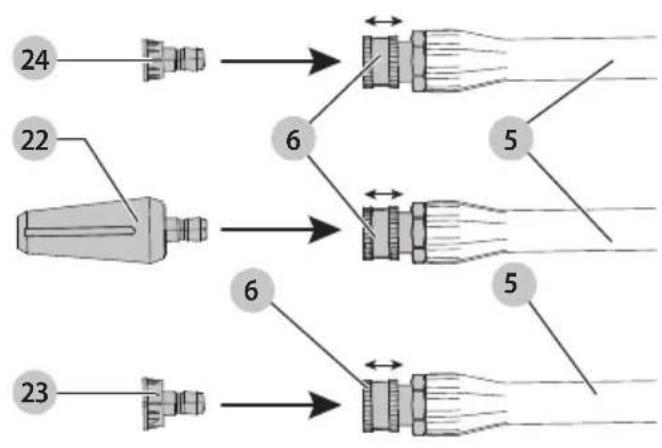

1. To connect a nozzle to the spray wand

, pull the quick connect collar

toward the spray wand and insert the appropriatenozzle.

2. Release the quick connect collar to lock the nozzle inplace.

3. Give the nozzle a firm tug after the quick connect collar

has locked intoplace to ensure the nozzle is locked intoplace. Attaching Garden Hose (Fig.H) nOTE: Before connecting the garden hose to the pressure washer unit, run water through the garden hose for thirty seconds to clear any debris from inside thegardenhose.

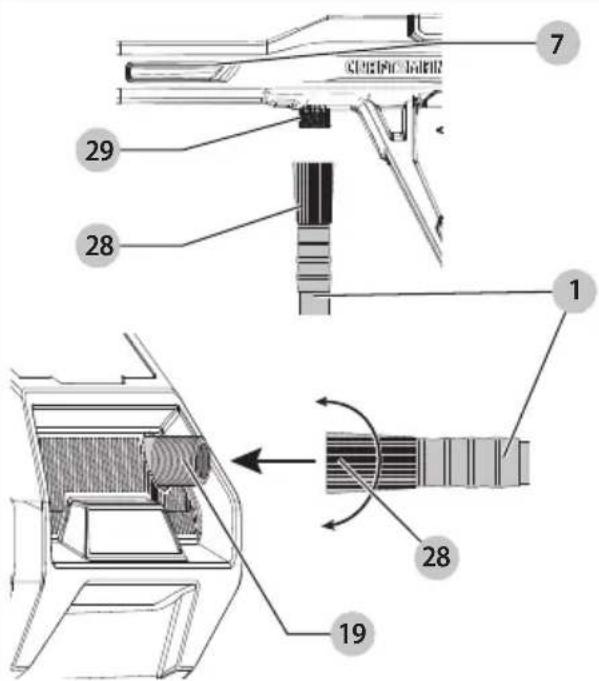

1. To connect a garden hose to the

,place the end of the gardenhose

inside the water intake

2. Securely tighten the garden hose byhand.

nOTE: Always disconnect the garden hose afterusage. Attaching High Pressure Hose (Fig.A, G)

CAUTION: NEVER PULL WATER SUPPLY HOSE TO MOVE pressure washer. This could damage hose and/ or pumpinlet. This pressure washer has a hook and loop hose storage strap

of the pressure washer unit to store the coiled high pressure hose

nOTE: Uncoil the high pressure hose

before installation to preventkinks. nOTE: Avoid cross threading when installing the hose. Cross threading will causeleaks.

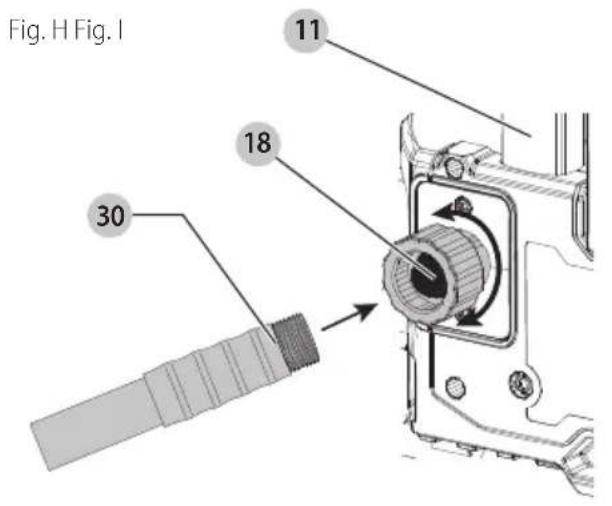

1. To connect the high pressure hose

, thread the hose collar

onto the inlet coupler

2. To connect the high pressure hose to the pressure

, thread the hose collar

onto the high pressure water outlet

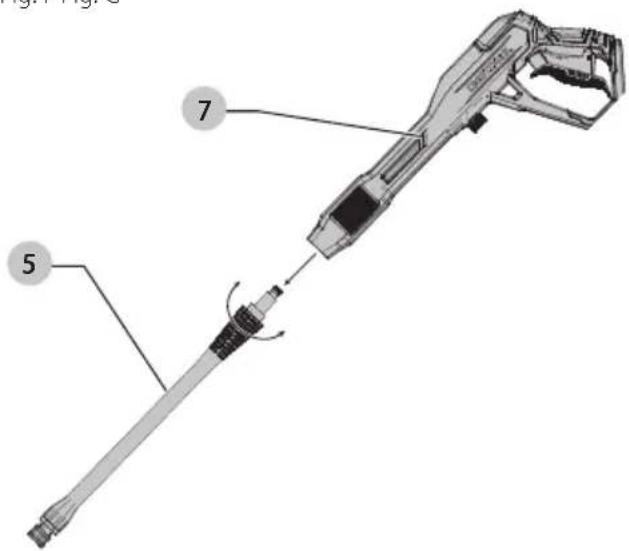

insert the end of the spray handle onto the end of the spraywand.

2. Press in and turn the spray handle counterclockwise to

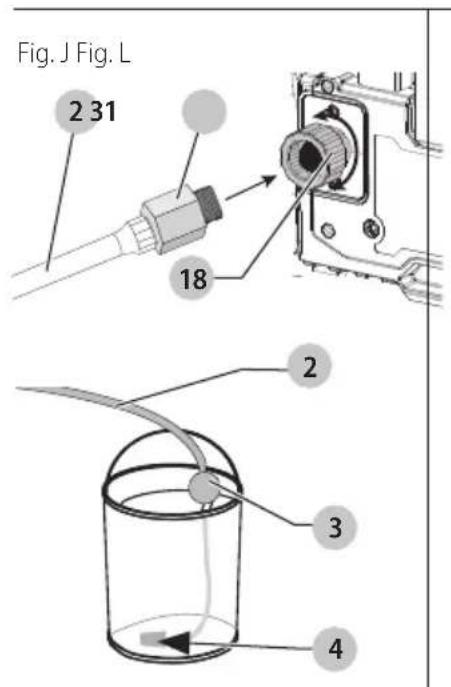

lock it into position. To Attach the Suction Hose (Fig.J) Use the suction hose to pull water from a bucket or other fresh watersource. NOTICE: Do not use to suction soap, chemicals, dirty or corrosive liquids, such as window cleaner, plant food, fertilizers or bleach. Do not use with saltwater. nOTE: Avoid cross threading when installing the hose. Cross threading will causeleaks.

1. To connect the suction hose

,thread the suction hose collar

onto the water intake

2. Securely tighten the suction hose collar

byhand. nOTE: Always disconnect the suction hose afterusage.

3. Place other end of suction hose, with the filter

on it, into a container of fresh water or a fresh water source.

on the suction hose so the filter

stays covered in theliquid.

5. Select the correct nozzle to be used. See Attaching

6. After the job being performed is complete, place the

suction hose into a container of clean water and draw the clean water through the system torinse.

and slide the telescoping handle down and into the pressure washer body. You will hear an auidible click when it snaps intoposition.

3. To move the pressure washer

are touching the ground and pull the unit by the telescopinghandle.ENGLISH

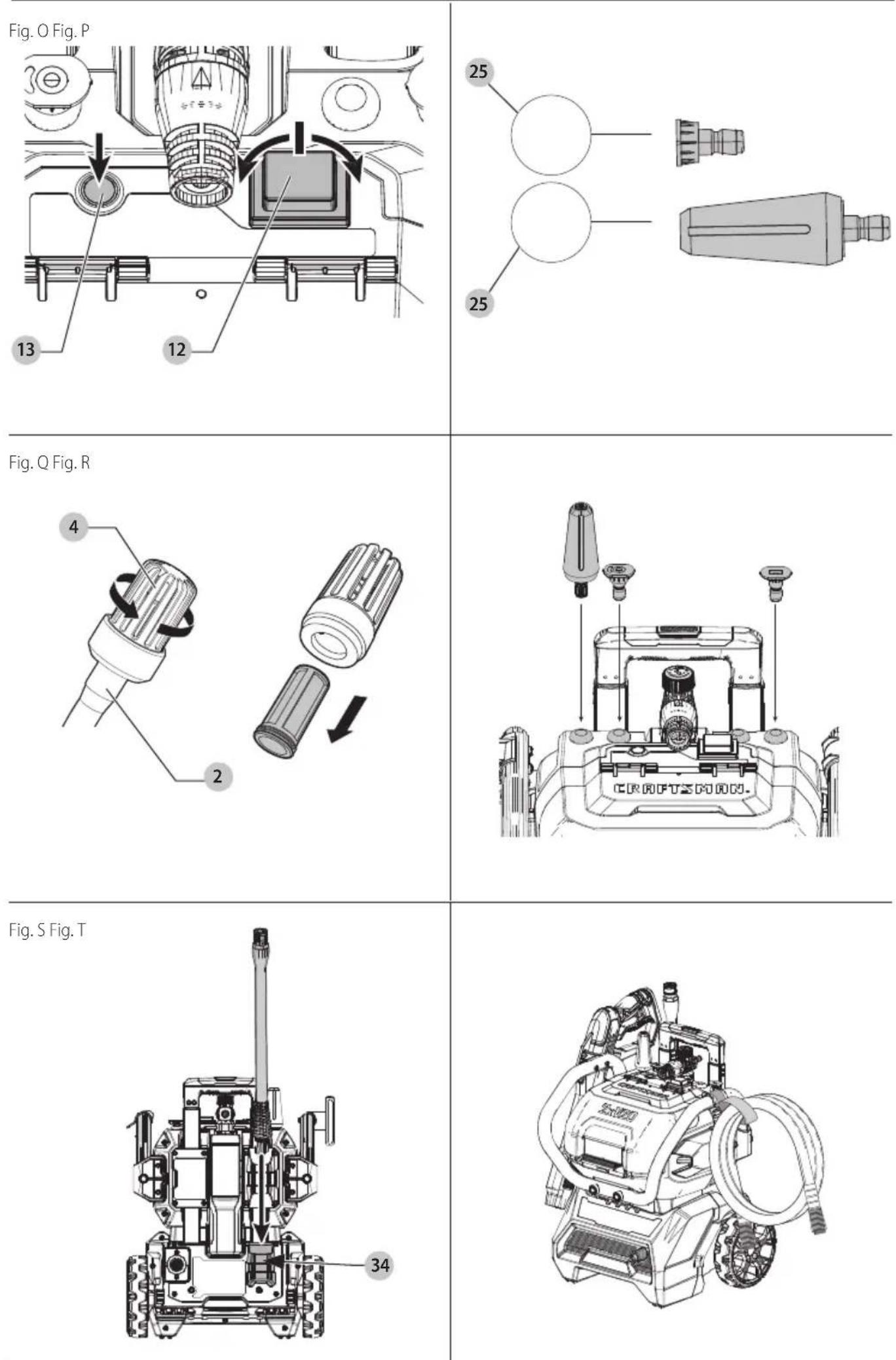

Speed Selector Switch (Fig.A, O) This pressure washer gives you the choice to operate at a high pressure or lower pressure for more delicate jobs, and can also boost pressure for high‑performancecleaning. The speed selector switch

toggles to three positions; ‑ Off, centered. ‑ HI, right side. ‑ LO, left side. To turn the pressure washer ON, toggle the speed selector switch

to the right or left positions. To turn the pressure washer OFF, toggle the speed selector switch

to the center position. For higher pressure washing, press the speed selector switch

to the right to the "HI" position. This mode is best for applications that need higherPSI. For lower pressure washing, press the speed selector switch

to the left to the "LO" position. This mode is best for projects that require a more delicate cleaning. This mode also generally offers more runtime. NOTE: When in "HI" mode, runtime will be decreased as compared to when pressure washer is in "LO"mode. To activate Boost mode, press the boost button

, the green LED will illuminate when activated. This mode is best for applications that require maximum availablePSI. NOTE: Boost mode will only function for up to eight minutes. You can press the boost button

again to exit boost mode before eight minutes and you will go back to the mode the speed selector switch

is set to. When you near the end of eight minutes the green LED will start to flash, and the unit will return to the mode the speed selector switch

is set to after boost mode times out. NOTE: After boost mode is used for a full eight minutes, the unit requires a cool down cycle before boost mode can be reactivated. The green LED will flash, for approximately eight minutes, until the cool down cycle is complete. Once the cool down cycle is complete, the green LED will turn off. Boost mode can now be used again by pressing the boost button

NOTE: The unit can be used in high or low mode during the cool down cycle. Proper Hand Position (Fig.N)

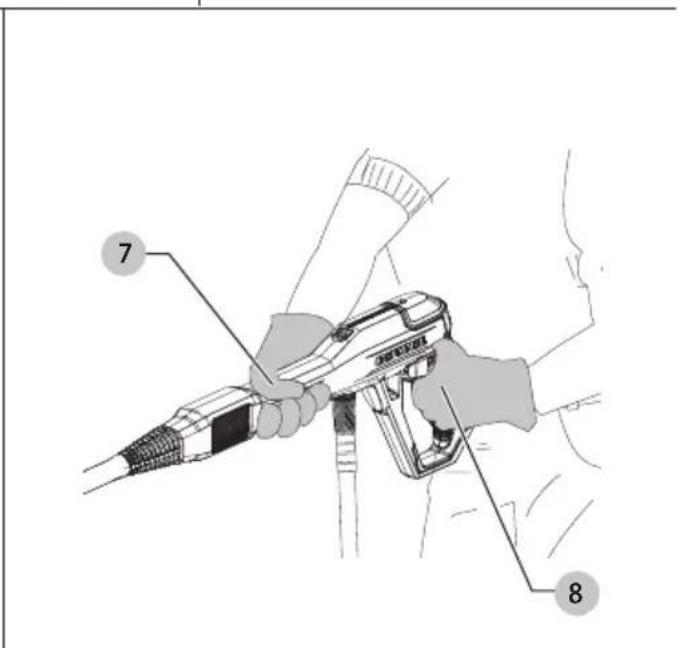

WARNING: To reduce the risk of serious personal injury,

ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal

injury, ALWAYS hold securely in anticipation of a suddenreaction. Proper hand position requires one hand on the spray handle grip

and the other hand on the spray handle

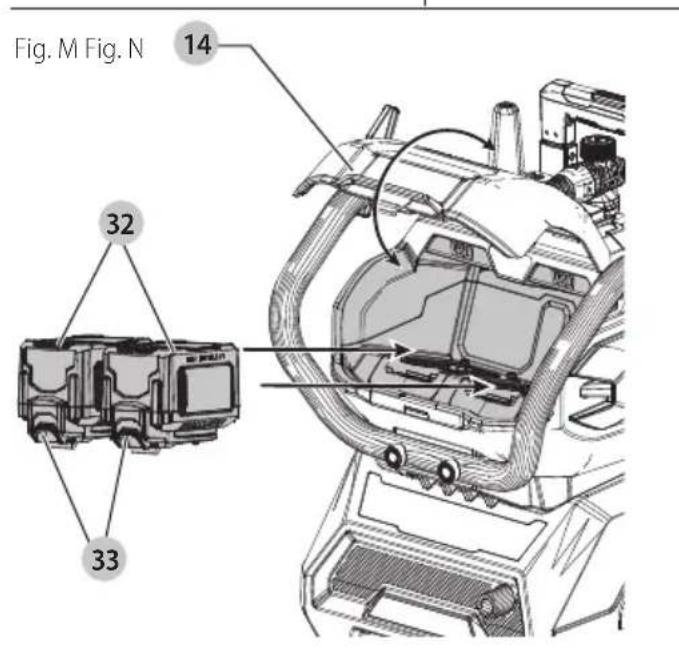

Installing and Removing the Battery Packs (Fig.M) This pressure washer is designed to operate on two battery packs of equal capacity. The pressure washer will not operate on a single battery pack, and If using different capacity battery packs, the smaller capacity battery pack, when depleted, will cause the unit to turn off NOTE: For best results, make sure your battery packs are both fullycharged. To Install the Battery Packs

WARNING: Ensure speed selector switch is in the OFF,

centered position, before installing battery packs.

CAUTION: Unit stops running when the battery port cover is open. If the speed selector switch is in the HI or LO position the unit will power ON when the battery port cover closes.

CAUTION: Do not hold the trigger when closing the battery port cover.

1. Lift and hold the battery port cover

up to expose the batteryports.

2. Align the battery packs

with the rails inside the battery port and slide them in until the battery packs are firmly seated in the tool and ensure that they will notdisengage.

3. Close the battery port cover

. Ensure the cover is fully latched into position before startingtool. NOTE: The unit will not operate if the battery door is not fully closed. To Remove the Battery Packs

1. Lift and hold the battery port cover

up to expose the battery packs

2. Press the battery release buttons

on the battery packs

and firmly pull the battery packs out oftool.

3. Insert the batteries into a charger as described in the

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. Attaching Soap Bottle (Fig. L)

1. To connect the soap bottle

pull the quick connect collar

toward the spray wand and insert the soap bottle.

2. Release the quick connect collar to lock the soap bottle

3. Give the soap bottle a firm tug after the quick connect

collar has locked intoplace to ensure the soap bottle is locked intoplace. NOTE: The soap bottle should be positioned with the bottle towards the ground. Do not position the soap bottle above the spray wand as this will lead to soap dripping on the spraywand. Pressure Washing (Fig.A–O)

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury.13 English Nozzle Cleaning (Fig.A, P)

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. If the nozzle becomes clogged with foreign materials, such as dirt, excessive pressure may develop. If the nozzle becomes partially clogged or restricted, the pump pressure will pulsate. Clean the nozzle immediately using the nozzlecleaner.

by toggling the speed selector switch

to the center position.

2. Turn off the watersupply

and remove the battery packs from the pressure washer unit

to relieve any waterpressure.

4. Remove the nozzle from the spray wand

by pulling the quick connect collar

toward the spraywand.

5. Using the nozzle cleaning tool

, unclog any debris from thenozzle.

6. Run water from a faucet or garden hose through

thenozzle. Suction Hose (Fig.J)

1. To clean the suction hose

, shut off the pressurewasher.

2. Pull the trigger switch to relieve any waterpressure.

3. Remove the suction hose

from the pressurewasher.

4. To clean the suction hose, use water from a garden hose

to thoroughly rinse out the suction hose and allow it to fullydry. Suction Hose Filter (Fig.Q)

on the end of the suction hose

counterclockwise and remove.

2. Remove the strainer from inside of the filter.

3. Rinse all of the parts with clean water andreassemble.

Moving the Pressure Washer (Fig.A–E)

to the center position. Then turn off the watersupply.

in a safe direction and pull the trigger

to release remaining waterpressure.

3. When the spray wand is completely empty, pull up the

and pull the pressure washer unit using the wheels

to your nextlocation. Shutdown (Fig.A, E, L)

by toggling the speed selector switch

to the center position. Then turn off the watersupply and remove the battery packs from the pressure washer unit

2. Discharge residual pressure by squeezing the trigger

until no more water comes out of the spray wand

4. Disconnect the garden hose from the water intake

5. Disconnect the high pressure hose

from the high pressure water outlet

and drainhose. Preparing Surface for Cleaning

• Remove objects from the area which could create a hazard such as children's toys or outdoor furniture.

• Insure that all doors and windows are closed tight. Protect all plants and trees in the adjacent area with a drop cloth ensuring that they will not be harmed by anyoverspray.

• Pre‑rinse cleaning area with freshwater.

• Use only detergents formulated for pressurewashers.

• Always test detergent in an inconspicuous area beforeuse. Preparing Pressure Washer Unit for Use

DANGER: Risk of fluid injection and laceration.

When using the high‑pressure setting, DO NOT allow the high‑pressure spray to come in contact with unprotected skin, eyes, or with any pets or animals. Serious injury willoccur.

CAUTION: Before operation:

1. Connect the high pressure hose to the pressure washer

and the pressure wand. For instructions on connecting the high pressure hose to the pressure washer and pressure wand, please refer to Attaching High Pressure Hose under Assembly andAdjustments.

2. Connect the water supply to the pressure washer. For

instructions on connecting the water supply to the pressure washer, please refer to Attaching Garden Hose under Assembly andAdjustments.

3. Lift and hold the battery port cover

up to expose the batteryports. Install the two battery packs

. Close the battery port cover

. Ensure the cover is fully latched into position, please refer to To Install the Battery Packs under Installing and Removing the Battery Packs. Preparing Spray Wand (Fig.A, F) iMPORTAnT: Before turning on the pressure washer unit, disengage the trigger lock‑off

and squeeze the trigger

1. Spray wand must be assembled before use. Please

refer to Assembling Spray Wand under Assembly andAdjustments.

3. Turn on the watersupply.

. Hold the trigger for 30seconds to purge the system ofair.

5. If air is still found in the water stream, continue to run

water through the spraywand. Cleaning a Surface (Fig.O)

1. To start the pressure washer, toggle the speed selector

to the HI or LOposition.

2. The best angle for spraying water against a cleaning

surface is 45°. ‑ Spraying head on tends to cause dirt particles to imbed in thesurface. ‑ When working on vertical surfaces, it is best to apply detergent starting at the bottom and working upwards which will prevent the detergent from sliding down and causingstreaks.

3. To disengage the spray handle, release thetrigger.ENGLISH

Three Year Limited Warranty For warranty terms, go to https://www.craftsman.com/ support/warranty. To request a written copy of the warranty terms, contact: Customer Service at CRAFTSMAN, 701East Joppa Road, Towson, MD 21286or call 1-888-331-4569. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warrantyinformation. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a freereplacement. Register Online Thank you for your purchase. Register your product nowfor:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct.

• Register online at www.craftsman.com/registration Repairs The charger and batteries are notserviceable. There are no serviceable parts inside the charger or batterypack.

WARNING: To assure product SAFETY and RELIABILITY,

repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN‑authorized service center. Always use identical replacementparts. Accessories

WARNING: Since accessories, other than those

offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, use only CRAFTSMAN accessories recommended for this product. Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN call 1-888-331-4569. Storage (Fig. A, K, R—T)

• Store in a dry, covered location above freezing temperature. STORE INDOORS.

• Always completely empty water from high pressure hose, pressure washer unit, spray wand, nozzles, soap bottle, and spray handle.

snaps into place on the unit, as shown in Fig. K.

• Nozzles can be stored on the unit as shown in Fig.R.

• Spray wand can be stored, broken down into two pieces. ‑ The spray wand can be stored in the wand storage compartment

on the back of the pressure washer unit as shown inFig.S. ‑ The spray handle can be attached to the spray handle storage hook

• High pressure hose and suction hose

can be stored coiled up and secured to the cage

using the hook and loop hose storage strap

as shown in Fig.T. Cleaning

WARNING: Blow dirt and dust out of all air vents with

clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing thisprocedure.

WARNING: Never use solvents or other harsh

chemicals for cleaning the non‑metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. MAINTENANCE

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. Your CRAFTSMAN power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regularcleaning.15 English TROUBLESHOOTING

WARNING: Risk of Unsafe Operation. Before servicing unit unplug or disconnect electrical supply, turn water

supply off, discharge residual pressure, and engage spray handle lock-off. PROBlEM CAUsE CORRECTiOn Motor does not start. Battery packs not installed properly. Check battery pack installation. Battery packs not charged. Check battery pack charging requirements. Speed selector switch is in the OFF position. Toggle switch to the HI or LO position. Wand trigger not being squeezed. Squeeze trigger with switch in ON position. Battery port cover not latched. Press battey port cover fully closed. Unit does not reach high pressure. Water faucet not fully turned on. Open water valve fully. Water inlet filter clogged. Remove filter and rinse to clean. Nozzle worn. Replace with new nozzle. Pump is sucking air. Check that hoses and fittings are air tight. Turn OFF machine and purge pump by squeezing trigger until a steady flow of water emerges from the nozzle. Water supply restricted. Check water hose for kinks, leaks and blockage. Output pressure varies high/low. Not enough inlet water supply. Turn water on full force - check hose for leaks and kinks. Pump is sucking air. Check that hoses and fittings are air tight. Turn OFF machine and purge pump by squeezing trigger until a steady flow of water emerges from the nozzle. Water inlet screen clogged. To unclog, rinse OFF with water. Discharge nozzle is obstructed. Blow out or remove debris. No detergent. Soap bottle is empty. Add more detergent. Soap bottle not properly connected. Check connections. Ensure that the soap bottle is fully secured to the spray wand. Detergent is too thick. Use detergent recommended for use in pressure washers only. Follow manufactures dilution directions. Damaged or clogged detergent suction ports. Remove obstruction or debris and run warm water over the detergent suction ports. Discharge nozzle is obstructed. Blow out or remove debris. Run warm water through nozzle to remove debris Garden hose connection leaks. Loose fittings. Tighten fittings. Missing/worn rubber washer. Replace washer in hose adapter. Suction hose does not self prime. Loose fittings. Tighten fittings. Filter not fully submerged. Adjust float and ensure filter stays fully covered with liquid. Spray wand or extension leaks. Spray wand not properly attached. Please refer to Assembling Spray Wand under Assembly and Adjustments. Broken O-ring. Contact CRAFTSMAN customer service representative at 1-888-331-4569. Pump is excessively noisy. Pump is sucking air. Check that hoses and fittings are air tight. Turn OFF machine and purge pump by squeezing trigger until a steady flow of water emerges from the nozzle. Water leaks from pump. Loose fittings. Check that all fittings are tight. Water seals are damaged or worn. Contact CRAFTSMAN customer service representative at 1-888-331-4569. Oil leaks. Oil seals are damaged or worn. Contact CRAFTSMAN customer service representative at 1-888-331-4569. Motor buzzes but fails to run. System has residual pressure. Turn unit off, squeeze trigger on spray wand to release pressure, then turn unit on. Pressure washer was not used for long periods. Contact CRAFTSMAN customer service representative at 1-888-331-4569.FRAnçAis

• Maximum initial battery voltage (measured without a workload) is 20volts. Nominal voltage is18.

WARNING: Use of any other battery packs may create a risk of injury andfire.
