Product Type	Professional waffle maker for bubble waffles
Brand	Waring Commercial
Model	WBW300X
Plates	Plates for bubble waffles, removable
Coating	Triple non-stick coating Whitford® QuanTanium
Temperature adjustment	Variable (recommended: level 4 for golden waffles)
Indicator lights	Red light (heating) and green light (ready)
Audible signal	6 beeps on first heat, 3 beeps at end of cooking
Switch	On/Off (ON/OFF)
Plate rotation	180° rotation for even cooking
Removable drip tray	Removable drip tray for excess batter
Included accessories	Graduated measuring cup
Power supply	120 V, 60 Hz
Protection	Overheat protection device (automatic shut-off)
Safety	Three-prong grounded plug
Cleaning	Wipe with a damp cloth; plates dishwasher safe (if removed for replacement)
Maintenance	Do not immerse the appliance; season plates before first use
Spare parts	Replacement plates available (kit with screws)
Warranty	1 year against defects in material and workmanship
Usage	Commercial use allowed

Frequently Asked Questions - WBW300X Waring Commercial

How to use the WBW300X waffle maker for the first time?

Before first use, wipe the plates with a damp cloth to remove dust. Then season the plates by heating empty and brushing with vegetable oil. Wipe off excess. This ensures good non-stick performance.

What temperature setting to use for well-golden waffles?

The recommended setting is level 4. Cooking time varies depending on batter and preferences. You can adjust temperature among available levels.

Why does my waffle maker emit smoke and smell during first use?

This is normal. During the first heating, manufacturing residues burn off. Make sure to season the plates before use. Smoke and smell will disappear after a few uses.

How to clean the plates of the WBW300X waffle maker?

After complete cooling, wipe the plates with a damp cloth to remove residues. Never immerse the appliance. For stubborn stains, pour a little oil and wait 5 minutes. Plates are dishwasher safe only if removed for replacement.

Can I use metal utensils on the plates?

No, never use metal utensils as they scratch the non-stick coating Whitford®. Use silicone or wooden heat-resistant spatulas.

What do the audible signals mean?

The appliance emits 6 beeps when preheating is complete and plates are ready. During cooking, it emits 3 beeps to indicate the waffle is done. These signals help you optimize cooking.

How to replace the waffle maker plates?

Order a replacement kit containing plates and screws. Unscrew the fixing screws, remove the old plates, install the new ones by aligning the protrusions with the notches. Tighten the screws (large screw near handle, small screws around). Follow the manual instructions.

What to do if the appliance suddenly turns off during use?

The overheat protection device has activated. Unplug the appliance and let it cool for 10 minutes before reusing. Check that ventilation openings are not blocked.

Can the WBW300X waffle maker make other types of waffles?

This model is specially designed for bubble waffles. For other types (Belgian waffles, mini Belgian), Waring offers other models like WW180X or WMB400X. Plates are not interchangeable between models.

What is the warranty of the Waring Commercial WBW300X waffle maker?

The warranty is one year from the date of purchase, covering defects in material and workmanship. It is valid in the United States and Canada. For repairs, contact Waring Commercial at 1-800-4WARING or return the appliance to their service center.

USER MANUAL WBW300X Waring Commercial

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

When using electrical appliances, especially when children are present, basic safety precautions should always be taken, including the following:

1. READ ALL INSTRUCTIONS.
2. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning appliance.
3. Do not touch hot surfaces. Use handles and knobs.
4. To protect against fire, electric shock, and injury to persons, DO NOT IMMERSE CORD, PLUG, OR UNIT in water or other liquids.
5. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Children should be supervised to ensure that they do not play with the appliance.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest Waring Authorized Service Center for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by Waring® Commercial may result in fire, electric shock, or injury to persons.
8. Do not use outdoors, or for other than its intended use.
9. Do not let power cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Turn knob to setting #1, switch toggle to OFF position and unplug the unit when finished baking waffles.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

13. Always begin by plugging appliance into wall outlet. To disconnect, turn control to setting #1, switch toggle to OFF position, then remove plug from wall outlet.

14. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, REPAIRS SHOULD BE MADE ONLY BY AUTHORIZED PERSONNEL. DO NOT REMOVE THE BASE PANEL. NO USER-SERVICEABLE PARTS ARE INSIDE.

15. To acquire another instruction manual, go to www.waringcommercialproducts.com

SAVE THESE INSTRUCTIONS APPROVED FOR COMMERCIAL USE

CONTENTS

Important Safeguards .... 2

Grounding Instructions....3

Special Cord Set Instructions .... 3

Special Features.... 4

Instructions for Use 5

Waffle Plate Cleaning & Maintenance 6

Warranty 8

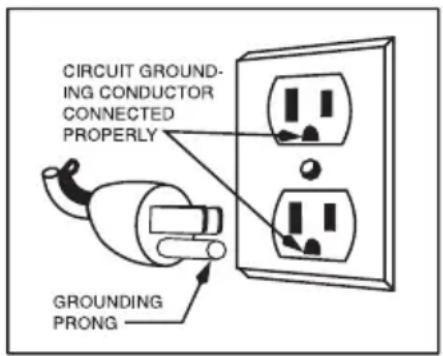

GROUNDING INSTRUCTIONS

For your protection, Waring® Commercial Waffle Makers are supplied with a molded, 3-prong, grounding-type plug and should be used in combination with a properly connected, grounding-type outlet as shown in the figure.

SPECIAL CORD SET INSTRUCTIONS

A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

Extension cords may be used if care is exercised in their use.

If an extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance, and the longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or animals, or tripped over.

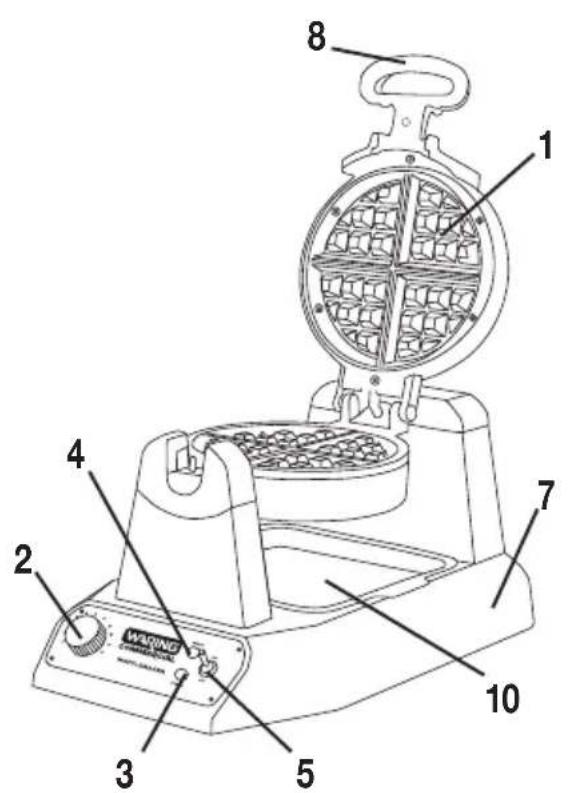

SPECIAL FEATURES

1. Waffle Grids – Belgian, Mini Belgian, Classic and Bubble

(Belgian waffle grids shown)

Waffle plates are triple coated with Whitford® QuanTanium nonstick coating.

2. Browning Control Adjustment

- Adjustable for different batters and personal preference

3. Power Indicator Light

- Lights red when waffle maker is on and heating up

4. Ready Indicator Light

- Lights green when waffle maker is ready to bake

5. Power Switch

6.IndicatorBeeps (not shown)

- Will beep 6 times when unit is ready to bake for first waffle of every baking session

- Will beep 3 times when waffle is done

7. Base

8. Handle

9. 4 oz. Measuring Scoop (not shown)

For the WMB400X unit, use 1 oz. of batter per mini Belgian

10. Removable Drip Tray

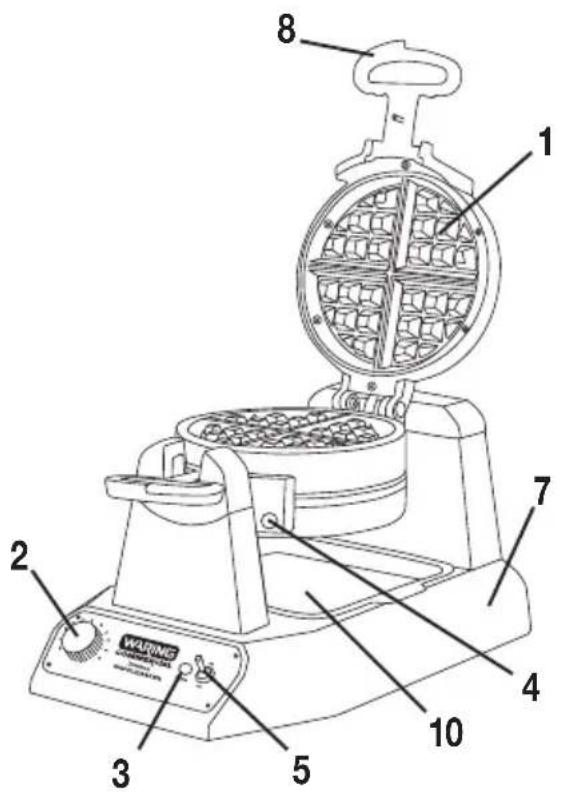

WW180X

WW200X

WARING® COMMERCIAL WAFFLE MAKERS
WWD180X/200X	Classic Waffle, 5/8" thick
WW180X/200X	Belgian Waffle, 1" thick
WMB400X/800X	Mini-Belgian Waffle, four 1" thick
WBW300X	Bubble Waffle

BEFORE FIRST USE

1. These Waring ^® Commercial Waffle Maker plates are triple-coated with Whitford ^® nonstick coating.* Before the first use, we suggest you season the waffle grids by preheating and then brushing them with cooking oil. Wipe with a paper towel or pastry brush.

2. Remove any dust from shipping by wiping the plates with a damp cloth. Remove all protective paper and wrapping.

INSTRUCTIONS FOR USE

1. Plug cord into wall outlet.
2. Switch the toggle switch to the ON position. The RED light will illuminate to signal power.
3. Preheat your Waring® Commercial Waffle Maker on setting #4 or preferred setting. It will now begin the preheating process. This should take about 4 minutes. The machine will sound 6 beeps and the GREEN indicator light will go on to signal the unit is ready for baking. Season the waffle grids by spraying with cooking spray or brushing with a flavorless oil.

For initial use, it is important that the waffle maker is preheated before seasoning with cooking spray or oil.

NOTE: The first time you use your waffle maker, it may have a slight odor and may smoke a bit. This is normal, and common to heating appliances.

1. Choose a setting on the browning control dial. For golden brown waffles, we recommend using setting #4. When the waffle is completely baked, the waffle maker will sound 3 beeps. Baking time is determined by browning level chosen.

2. Fill measuring scoop with batter to fill line. Pour batter evenly into the center of the waffle grid. For mini Belgian units, pour 1 oz. of batter in each waffle mold. Use a heatproof spatula to spread the batter evenly over the grid. Close the lid and rotate the unit 180^irc .

3. Once the waffle is ready and the waffle maker has beeped 3 times, rotate the waffle maker 180^irc , open the lid and remove waffle by gently loosening the edges with a heatproof plastic spatula. Never use metal utensils, as they may damage the nonstick coating.
4. For double waffle makers, multiple waffles can be baked at one time. For one waffle, simply follow previous instructions. For more than one waffle at once, pour batter into top waffle compartment, then rotate 180^irc . You will now be able to open the other waffle compartment. Pour the batter in the grids and rotate another 180^irc in the other direction. Both waffles will now cook. There are individual green READY lights that will illuminate when each waffle is baked, and when an empty compartment is ready to bake another waffle.

THERMAL PROTECTION

IF UNIT OVERHEATS, THE MACHINE WILL AUTOMATICALLY TURN OFF. UNPLUG, LET MACHINE COOL FOR 10 MINUTES, PLUG IN AND CONTINUE USE.

IF POWER IS LOST DURING OPERATION, UNPLUG AND LET COOL 10 MINUTES. PLUG IN AND CONTINUE USE.

WAFFLE PLATE CLEANING & MAINTENANCE

Clean daily and diligently; doing so will ensure that your waffle maker works properly and continues to work well over time.

How to Clean Waffle Plates

Once you have finished baking each day, turn the switch to the OFF position and remove plug from electrical outlet. Leave top lid open and allow plates to cool before cleaning. Be certain plates have cooled completely before cleaning

Never take your waffle maker apart for cleaning. Brush crumbs from grooves and absorb any excess cooking oil by wiping with a dry cloth or paper towel. You may clean the plates by wiping with a damp cloth to prevent staining and sticking from batter or oil buildup. If batter adheres to plates, simply pour a little cooking oil onto the baked batter and let stand approximately 5 minutes. This will allow the batter to soften and will make it easier to remove.

To help remove oil buildup and batter residue, place a damp paper towel in between the waffle plates and close the lid. Allow to sit for a few minutes.

To clean exterior, wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad. NEVER IMMERSE CORD, PLUG OR UNIT IN WATER OR OTHER LIQUIDS.

Serviceable Plates

To order replacement plates, call customer service at 1-800-4WARING, order online or find a local distributor or service center.

Although removable, these plates are not intended to be removed for routine cleaning. Plates are ONLY meant to be removed if there is a scratch on the nonstick coating and you need to replace the plate. If removed for cleaning, the plates are dishwasher safe.

How to Remove the Waffle Plates

PARTS

• 2 waffle plates
  • 4 large screws (2 extra)
  • 16 small screws (6 extra)
• Screwdriver

INSTRUCTIONS

1. Carefully unpack the replacement kit.
2. Using the provided screwdriver, carefully remove the screws from the perimeter edge of waffle plate/s. Lift plates up and off the housing. Slight force may be needed to release the plates completely. Discard the old plate/s and screws.
3. Starting with the lower grid, place the new plate onto the housing by aligning rear and front projections onto the base. The wider projections will fit into the rear.
4. Install 1 large screw into the slot located near the handle.
5. Install the smaller screws around the perimeter.
6. Repeat steps 2–5 for the upper grid replacement.

LIMITED ONE YEAR WARRANTY

(U.S. and Canada only)

Waring® Commercial warrants every new Waring® Commercial Waffle Maker to be free from defects in material and workmanship for a period of one year from the date of purchase when used with foodstuffs, nonabrasive liquids (other than detergents) and nonabrasive semiliquids, providing it has not been subject to loads in excess of the indicated rating.

Under this warranty, Waring® Commercial will repair or replace any part which, upon our examination, is defective in materials or workmanship, provided the product is delivered prepaid to the Waring Service Center at: 314 Ella T. Grasso Ave., Torrington, CT 06790, or any Factory Approved Service Center.

This warranty does not: a) apply to any product that has become worn, defective, damaged or broken due to use or due to repairs or servicing by other than the Waring Service Center or a Factory Approved Service Center, or due to abuse, misuse, overloading or tampering; or b) cover incidental or consequential damages of any kind.

Warning: This warranty is void if appliance is used on Direct Current (DC).

WARING CON

314 Ella T. Gr

Torrington, C

GARANTIE LIMITÉE D'UN AN

Trademarks or service marks of third parties used herein are the trademarks or service marks of their respective owners.

©2019 Waring Commercial

314 Ella T. Grasso Ave.

Torrington, CT 06790

www.waringcommercialproducts.com

1-800-4-WARING

Printed in China

Impreso en China

Imprimé en Chine

X Series IB

19WC061861
